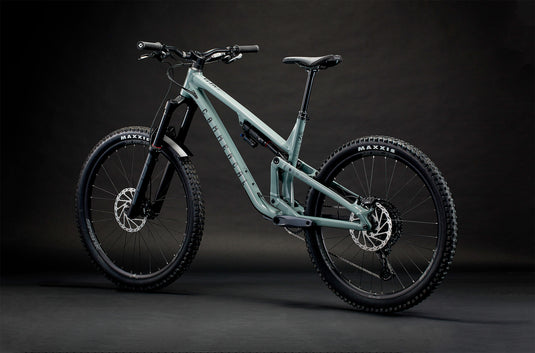

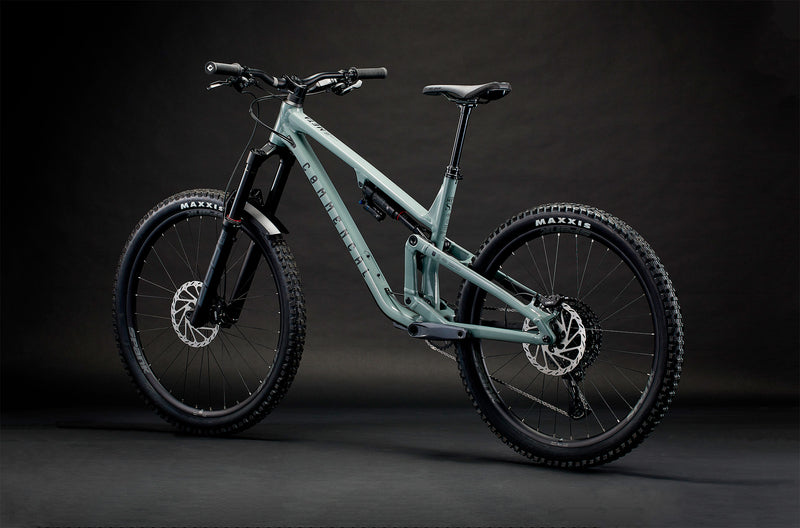

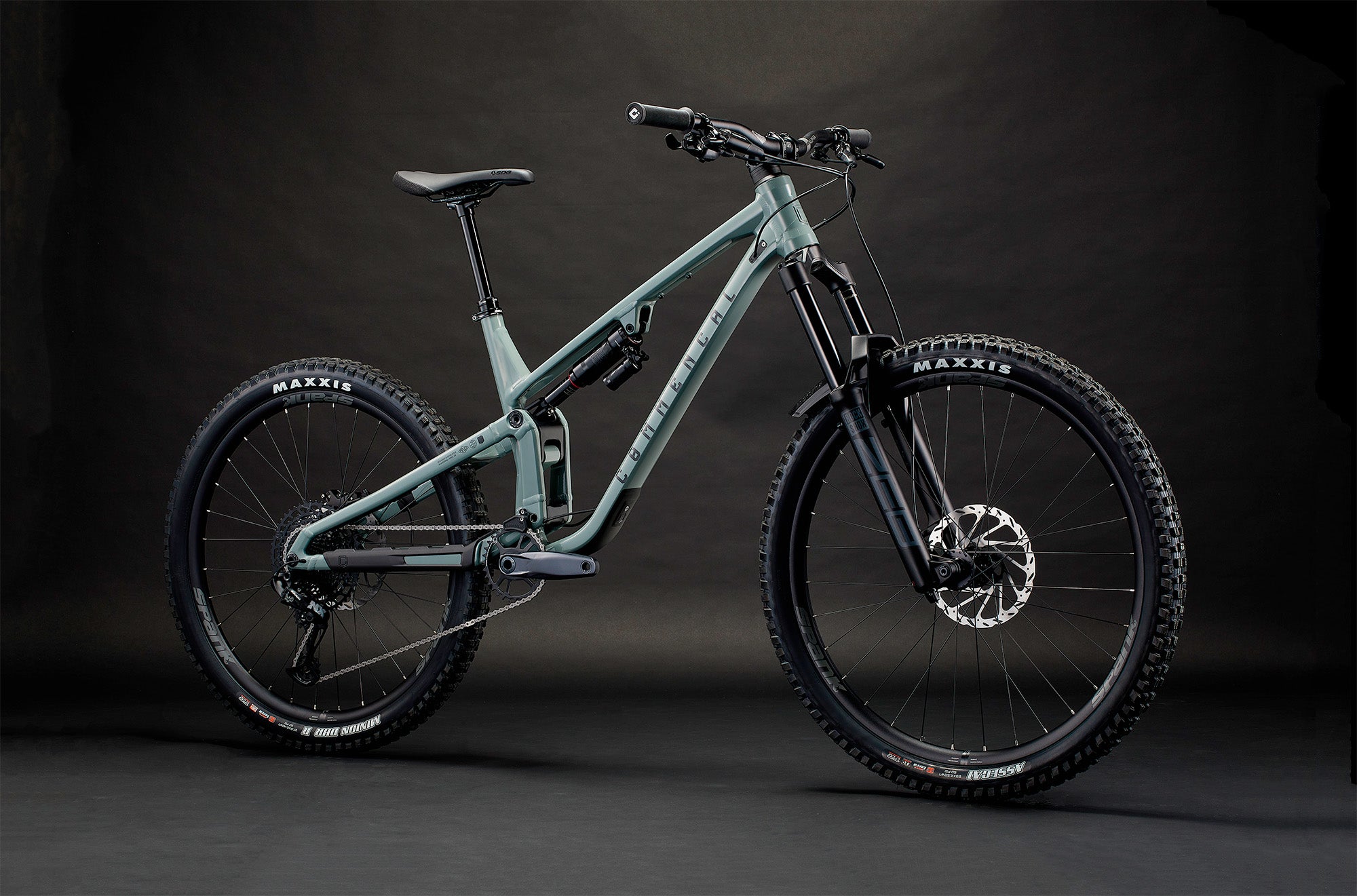

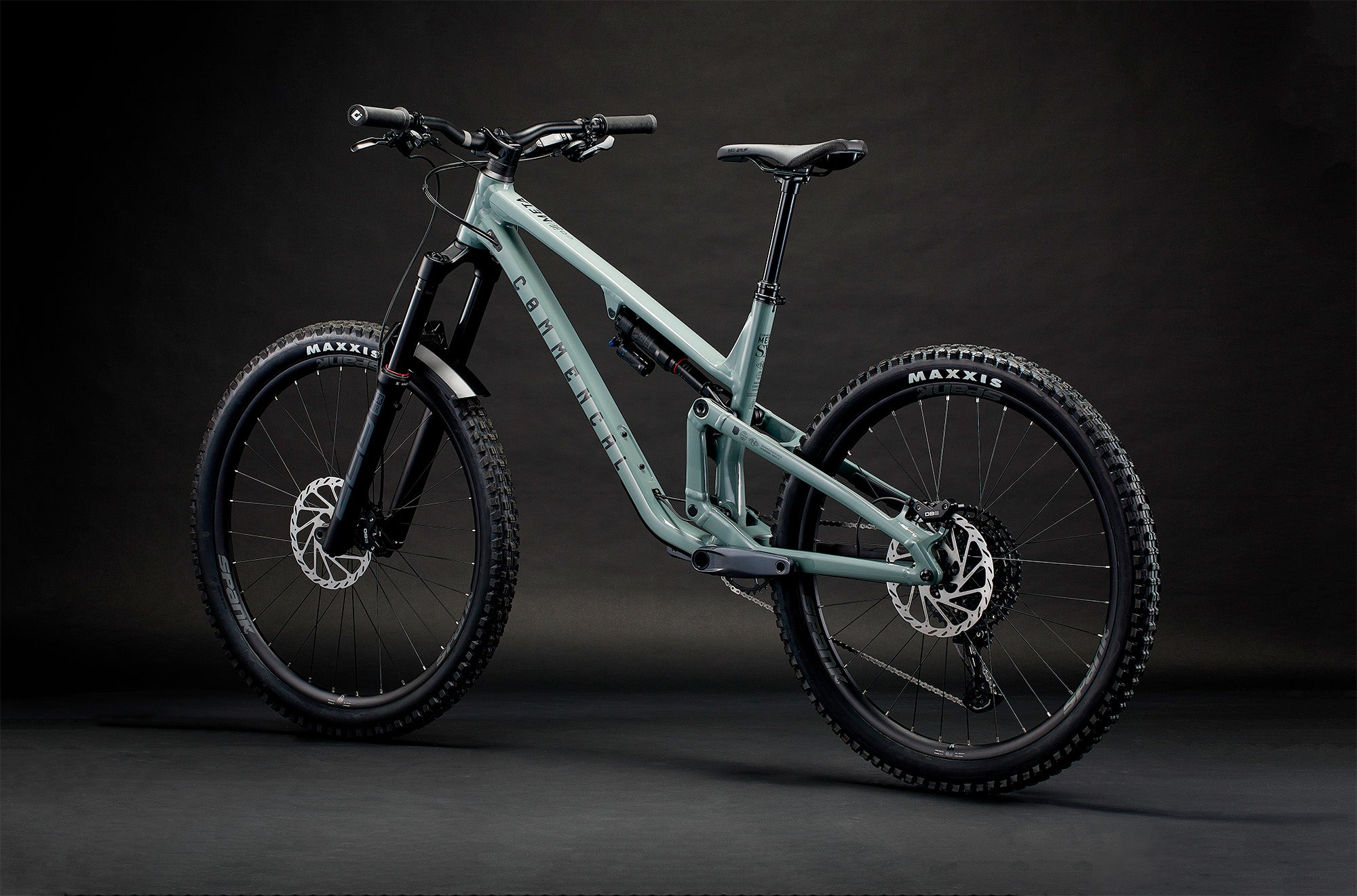

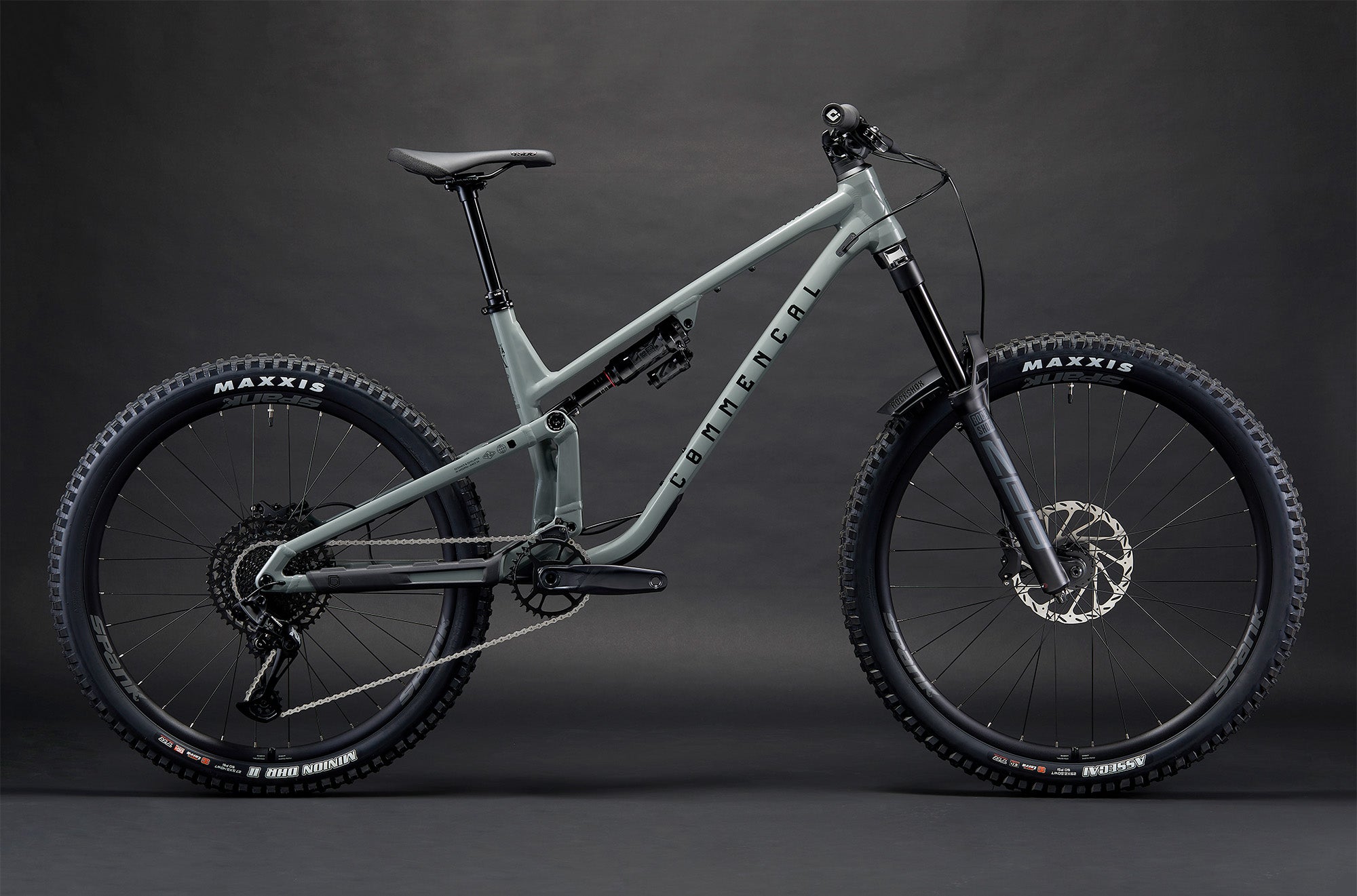

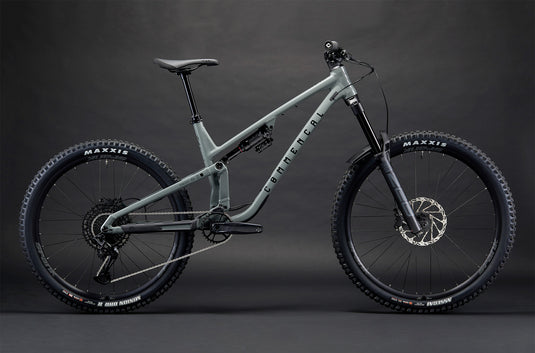

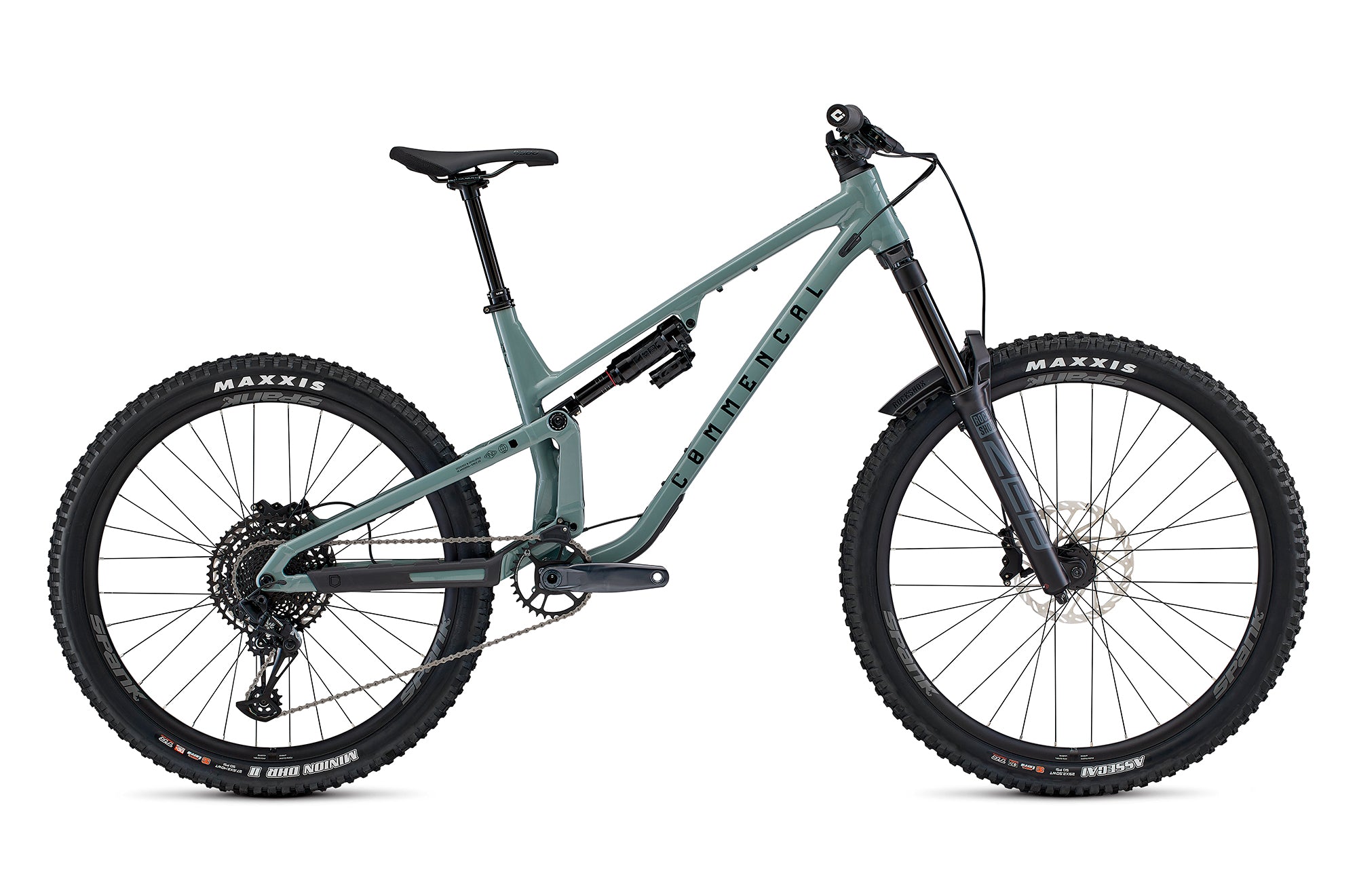

Commencal META SX V5 Ride Pyrite Grey Enduro Bike
Frame
META SX V5, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6Shock

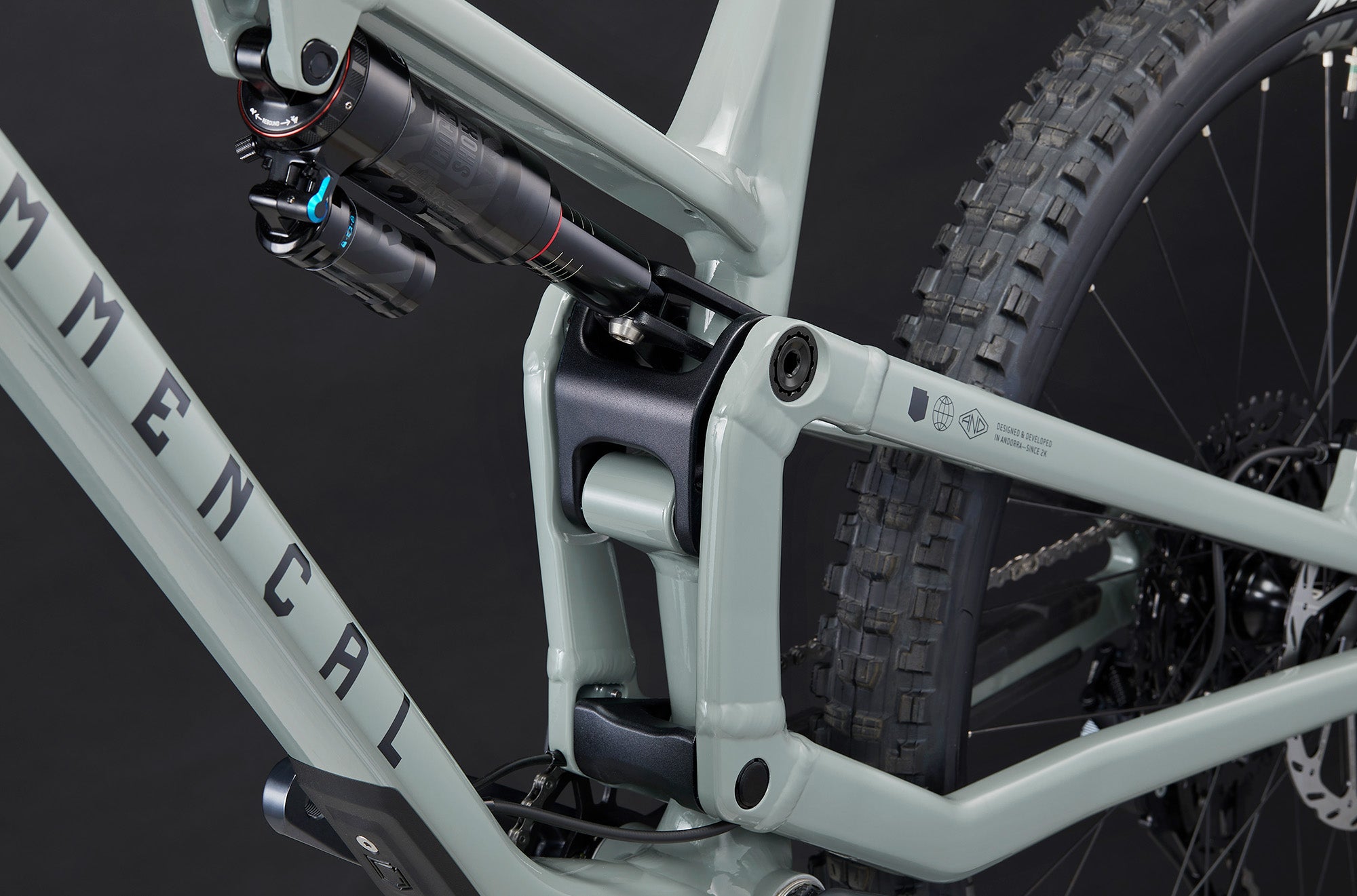

ROCKSHOX Super Deluxe Select +
230 x 65 mm, RT damper, DebonAir, rebound, 2 position compression adjustment, 0 Token neg. 3 Tokens pos.Fork

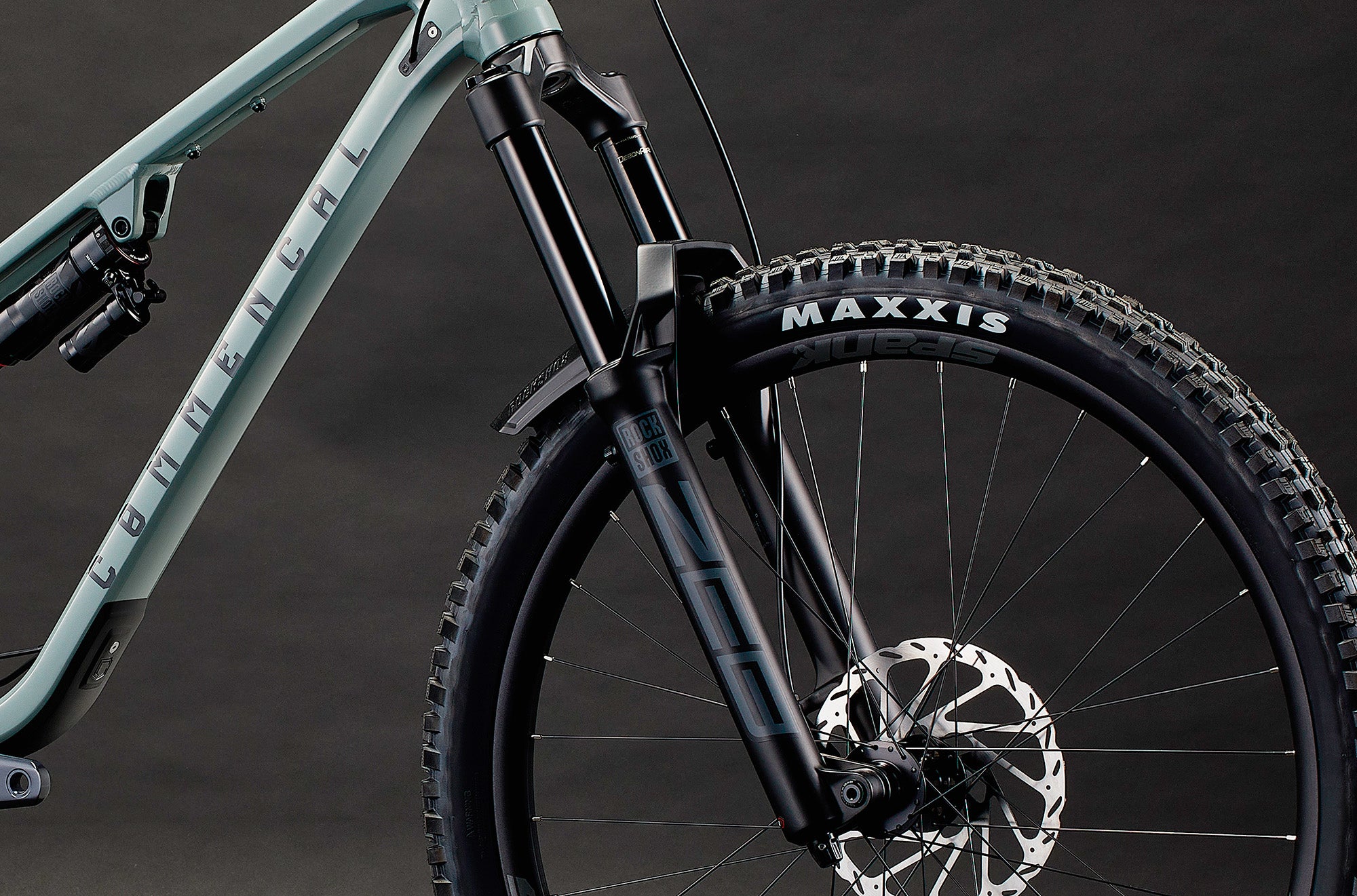

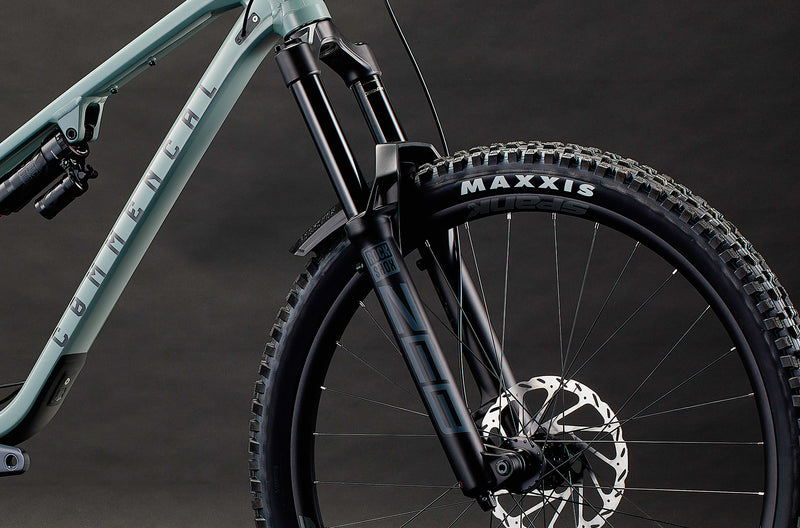

ROCKSHOX Zeb Base, 170 mm travel
29", Rush RC damper, DebonAir+, LSC, rebound, Boost (15 x 110 mm), 44 mm offset, 1 TokenHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem

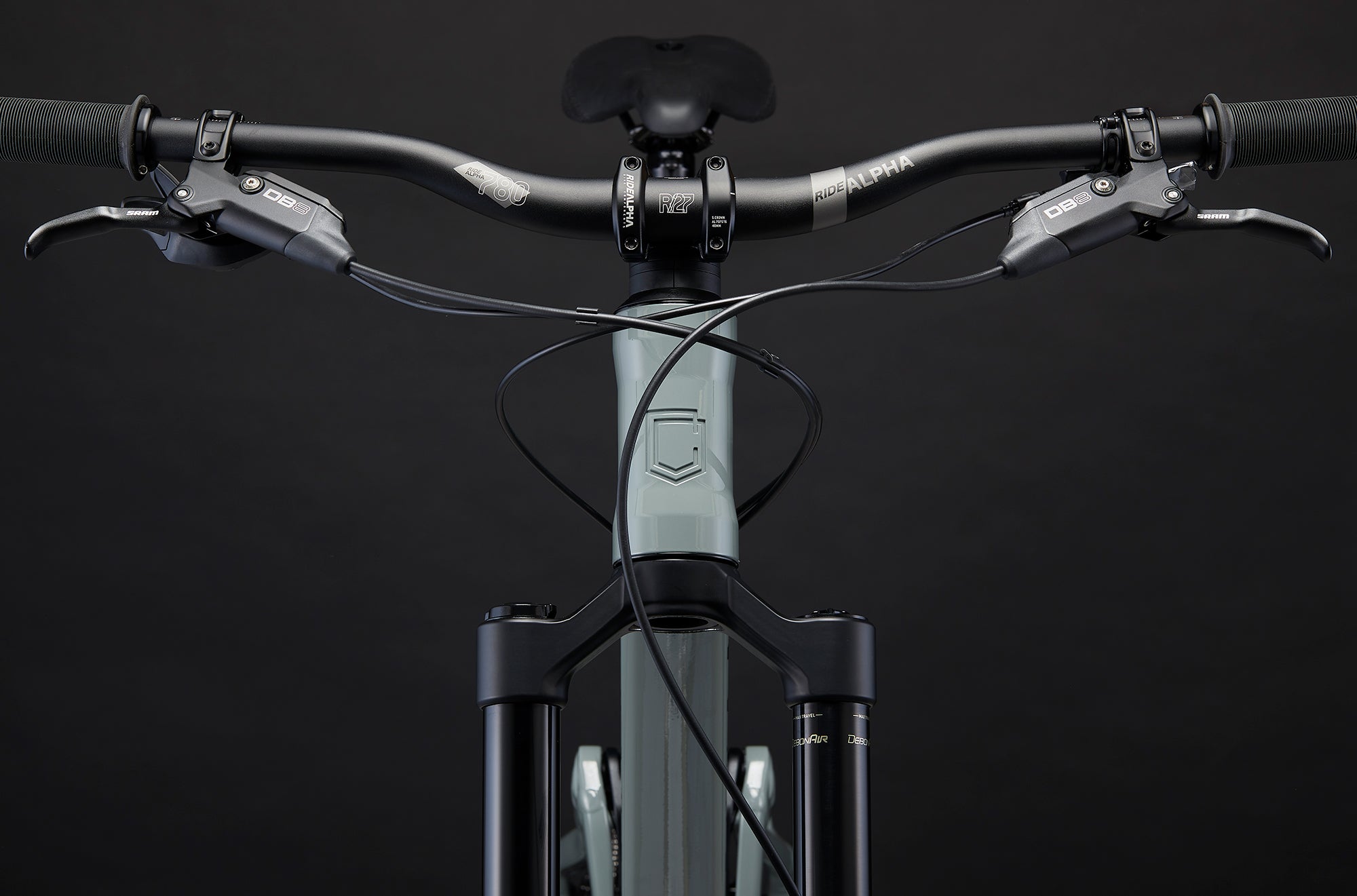

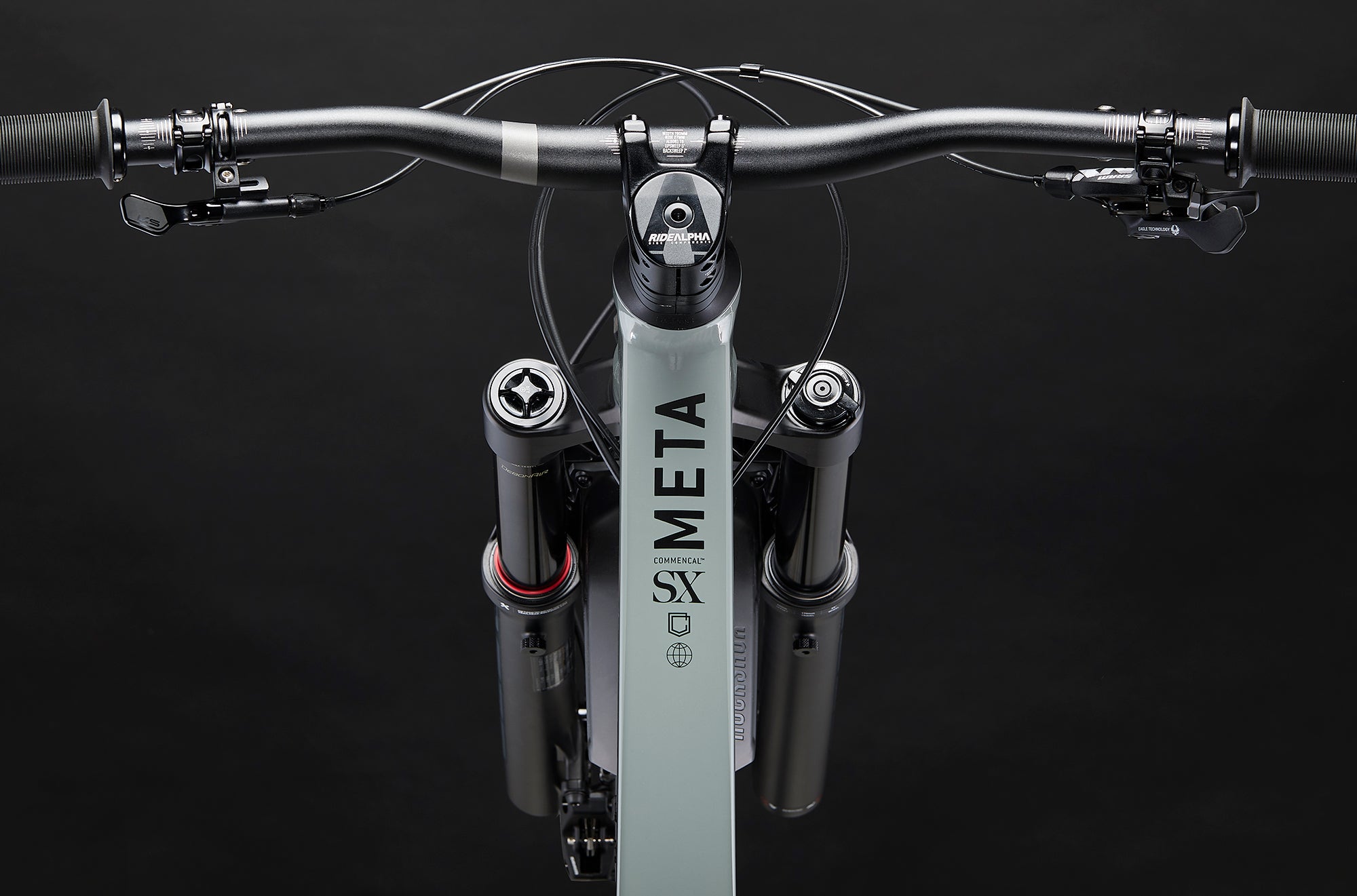

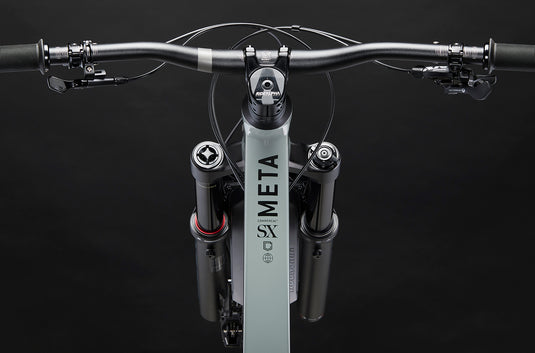

RIDE ALPHA 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
SRAM DB8, 4 pistons, steel-backed organic pads, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6-boltShifters
SRAM NX Eagle
12sChain guide
RIDE ALPHA
32t-34tREAR DERAILLEUR
SRAM NX Eagle
12sBottom bracket
SRAM DUB WIDE
PressfitCrankset
SRAM X1 1000 Eagle, 165 mm crank arms, DUB, Boost
Chainring: SRAM Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
SPANK SPIKE RACE 33
Rear: 27.5'', 32h, 28 mm inner width - Front: 29'', 32h, 28 mm inner widthHubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5"x2.4" WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29"x2.5" WT, 3C MaxxTerra, EXO, Tubeless ReadySeat post
KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remoteSaddle
SDG Bel Air V3
140 mm width, steel railsWeight
16,1 kg / 35.49 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pyrite Grey
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 27/29"
Frame material
AL 6066 T4, T6
Frame weight
3,3 kg / 7.27 lb, raw without accessories
Rear travel
165 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON BODY / 20 X 10 mm ON SHAFT
Recommended/max. fork height
586 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 721
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,6 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
55 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle


Frame
META SX V5, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6Shock
ROCKSHOX Super Deluxe Select +
230 x 65 mm, RT damper, DebonAir, rebound, 2 position compression adjustment, 0 Token neg. 3 Tokens pos.Fork
ROCKSHOX Zeb Base, 170 mm travel
29", Rush RC damper, DebonAir+, LSC, rebound, Boost (15 x 110 mm), 44 mm offset, 1 TokenHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
SRAM DB8, 4 pistons, steel-backed organic pads, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6-boltShifters
SRAM NX Eagle
12sChain guide
RIDE ALPHA
32t-34tREAR DERAILLEUR
SRAM NX Eagle
12sBottom bracket
SRAM DUB WIDE
PressfitCrankset
SRAM X1 1000 Eagle, 165 mm crank arms, DUB, Boost
Chainring: SRAM Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
SPANK SPIKE RACE 33
Rear: 27.5'', 32h, 28 mm inner width - Front: 29'', 32h, 28 mm inner widthHubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5"x2.4" WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29"x2.5" WT, 3C MaxxTerra, EXO, Tubeless ReadySeat post
KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remoteSaddle
SDG Bel Air V3
140 mm width, steel railsWeight
16,1 kg / 35.49 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pyrite Grey
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 27/29"
Frame material
AL 6066 T4, T6
Frame weight
3,3 kg / 7.27 lb, raw without accessories
Rear travel
165 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON BODY / 20 X 10 mm ON SHAFT
Recommended/max. fork height
586 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 721
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,6 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
55 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle

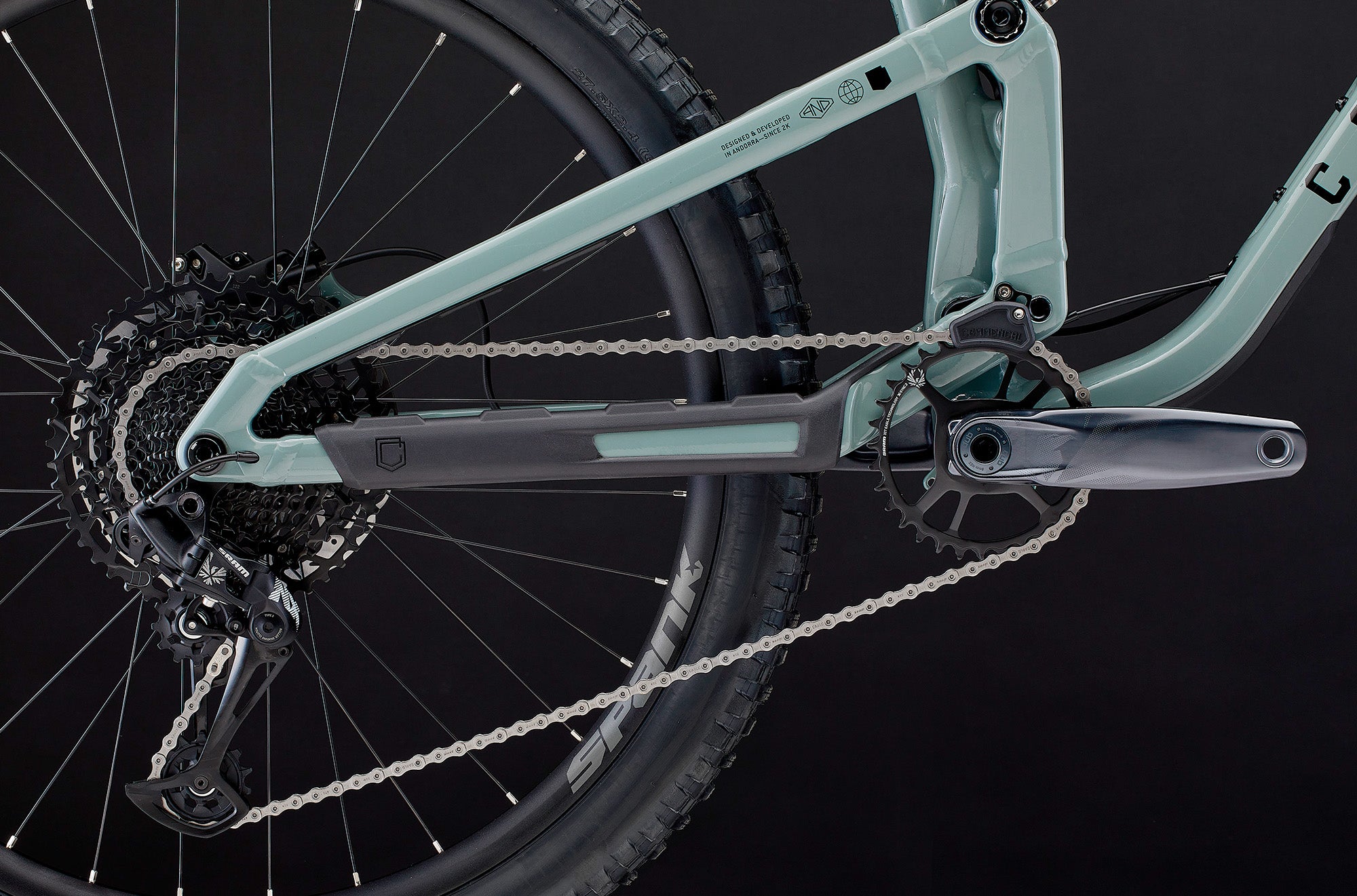

The META SX V5 RIDE is fully loaded for full-send adventures. Its 165 mm alloy frame pairs with a 170 mm ROCKSHOX Zeb fork and Super Deluxe Select+ shock for a ride that soaks up chaos like a sponge. SRAM’s 12-speed Eagle drivetrain, DB8 4-piston brakes, and SPANK SPIKE rims keep things sharp and responsive. With MAXXIS Assegai and DHR II tyres, KS dropper, and a full armour kit, this rig’s ready to rage—straight out of the crate.

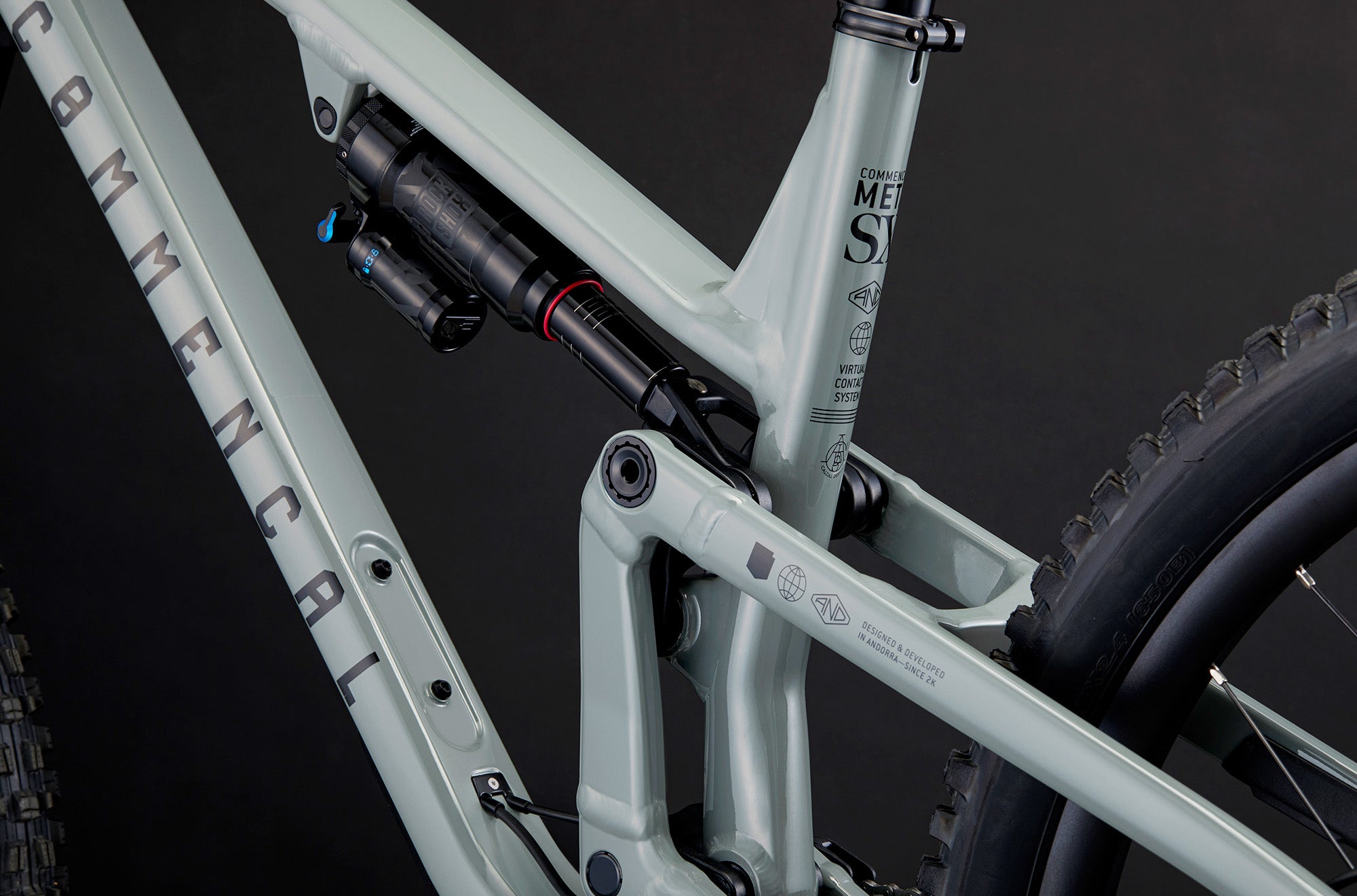

Built for rowdy enduro rides, the META SX V5 frame blends 165 mm rear travel with a tough AL 6066 alloy build that tips the scales at just 3.3 kg. It’s piggy-back shock compatible, features a 230 x 65 mm stroke, and supports forks up to 586 mm. With internal cable routing, ISCG 05 tabs, and clearance for up to 64 mm tyres, it’s ready to muscle through the messiest lines you can find—no excuses, just grip and go.
