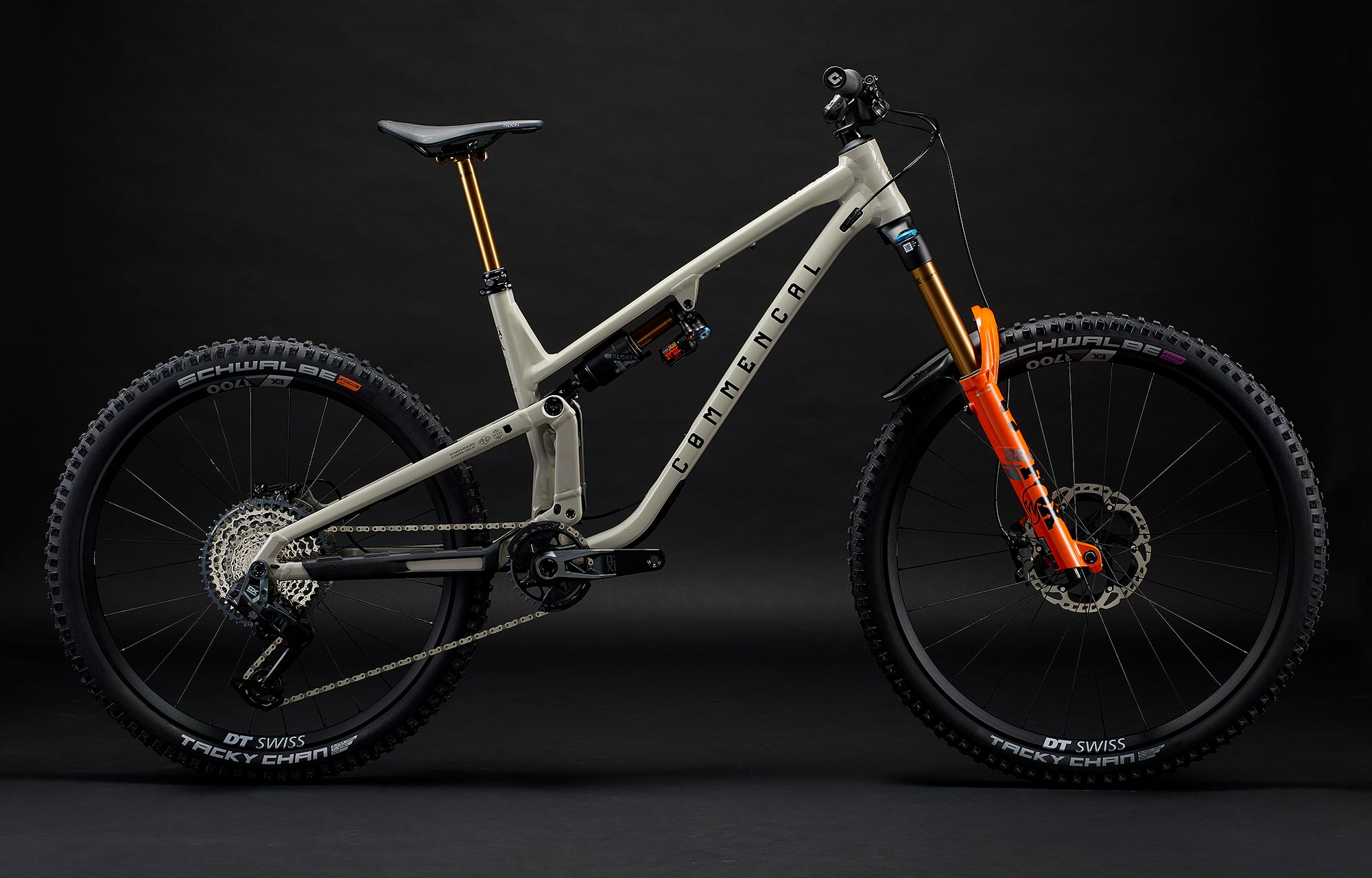

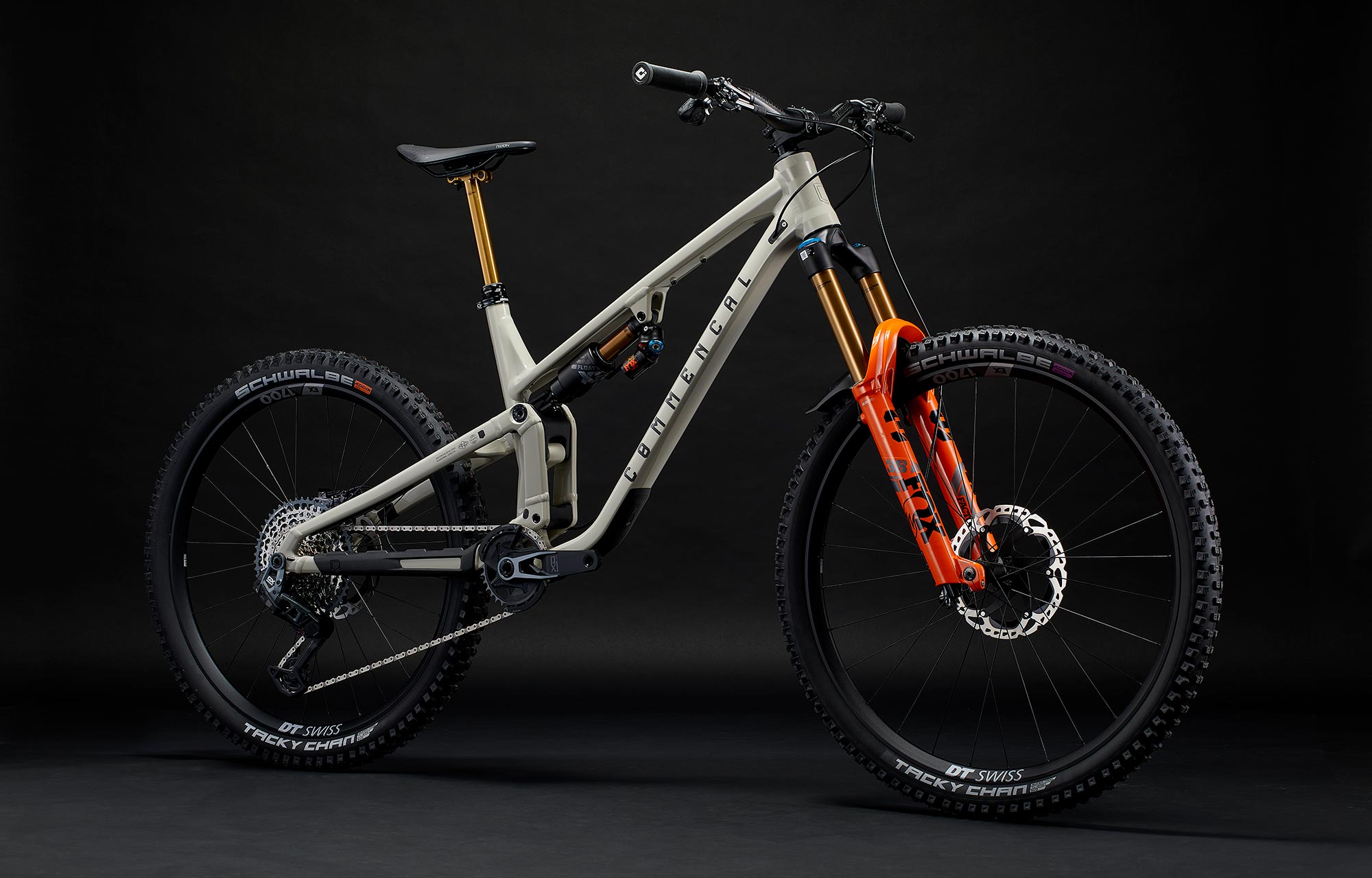

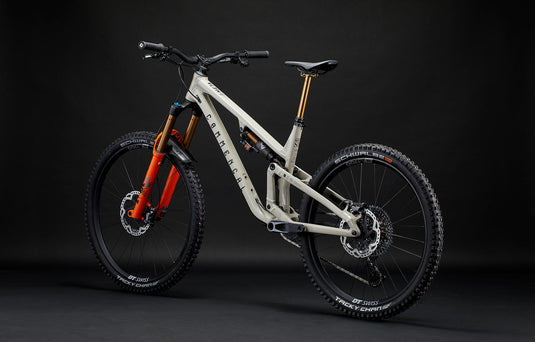

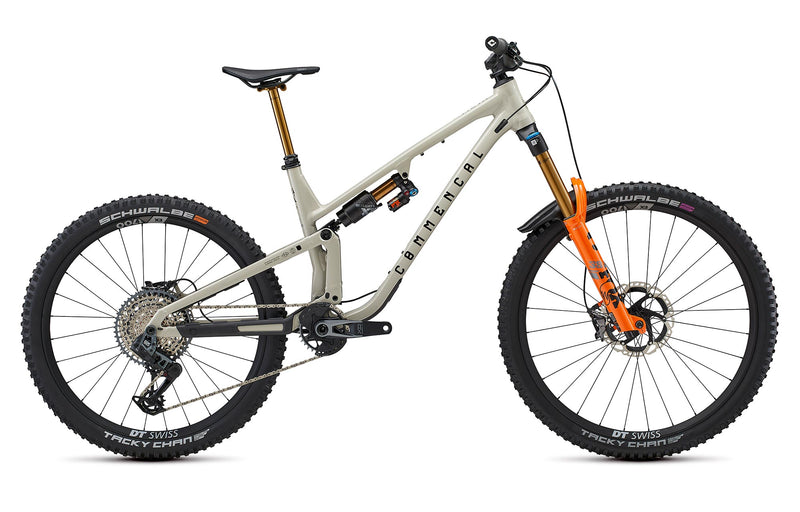

Commencal META SX V5 T-Type Chalk Enduro Bike
Frame
META SX V5, 165 mm travel

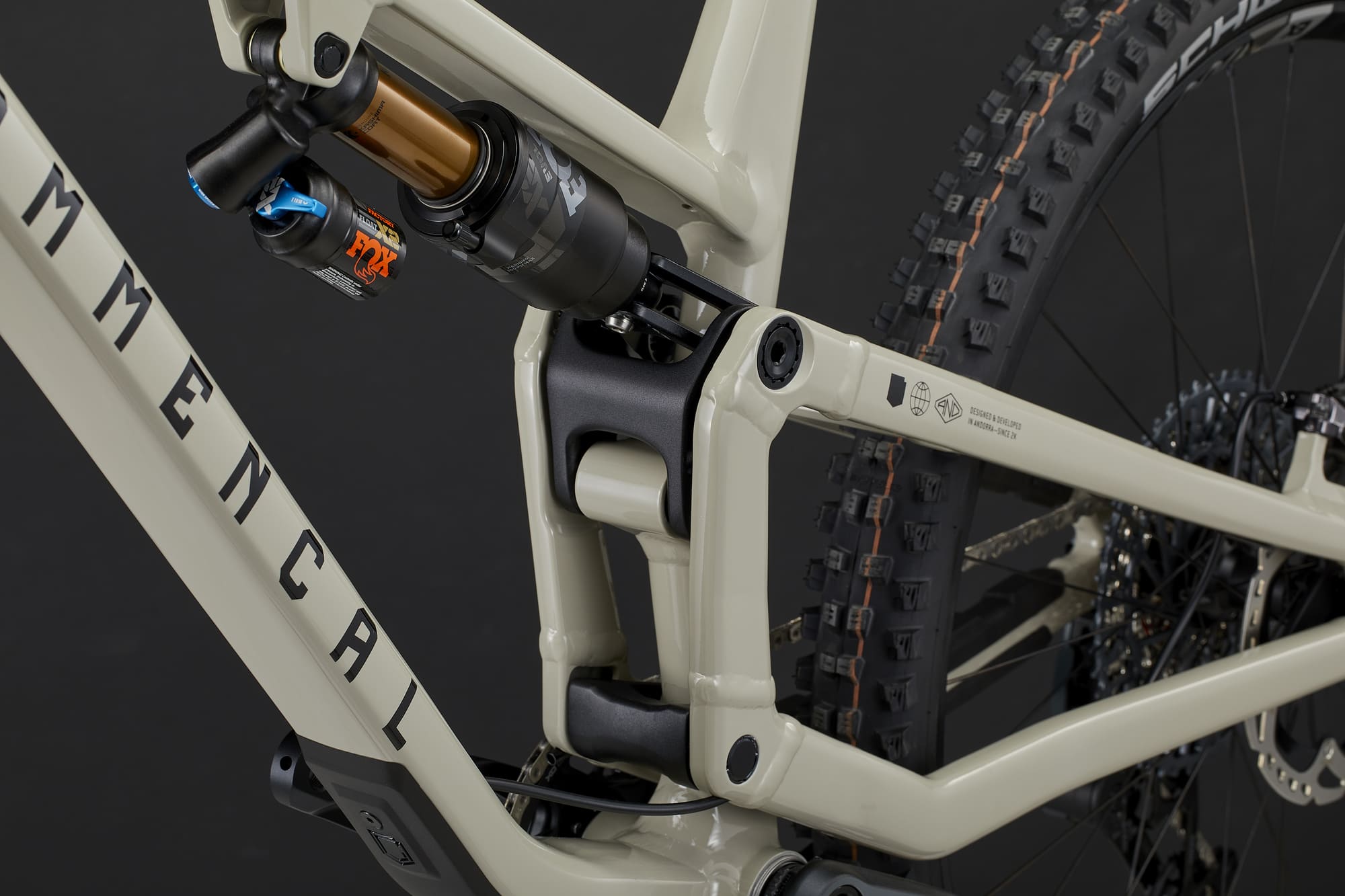

29''-27.5'', Alloy 6066, triple butted tubes, T4, T6Shock
FOX Float X2 Factory

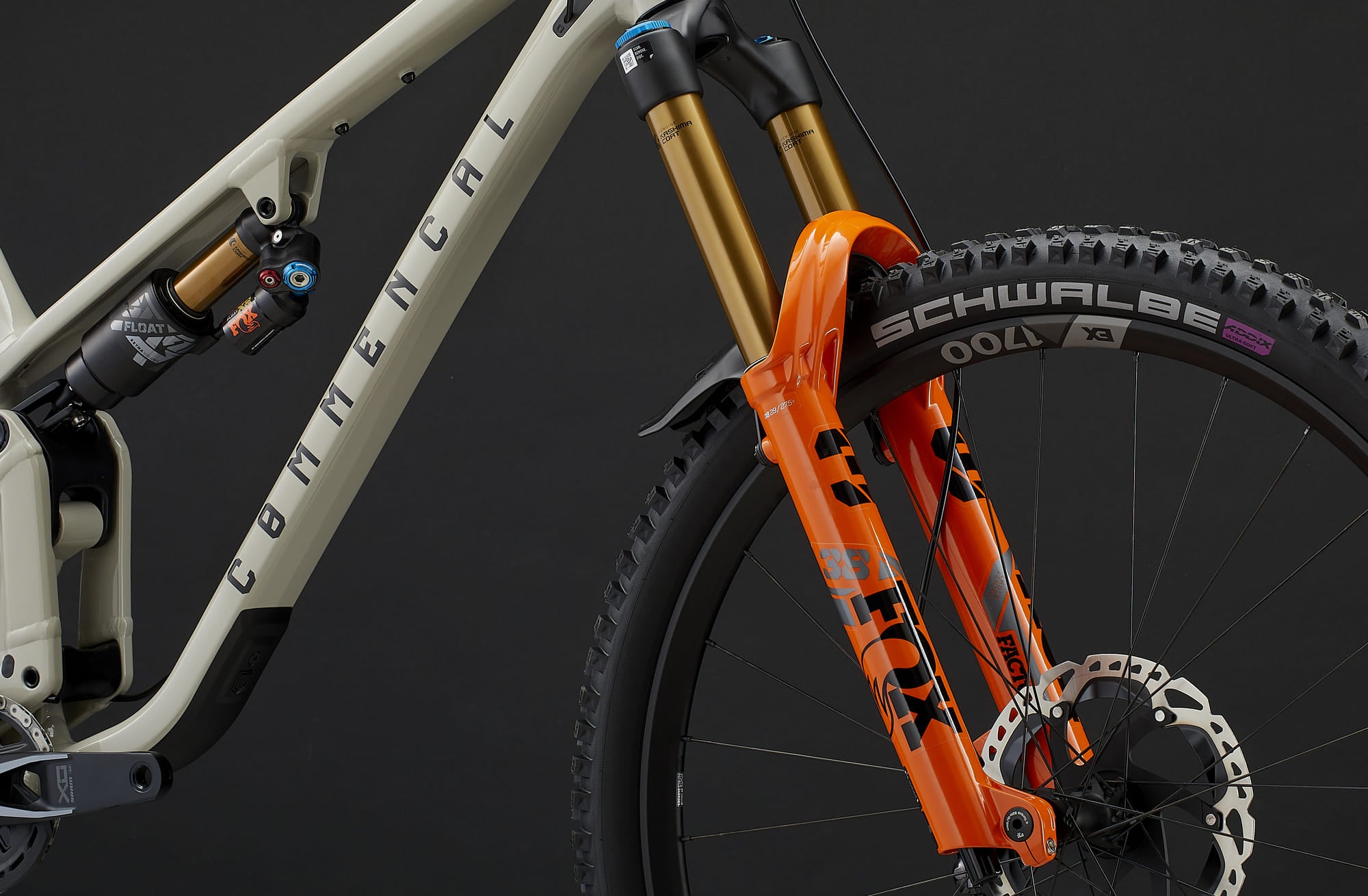

230 x 65 mm, HSC, LSC, HSR, LSR, 2-postion adjustment, 0.3 spacer x2Fork

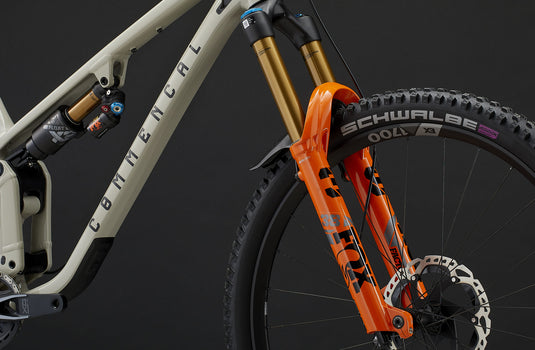

FOX 38 Factory, 170 mm travel
29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 2 spacersHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem

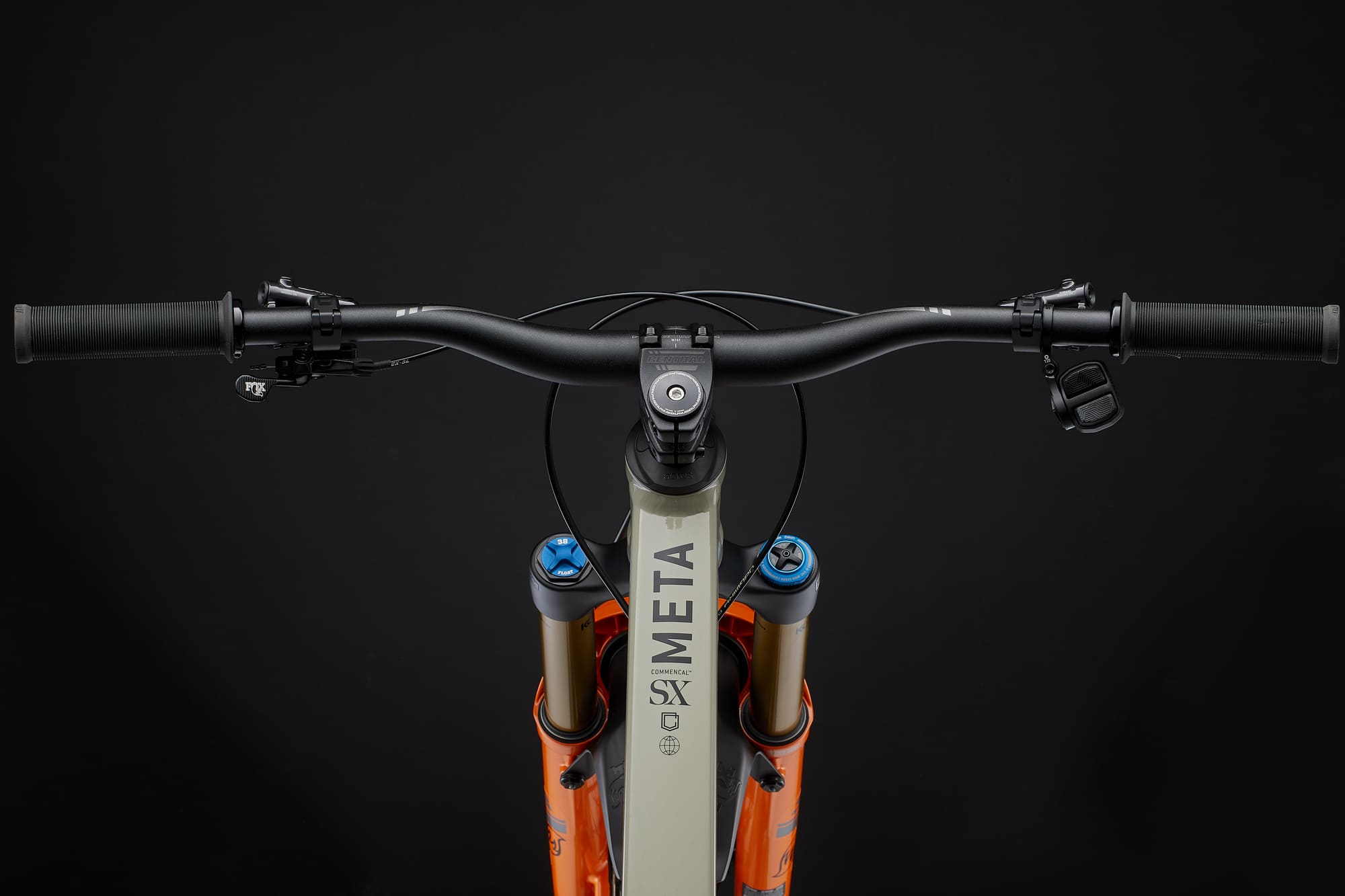

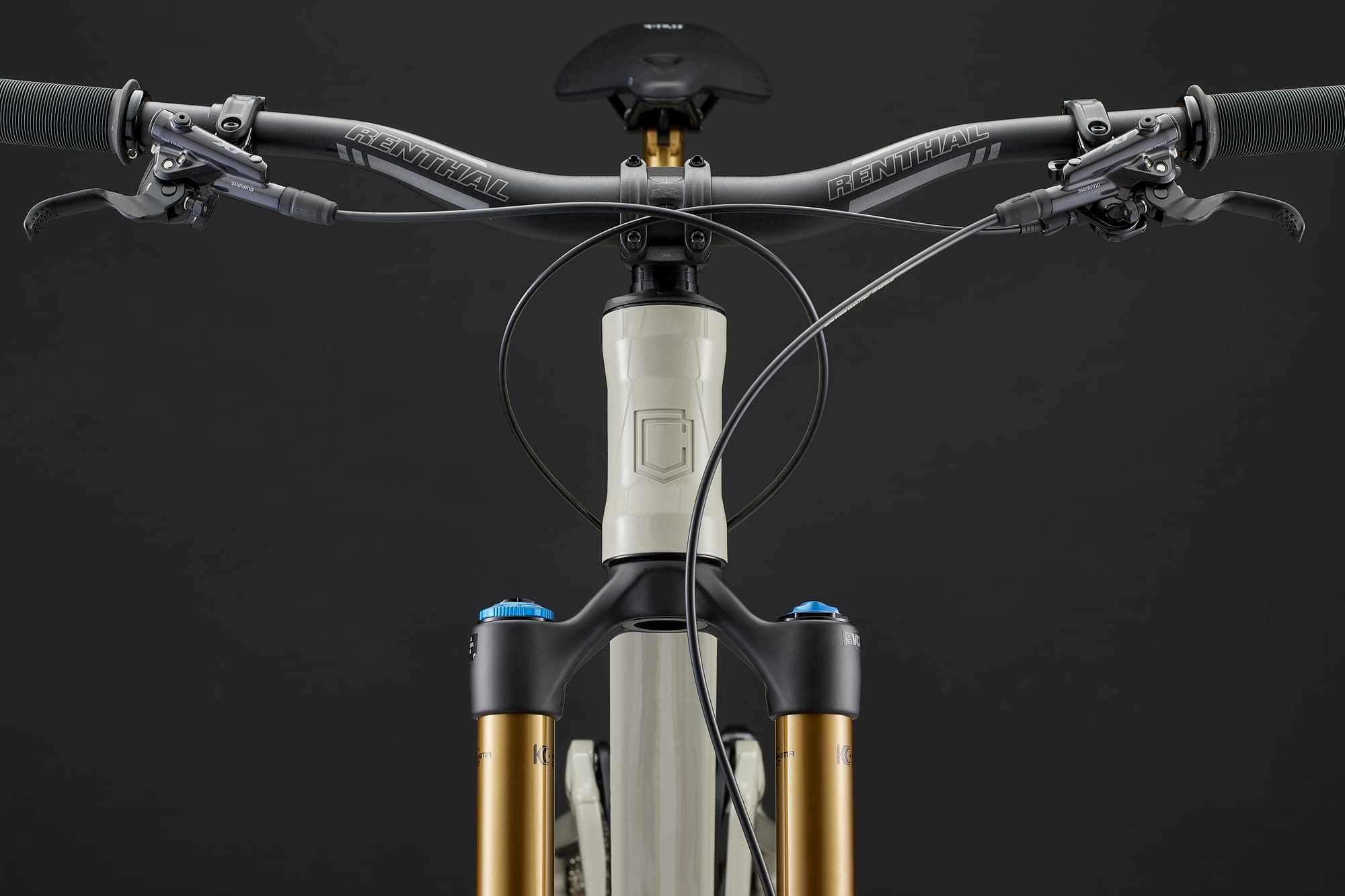

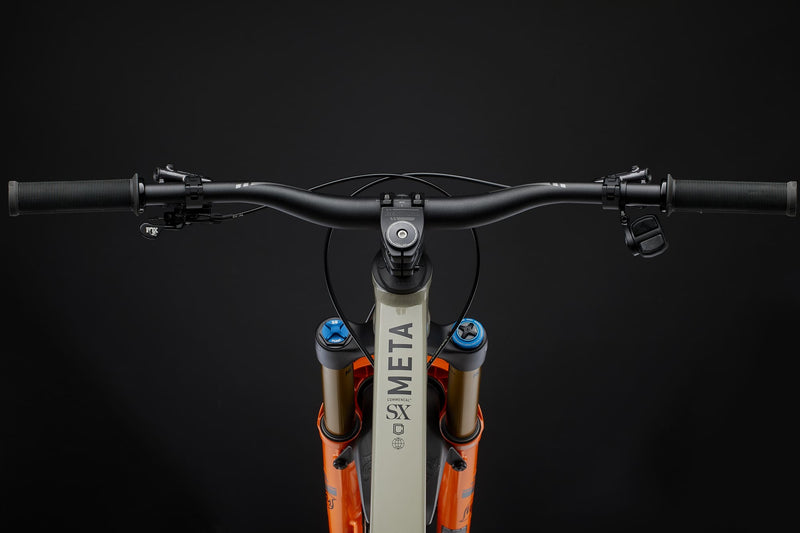

RENTHAL 40
40 mm extension, 35 mmHandlebar
RENTHAL 760 on S - RENTHAL 780 on M / L - RENTHAL 800 on XL
35 mm, 760 mm width, 20 mm rise, Alloy 2014 on S - 35 mm, 780 mm width, 30 mm rise, Alloy 2014 on M / L - 35 mm, 800 mm width, 30 mm rise, Alloy 2014 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
SHIMANO XT, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO SM-RT905 203 mm, 6-bolt, Ice Technology FreezaShifters
SRAM AXS POD

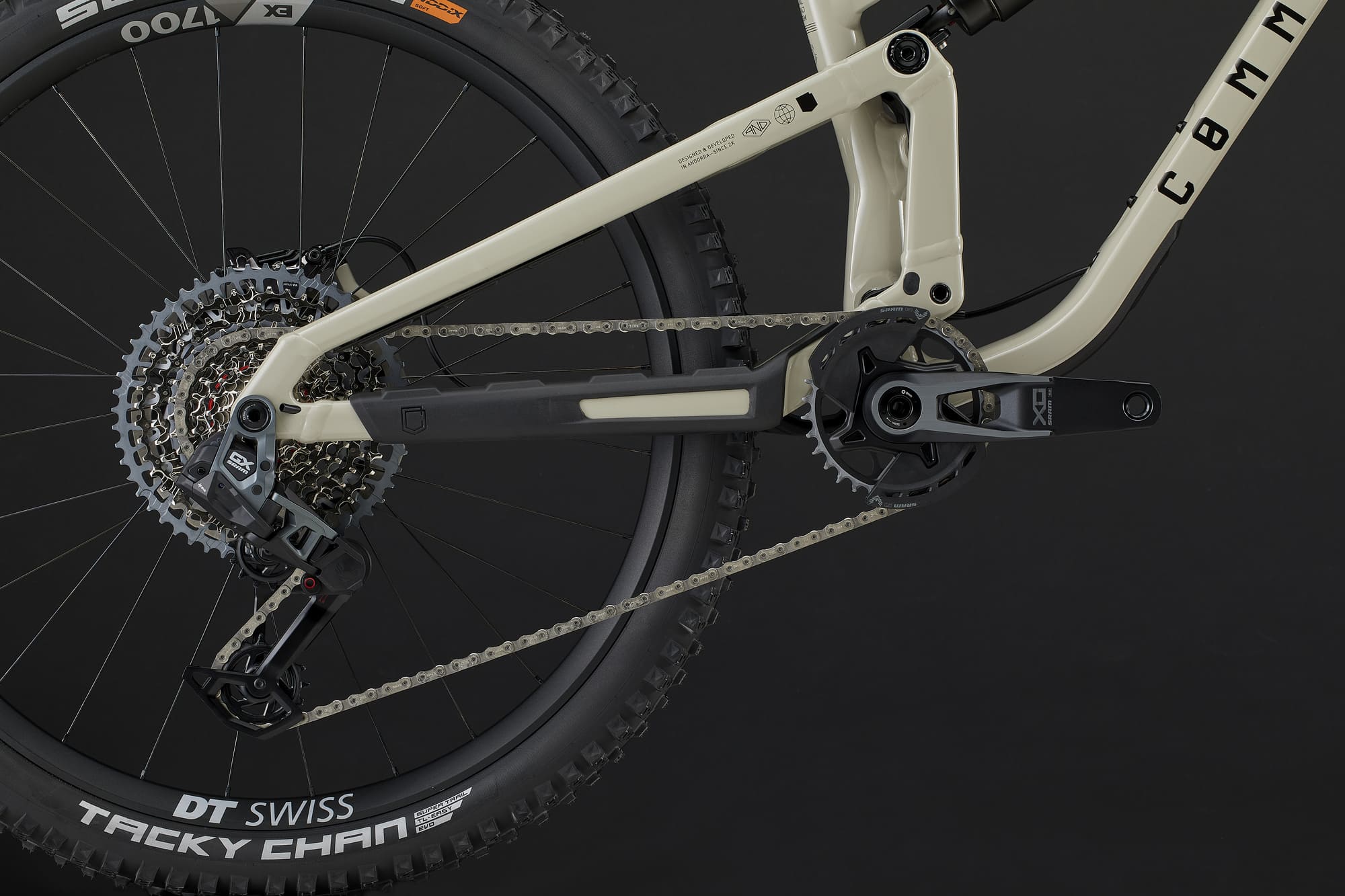

12sREAR DERAILLEUR
SRAM GX Eagle Transmission
12sBottom bracket
SRAM DUB WIDE
PressfitCrankset
SRAM X0 Eagle, 165 mm crank arms, DUB, Boost
Double Bash guard with Chain Guide
Chainring: SRAM X0 T-Type Eagle, 32t, T-TypeChain
SRAM GX Eagle Transmission
12sCassette
SRAM GX Eagle Transmission
12s, 10-52tRims
DT SWISS EX 1700
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm,Sram XD, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
DT SWISS Competition
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with ProLock, blackTyres
Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
Rear: 27.5"x2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29"x2.4", Super Trail, Addix Soft, Tubeless EasySeat post
FOX Transfer Factory
31.6 mm, travel: 125 mm on S, 175 mm on M/L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mmSaddle
FIZIK Terra Ridon X5
145 mm width, S-alloy railsWeight
15,7 kg / 34.61 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Chalk
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender, Sram Powerpack
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 27/29"
Frame material
AL 6066 T4, T6
Frame weight
3,3 kg / 7.27 lb, raw without accessories
Rear travel
165 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON BODY / 20 X 10 mm ON SHAFT
Recommended/max. fork height
586 mm / 44 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
64 mm / diam. 721
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,6 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
52 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle


Frame
META SX V5, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6Shock
FOX Float X2 Factory
230 x 65 mm, HSC, LSC, HSR, LSR, 2-postion adjustment, 0.3 spacer x2Fork
FOX 38 Factory, 170 mm travel
29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 2 spacersHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RENTHAL 40
40 mm extension, 35 mmHandlebar
RENTHAL 760 on S - RENTHAL 780 on M / L - RENTHAL 800 on XL
35 mm, 760 mm width, 20 mm rise, Alloy 2014 on S - 35 mm, 780 mm width, 30 mm rise, Alloy 2014 on M / L - 35 mm, 800 mm width, 30 mm rise, Alloy 2014 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
SHIMANO XT, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO SM-RT905 203 mm, 6-bolt, Ice Technology FreezaShifters
SRAM AXS POD
12sREAR DERAILLEUR
SRAM GX Eagle Transmission
12sBottom bracket
SRAM DUB WIDE
PressfitCrankset
SRAM X0 Eagle, 165 mm crank arms, DUB, Boost
Double Bash guard with Chain Guide
Chainring: SRAM X0 T-Type Eagle, 32t, T-TypeChain
SRAM GX Eagle Transmission
12sCassette
SRAM GX Eagle Transmission
12s, 10-52tRims
DT SWISS EX 1700
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm,Sram XD, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
DT SWISS Competition
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with ProLock, blackTyres
Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
Rear: 27.5"x2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29"x2.4", Super Trail, Addix Soft, Tubeless EasySeat post
FOX Transfer Factory
31.6 mm, travel: 125 mm on S, 175 mm on M/L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mmSaddle
FIZIK Terra Ridon X5
145 mm width, S-alloy railsWeight
15,7 kg / 34.61 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Chalk
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender, Sram Powerpack
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 27/29"
Frame material
AL 6066 T4, T6
Frame weight
3,3 kg / 7.27 lb, raw without accessories
Rear travel
165 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON BODY / 20 X 10 mm ON SHAFT
Recommended/max. fork height
586 mm / 44 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
64 mm / diam. 721
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,6 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
52 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle



The META SX V5 T-Type is armed to the teeth with premium components—from a FOX 38 Factory fork and Float X2 shock to SRAM’s bulletproof GX Eagle Transmission and X0 crankset. Braking is sharp with Shimano XT 4-pistons and Ice Tech rotors, while DT Swiss EX 1700 wheels wrapped in Schwalbe rubber provide unmatched grip. Renthal cockpit, ODI grips, and a FOX Transfer dropper keep things dialled.
Built for serious enduro abuse, this frame means business. Crafted from AL 6066 T4/T6 alloy, it delivers 165mm of rear travel and weighs in at just 3.3kg—raw and ready for chaos. It plays nice with piggyback shocks, oversized 223mm rotors, and aggressive 27/29" wheel setups. The ZS56 headset, ISCG 05 tabs, and 52mm chain line scream modern trail geometry, while the 148mm rear axle compatibility keeps things stiff and stable when you’re blasting through the rough stuff.
