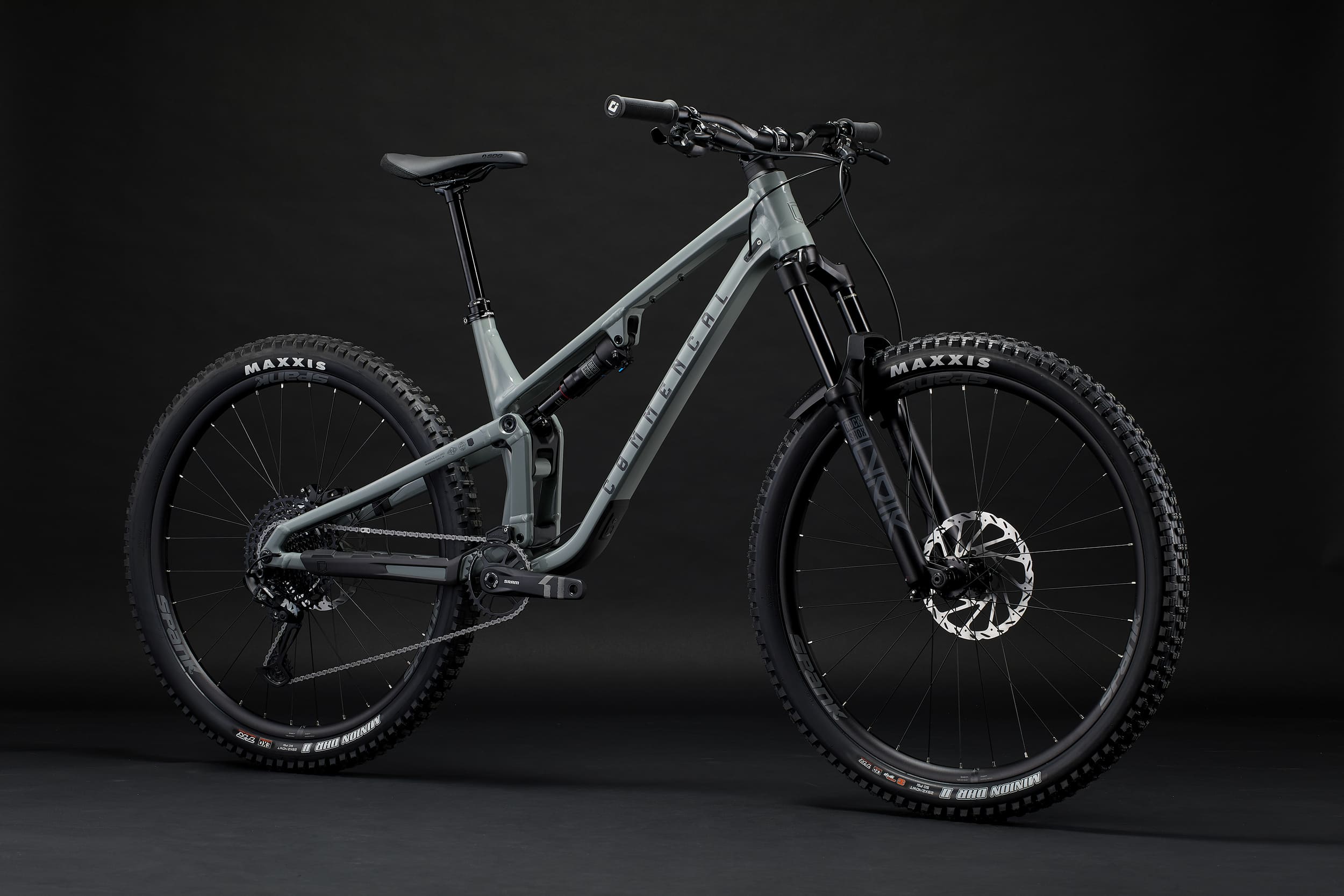

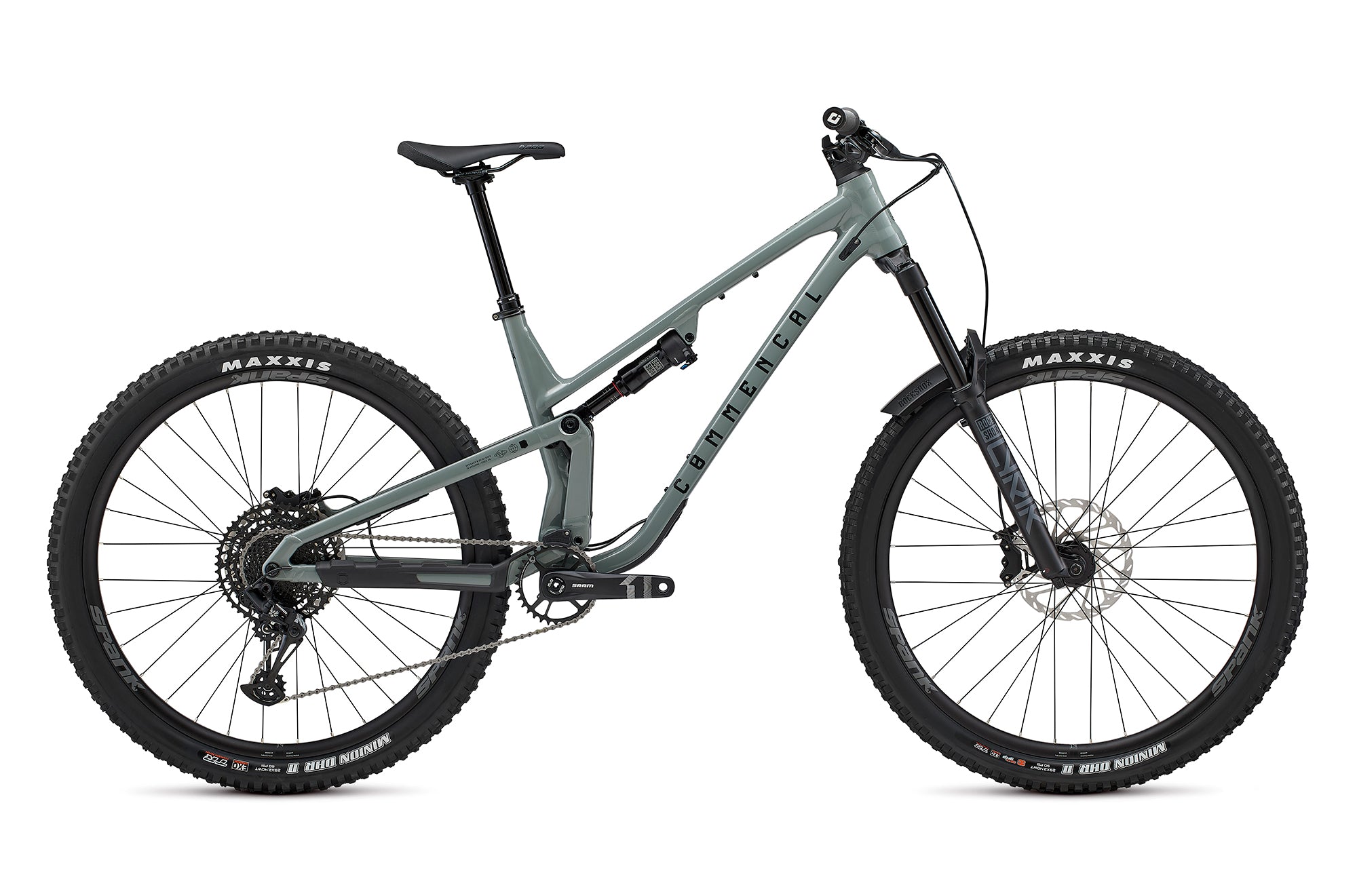

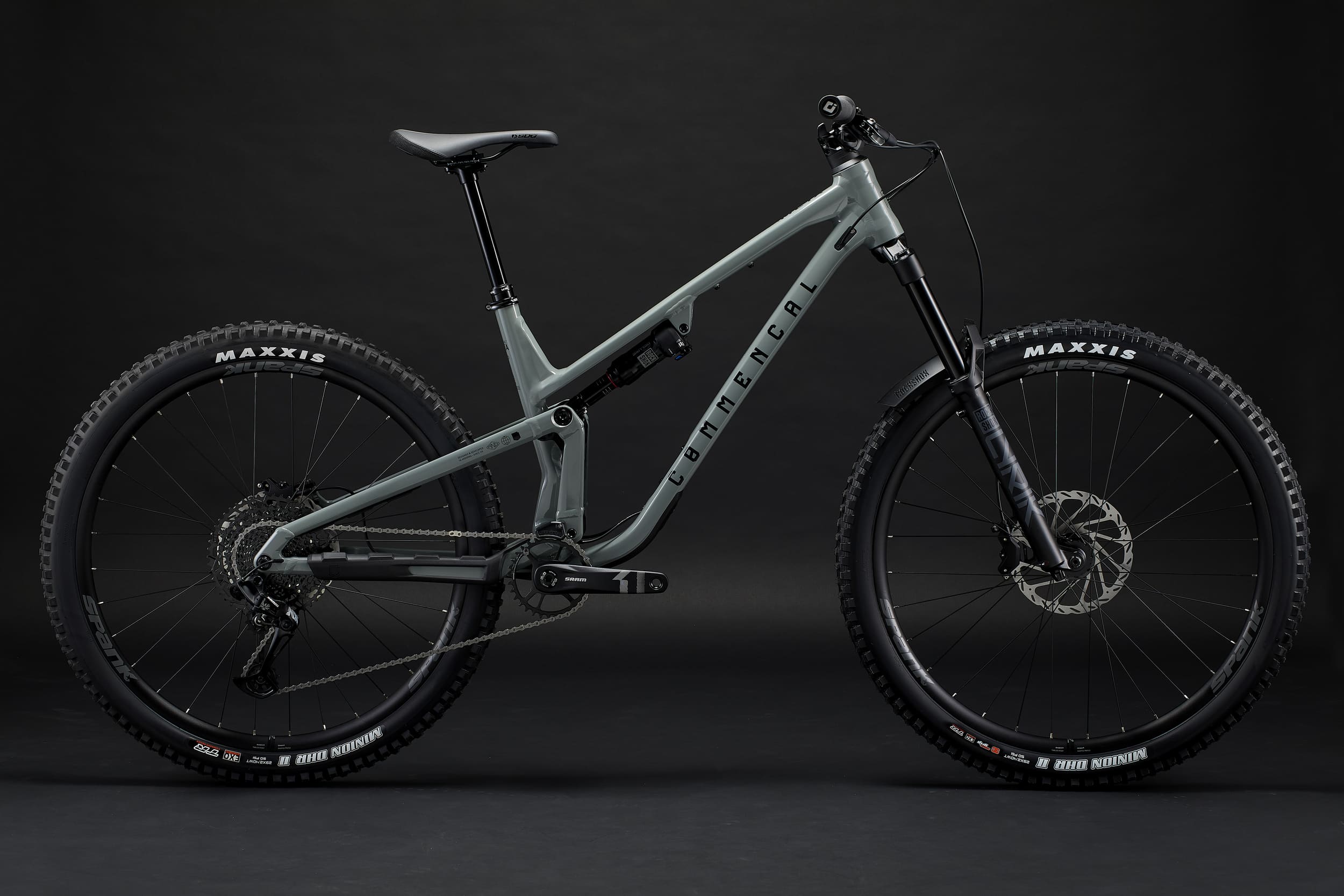

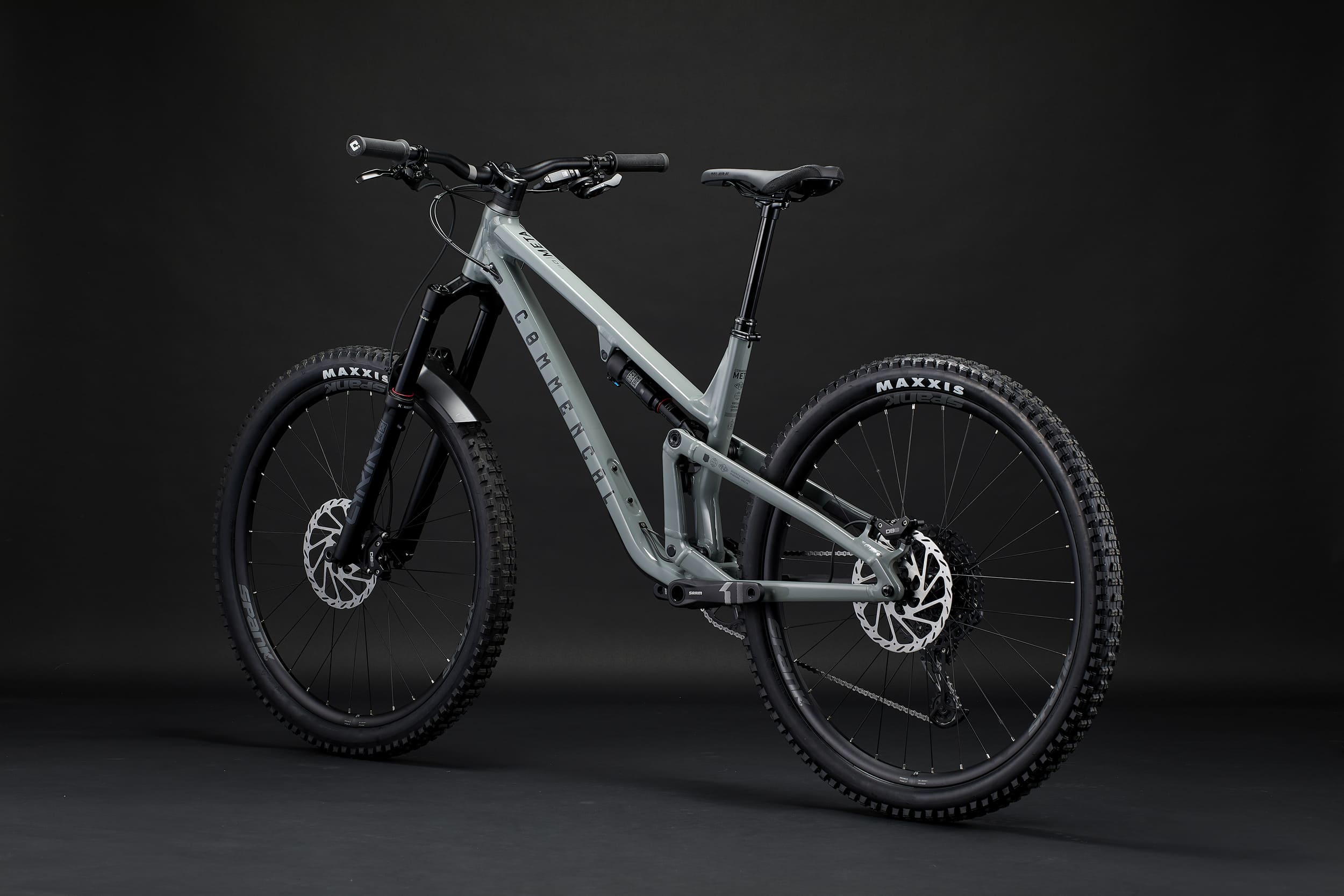

Commencal META V5 Ride Pyrite Grey Enduro Mountain Bike
Frame
META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6Shock

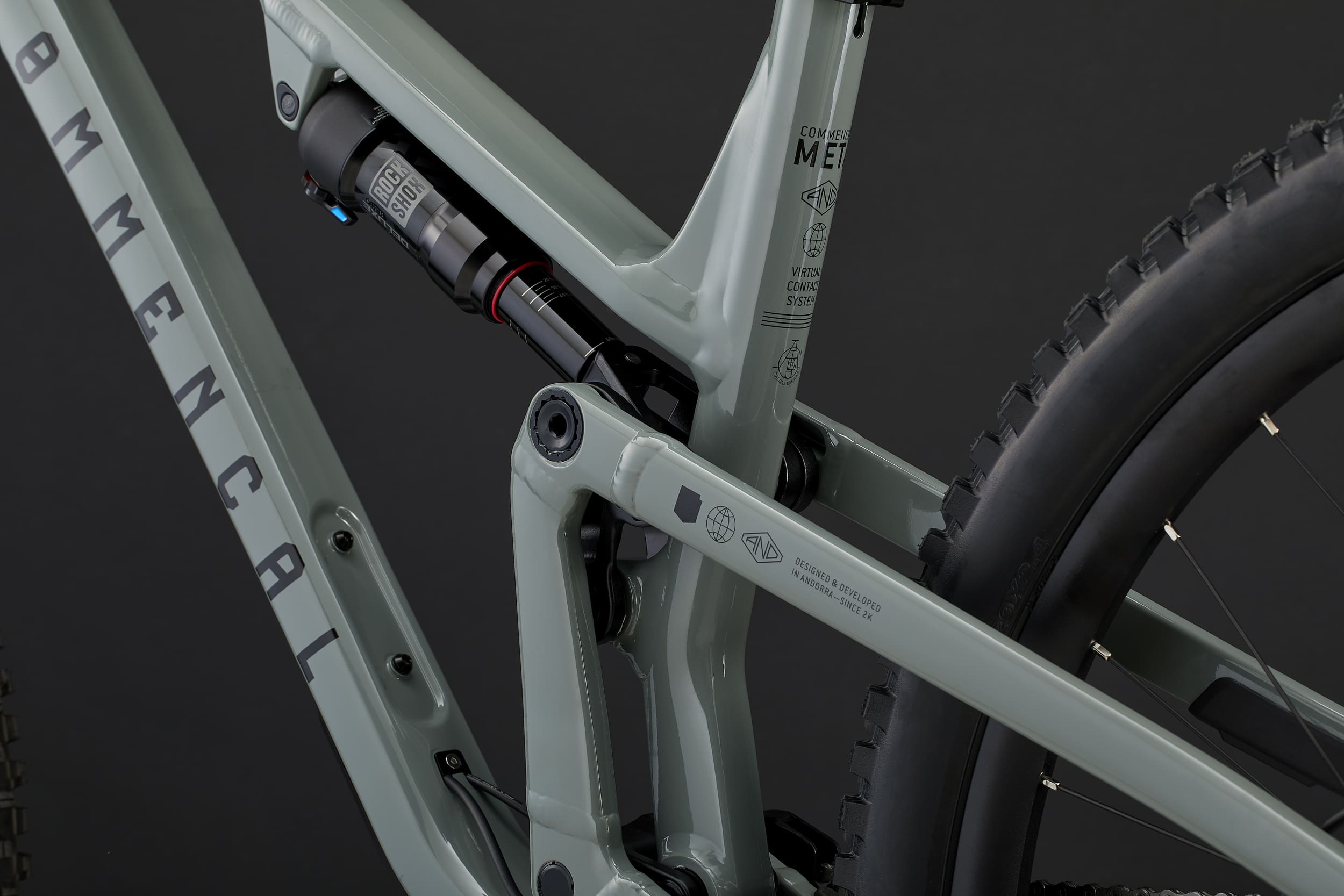

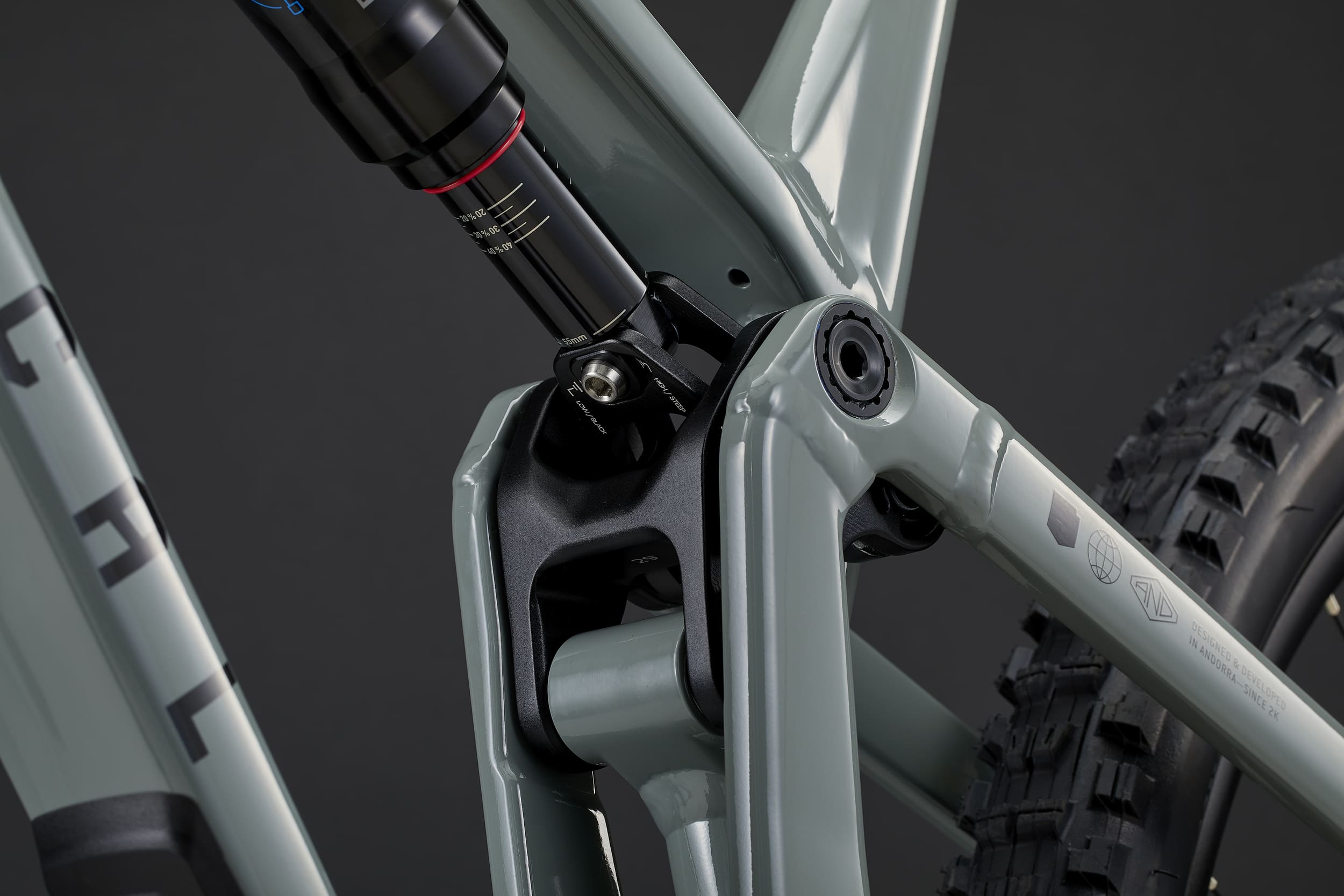

ROCKSHOX Deluxe Select +
210 x 55 mm, RT damper, DebonAir, rebound, 2 position compression, 0 Token neg. 3 Tokens pos.Fork

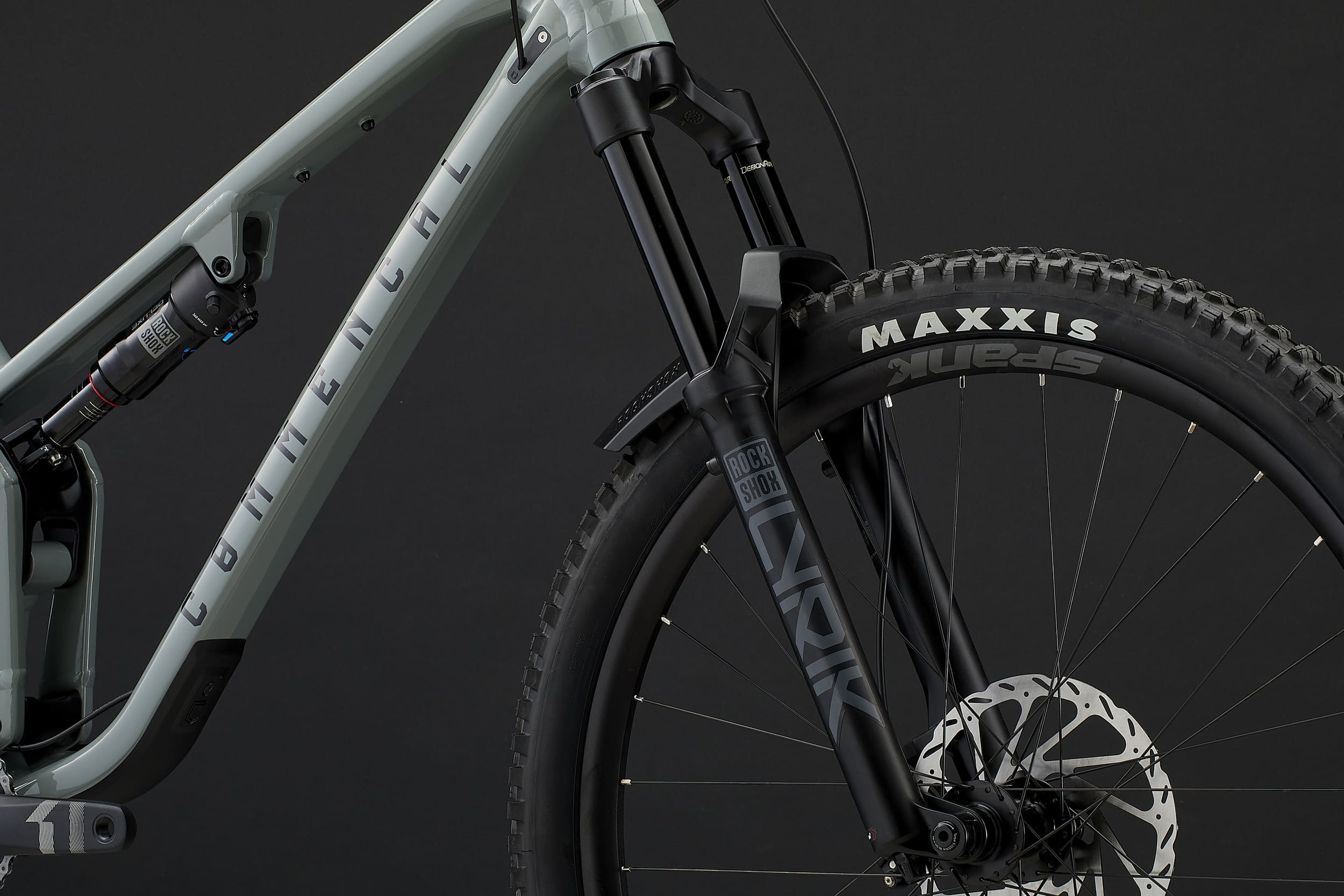

ROCKSHOX Lyrik Base, 160 mm travel
29", Rush RC damper, DebonAir+, LSC, rebound, Boost (15 x 110 mm), 44 mm offset, 0 TokenHeadset

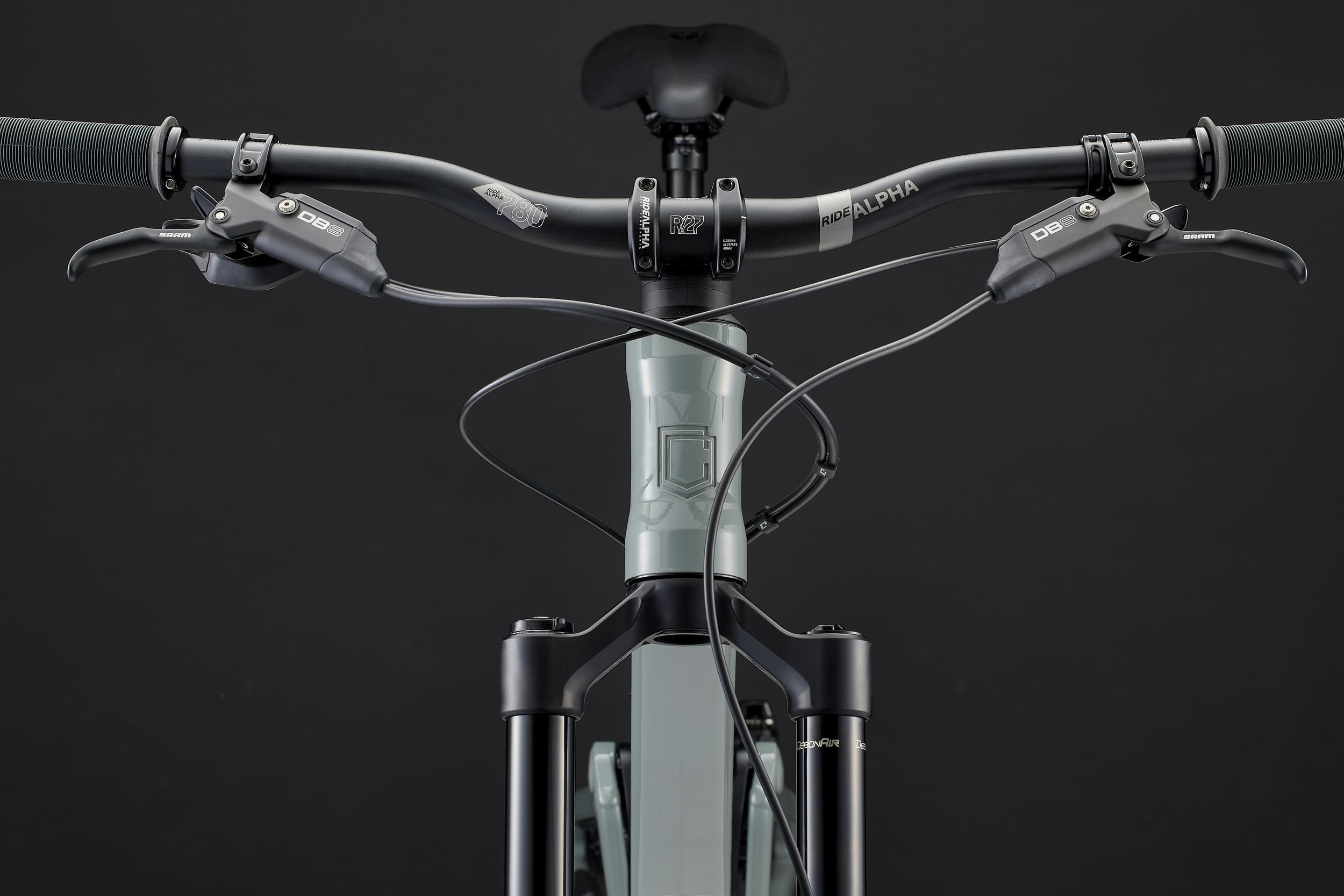

ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem

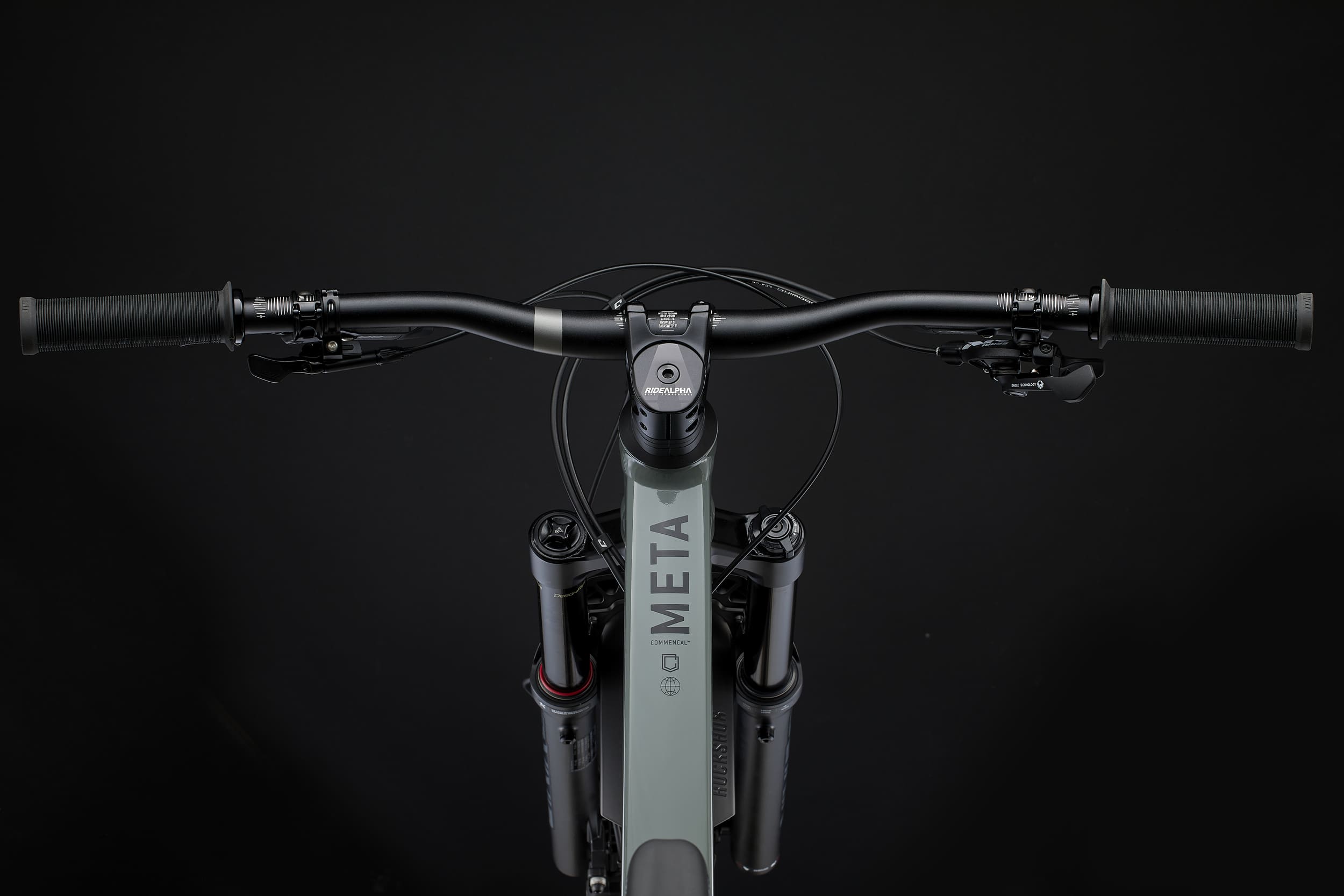

RIDE ALPHA 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
SRAM DB8, 4 pistons, steel-backed organic pads, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6 holesShifters

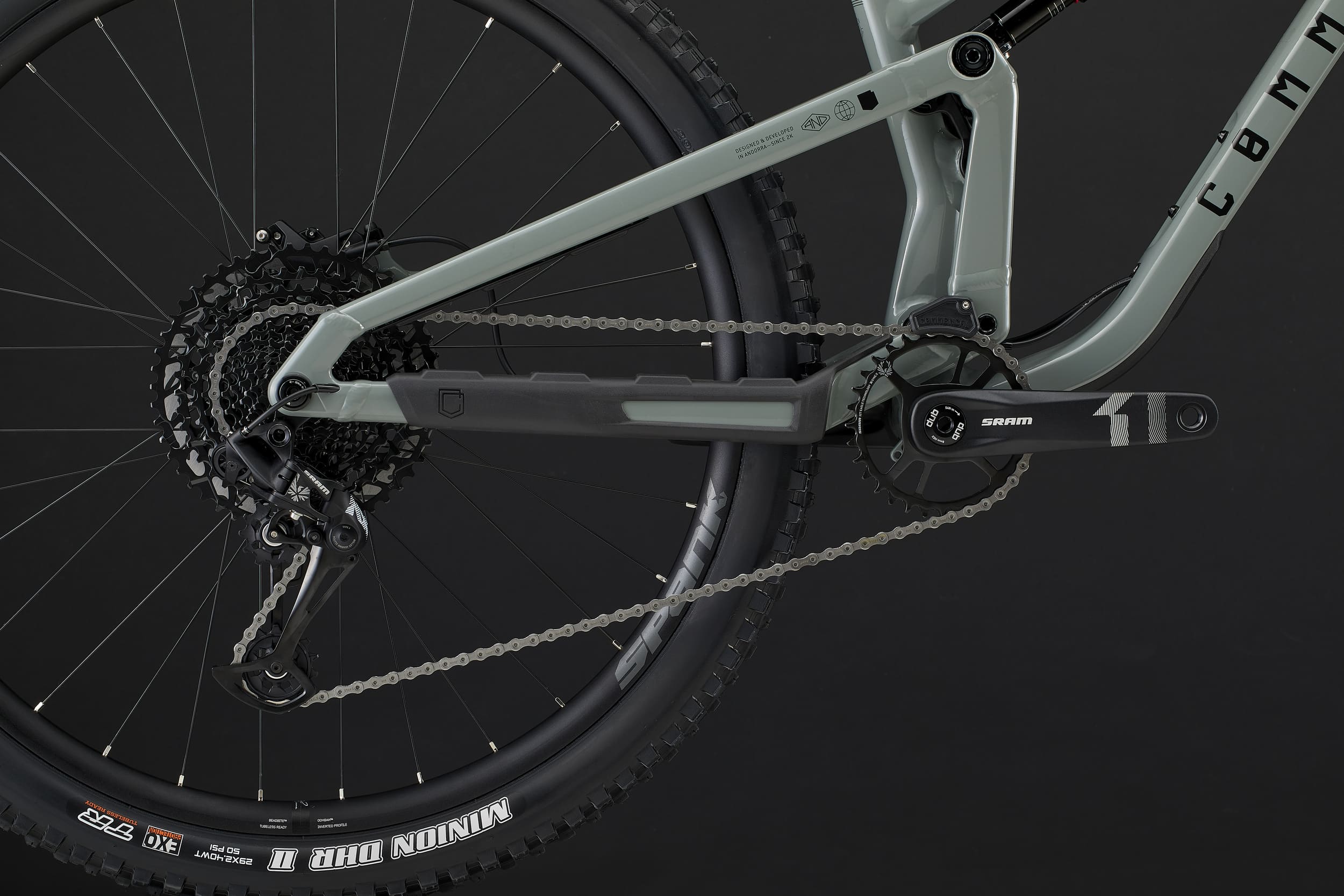

SRAM NX Eagle
12sChain guide
RIDE ALPHA
32t-34tREAR DERAILLEUR
SRAM NX Eagle
12sBottom bracket
SRAM DUB WIDE
PressfitCrankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
SPANK SPIKE RACE 33
29'', 32h, 28 mm inner widthHubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, SHIMANO Hyperglide - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 29"x2.40" WT, EXO, Dual, Tubeless Ready - Front: 29"x2.40" WT, EXO, 3C MaxxGrip, Tubeless ReadySeat post
KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remoteSaddle
SDG Bel Air V3
140 mm width, steel railsWeight
15,9 kg / 35.05 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pyrite Grey
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 29"
Frame material
AL 6066 T4, T6
Frame weight
3,25 kg / 7.16 lb, raw without accessories
Rear travel
150 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON SHAFT / 20 X 10 mm ON BODY
Recommended/max. fork height
571 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 753
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
55 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle


Frame
META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6Shock
ROCKSHOX Deluxe Select +
210 x 55 mm, RT damper, DebonAir, rebound, 2 position compression, 0 Token neg. 3 Tokens pos.Fork
ROCKSHOX Lyrik Base, 160 mm travel
29", Rush RC damper, DebonAir+, LSC, rebound, Boost (15 x 110 mm), 44 mm offset, 0 TokenHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
SRAM DB8, 4 pistons, steel-backed organic pads, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6 holesShifters
SRAM NX Eagle
12sChain guide
RIDE ALPHA
32t-34tREAR DERAILLEUR
SRAM NX Eagle
12sBottom bracket
SRAM DUB WIDE
PressfitCrankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
SPANK SPIKE RACE 33
29'', 32h, 28 mm inner widthHubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, SHIMANO Hyperglide - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 29"x2.40" WT, EXO, Dual, Tubeless Ready - Front: 29"x2.40" WT, EXO, 3C MaxxGrip, Tubeless ReadySeat post
KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remoteSaddle
SDG Bel Air V3
140 mm width, steel railsWeight
15,9 kg / 35.05 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pyrite Grey
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 29"
Frame material
AL 6066 T4, T6
Frame weight
3,25 kg / 7.16 lb, raw without accessories
Rear travel
150 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON SHAFT / 20 X 10 mm ON BODY
Recommended/max. fork height
571 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 753
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
55 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle



The META V5 RIDE in Pyrite Grey is loaded with trail-ready specs and confidence-boosting kit. A lightweight triple-butted 6066 alloy frame pairs with 150mm rear and 160mm front travel from RockShox suspension, delivering buttery control. The SRAM NX Eagle 12-speed drivetrain and DB8 brakes handle shifting and stopping with ease, while Spank rims and Maxxis tyres grip hard when the terrain gets loose. Finished with quality touches like ODI grips, SDG saddle, and a KS dropper—this build is all business when the trails get rowdy.
Built for serious enduro business, this 29” alloy frame tips the scales at just 3.25 kg raw and dishes out 150mm of rear travel for smooth control on the rough stuff. The geometry supports piggyback shocks, 223mm max rotor size, and integrated cable routing through a ZS56 headset. With ISCG 05 tabs, 55mm chainline, and 148x12mm rear hub spacing, it’s ready for modern drivetrain setups. All wrapped up with space for big 64mm tyres and a BB92 press-fit bottom bracket.
