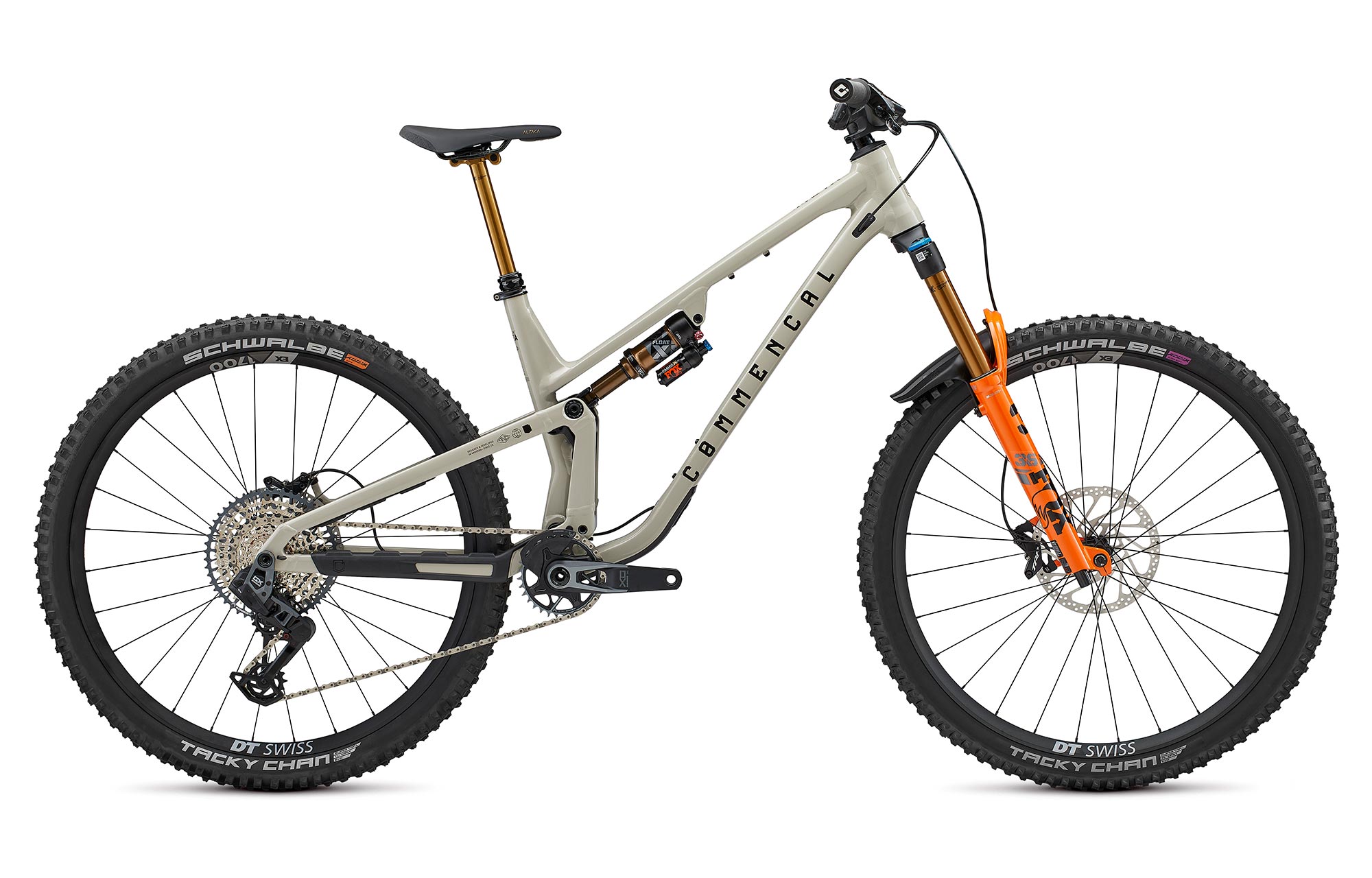

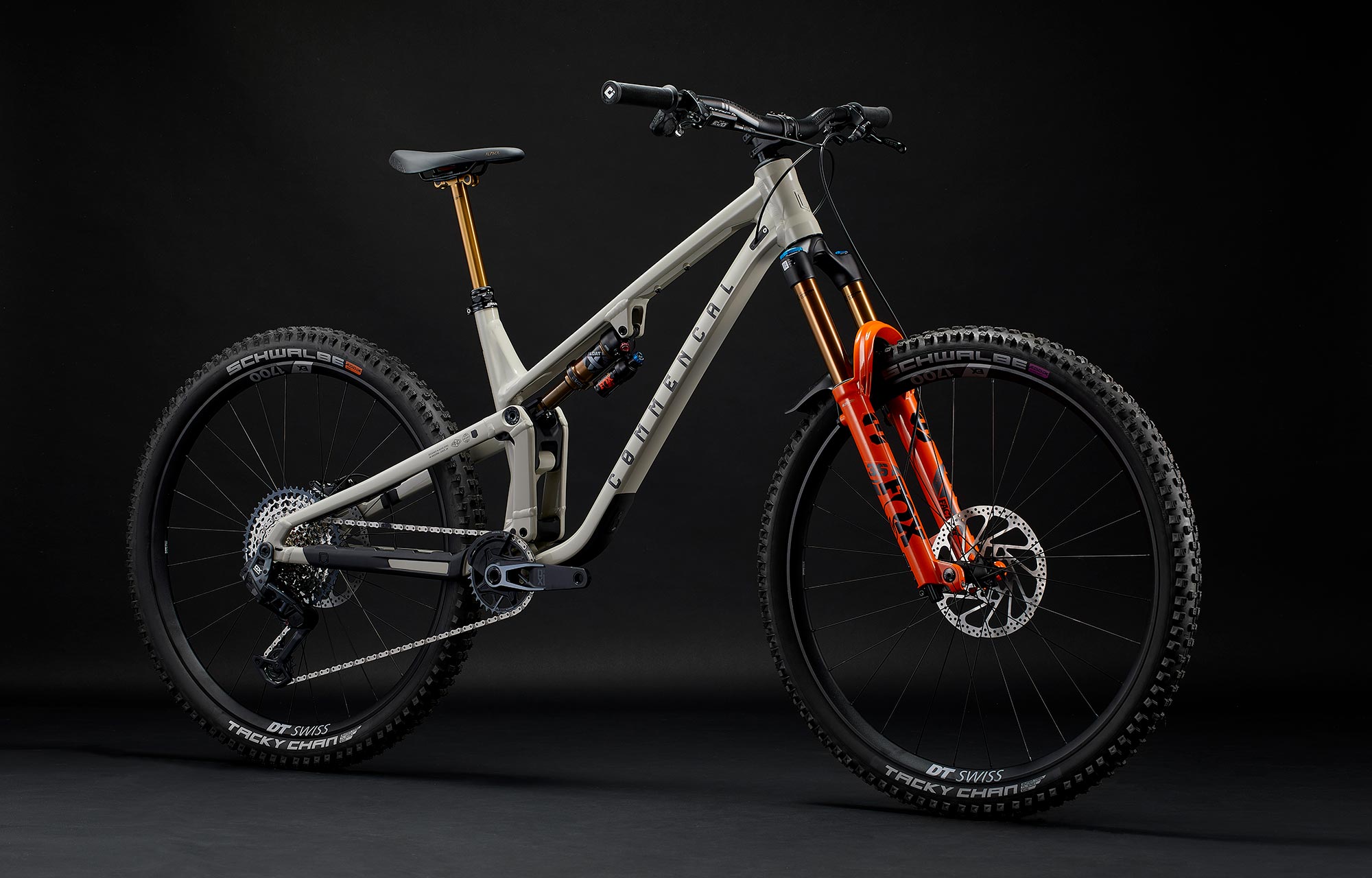

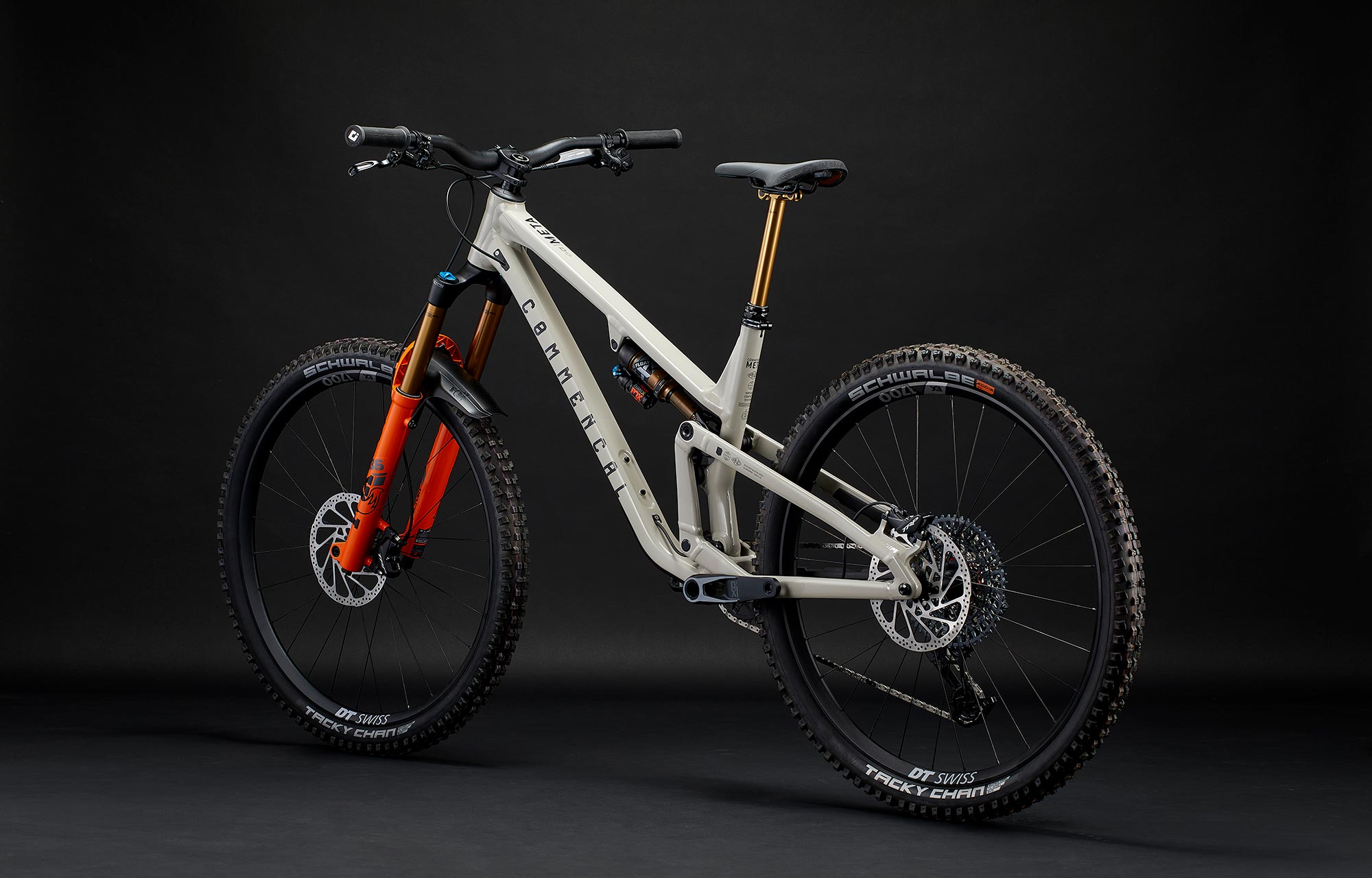

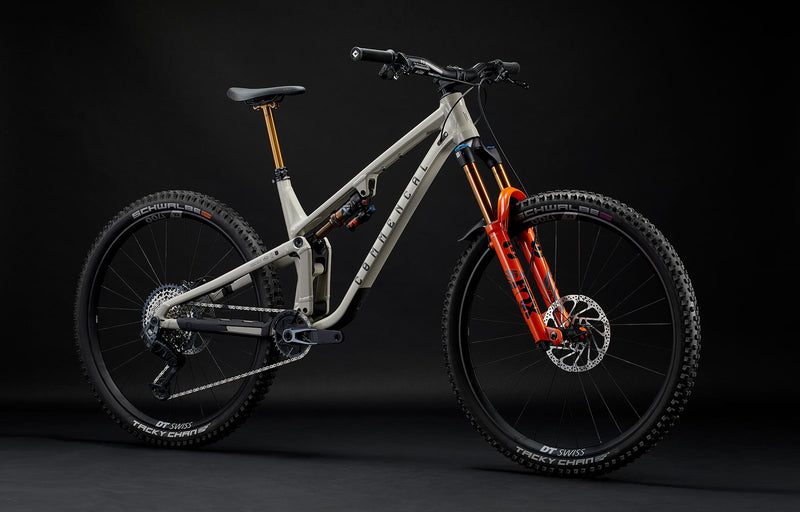

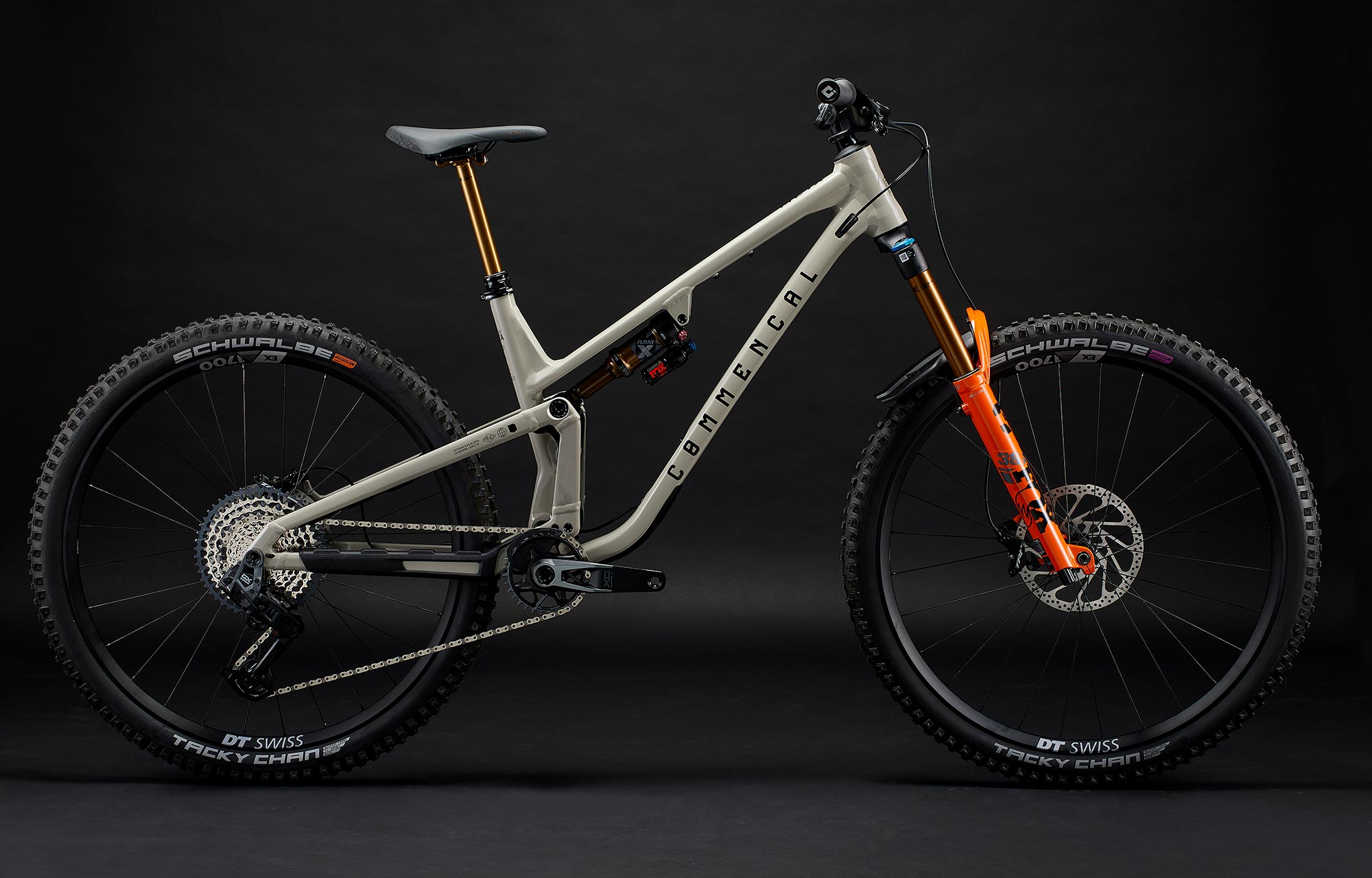

Commencal META V5 T-Type Chalk Enduro Mountain Bike
Frame
META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6Shock

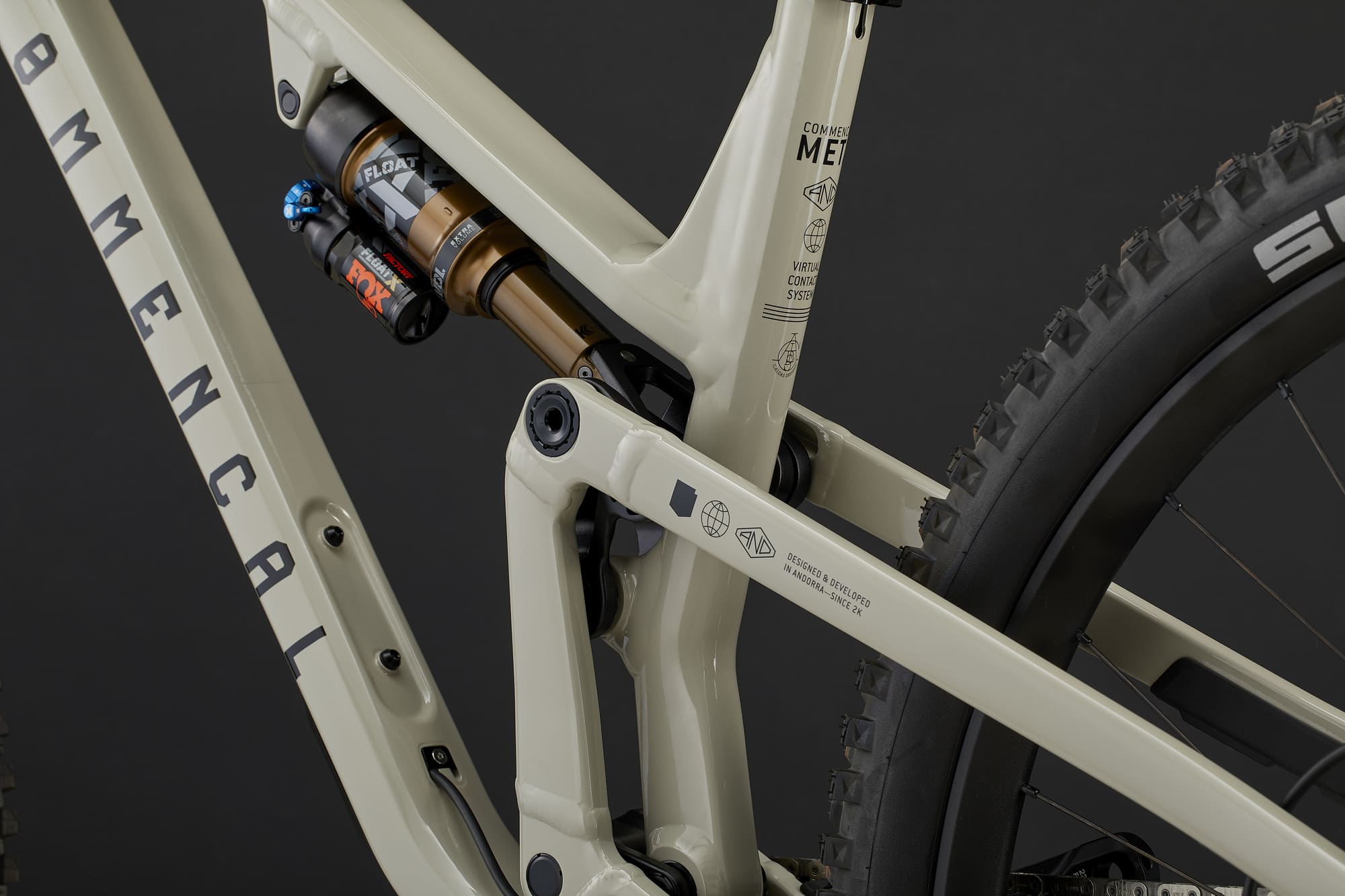

FOX Float X Factory
210 x 55 mm, LSC, LSR, 2 position open/firm lever, 0.6 spacerFork
FOX 36 Factory, 160 mm travel
29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 1 spacerHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem

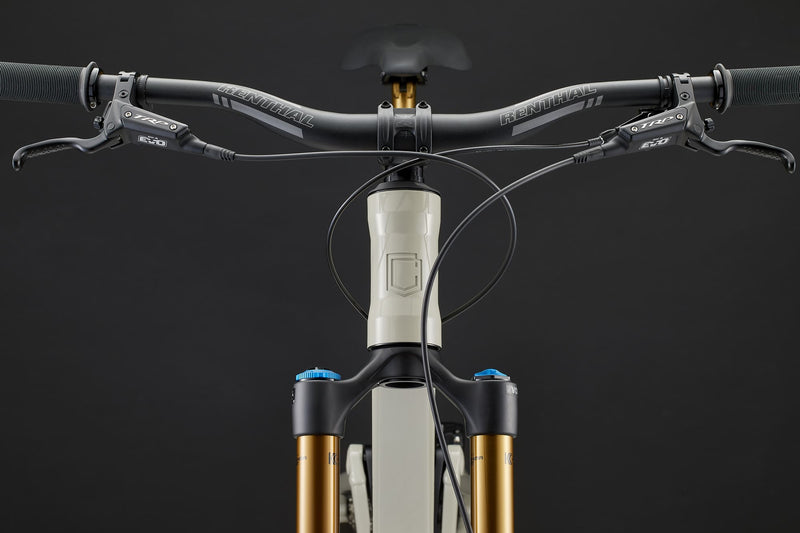

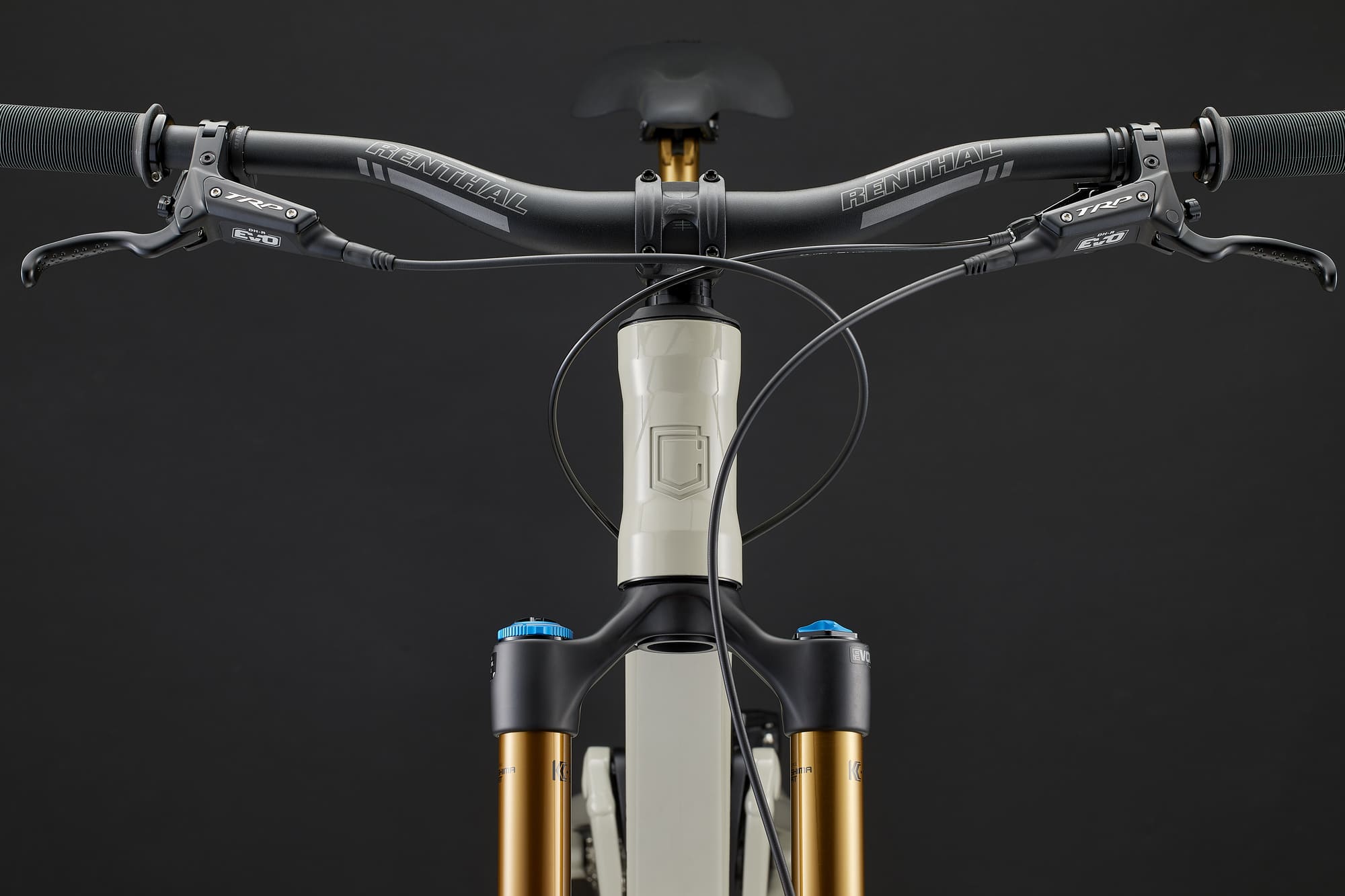

RENTHAL 40
40 mm extension, 35 mmHandlebar

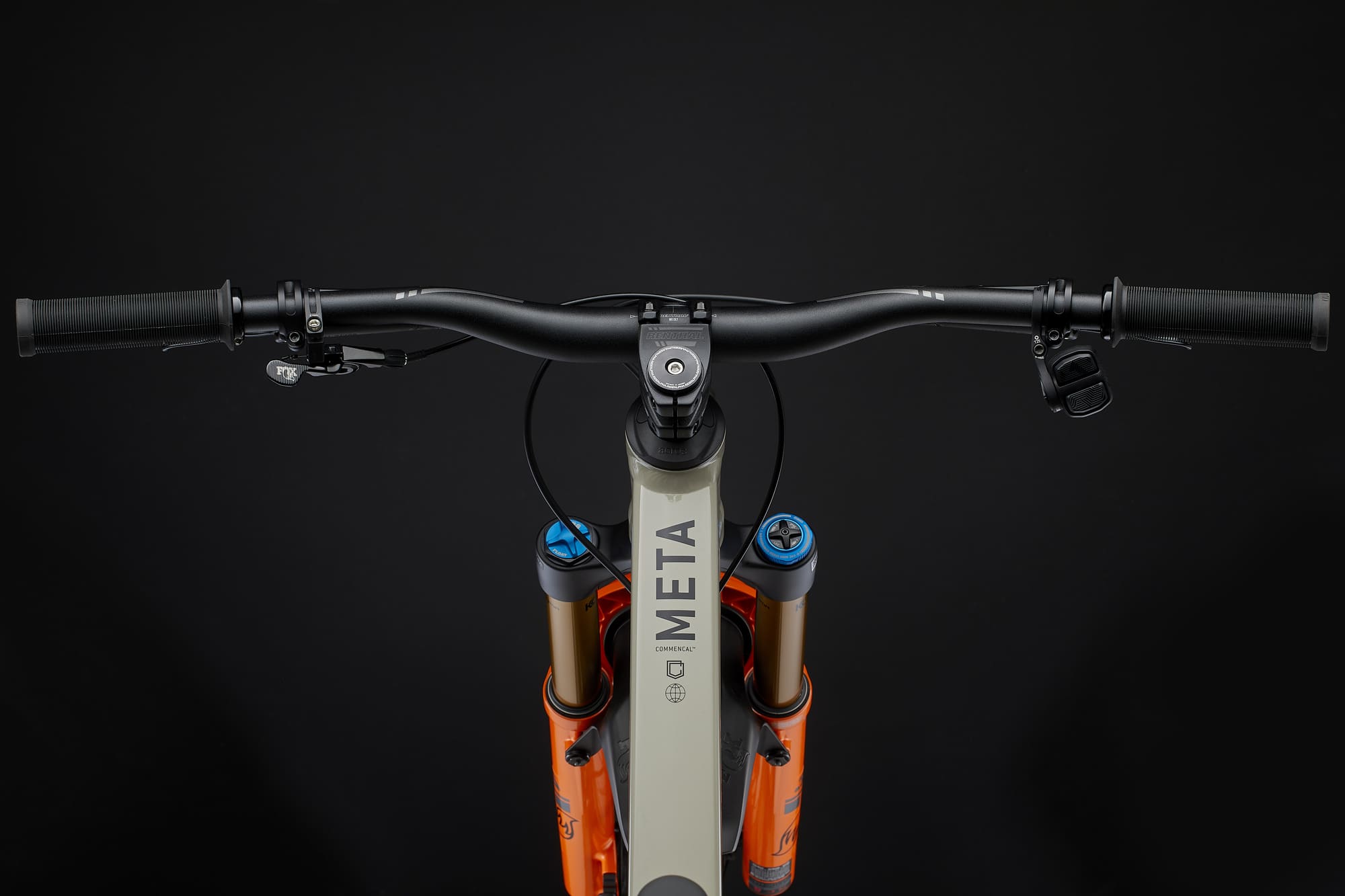

RENTHAL 760 on S - RENTHAL 780 on M / L - RENTHAL 800 on XL
35 mm, 760 mm width, 20 mm rise, Alloy 2014 on S - 35 mm, 780 mm width, 30 mm rise, Alloy 2014 on M / L - 35 mm, 800 mm width, 30 mm rise, Alloy 2014 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
TRP DH-R EVO, 4 pistons, resin pads, Postmount
Rotors: TRP R1 203 mm, 6 holes, 2.3 mm thicknessShifters
SRAM AXS POD
12sREAR DERAILLEUR
SRAM GX Eagle Transmission
12s, T-Type, AXSBottom bracket
SRAM DUB WIDE
PressfitCrankset

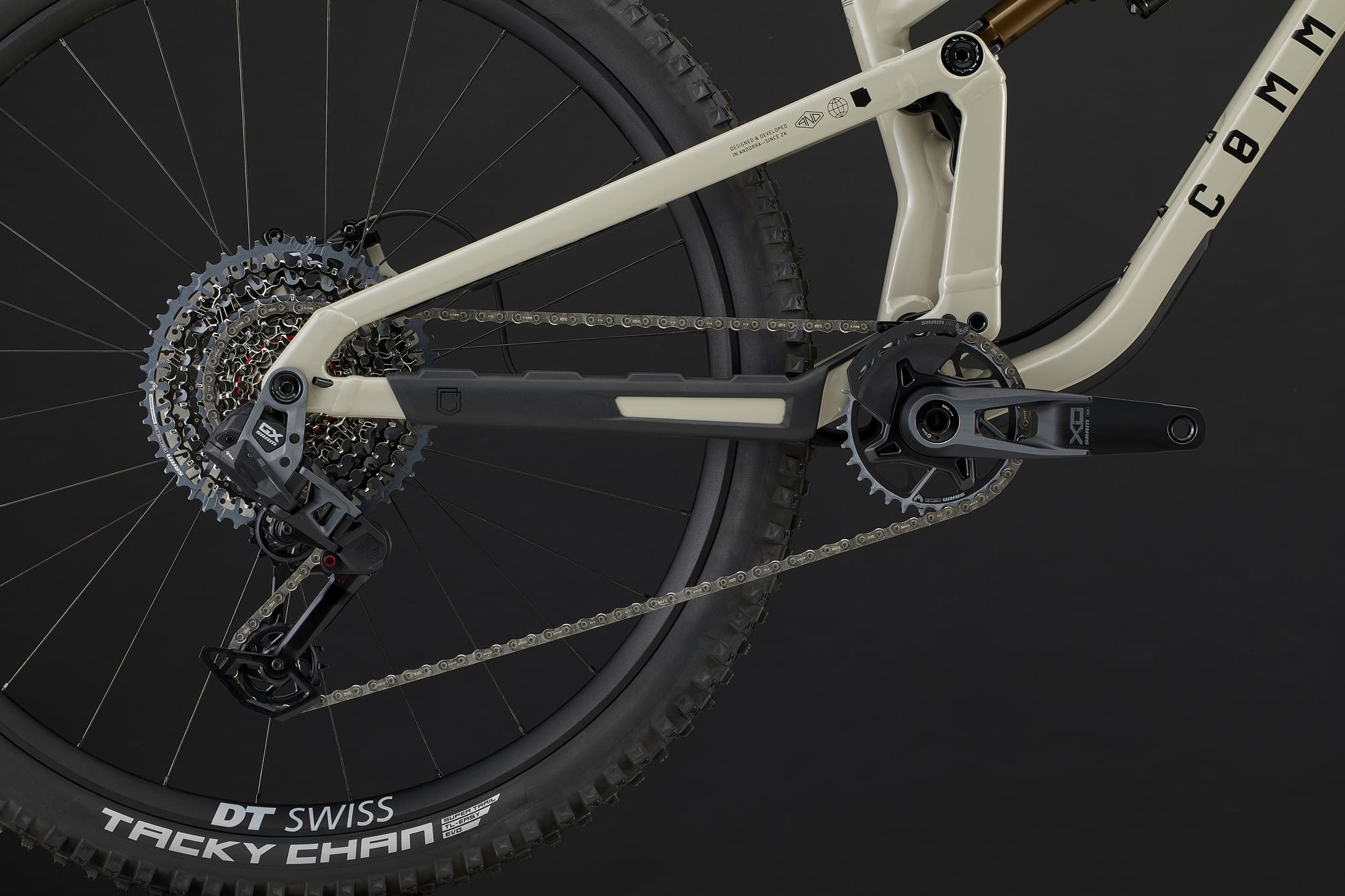

SRAM X0 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X0 Eagle, 32t, T-Type, 1 guardChain
SRAM GX Eagle Transmission
12s, T-Type, flattopCassette
SRAM GX Eagle Transmission
12s, 10-52t, T-TypeRims
DT SWISS EX 1700
29'', 28h, 30 mm inner widthHubs
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm, SRAM XD, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
DT SWISS COMPETITION
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with ProLock, blackTyres
Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Tacky Chan
Rear: 29"x2.4", Evo, Super Trail, Addix Soft, Tubeless Easy - Front: 29"x2.4", Evo, Super Trail, Addix Ultra Soft, Tubeless EasySeat post
FOX Transfer Factory
31.6 mm, travel: 125 mm on S, 175 mm on M/ L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mmSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
15,7 kg / 34.6 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Chalk
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender, Sram Powerpack
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 29"
Frame material
AL 6066 T4, T6
Frame weight
3,25 kg / 7.16 lb, raw without accessories
Rear travel
150 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON SHAFT / 20 X 10 mm ON BODY
Recommended/max. fork height
571 mm / 44 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
64 mm / diam. 753
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
52 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle


Frame
META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6Shock
FOX Float X Factory
210 x 55 mm, LSC, LSR, 2 position open/firm lever, 0.6 spacerFork
FOX 36 Factory, 160 mm travel
29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 1 spacerHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RENTHAL 40
40 mm extension, 35 mmHandlebar
RENTHAL 760 on S - RENTHAL 780 on M / L - RENTHAL 800 on XL
35 mm, 760 mm width, 20 mm rise, Alloy 2014 on S - 35 mm, 780 mm width, 30 mm rise, Alloy 2014 on M / L - 35 mm, 800 mm width, 30 mm rise, Alloy 2014 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
TRP DH-R EVO, 4 pistons, resin pads, Postmount
Rotors: TRP R1 203 mm, 6 holes, 2.3 mm thicknessShifters
SRAM AXS POD
12sREAR DERAILLEUR
SRAM GX Eagle Transmission
12s, T-Type, AXSBottom bracket
SRAM DUB WIDE
PressfitCrankset
SRAM X0 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X0 Eagle, 32t, T-Type, 1 guardChain
SRAM GX Eagle Transmission
12s, T-Type, flattopCassette
SRAM GX Eagle Transmission
12s, 10-52t, T-TypeRims
DT SWISS EX 1700
29'', 28h, 30 mm inner widthHubs
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm, SRAM XD, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
DT SWISS COMPETITION
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with ProLock, blackTyres
Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Tacky Chan
Rear: 29"x2.4", Evo, Super Trail, Addix Soft, Tubeless Easy - Front: 29"x2.4", Evo, Super Trail, Addix Ultra Soft, Tubeless EasySeat post
FOX Transfer Factory
31.6 mm, travel: 125 mm on S, 175 mm on M/ L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mmSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
15,7 kg / 34.6 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Chalk
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender, Sram Powerpack
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 29"
Frame material
AL 6066 T4, T6
Frame weight
3,25 kg / 7.16 lb, raw without accessories
Rear travel
150 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON SHAFT / 20 X 10 mm ON BODY
Recommended/max. fork height
571 mm / 44 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
64 mm / diam. 753
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
52 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle

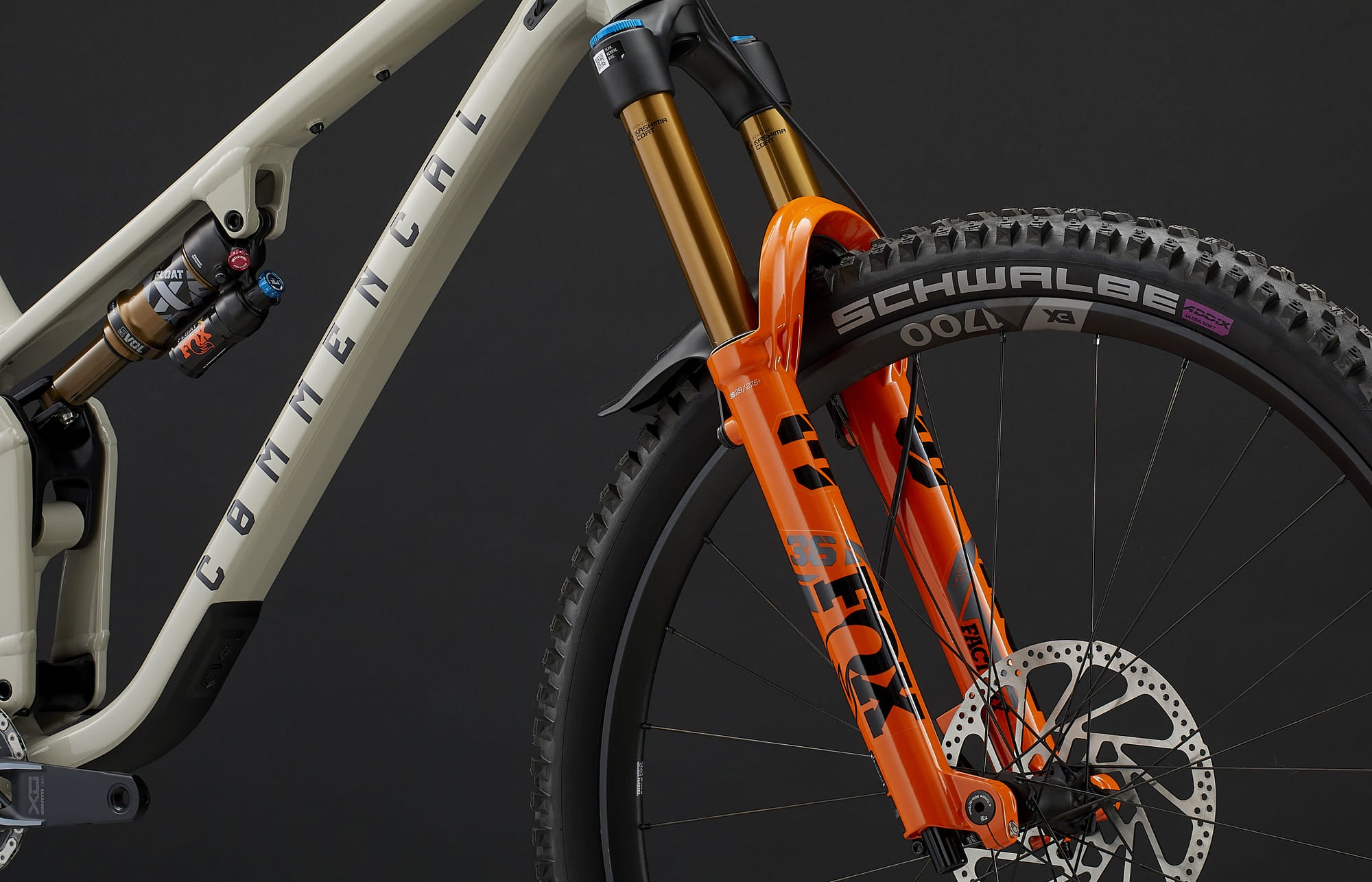

From the FOX 36 Factory fork to the DT Swiss EX 1700 wheels, this rig means business. The META V5 is dialled with 150mm rear travel, SRAM’s bulletproof GX Eagle Transmission, and TRP DH-R Evo brakes that’ll stop a charging moose. Schwalbe Tacky Chan tyres grip like claws, while the Renthal cockpit and Fizik saddle keep things controlled and comfortable. At 15.7kg, it's light enough to fly—but tough enough to land hard. This isn’t spec’d for show. It’s spec’d to shred.

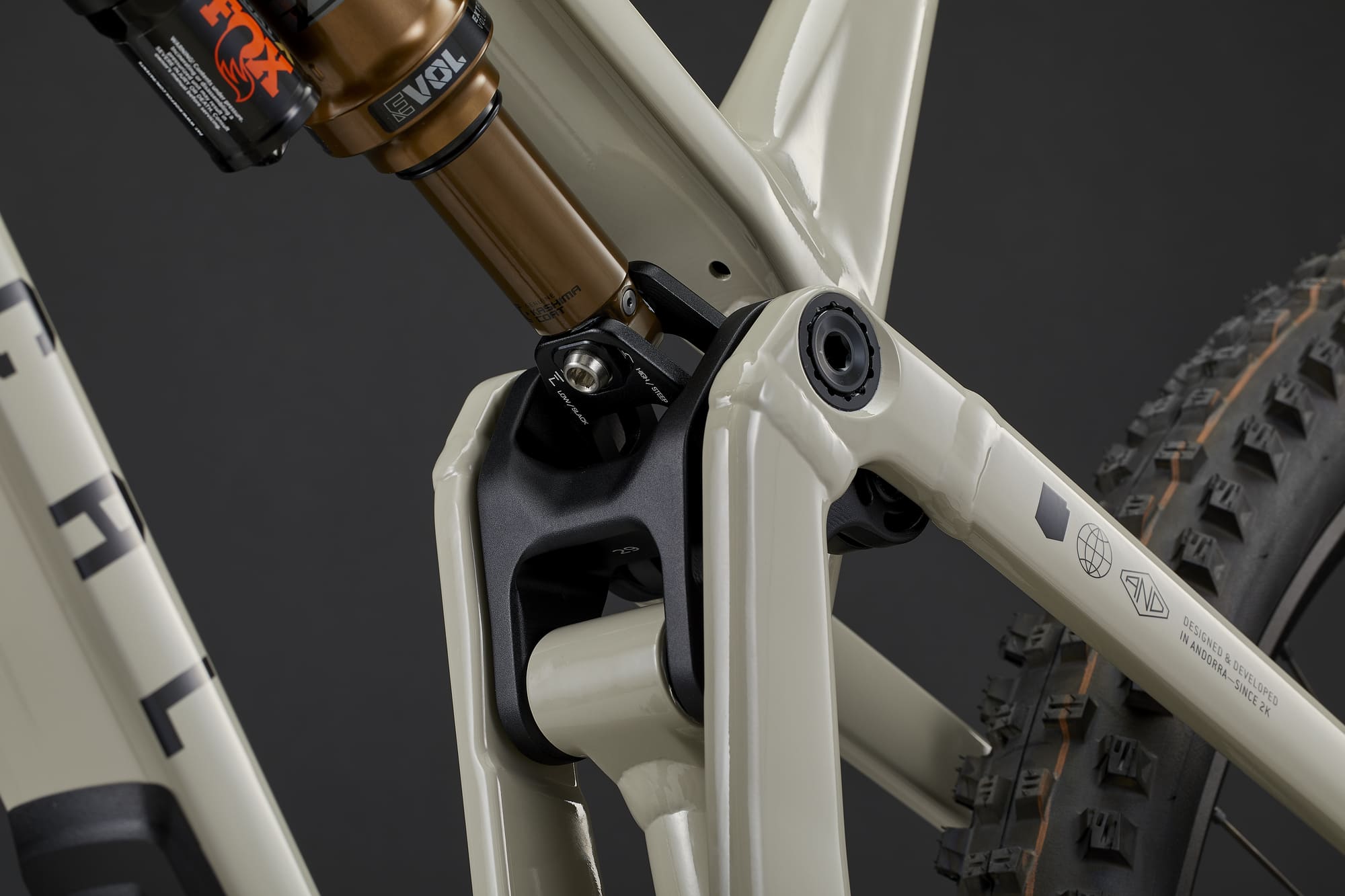

Crafted from AL 6066 and weighing just 3.25kg raw, this Enduro 29” frame is built to go fast and hit hard. With 150mm rear travel and a 210x55mm shock setup (yes, piggyback-ready), it’s primed for rowdy lines and smooth recoveries. The ZS56 headset, ISCG 05 tabs, and 223mm rotor max mean serious compatibility where it counts. Press Fit BB92 keeps things stiff, while the 64mm tyre clearance is approved geometry for off-road anarchy.
