Commencal FCB Origin Keswick Green Commuter Bike
Frame
FCB
700C, Alloy 6061, triple butted tubes, T4, T6Shock
-
Fork
FCB
Internal brake hose routing, alloy 6061-T6, taperedHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 50 mm
50 mm extension, 31,8 mmHandlebar
RIDE ALPHA R15
31,8 mm, 700 mm width, 15 mm rise, Alloy 6061Grips
RIDE ALPHA DH
Ultra-soft compound, single clamp, blackBrakes
SRAM Level TLM, Hydraulic disc brake, 2 pistons, flat mount
Rotors: SRAM G2 CleanSweep 160 mm, 6-boltShifters
SRAM Apex 1
11sChain guide
-
REAR DERAILLEUR
SRAM Apex 1
11sBottom bracket
SRAM GXP
BSACrankset
SRAM S350, 170 mm crank arms on S/M, 172,5 mm on L/XL
Chainring: SRAM S350 40tChain
KMC X11
11s, Black TechCassette
SRAM PG - 1130
11 - 42tRims
ALEXRIMS GX26P
700C, 28h, 23 mm inner width, tubeless readyHubs
Rear: FORMULA DHT-142 S - Front: FORMULA RX25
Rear: 28h, sealed bearings, 12 x 142 mm, SHIMANO Hyperglide - Front: 28h, sealed bearings, 5 x 100 mm (for QR axle)Spokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Rambler - Front: MAXXIS Rambler
Rear: 700 x 45c, EXO, Tubeless Ready - Front: 700 x 45c, EXO, Tubeless ReadySeat post
RIDE ALPHA
27,2 mm, 350 mm lengthSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
10,9 kg / 24.03 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Keswick Green
Shiny FinishAccessories
Chainstay protector
Bicycle type
ROAD - CITY BIKE
Frame material
AL 6061 T4, T6
Frame weight
-
Recommended/max. fork height
400 mm, 45 mm (offset) - 415 mm
Headset dimension
-
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
50 - 622 (700 x 50C)
Disc brake standard
Flat Mount
Rear rotor max. size
160 mm
Seatpost/seat clamp diameter
27,2 mm - 30,6 mm
Bottom bracket type
BSA 68 mm
ISCG
-
Rear hub compatibility
L=170 mm, m12, p1.75 mm - moyeu 12 x 142 mm standard maxle


Frame
FCB
700C, Alloy 6061, triple butted tubes, T4, T6Shock
-
Fork
FCB
Internal brake hose routing, alloy 6061-T6, taperedHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 50 mm
50 mm extension, 31,8 mmHandlebar
RIDE ALPHA R15
31,8 mm, 700 mm width, 15 mm rise, Alloy 6061Grips
RIDE ALPHA DH
Ultra-soft compound, single clamp, blackBrakes
SRAM Level TLM, Hydraulic disc brake, 2 pistons, flat mount
Rotors: SRAM G2 CleanSweep 160 mm, 6-boltShifters
SRAM Apex 1
11sChain guide
-
REAR DERAILLEUR
SRAM Apex 1
11sBottom bracket
SRAM GXP
BSACrankset
SRAM S350, 170 mm crank arms on S/M, 172,5 mm on L/XL
Chainring: SRAM S350 40tChain
KMC X11
11s, Black TechCassette
SRAM PG - 1130
11 - 42tRims
ALEXRIMS GX26P
700C, 28h, 23 mm inner width, tubeless readyHubs
Rear: FORMULA DHT-142 S - Front: FORMULA RX25
Rear: 28h, sealed bearings, 12 x 142 mm, SHIMANO Hyperglide - Front: 28h, sealed bearings, 5 x 100 mm (for QR axle)Spokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Rambler - Front: MAXXIS Rambler
Rear: 700 x 45c, EXO, Tubeless Ready - Front: 700 x 45c, EXO, Tubeless ReadySeat post
RIDE ALPHA
27,2 mm, 350 mm lengthSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
10,9 kg / 24.03 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Keswick Green
Shiny FinishAccessories
Chainstay protector
Bicycle type
ROAD - CITY BIKE
Frame material
AL 6061 T4, T6
Frame weight
-
Recommended/max. fork height
400 mm, 45 mm (offset) - 415 mm
Headset dimension
-
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
50 - 622 (700 x 50C)
Disc brake standard
Flat Mount
Rear rotor max. size
160 mm
Seatpost/seat clamp diameter
27,2 mm - 30,6 mm
Bottom bracket type
BSA 68 mm
ISCG
-
Rear hub compatibility
L=170 mm, m12, p1.75 mm - moyeu 12 x 142 mm standard maxle

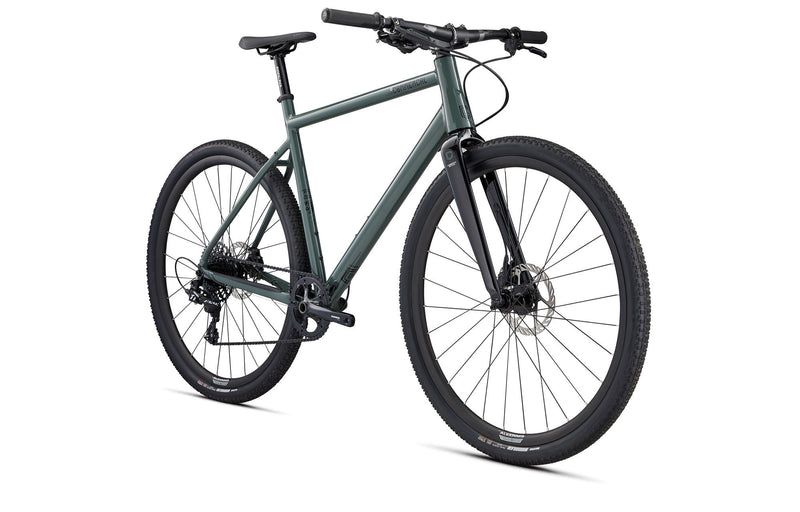

The FCB ORIGIN is built around a lightweight triple-butted 6061 alloy frame with a matching tapered alloy fork and sleek internal brake routing. SRAM Apex 1 handles shifting across an 11-speed 11–42t cassette, while Level TLM hydraulic brakes provide precise control. Rolling on ALEXRIMS GX26P wheels with MAXXIS Rambler 700x45c tyres, it’s ready for urban rides and light gravel. Finished with a RIDE ALPHA cockpit, SRAM crankset, and FIZIK saddle—this bike is fast, reliable, and purpose-built for everyday exploration.
The FCB ORIGIN is a road-meets-city frame built from AL 6061 T4/T6 alloy, designed to handle 700x50C tyres for extra grip and comfort. With a flat mount disc brake setup and clearance for a 160mm rear rotor, stopping is sharp and smooth. It features a tapered ZS44/ZS56 headset, BSA 68mm bottom bracket, and seatpost compatibility at 27.2mm. Optimised for a 400–415mm fork, and a 12x142mm rear hub, it’s built for fast commutes, gritty shortcuts, and everything in between.
