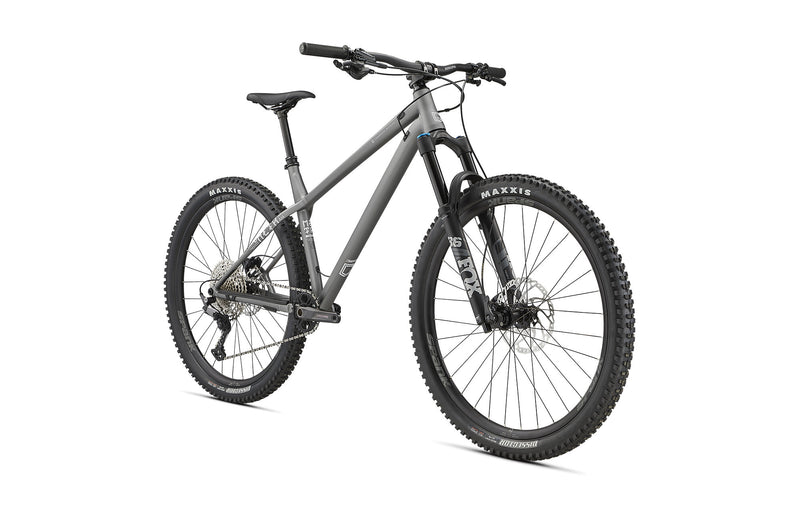

Commencal META HT AM Race Matte Graphite Trail Bike
Frame
2021 META HT AM - 29’’
Alloy 6061, triple butted tubes, T4, T6.Fork
FOX 36 Performance, 150 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 51 mm offset
Headset
ACROS ZS44 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R27
31,8 mm, 780 mm width, 27 mm rise, Alloy 6061
Grips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO Deore, 2 PISTONS, I-Spec EV compatible
Rotors: SHIMANO SM-RT66 203 / 180 mm
Shifters
SHIMANO Deore
12 sp, RapidFire Plus
REAR DERAILLEUR
SHIMANO Deore
12 spBottom bracket
SHIMANO Deore
BSA, threadedCrankset
SHIMANO Deore, 170 mm crank arms, Boost
Chainring: SHIMANO Deore, 32tChain
KMC X12
12 spCassette
SHIMANO Deore
12 sp, 10-51tRims
SPANK Spike Race 33
29'', 32h, 28 mm inner width, Tubeless ReadyHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, SHIMANO Microspline - Front: 32h, sealed bearings, 15 x 110 mmSpokes/nipples
DT SWISS Competition
J-Bend, 2.0 / 1.8 / 2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS Dissector
Rear: 29" x 2.4" WT, EXO, Tubeless Ready
Front: 29" x 2.4" WT, EXO, Tubeless ReadySeat post
KS Rage-I
31,6 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Alpaca X5
145mm width, S-Alloy railWeight
13,4 kg / 29,54 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Matte Graphite
Matte finishAccessories
Chainstay protector, seatstay protector
Bicycle type
Hardtail Enduro
Frame material
AL 6061 T4, T6
Frame weight
2.08 kg / 4,58 lb
Recommended/max. fork height
552 mm / 562 mm
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27,5" - 71-584 / 29'' - 66-622
Disc brake standard
INTERNATIONAL STANDARD
Rear rotor max. size
200 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
BSA 68 mm
ISCG
No
Rear hub compatibility
L=180 mm, M12, P1.75 mm - MOYEU 148 X 12 STANDARD MAXLE


Frame
2021 META HT AM - 29’’
Alloy 6061, triple butted tubes, T4, T6.Fork
FOX 36 Performance, 150 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 51 mm offset
Headset
ACROS ZS44 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R27
31,8 mm, 780 mm width, 27 mm rise, Alloy 6061
Grips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO Deore, 2 PISTONS, I-Spec EV compatible
Rotors: SHIMANO SM-RT66 203 / 180 mm
Shifters
SHIMANO Deore
12 sp, RapidFire Plus
REAR DERAILLEUR
SHIMANO Deore
12 spBottom bracket
SHIMANO Deore
BSA, threadedCrankset
SHIMANO Deore, 170 mm crank arms, Boost
Chainring: SHIMANO Deore, 32tChain
KMC X12
12 spCassette
SHIMANO Deore
12 sp, 10-51tRims
SPANK Spike Race 33
29'', 32h, 28 mm inner width, Tubeless ReadyHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, SHIMANO Microspline - Front: 32h, sealed bearings, 15 x 110 mmSpokes/nipples
DT SWISS Competition
J-Bend, 2.0 / 1.8 / 2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS Dissector
Rear: 29" x 2.4" WT, EXO, Tubeless Ready
Front: 29" x 2.4" WT, EXO, Tubeless ReadySeat post
KS Rage-I
31,6 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Alpaca X5
145mm width, S-Alloy railWeight
13,4 kg / 29,54 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Matte Graphite
Matte finishAccessories
Chainstay protector, seatstay protector
Bicycle type
Hardtail Enduro
Frame material
AL 6061 T4, T6
Frame weight
2.08 kg / 4,58 lb
Recommended/max. fork height
552 mm / 562 mm
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27,5" - 71-584 / 29'' - 66-622
Disc brake standard
INTERNATIONAL STANDARD
Rear rotor max. size
200 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
BSA 68 mm
ISCG
No
Rear hub compatibility
L=180 mm, M12, P1.75 mm - MOYEU 148 X 12 STANDARD MAXLE



The META HT AM RACE is built to shred with a triple-butted 6061 alloy frame and 150mm of FOX 36 Performance travel up front. Shimano Deore runs the full 12-speed show, with powerful 2-piston brakes and wide-range gearing. SPANK Spike Race 33 rims, MAXXIS Dissector tyres, and a KS dropper post keep things dialled across rough ground. Topped off with ODI grips, DT Swiss spokes, and a Fizik saddle—it’s spec’d for serious send, straight out of the box.
Built for big days and bold lines, the META HT AM RACE frame is a 6061 aluminium hardtail weighing in at just 2.08 kg—light, but tough as nails. It’s ready for aggressive forks up to 562mm and tyres up to 2.8", whether you’re rolling 27.5" or 29". The tapered ZS44/ZS56 headset, BSA 68mm bottom bracket, and 148x12mm Boost rear end give it modern compatibility, while the International Standard brake mount lets you run a hefty 200mm rear rotor.
