Commencal META HT AM Ride Dirt Mountain Bike
Frame
Meta HT AM - 29''/27'' on S / M & 29''/29'' on L / XL
Alloy 6061, triple butted tubes, T4, T6.Fork
ROCKSHOX 35 Gold RL, 150 mm travel
29", Motion Control Damper, DebonAir, rebound, LSC to lock, Boost (15 x 110 mm), 44 mm offset, 0 TokenHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 on S - RIDE ALPHA R27 on M / L / XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SRAM Level, 2 pistons, Hydraulic disc brake
Rotors: SRAM G2 CleanSweep 200 / 180 mm, 6-boltShifters
SRAM SX Eagle
12sREAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
SRAM BSA
ThreadedCrankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
E13 LG1 EN Base
Rear: 27.5'', 32h, 30 mm inner width on S / M - 29'', 32h, 30 mm inner width on L / XL - Front: 29'', 32h, 30 mm inner width on S / M / L / XLHubs
Rear: FORMULA DC-348A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, SHIMANO Hyperglide - Front: 32h, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM Leader
J-Bend 2.0 mm, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS Dissector
Rear: 27.5'' x 2.6’', dual compound, EXO, Tubeless Ready on S / M - 29'' x 2.6'', dual compound, EXO, Tubeless Ready, on L / XL - Front: 29" x 2.6", dual compound, EXO, Tubeless Ready on S / M / L / XLSeat post
RIDE ALPHA
31,6 mm, 400 mm on S/M, 450 mm on L/XSaddle
SDG Bel Air V3
140 mm width, Steel railsWeight
14,2 kg / 31.30 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Dirt
Shiny FinishAccessories
Chainstay protector, seatstay protector
Bicycle type
Hardtail Enduro
Frame material
AL 6061 T4, T6
Frame weight
2.08 kg / 4,58 lb
Recommended/max. fork height
561 MM / 571 MM
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27,5" - 71-584 / 29'' - 66-622
Disc brake standard
INTERNATIONAL STANDARD
Rear rotor max. size
200 MM
Seatpost/seat clamp diameter
31,6 MM / 34,9 MM
Bottom bracket type
BSA 68 MM
Rear hub compatibility
L=180 mm, M12, P1.75 mm - MOYEU 148 X 12 STANDARD MAXLE
Frame
Meta HT AM - 29''/27'' on S / M & 29''/29'' on L / XL
Alloy 6061, triple butted tubes, T4, T6.Fork
ROCKSHOX 35 Gold RL, 150 mm travel
29", Motion Control Damper, DebonAir, rebound, LSC to lock, Boost (15 x 110 mm), 44 mm offset, 0 TokenHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 on S - RIDE ALPHA R27 on M / L / XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SRAM Level, 2 pistons, Hydraulic disc brake
Rotors: SRAM G2 CleanSweep 200 / 180 mm, 6-boltShifters
SRAM SX Eagle
12sREAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
SRAM BSA
ThreadedCrankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
E13 LG1 EN Base
Rear: 27.5'', 32h, 30 mm inner width on S / M - 29'', 32h, 30 mm inner width on L / XL - Front: 29'', 32h, 30 mm inner width on S / M / L / XLHubs
Rear: FORMULA DC-348A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, SHIMANO Hyperglide - Front: 32h, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM Leader
J-Bend 2.0 mm, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS Dissector
Rear: 27.5'' x 2.6’', dual compound, EXO, Tubeless Ready on S / M - 29'' x 2.6'', dual compound, EXO, Tubeless Ready, on L / XL - Front: 29" x 2.6", dual compound, EXO, Tubeless Ready on S / M / L / XLSeat post
RIDE ALPHA
31,6 mm, 400 mm on S/M, 450 mm on L/XSaddle
SDG Bel Air V3
140 mm width, Steel railsWeight
14,2 kg / 31.30 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Dirt
Shiny FinishAccessories
Chainstay protector, seatstay protector
Bicycle type
Hardtail Enduro
Frame material
AL 6061 T4, T6
Frame weight
2.08 kg / 4,58 lb
Recommended/max. fork height
561 MM / 571 MM
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27,5" - 71-584 / 29'' - 66-622
Disc brake standard
INTERNATIONAL STANDARD
Rear rotor max. size
200 MM
Seatpost/seat clamp diameter
31,6 MM / 34,9 MM
Bottom bracket type
BSA 68 MM
Rear hub compatibility
L=180 mm, M12, P1.75 mm - MOYEU 148 X 12 STANDARD MAXLE

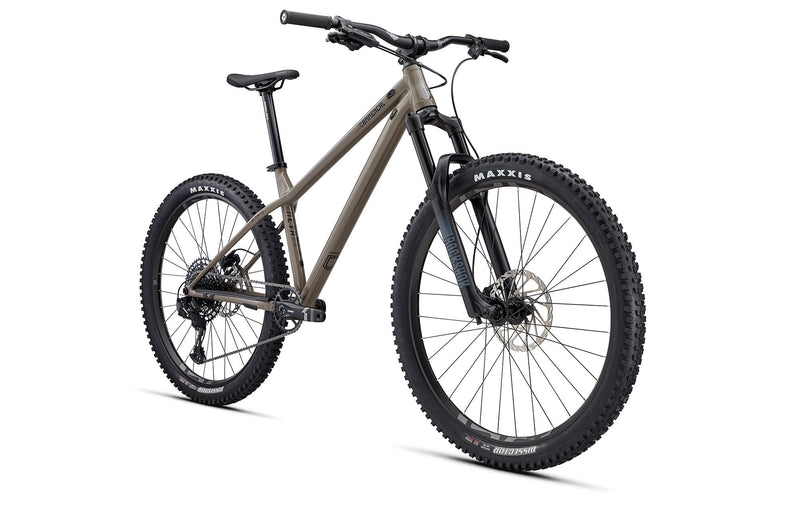

The META HT AM RIDE in Dirt finish is kitted out for aggressive trail missions with rock-solid spec to match. Its triple-butted 6061 alloy frame is paired with a 150mm ROCKSHOX 35 Gold RL fork and SRAM SX Eagle 12-speed drivetrain for smooth power and precision. SRAM Level brakes provide sharp stopping, while E13 LG1 EN rims and 2.6" MAXXIS Dissector tyres offer grip to spare. Finished with RIDE ALPHA kit and SDG saddle, it’s a tough, tuned rig built to send.
This Hardtail Enduro frame is all muscle and minimal fuss—crafted from AL 6061 T4/T6 alloy and weighing just 2.08 kg, it's built to charge. Compatible with 561–571 mm forks and up to 200 mm rear rotors, it’s primed for aggressive lines and technical climbs. With tapered ZS44/ZS56 headset, BSA bottom bracket, and clearance for wide 27.5" or 29" tyres, it’s a purebred trail machine ready for punishment.
