Commencal Meta Power SX 800 Signature 2026 Pure Black Enduro E-Bike
Frame
META POWER SX BOSCH, 180 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearingsMotor
BOSCH Performance Line CX Gen5
100 n.mBattery
BOSCH Powertube 800
Fully integrated main battery, 800 WhDisplay
BOSCH System Controller, ON/OFF switch, assist mode level, battery charge level
Switch: BOSCH Mini Remote, mode switch, walk assist, light switchShock
FOX Float X2 Factory
230 x 65 mm, 2-postion (open/firm) lever, HSC, LSC, HSR, LSRFork
FOX 38 Factory E-Bike, 180 mm
29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset, 3 spacersHeadset
ACROS ZS56/ZS66
Alloy cups, stainless steel & sealed bearingsStem
RIDE ALPHA 40
40 mm extension, 31.8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck 2.1
Soft compound, single clamp, blackBrakes
TRP DH-R EVO PRO, 4 pistons, resin pads
Rear rotor: TRP RS05 203 mm - Front rotor: TRP RS05 220 mm
6-bolt, 2.3 mm widthShifters
SRAM Eagle 90
12sChain guide
RIDE ALPHA
32-34tREAR DERAILLEUR
SRAM Eagle 90
12sCrankset
E13 Helix Core E*Spec, 155 mm crank arms, Bosch
Chainring: SRAM XX T-Type E-MTB, 34t for Bosch system, direct mountChain
SRAM GX T-Type
12s, FlattopCassette
SRAM GX T-Type
12s, 10-52tRims
DT SWISS FR541
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
Rear: DT SWISS 370 Hybrid - Front: DT SWISS 370
Rear: 28h, sealed bearings, 12 x 148 mm, 24t, SRAM XD - Front: 28h, sealed bearings, 15 x 110 mmSpokes/nipples
Included with wheelset
Tyres
Rear: MAXXIS Minion DHRII 27.5'' - Front: MAXXIS ASSEGAI 29''
Rear: 27.5x2.50 WT, 3C MaxxTerra, Double Down, TR - Front: 29x2.50 WT, 3C MaxxGrip, New EXO+, TRSeat post
ONE UP V3
31.6 mm, 150 mm on S, 180 mm on M, 210 mm on L/XLSaddle
FIZIK Terra Aidon X5
145 mm width, Kium Mobius railsWeight
25,5 kg / 56.21 lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
CRANKBROTHERS Stamp 1
Colour
Pure Black
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, FIDLOCK base, BOSCH Kiox 400, Pedals CRANKBROTHERS Stamp 1.
Battery charger: BOSCH 4A Charger, Compact size & lightweight
*Please note that bike specs are subject to change without prior notice.Battery recycling
Partnership with BOSCH
The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
Bicycle type
E-BIKE ENDURO 29''/27''
Frame material
Al 6061
Frame weight
5,86 kg / 12.91 lb
Rear travel
180 mm front / 180 mm rear
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm
Recommended/max. fork height
588 mm (44 offset) / 598 mm
Headset dimension
ZS56 / 28,6 - ZS66 / 40
Headset type
Tapered
Maximum tyre dimension (etrto)
64 mm / Ø 721 mm
Disc brake standard
Postmount 200
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Rear hub compatibility
148 x 12 UDH
Frame
META POWER SX BOSCH, 180 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearingsMotor
BOSCH Performance Line CX Gen5
100 n.mBattery
BOSCH Powertube 800
Fully integrated main battery, 800 WhDisplay
BOSCH System Controller, ON/OFF switch, assist mode level, battery charge level
Switch: BOSCH Mini Remote, mode switch, walk assist, light switchShock
FOX Float X2 Factory
230 x 65 mm, 2-postion (open/firm) lever, HSC, LSC, HSR, LSRFork
FOX 38 Factory E-Bike, 180 mm
29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset, 3 spacersHeadset
ACROS ZS56/ZS66
Alloy cups, stainless steel & sealed bearingsStem
RIDE ALPHA 40
40 mm extension, 31.8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck 2.1
Soft compound, single clamp, blackBrakes
TRP DH-R EVO PRO, 4 pistons, resin pads
Rear rotor: TRP RS05 203 mm - Front rotor: TRP RS05 220 mm
6-bolt, 2.3 mm widthShifters
SRAM Eagle 90
12sChain guide
RIDE ALPHA
32-34tREAR DERAILLEUR
SRAM Eagle 90
12sCrankset
E13 Helix Core E*Spec, 155 mm crank arms, Bosch
Chainring: SRAM XX T-Type E-MTB, 34t for Bosch system, direct mountChain
SRAM GX T-Type
12s, FlattopCassette
SRAM GX T-Type
12s, 10-52tRims
DT SWISS FR541
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
Rear: DT SWISS 370 Hybrid - Front: DT SWISS 370
Rear: 28h, sealed bearings, 12 x 148 mm, 24t, SRAM XD - Front: 28h, sealed bearings, 15 x 110 mmSpokes/nipples
Included with wheelset
Tyres
Rear: MAXXIS Minion DHRII 27.5'' - Front: MAXXIS ASSEGAI 29''
Rear: 27.5x2.50 WT, 3C MaxxTerra, Double Down, TR - Front: 29x2.50 WT, 3C MaxxGrip, New EXO+, TRSeat post
ONE UP V3
31.6 mm, 150 mm on S, 180 mm on M, 210 mm on L/XLSaddle
FIZIK Terra Aidon X5
145 mm width, Kium Mobius railsWeight
25,5 kg / 56.21 lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
CRANKBROTHERS Stamp 1
Colour
Pure Black
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, FIDLOCK base, BOSCH Kiox 400, Pedals CRANKBROTHERS Stamp 1.
Battery charger: BOSCH 4A Charger, Compact size & lightweight
*Please note that bike specs are subject to change without prior notice.Battery recycling
Partnership with BOSCH
The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
Bicycle type
E-BIKE ENDURO 29''/27''
Frame material
Al 6061
Frame weight
5,86 kg / 12.91 lb
Rear travel
180 mm front / 180 mm rear
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm
Recommended/max. fork height
588 mm (44 offset) / 598 mm
Headset dimension
ZS56 / 28,6 - ZS66 / 40
Headset type
Tapered
Maximum tyre dimension (etrto)
64 mm / Ø 721 mm
Disc brake standard
Postmount 200
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Rear hub compatibility
148 x 12 UDH

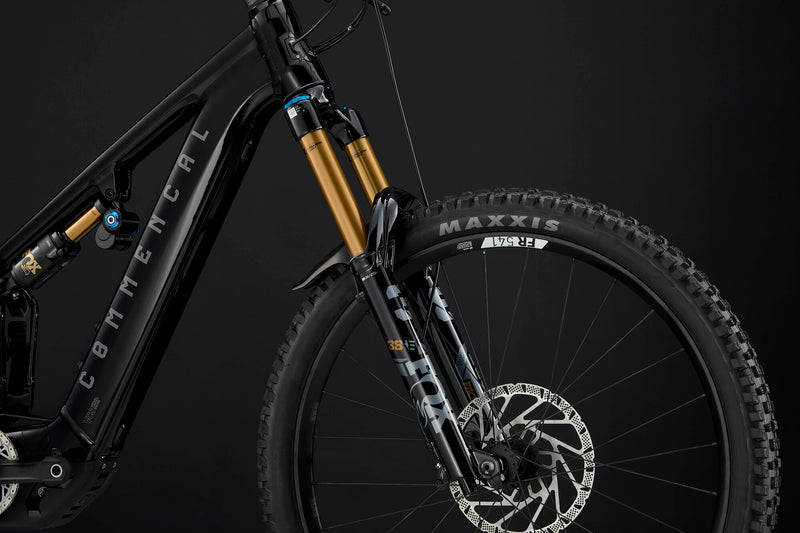

This beast is built around 180mm of FOX Factory suspension, with a Float X2 shock and 38 E-Bike fork taming the rough stuff. The BOSCH CX Gen5 motor and 800Wh battery deliver relentless power, while DT SWISS FR541 rims and Maxxis tyres keep things grounded. SRAM’s Eagle 90 T-Type drivetrain and TRP DH-R EVO PRO brakes give precise control, and a ONE UP dropper with FIZIK saddle ensures all-day comfort. Finished in Pure Black and dripping with premium parts—it’s trail domination on two wheels.
Engineered from rugged AL 6061 and weighing in at just 5.86kg, this enduro-ready frame delivers 180mm of front and rear travel with piggyback shock compatibility and a 230x65mm stroke. It’s mullet-tuned, with tapered ZS56/ZS66 headset dimensions, a fork height range up to 598mm, and clearance for beefy 223mm rotors. Built to house a 34.9mm dropper and run a 148 x 12 UDH rear hub, this chassis is ready to take the hits and keep coming back for more.
