Commencal META SX V4 Essential Dark Slate Enduro Bike
Frame
META SX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
FOX Float X Performance
230 x 62.5 mm, 2-pos lever, reboundFork
FOX 38 Performance, 170 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 TokensHeadset
ACROS ZS44/ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO SLX, 4 pistons, I-Spec EV compatible
Rotors: GALFER Disc Wave 203 mm, 6 holesShifters
SHIMANO SLX
12sREAR DERAILLEUR
SHIMANO SLX
12sBottom bracket
SHIMANO BB71-41A
PressfitCrankset
SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO SLX
12sCassette
SHIMANO SLX
12s, 10-51tRims
Rear: DT SWISS E532 27.5'' - Front: DT SWISS E532 29''
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Micro Spline - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5" x 2.4", WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29" x 2.5", WT, 3C MaxxTerra, EXO, Tubeless ReadySeat post
KS Rage-I
34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
15,9 kg / 35.05 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Dark Slate
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 27''/29''
Frame material
AL 6066 T4, T6
Frame weight
3,9 kg / 8.59 lb
Rear travel
160 mm
Shock length/stroke
230 x 62,5 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 X 10 mm on shaft
Recommended/max. fork height
586 mm / 596 mm
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
68-584 mm - 29'' : 65-622 mm
Disc brake standard
POSTMOUNT 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 X 148 mm standard maxle


Frame
META SX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
FOX Float X Performance
230 x 62.5 mm, 2-pos lever, reboundFork
FOX 38 Performance, 170 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 TokensHeadset
ACROS ZS44/ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO SLX, 4 pistons, I-Spec EV compatible
Rotors: GALFER Disc Wave 203 mm, 6 holesShifters
SHIMANO SLX
12sREAR DERAILLEUR
SHIMANO SLX
12sBottom bracket
SHIMANO BB71-41A
PressfitCrankset
SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO SLX
12sCassette
SHIMANO SLX
12s, 10-51tRims
Rear: DT SWISS E532 27.5'' - Front: DT SWISS E532 29''
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Micro Spline - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5" x 2.4", WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29" x 2.5", WT, 3C MaxxTerra, EXO, Tubeless ReadySeat post
KS Rage-I
34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
15,9 kg / 35.05 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Dark Slate
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 27''/29''
Frame material
AL 6066 T4, T6
Frame weight
3,9 kg / 8.59 lb
Rear travel
160 mm
Shock length/stroke
230 x 62,5 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 X 10 mm on shaft
Recommended/max. fork height
586 mm / 596 mm
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
68-584 mm - 29'' : 65-622 mm
Disc brake standard
POSTMOUNT 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 X 148 mm standard maxle

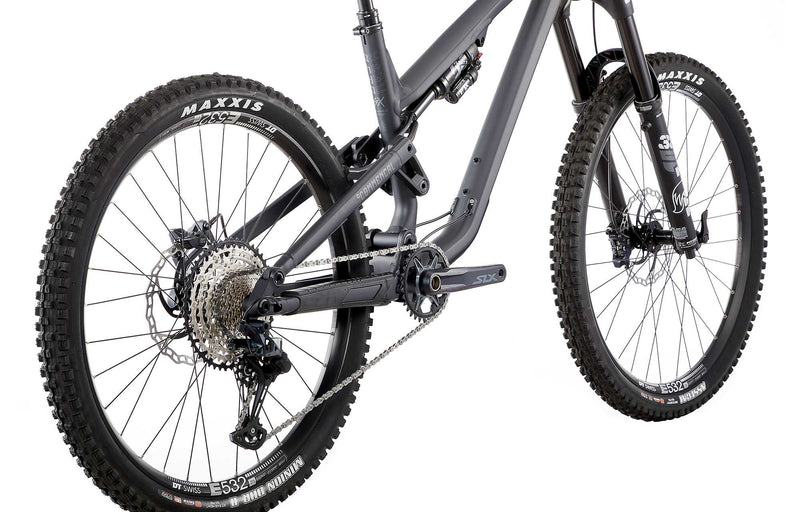

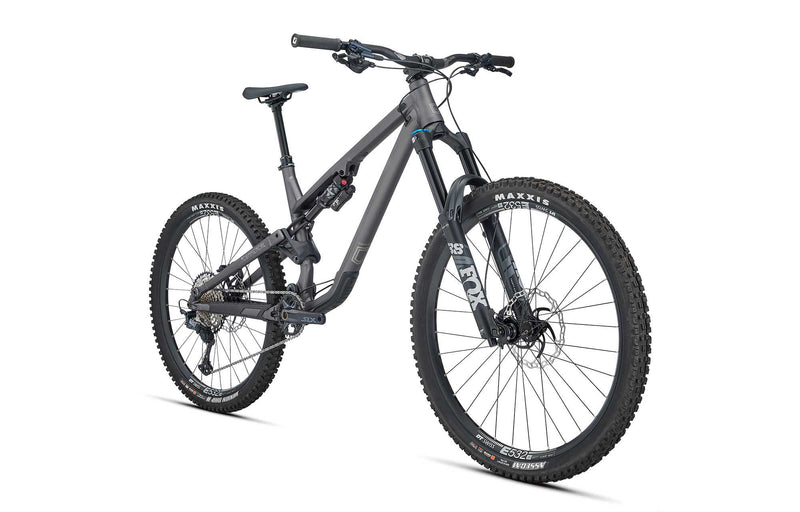

Confidence on tap, control in every corner. With a 170mm FOX 38 Performance fork and 160mm rear travel from the Float X shock, the META SX V4 thrives when the terrain turns savage. The triple-butted 6066 alloy frame keeps things stiff and reactive, while the SHIMANO SLX 12-speed groupset and four-piston brakes deliver smooth shifts and dependable stopping power. DT SWISS E 532 wheels wrapped in MAXXIS Assegai and DHRII rubber finish the build with grip and guts to match your ambition.
Mixed-wheel geometry with full-bore intent. The META SX V4 frame blends a 29"/27.5" wheel setup with 160mm of rear travel, built around AL 6066 T4/T6 alloy and weighing just 3.9kg. It’s piggyback-shock compatible, ISCG05 ready, and clears up to a 220mm rotor out back — made for hard braking and harder riding. With BB92 spacing, 230x62.5mm shock stroke, and aggressive enduro angles, it’s the foundation for riders chasing all-mountain chaos with composure.
