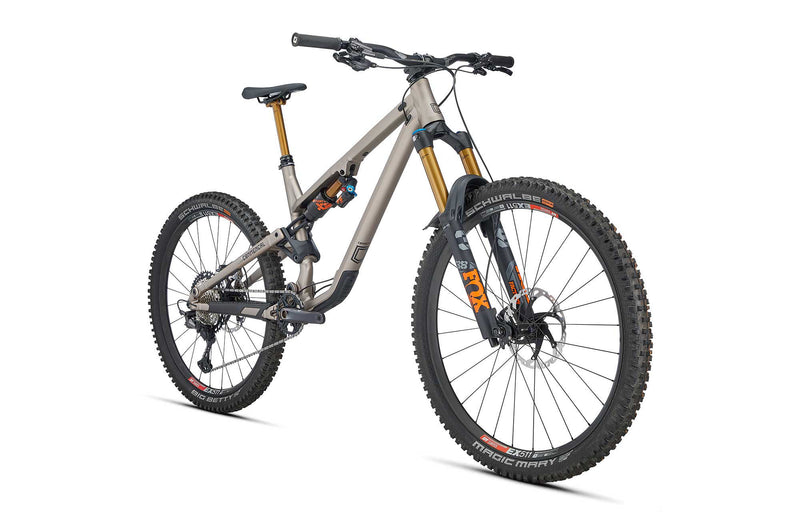

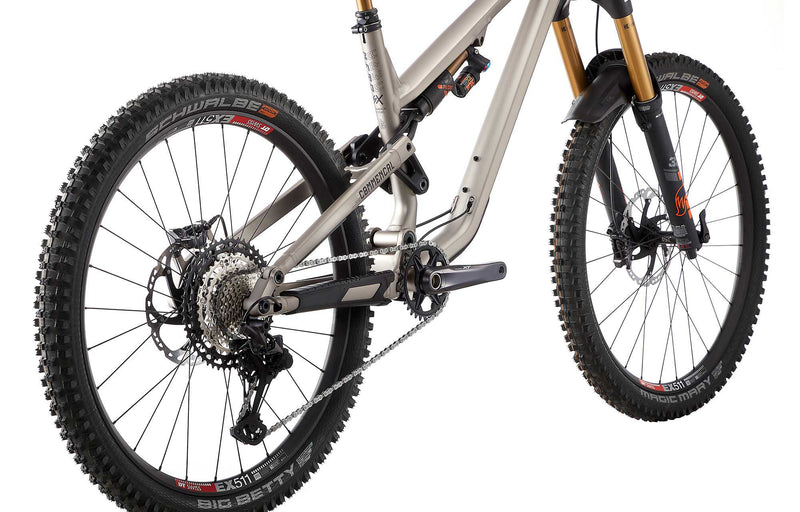

Commencal META SX V4 Signature Champagne Enduro Bike
Frame
META SX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
FOX Float X2 Factory
230 x 62.5 mm, HSC, LSC, HSR, LSR, 2-postion adjustmentFork
FOX 38 Factory, 170 mm travel
29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 2 TokensHeadset
ACROS ZS44/ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO XT, 4 pistons, I-Spec EV compatible
Rotors: SHIMANO SM-RT86 203 mm, 6 holesShifters
SHIMANO XT
12sREAR DERAILLEUR
SHIMANO XT
12sBottom bracket
SHIMANO BBMT800
PressfitCrankset
SHIMANO XT, 170 mm crank arms, Boost
Chainring: SHIMANO XT, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO XT
12sCassette
SHIMANO XT
12s, 10-51tRims
Rear: DT SWISS EX511 27.5'' - Front: DT SWISS EX511 29''
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm, MicroSpline, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
DT SWISS Competition
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
Rear: 27.5" x 2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless EasySeat post
FOX Transfer Factory
31.6 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mmSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
15,9 kg / 35.05 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Champagne
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector, FOX 38 Fender
*Please note that bike specs are subject to change without prior notice
Bicycle type
ENDURO 27''/29''
Frame material
AL 6066 T4, T6
Frame weight
3,9 kg / 8.59 lb
Rear travel
160 mm
Shock length/stroke
230 x 62,5 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 x 10 mm on shaft
Recommended/max. fork height
586 mm / 596 mm
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
68-584 mm - 29'' : 65-622 mm
Disc brake standard
POSTMOUNT 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 X 148 mm standard maxle


Frame
META SX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
FOX Float X2 Factory
230 x 62.5 mm, HSC, LSC, HSR, LSR, 2-postion adjustmentFork
FOX 38 Factory, 170 mm travel
29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 2 TokensHeadset
ACROS ZS44/ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO XT, 4 pistons, I-Spec EV compatible
Rotors: SHIMANO SM-RT86 203 mm, 6 holesShifters
SHIMANO XT
12sREAR DERAILLEUR
SHIMANO XT
12sBottom bracket
SHIMANO BBMT800
PressfitCrankset
SHIMANO XT, 170 mm crank arms, Boost
Chainring: SHIMANO XT, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO XT
12sCassette
SHIMANO XT
12s, 10-51tRims
Rear: DT SWISS EX511 27.5'' - Front: DT SWISS EX511 29''
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm, MicroSpline, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
DT SWISS Competition
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
Rear: 27.5" x 2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless EasySeat post
FOX Transfer Factory
31.6 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mmSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
15,9 kg / 35.05 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Champagne
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector, FOX 38 Fender
*Please note that bike specs are subject to change without prior notice
Bicycle type
ENDURO 27''/29''
Frame material
AL 6066 T4, T6
Frame weight
3,9 kg / 8.59 lb
Rear travel
160 mm
Shock length/stroke
230 x 62,5 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 x 10 mm on shaft
Recommended/max. fork height
586 mm / 596 mm
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
68-584 mm - 29'' : 65-622 mm
Disc brake standard
POSTMOUNT 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 X 148 mm standard maxle



Loaded with premium kit from front to back, the META SX V4 Signature Champagne means business. With 170mm of FOX Factory suspension, Shimano XT 12-speed shifting and brakes, and DT Swiss EX511 wheels, this build is equal parts precision and power. SCHWALBE tyres grip like a vice, while the FOX Transfer dropper and FIZIK saddle keep comfort dialled. At just under 16kg, it’s light enough to fly yet tough enough to charge. Champagne finish? Just the icing on the send-cake.
Tuned for aggressive enduro, this frame blends 160mm of rear travel with a burly AL 6066 T4/T6 build weighing in at 3.9kg. Compatible with piggyback shocks and big rotors (up to 220mm out back), it's designed for riders who take the hard lines. With a 27.5"/29" wheel setup, BB92 bottom bracket, ISCG 05 tabs, and a 148mm Boost rear hub spacing, this beast is ready to be built into something rowdy. Cyril approves—says it’s “enduro without the ego.”
