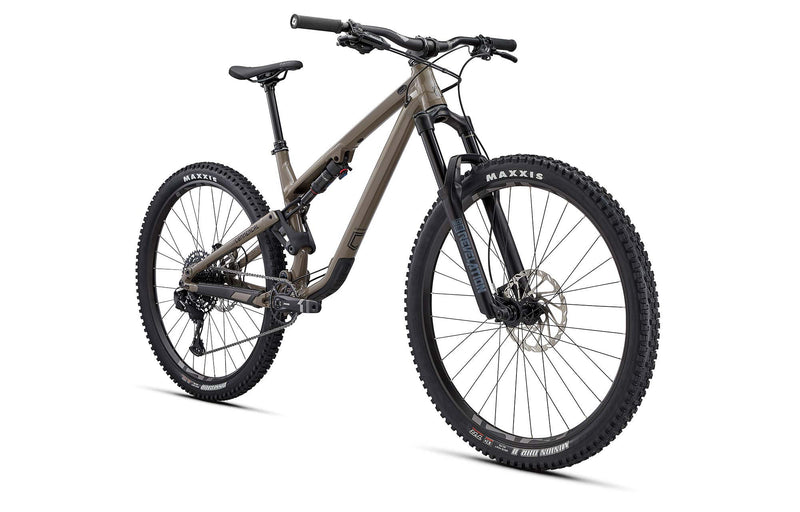

Commencal META TR V4 Ride Dirt Mountain Bike
Frame
Meta TR 29, 140 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
ROCKSHOX Deluxe Select +
210 x 55 mm, RT damper, DebonAir Linear, rebound, 2 pos comp, 1 Token neg. 4 Tokens pos.Fork
ROCKSHOX Revelation RC, 150 mm travel
29", Motion Control RC damper, DebonAir, rebound, LSC, Boost (15 x 110 mm), 42 mm offset, 1 TokenHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SRAM Guide T, 4 pistons, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6-boltShifters
SRAM SX Eagle
12sChain guide
-
REAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
SRAM DUB
PressfitCrankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
E13 LG1 EN Base
29'', 32h, 30 mm inner widthHubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Shimano Hyperglide - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS DHR II
Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless ReadySeat post
KS Rage-I
34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remoteSaddle
SDG Bel Air V3
140 mm width, Steel RailsWeight
15 KG / 33.06 LB
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Dirt
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector
Bicycle type
Trail 29"
Frame material
AL 6066 T4, T6
Frame weight
3,7 kg / 8.15 lb
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 x 10 mm on shaft
Recommended/max. fork height
551 mm / 571 mm
Headset dimension
Tapered
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
29" - 65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle


Frame
Meta TR 29, 140 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
ROCKSHOX Deluxe Select +
210 x 55 mm, RT damper, DebonAir Linear, rebound, 2 pos comp, 1 Token neg. 4 Tokens pos.Fork
ROCKSHOX Revelation RC, 150 mm travel
29", Motion Control RC damper, DebonAir, rebound, LSC, Boost (15 x 110 mm), 42 mm offset, 1 TokenHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SRAM Guide T, 4 pistons, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6-boltShifters
SRAM SX Eagle
12sChain guide
-
REAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
SRAM DUB
PressfitCrankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
E13 LG1 EN Base
29'', 32h, 30 mm inner widthHubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Shimano Hyperglide - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS DHR II
Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless ReadySeat post
KS Rage-I
34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remoteSaddle
SDG Bel Air V3
140 mm width, Steel RailsWeight
15 KG / 33.06 LB
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Dirt
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector
Bicycle type
Trail 29"
Frame material
AL 6066 T4, T6
Frame weight
3,7 kg / 8.15 lb
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 x 10 mm on shaft
Recommended/max. fork height
551 mm / 571 mm
Headset dimension
Tapered
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
29" - 65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle



The META TR V4 RIDE DIRT is a precision-built trail machine that balances capability and control. Its 140mm travel 6066 alloy frame pairs with a 150mm ROCKSHOX Revelation RC fork and Deluxe Select+ rear shock for a plush yet responsive ride. A full SRAM SX/NX Eagle 12-speed drivetrain and 4-piston Guide T brakes keep power and handling tight. E13 LG1 rims, Maxxis rubber, and a KS dropper post round out the package—ready for climbs, descents, and everything in between.
This Trail 29” frame is a powerhouse of precision and control, crafted from AL 6066 T4/T6 and weighing in at 3.7 kg. With 140mm rear travel, a 210 x 55 mm shock, and compatibility for piggyback shocks, it's built to smooth out the wild stuff. Designed around modern trail standards—BB92 bottom bracket, ISCG 05 tabs, and 12 x 148 mm Boost rear hub—it’s ready for big rotors, fat tyres, and steep lines.
