Commencal META TR V4 Signature High Polished Trail Bike
Frame
Meta TR 29, 140 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Shock
FOX Float X2 Factory
210 x 55 mm, HSC, LSC, HSR,LSR, 2-position adjustment
Fork
FOX 36 Factory, 160 mm travel
29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset
Headset
ACROS ZS44 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA Freeride 50
50 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R27
31,8 mm, 780 mm width, 31,8 mm, Alloy 7050
Grips
ODI Elite Motion
Soft pro compound, single clamp, black
Brakes
SHIMANO XT, 2 pistons, I-Spec EV compatible
Rotors: SHIMANO RT-MT900 203 mm, Centerlock, Ice Technology Freeza
Shifters
SHIMANO XT
12s
REAR DERAILLEUR
SHIMANO XT
12s
Bottom bracket
SHIMANO BBMT800
Pressfit
Crankset
SHIMANO XT, 170 mm crank arms, Boost
Chainring: SHIMANO XT, 32t, Dynamic Chain Engagement + Technology
Chain
SHIMANO XT
12s
Cassette
SHIMANO XT
12s, 10-51t
Rims
DT SWISS XM1700 Spline
29'', 32h, 30 mm inner width
Hubs
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, 36t ratchet, sealed bearings - Front: 28h, sealed bearings
Spokes/nipples
DT SWISS Competition
Straightpull, 2.0 / 1.8 / 2.0 mm, double butted, stainless, with Nylok, black
Tyres
Rear: MAXXIS Dissector - Front: MAXXIS Dissector
Rear: 29 x 2.4 WT, EXO+, 3C, Tubeless Ready - Front: 29 x 2.4 WT, EXO, 3C, Tubeless Ready
Seat post
KS Lev Integra
34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remote
Saddle
WTB Silverado
Narrow shape, Cr-Mo rails
Weight
15 KG / 33.06 LB
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Pedals included
No
Colour
High Polished
Accessories
Down tube protector, chainstay protector, seatstay protector
Bicycle type
TRAIL 29"
Frame material
AL 6066 T4, T6
Frame weight
3,7 kg / 8.15 lb
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm
Recommended/max. fork height
551 mm / 571 mm
Headset dimension
TAPERED
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
POSTMOUNT 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
12 x 148 mm


Frame
Meta TR 29, 140 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Shock
FOX Float X2 Factory
210 x 55 mm, HSC, LSC, HSR,LSR, 2-position adjustment
Fork
FOX 36 Factory, 160 mm travel
29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset
Headset
ACROS ZS44 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA Freeride 50
50 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R27
31,8 mm, 780 mm width, 31,8 mm, Alloy 7050
Grips
ODI Elite Motion
Soft pro compound, single clamp, black
Brakes
SHIMANO XT, 2 pistons, I-Spec EV compatible
Rotors: SHIMANO RT-MT900 203 mm, Centerlock, Ice Technology Freeza
Shifters
SHIMANO XT
12s
REAR DERAILLEUR
SHIMANO XT
12s
Bottom bracket
SHIMANO BBMT800
Pressfit
Crankset
SHIMANO XT, 170 mm crank arms, Boost
Chainring: SHIMANO XT, 32t, Dynamic Chain Engagement + Technology
Chain
SHIMANO XT
12s
Cassette
SHIMANO XT
12s, 10-51t
Rims
DT SWISS XM1700 Spline
29'', 32h, 30 mm inner width
Hubs
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, 36t ratchet, sealed bearings - Front: 28h, sealed bearings
Spokes/nipples
DT SWISS Competition
Straightpull, 2.0 / 1.8 / 2.0 mm, double butted, stainless, with Nylok, black
Tyres
Rear: MAXXIS Dissector - Front: MAXXIS Dissector
Rear: 29 x 2.4 WT, EXO+, 3C, Tubeless Ready - Front: 29 x 2.4 WT, EXO, 3C, Tubeless Ready
Seat post
KS Lev Integra
34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remote
Saddle
WTB Silverado
Narrow shape, Cr-Mo rails
Weight
15 KG / 33.06 LB
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Pedals included
No
Colour
High Polished
Accessories
Down tube protector, chainstay protector, seatstay protector
Bicycle type
TRAIL 29"
Frame material
AL 6066 T4, T6
Frame weight
3,7 kg / 8.15 lb
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm
Recommended/max. fork height
551 mm / 571 mm
Headset dimension
TAPERED
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
POSTMOUNT 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
12 x 148 mm

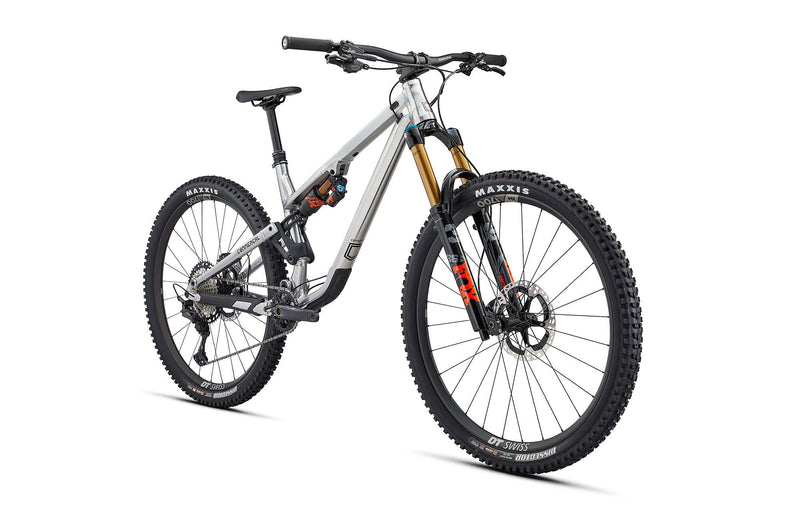

Built on a polished alloy frame with 140mm rear and 160mm front travel, this META TR runs FOX Factory suspension, a full Shimano XT 12-speed groupset, and DT Swiss XM1700 wheels. Braking is handled by powerful 2-piston Shimano XT brakes with Ice Tech rotors. Maxxis Dissector tyres provide reliable trail grip, while a KS Lev dropper post and WTB Silverado saddle round out the ride. Lightweight, durable, and ready for big mountain missions.
Crafted from AL 6066 T4/T6 alloy, the frame weighs 3.7kg and delivers 140mm rear travel via a 210x55mm shock. It's piggyback compatible with 20x10mm bushings and supports 551–571mm fork height. The tapered headtube fits ZS44/ZS56 headsets, with a BB92 bottom bracket and ISCG 05 mounts. Tyre clearance maxes at 65mm, with 200mm post mount brakes and room for a 220mm rear rotor. Runs a 34.9mm seatpost and 12x148mm Boost rear hub.
