Commencal META V5 Essential Pure White Enduro Bike
Frame
META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6Shock
FOX Float X Performance
210 x 55 mm, 2-pos lever, rebound, LSC, 0.6 spacerFork
FOX 36 Performance, 160 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 1 spacerHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
SHIMANO SLX, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO SM-RT76 203 mm, 6 holesShifters
SHIMANO SLX
12sREAR DERAILLEUR
SHIMANO SLX
12sBottom bracket
SHIMANO BB71
PressfitCrankset
SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO SLX
12sCassette
SHIMANO SLX
12s, 10-51tRims
DT SWISS E 532
29'', 32h, 30 mm inner widthHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Micro Spline - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 29"x2.40" WT, EXO, Dual compound, Tubeless Ready - Front: 29"x2.40" WT, EXO, 3C MaxxGrip, Tubeless ReadySeat post
KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remoteSaddle
SDG Bel Air V3
140 mm width, steel railsWeight
15,8 kg / 34.83 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pure White
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 29"
Frame material
AL 6066 T4, T6
Frame weight
3,25 kg / 7.16 lb, raw without accessories
Rear travel
150 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON SHAFT / 20 X 10 mm ON BODY
Recommended/max. fork height
571 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 753
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
52 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle


Frame
META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6Shock
FOX Float X Performance
210 x 55 mm, 2-pos lever, rebound, LSC, 0.6 spacerFork
FOX 36 Performance, 160 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 1 spacerHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
SHIMANO SLX, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO SM-RT76 203 mm, 6 holesShifters
SHIMANO SLX
12sREAR DERAILLEUR
SHIMANO SLX
12sBottom bracket
SHIMANO BB71
PressfitCrankset
SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO SLX
12sCassette
SHIMANO SLX
12s, 10-51tRims
DT SWISS E 532
29'', 32h, 30 mm inner widthHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Micro Spline - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 29"x2.40" WT, EXO, Dual compound, Tubeless Ready - Front: 29"x2.40" WT, EXO, 3C MaxxGrip, Tubeless ReadySeat post
KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remoteSaddle
SDG Bel Air V3
140 mm width, steel railsWeight
15,8 kg / 34.83 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pure White
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 29"
Frame material
AL 6066 T4, T6
Frame weight
3,25 kg / 7.16 lb, raw without accessories
Rear travel
150 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON SHAFT / 20 X 10 mm ON BODY
Recommended/max. fork height
571 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 753
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
52 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle

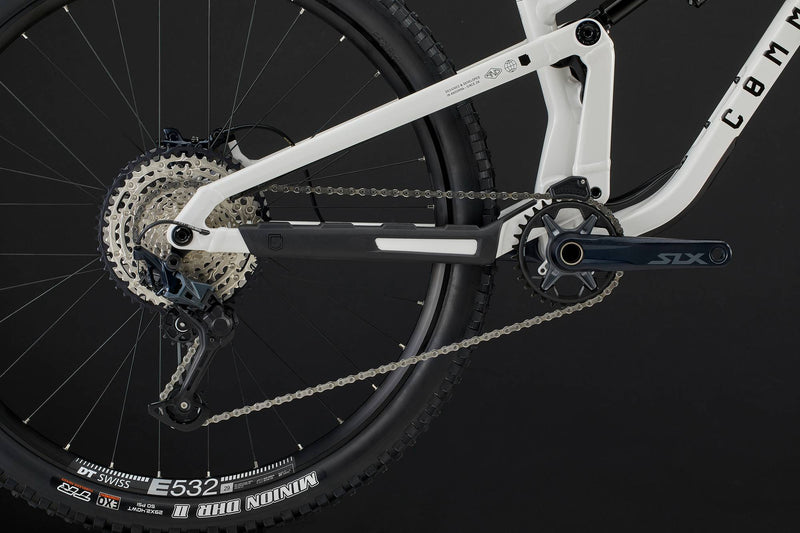

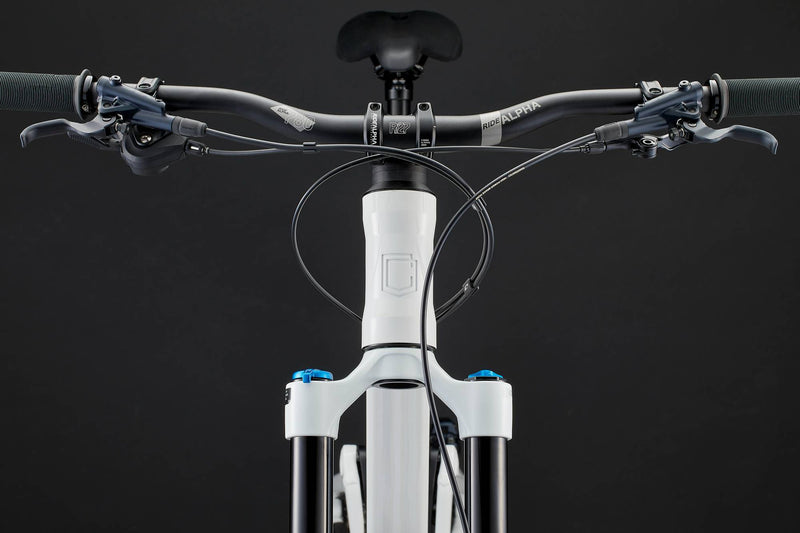

A no-nonsense build with FOX Performance suspension, SHIMANO SLX 12-speed drivetrain and 4-piston brakes keeps things sharp on the trail. DT SWISS E 532 rims, Maxxis DHR II tyres, and a dropper post mean you’re geared for grip, comfort, and full-send sessions—day in, day out.
Enduro-ready alloy frame with 150 mm rear travel and 29” wheels, built around a FOX-compatible 210 x 55 mm shock. Internal cable routing, ISCG 05 tabs, and space for 223 mm rotors give you all the right numbers. Runs a Press Fit BB92 and 148 mm Boost rear end.
