Commencal Ramones 20 Revoshift Ohlins Yellow Kids Bike
Frame
RAMONES 20
Alloy 6061Fork
RAMONES 20
20", Alloy 6061Headset
NECO H-125
ZS44 / ZS44, alloy cups, semi-integratedStem

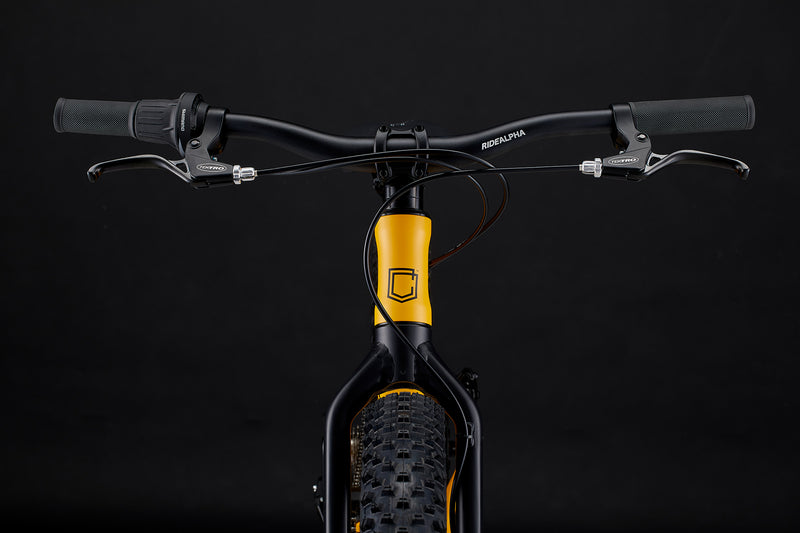

COMMENCAL Alloy, 40 mm
40 mm extension, 31.8 mm, -5°Handlebar
RIDE ALPHA
31.8 mm, 600 mm width, 25 mm rise, Alloy 6061Grips
COMMENCAL
115 mm / 76 mmBrakes
TEKTRO Aries, Mechanical disc brakes, 2 pistons, with kids specific TEKTRO levers and JAGWIRE cables
Rotors: TEKTRO 160 mm, 6-bolt
Motostyle braking: front brake with right lever / rear brake with left leverShifters
SHIMANO Tourney
7s, Revo ShifterREAR DERAILLEUR
SHIMANO Tourney
7s, short cageBottom bracket
NECO B-910
BSA 68 mm, sealed bearings, 116 mm axleCrankset
COMMENCAL Kids, 127 mm crank arms
Chainring: 30t, External chainguardChain
KMC Z7
7sCassette
S-RIDE CS-M200
7s, 11-34t, with spoke protectorRims
COMMENCAL 20''
20’’, 28h, 30 mm inner width, Alloy 6061Hubs
Rear: FASTACE - Front: FASTACE DA201FS05
Rear: 28h, sealed bearings, 12 x 142 mm, for 6-bolt rotors - Front: 28h, sealed bearings, 15 x 100 mm, disc ready for 6-bolt rotorsSpokes/nipples
2.0 mm
ED blackTyres
VEE TIRE CO. CrownGem
20'' x 2.6'', MPC Compound, Custom "Send It" patchSeat post
COMMENCAL
27,2 mm, 300 mm length, AlloySaddle
SELLE ROYAL Explora JR
135 mm with, steel railsWeight
10,3 kg / 22.70 lb
Without pedals. Weight may differ slightly due to manufacturing tolerancePedals included
Yes
Colour
Ohlins Yellow
Matte FinitionAccessories
Pedals, bell, light, chain guide
*Please note that bike specs are subject to change without prior notice.
Bicycle type
KIDS MTB 20"
Frame material
AL 6061 T4, T6
Recommended/max. fork height
330 mm - 350 mm
Headset dimension
1 1/8
Headset type
ZS44 ZS44
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Post mount 160 mm
Rear rotor max. size
160 mm
Seatpost/seat clamp diameter
27,2 mm - 31,8 mm
Bottom bracket type
BSA 68 mm
Rear hub compatibility
L=174 mm, M12, P1.0 mm - Hub 12 X 142 mm standard maxle


Frame
RAMONES 20
Alloy 6061Fork
RAMONES 20
20", Alloy 6061Headset
NECO H-125
ZS44 / ZS44, alloy cups, semi-integratedStem
COMMENCAL Alloy, 40 mm
40 mm extension, 31.8 mm, -5°Handlebar
RIDE ALPHA
31.8 mm, 600 mm width, 25 mm rise, Alloy 6061Grips
COMMENCAL
115 mm / 76 mmBrakes
TEKTRO Aries, Mechanical disc brakes, 2 pistons, with kids specific TEKTRO levers and JAGWIRE cables
Rotors: TEKTRO 160 mm, 6-bolt
Motostyle braking: front brake with right lever / rear brake with left leverShifters
SHIMANO Tourney
7s, Revo ShifterREAR DERAILLEUR
SHIMANO Tourney
7s, short cageBottom bracket
NECO B-910
BSA 68 mm, sealed bearings, 116 mm axleCrankset
COMMENCAL Kids, 127 mm crank arms
Chainring: 30t, External chainguardChain
KMC Z7
7sCassette
S-RIDE CS-M200
7s, 11-34t, with spoke protectorRims
COMMENCAL 20''
20’’, 28h, 30 mm inner width, Alloy 6061Hubs
Rear: FASTACE - Front: FASTACE DA201FS05
Rear: 28h, sealed bearings, 12 x 142 mm, for 6-bolt rotors - Front: 28h, sealed bearings, 15 x 100 mm, disc ready for 6-bolt rotorsSpokes/nipples
2.0 mm
ED blackTyres
VEE TIRE CO. CrownGem
20'' x 2.6'', MPC Compound, Custom "Send It" patchSeat post
COMMENCAL
27,2 mm, 300 mm length, AlloySaddle
SELLE ROYAL Explora JR
135 mm with, steel railsWeight
10,3 kg / 22.70 lb
Without pedals. Weight may differ slightly due to manufacturing tolerancePedals included
Yes
Colour
Ohlins Yellow
Matte FinitionAccessories
Pedals, bell, light, chain guide
*Please note that bike specs are subject to change without prior notice.
Bicycle type
KIDS MTB 20"
Frame material
AL 6061 T4, T6
Recommended/max. fork height
330 mm - 350 mm
Headset dimension
1 1/8
Headset type
ZS44 ZS44
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Post mount 160 mm
Rear rotor max. size
160 mm
Seatpost/seat clamp diameter
27,2 mm - 31,8 mm
Bottom bracket type
BSA 68 mm
Rear hub compatibility
L=174 mm, M12, P1.0 mm - Hub 12 X 142 mm standard maxle

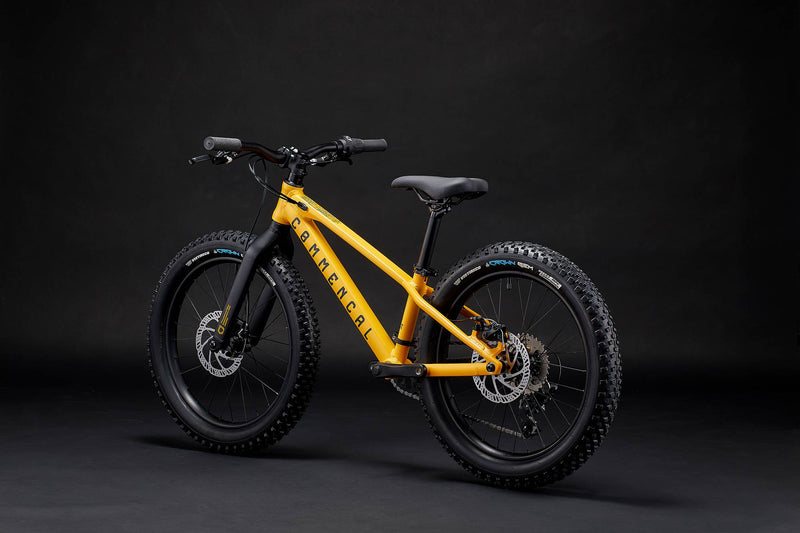

The RAMONES 20 in Öhlins Yellow is a proper little shredder’s setup. It’s built around a tough yet lightweight 6061 alloy frame and fork, rolling on 20” wheels with FAT 2.6” CrownGem tyres for grip and fun. TEKTRO disc brakes keep things under control, while the 7-speed Shimano drivetrain (with kid-friendly Revoshift) makes gearing a breeze. With sealed bearings, alloy components, and a cockpit scaled for small riders, it’s everything a future trail boss needs—plus a bell and chain guide for good measure.
Built for pint-sized riders with big ambitions, this KIDS MTB 20” frame is made from durable AL 6061 alloy and designed to handle the rough stuff. It runs a fork height between 330–350 mm, ZS44 headset compatibility, and a 160 mm post-mount disc brake standard for proper stopping power. With room for chunky 65 mm tyres and a 12 x 142 mm rear hub setup, it’s a legit mini machine built to ride like the real deal—no training wheels required.
