Commencal Supreme DH V5 Öhlins Edition Downhill Bike
Frame
SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL
27/29'', Alloy 6066, triple butted tubes, T4, T6Shock
OHLINS TTX22 m.2
250 x 75 mm, HSC, LSC, rebound. Spring rates: 388 lbs on S, 434 lbs on M, 457 lbs on L, 502 lbs on XLFork
OHLINS DH38 m.1 Air, 200 mm travel
29", TTX 18 damper, LSC, HSC, rebound, Boost (20 x 110 mm), 54 mm offsetHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft pro compound, single clamp, blackBrakes

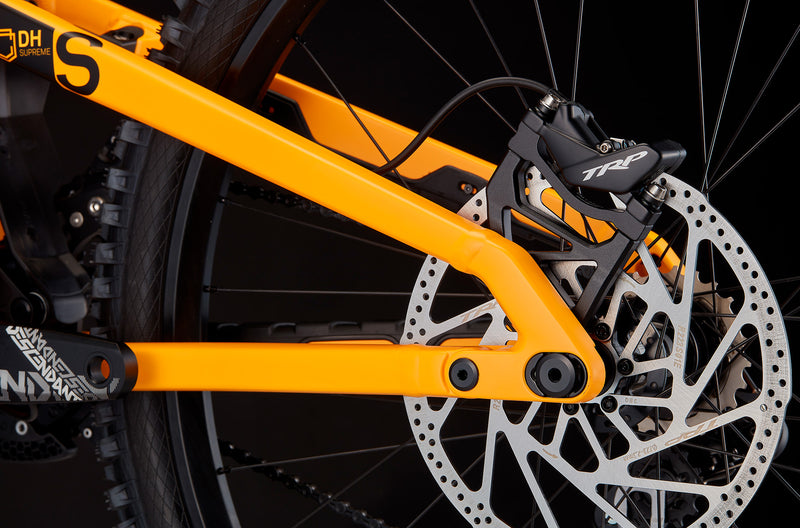

TRP DH-R Evo, 4 pistons, resin pads
Rotors : TRP R1 223 mm, 6-bolt, 2.3 mm thicknessShifters

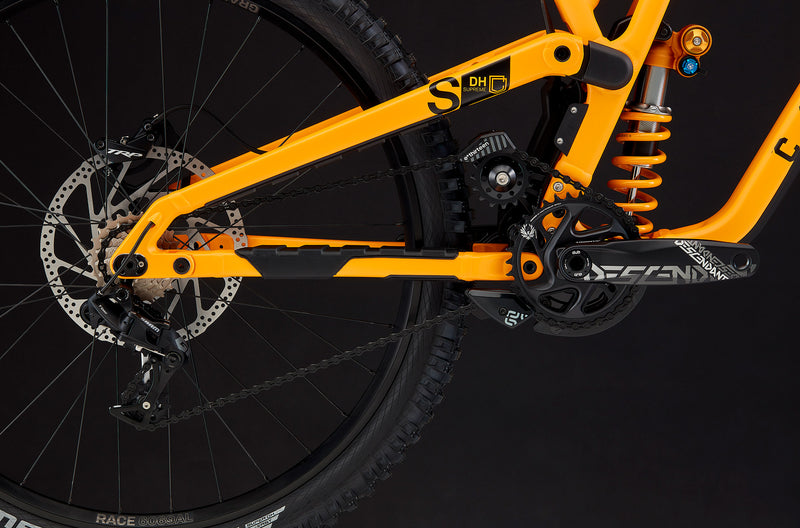

SRAM GX DH
7 spChain guide
E13 LG1 + Bottom Guide
32-34tREAR DERAILLEUR
SRAM GX DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34tChain
KMC X11EL
BlackCassette
E13 DH 7 Speed Integrated Cassette
7s, 9-24t DM CassetteRims
E13 Grappler Race Alloy
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: E13 GRAPPLER Race Alloy - Front: E13 GRAPPLER Race Alloy
Rear: 32h, sealed bearings, 12 x 157 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, blackTyres
Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary
Rear: 27.5'' x 2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29" x 2.4", Super DH, Addix Ultra Soft, Tubeless EasySeat post
RIDE ALPHA Super Light
31.6 mm, 250 mm lengthSaddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
18 kg / 39,68 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Ohlins Yellow
Matte FinishAccessories
Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
5,3 kg / 11,68 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / UpWheel Base Length
CenteredBridge
XS & S : Thin - M & L : Medium - XL : Thick


Frame
SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL
27/29'', Alloy 6066, triple butted tubes, T4, T6Shock
OHLINS TTX22 m.2
250 x 75 mm, HSC, LSC, rebound. Spring rates: 388 lbs on S, 434 lbs on M, 457 lbs on L, 502 lbs on XLFork
OHLINS DH38 m.1 Air, 200 mm travel
29", TTX 18 damper, LSC, HSC, rebound, Boost (20 x 110 mm), 54 mm offsetHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft pro compound, single clamp, blackBrakes
TRP DH-R Evo, 4 pistons, resin pads
Rotors : TRP R1 223 mm, 6-bolt, 2.3 mm thicknessShifters
SRAM GX DH
7 spChain guide
E13 LG1 + Bottom Guide
32-34tREAR DERAILLEUR
SRAM GX DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34tChain
KMC X11EL
BlackCassette
E13 DH 7 Speed Integrated Cassette
7s, 9-24t DM CassetteRims
E13 Grappler Race Alloy
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: E13 GRAPPLER Race Alloy - Front: E13 GRAPPLER Race Alloy
Rear: 32h, sealed bearings, 12 x 157 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, blackTyres
Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary
Rear: 27.5'' x 2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29" x 2.4", Super DH, Addix Ultra Soft, Tubeless EasySeat post
RIDE ALPHA Super Light
31.6 mm, 250 mm lengthSaddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
18 kg / 39,68 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Ohlins Yellow
Matte FinishAccessories
Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
5,3 kg / 11,68 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / UpWheel Base Length
CenteredBridge
XS & S : Thin - M & L : Medium - XL : Thick



This SUPREME DH V5 ÖHLINS EDITION is precision-built for gravity fiends. Its 220mm alloy frame pairs with ÖHLINS DH38 Air forks and TTX22 coil shock for race-day dominance. TRP DH-R brakes clamp onto massive 223mm rotors, while E13 Grappler wheels (29"/27.5") and Magic Mary tyres keep you locked in through chaos. SRAM GX DH 7-speed drivetrain, RIDE ALPHA cockpit, and a Fizik Gravita saddle round out this 18kg machine—all killer, no filler. Finished in matte Öhlins Yellow.
Engineered for full-throttle downhill punishment, this DH racing frame is built from AL 6066 T4/T6 alloy and tips the scales at 5.3kg (size S, kitted with protectors and axle). It delivers 220mm of rear travel with a 250x75mm shock setup, and is piggyback-compatible for serious suspension muscle. With Postmount 200mm brakes, 223mm rotor clearance, and space for 65mm tyres, it’s ready to soak up everything the trail throws at it. Flip Chip tuning, ISCG 05, and a burly 157mm rear hub seal the deal.
