Commencal Supreme DH V5 Ride Chalk Downhill Bike
Frame
SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL
27/29'', Alloy 6066, triple butted tubes, T4, T6Shock
ROCKSHOX Super Deluxe Select
250 x 75 mm, R damper, DebonAir, rebound, 0 Token neg. 3 Tokens pos.Fork
ROCKSHOX Boxxer Select, 200 mm travel
29", Charger RC damper, DebonAir+, rebound, Boost (20 x 110 mm), 56 mm offset, 0 TokenHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem

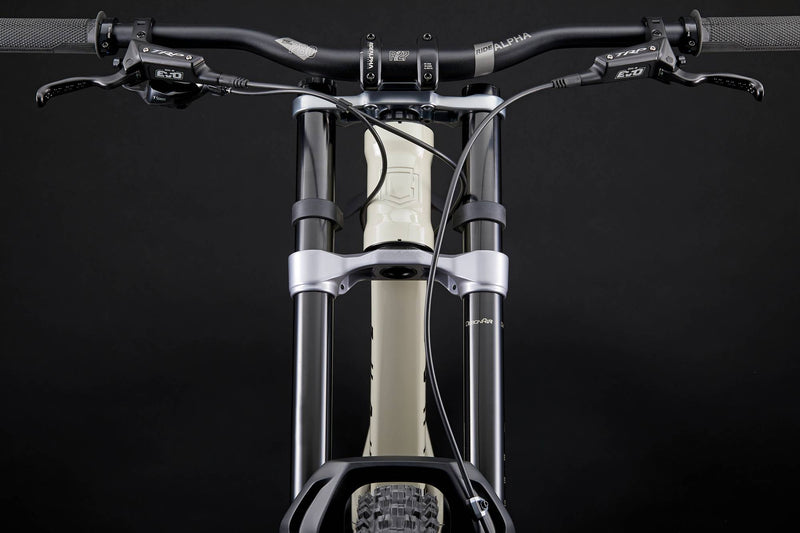

RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA DH
Ultra-soft compound, single clamp, blackBrakes
TRP DH-R Evo, 4 pistons, resin pads
Rotors: TRP R1 223 mm, 6-bolt, 2.3 mm widthShifters
SRAM GX DH
7 spChain guide
E13 LG1 + Bottom Guide
32-34tREAR DERAILLEUR
SRAM GX DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34tChain
KMC X11EL
BlackCassette
SRAM PG-720
7 sp, 11-25tRims
SPANK 359
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: FORMULA DHG-157 - Front: FORMULA DHL-93
Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost, blackSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5'' x 2.4'', WT, 3C MaxxGrip, DH casing, Tubeless Ready - Front: 29" x 2.5" WT, 3C MaxxGrip, Double Down, Tubeless ReadySeat post
RIDE ALPHA Super Light
31.6 mm, 250 mm, Alloy 7075Saddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy rails, Wing FlexWeight
17,5 kg / 38,58 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Chalk
Shiny FinishAccessories
Chainstay protector, seatsaty protector, fork bumpers, downtube protector, roller cover, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)Wheel Base Length
Centered (Available as an option: Flip Flop +/-6mm)Bridge
XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)


Frame
SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL
27/29'', Alloy 6066, triple butted tubes, T4, T6Shock
ROCKSHOX Super Deluxe Select
250 x 75 mm, R damper, DebonAir, rebound, 0 Token neg. 3 Tokens pos.Fork
ROCKSHOX Boxxer Select, 200 mm travel
29", Charger RC damper, DebonAir+, rebound, Boost (20 x 110 mm), 56 mm offset, 0 TokenHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA DH
Ultra-soft compound, single clamp, blackBrakes
TRP DH-R Evo, 4 pistons, resin pads
Rotors: TRP R1 223 mm, 6-bolt, 2.3 mm widthShifters
SRAM GX DH
7 spChain guide
E13 LG1 + Bottom Guide
32-34tREAR DERAILLEUR
SRAM GX DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34tChain
KMC X11EL
BlackCassette
SRAM PG-720
7 sp, 11-25tRims
SPANK 359
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: FORMULA DHG-157 - Front: FORMULA DHL-93
Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost, blackSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5'' x 2.4'', WT, 3C MaxxGrip, DH casing, Tubeless Ready - Front: 29" x 2.5" WT, 3C MaxxGrip, Double Down, Tubeless ReadySeat post
RIDE ALPHA Super Light
31.6 mm, 250 mm, Alloy 7075Saddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy rails, Wing FlexWeight
17,5 kg / 38,58 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Chalk
Shiny FinishAccessories
Chainstay protector, seatsaty protector, fork bumpers, downtube protector, roller cover, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)Wheel Base Length
Centered (Available as an option: Flip Flop +/-6mm)Bridge
XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)

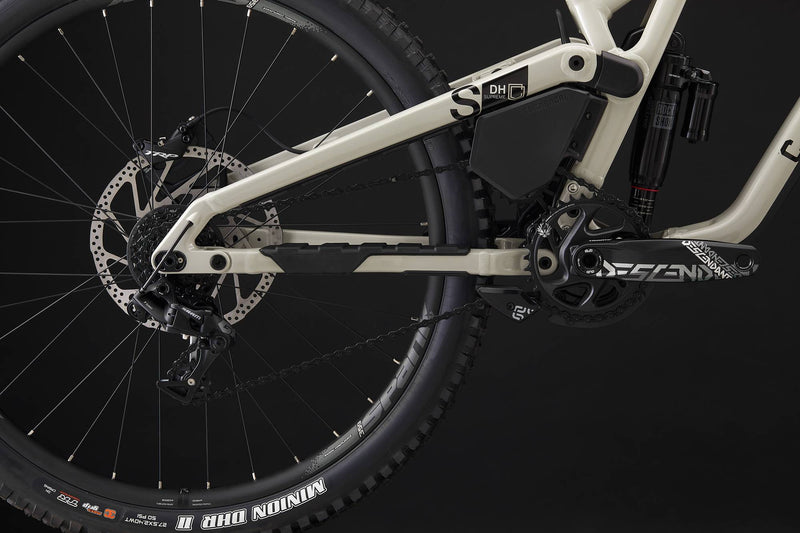

Engineered for downhill dominance, the SUPREME DH V5 RIDE comes armed with a 29/27" Alloy 6066 frame, 220mm of rear travel, and a ROCKSHOX Boxxer Select fork. SRAM GX DH 7-speed shifting, TRP DH-R Evo brakes, and MAXXIS DH casing tyres keep you locked in and in control. SPANK 359 rims and FORMULA hubs bring dependable strength, while RIDE ALPHA finishing kit and a FIZIK Gravita saddle round out this purpose-built, podium-chasing machine. Weight: 17.5kg of pure adrenaline.
Crafted from AL 6066 T4/T6 alloy and weighing in at 5.4kg (frame only), the SUPREME DH V5 frame is built for racing, not resting. With 220mm of rear travel, 250x75mm shock dimensions, and compatibility for piggyback shocks, it's tuned for gnarly descents. Flip Chip and Bridge options let you tweak geometry to suit your style, while a 223mm rotor max and 157x12mm hub setup keep things tight and controlled. This rig doesn’t just ride—it roars.
