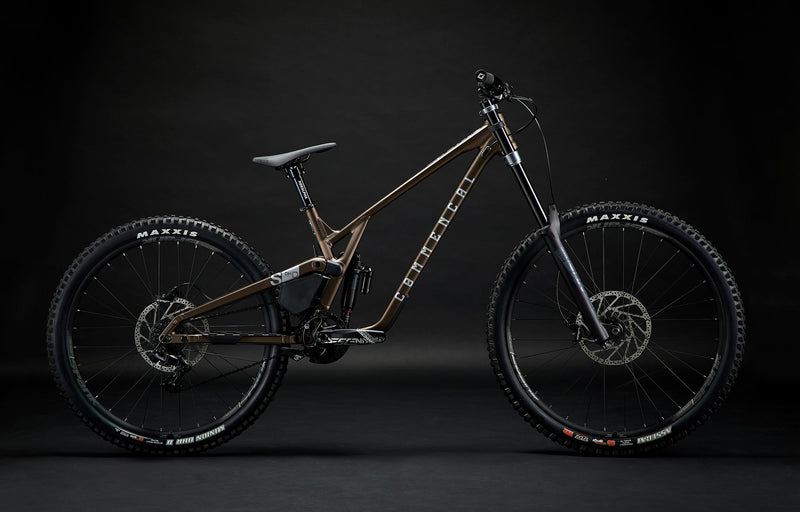

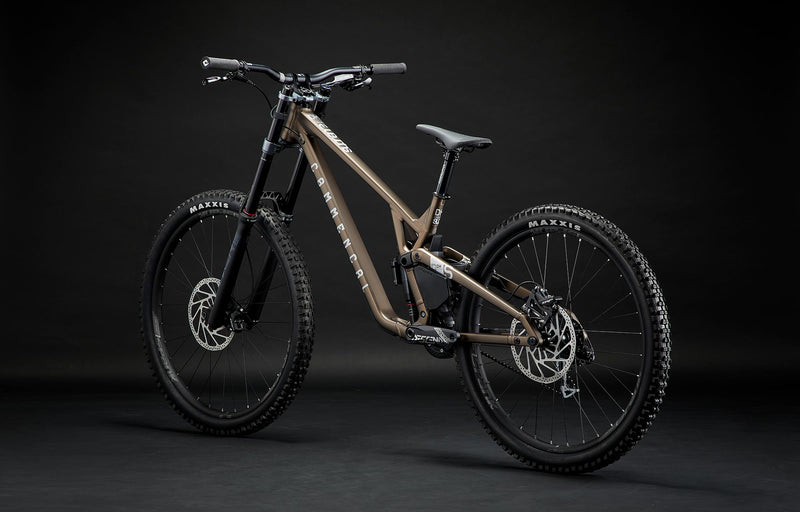

Commencal Supreme DH V5 Ride Frozen Brown
Frame
SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL
27/29'', Alloy 6066, triple butted tubes, T4, T6Shock
ROCKSHOX Super Deluxe Select R
250 x 75 mm, R damper, DebonAir, rebound, Debonair, 1 token 0 Token neg. 3 Tokens pos.Fork
ROCKSHOX Boxxer, 200 mm travel
29", Charger RC damper, DebonAir, LSC, rebound, Boost (20 x 110 mm), 56 mm offset, 0 TokenHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
TRP DH-R Evo, 4 pistons, resin pads
Rotors: TRP R1 223 mm, 6-bolt, 2.3 mm widthShifters
SRAM GX DH
7 spChain guide
E13 LG1 + Bottom Guide
32-34tREAR DERAILLEUR
SRAM GX DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34tChain
KMC X11EL
BlackCassette
SRAM PG-720
7 sp, 11-25tRims
SPANK 359
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: FORMULA DHG-157 - Front: FORMULA DHL-93
Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost, blackSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5'' x 2.4'', WT, 3C MaxxGrip, DH casing, Tubeless Ready - Front: 29" x 2.5" WT, 3C MaxxGrip, Double Down, Tubeless ReadySeat post
RIDE ALPHA Super Light
31.6 mm, 250 mm, Alloy 7075Saddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
17,5 kg / 38,58 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Frozen Brown
Matte FinishAccessories
Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard
*Please note that bike specs are subject to change without prior notice.
Bicycle type
DH 29''/27''
Frame material
AL 6066 T4, T6
Frame weight
5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 x 75
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm / 30 x 8 mm
Recommended/max. fork height
630 mm / 638 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
64 mm / diam 721
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)Wheel Base Length
Centered (Available as an option: Flip Flop +/-6mm)Bridge
XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)


Frame
SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL
27/29'', Alloy 6066, triple butted tubes, T4, T6Shock
ROCKSHOX Super Deluxe Select R
250 x 75 mm, R damper, DebonAir, rebound, Debonair, 1 token 0 Token neg. 3 Tokens pos.Fork
ROCKSHOX Boxxer, 200 mm travel
29", Charger RC damper, DebonAir, LSC, rebound, Boost (20 x 110 mm), 56 mm offset, 0 TokenHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
TRP DH-R Evo, 4 pistons, resin pads
Rotors: TRP R1 223 mm, 6-bolt, 2.3 mm widthShifters
SRAM GX DH
7 spChain guide
E13 LG1 + Bottom Guide
32-34tREAR DERAILLEUR
SRAM GX DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34tChain
KMC X11EL
BlackCassette
SRAM PG-720
7 sp, 11-25tRims
SPANK 359
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: FORMULA DHG-157 - Front: FORMULA DHL-93
Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost, blackSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5'' x 2.4'', WT, 3C MaxxGrip, DH casing, Tubeless Ready - Front: 29" x 2.5" WT, 3C MaxxGrip, Double Down, Tubeless ReadySeat post
RIDE ALPHA Super Light
31.6 mm, 250 mm, Alloy 7075Saddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
17,5 kg / 38,58 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Frozen Brown
Matte FinishAccessories
Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard
*Please note that bike specs are subject to change without prior notice.
Bicycle type
DH 29''/27''
Frame material
AL 6066 T4, T6
Frame weight
5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 x 75
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm / 30 x 8 mm
Recommended/max. fork height
630 mm / 638 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
64 mm / diam 721
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)Wheel Base Length
Centered (Available as an option: Flip Flop +/-6mm)Bridge
XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)



Loaded with race-ready components and dialed for destruction, this rig means business. With 220mm of plush travel, a mixed-wheel Alloy 6066 frame, and RockShox Boxxer up front, the SUPREME DH V5 is a brute in all the right ways. GX DH shifting, TRP DH-R Evo brakes, SPANK 359 wheels and MAXXIS rubber round out a spec list built to smash podiums. It’s not just what’s on it — it’s how it all works together to keep you fast, planted, and grinning like you’ve seen the other side of the mountain.
Every detail of this rig is dialled for domination. With 220mm of rear travel and a mixed-wheel Alloy 6066 frame, the SUPREME DH V5 is engineered for speed and stability. RockShox Boxxer forks and a Super Deluxe shock handle the big hits, while TRP DH-R Evo brakes and SRAM GX DH shifting keep control tight in the chaos. From SPANK 359 rims and MAXXIS MaxxGrip tyres to the FIZIK Gravita saddle and Ride Alpha cockpit, this build isn’t just high-spec — it’s battle-tested.
