Commencal Supreme DH V5 Ride - Pyrite Grey 2026 - Downhill Bike
Frame
SUPREME DH V5 29/27, 220 mm travel
27/29'', Alloy 6066, triple butted tubes, T4, T6.Shock
ROCKSHOX VIVID Coil Base
250 x 75 mm, R damper, rebound
Spring rates: 400 lbs on S, 450 lbs on M, 500 lbs on L, 550 lbs on XLFork
ROCKSHOX BOXXER Base, 200 mm
29", Charger 3 RC damper, DebonAir +, rebound, LSC, Boost (20 x 110 mm), 52 mm offset, 0 TokenHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA MUSHROOM
132 mm, Black clampBrakes
TRP DH-R EVO PRO, 4 pistons, resin pads
Rotors: TRP R2 223 mm, 6-bolt, 2.3 mm thicknessShifters
SRAM GX DH
7sChain guide
E13 LG1
32-34tREAR DERAILLEUR
SRAM GX DH
7sBottom bracket
SRAM DUB
BB107, pressfitCrankset
SRAM Descendant DH, 165 mm crank arms, DUB
Chainring: SRAM Descendant DH, 34tChain
SRAM PC1110
11s, BlackCassette
SRAM PG-720
7s, 11-25tRims
DT SWISS F1900 Classic
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
DT SWISS 370 Classic LN
Rear: 32h, sealed bearings, 12 x 157 mm, 18t ratchet, SHIMANO Hyperglide - Front: 32h, sealed bearings, 20 x 110 mmSpokes/nipples
DT SWISS Competition
J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with ProLock, blackTyres
Rear: MAXXIS Minion DHR II - Front: MAXXIS Assegai
Rear: 27.5'' x 2.5'', 3C MaxxTerra, DH Casing, Tubeless Ready - Front: 27.5'' x 2.5'', 3C MaxxGrip, DH Casing, Tubeless ReadySeat post
RIDE ALPHA
31.6 mm, 250 mm lengthSaddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy rails, Team editionWeight
18,6 kg / 41 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pyrite Grey
Shiny FinishAccessories
Chainstay protector, seatstay protector, fork bumpers, downtube protector
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)Wheel Base Length
Centered (Available as an option: Flip Flop +/-6mm)Bridge
XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)


Frame
SUPREME DH V5 29/27, 220 mm travel
27/29'', Alloy 6066, triple butted tubes, T4, T6.Shock
ROCKSHOX VIVID Coil Base
250 x 75 mm, R damper, rebound
Spring rates: 400 lbs on S, 450 lbs on M, 500 lbs on L, 550 lbs on XLFork
ROCKSHOX BOXXER Base, 200 mm
29", Charger 3 RC damper, DebonAir +, rebound, LSC, Boost (20 x 110 mm), 52 mm offset, 0 TokenHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA MUSHROOM
132 mm, Black clampBrakes
TRP DH-R EVO PRO, 4 pistons, resin pads
Rotors: TRP R2 223 mm, 6-bolt, 2.3 mm thicknessShifters
SRAM GX DH
7sChain guide
E13 LG1
32-34tREAR DERAILLEUR
SRAM GX DH
7sBottom bracket
SRAM DUB
BB107, pressfitCrankset
SRAM Descendant DH, 165 mm crank arms, DUB
Chainring: SRAM Descendant DH, 34tChain
SRAM PC1110
11s, BlackCassette
SRAM PG-720
7s, 11-25tRims
DT SWISS F1900 Classic
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
DT SWISS 370 Classic LN
Rear: 32h, sealed bearings, 12 x 157 mm, 18t ratchet, SHIMANO Hyperglide - Front: 32h, sealed bearings, 20 x 110 mmSpokes/nipples
DT SWISS Competition
J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with ProLock, blackTyres
Rear: MAXXIS Minion DHR II - Front: MAXXIS Assegai
Rear: 27.5'' x 2.5'', 3C MaxxTerra, DH Casing, Tubeless Ready - Front: 27.5'' x 2.5'', 3C MaxxGrip, DH Casing, Tubeless ReadySeat post
RIDE ALPHA
31.6 mm, 250 mm lengthSaddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy rails, Team editionWeight
18,6 kg / 41 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pyrite Grey
Shiny FinishAccessories
Chainstay protector, seatstay protector, fork bumpers, downtube protector
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)Wheel Base Length
Centered (Available as an option: Flip Flop +/-6mm)Bridge
XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)

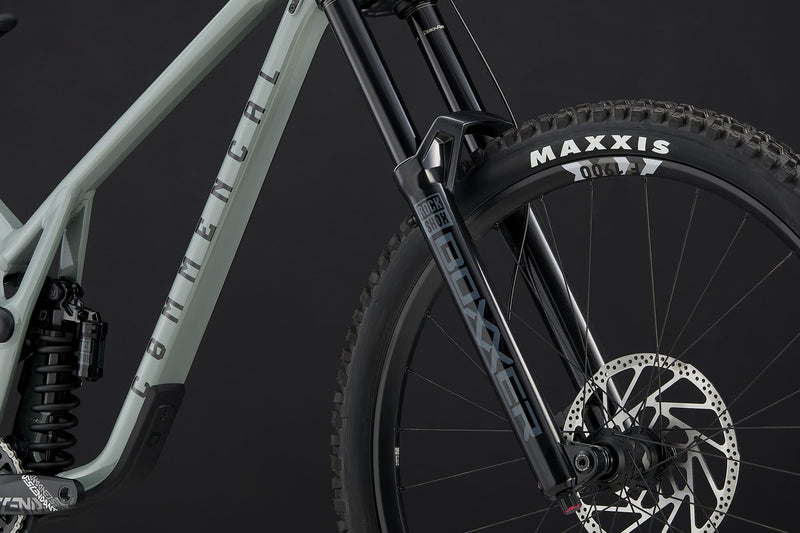

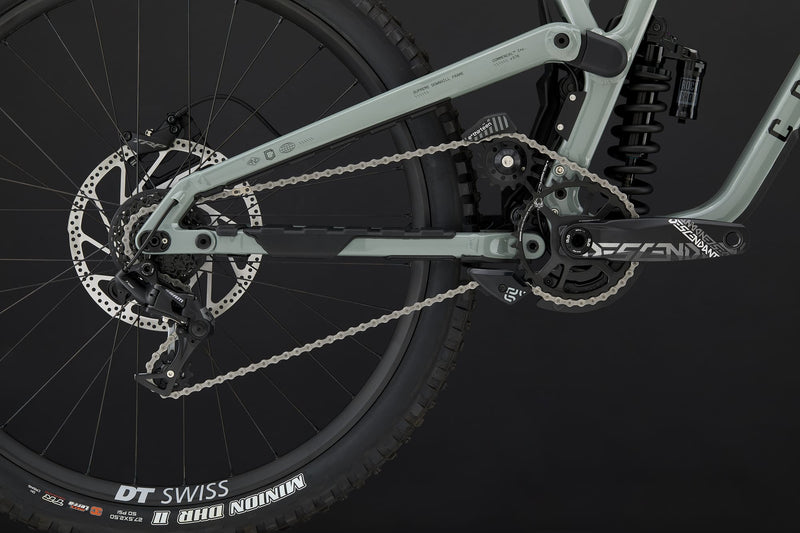

With 220mm of rear travel and a mixed wheel setup, the SUPREME DH V5 RIDE is a race-tuned monster from headtube to hub. A Rockshox BoXXer Base fork and Vivid Coil shock handle the big hits, while TRP DH-R EVO brakes and SRAM GX DH 7-speed shifting keep things tight when it gets loose. DT SWISS F1900 wheels, MAXXIS tyres, and a burly 18.6kg build round it out. Built for speed, precision, and punishment—just the way Cyril likes it.
This downhill frame doesn’t just flirt with gravity—it breaks up with it completely. The SUPREME DH V5 chassis delivers a full 220mm of travel from its AL 6066 alloy frame, tipping the scales at just 5.4kg (size S, fully dressed). With race-geometry tweaks like Flip Chips, bridge options by size, and compatibility for piggyback shocks, this setup screams fine-tuned aggression. It’s Postmount 200mm-ready, fits a 223mm rotor out back, and runs a press-fit BB107—pure race pedigree from axle to axle.
