Commencal Supreme DH V5 Signature LTD Pure White Downhill Bike
Frame
SUPREME DH V5 29/27, 220 mm travel
27/29'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearingsShock
FOX Float X2 Factory
250 x 75 mm, HSC, LSC, HSR, LSR, reboundFork
FOX 40 Factory, 200 mm travel
29", Grip 2 damper, HSC, LSC, HSR, LSR, Float Evol. Boost (20 x 110 mm), 52 mm offset.Headset
CANECREEK ZS56/ZS56 SERIE 40
Alloy cups, sealed bearingsStem
BURGTEC MK3
45 mm extension, direct mount, 31.8 mmHandlebar
BURGTEC Ride Wide Alloy
31.8 mm, 800 mm width, 30 mm rise on S / M / L / XLGrips
BURGTEC Bartender Pro Greg Minnaar Signature
Single clamp, blackBrakes
TRP DH-R EVO, 4 pistons, resin pads
Rotor: TRP R1 223 mm, 6-bolt, 2.3 mm width
Motostyle braking: front brake with right lever / rear brake with left leverShifters
SRAM GX DH
7sChain guide
E13 LG1
32-34tREAR DERAILLEUR
SRAM GX Eagle
7sBottom bracket
SRAM DUB
PressfitCrankset
SRAM Descendant DH, 165 mm crank arms, DUB
Chainring: SRAM Descendant DH, 34tChain
SRAM PC 1130
11sCassette
SRAM PG-720 DH
7s, 11-25tRims
DT SWISS FR 541
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
DT SWISS DT 350
Rear: 32h, sealed bearings, 12 x 157 mm, 36t, SHIMANO Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm BoostSpokes/nipples
DT SWISS Competition
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
Rear: 27.5'' x 2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29" x 2.4", Super DH, Addix Ultra Soft, Tubeless EasySeat post
Ride Alpha
31.6 mm, 250 mmSaddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
17,7 kg / 39,02 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pure White
Shiny FinishAccessories
Chainstay protector, seatstay protector, fork bumpers, downtube protector, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
4,2 kg / 9,25 lb (without accessories)
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
157 x 12 mm
Flip Chip
Front / UpWheel Base Length
CenteredBridge
XS & S : Thin - M & L : Medium - XL : Thick


Frame
SUPREME DH V5 29/27, 220 mm travel
27/29'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearingsShock
FOX Float X2 Factory
250 x 75 mm, HSC, LSC, HSR, LSR, reboundFork
FOX 40 Factory, 200 mm travel
29", Grip 2 damper, HSC, LSC, HSR, LSR, Float Evol. Boost (20 x 110 mm), 52 mm offset.Headset
CANECREEK ZS56/ZS56 SERIE 40
Alloy cups, sealed bearingsStem
BURGTEC MK3
45 mm extension, direct mount, 31.8 mmHandlebar
BURGTEC Ride Wide Alloy
31.8 mm, 800 mm width, 30 mm rise on S / M / L / XLGrips
BURGTEC Bartender Pro Greg Minnaar Signature
Single clamp, blackBrakes
TRP DH-R EVO, 4 pistons, resin pads
Rotor: TRP R1 223 mm, 6-bolt, 2.3 mm width
Motostyle braking: front brake with right lever / rear brake with left leverShifters
SRAM GX DH
7sChain guide
E13 LG1
32-34tREAR DERAILLEUR
SRAM GX Eagle
7sBottom bracket
SRAM DUB
PressfitCrankset
SRAM Descendant DH, 165 mm crank arms, DUB
Chainring: SRAM Descendant DH, 34tChain
SRAM PC 1130
11sCassette
SRAM PG-720 DH
7s, 11-25tRims
DT SWISS FR 541
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
DT SWISS DT 350
Rear: 32h, sealed bearings, 12 x 157 mm, 36t, SHIMANO Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm BoostSpokes/nipples
DT SWISS Competition
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
Rear: 27.5'' x 2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29" x 2.4", Super DH, Addix Ultra Soft, Tubeless EasySeat post
Ride Alpha
31.6 mm, 250 mmSaddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
17,7 kg / 39,02 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pure White
Shiny FinishAccessories
Chainstay protector, seatstay protector, fork bumpers, downtube protector, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
4,2 kg / 9,25 lb (without accessories)
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
157 x 12 mm
Flip Chip
Front / UpWheel Base Length
CenteredBridge
XS & S : Thin - M & L : Medium - XL : Thick

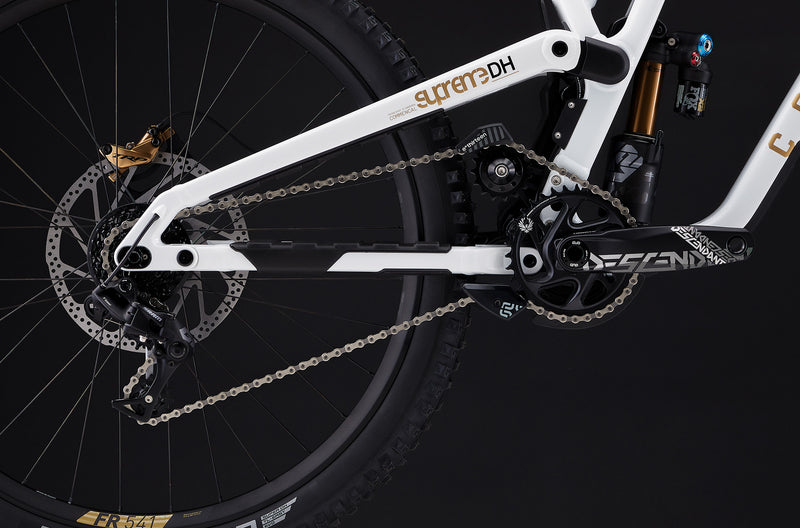

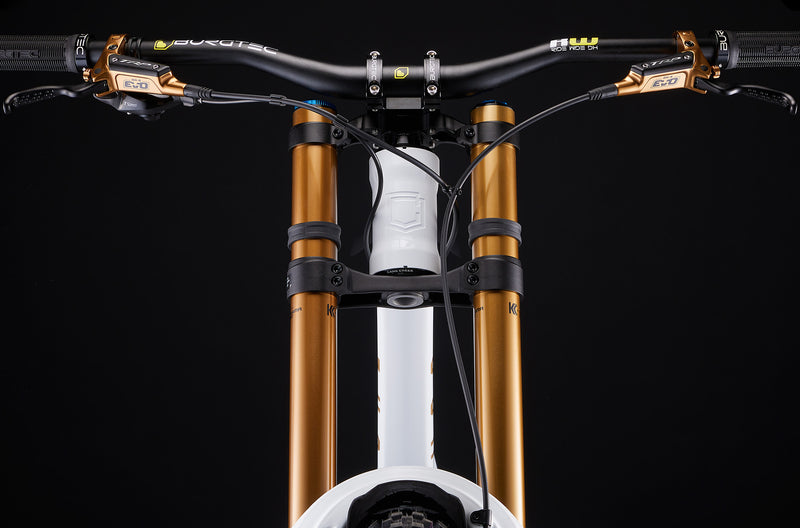

Built to dominate the descents, the SUPREME DH V5 SIGNATURE LTD features a triple-butted 29/27” Alloy 6066 frame with 220mm of rear travel and race-ready FOX Factory suspension front and rear. Stopping comes courtesy of TRP DH-R Evo 4-piston brakes with massive 223mm rotors, and SRAM’s GX DH 7-speed drivetrain delivers crisp, reliable shifts. Rolling on bombproof DT SWISS FR 541 rims with Schwalbe Super DH tyres, this beast is rounded out with premium Burgtec controls and a sleek Pure White finish.
Engineered for downhill domination, the SUPREME DH V5’s frame is built from AL 6066 T4/T6 alloy with 220mm of rear travel and a lightweight 4.2kg chassis (sans accessories). It’s piggy-back shock ready, tuned for a 250 x 75mm shock, and pairs with forks up to 620mm. Geometry tweaks are made easy with a Flip Chip, while ISCG 05 tabs, a press-fit BB107, and centred wheelbase deliver a dialled ride. With room for 223mm rotors and 65mm tyres, it’s pure gravity muscle.
