Commencal META HT AM Essential Keswick Green Mountain Bike
Frame
2022 Meta HT AM - 29''/27'' on S / M & 29''/29'' on L / XL
Alloy 6061, triple butted tubes, T4, T6.
Fork
ROCKSHOX Yari RC, 150 mm travel
29", Motion Control damper, DebonAir, rebound, Boost (15 x 110 mm), 42 mm offset, 2 Tokens
Headset
ACROS ZS44 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R20 on S - RIDE ALPHA R27 on M / L / XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Elite Motion
Soft pro compound, single clamp, black
Brakes
SRAM Guide T, 4 pistons, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 / 180 mm, 6-bolt
Shifters
SRAM NX Eagle
12s
REAR DERAILLEUR
SRAM NX Eagle
12s
Bottom bracket
SRAM BSA
Threaded
Crankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle, 32t, Narrow-Wide
Chain
SRAM NX Eagle
12s
Cassette
SRAM PG-1210
12s, 11-50t
Rims
SPANK Spike Race 33
Rear: 27.5'', 32h, 28 mm inner width on S / M - 29'', 32h, 28 mm inner width on L / XL - Front: 29'', 32h, 28 mm inner width on S / M / L / XL
Hubs
Rear: FORMULA DC-348A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 15 x 110 mm
Spokes/nipples
SAPIM Leader
J-Bend 2.0 mm, stainless, with Nylok, black
Tyres
Rear: MAXXIS Dissector - Front: MAXXIS Dissector
Rear: 27.5'' x 2.6'', 3C MaxxTerra, EXO+, Tubeless Ready on S / M - 29'' x 2.6'', 3C MaxxTerra, EXO+, Tubeless Ready on L / XL - Front: 29" x 2.6", 3C MaxxTerra, EXO+, Tubeless Ready on S / M / L / XL
Seat post
KS Rage-I
31.6 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote
Saddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy rails
Weight
14,2 kg / 31.30 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Pedals included
No
Colour
Keswick Green
Shiny Finish
Accessories
Chainstay protector, seatstay protector
Bicycle type
Hardtail Enduro
Frame material
AL 6061 T4, T6
Frame weight
2.08 kg / 4,58 lb
Recommended/max. fork height
561 MM / 571 MM
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27,5" - 71-584 / 29'' - 66-622
Disc brake standard
INTERNATIONAL STANDARD
Rear rotor max. size
200 MM
Seatpost/seat clamp diameter
31,6 MM / 34,9 MM
Bottom bracket type
BSA 68 MM
Rear hub compatibility
L=180 mm, M12, P1.75 mm - MOYEU 148 X 12 STANDARD MAXLE
Frame
2022 Meta HT AM - 29''/27'' on S / M & 29''/29'' on L / XL
Alloy 6061, triple butted tubes, T4, T6.
Fork
ROCKSHOX Yari RC, 150 mm travel
29", Motion Control damper, DebonAir, rebound, Boost (15 x 110 mm), 42 mm offset, 2 Tokens
Headset
ACROS ZS44 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R20 on S - RIDE ALPHA R27 on M / L / XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Elite Motion
Soft pro compound, single clamp, black
Brakes
SRAM Guide T, 4 pistons, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 / 180 mm, 6-bolt
Shifters
SRAM NX Eagle
12s
REAR DERAILLEUR
SRAM NX Eagle
12s
Bottom bracket
SRAM BSA
Threaded
Crankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle, 32t, Narrow-Wide
Chain
SRAM NX Eagle
12s
Cassette
SRAM PG-1210
12s, 11-50t
Rims
SPANK Spike Race 33
Rear: 27.5'', 32h, 28 mm inner width on S / M - 29'', 32h, 28 mm inner width on L / XL - Front: 29'', 32h, 28 mm inner width on S / M / L / XL
Hubs
Rear: FORMULA DC-348A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 15 x 110 mm
Spokes/nipples
SAPIM Leader
J-Bend 2.0 mm, stainless, with Nylok, black
Tyres
Rear: MAXXIS Dissector - Front: MAXXIS Dissector
Rear: 27.5'' x 2.6'', 3C MaxxTerra, EXO+, Tubeless Ready on S / M - 29'' x 2.6'', 3C MaxxTerra, EXO+, Tubeless Ready on L / XL - Front: 29" x 2.6", 3C MaxxTerra, EXO+, Tubeless Ready on S / M / L / XL
Seat post
KS Rage-I
31.6 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote
Saddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy rails
Weight
14,2 kg / 31.30 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Pedals included
No
Colour
Keswick Green
Shiny Finish
Accessories
Chainstay protector, seatstay protector
Bicycle type
Hardtail Enduro
Frame material
AL 6061 T4, T6
Frame weight
2.08 kg / 4,58 lb
Recommended/max. fork height
561 MM / 571 MM
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27,5" - 71-584 / 29'' - 66-622
Disc brake standard
INTERNATIONAL STANDARD
Rear rotor max. size
200 MM
Seatpost/seat clamp diameter
31,6 MM / 34,9 MM
Bottom bracket type
BSA 68 MM
Rear hub compatibility
L=180 mm, M12, P1.75 mm - MOYEU 148 X 12 STANDARD MAXLE

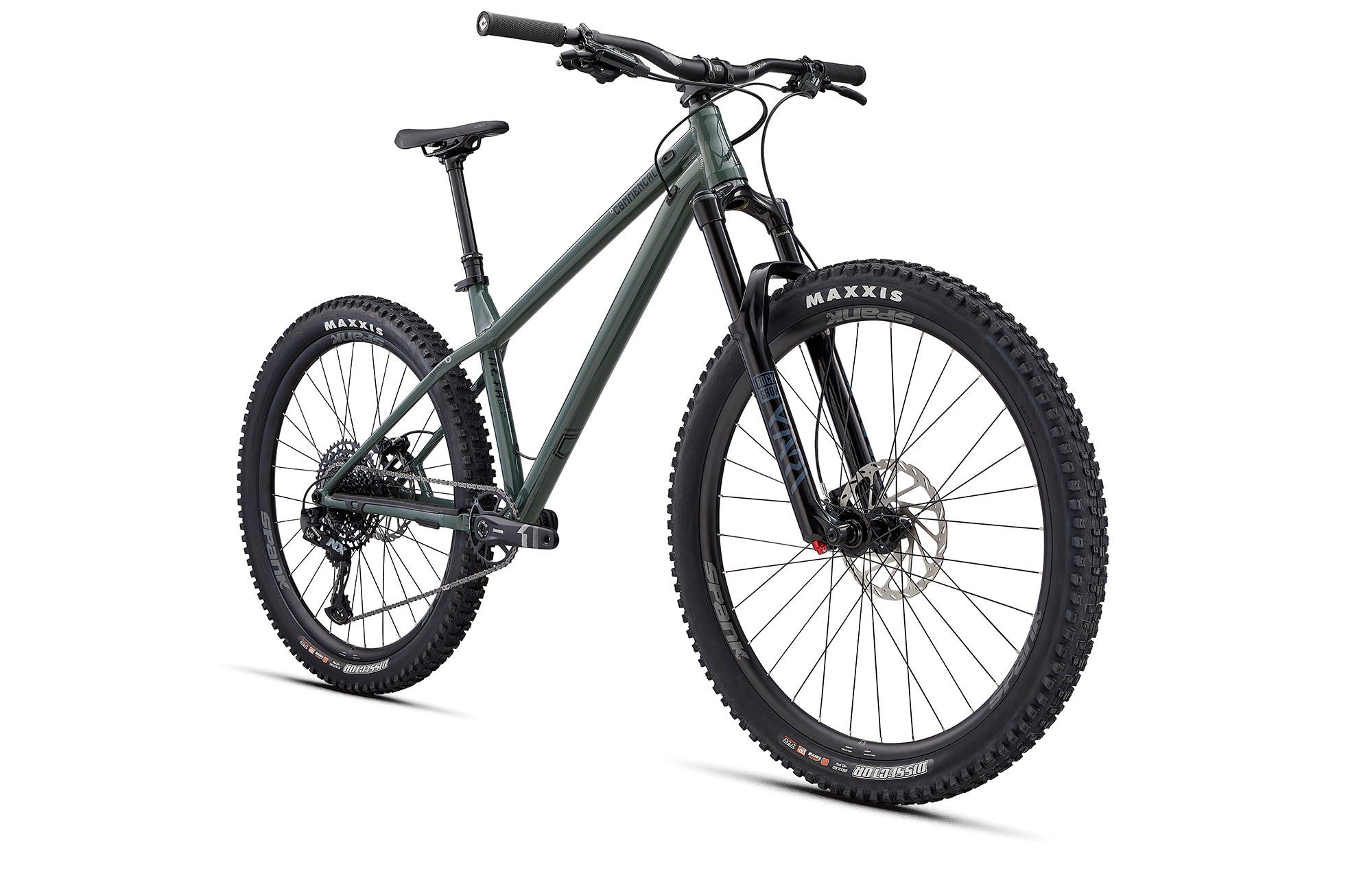

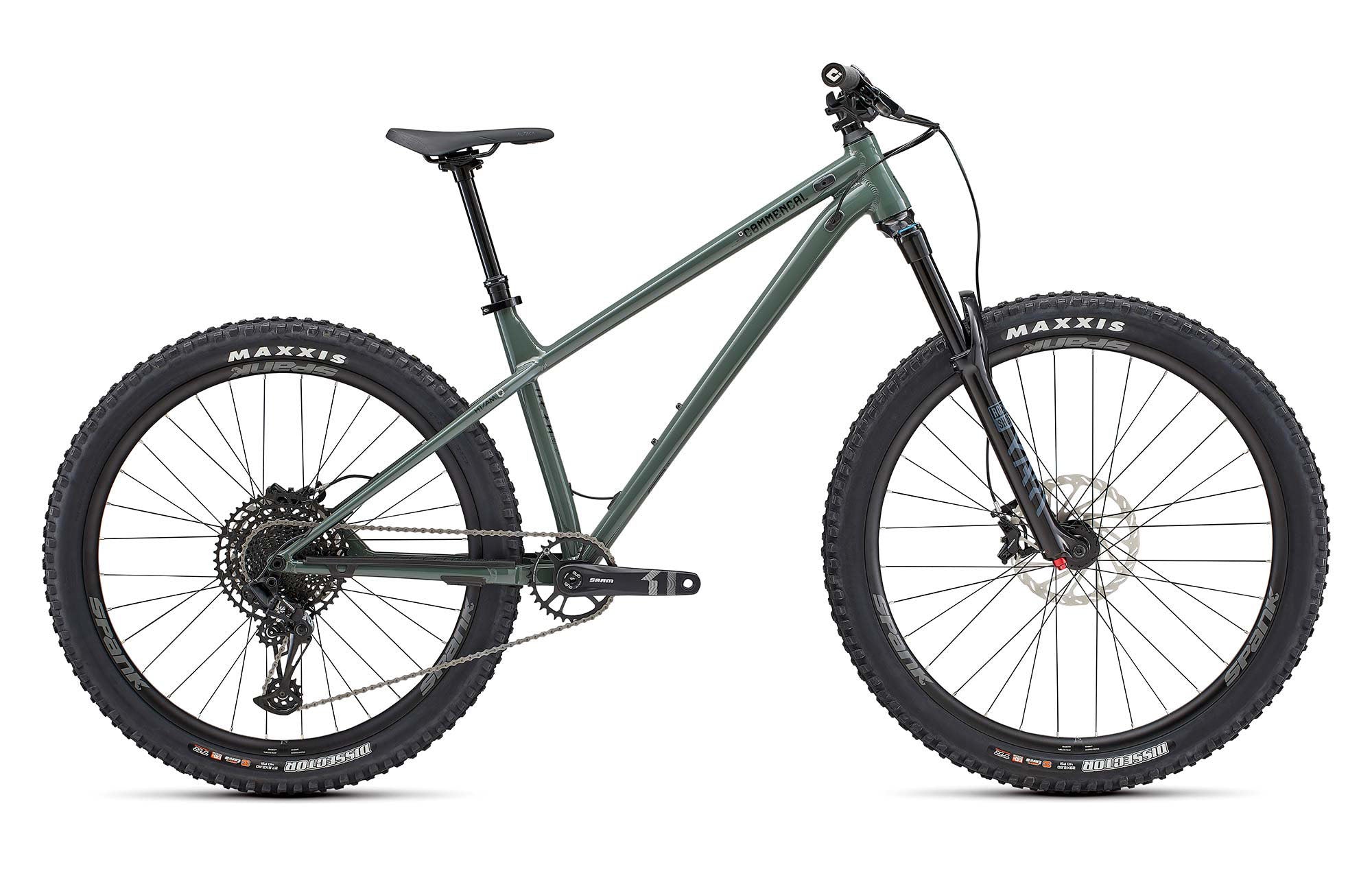

The META HT AM ESSENTIAL in Keswick Green is kitted for serious trail duty with no-nonsense gear to match. A triple-butted 6061 alloy frame meets a 150mm ROCKSHOX Yari RC fork, delivering precision and plushness in one sleek package. SRAM’s 12-speed NX Eagle drivetrain and 4-piston Guide T brakes handle the grunt work, while SPANK Spike Race 33 rims and MAXXIS Dissector tyres grip with intent. With a KS Rage-I dropper and FIZIK saddle, it’s ready to rip—rain or shine, climb or send.
This Hardtail Enduro frame is built for riders who like their lines steep, their turns sharp, and their setups dialled. Crafted from AL 6061 T4/T6 and weighing just 2.08 kg, it’s light enough to fly but tough enough to take a hit. Designed for 561–571 mm forks and up to 200 mm rotors, it offers clearance for aggressive 27.5" or 29" rubber. With BSA threading, Boost spacing, and trail-proven geometry.
