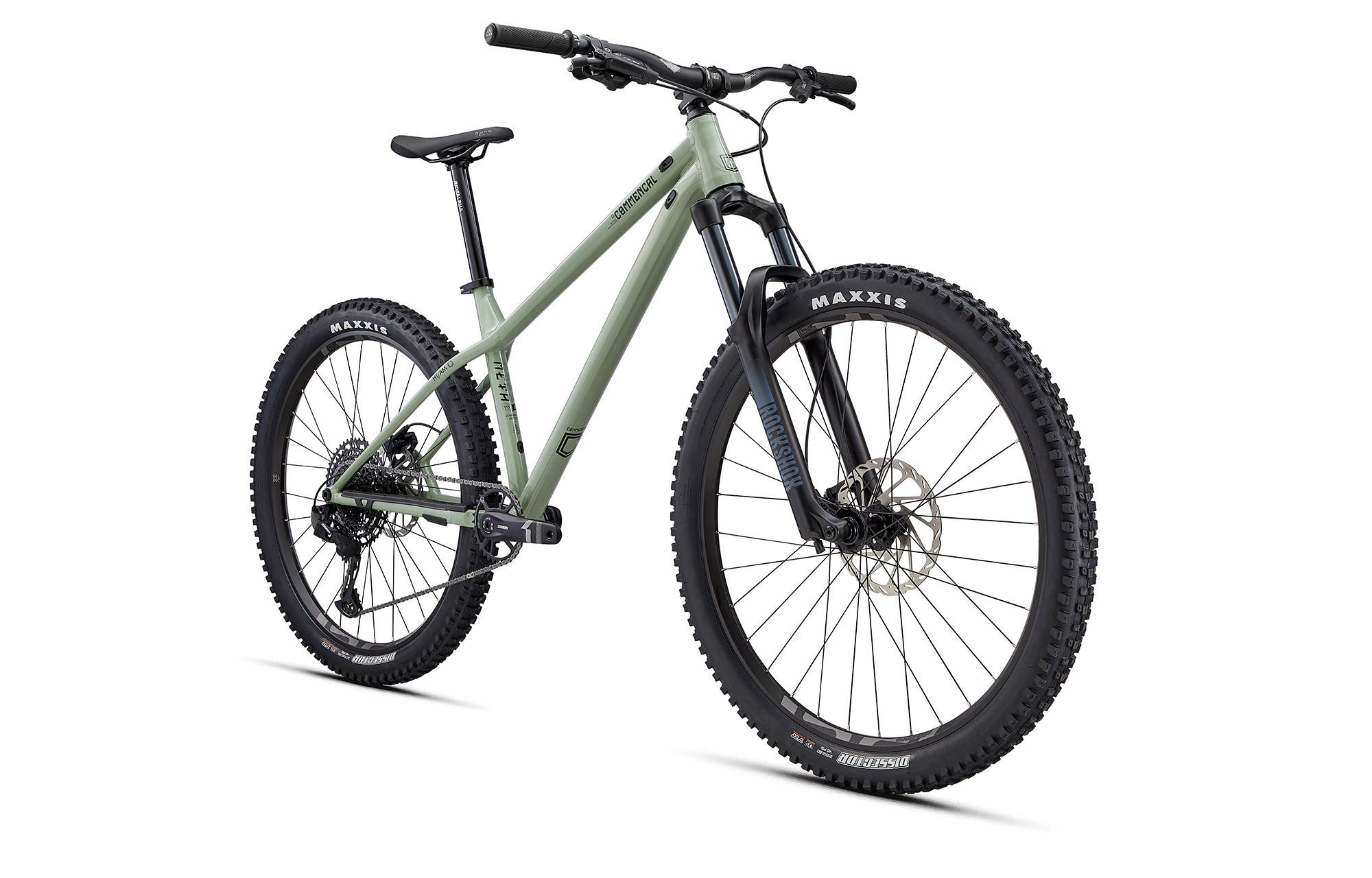

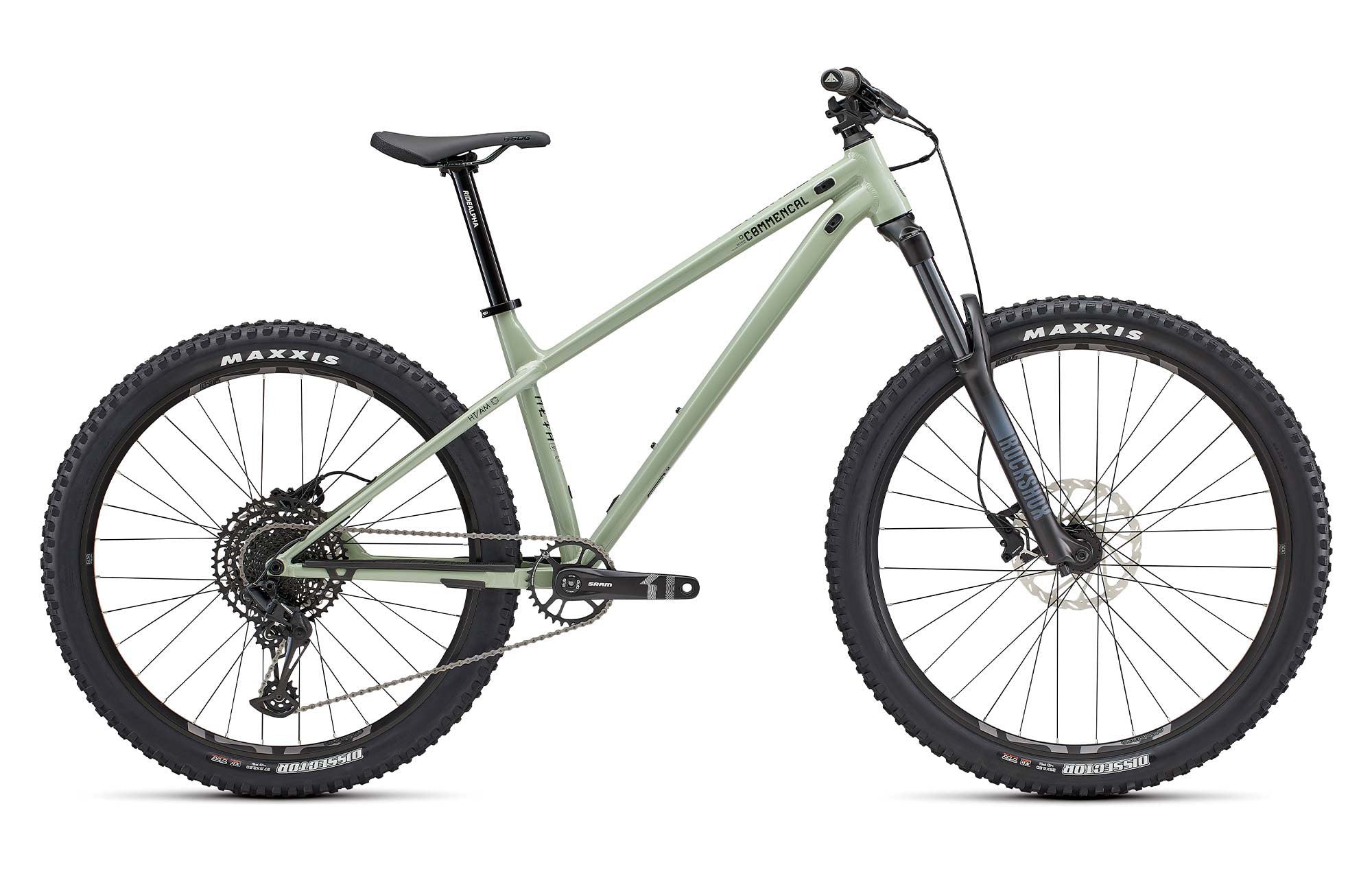

Commencal META HT AM Origin Heritage Green Mountain Bike
Frame
2022 Meta HT AM - 29''/27'' on S / M & 29''/29'' on L / XL
Alloy 6061, triple butted tubes, T4, T6.Fork
ROCKSHOX 35 Silver R, 150 mm travel
29", Coil, rebound, Boost (15 x 110 mm), 44 mm offsetHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 on S - RIDE ALPHA R27 on M / L / XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA DH
Ultra-soft compound, single clamp, blackBrakes
SRAM Level, 2 pistons, Hydraulic disc brake
Rotors: SRAM G2 CleanSweep 200 / 180 mm, 6-boltShifters
SRAM SX Eagle
12sREAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
SRAM BSA
ThreadedCrankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
E13 LG1 EN Base
REAR: 27.5'', 32h, 30 mm inner width on S / M - 29'', 32h, 30 mm inner width on L / XL - FRONT: 29'', 32h, 30 mm inner width on S / M / L / XLHubs
Rear: FORMULA DC-348A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM Leader
J-Bend 2.0 mm, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS Dissector
Rear: 27.5'' x 2.6’', dual compound, EXO, Tubeless Ready on S / M - 29'' x 2.6’', dual compound, EXO, Tubeless Ready, on L / XL - Front: 29" x 2.6", dual compound, EXO, Tubeless Ready on S / M / L / XLSeat post
RIDE ALPHA
31,6 mm, 400 mm on S/M, 450 mm on L/XSaddle
SDG Bel Air V3
140 mm width, Steel railsWeight
14,2 kg / 31.30 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Heritage Green
Matte FinishAccessories
Chainstay protector, seatstay protector
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Hardtail Enduro
Frame material
AL 6061 T4, T6
Frame weight
2.08 kg / 4,58 lb
Recommended/max. fork height
561 MM / 571 MM
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27,5" - 71-584 / 29’’ - 66-622
Disc brake standard
INTERNATIONAL STANDARD
Rear rotor max. size
200 MM
Seatpost/seat clamp diameter
31,6 MM / 34,9 MM
Bottom bracket type
BSA 68 MM
Rear hub compatibility
L=180 mm, M12, P1.75 mm - MOYEU 148 X 12 STANDARD MAXLE
Frame
2022 Meta HT AM - 29''/27'' on S / M & 29''/29'' on L / XL
Alloy 6061, triple butted tubes, T4, T6.Fork
ROCKSHOX 35 Silver R, 150 mm travel
29", Coil, rebound, Boost (15 x 110 mm), 44 mm offsetHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 on S - RIDE ALPHA R27 on M / L / XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA DH
Ultra-soft compound, single clamp, blackBrakes
SRAM Level, 2 pistons, Hydraulic disc brake
Rotors: SRAM G2 CleanSweep 200 / 180 mm, 6-boltShifters
SRAM SX Eagle
12sREAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
SRAM BSA
ThreadedCrankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
E13 LG1 EN Base
REAR: 27.5'', 32h, 30 mm inner width on S / M - 29'', 32h, 30 mm inner width on L / XL - FRONT: 29'', 32h, 30 mm inner width on S / M / L / XLHubs
Rear: FORMULA DC-348A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM Leader
J-Bend 2.0 mm, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS Dissector
Rear: 27.5'' x 2.6’', dual compound, EXO, Tubeless Ready on S / M - 29'' x 2.6’', dual compound, EXO, Tubeless Ready, on L / XL - Front: 29" x 2.6", dual compound, EXO, Tubeless Ready on S / M / L / XLSeat post
RIDE ALPHA
31,6 mm, 400 mm on S/M, 450 mm on L/XSaddle
SDG Bel Air V3
140 mm width, Steel railsWeight
14,2 kg / 31.30 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Heritage Green
Matte FinishAccessories
Chainstay protector, seatstay protector
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Hardtail Enduro
Frame material
AL 6061 T4, T6
Frame weight
2.08 kg / 4,58 lb
Recommended/max. fork height
561 MM / 571 MM
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27,5" - 71-584 / 29’’ - 66-622
Disc brake standard
INTERNATIONAL STANDARD
Rear rotor max. size
200 MM
Seatpost/seat clamp diameter
31,6 MM / 34,9 MM
Bottom bracket type
BSA 68 MM
Rear hub compatibility
L=180 mm, M12, P1.75 mm - MOYEU 148 X 12 STANDARD MAXLE
The META HT AM ORIGIN in Heritage Green comes armed with trail-ready specs from top to tyre. Its 6061 triple-butted alloy frame pairs with a 150mm ROCKSHOX 35 Silver fork for confident control. SRAM’s SX Eagle 12-speed drivetrain and Level brakes keep shifting crisp and braking sharp, while E13 LG1 rims and MAXXIS Dissector tyres deliver grip and durability across all sizes. Finished with RIDE ALPHA components and a classic matte green coat, this bike is spec’d to send it, season after season.
This Hardtail Enduro frame is built for riders who prefer their trails rugged and their bikes uncompromising. Crafted from AL 6061 T4/T6 alloy and weighing in at just 2.08 kg, it’s the kind of chassis that begs to be thrashed. Designed for a 561–571 mm fork, with clearance for chunky 27.5" or 29" tyres, and a max 200 mm rear rotor, it’s dialled for aggressive lines and big days out. Clean, tough, and trail-hungry—just like Cyril likes ’em.
