Commencal META HT AM Race Frozen Brown
Frame
2022 Meta HT AM - 29''/27'' on S / M & 29''/29'' on L / XL
Alloy 6061, triple butted tubes, T4, T6.Fork

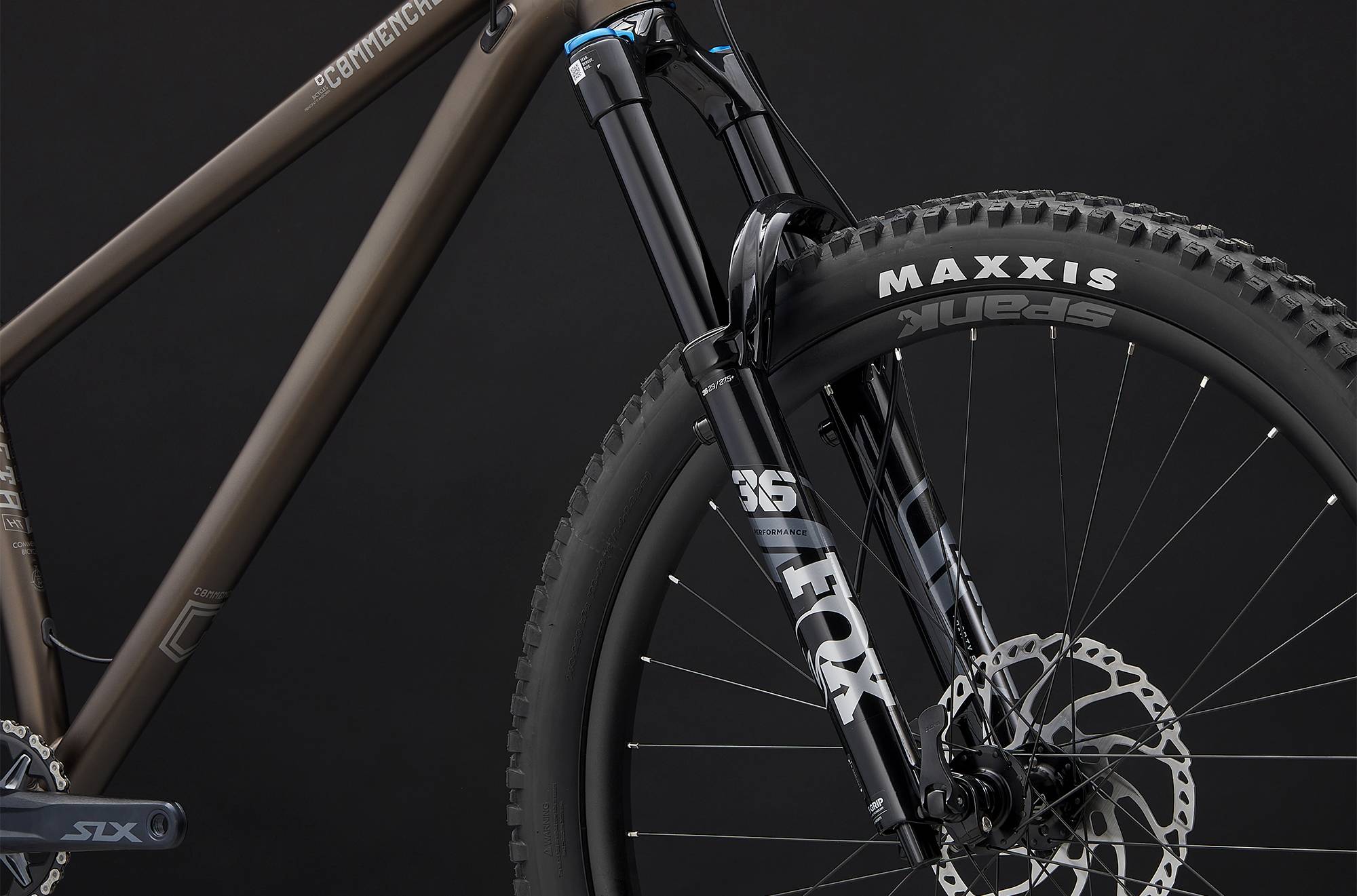

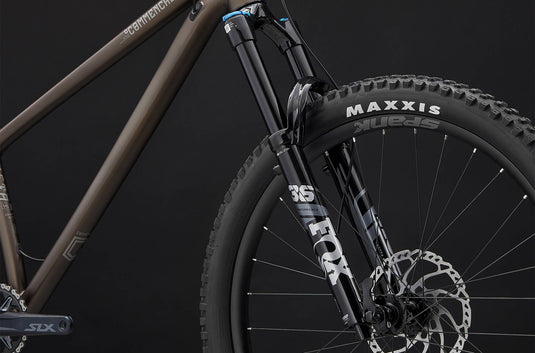

FOX 36 Performance, 150 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 TokensHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem

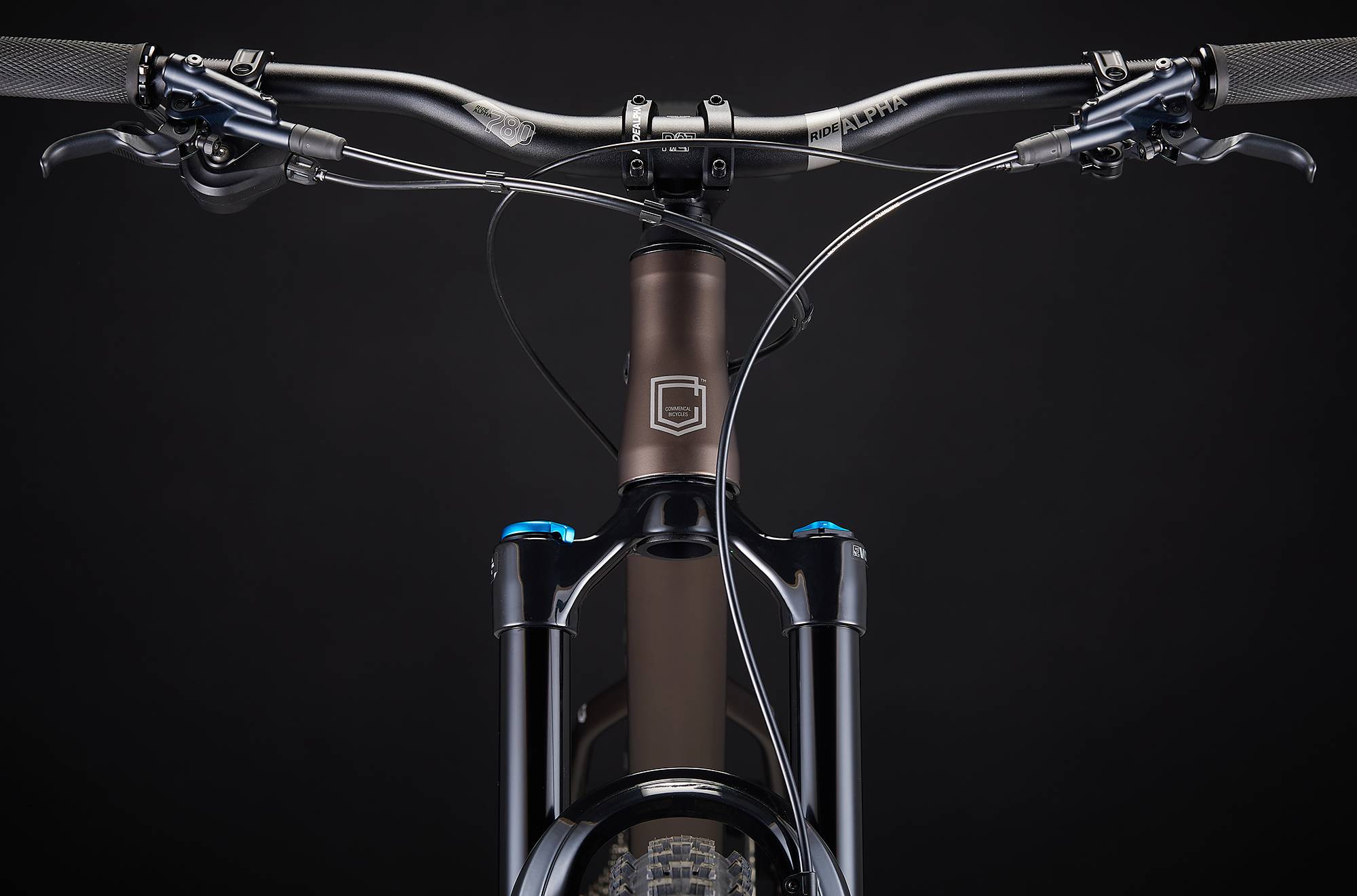

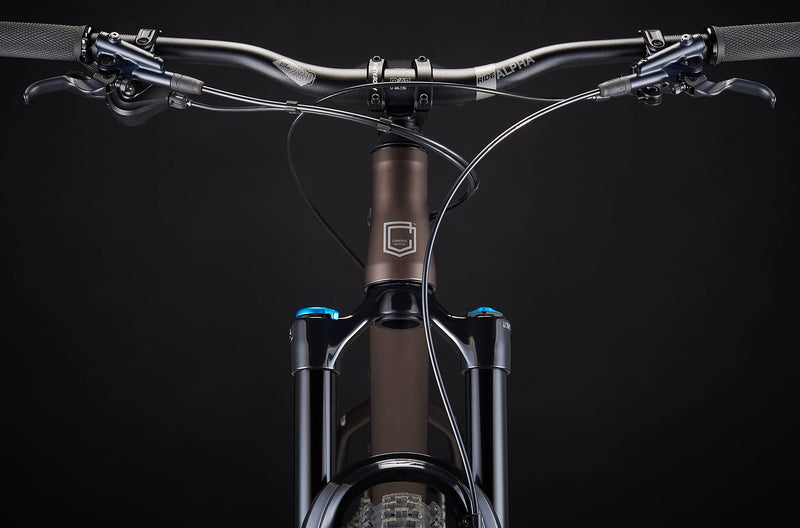

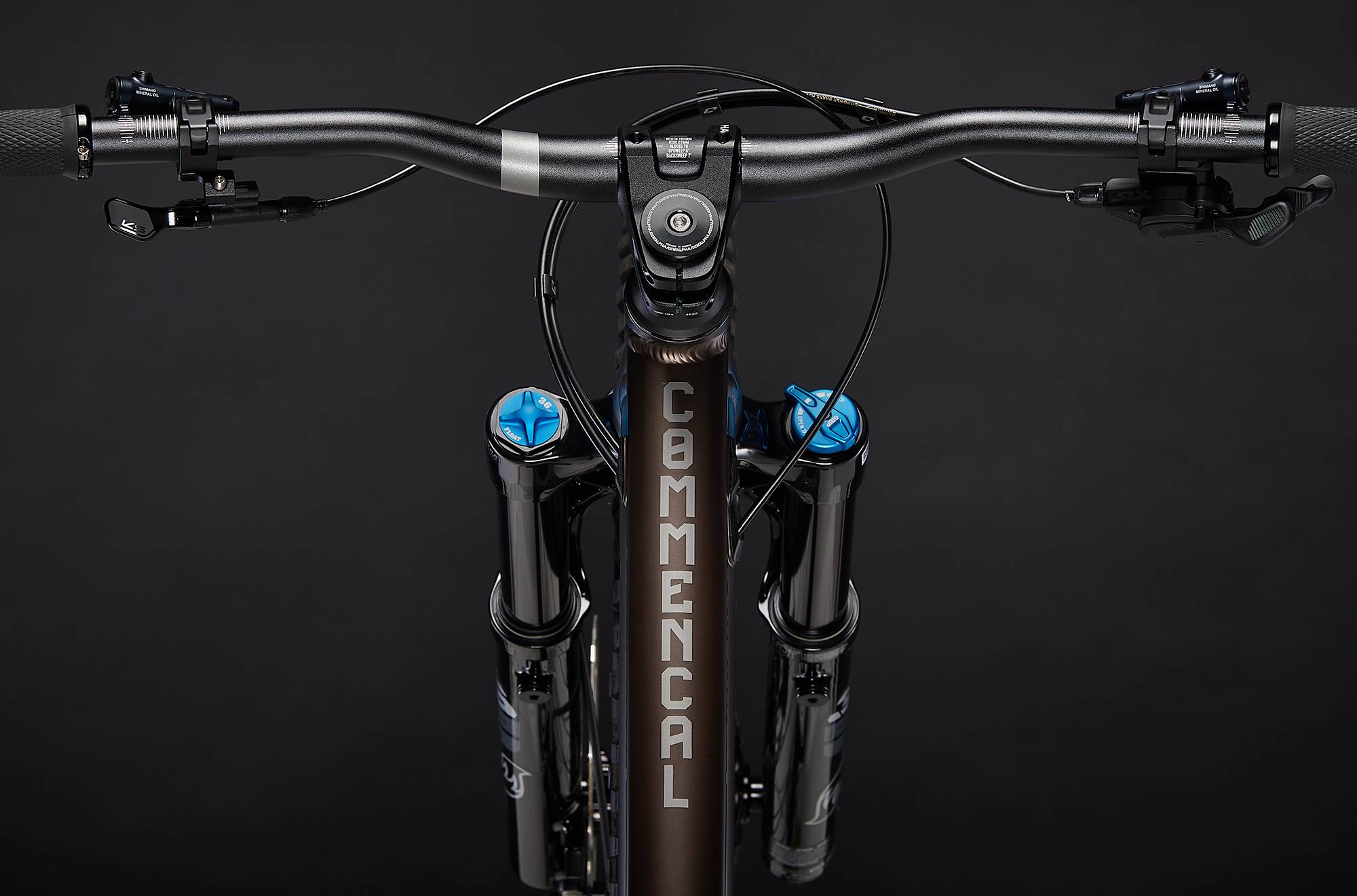

RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 on S - RIDE ALPHA R27 on M / L / XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO SLX, 2 pistons, I-Spec EV compatible
Rotors : SHIMANO SM-RT66 203 / 180 mm, 6-boltShifters
SHIMANO SLX
12s, RapidFire PlusREAR DERAILLEUR
SHIMANO SLX
12sBottom bracket
SHIMANO SLX
BSA, threadedCrankset

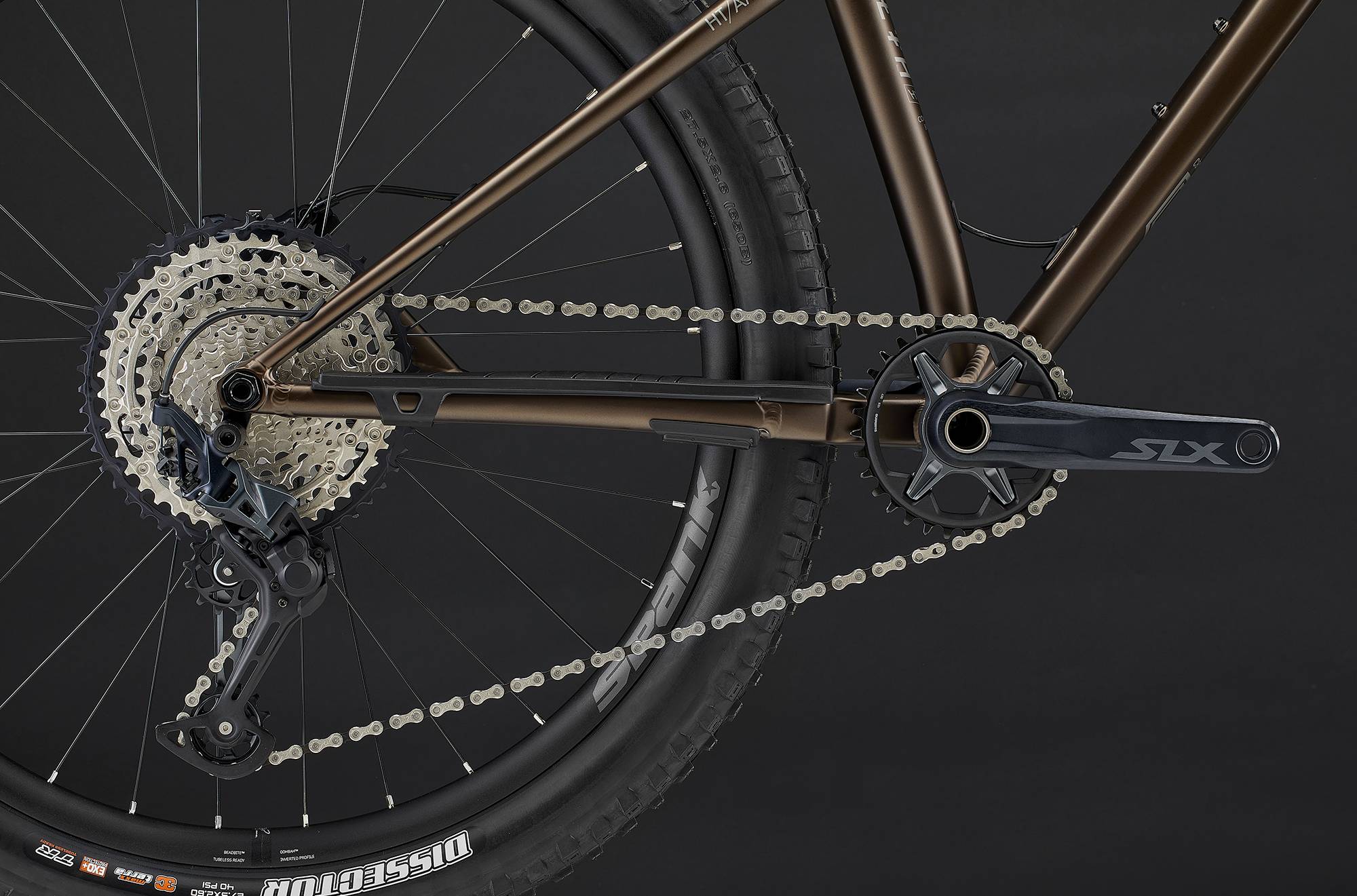

SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32tChain
KMC X12
12sCassette
SHIMANO Deore
12s, 10-51tRims
SPANK Spike Race 33
Rear: 27.5'', 32h, 28 mm inner width on S / M - 29'', 32h, 28 mm inner width on L / XL - Front: 29'', 32h, 28 mm inner width on S / M / L / XLHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, SHIMANO Microspline - Front: 32h, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS Dissector
REAR: 27.5'' x 2.6'', 3C MaxxTerra, New EXO+, Tubeless Ready on S / M - 29'' x 2.6'', 3C MaxxTerra, New EXO+, Tubeless Ready on L / XL - FRONT: 29" x 2.6", 3C MaxxTerra, New EXO+, Tubeless Ready on S / M / L / XLSeat post
KS Rage-I
31.6 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
14,2 kg / 31.30 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Frozen Brown
Matte FinishAccessories
Chainstay protector, seatstay protector
Bicycle type
Hardtail Enduro
Frame material
AL 6061 T4, T6
Frame weight
2.08 kg / 4,58 lb
Recommended/max. fork height
561 MM / 571 MM
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27,5" - 71-584 / 29'' - 66-622
Disc brake standard
INTERNATIONAL STANDARD
Rear rotor max. size
200 MM
Seatpost/seat clamp diameter
31,6 MM / 34,9 MM
Bottom bracket type
BSA 68 MM
Rear hub compatibility
L=180 mm, M12, P1.75 mm - MOYEU 148 X 12 STANDARD MAXLE
Frame
2022 Meta HT AM - 29''/27'' on S / M & 29''/29'' on L / XL
Alloy 6061, triple butted tubes, T4, T6.Fork
FOX 36 Performance, 150 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 TokensHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 on S - RIDE ALPHA R27 on M / L / XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO SLX, 2 pistons, I-Spec EV compatible
Rotors : SHIMANO SM-RT66 203 / 180 mm, 6-boltShifters
SHIMANO SLX
12s, RapidFire PlusREAR DERAILLEUR
SHIMANO SLX
12sBottom bracket
SHIMANO SLX
BSA, threadedCrankset
SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32tChain
KMC X12
12sCassette
SHIMANO Deore
12s, 10-51tRims
SPANK Spike Race 33
Rear: 27.5'', 32h, 28 mm inner width on S / M - 29'', 32h, 28 mm inner width on L / XL - Front: 29'', 32h, 28 mm inner width on S / M / L / XLHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, SHIMANO Microspline - Front: 32h, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS Dissector
REAR: 27.5'' x 2.6'', 3C MaxxTerra, New EXO+, Tubeless Ready on S / M - 29'' x 2.6'', 3C MaxxTerra, New EXO+, Tubeless Ready on L / XL - FRONT: 29" x 2.6", 3C MaxxTerra, New EXO+, Tubeless Ready on S / M / L / XLSeat post
KS Rage-I
31.6 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
14,2 kg / 31.30 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Frozen Brown
Matte FinishAccessories
Chainstay protector, seatstay protector
Bicycle type
Hardtail Enduro
Frame material
AL 6061 T4, T6
Frame weight
2.08 kg / 4,58 lb
Recommended/max. fork height
561 MM / 571 MM
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27,5" - 71-584 / 29'' - 66-622
Disc brake standard
INTERNATIONAL STANDARD
Rear rotor max. size
200 MM
Seatpost/seat clamp diameter
31,6 MM / 34,9 MM
Bottom bracket type
BSA 68 MM
Rear hub compatibility
L=180 mm, M12, P1.75 mm - MOYEU 148 X 12 STANDARD MAXLE

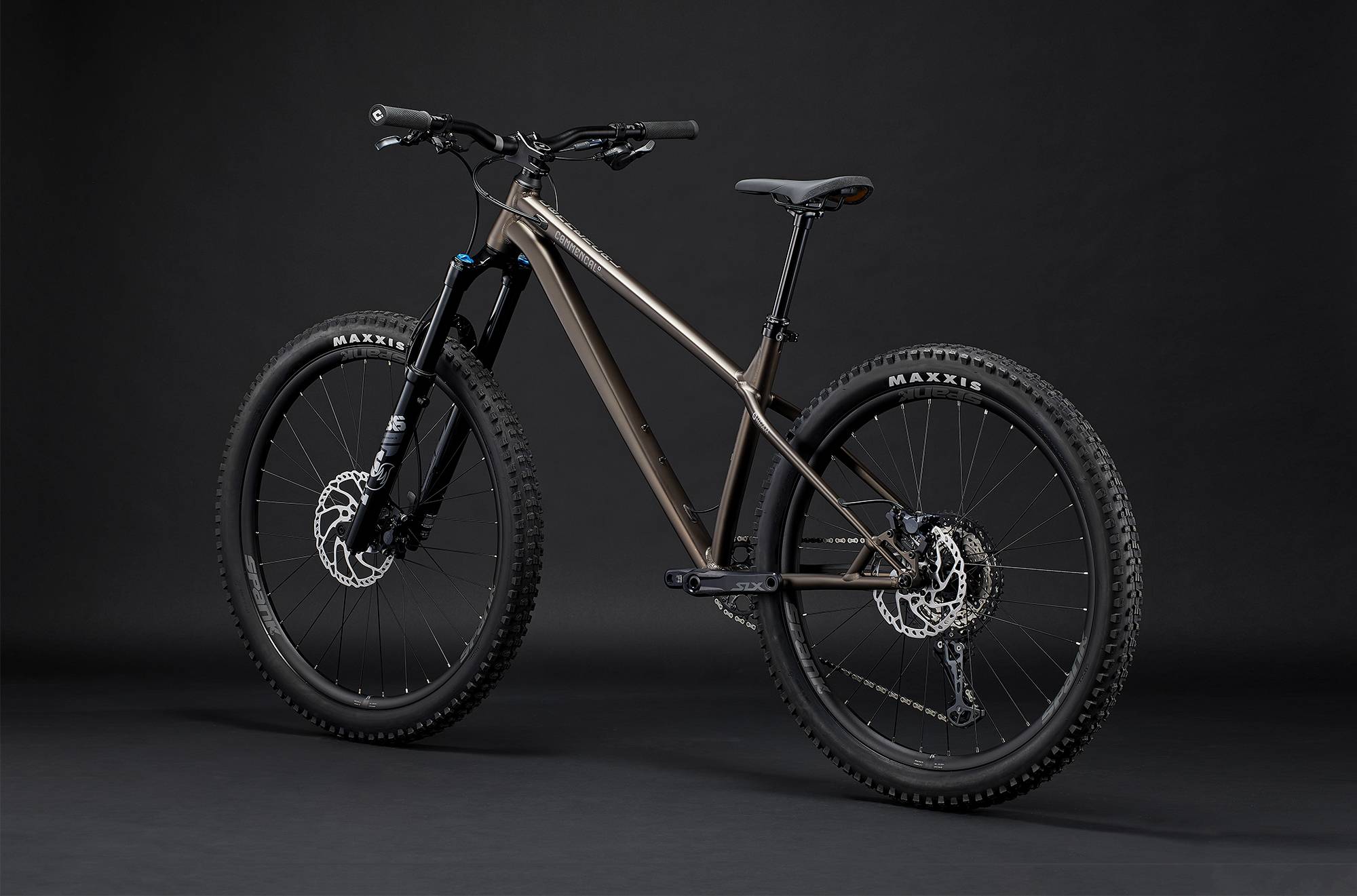

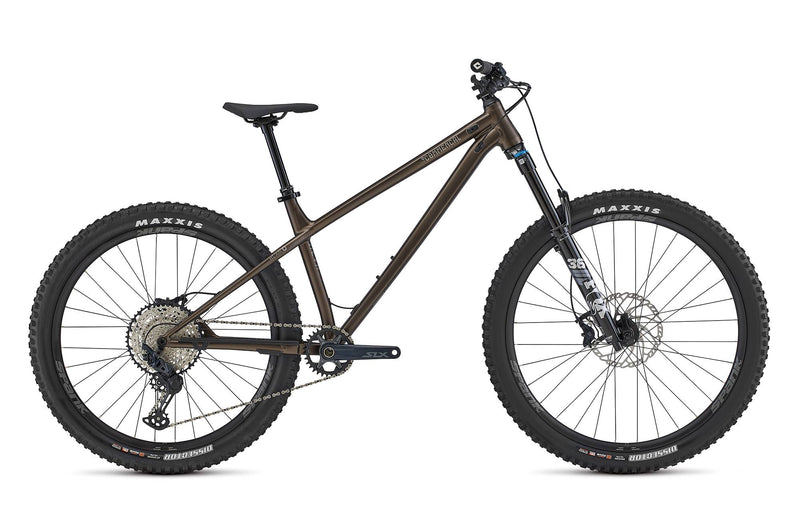

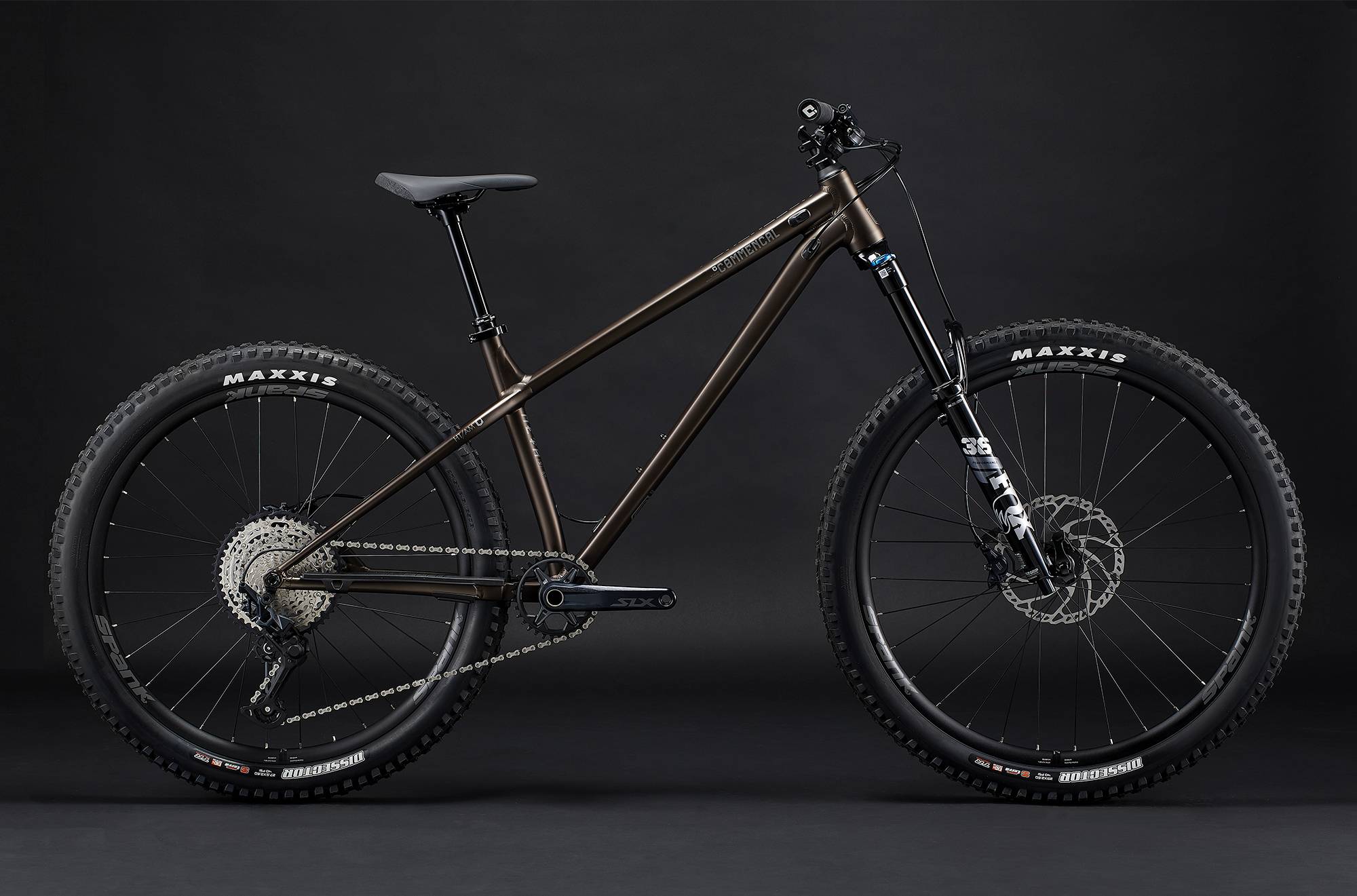

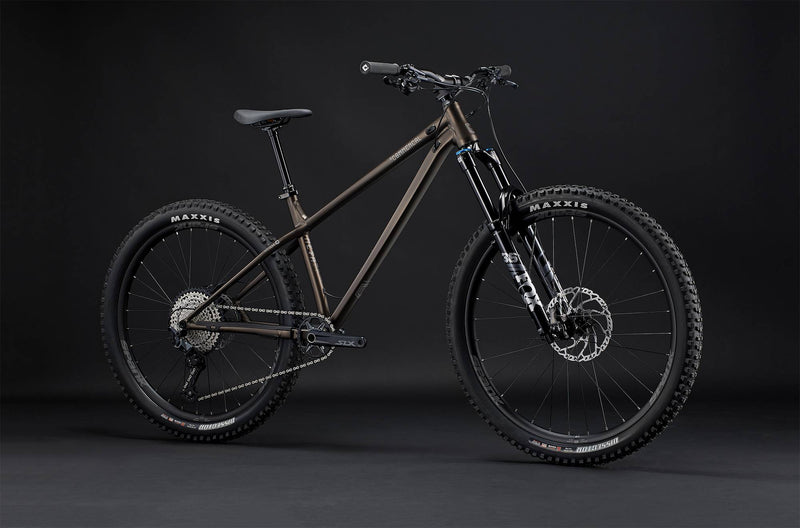

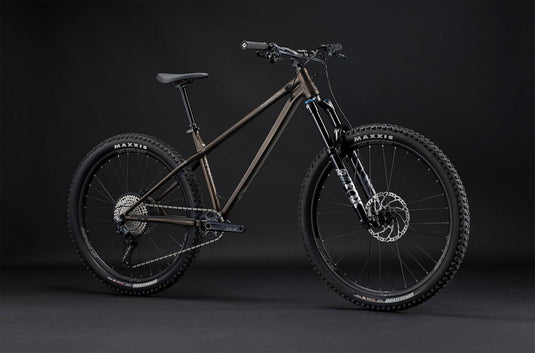

The META HT AM RACE in Frozen Brown comes locked and loaded with a FOX 36 fork, SHIMANO SLX drivetrain, and burly 2.6" MAXXIS Dissector tyres for grip that doesn’t flinch. A dropper post matched to frame size keeps you fluid on climbs and fearless on descents. With SPANK wheels, FORMULA hubs, and ODI grips, it’s a cockpit built for confidence. No pedals included—because Cyril reckons if you’re choosing this ride, you know exactly what you want underfoot.
This Hardtail Enduro frame is forged from AL 6061 T4/T6 alloy—lightweight at just 2.08 kg, yet built to take a thrashing. Designed for versatility, it plays nice with 27.5" or 29" tyres and handles forks up to 571 mm. The tapered ZS44/ZS56 headset keeps your steering tight, while the International Standard brake mounts and 200 mm max rotor clearance mean stopping power is never in doubt.
