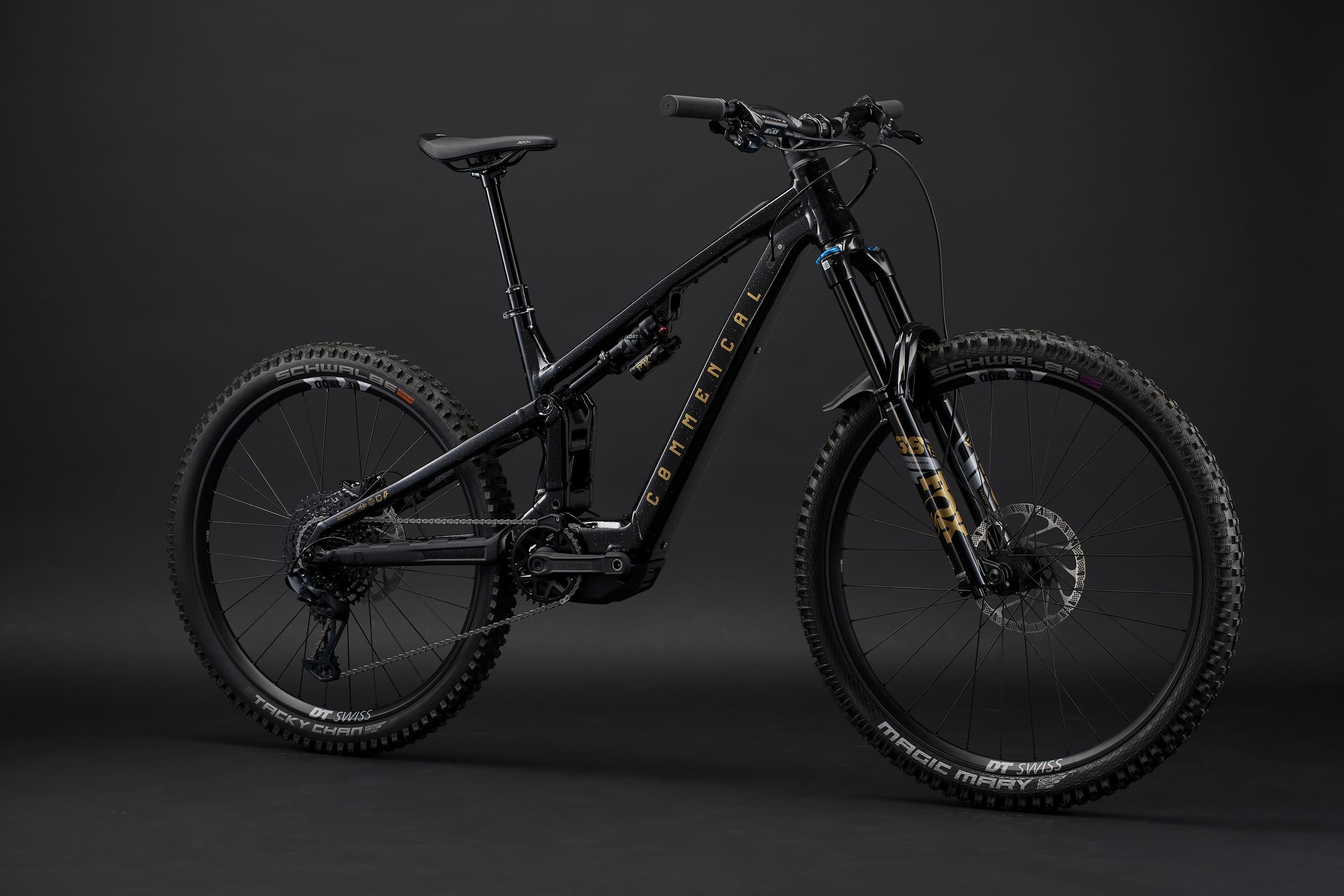

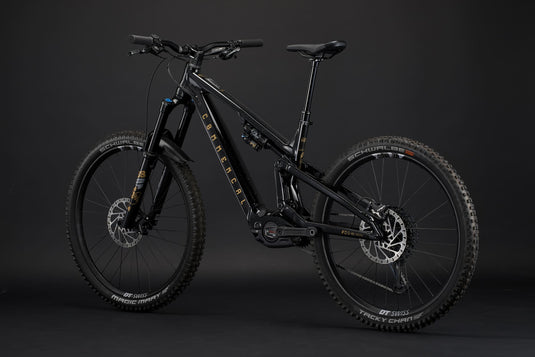

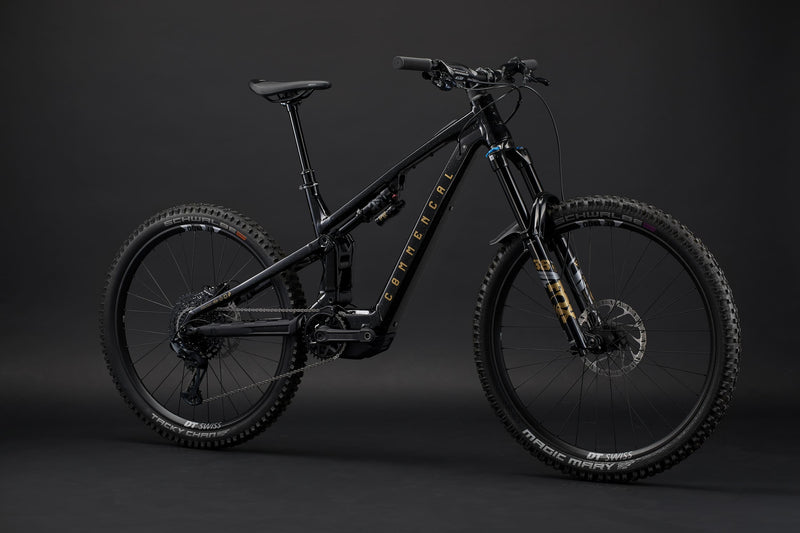

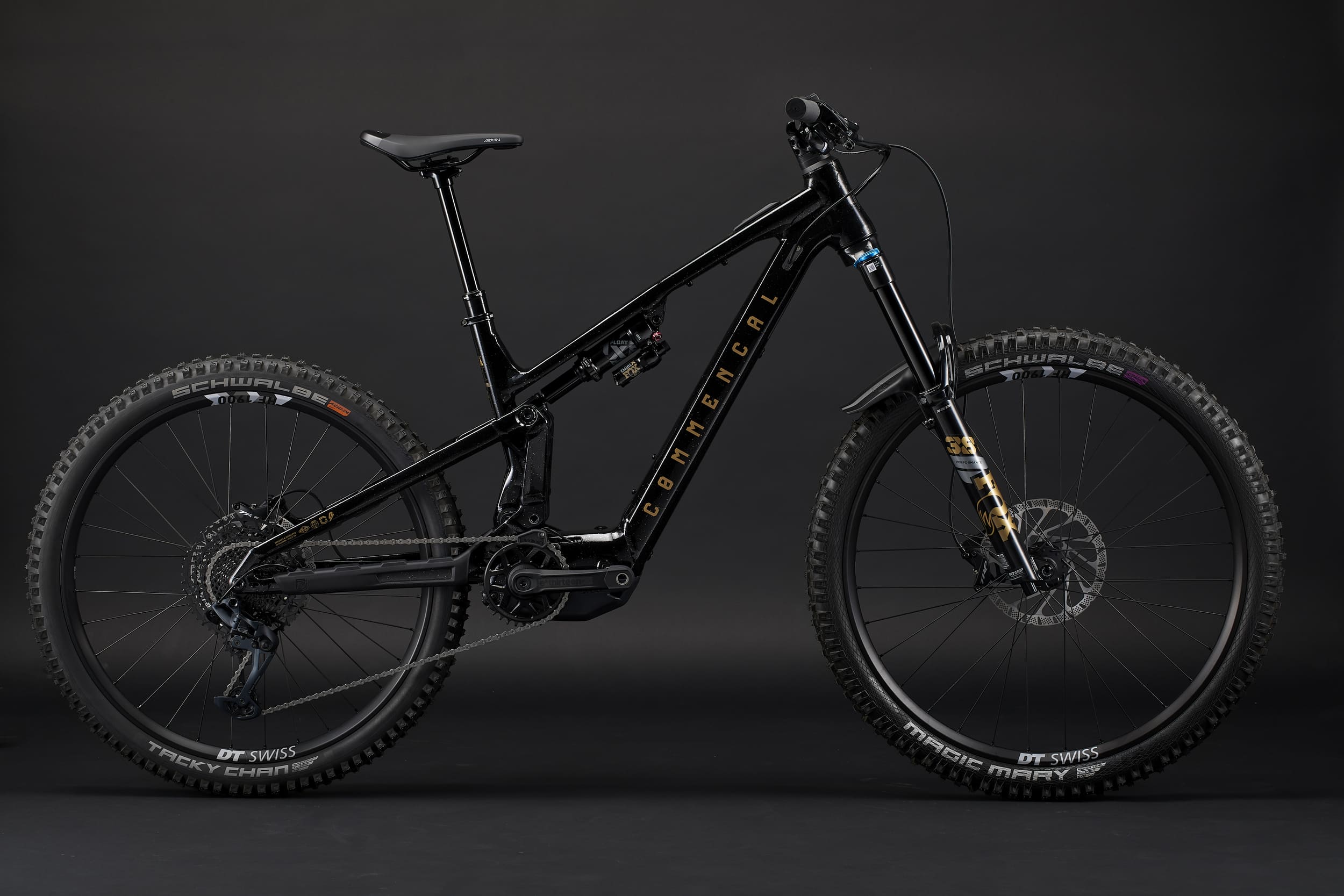

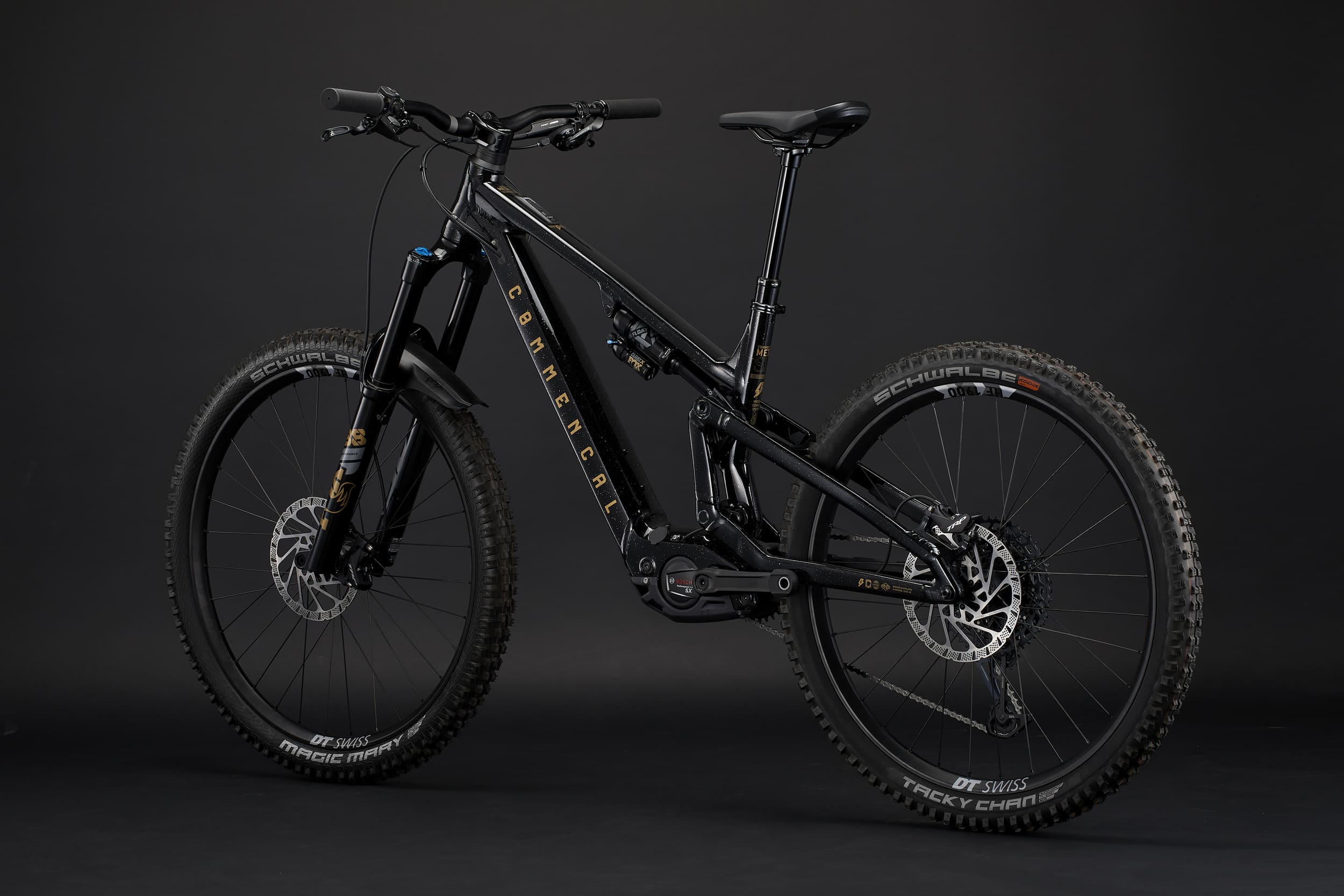

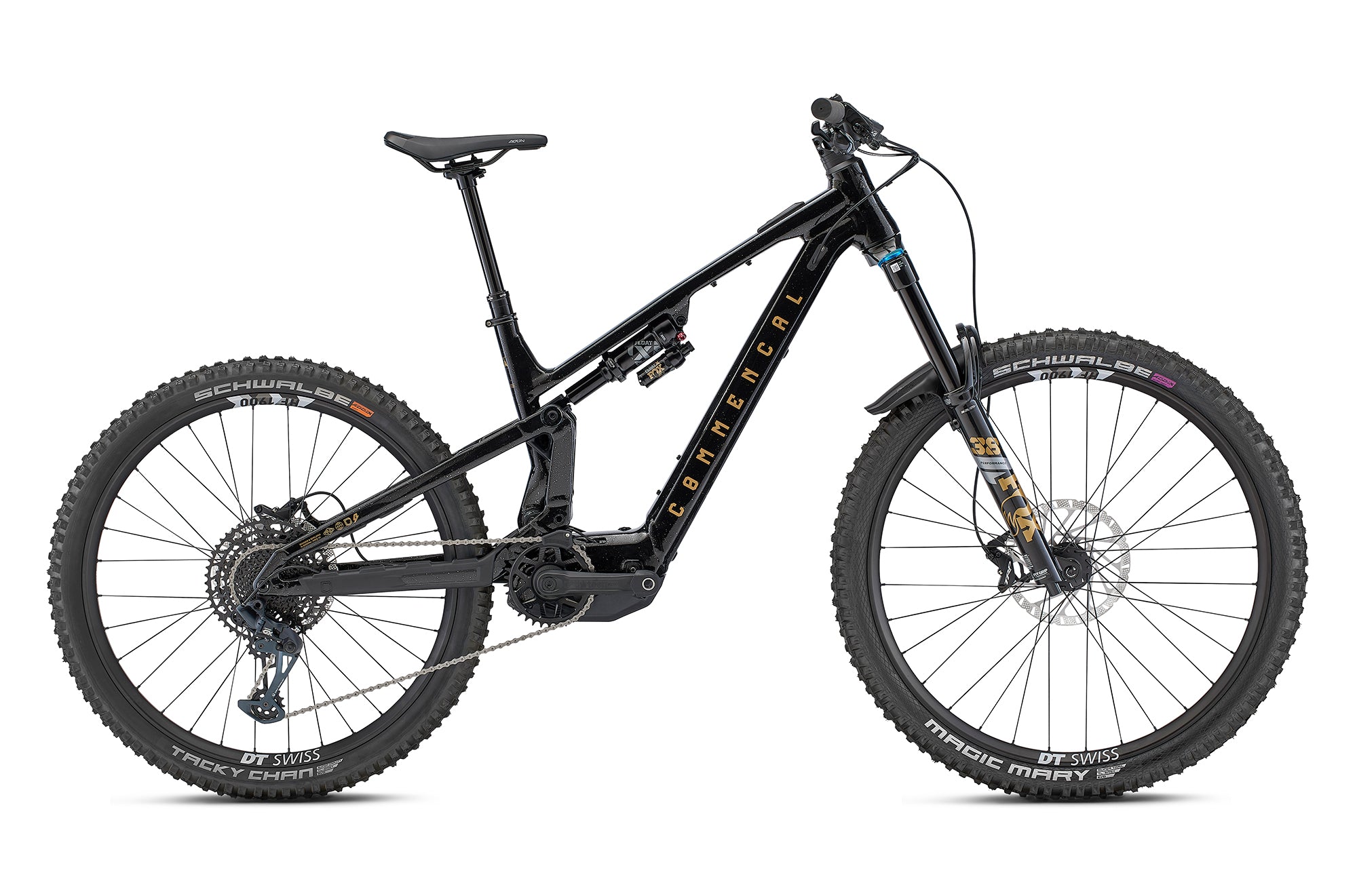

Commencal Meta Power SX 400 Essential Glittery Black E-Bike
Frame
META POWER SX BOSCH, 170 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu BearingsMotor

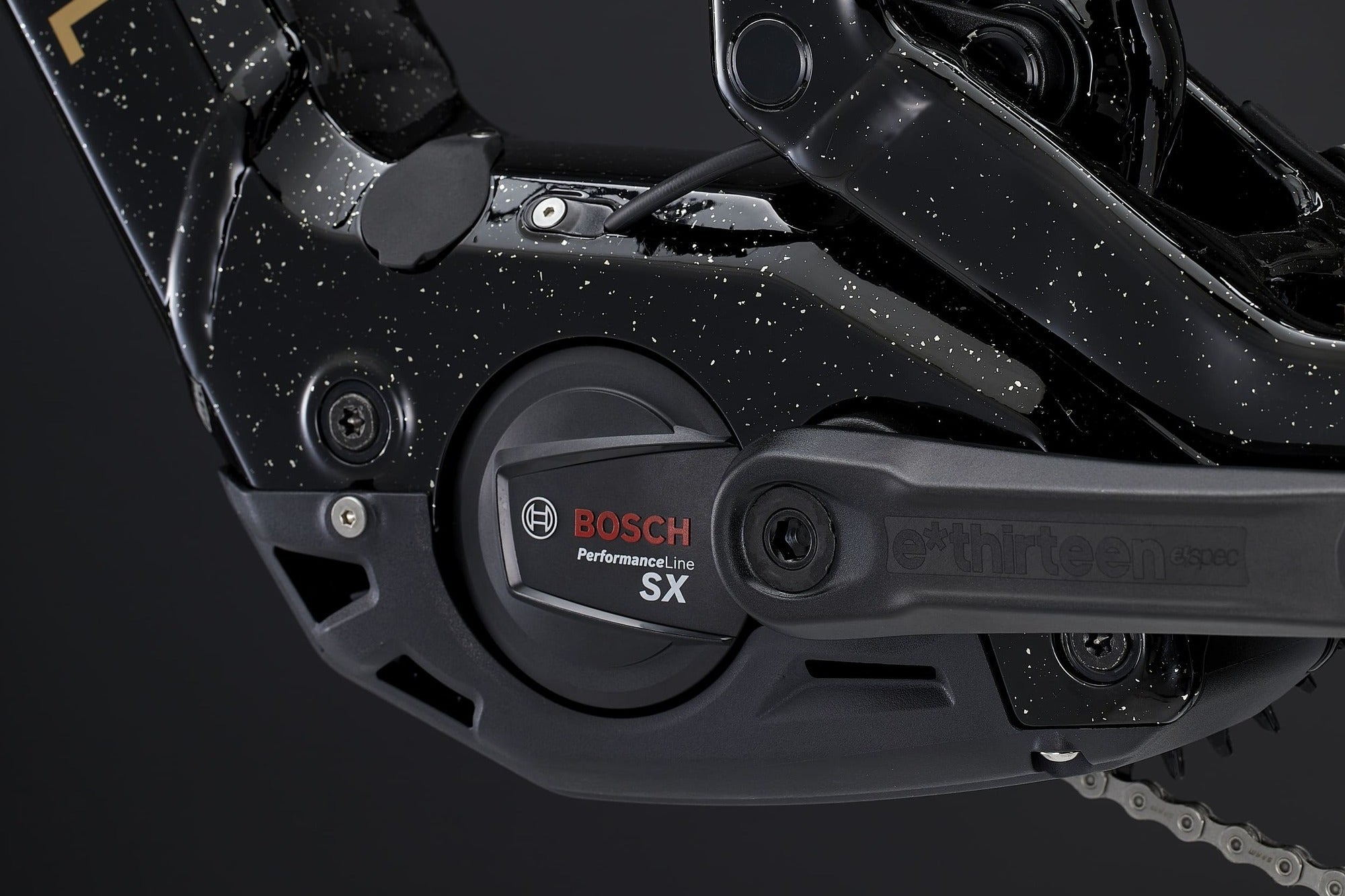

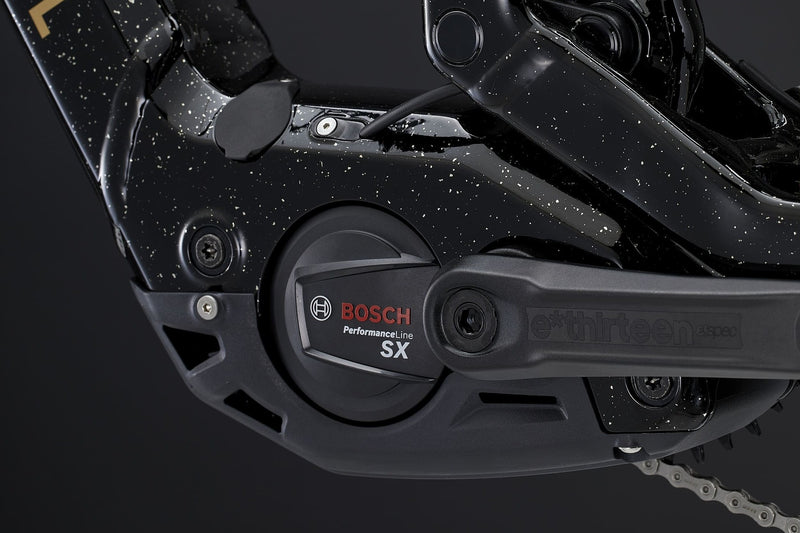

BOSCH Performance Line SX
Max. torque: 55 N.m, 250 WBattery
BOSCH Compact Powertube 400
Fully integrated main battery, 400 WhDisplay
BOSCH System Controller
ON/OFF switch, assist mode level, battery charge levelShock

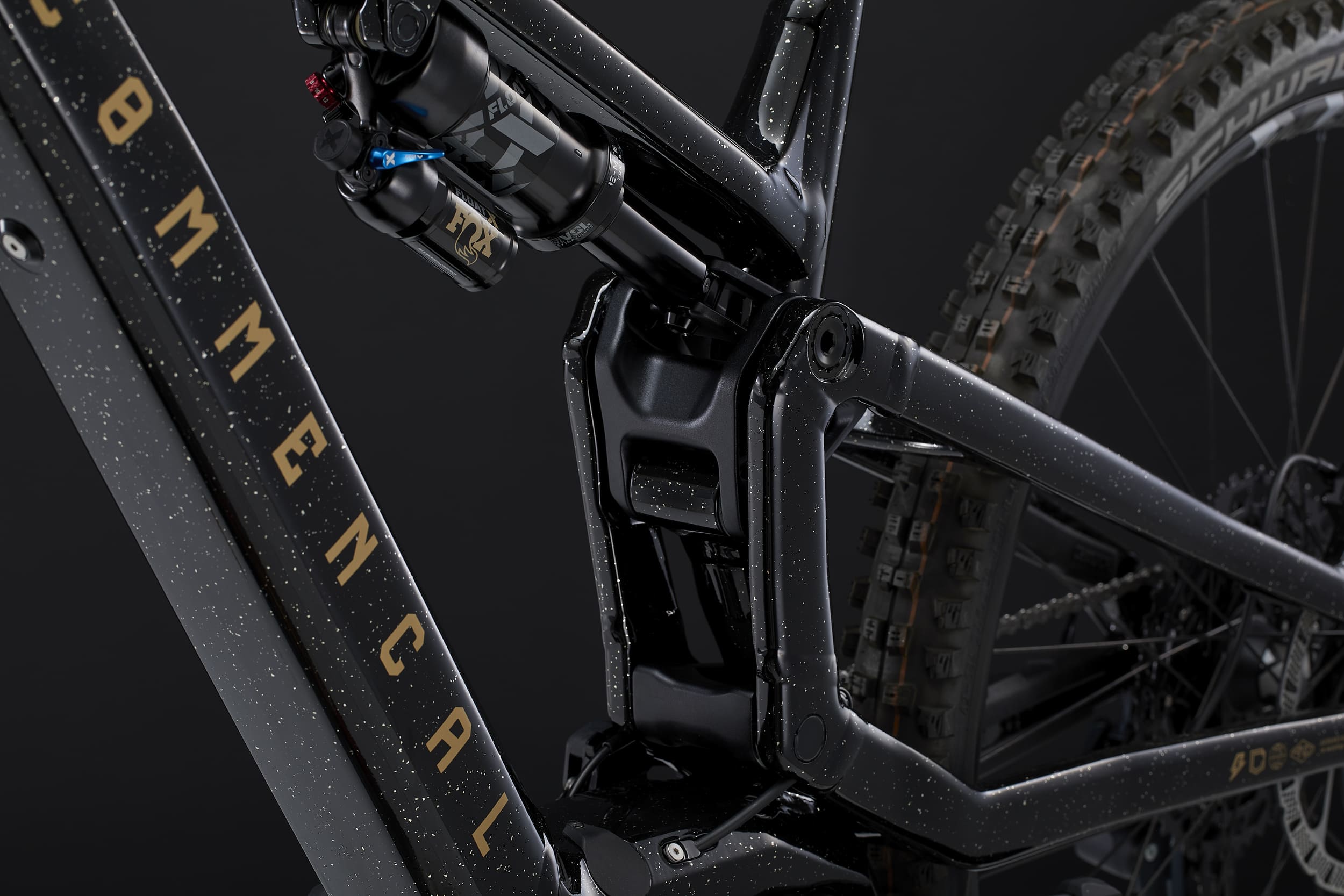

FOX Float X Performance
230 x 65 mm, 2-position (open/firm) lever, LSC, rebound, 0.4 spacersFork

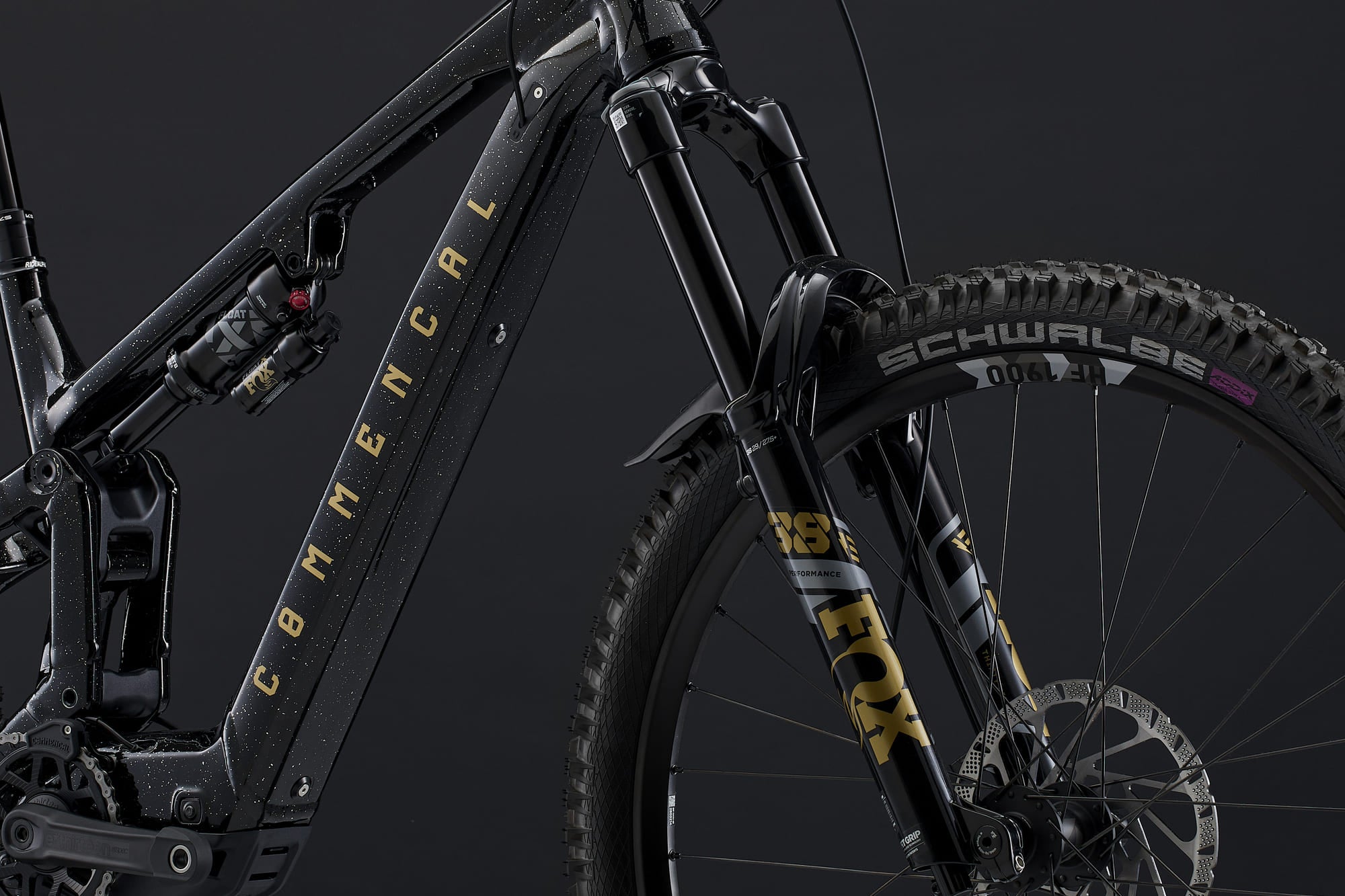

FOX 38 Performance E-Bike, 170 mm
29", Fit Grip damper, 3 positions compression, rebound, Boost (15 x 110 mm), 44 mm offset, 3 spacersHeadset
ACROS ZS56 / ZS66
Alloy cups, stainless steel & sealed bearingsStem

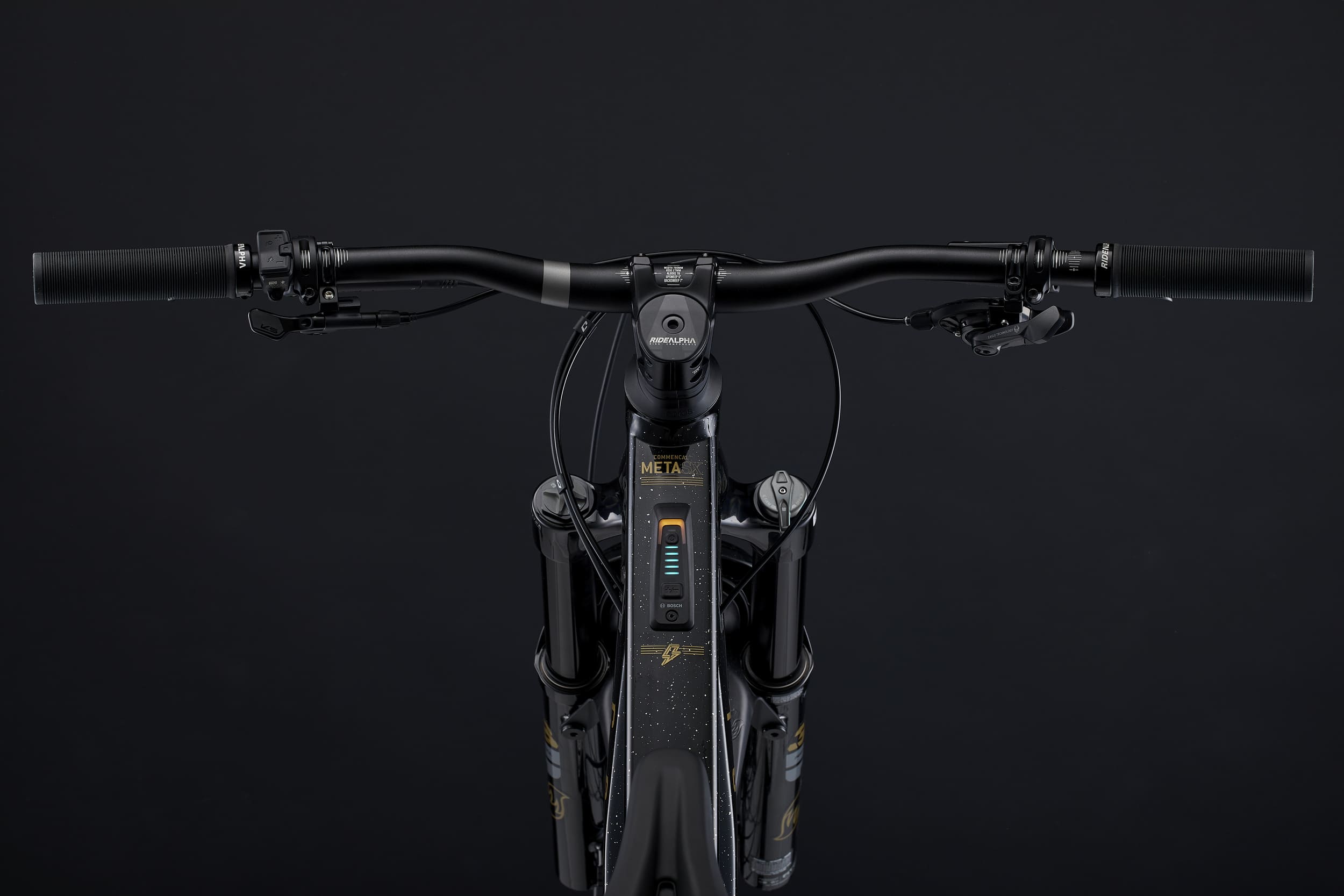

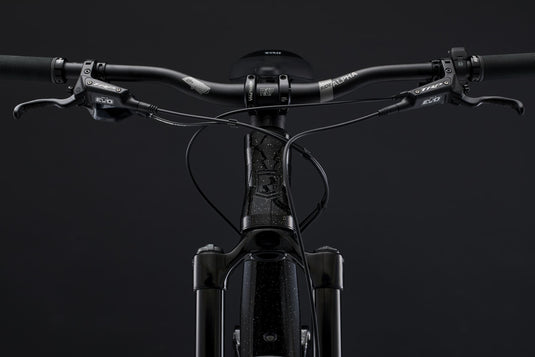

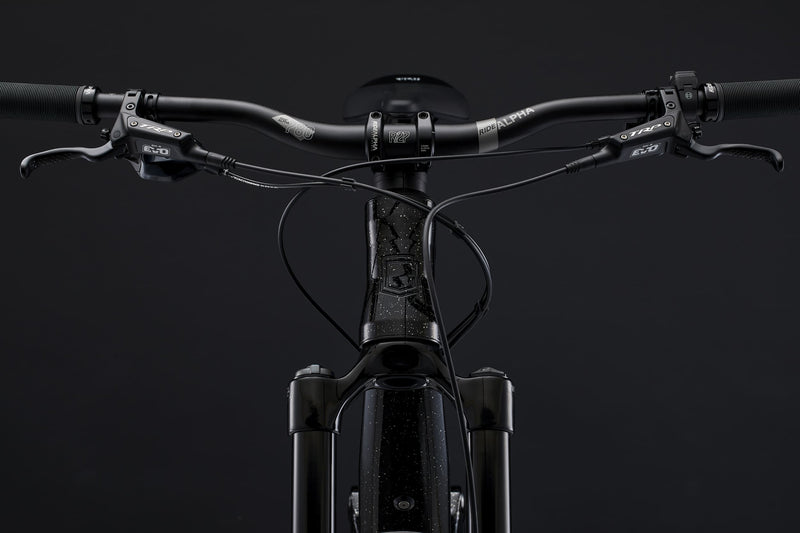

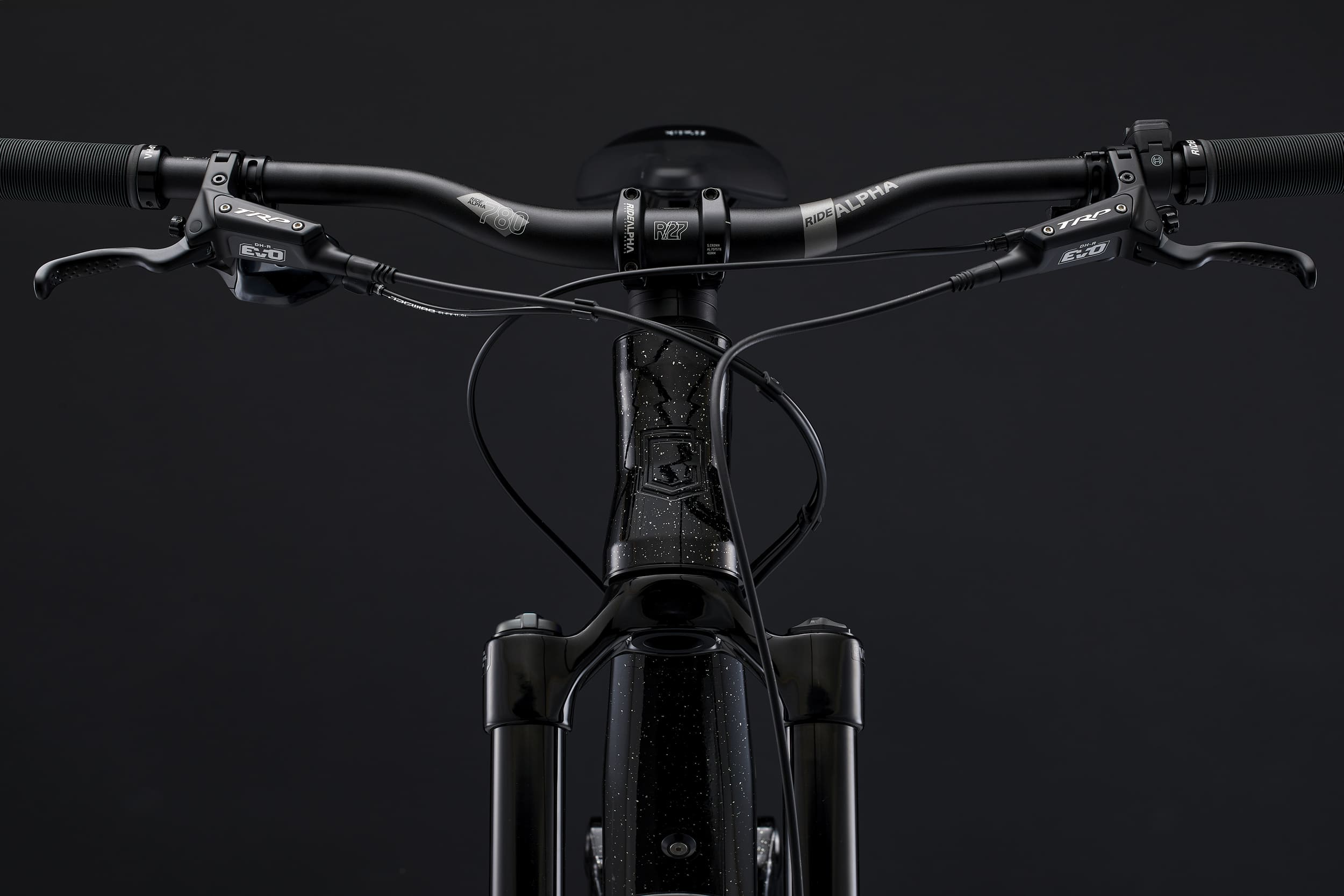

RIDE ALPHA 40
40 mm extension, 31.8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA Mushroom
Soft compound, single clamp, 132 mm width, blackBrakes
TRP DH-R EVO, 4 pistons, resin pads
Rotors: TRP R2 203 mm, 6-bolt, 2.3 mm width
Motostyle braking: front brake with right lever / rear brake with left leverShifters

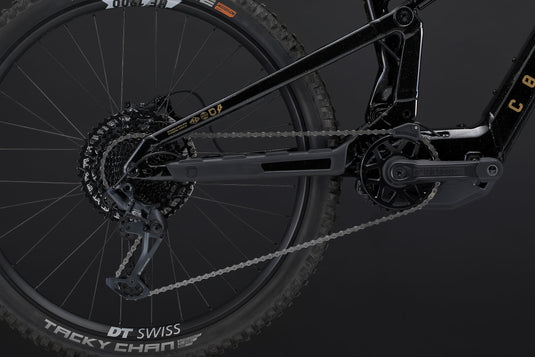

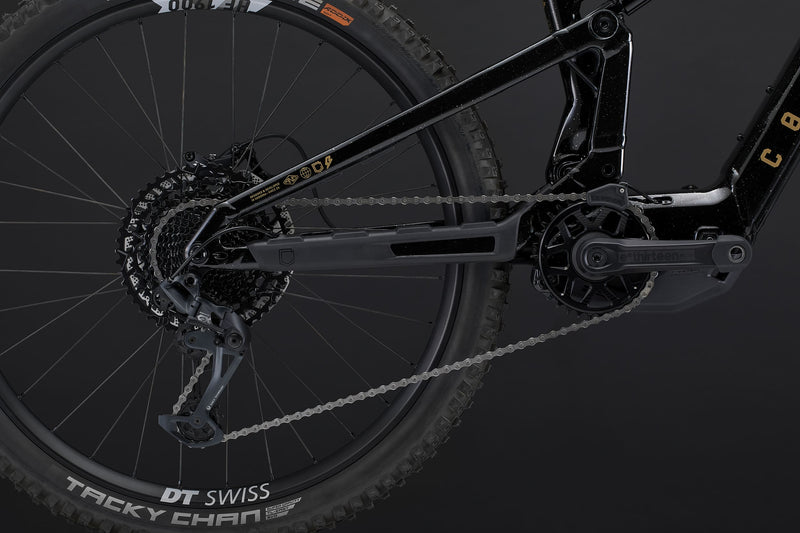

SRAM GX
12sChain guide
RIDE ALPHA
32-34tREAR DERAILLEUR
SRAM GX
12sCrankset
E13 Helix Core E*Spec, 155 mm crank arms, BOSCH Gen4
Chainring: E13 Helix Race E*Spec, 34t, direct mount, BOSCH Gen4Chain
SRAM NX
12sCassette
SRAM NX
12s, 11-50tRims
DT SWISS HF1900 Classic
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
DT SWISS 370
Rear: 28h, sealed bearings, 12 x 148 mm, 18t, Sram XD, e-bike specific - Front: 28h, sealed bearings, 15 x 110 mmSpokes/nipples
DT SWISS Hybrid 1
Straightpull, 2.34/2.0 mm, double butted, stainless, with ProLock, blackTyres
Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
Rear: 27.5'' x 2.4'', Super Gravity, Addix Soft, Tubeless Easy- Front: 29" x 2.4'', Super Trail, Addix Ultra Soft, Tubeless EasySeat post
KS Rage-I
34.9 mm, 125 mm on S, 170 mm on M and 190 mm on L/XLSaddle
FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius railsWeight
22.0 kg / 48.50 lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
CRANKBROTHERS Stamp 1
Colour
Glittery Black
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, Fox 38 specific fender, pedals, included with Fidlock bases, down tube plastic film protector
Battery charger: BOSCH 4A Charger. Compact size & lightweight
*Please note that bike specs are subject to change without prior notice.Battery recycling
Partnership with BOSCH
The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
Bicycle type
E-BIKE ENDURO 29''/27''
Frame material
AL 6061 + AL 6066 - T6
Rear travel
170 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm front
Recommended/max. fork height
588 mm (44 offset) / 598 mm
Headset dimension
Tapered
Headset type
ZS56 / 28,6 - ZS66 / 40
Maximum tyre dimension (etrto)
65 - 584 mm
Disc brake standard
PM200
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BOSCH E-BIKE
ISCG
Yes (BOSCH Standard)
Rear hub compatibility
12 x 148 mm UDH
Frame
META POWER SX BOSCH, 170 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu BearingsMotor
BOSCH Performance Line SX
Max. torque: 55 N.m, 250 WBattery
BOSCH Compact Powertube 400
Fully integrated main battery, 400 WhDisplay
BOSCH System Controller
ON/OFF switch, assist mode level, battery charge levelShock
FOX Float X Performance
230 x 65 mm, 2-position (open/firm) lever, LSC, rebound, 0.4 spacersFork
FOX 38 Performance E-Bike, 170 mm
29", Fit Grip damper, 3 positions compression, rebound, Boost (15 x 110 mm), 44 mm offset, 3 spacersHeadset
ACROS ZS56 / ZS66
Alloy cups, stainless steel & sealed bearingsStem
RIDE ALPHA 40
40 mm extension, 31.8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA Mushroom
Soft compound, single clamp, 132 mm width, blackBrakes
TRP DH-R EVO, 4 pistons, resin pads
Rotors: TRP R2 203 mm, 6-bolt, 2.3 mm width
Motostyle braking: front brake with right lever / rear brake with left leverShifters
SRAM GX
12sChain guide
RIDE ALPHA
32-34tREAR DERAILLEUR
SRAM GX
12sCrankset
E13 Helix Core E*Spec, 155 mm crank arms, BOSCH Gen4
Chainring: E13 Helix Race E*Spec, 34t, direct mount, BOSCH Gen4Chain
SRAM NX
12sCassette
SRAM NX
12s, 11-50tRims
DT SWISS HF1900 Classic
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
DT SWISS 370
Rear: 28h, sealed bearings, 12 x 148 mm, 18t, Sram XD, e-bike specific - Front: 28h, sealed bearings, 15 x 110 mmSpokes/nipples
DT SWISS Hybrid 1
Straightpull, 2.34/2.0 mm, double butted, stainless, with ProLock, blackTyres
Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
Rear: 27.5'' x 2.4'', Super Gravity, Addix Soft, Tubeless Easy- Front: 29" x 2.4'', Super Trail, Addix Ultra Soft, Tubeless EasySeat post
KS Rage-I
34.9 mm, 125 mm on S, 170 mm on M and 190 mm on L/XLSaddle
FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius railsWeight
22.0 kg / 48.50 lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
CRANKBROTHERS Stamp 1
Colour
Glittery Black
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, Fox 38 specific fender, pedals, included with Fidlock bases, down tube plastic film protector
Battery charger: BOSCH 4A Charger. Compact size & lightweight
*Please note that bike specs are subject to change without prior notice.Battery recycling
Partnership with BOSCH
The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
Bicycle type
E-BIKE ENDURO 29''/27''
Frame material
AL 6061 + AL 6066 - T6
Rear travel
170 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm front
Recommended/max. fork height
588 mm (44 offset) / 598 mm
Headset dimension
Tapered
Headset type
ZS56 / 28,6 - ZS66 / 40
Maximum tyre dimension (etrto)
65 - 584 mm
Disc brake standard
PM200
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BOSCH E-BIKE
ISCG
Yes (BOSCH Standard)
Rear hub compatibility
12 x 148 mm UDH
The META POWER SX 400 ESSENTIAL is built for the bold, combining a lightweight 170mm Alloy 6066 frame with BOSCH’s Performance Line SX motor and a fully integrated 400Wh battery. FOX 38 Performance forks and Float X shock absorb the gnar, while DT SWISS HF1900 wheels and TRP DH-R Evo brakes keep you glued and in control. SRAM GX Eagle shifting, Schwalbe tyres, and a KS dropper post round out a spec list that screams: “Let’s get rowdy.” All wrapped in glittery black, naturally.
The META POWER SX 400 ESSENTIAL is a full-blooded e-enduro rig built for chaos control. Its AL 6061/6066 T6 frame houses 170 mm of rear travel and a 230 x 65 mm shock setup that’s piggyback-ready. Tapered headset, BOSCH E-Bike bottom bracket, and 223 mm rotor capacity keep things stiff, smooth, and trail-hungry. It runs mixed wheels (29/27.5), chews up rough terrain, and maxes out tyre clearance at 65-584 mm. Built like a tank, tuned like a race machine—Cyril calls it “gravity’s worst enemy.”
