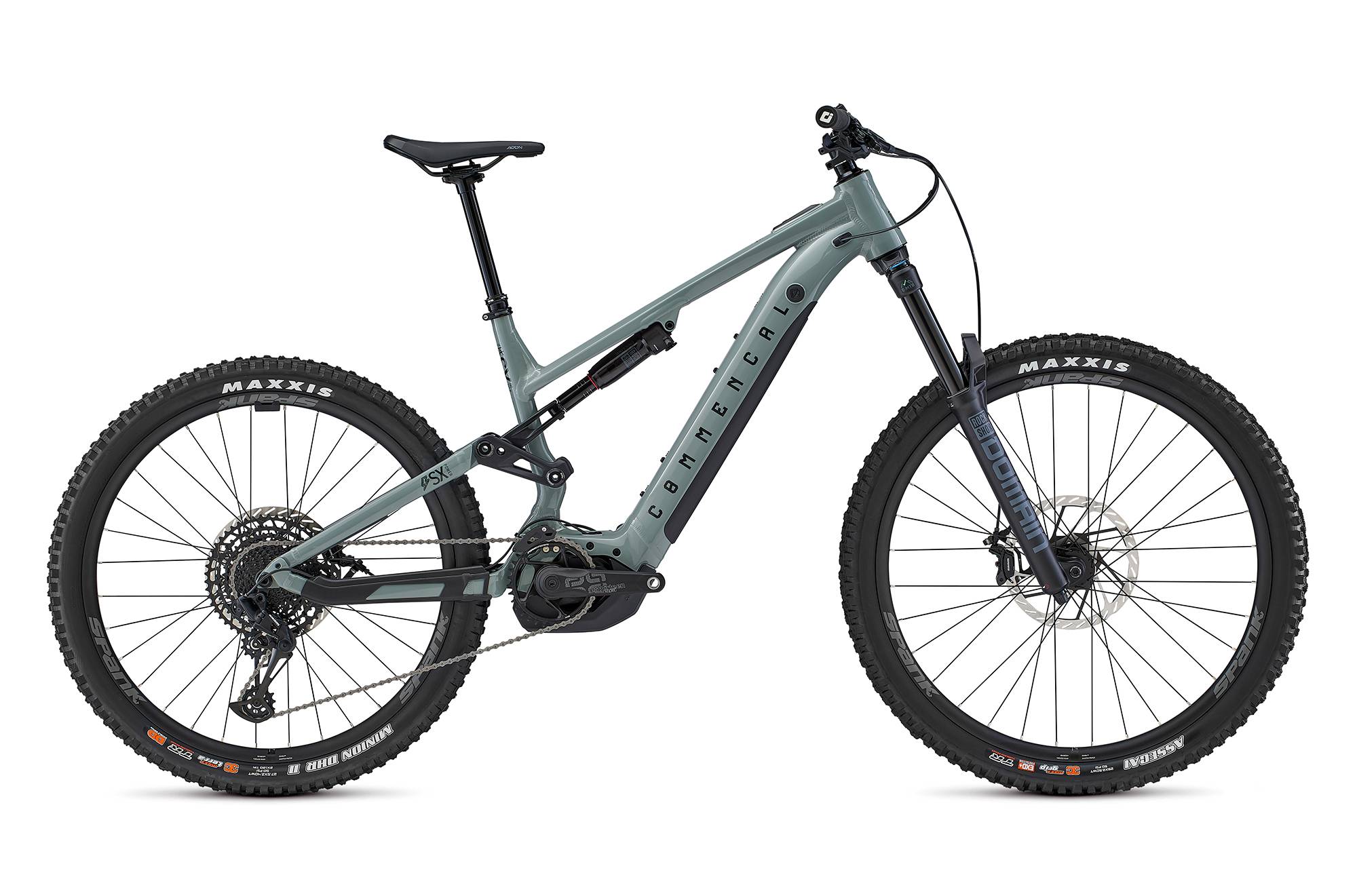

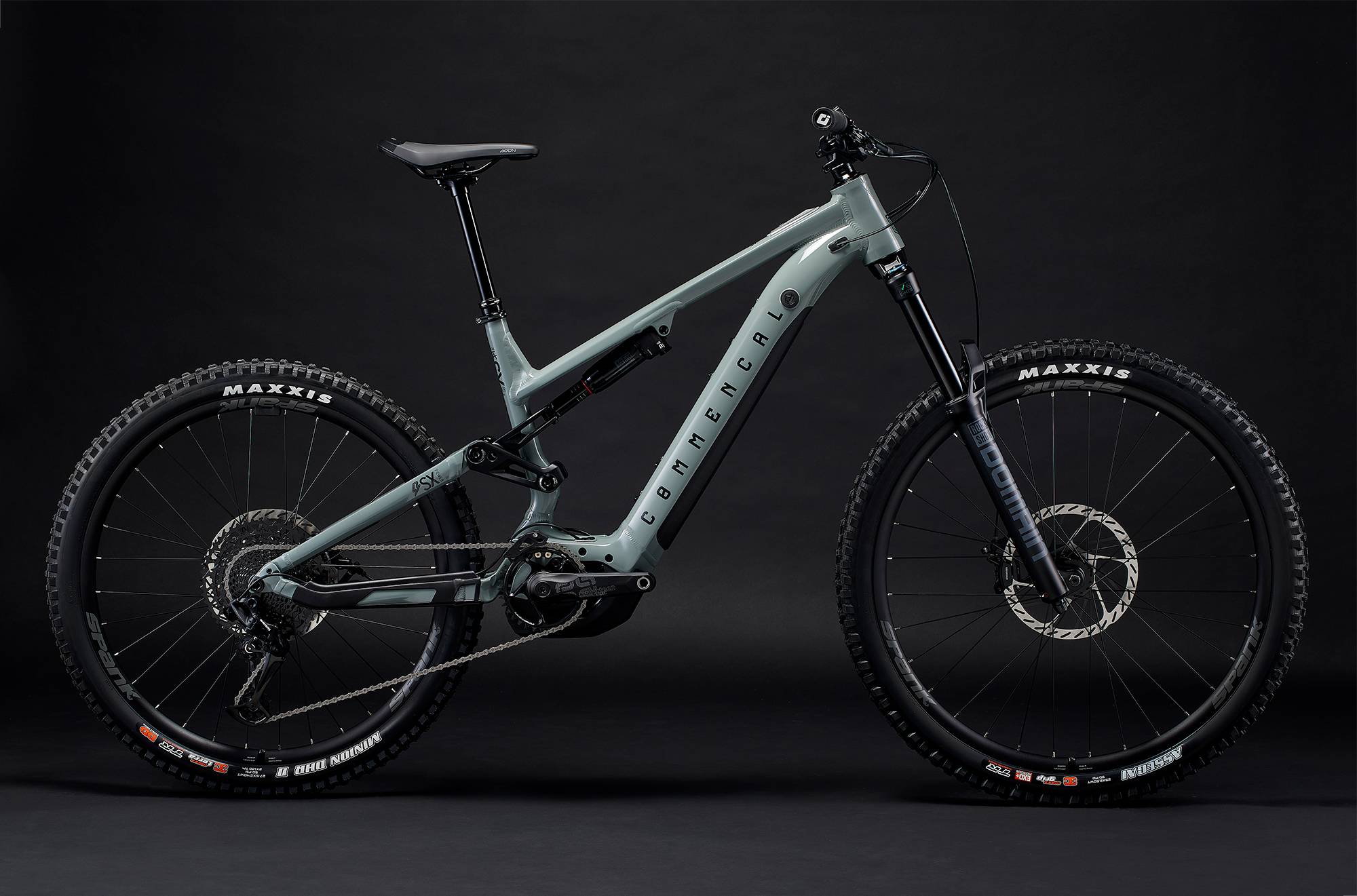

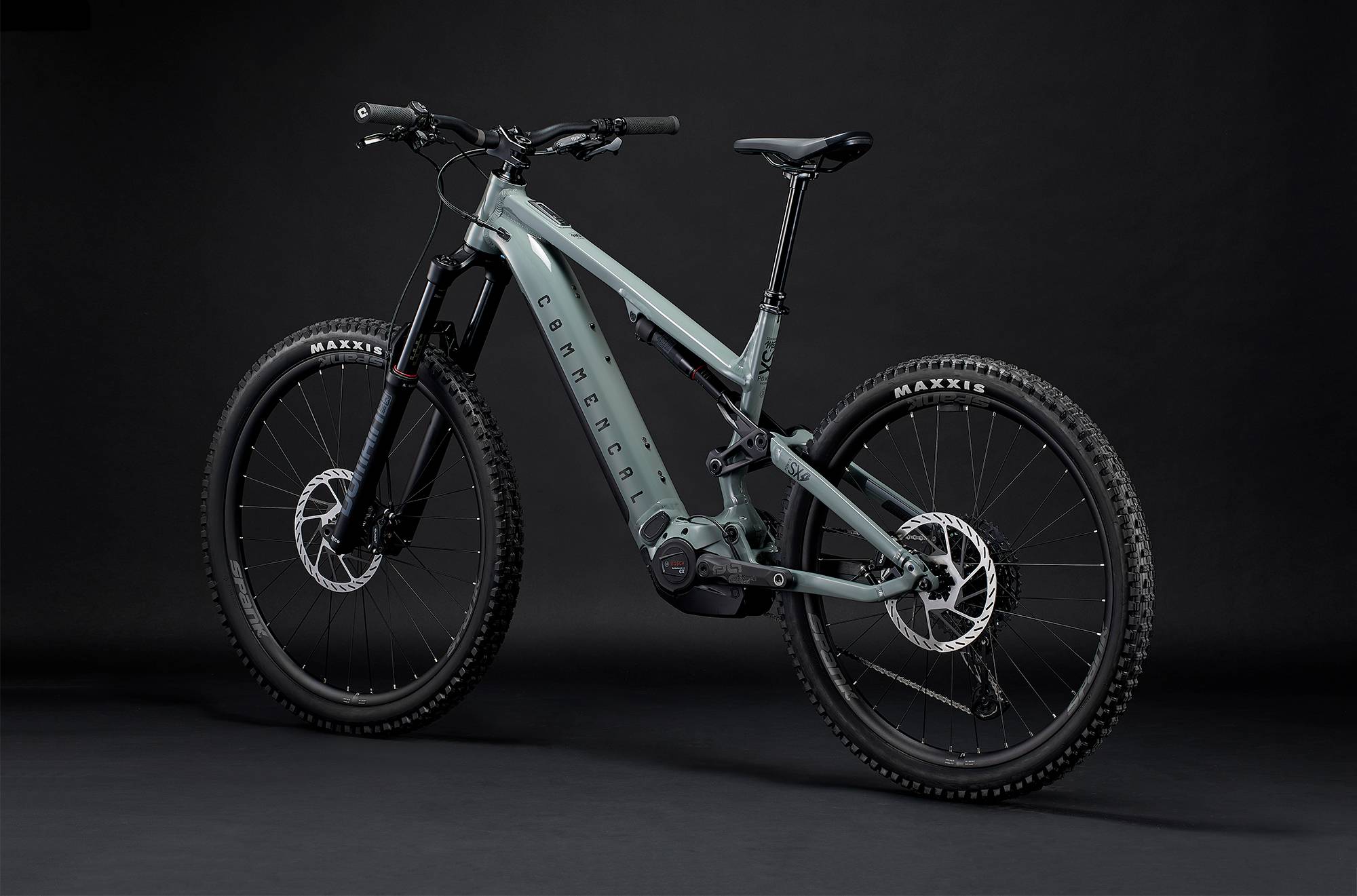

Commencal META POWER SX BOSCH Ride Pyrite Grey Enduro E-Bike
Frame
META POWER SX BOSCH, 165 mm travel
29"-27.5", Alloy 6066, triple butted tubes, T4, T6.Motor
BOSCH Performance Line CX
Max. torque: 85N.m, 250WBattery
BOSCH PowerTube 625, 625Wh
BOSCH 4A Charger, Compact size & lightweight
Compatible w/Bosch PowerMore 250 for extra rangeDisplay
BOSCH System Controller
BOSCH Mini Remote currently not available in the USAShock

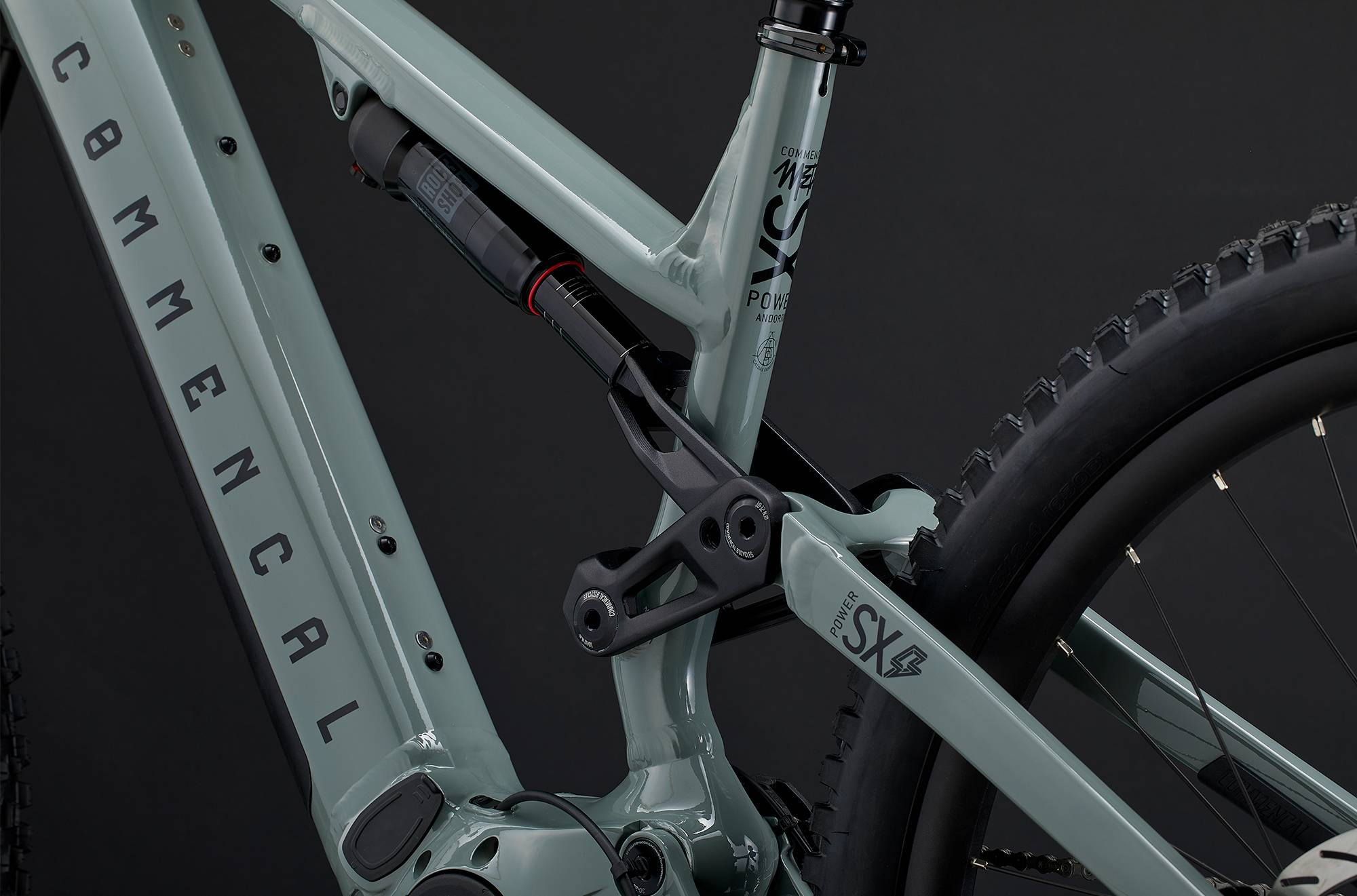

ROCKSHOX Deluxe Select
230 x 65 mm, R damper, DebonAir, rebound, 1 Token neg. 4 Tokens pos.Fork

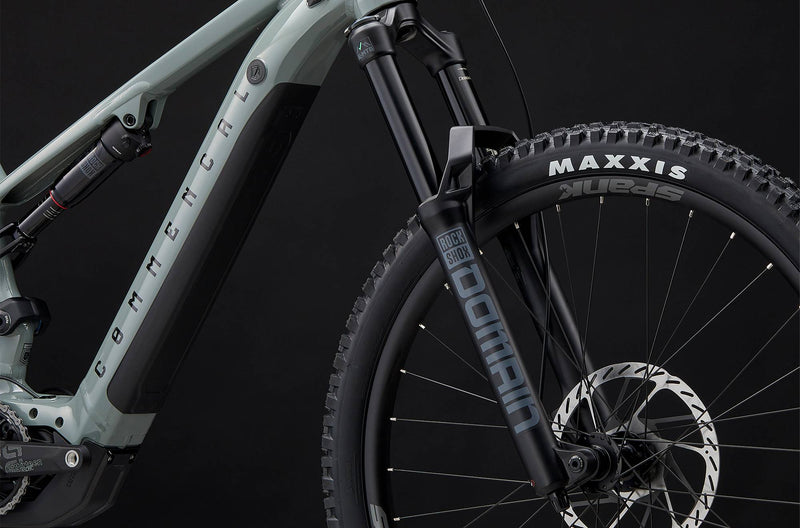

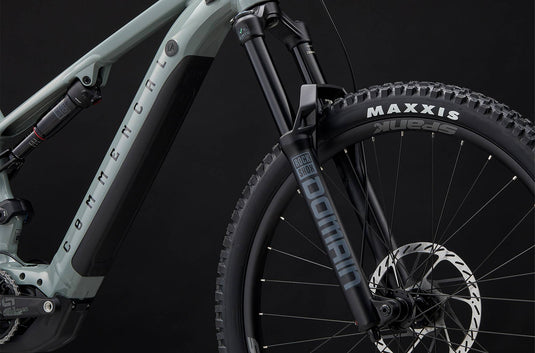

ROCKSHOX Domain RC, 170 mm travel
29'', Motion Control damper, DebonAir, rebound, LSC, Boost (15 x 110 mm), 44 mm offset, 1 TokenHeadset
ACROS ZS56 / ZS66
Alloy cups, sealed bearingsStem

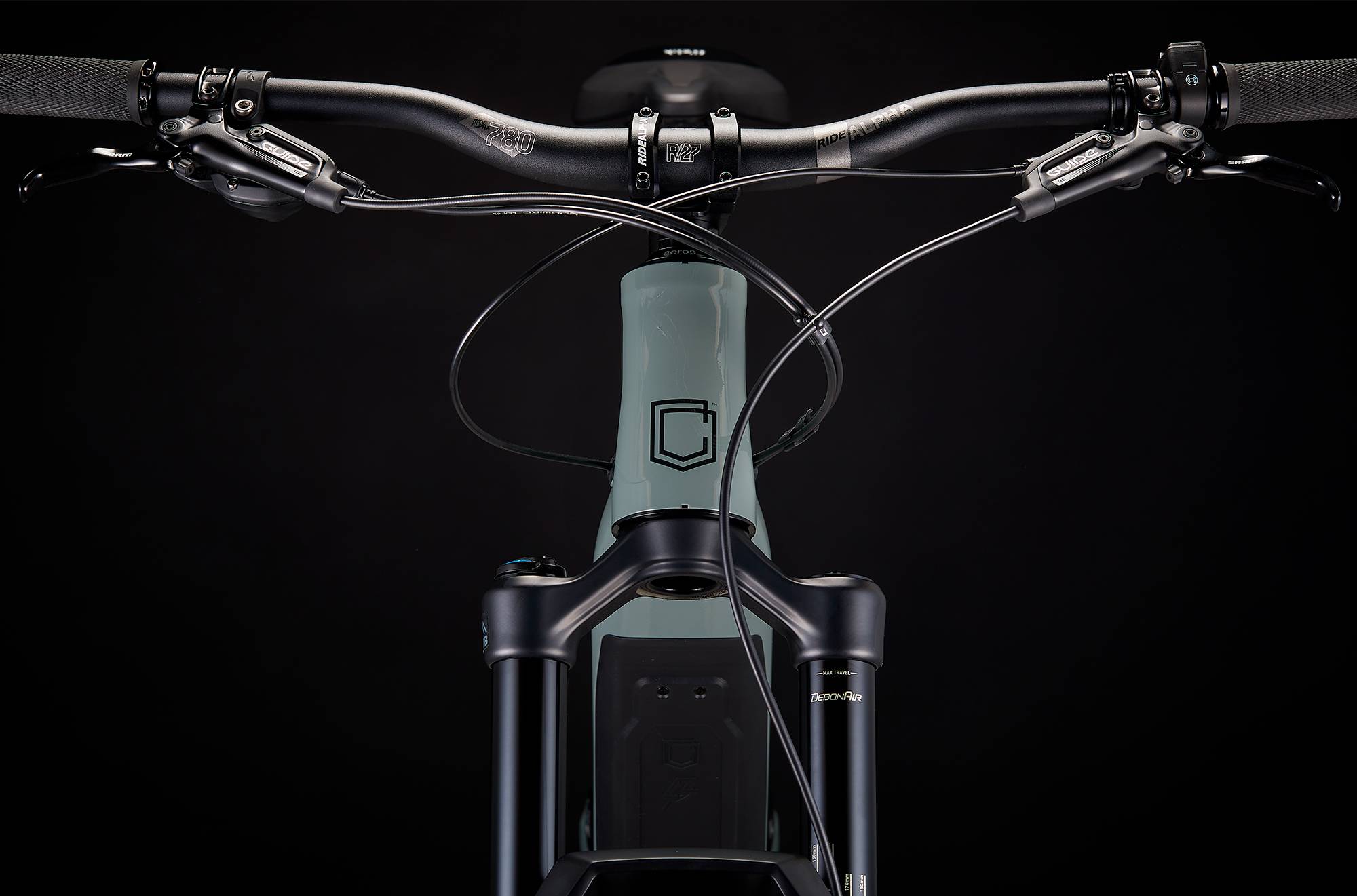

RIDE ALPHA 40 EXTERNAL
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SRAM Guide RE, 4 pistons, steel-backed metal sintered pads
Rotors: SRAM HS2 220 mm, 6-boltShifters

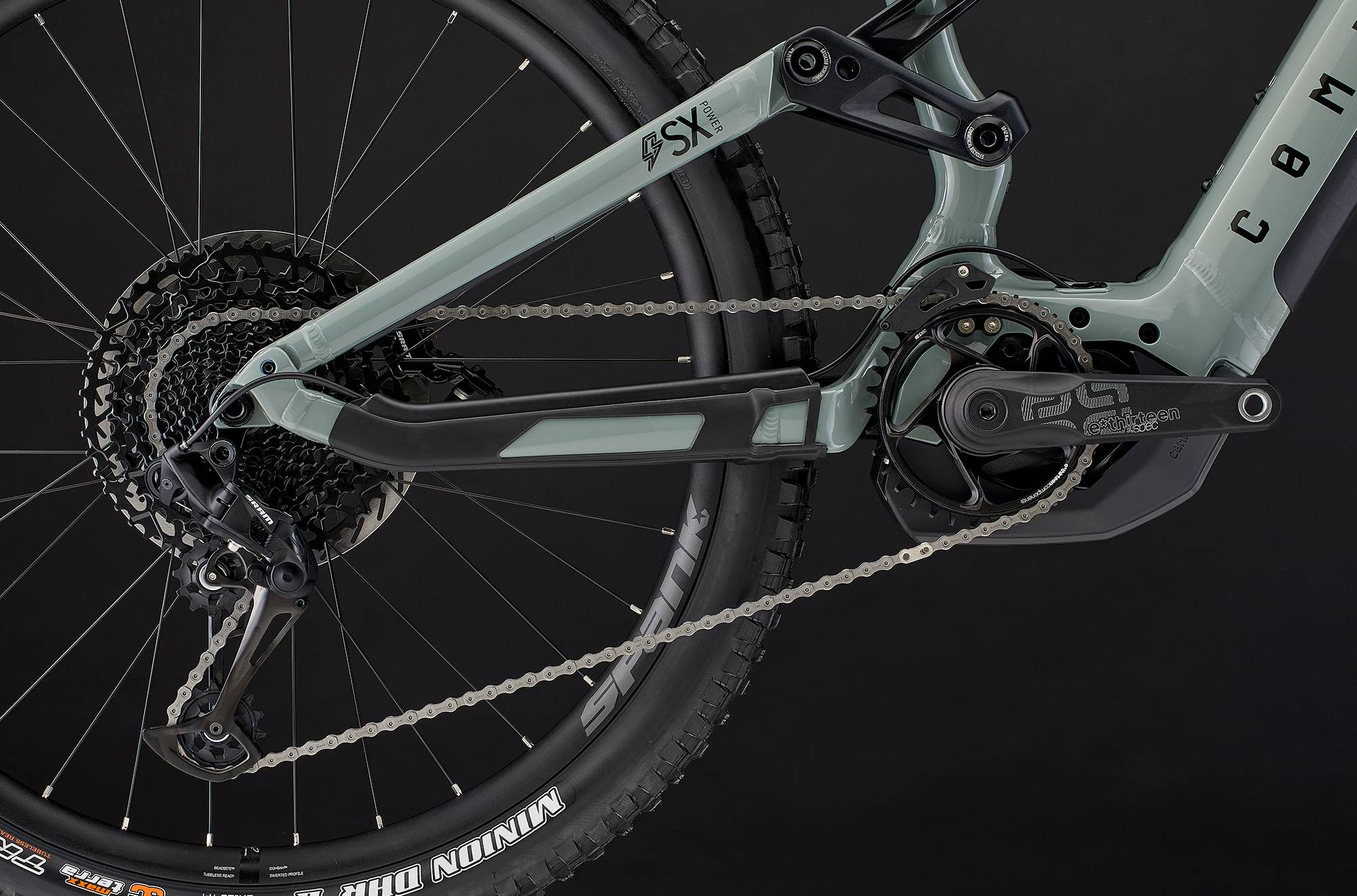

SRAM SX Eagle
12sChain guide
RIDE ALPHA Upper Guide
32-34tREAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
BOSCH
Crankset
E13 E*Spec Plus BOSCH CX, 160 mm crank arms
Chainring: E13 E*Spec Plus BOSCH CX, 34t, direct mountChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
Rear: SPANK Spike Race 33 - Front: SPANK Spike Race 33
Rear: 27.5'', 32h, 28 mm inner width rear - Front: 29'', 32h, 28 mm inner width frontHubs
Rear: FORMULA eHL-148S - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, e-bike specific, SHIMANO Hyperglide - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Strong
J-Bend, 2.34/2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5" x 2.4" WT, 3C Maxx Terra, Double Down, Tubeless Ready - Front: 29" x 2.5" WT, 3C Maxx Grip, Exo+, Tubeless ReadySeat post
KS Rage I
31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius railsWeight
25 kg / 55.1 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
Yes
Colour
Pyrite Grey
Shiny FinishAccessories
RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
*Actual product may differ from pictures.
*Please note that bike specs are subject to change without prior notice.Battery recycling
Partnership with BOSCH
The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
Bicycle type
E-BIKE ENDURO 29''/27''
Frame material
AL 6066 T4, T6
Frame weight
- kg / - lb - With plastic accessories.
Rear travel
165 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm front
Recommended/max. fork height
583 mm / 593 mm
Headset dimension
Tapered
Headset type
ZS56 / ZS66
Maximum tyre dimension (etrto)
65 - 584 mm
Disc brake standard
PM160
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
BOSCH E-BIKE
ISCG
Yes (BOSCH Standard)
Rear hub compatibility
12 x 148 mm


Frame
META POWER SX BOSCH, 165 mm travel
29"-27.5", Alloy 6066, triple butted tubes, T4, T6.Motor
BOSCH Performance Line CX
Max. torque: 85N.m, 250WBattery
BOSCH PowerTube 625, 625Wh
BOSCH 4A Charger, Compact size & lightweight
Compatible w/Bosch PowerMore 250 for extra rangeDisplay
BOSCH System Controller
BOSCH Mini Remote currently not available in the USAShock
ROCKSHOX Deluxe Select
230 x 65 mm, R damper, DebonAir, rebound, 1 Token neg. 4 Tokens pos.Fork
ROCKSHOX Domain RC, 170 mm travel
29'', Motion Control damper, DebonAir, rebound, LSC, Boost (15 x 110 mm), 44 mm offset, 1 TokenHeadset
ACROS ZS56 / ZS66
Alloy cups, sealed bearingsStem
RIDE ALPHA 40 EXTERNAL
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SRAM Guide RE, 4 pistons, steel-backed metal sintered pads
Rotors: SRAM HS2 220 mm, 6-boltShifters
SRAM SX Eagle
12sChain guide
RIDE ALPHA Upper Guide
32-34tREAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
BOSCH
Crankset
E13 E*Spec Plus BOSCH CX, 160 mm crank arms
Chainring: E13 E*Spec Plus BOSCH CX, 34t, direct mountChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
Rear: SPANK Spike Race 33 - Front: SPANK Spike Race 33
Rear: 27.5'', 32h, 28 mm inner width rear - Front: 29'', 32h, 28 mm inner width frontHubs
Rear: FORMULA eHL-148S - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, e-bike specific, SHIMANO Hyperglide - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Strong
J-Bend, 2.34/2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5" x 2.4" WT, 3C Maxx Terra, Double Down, Tubeless Ready - Front: 29" x 2.5" WT, 3C Maxx Grip, Exo+, Tubeless ReadySeat post
KS Rage I
31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius railsWeight
25 kg / 55.1 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
Yes
Colour
Pyrite Grey
Shiny FinishAccessories
RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
*Actual product may differ from pictures.
*Please note that bike specs are subject to change without prior notice.Battery recycling
Partnership with BOSCH
The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
Bicycle type
E-BIKE ENDURO 29''/27''
Frame material
AL 6066 T4, T6
Frame weight
- kg / - lb - With plastic accessories.
Rear travel
165 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm front
Recommended/max. fork height
583 mm / 593 mm
Headset dimension
Tapered
Headset type
ZS56 / ZS66
Maximum tyre dimension (etrto)
65 - 584 mm
Disc brake standard
PM160
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
BOSCH E-BIKE
ISCG
Yes (BOSCH Standard)
Rear hub compatibility
12 x 148 mm

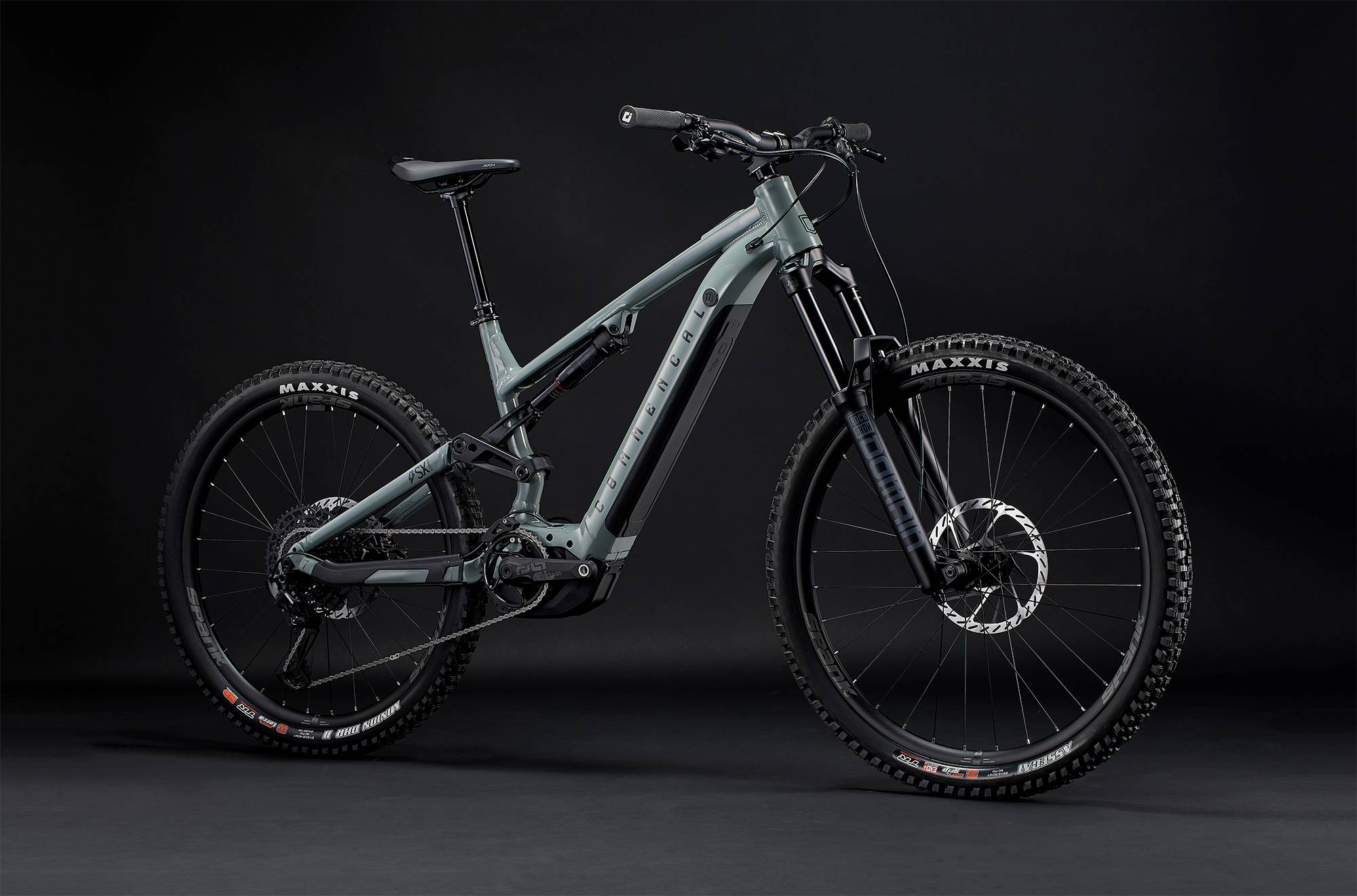

The META POWER SX BOSCH RIDE packs a punch with its 6066 alloy frame, 165mm of rear travel, and a BOSCH Performance Line CX motor backed by a 625Wh PowerTube battery. RockShox handles the hits with a 170mm Domain RC fork and Deluxe Select shock. SRAM SX Eagle delivers 12-speed shifting, while 4-piston Guide RE brakes provide serious stopping muscle. Rolling on SPANK Race 33 rims and Maxxis rubber, this bike’s built to go fast, grip hard, and laugh in the face of rough terrain.
Built for rowdy enduro riding, the META POWER SX BOSCH frame features AL 6066 T4/T6 alloy and delivers 165mm of rear travel with piggyback shock compatibility and a 230x65mm stroke. It’s dialled for a mullet setup, with a tapered ZS56/ZS66 headset, 220mm max rear rotor, and 12 x 148mm rear hub spacing. With Bosch E-Bike bottom bracket fitment, ISCG tabs, and fork clearance up to 593mm, this chassis is tuned for power, precision, and serious trail punishment.
