Commencal Meta Power SX Shimano Dark Slate Enduro E-Bike
Frame
META POWER, 165 mm travel
29"-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsMotor
SHIMANO DU-EP800
Max. torque: 85N.m, 250WBattery
SHIMANO BT-E8036
630WhDisplay
SHIMANO SC-EM800
LCD colored display featuring: Clock, Assist mode display, Battery charge level, Current Speed, Maximum speed, Average speed, Trip distance, Trip time, Estimated range, Range overview, Cadence, Human output power (as scale indicator), Calorie setting, Maintenance alert, Bluetooth LE connection (for E-Tube Project communication)Shock
ROCKSHOX Deluxe Select
230 x 65 mm, R damper, debonair, rebound, 0 Token neg. 1 Token pos.Fork
ROCKSHOX DOMAIN RC, 170 mm travel
29'', Motion Control damper, rebound, LSC, Boost (15 x 110 mm), 44 mm offset, 1 TokenHeadset
ACROS ZS56 / ZS66
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SRAM Guide RE, 4 pistons
Rotors: SRAM HS2 220 mm, 6 holesShifters
SRAM SX Eagle
12sChain guide
RIDE ALPHA EP8
32-34tREAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
SHIMANO
Crankset
SHIMANO FC-EM900, 160 mm crank arms
Chainring: E13 E*Spec Plus 34t, Narrow-Wide, direct mountChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
Rear: SPANK Spike Race 33 - Front: SPANK Spike Race 33
Rear: 27.5'', 32h, 28 mm inner width - Front: 29'', 32h, 28 mm inner width frontHubs
Rear: FORMULA eHL-148S - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, SHIMANO Hyperglide, e-bike specific - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Strong
J-Bend, 2.34 / 2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5" x 2.4", WT, 3C Maxx Terra, Double Down casing, Tubeless Ready - Front: 29" x 2.5", WT, 3C Maxx Grip, Exo+, Tubeless ReadySeat post
KS Ragei
31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius railsWeight
24,2 kg / 53.35 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
Yes
Colour
Dark Slate
Matte FinishAccessories
RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
META POWER bikes are delivered with Shimano Europlug (CEE 7/7 norm) battery charger, a plug adapter is necessary for customers living in countries using different standards.Battery recycling
Partnership with SHIMANO
In partnership with SHIMANO, COMMENCAL supports a voluntary battery recycling program for ebike batteries. For each META POWER sold COMMENCAL will contribute 7EUR to fundraising organisation COREPILE. This sum is paid through SHIMANO France. When your battery reaches the end of its life, it would be great if you could send it back to us for recycling. Contact us for more info on the procedure.
Bicycle type
E-BIKE ENDURO 29''/27''
Frame material
AL 6066 T4, T6
Frame weight
4,1 kg / 9.03 lb - With plastic accessories.
Rear travel
165 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm front
Recommended/max. fork height
583 mm / 593 mm
Headset dimension
Tapered
Headset type
ZS56 / ZS66
Maximum tyre dimension (etrto)
65 - 584 mm
Disc brake standard
PM160
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
SHIMANO E-BIKE
ISCG
Yes (SHIMANO Standard)
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle


Frame
META POWER, 165 mm travel
29"-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsMotor
SHIMANO DU-EP800
Max. torque: 85N.m, 250WBattery
SHIMANO BT-E8036
630WhDisplay
SHIMANO SC-EM800
LCD colored display featuring: Clock, Assist mode display, Battery charge level, Current Speed, Maximum speed, Average speed, Trip distance, Trip time, Estimated range, Range overview, Cadence, Human output power (as scale indicator), Calorie setting, Maintenance alert, Bluetooth LE connection (for E-Tube Project communication)Shock
ROCKSHOX Deluxe Select
230 x 65 mm, R damper, debonair, rebound, 0 Token neg. 1 Token pos.Fork
ROCKSHOX DOMAIN RC, 170 mm travel
29'', Motion Control damper, rebound, LSC, Boost (15 x 110 mm), 44 mm offset, 1 TokenHeadset
ACROS ZS56 / ZS66
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SRAM Guide RE, 4 pistons
Rotors: SRAM HS2 220 mm, 6 holesShifters
SRAM SX Eagle
12sChain guide
RIDE ALPHA EP8
32-34tREAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
SHIMANO
Crankset
SHIMANO FC-EM900, 160 mm crank arms
Chainring: E13 E*Spec Plus 34t, Narrow-Wide, direct mountChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
Rear: SPANK Spike Race 33 - Front: SPANK Spike Race 33
Rear: 27.5'', 32h, 28 mm inner width - Front: 29'', 32h, 28 mm inner width frontHubs
Rear: FORMULA eHL-148S - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, SHIMANO Hyperglide, e-bike specific - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Strong
J-Bend, 2.34 / 2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5" x 2.4", WT, 3C Maxx Terra, Double Down casing, Tubeless Ready - Front: 29" x 2.5", WT, 3C Maxx Grip, Exo+, Tubeless ReadySeat post
KS Ragei
31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius railsWeight
24,2 kg / 53.35 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
Yes
Colour
Dark Slate
Matte FinishAccessories
RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
META POWER bikes are delivered with Shimano Europlug (CEE 7/7 norm) battery charger, a plug adapter is necessary for customers living in countries using different standards.Battery recycling
Partnership with SHIMANO
In partnership with SHIMANO, COMMENCAL supports a voluntary battery recycling program for ebike batteries. For each META POWER sold COMMENCAL will contribute 7EUR to fundraising organisation COREPILE. This sum is paid through SHIMANO France. When your battery reaches the end of its life, it would be great if you could send it back to us for recycling. Contact us for more info on the procedure.
Bicycle type
E-BIKE ENDURO 29''/27''
Frame material
AL 6066 T4, T6
Frame weight
4,1 kg / 9.03 lb - With plastic accessories.
Rear travel
165 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm front
Recommended/max. fork height
583 mm / 593 mm
Headset dimension
Tapered
Headset type
ZS56 / ZS66
Maximum tyre dimension (etrto)
65 - 584 mm
Disc brake standard
PM160
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
SHIMANO E-BIKE
ISCG
Yes (SHIMANO Standard)
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

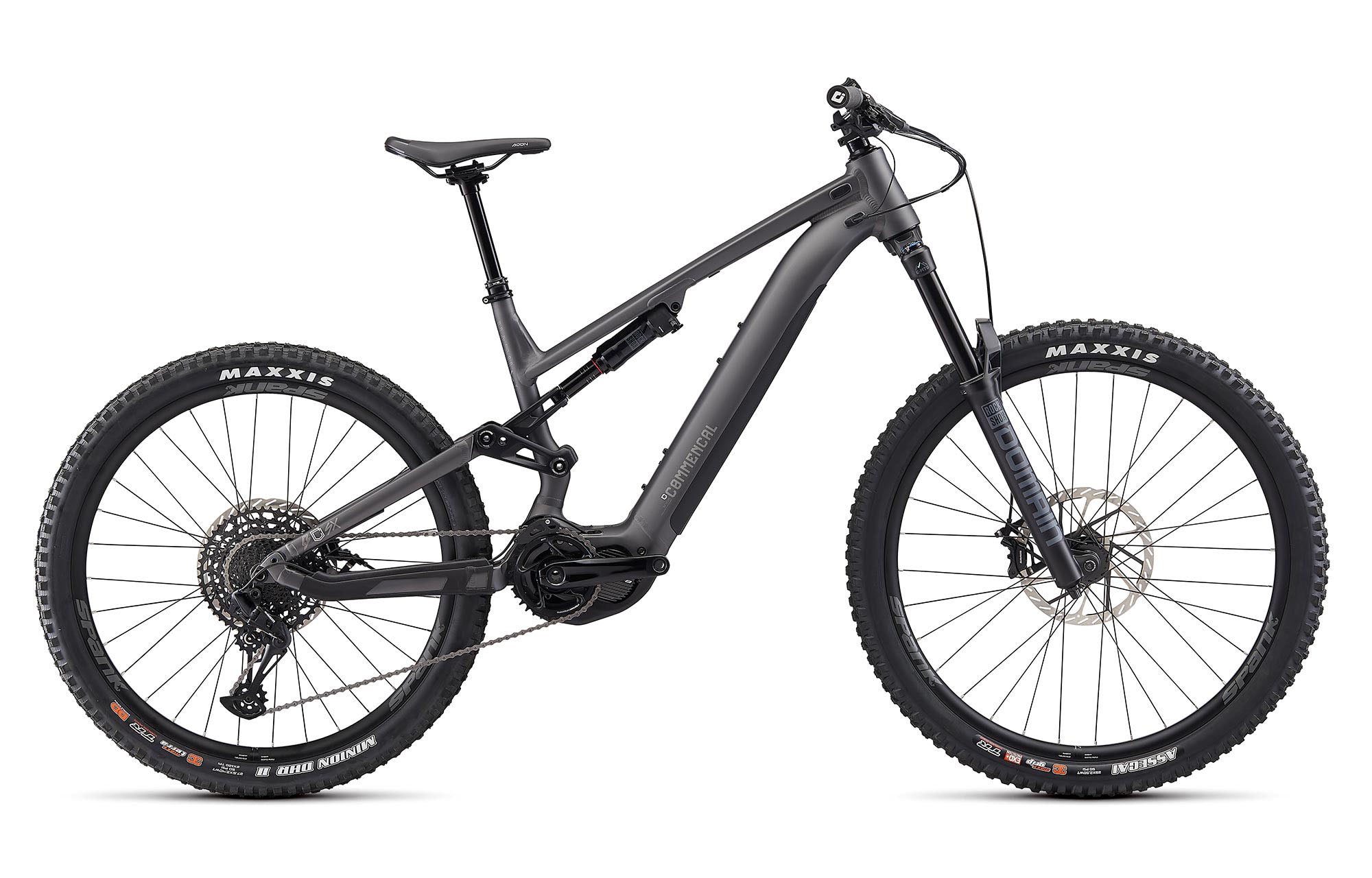

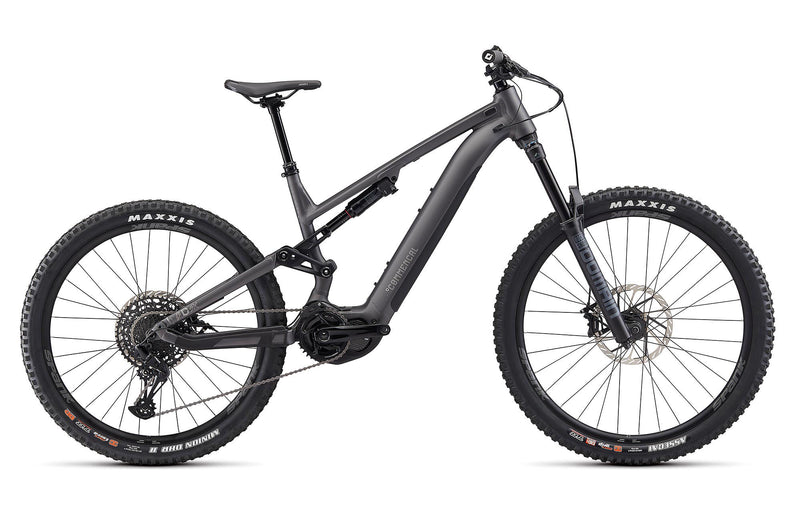

The META POWER SX SHIMANO RIDE is built on a triple-butted 6066 alloy frame with 165mm rear travel, powered by the mighty SHIMANO EP8 motor and a 630Wh battery. Suspension duties are handled by a 170mm ROCKSHOX Domain fork and Deluxe Select shock. It rolls on SPANK rims wrapped in aggressive Maxxis rubber, stops with SRAM Guide RE 4-piston brakes, and shifts through a 12-speed SRAM Eagle drivetrain. Finished with a dropper post, Fizik saddle, and CNC pedals—it’s ready to rage.
Crafted from tough AL 6066 T4/T6 alloy, the META POWER SX frame weighs in at 4.1kg and delivers 165mm of rear travel—ready to soak up hits like a pro. Built for a mullet setup (29” front, 27.5” rear), it supports piggyback shocks, 220mm rear rotors, and a fork height up to 593mm. With a tapered ZS56/ZS66 headset, Shimano e-bike bottom bracket, and ISCG tabs, this frame is primed for aggressive enduro riding and rock-solid component compatibility.
