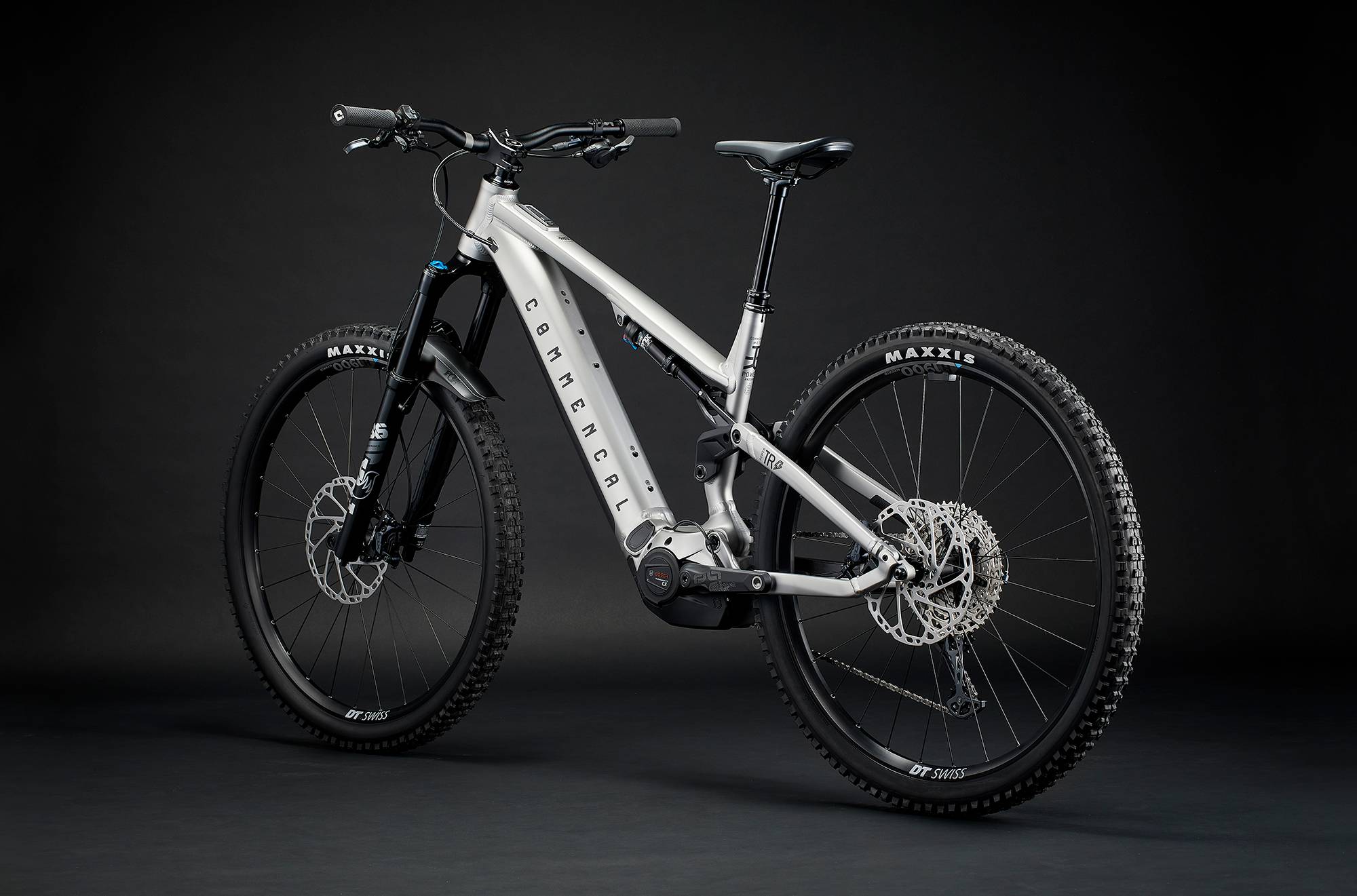

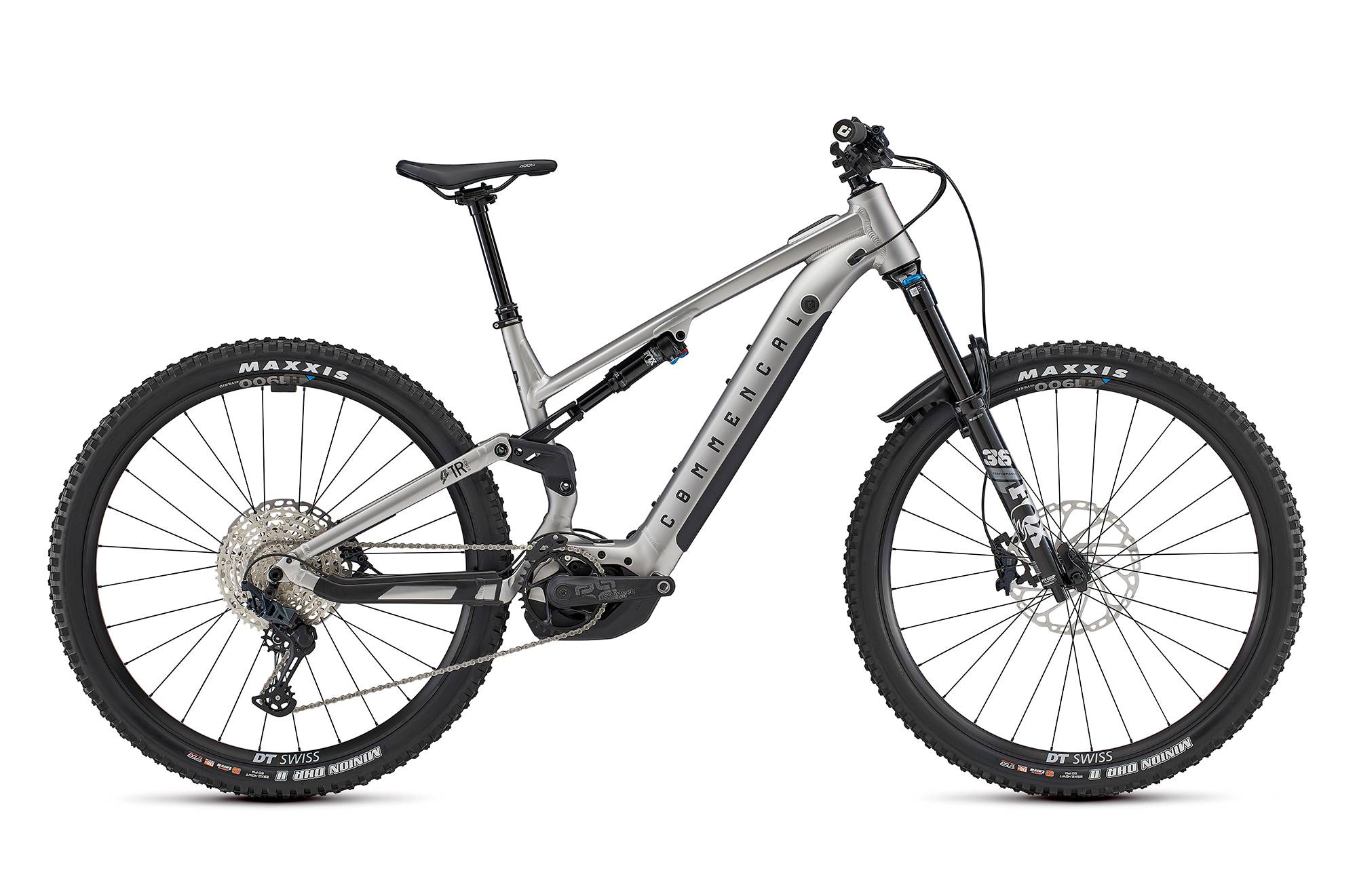

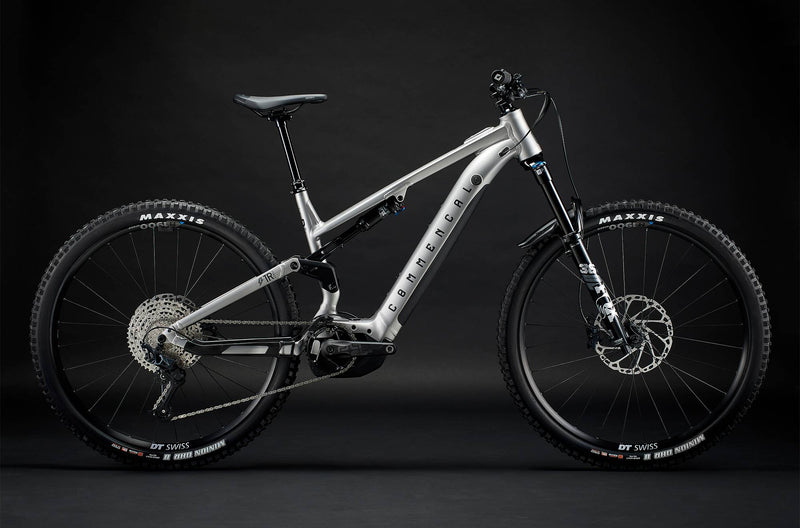

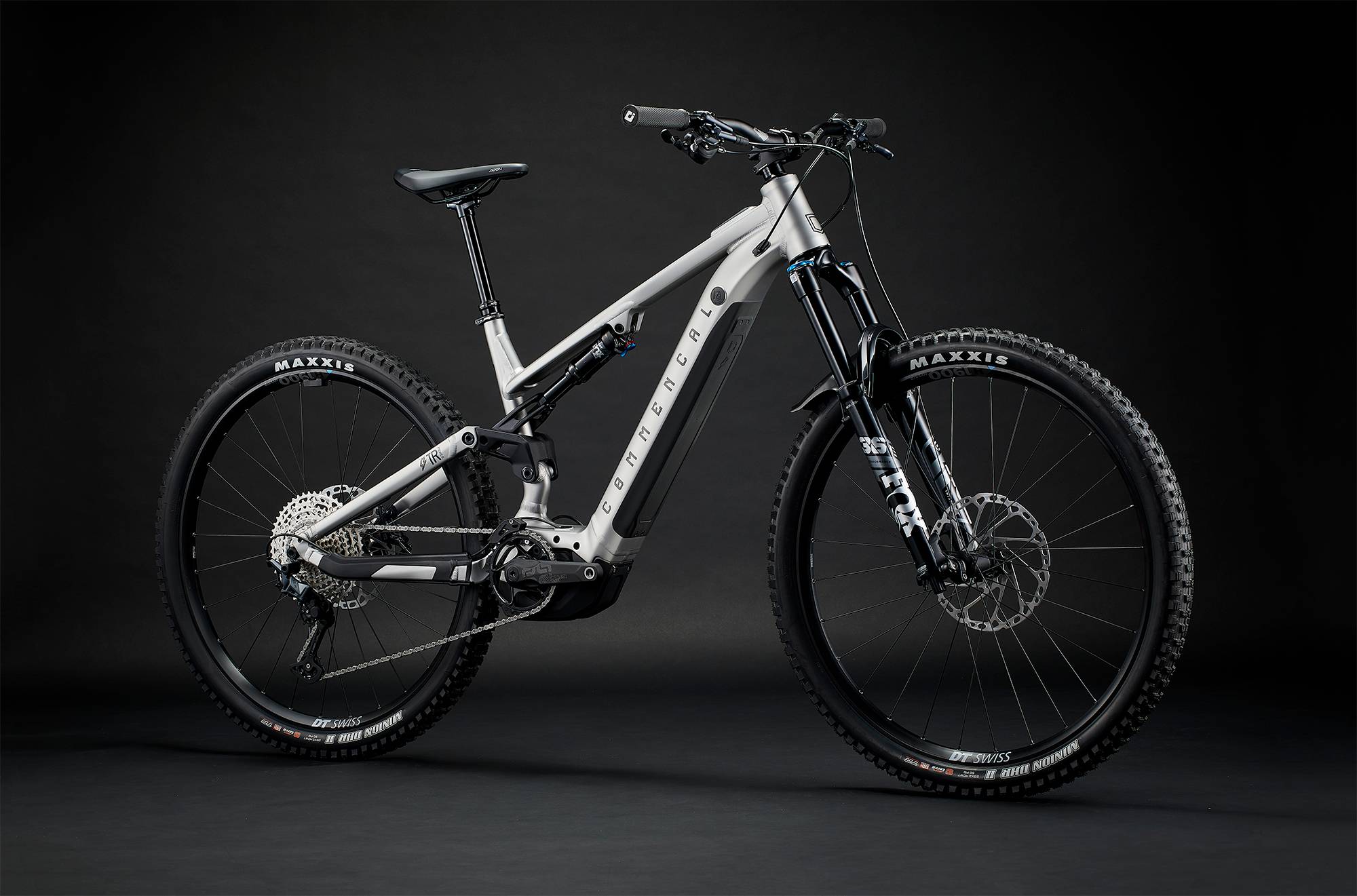

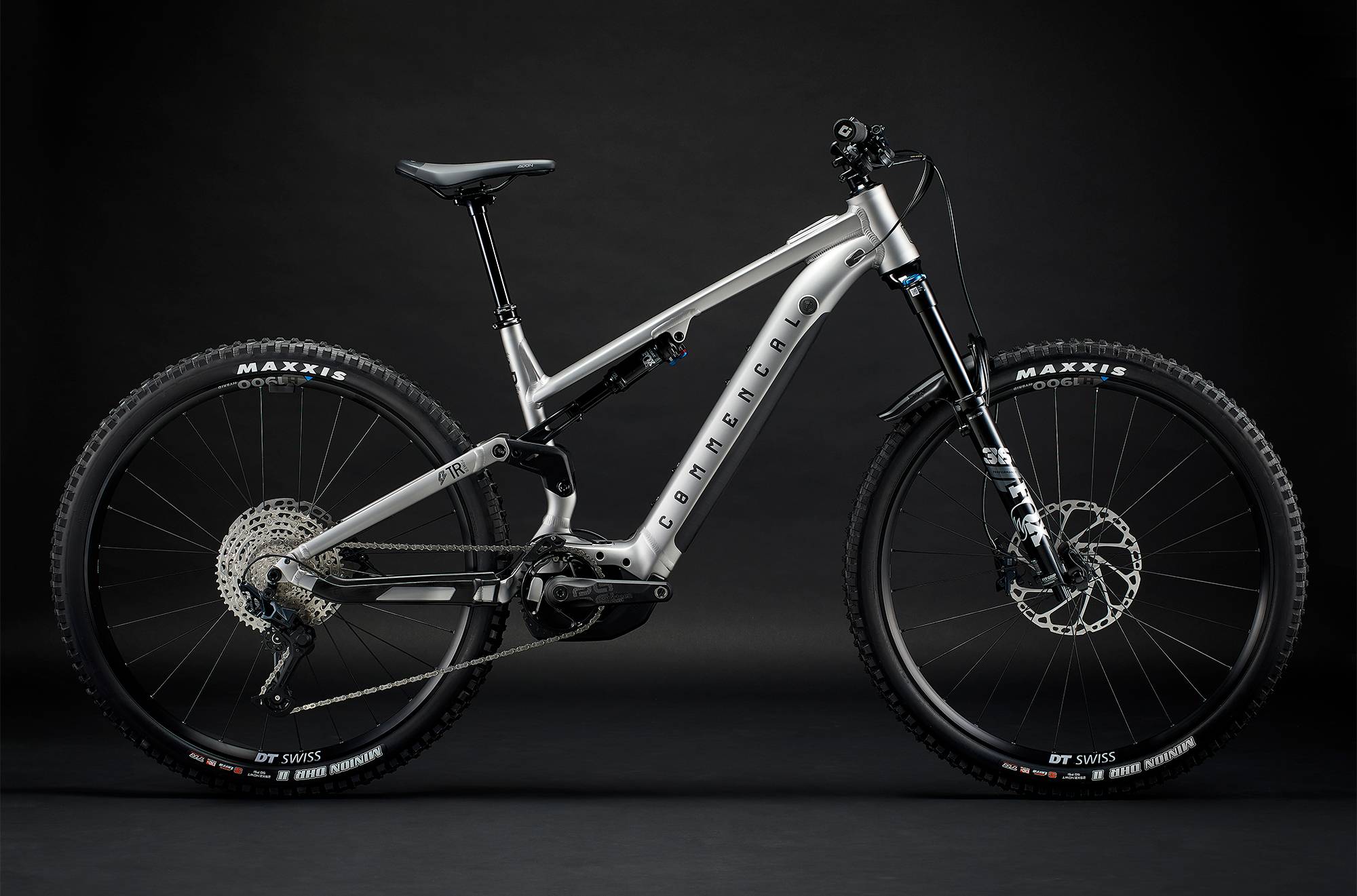

Commencal Meta Power TR Bosch Essential Silver E-Mountain Bike
Frame
META POWER TR BOSCH, 140 mm
29", Alloy 6066, triple butted tubes, T4, T6.Motor
BOSCH Performance Line CX
Max. torque: 85N.m, 250WBattery
BOSCH PowerTube 625, 625Wh
BOSCH 4A Charger, Compact size & lightweight
Compatible w/Bosch PowerMore 250 for extra rangeDisplay
BOSCH System Controller
BOSCH Mini Remote currently not available in the USAShock

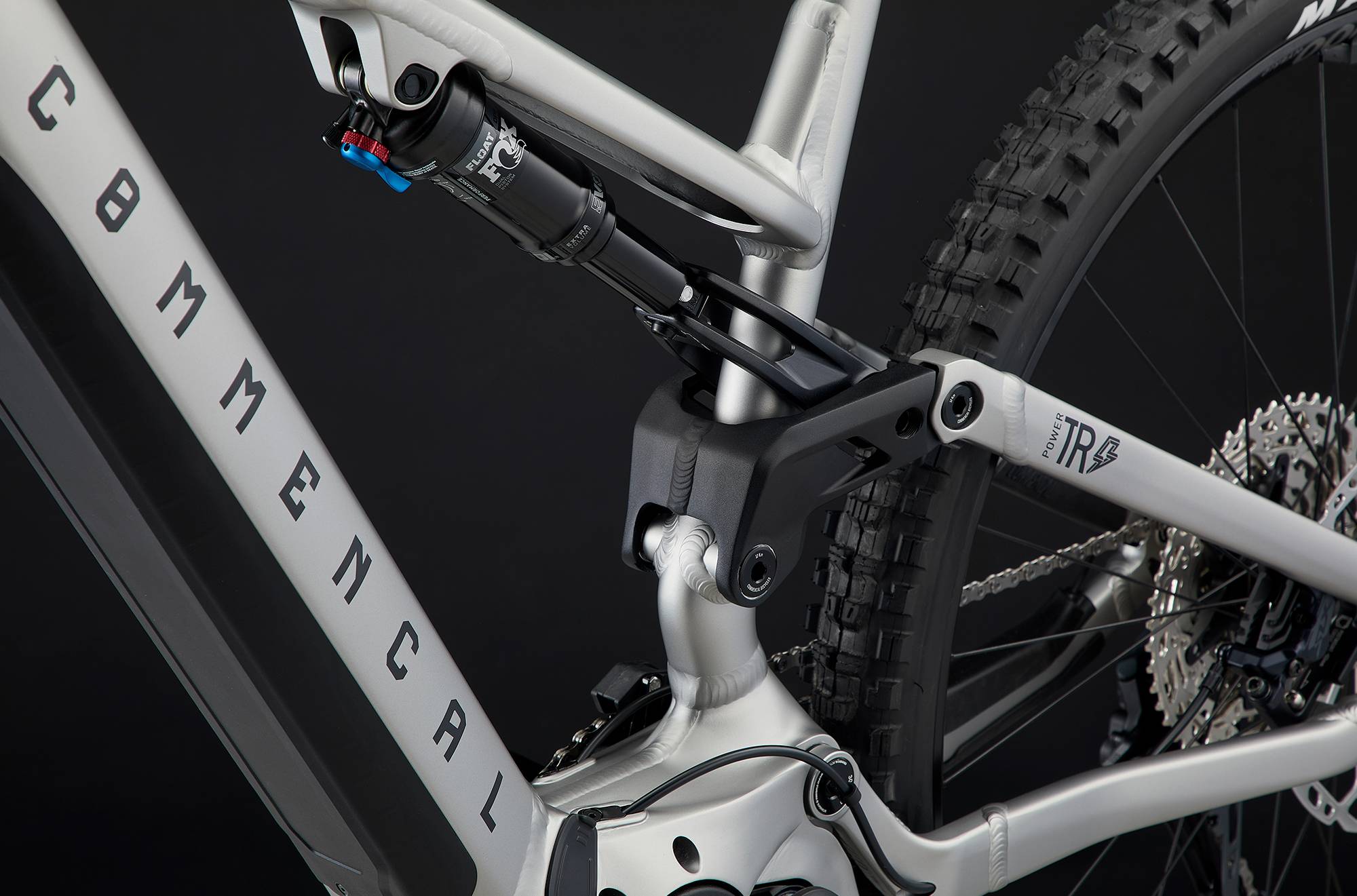

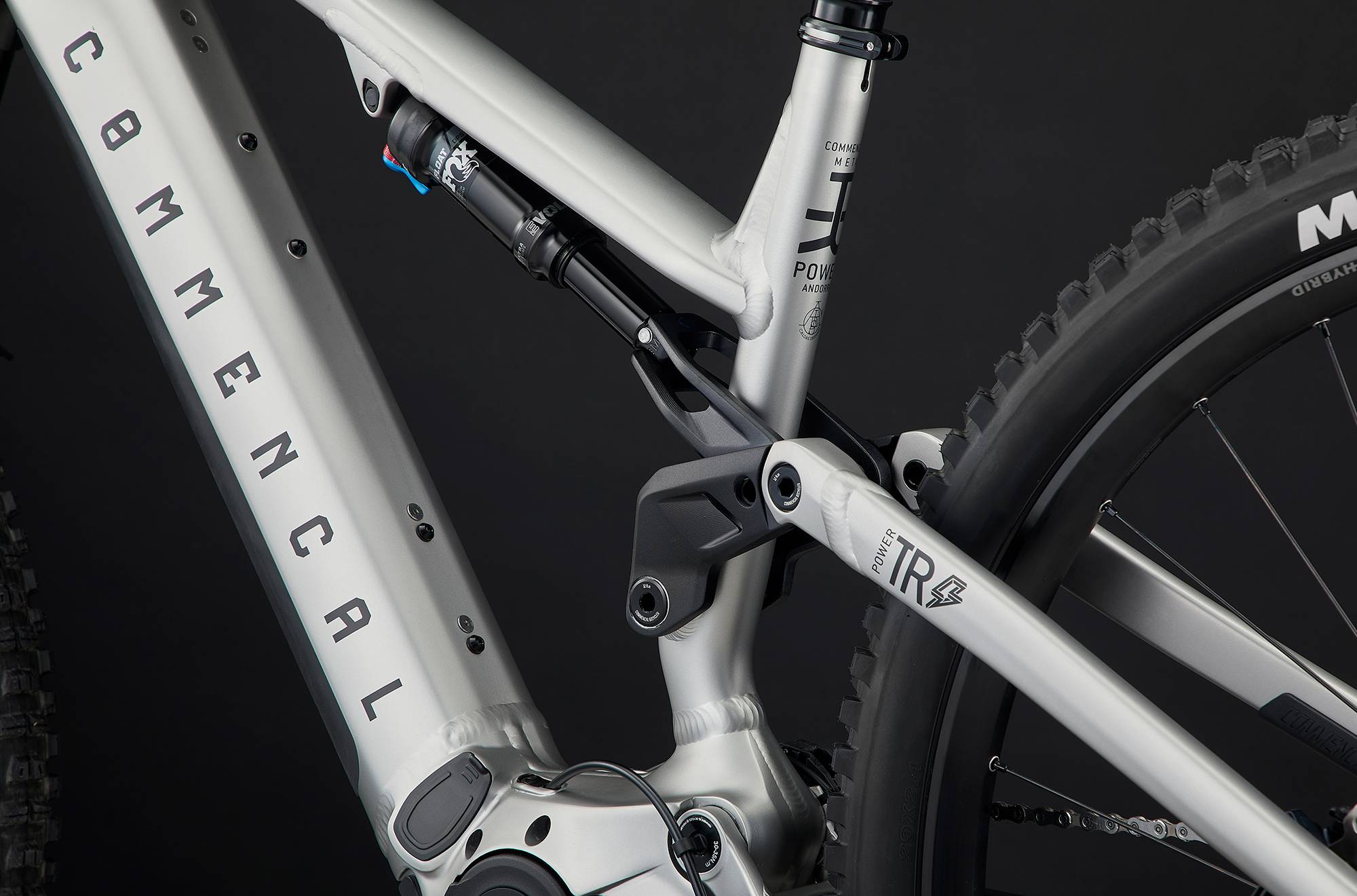

FOX Float DPS Performance
210 x 55 mm, 2-position (open /firm) lever, rebound, 0.2 spacerFork

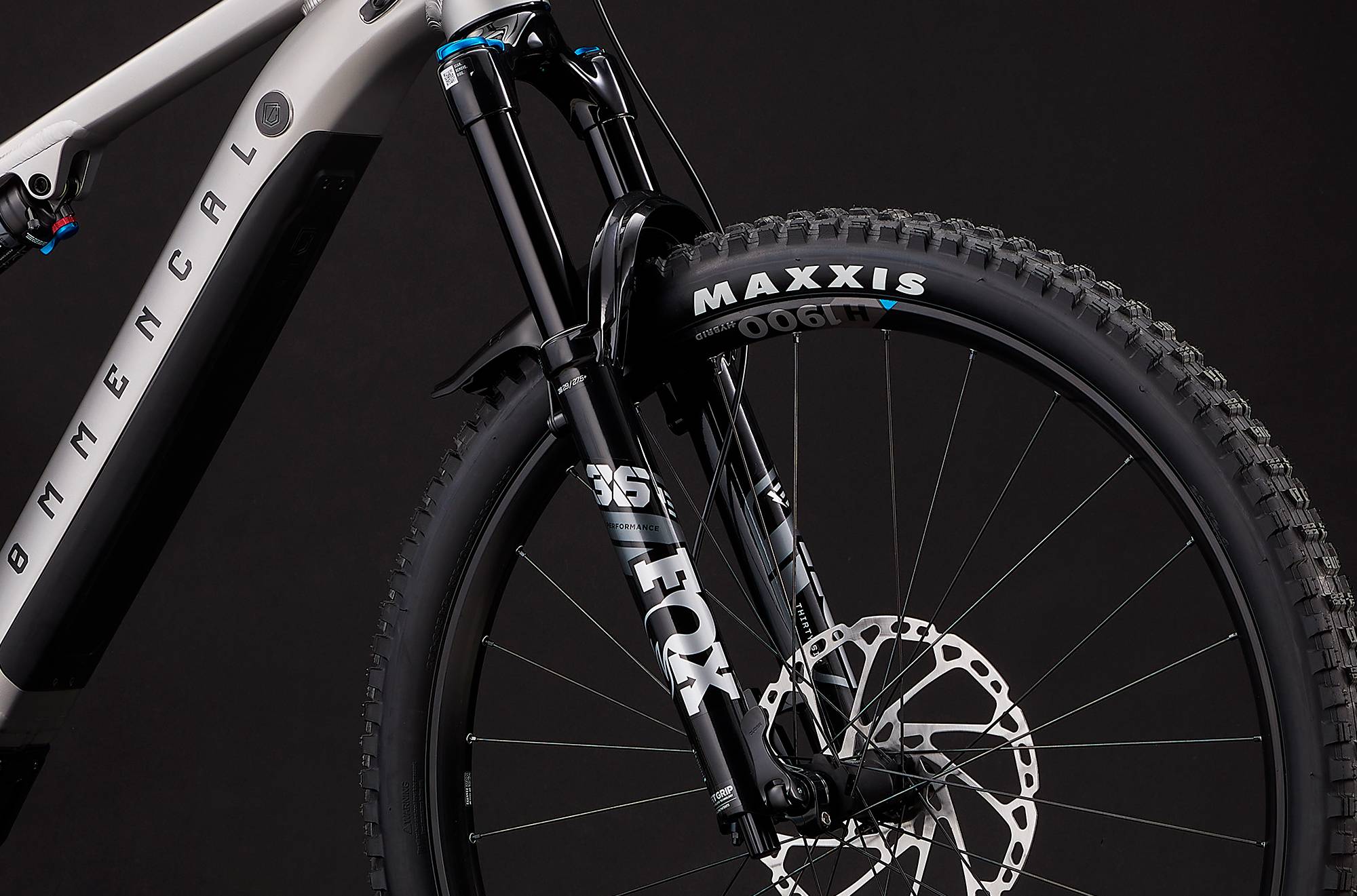

FOX 36 Performance E-Bike, 150 mm travel
29", Grip damper, 3 positions compression, LSR, Boost (15 x 110 mm), 44 mm offset, 4 spacersHeadset
ACROS ZS56 / ZS66
Alloy cups, sealed bearingsStem

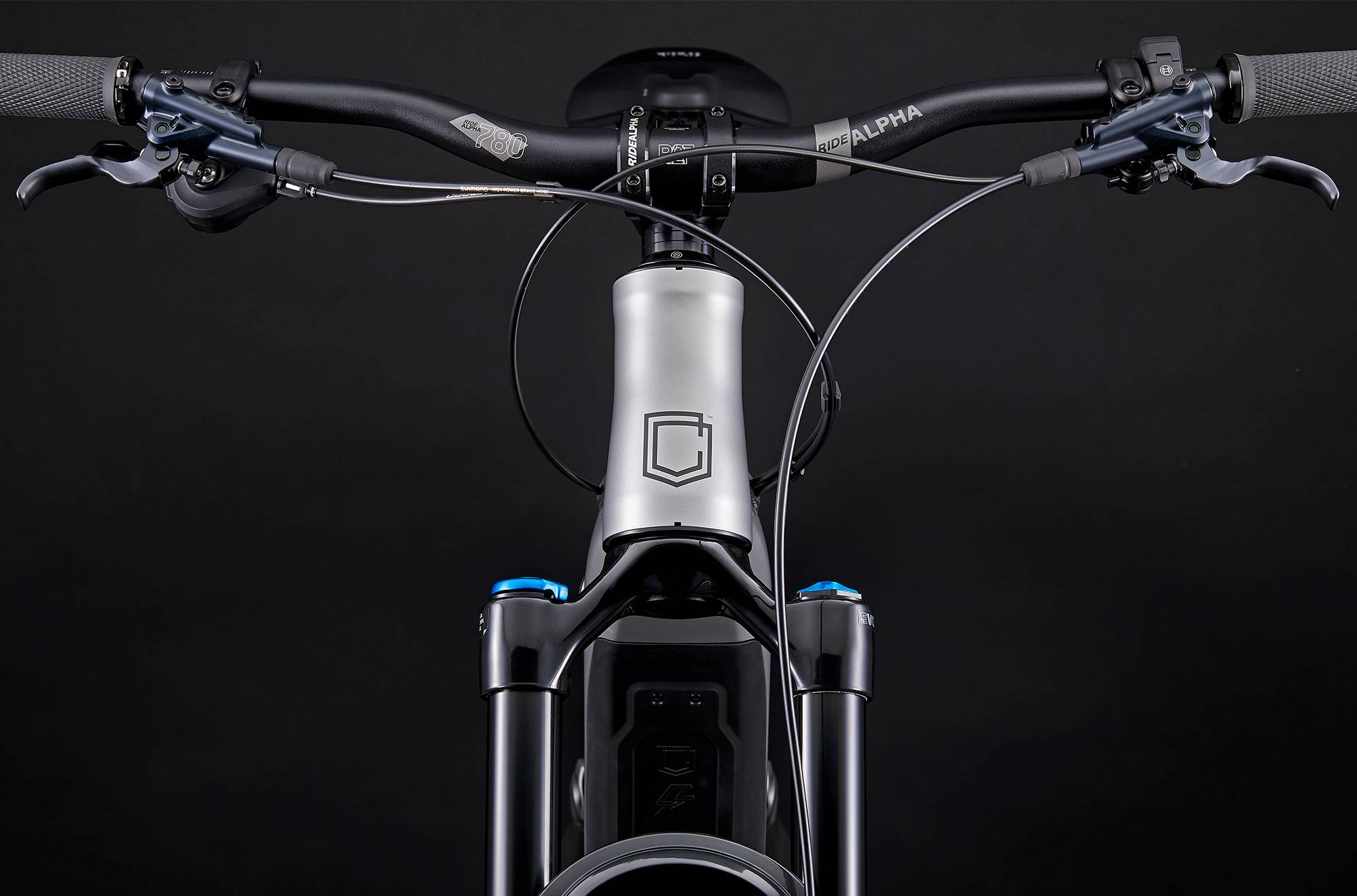

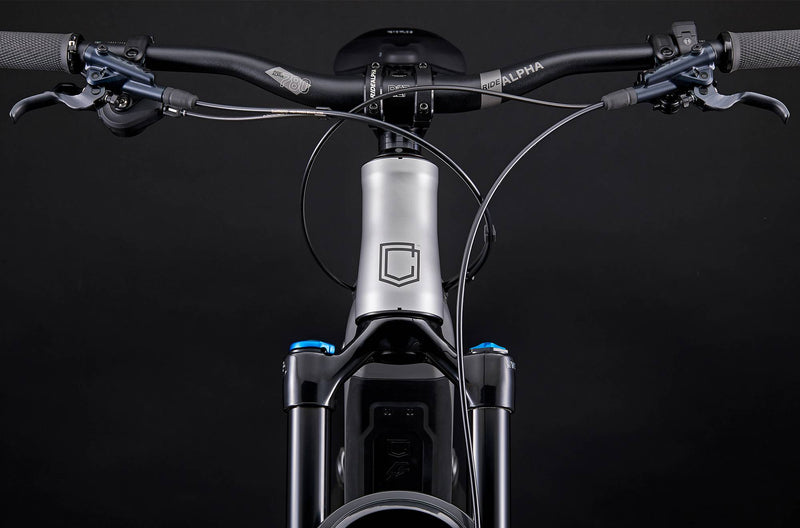

RIDE ALPHA 40 EXTERNAL
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO SLX, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO SM-RT66 220 mm, 6-bolt, bolt-on magnetShifters
SHIMANO SLX
12s, RapidFire PlusChain guide
RIDE ALPHA Upper Guide

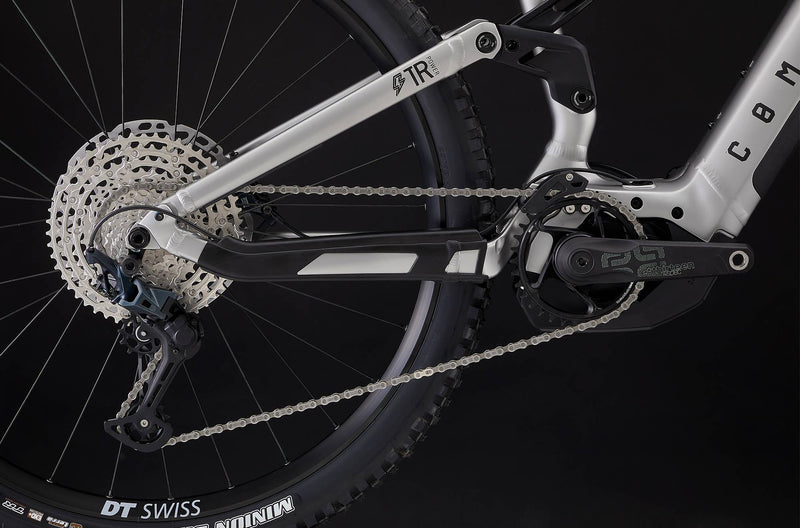

32-34tREAR DERAILLEUR

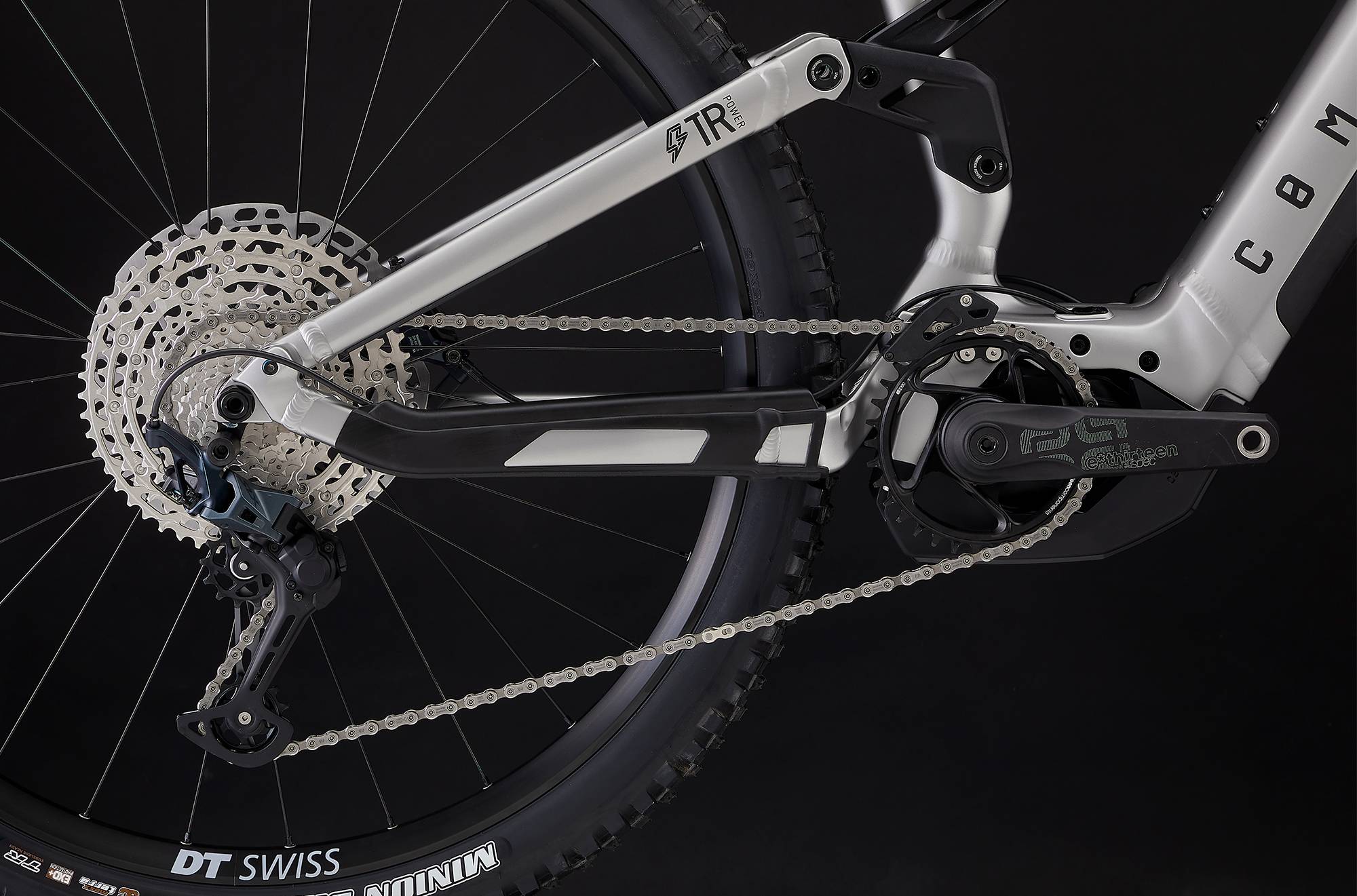

SHIMANO SLX
12sBottom bracket
BOSCH
Crankset
E13 E*Spec Plus Bosch CX, 160 mm crank arms
Chainring: E13 E*Spec Plus Bosch CX, 34t, direct mountChain
SHIMANO SLX
12sCassette
SHIMANO DEORE 12s / 10-51
12s, 10-51tRims
Rear: DT SWISS H1900 Spline - Front: DT SWISS H1900 Spline
Rear: 29'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
Rear: DT SWISS 370 - Front: DT SWISS 370
Rear: 28h, 12 x 148 mm, sealed bearings, 18t, e-bike specific, SHIMANO Micro Spline - Front: 28h, 15 x 110 mm, sealed bearingsSpokes/nipples
DT SWISS Hybrid 1
Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 29" x 2.4" WT, 3C Maxx Terra, Exo+ casing, Tubeless Ready - Front: 29" x 2.4" WT, 3C Maxx Terra, Exo+ casing, Tubeless ReadySeat post
KS Rage I
31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius railsWeight
24.4 kg / 53.8 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
Yes
Colour
Silver
Matte FinishAccessories
RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
*Actual product may differ from pictures.
*Please note that bike specs are subject to change without prior notice.Battery recycling
Partnership with BOSCH
The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
Bicycle type
E-BIKE TRAIL 29''
Frame material
AL 6066 T4, T6
Frame weight
- kg / - lb - With plastic accessories.
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm / NOTHING
Recommended/max. fork height
566 mm / 576 mm
Headset dimension
Tapered
Headset type
ZS56 / ZS66
Maximum tyre dimension (etrto)
65 mm - 622
Disc brake standard
PM160
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
BOSCH
ISCG
Yes (BOSCH Standard)
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle
Frame
META POWER TR BOSCH, 140 mm
29", Alloy 6066, triple butted tubes, T4, T6.Motor
BOSCH Performance Line CX
Max. torque: 85N.m, 250WBattery
BOSCH PowerTube 625, 625Wh
BOSCH 4A Charger, Compact size & lightweight
Compatible w/Bosch PowerMore 250 for extra rangeDisplay
BOSCH System Controller
BOSCH Mini Remote currently not available in the USAShock
FOX Float DPS Performance
210 x 55 mm, 2-position (open /firm) lever, rebound, 0.2 spacerFork
FOX 36 Performance E-Bike, 150 mm travel
29", Grip damper, 3 positions compression, LSR, Boost (15 x 110 mm), 44 mm offset, 4 spacersHeadset
ACROS ZS56 / ZS66
Alloy cups, sealed bearingsStem
RIDE ALPHA 40 EXTERNAL
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO SLX, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO SM-RT66 220 mm, 6-bolt, bolt-on magnetShifters
SHIMANO SLX
12s, RapidFire PlusChain guide
RIDE ALPHA Upper Guide
32-34tREAR DERAILLEUR
SHIMANO SLX
12sBottom bracket
BOSCH
Crankset
E13 E*Spec Plus Bosch CX, 160 mm crank arms
Chainring: E13 E*Spec Plus Bosch CX, 34t, direct mountChain
SHIMANO SLX
12sCassette
SHIMANO DEORE 12s / 10-51
12s, 10-51tRims
Rear: DT SWISS H1900 Spline - Front: DT SWISS H1900 Spline
Rear: 29'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
Rear: DT SWISS 370 - Front: DT SWISS 370
Rear: 28h, 12 x 148 mm, sealed bearings, 18t, e-bike specific, SHIMANO Micro Spline - Front: 28h, 15 x 110 mm, sealed bearingsSpokes/nipples
DT SWISS Hybrid 1
Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 29" x 2.4" WT, 3C Maxx Terra, Exo+ casing, Tubeless Ready - Front: 29" x 2.4" WT, 3C Maxx Terra, Exo+ casing, Tubeless ReadySeat post
KS Rage I
31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius railsWeight
24.4 kg / 53.8 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
Yes
Colour
Silver
Matte FinishAccessories
RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
*Actual product may differ from pictures.
*Please note that bike specs are subject to change without prior notice.Battery recycling
Partnership with BOSCH
The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
Bicycle type
E-BIKE TRAIL 29''
Frame material
AL 6066 T4, T6
Frame weight
- kg / - lb - With plastic accessories.
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm / NOTHING
Recommended/max. fork height
566 mm / 576 mm
Headset dimension
Tapered
Headset type
ZS56 / ZS66
Maximum tyre dimension (etrto)
65 mm - 622
Disc brake standard
PM160
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
BOSCH
ISCG
Yes (BOSCH Standard)
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle
The META POWER TR BOSCH ESSENTIAL SILVER is built for all-terrain dominance, pairing a 140mm Alloy 6066 frame with the BOSCH Performance Line CX motor and a 625Wh battery for powerful, long-haul rides. FOX suspension (36 Performance fork, Float DPS shock) handles the hits, while SHIMANO SLX 12-speed drivetrain and 4-piston brakes keep things tight and controlled. DT SWISS H1900 wheels, Maxxis DHR II tyres, and a KS dropper post round out a build that’s trail-ready, reliable, and seriously capable.
The META POWER TR BOSCH frame is trail-tuned and e-ready, built from AL 6066 T4/T6 with 140mm of rear travel and clearance for a 210x55mm shock (piggyback compatible, of course). Designed for 29” wheels with up to 65mm tyres, it balances big-wheel capability with aggressive geo. The tapered ZS56/ZS66 headset, PM160 brake mount (up to 220mm rear rotor), BOSCH motor mount, and ISCG tabs mean full e-MTB integration. Boost 12x148mm rear hub fitment seals the deal—strong, stiff, and ready to rip.
