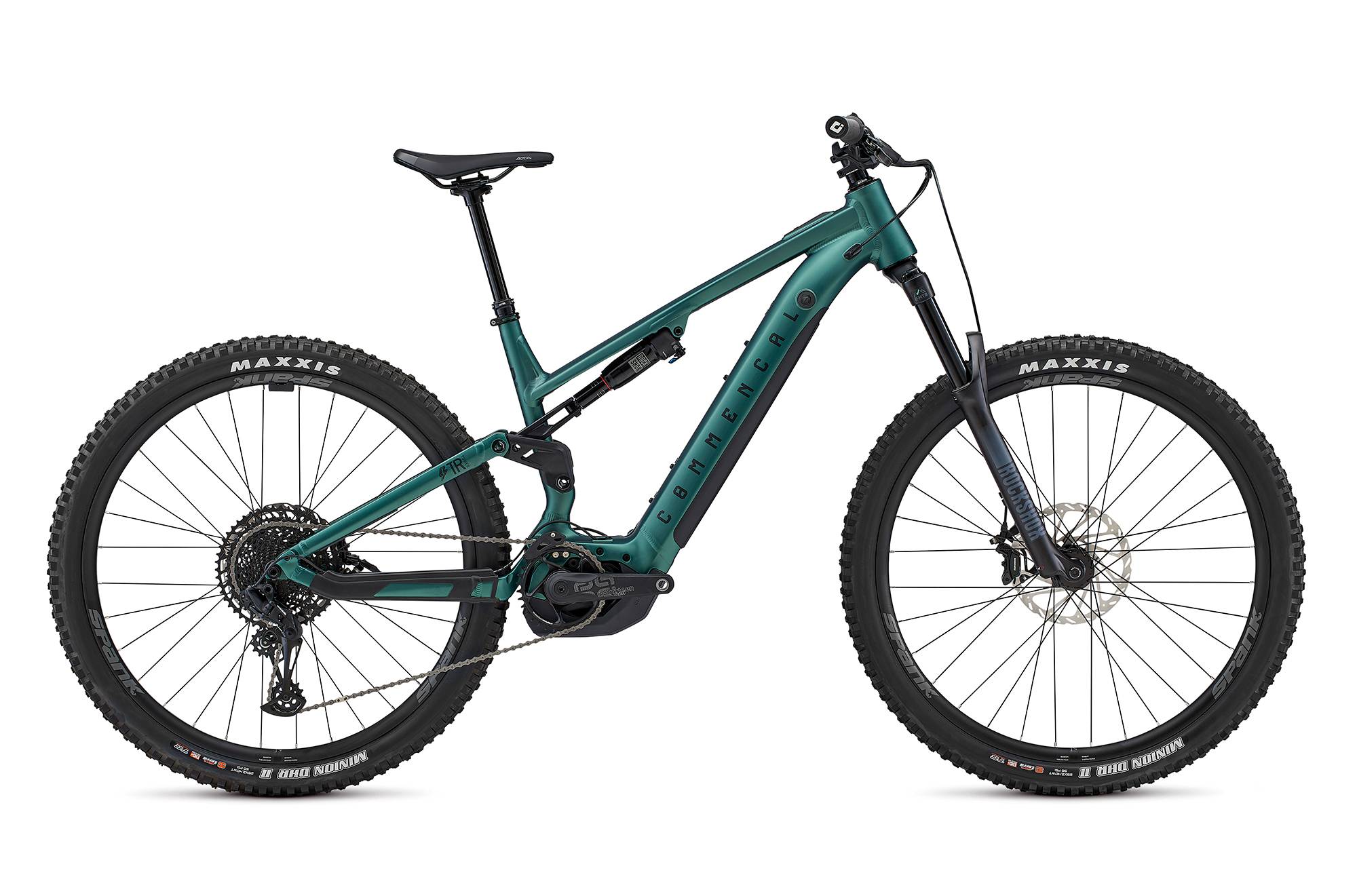

Commencal Meta Power TR Bosch Metallic Green E-Bike
Frame
META POWER TR BOSCH, 140 mm
29", Alloy 6066, triple butted tubes, T4, T6.Motor
BOSCH Performance Line CX
Max. torque: 85N.m, 250WBattery
BOSCH PowerTube 625, 625Wh
BOSCH 4A Charger, Compact size & lightweightCompatible w/Bosch PowerMore 250 for extra range
Display
BOSCH System Controller
BOSCH Mini Remote currently not available in the USAShock

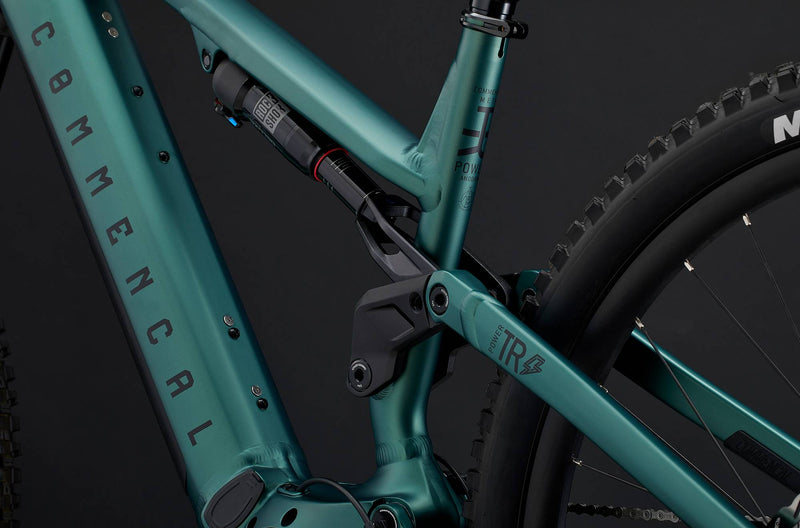

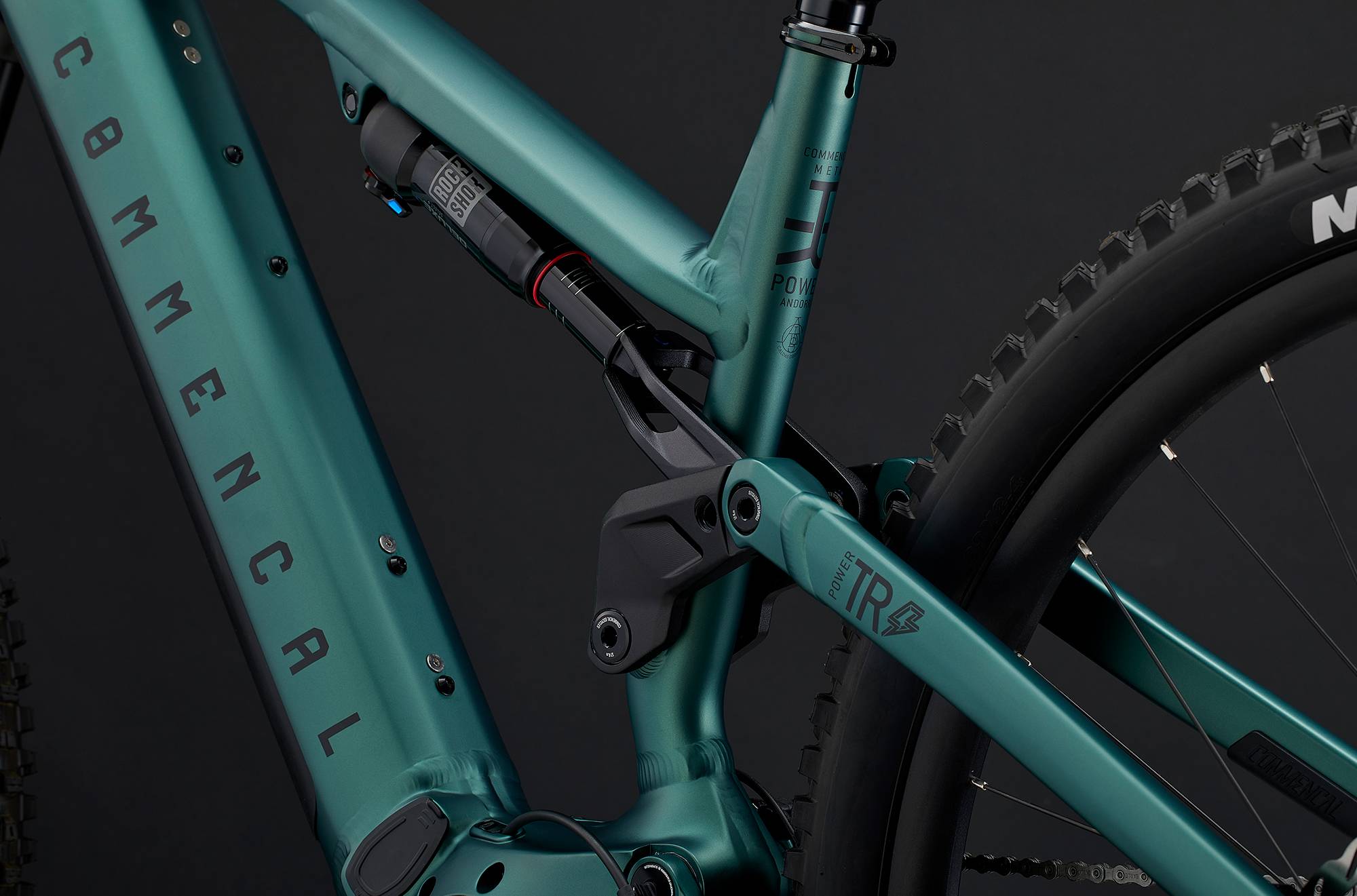

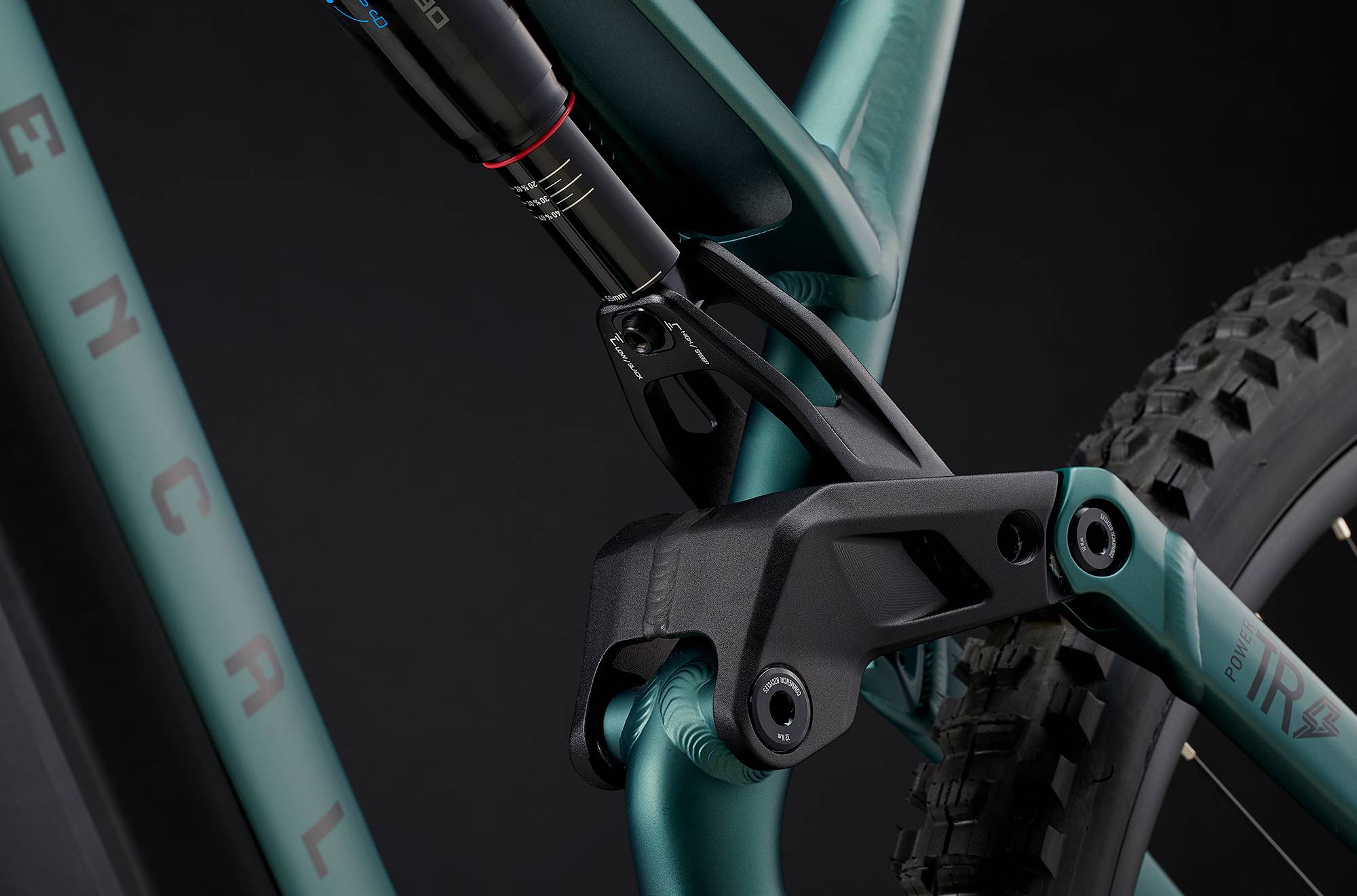

ROCKSHOX Deluxe Select +
210 x 55 mm, RT damper, DebonAir, rebound, 2 position compression (open/firm), 1 Token neg. 4 Token pos.Fork

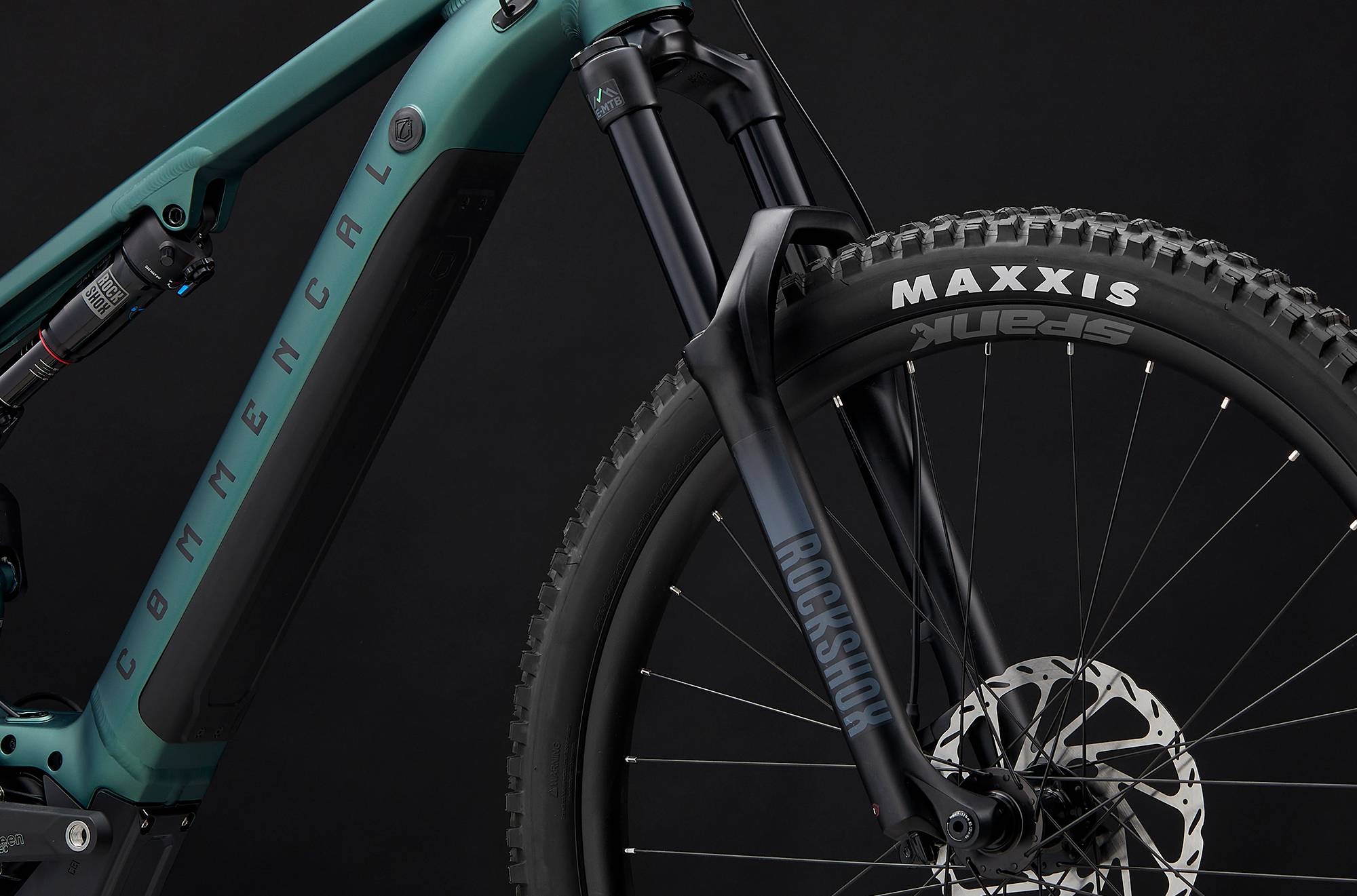

ROCKSHOX 35 Gold RL, 150 mm travel
29'', Motion Control damper, DebonAir, rebound, LSC to lock, (Boost 15 x 110 mm), 44 mm offset, 0 TokenHeadset
ACROS ZS56 / ZS66
Alloy cups, sealed bearingsStem

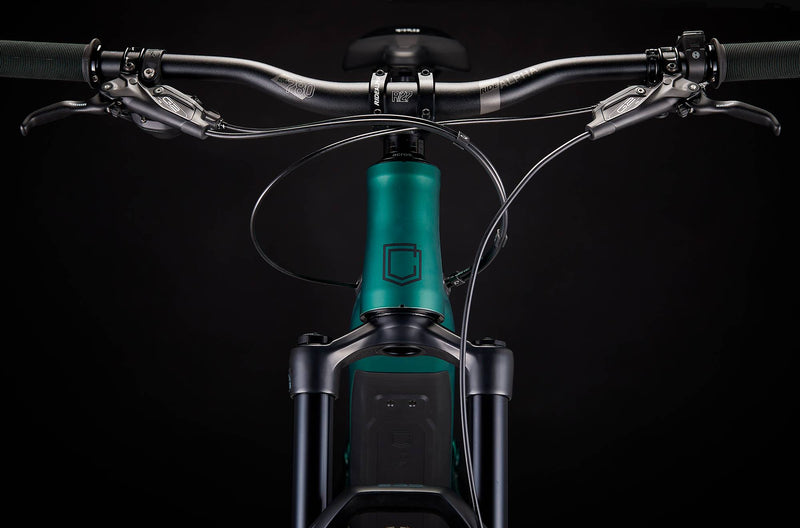

RIDE ALPHA 40 EXTERNAL
40 mm extension, 31,8 mmHandlebar

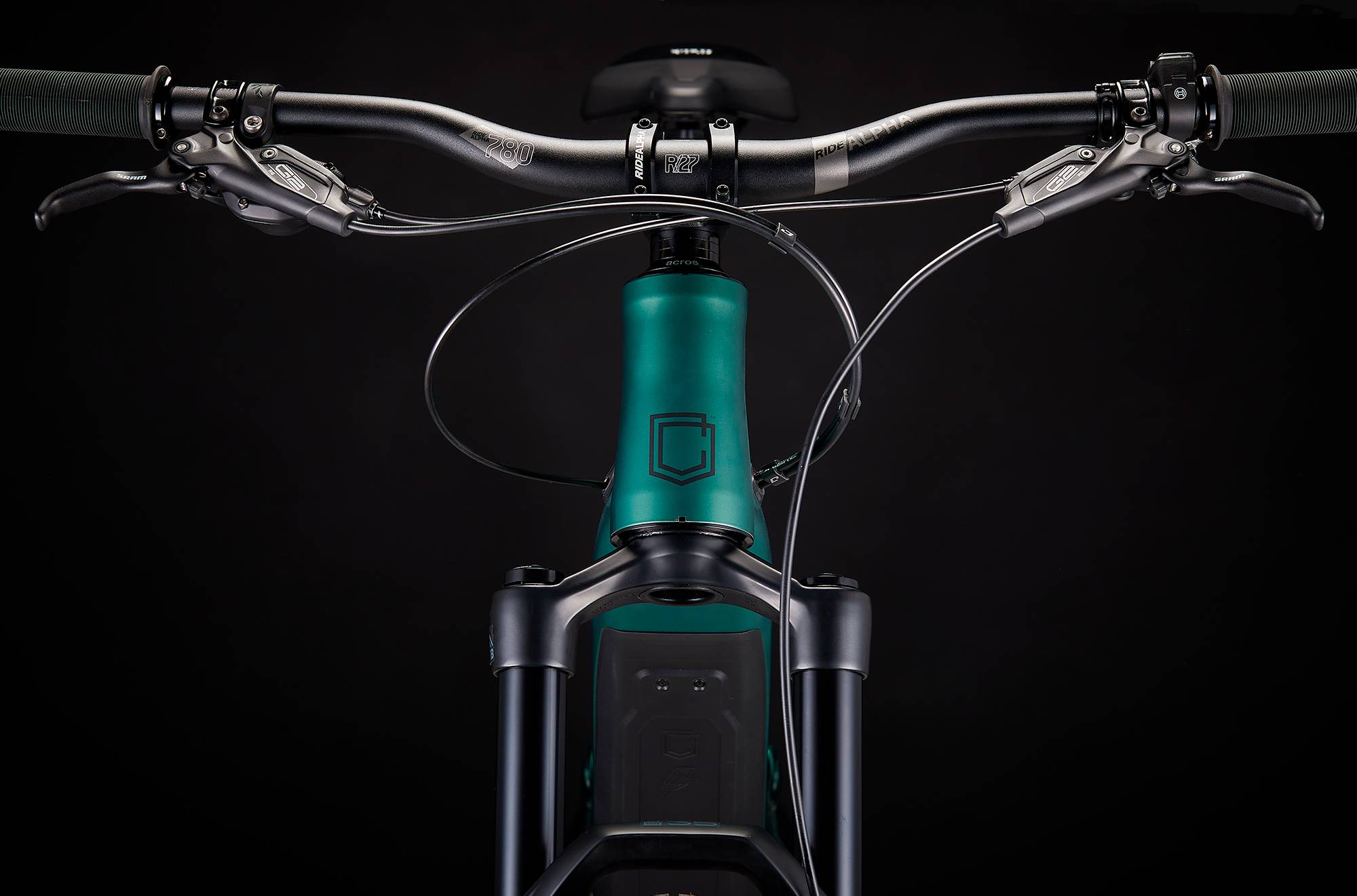

RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
SRAM G2 RE, 4 pistons, steel-backed metal sintered pads
Rotors: SRAM G2 200 mm, 6-boltShifters

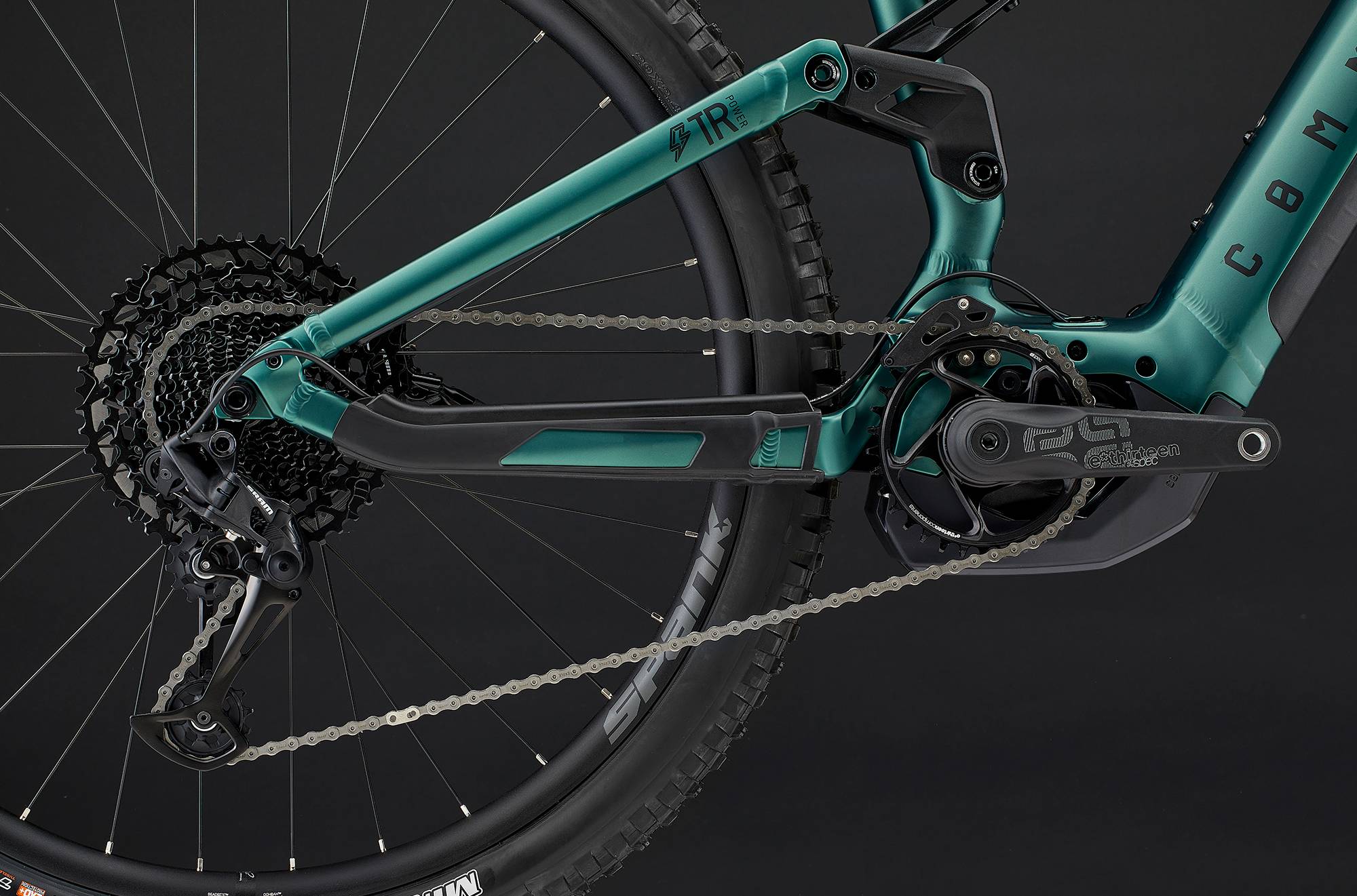

SRAM SX Eagle
12sChain guide
RIDE ALPHA Upper Guide
32-34tREAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
BOSCH
Crankset
E13 E*Spec Plus Bosch CX, 160 mm crank arms
Chainring: E13 E*Spec Plus Bosch CX, 34t, direct mountChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
Rear: SPANK Spike Race 33 - Front: SPANK Spike Race 33
Rear: 29'', 32h, 28 mm inner width - Front: 29'', 32h, 28 mm inner widthHubs
Rear: FORMULA eHL-148S - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, e-bike specific, SHIMANO Hyperglide - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Strong
J-Bend, 2.34/2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 29" x 2.4" WT, 3C Maxx Terra, Exo+, Tubeless Ready - Front: 29" x 2.4" WT, 3C Maxx Terra, Exo+, Tubeless ReadySeat post
KS Rage I
31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius railsWeight
24.5 kg / 54.01 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
Yes
Colour
Metallic Green
Matte FinishAccessories
RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
*Actual product may differ from pictures.
*Please note that bike specs are subject to change without prior notice.Battery recycling
Partnership with BOSCH
The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
Bicycle type
E-BIKE TRAIL 29''
Frame material
AL 6066 T4, T6
Frame weight
- kg / - lb - With plastic accessories.
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm / NOTHING
Recommended/max. fork height
566 mm / 576 mm
Headset dimension
Tapered
Headset type
ZS56 / ZS66
Maximum tyre dimension (etrto)
65 mm - 622
Disc brake standard
PM160
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
BOSCH
ISCG
Yes (BOSCH Standard)
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle
Frame
META POWER TR BOSCH, 140 mm
29", Alloy 6066, triple butted tubes, T4, T6.Motor
BOSCH Performance Line CX
Max. torque: 85N.m, 250WBattery
BOSCH PowerTube 625, 625Wh
BOSCH 4A Charger, Compact size & lightweightCompatible w/Bosch PowerMore 250 for extra range
Display
BOSCH System Controller
BOSCH Mini Remote currently not available in the USAShock
ROCKSHOX Deluxe Select +
210 x 55 mm, RT damper, DebonAir, rebound, 2 position compression (open/firm), 1 Token neg. 4 Token pos.Fork
ROCKSHOX 35 Gold RL, 150 mm travel
29'', Motion Control damper, DebonAir, rebound, LSC to lock, (Boost 15 x 110 mm), 44 mm offset, 0 TokenHeadset
ACROS ZS56 / ZS66
Alloy cups, sealed bearingsStem
RIDE ALPHA 40 EXTERNAL
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
SRAM G2 RE, 4 pistons, steel-backed metal sintered pads
Rotors: SRAM G2 200 mm, 6-boltShifters
SRAM SX Eagle
12sChain guide
RIDE ALPHA Upper Guide
32-34tREAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
BOSCH
Crankset
E13 E*Spec Plus Bosch CX, 160 mm crank arms
Chainring: E13 E*Spec Plus Bosch CX, 34t, direct mountChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
Rear: SPANK Spike Race 33 - Front: SPANK Spike Race 33
Rear: 29'', 32h, 28 mm inner width - Front: 29'', 32h, 28 mm inner widthHubs
Rear: FORMULA eHL-148S - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, e-bike specific, SHIMANO Hyperglide - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Strong
J-Bend, 2.34/2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 29" x 2.4" WT, 3C Maxx Terra, Exo+, Tubeless Ready - Front: 29" x 2.4" WT, 3C Maxx Terra, Exo+, Tubeless ReadySeat post
KS Rage I
31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius railsWeight
24.5 kg / 54.01 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
Yes
Colour
Metallic Green
Matte FinishAccessories
RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
*Actual product may differ from pictures.
*Please note that bike specs are subject to change without prior notice.Battery recycling
Partnership with BOSCH
The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
Bicycle type
E-BIKE TRAIL 29''
Frame material
AL 6066 T4, T6
Frame weight
- kg / - lb - With plastic accessories.
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm / NOTHING
Recommended/max. fork height
566 mm / 576 mm
Headset dimension
Tapered
Headset type
ZS56 / ZS66
Maximum tyre dimension (etrto)
65 mm - 622
Disc brake standard
PM160
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
BOSCH
ISCG
Yes (BOSCH Standard)
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

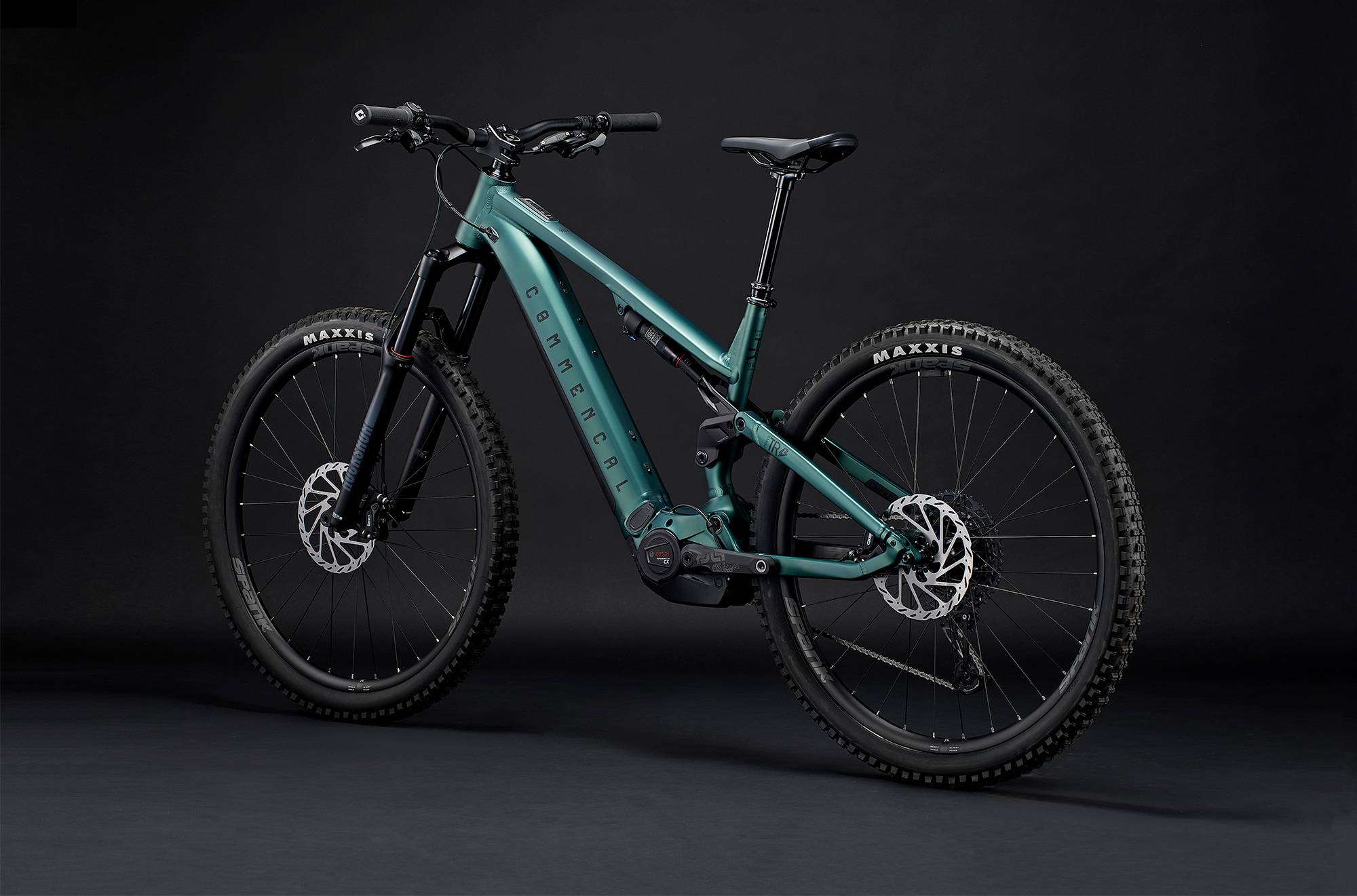

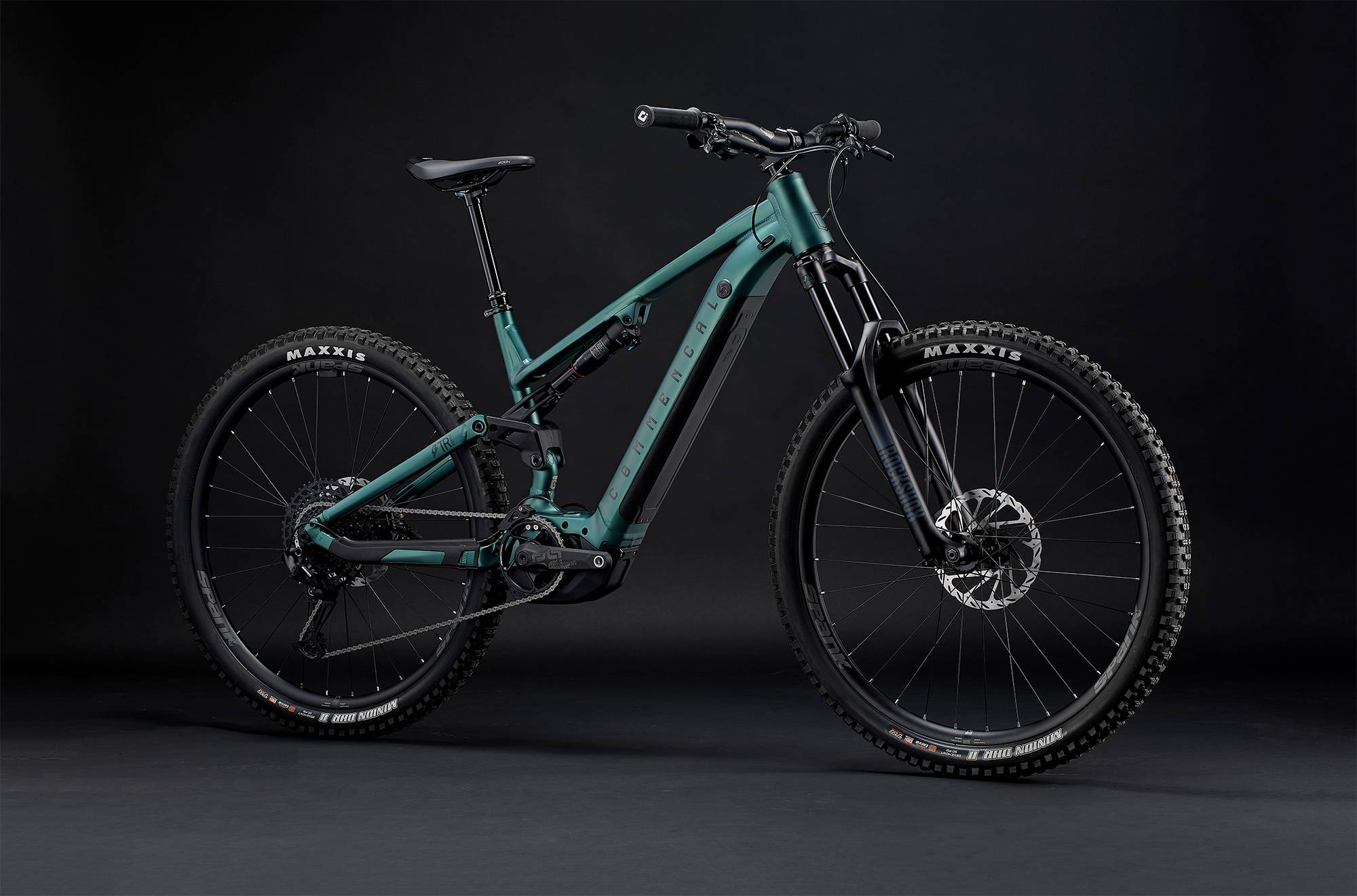

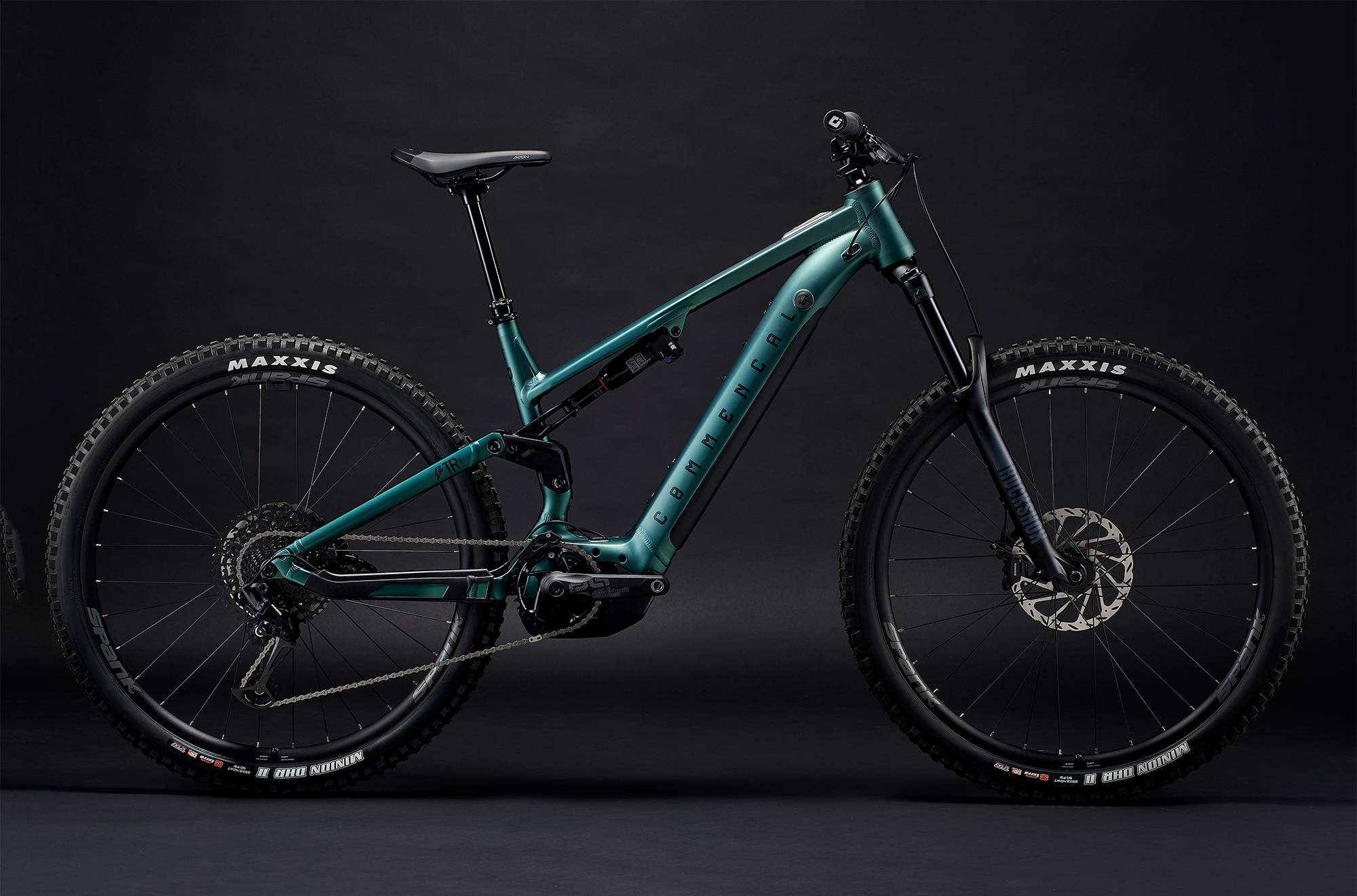

The META POWER TR BOSCH RIDE METALLIC GREEN brings premium e-MTB performance with a 140mm Alloy 6066 frame and BOSCH Performance Line CX motor delivering 85Nm torque. The 625Wh PowerTube battery offers serious range, while RockShox suspension (150mm fork, Deluxe Select+ rear shock) keeps things smooth and controlled. A 12-speed SRAM Eagle drivetrain, 4-piston G2 RE brakes, and SPANK Spike 29” wheels with Maxxis DHR II tyres round out a build that’s equal parts muscle and finesse—ready to electrify any trail you throw at it.
The META POWER TR BOSCH chassis is a trail-hungry e-MTB frame built for serious play. Made from AL 6066 T4/T6, it delivers 140mm rear travel and supports 210x55mm shocks—including piggyback setups—through 20x10mm bushings. Geometry is dialled for 566–576mm fork heights and 29" wheels with up to 65mm tyres. The ZS56/ZS66 tapered headset, PM160 brake mounts (up to 220mm rear rotor), BOSCH bottom bracket, and ISCG tabs make it fully e-ready. Boost 12x148 rear hub fitment seals the deal. Rugged. Refined. Relentless.
