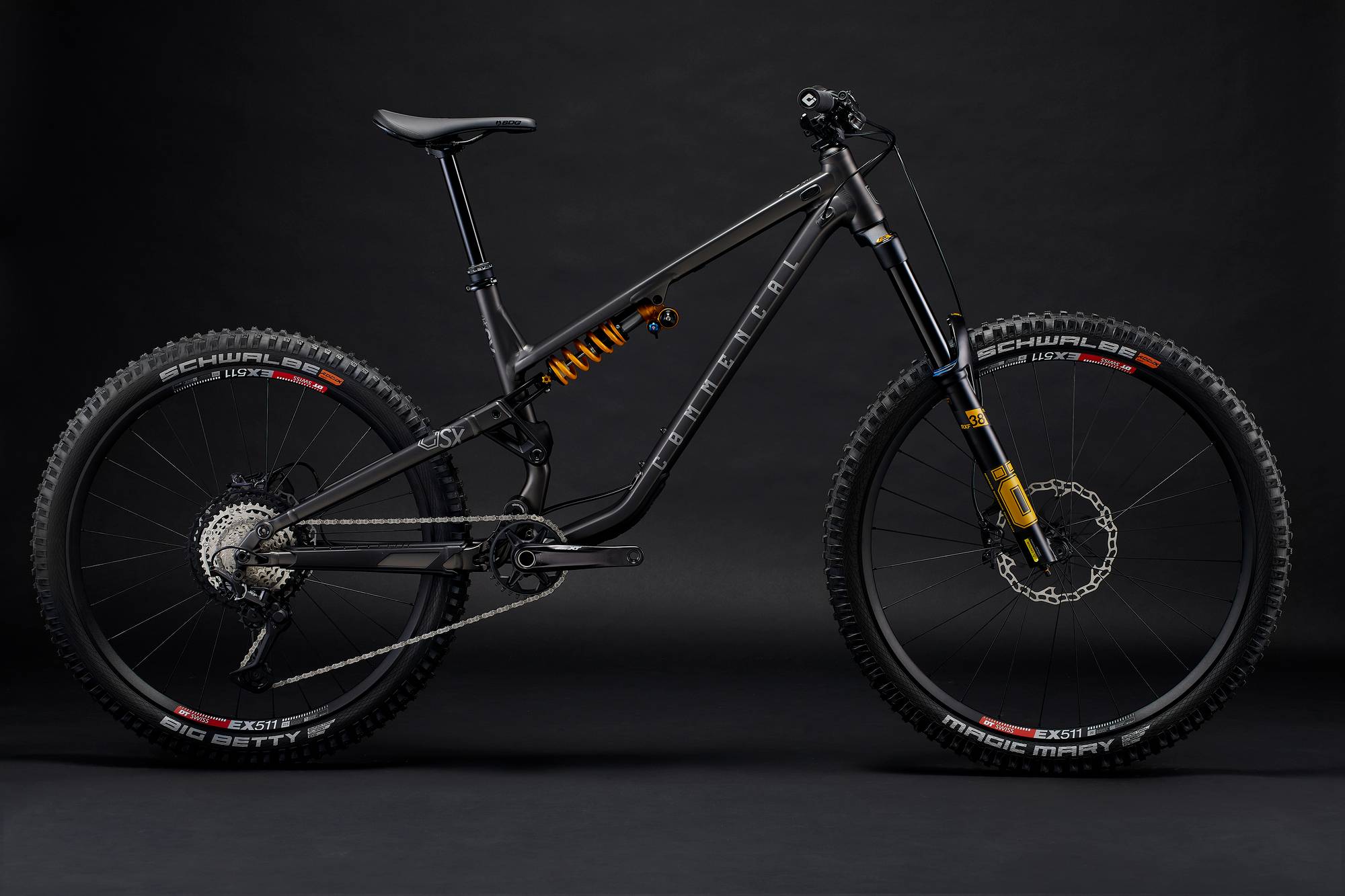

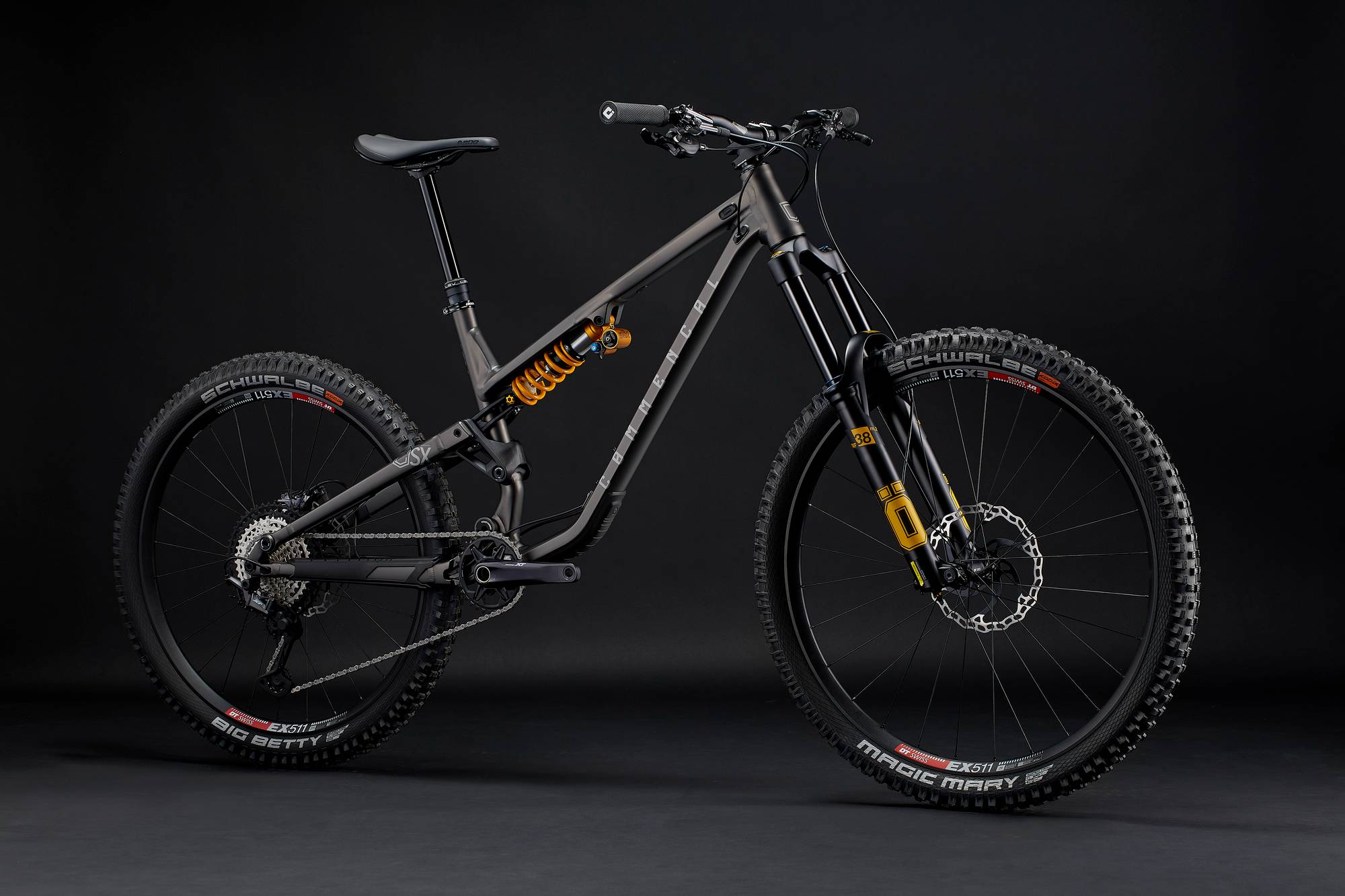

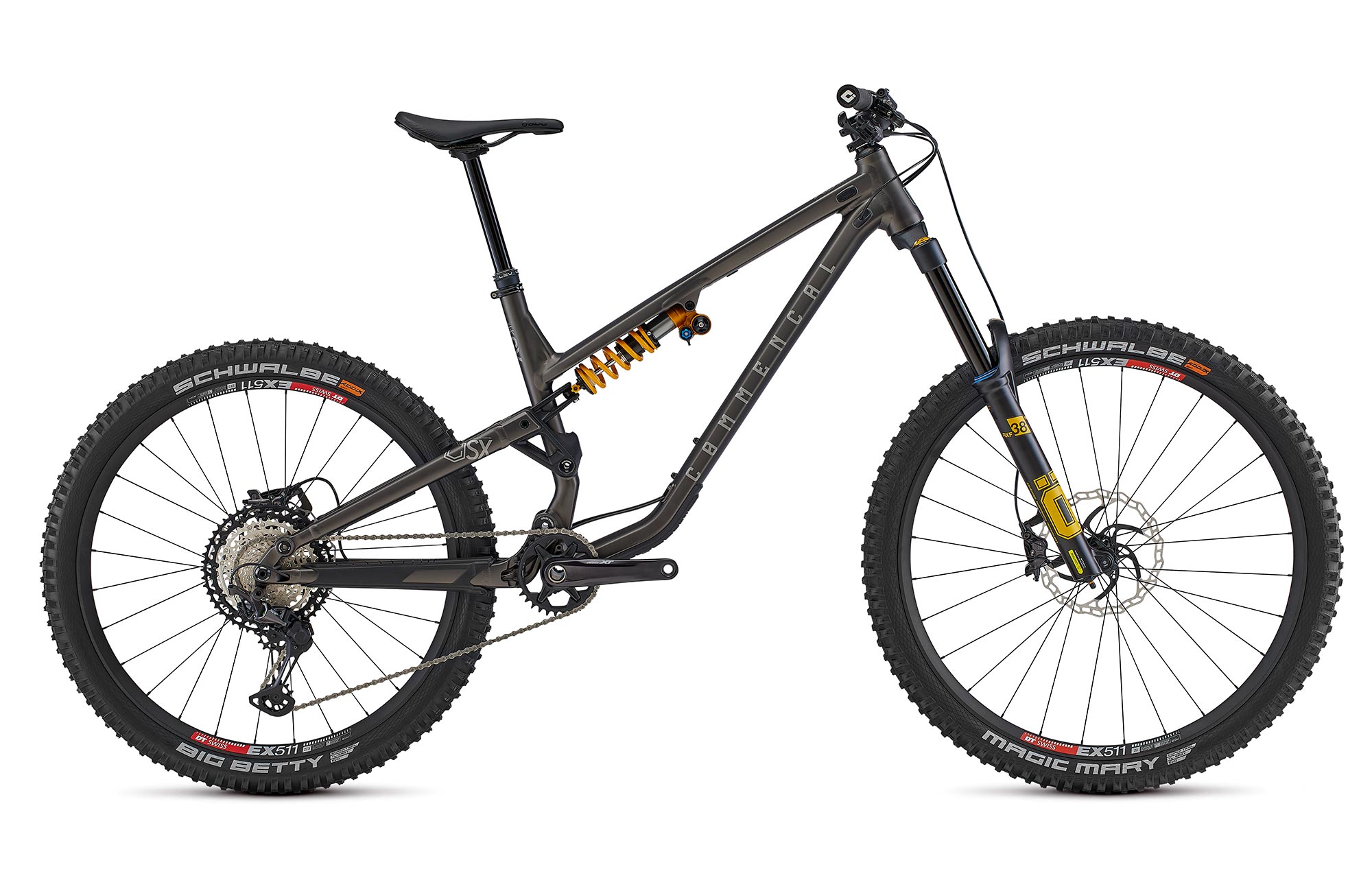

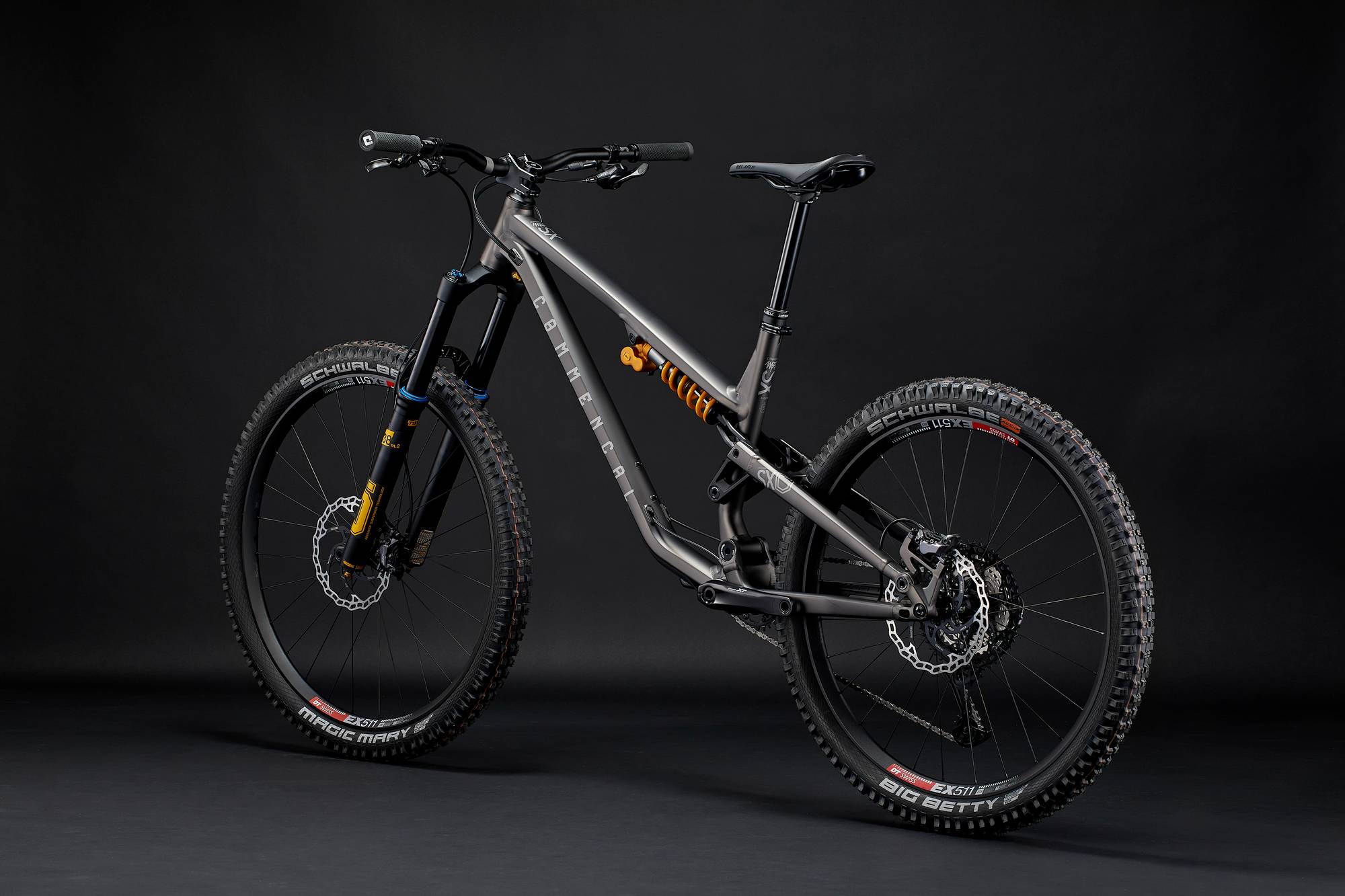

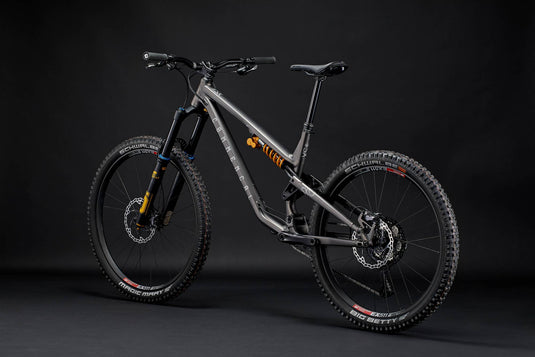

Commencal META SX V4 Öhlins Edition Dark Slate Enduro Bike
Frame
META SX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock

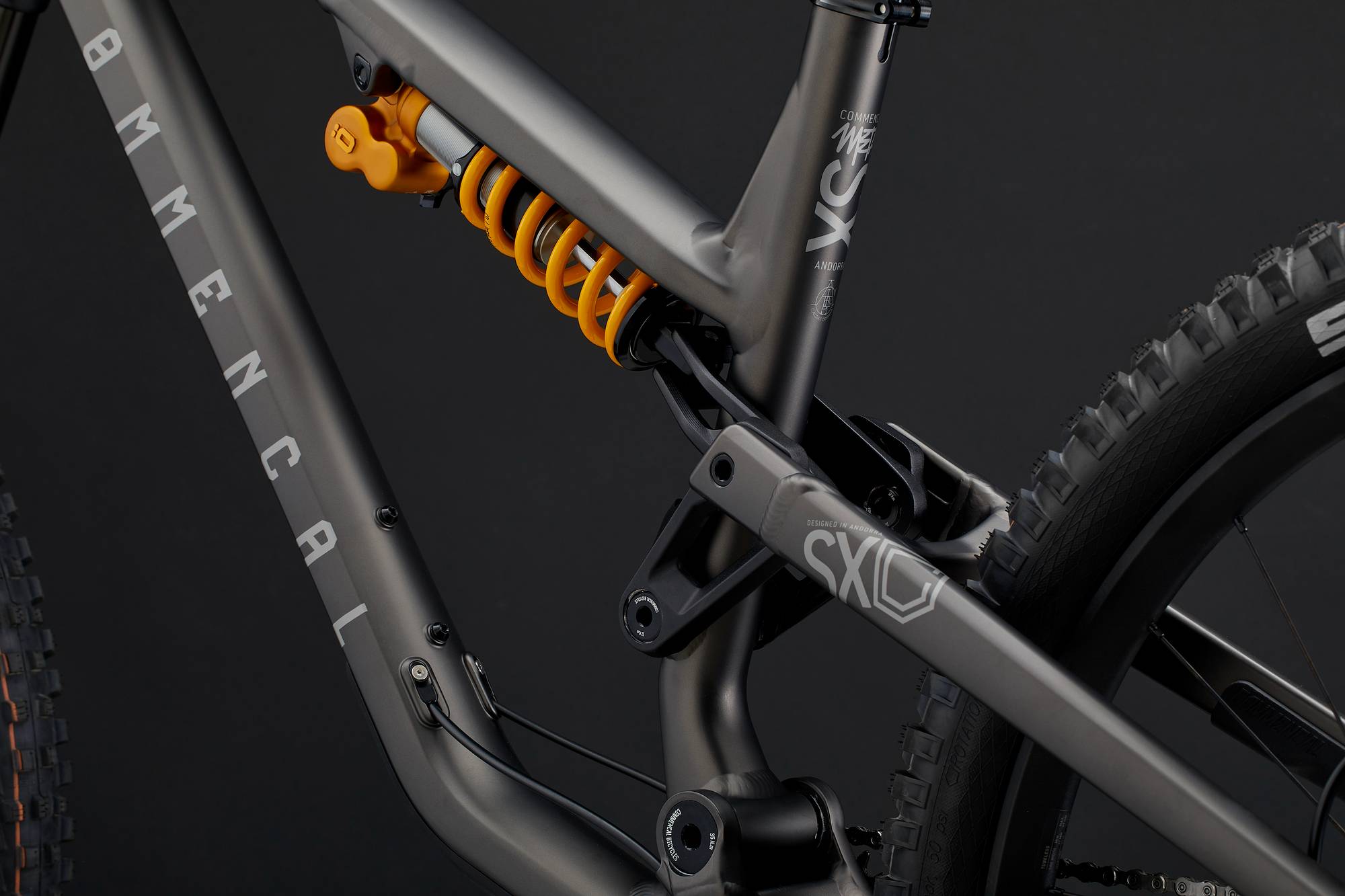

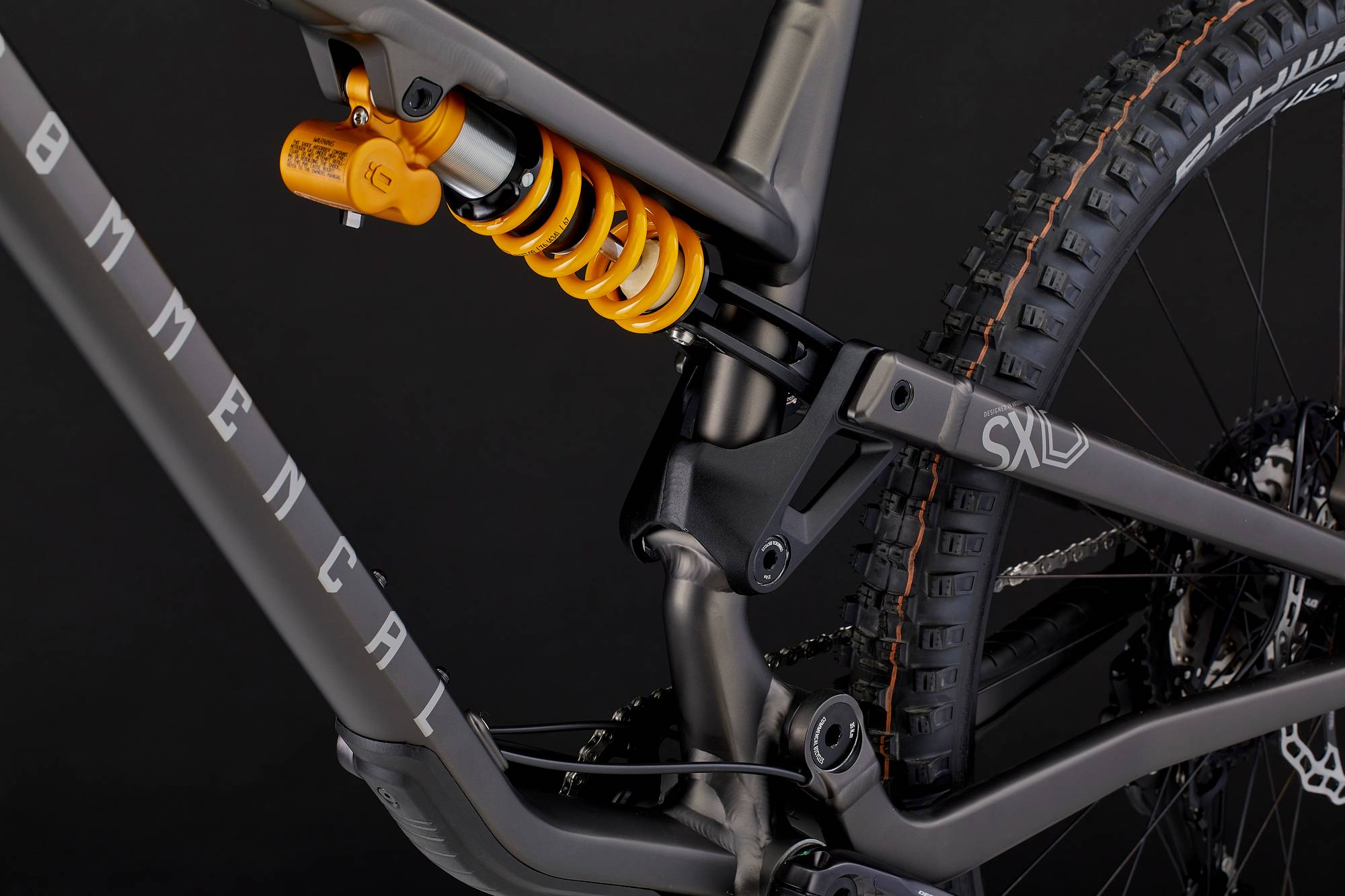

OHLINS TTX22 M.2 Coil
230 x 62.5 mm, HSC, LSC, rebound, climb mode. Spring rates: 343lbs on S, 388lbs on M, 434lbs on L, 480lbs on XLFork
OHLINS RXF38 m.2 Air, 170 mm travel
29", TTX 18 damper, Ramp Up chamber, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offsetHeadset
ACROS ZS44/ZS56
Alloy cups, sealed bearingsStem

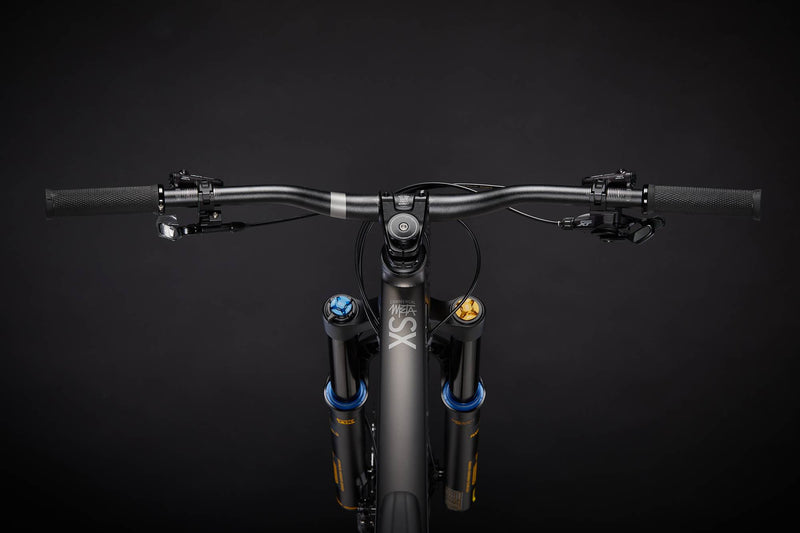

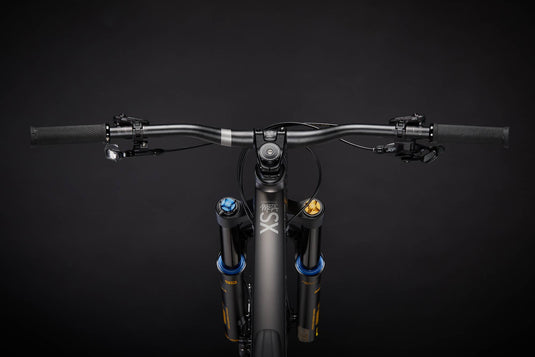

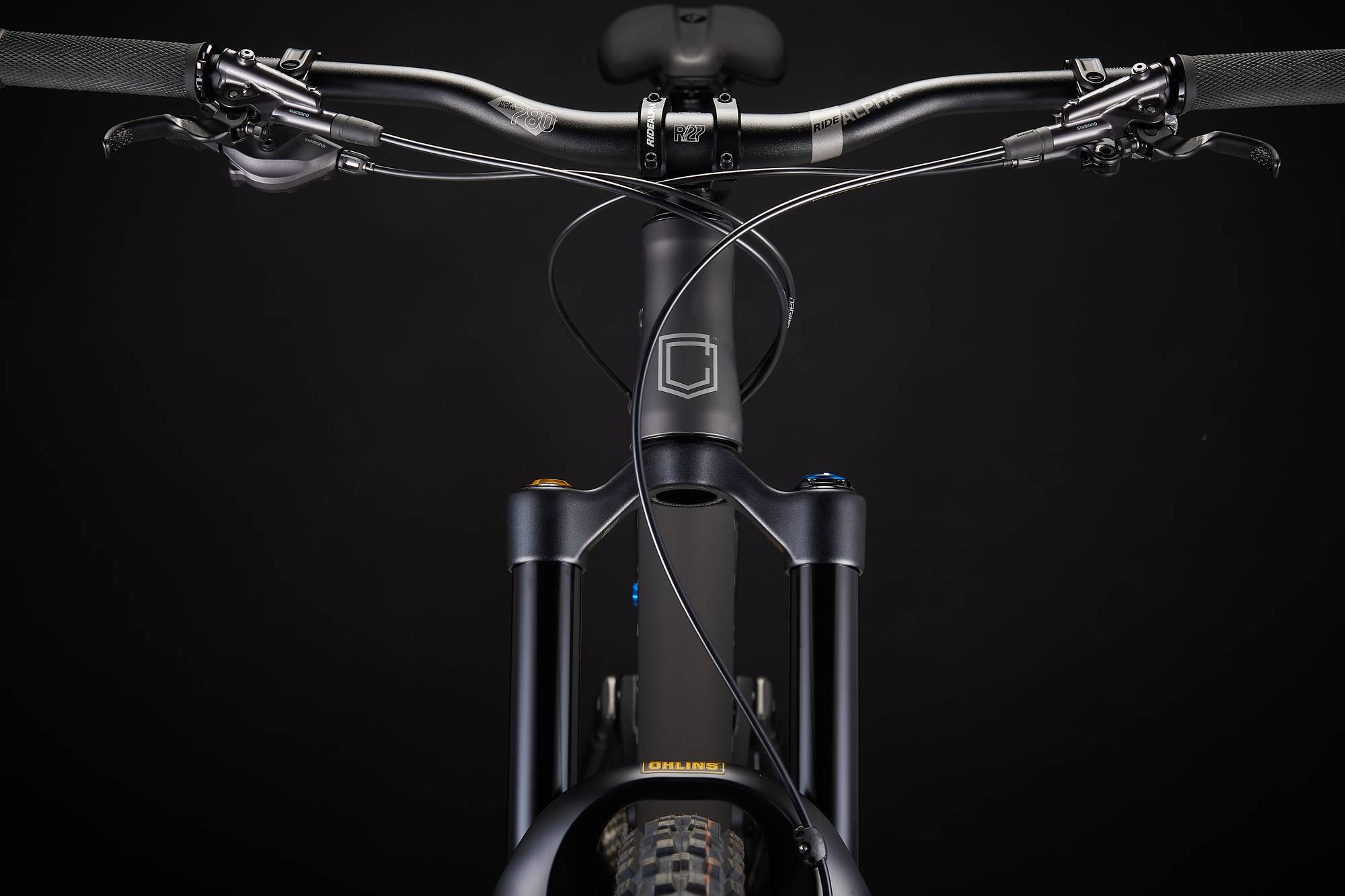

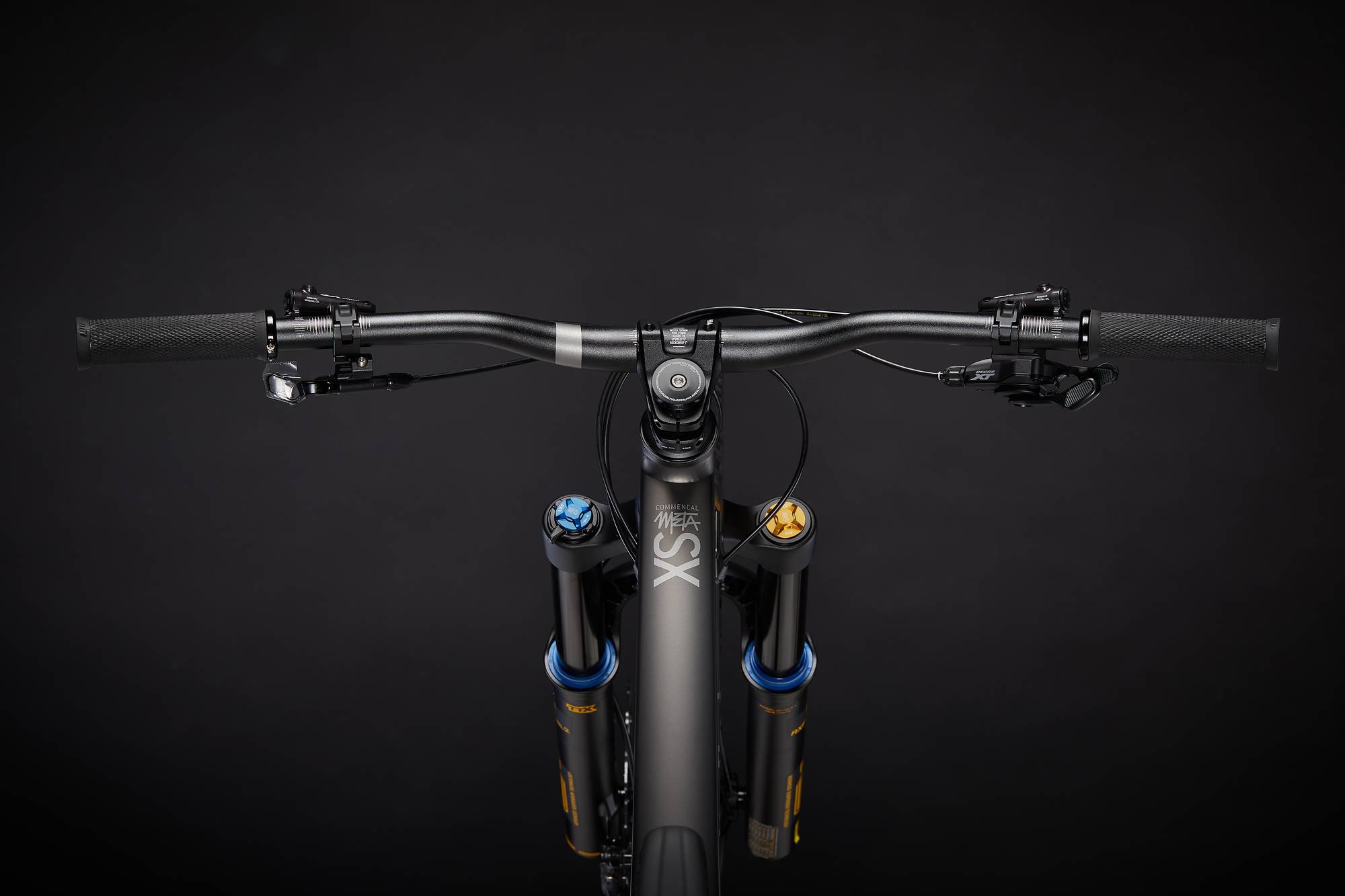

RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO XT, 4 pistons, I-Spec EV compatible
Rotors: Delivered with Shimano or Galfer discs wave 203 mm, 6 holesShifters
SHIMANO XT
12sREAR DERAILLEUR
SHIMANO XT
12sBottom bracket
SHIMANO BBMT800
PressfitCrankset

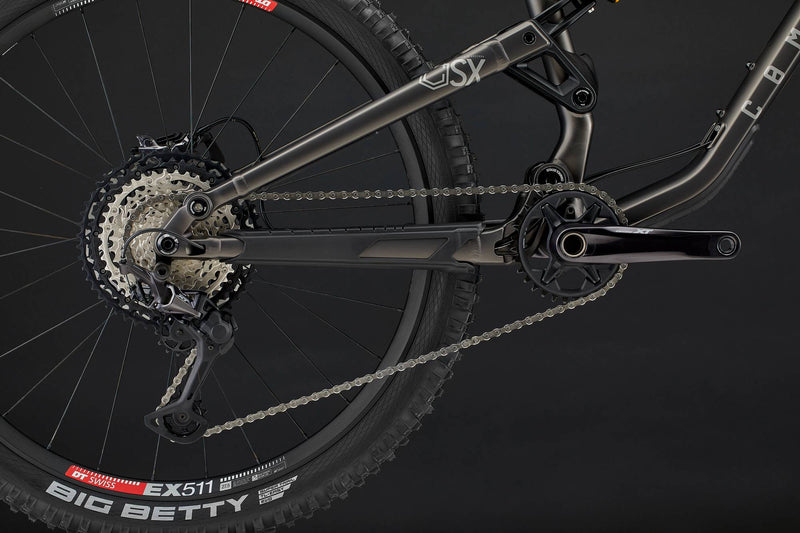

SHIMANO XT, 170 mm crank arms, Boost
Chainring: SHIMANO XT, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO XT
12sCassette
SHIMANO XT
12s, 10-51tRims
Rear: DT SWISS EX511 27.5'' - Front: DT SWISS EX511 29'
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm, MicroSpline, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
DT SWISS Competition
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
Rear: 27.5" x 2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless EasySeat post
KS Lev Integra
34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remoteSaddle
SDG Bel Air V3 Atmos
140 mm width, Lux-Alloy RailsWeight
15,9 kg / 35.05 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Dark Slate
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector
Bicycle type
ENDURO 27''/29''
Frame material
AL 6066 T4, T6
Frame weight
3,9 kg / 8.59 lb
Rear travel
160 mm
Shock length/stroke
230 x 62,5 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 x 10 mm on shaft
Recommended/max. fork height
586 mm / 596 mm
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27.5’' : 68-584 mm - 29'' : 65-622 mm
Disc brake standard
POSTMOUNT 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 X 148 mm standard maxle


Frame
META SX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
OHLINS TTX22 M.2 Coil
230 x 62.5 mm, HSC, LSC, rebound, climb mode. Spring rates: 343lbs on S, 388lbs on M, 434lbs on L, 480lbs on XLFork
OHLINS RXF38 m.2 Air, 170 mm travel
29", TTX 18 damper, Ramp Up chamber, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offsetHeadset
ACROS ZS44/ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO XT, 4 pistons, I-Spec EV compatible
Rotors: Delivered with Shimano or Galfer discs wave 203 mm, 6 holesShifters
SHIMANO XT
12sREAR DERAILLEUR
SHIMANO XT
12sBottom bracket
SHIMANO BBMT800
PressfitCrankset
SHIMANO XT, 170 mm crank arms, Boost
Chainring: SHIMANO XT, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO XT
12sCassette
SHIMANO XT
12s, 10-51tRims
Rear: DT SWISS EX511 27.5'' - Front: DT SWISS EX511 29'
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm, MicroSpline, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
DT SWISS Competition
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
Rear: 27.5" x 2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless EasySeat post
KS Lev Integra
34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remoteSaddle
SDG Bel Air V3 Atmos
140 mm width, Lux-Alloy RailsWeight
15,9 kg / 35.05 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Dark Slate
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector
Bicycle type
ENDURO 27''/29''
Frame material
AL 6066 T4, T6
Frame weight
3,9 kg / 8.59 lb
Rear travel
160 mm
Shock length/stroke
230 x 62,5 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 x 10 mm on shaft
Recommended/max. fork height
586 mm / 596 mm
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27.5’' : 68-584 mm - 29'' : 65-622 mm
Disc brake standard
POSTMOUNT 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 X 148 mm standard maxle

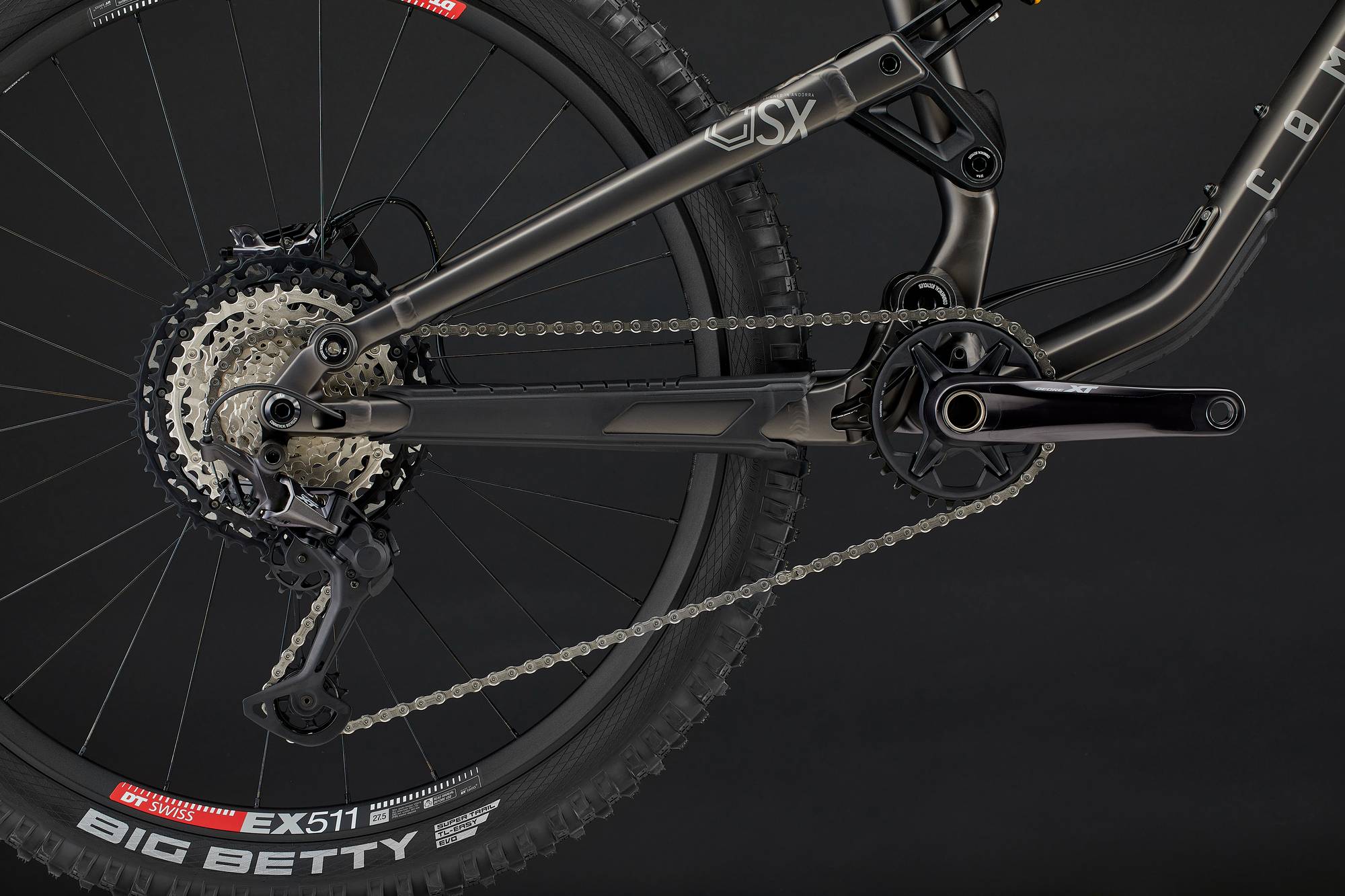

The COMMENCAL META SX V4 ÖHLINS EDITION DARK SLATE blends 160mm of rear travel with ÖHLINS TTX22M coil suspension and a 170mm RXF38 fork up front—ready for serious enduro charging. Shimano XT handles the 12-speed drivetrain, braking, and crankset duties with race-proven reliability. DT Swiss EX511 wheels roll mixed 29"/27.5" with Schwalbe Magic Mary and Big Betty rubber for unstoppable grip. A KS Lev dropper and SDG Bel Air saddle complete the build, wrapped in a sleek matte finish that’s all business, no compromise.
The META SX V4 ÖHLINS EDITION DARK SLATE frame is forged from AL 6066 T4/T6 alloy, tipping the scales at just 3.9 kg and built for serious 160mm enduro performance. Designed around a 230 x 62.5 mm shock, it’s fully piggyback compatible and pairs best with forks up to 596 mm. It fits both 27.5" and 29" tyres, runs a BB92 bottom bracket, and maxes out rear rotor size at 220 mm. With ISCG 05 tabs and 12 x 148 mm hub spacing, it’s ready to send.
