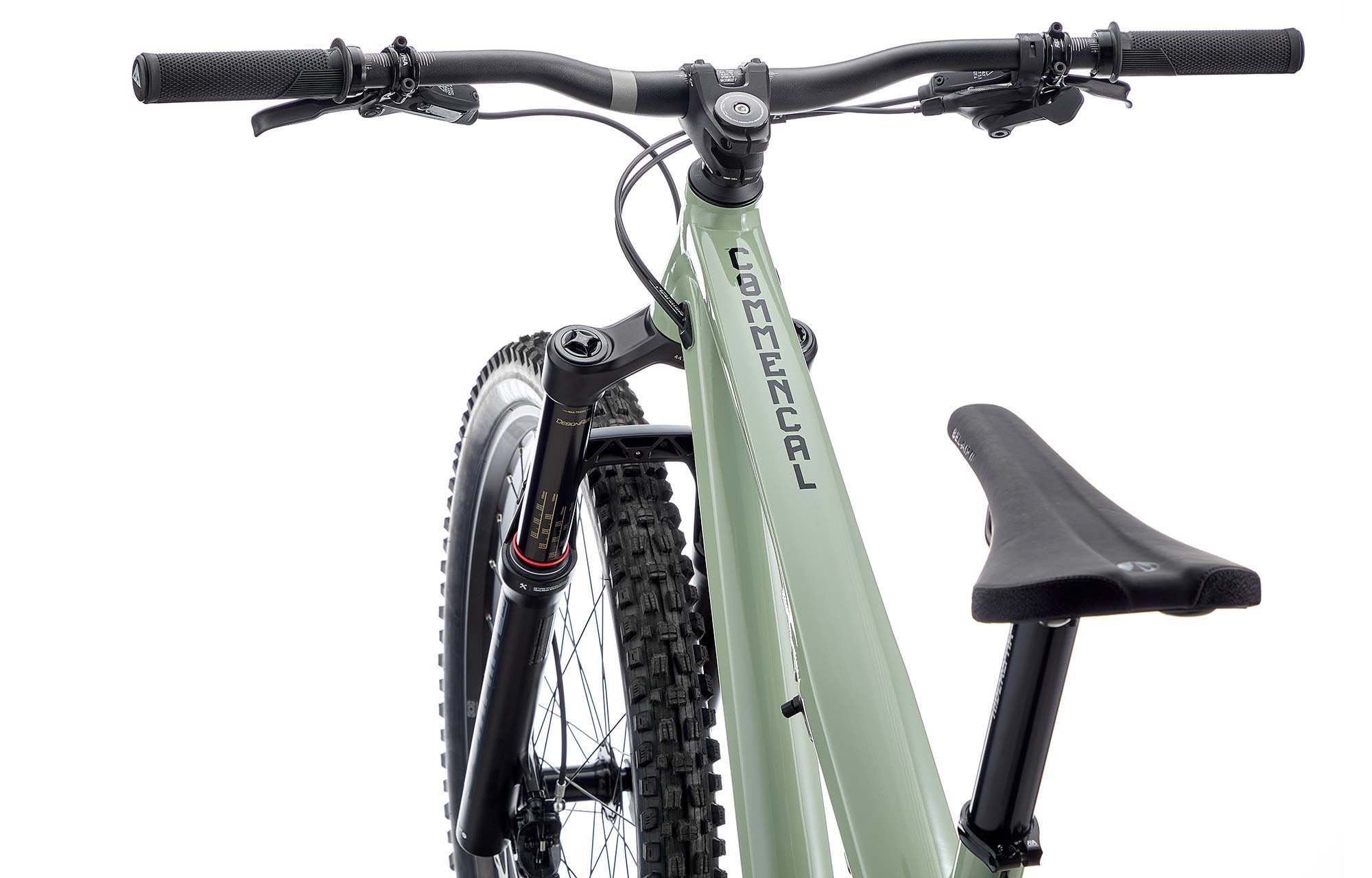

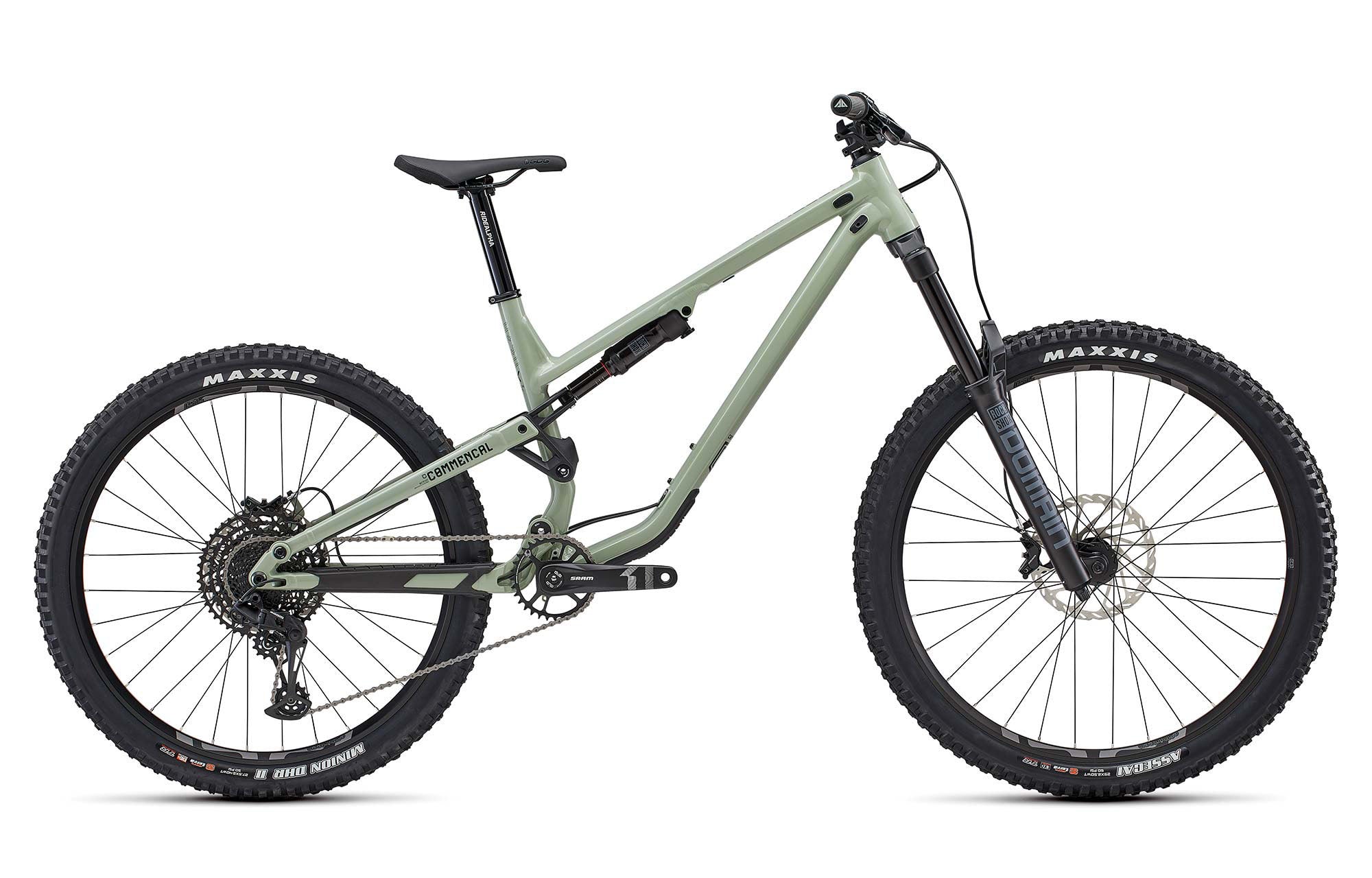

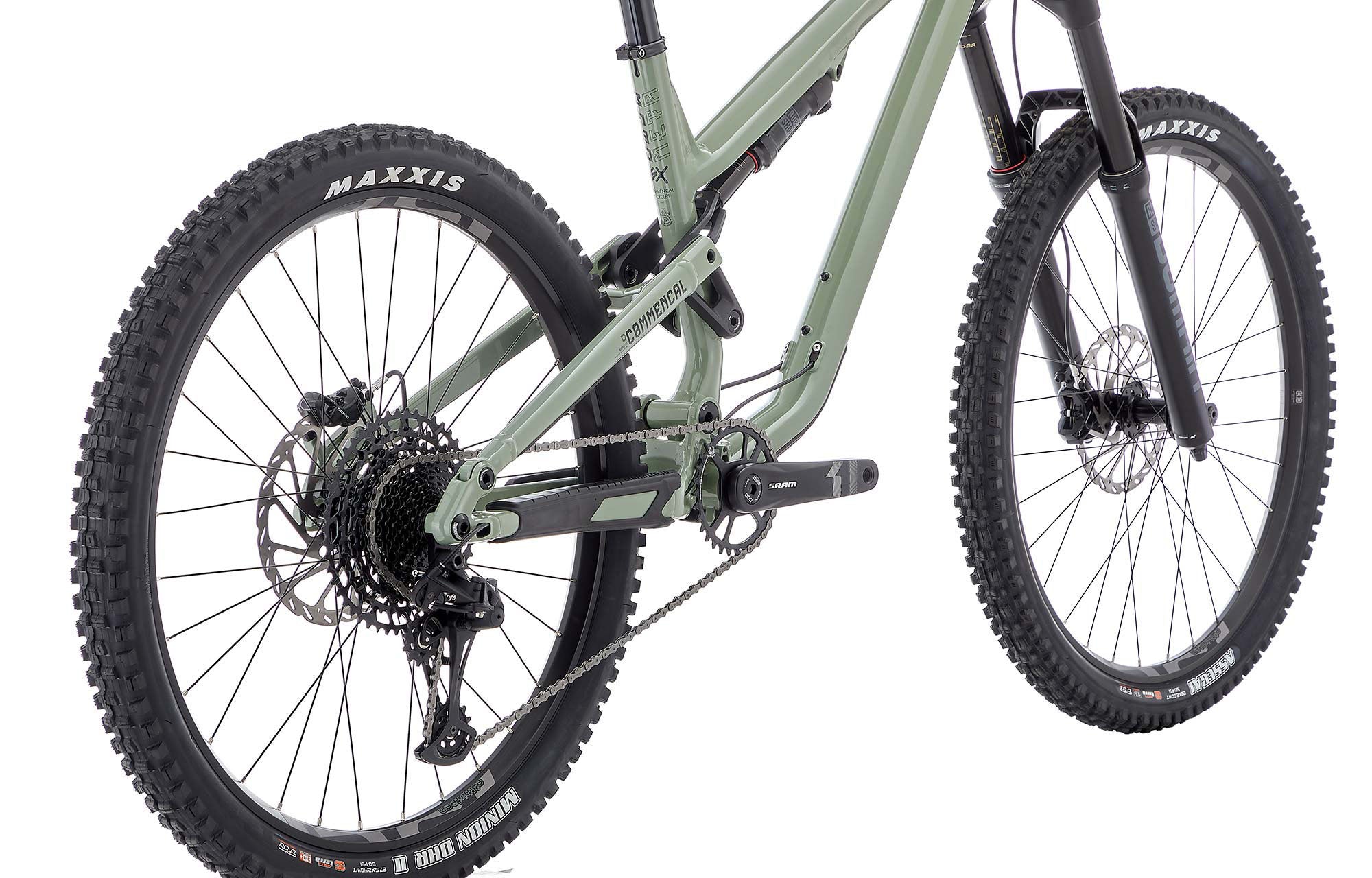

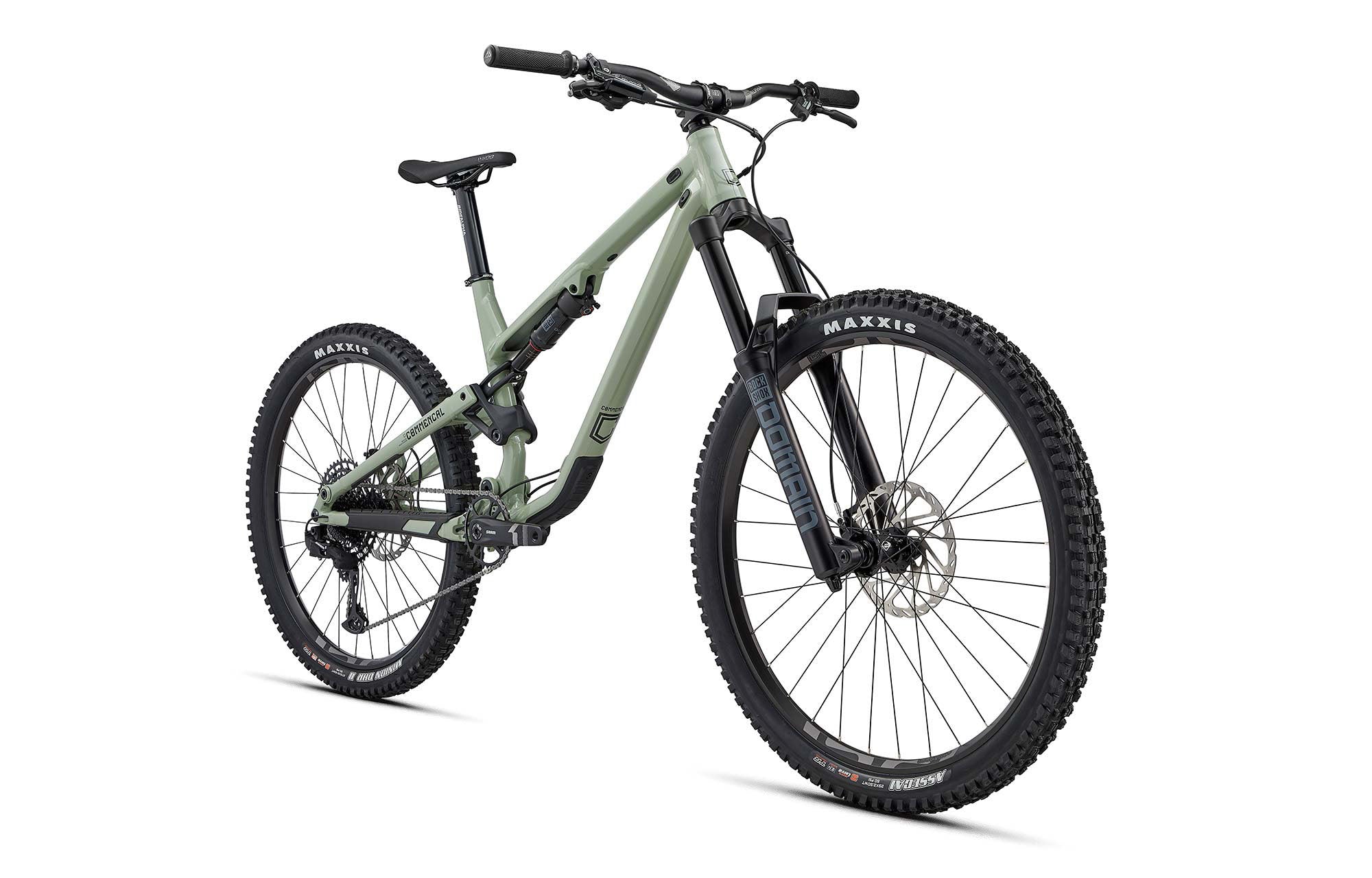

Commencal META SX V4 Origin Mountain Bike Heritage Green Enduro Bike
Frame
META SX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
ROCKSHOX Deluxe Select
230 x 62.5 mm, R damper, DebonAir Linear, rebound, threshold adjustment, 1 Token neg. 4 Tokens pos.Fork
ROCKSHOX Domain R, 170 mm travel
29", Debonair, rebound, Boost (15 x 110 mm), 44 mm offset, 1 TokenHeadset
ACROS ZS44/ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA DH
Ultra-soft compound, single clamp, blackBrakes
SRAM Guide T, 4 pistons, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6-boltShifters
SRAM SX Eagle
12sChain guide
REAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
SRAM DUB
PressfitCrankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
Rear: E13 LG1 DH Base 27.5'' - Front: E13 LG1 DH Base 29''
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Shimano Hyperglide - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM RACE
J-Bend 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5" x 2.4", WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29" x 2.5", WT, 3C MaxxTerra, EXO, Tubeless ReadySeat post
RIDE ALPHA
34,9 mm, 400 mm on S/M, 450 mm on L/XSaddle
SDG Bel Air V3
140 mm width, Steel RailsWeight
15,7 kg / 34.61 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerance.Pedals included
No
Colour
Heritage Green
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 27''/29''
Frame material
AL 6066 T4, T6
Frame weight
3,9 kg / 8.59 lb
Rear travel
160 mm
Shock length/stroke
230 x 62,5 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 X 10 mm on shaft
Recommended/max. fork height
586 mm / 596 mm
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27.5’' : 68-584 mm - 29'' : 65-622 mm
Disc brake standard
POSTMOUNT 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 X 148 mm standard maxle
Frame
META SX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
ROCKSHOX Deluxe Select
230 x 62.5 mm, R damper, DebonAir Linear, rebound, threshold adjustment, 1 Token neg. 4 Tokens pos.Fork
ROCKSHOX Domain R, 170 mm travel
29", Debonair, rebound, Boost (15 x 110 mm), 44 mm offset, 1 TokenHeadset
ACROS ZS44/ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA DH
Ultra-soft compound, single clamp, blackBrakes
SRAM Guide T, 4 pistons, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6-boltShifters
SRAM SX Eagle
12sChain guide
REAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
SRAM DUB
PressfitCrankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
Rear: E13 LG1 DH Base 27.5'' - Front: E13 LG1 DH Base 29''
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Shimano Hyperglide - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM RACE
J-Bend 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5" x 2.4", WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29" x 2.5", WT, 3C MaxxTerra, EXO, Tubeless ReadySeat post
RIDE ALPHA
34,9 mm, 400 mm on S/M, 450 mm on L/XSaddle
SDG Bel Air V3
140 mm width, Steel RailsWeight
15,7 kg / 34.61 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerance.Pedals included
No
Colour
Heritage Green
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 27''/29''
Frame material
AL 6066 T4, T6
Frame weight
3,9 kg / 8.59 lb
Rear travel
160 mm
Shock length/stroke
230 x 62,5 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 X 10 mm on shaft
Recommended/max. fork height
586 mm / 596 mm
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27.5’' : 68-584 mm - 29'' : 65-622 mm
Disc brake standard
POSTMOUNT 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 X 148 mm standard maxle
Built around a 160mm META SX alloy frame with mixed wheel sizing, this rig means business. A ROCKSHOX Domain R fork and Deluxe Select shock handle the hits, while SRAM’s 12-speed SX Eagle drivetrain delivers smooth power across brutal climbs. Four-piston SRAM Guide T brakes clamp onto 200mm rotors, and E13 LG1 DH rims are wrapped in MAXXIS rubber for max grip. Finished with Ride Alpha finishing kit and a Bel Air saddle, it's all killer, no filler.
Tough, capable, and unapologetically enduro, this frame is built from AL 6066 T4/T6 and weighs in at just under 4kg. With 160mm of rear travel and a piggy-back compatible 230x62.5mm shock, it's hungry for chunky descents. Geometry is dialled with a 586–596mm fork range, tapered ZS44/ZS56 headset, and space for aggressive 27.5" or 29" rubber. BB92, ISCG05 mounts, and 148mm Boost hub spacing complete a package made for big hits, big grip, and full-send riding without compromise.
