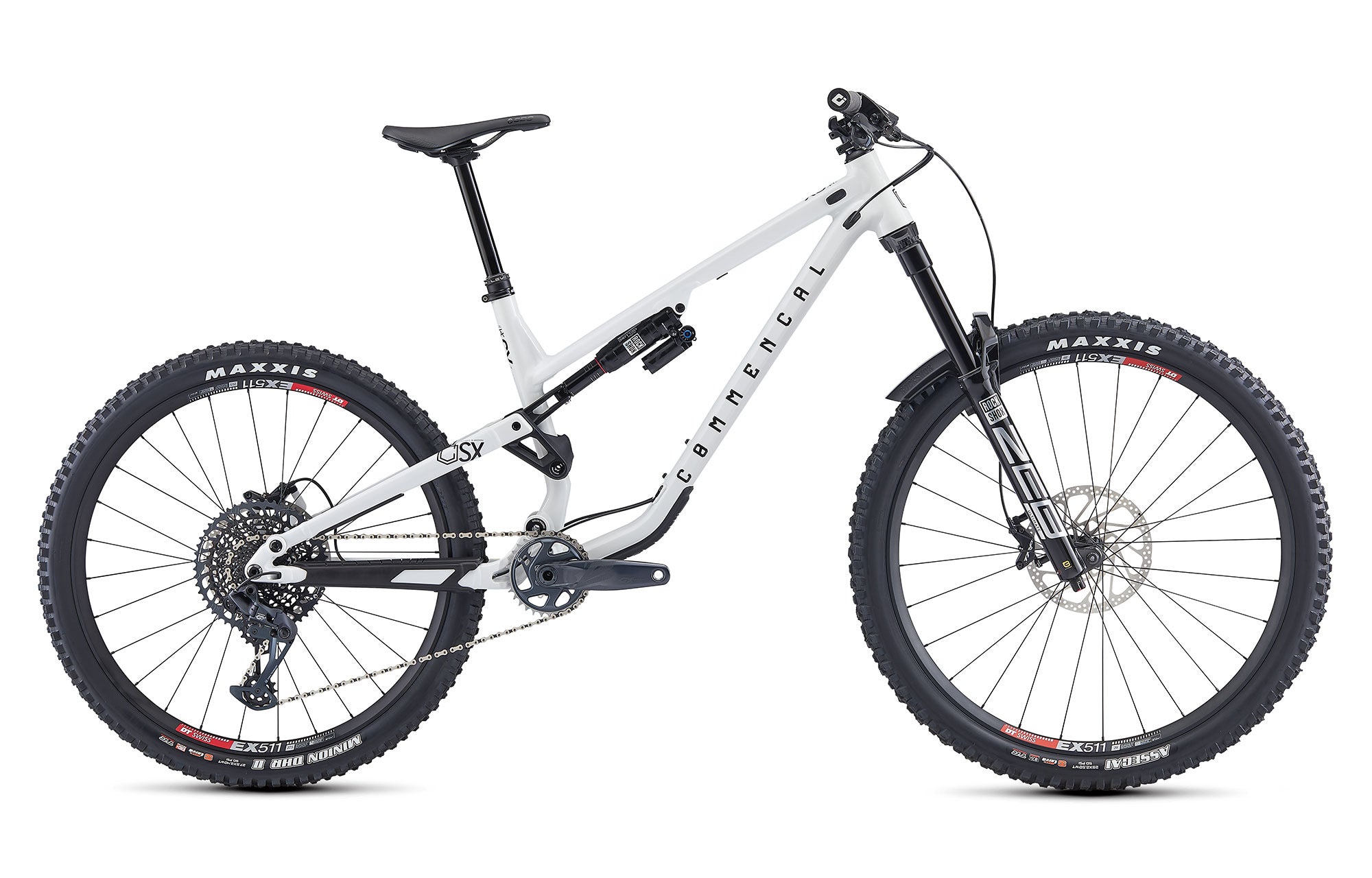

Commencal META SX V4 Race Pure White Enduro Bike
Frame
META SX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock

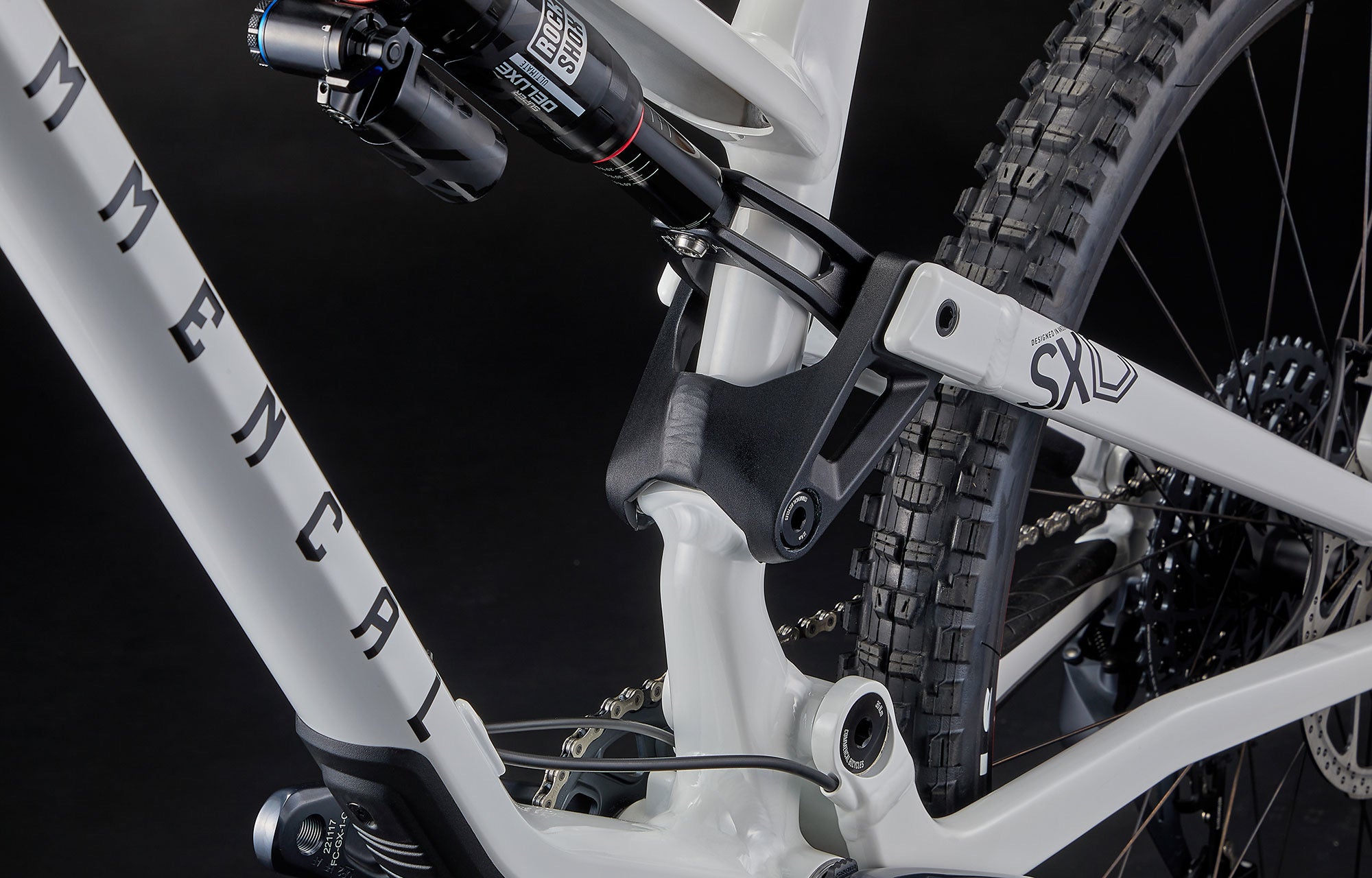

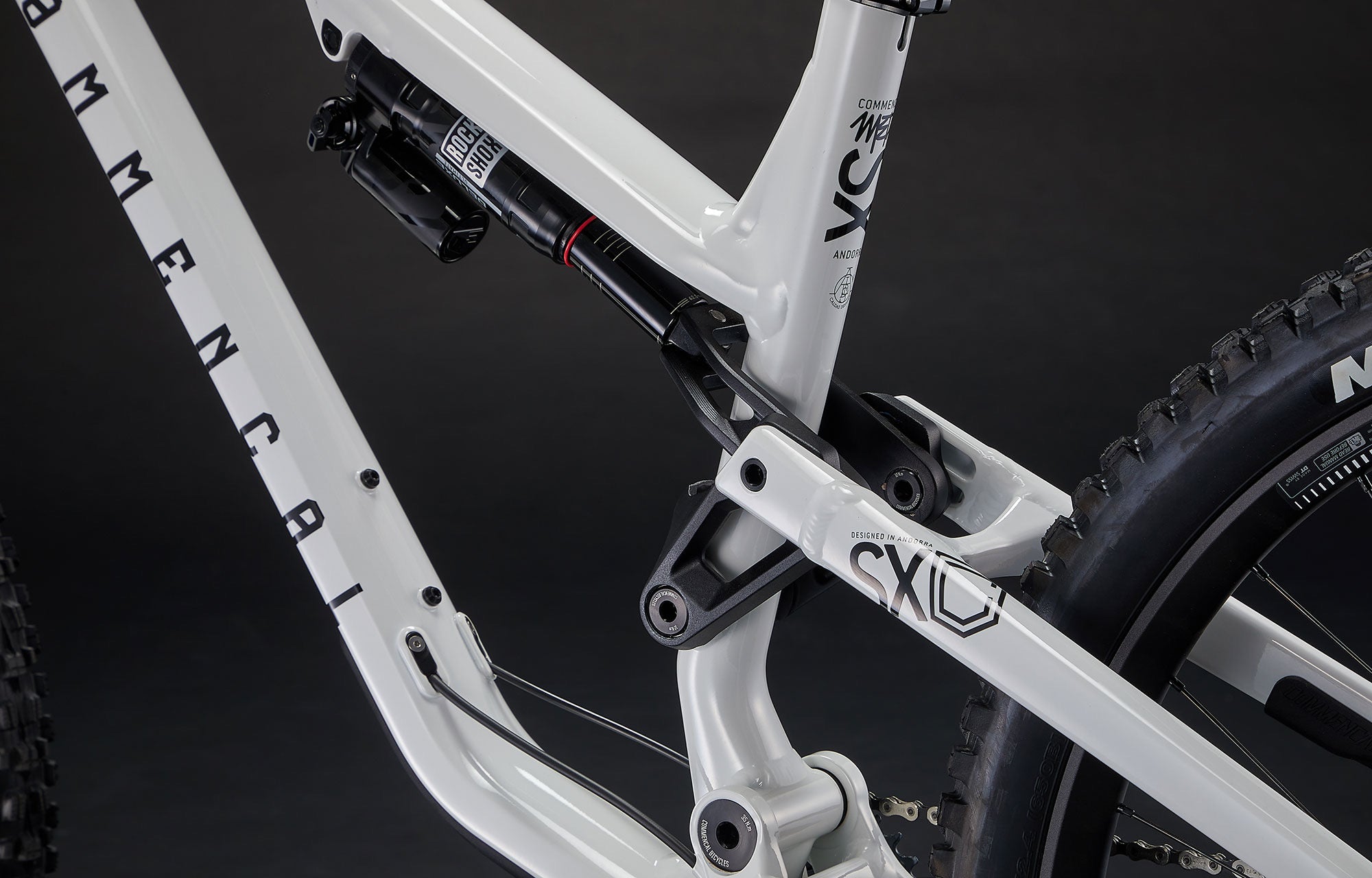

ROCKSHOX Super Deluxe Ultimate
230 x 62.5 mm, RCT2 Damper, DebonAir Linear, LSC, HSC, rebound, 2-position adjustment, 1 Token neg. 4 Token pos.Fork
ROCKSHOX ZEB ULTIMATE, 170 mm travel
29", Charger 3 RC2 with ButterCups DebonAir+, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset, 1 TokenHeadset
ACROS ZS44/ZS56
Alloy cups, sealed bearingsStem

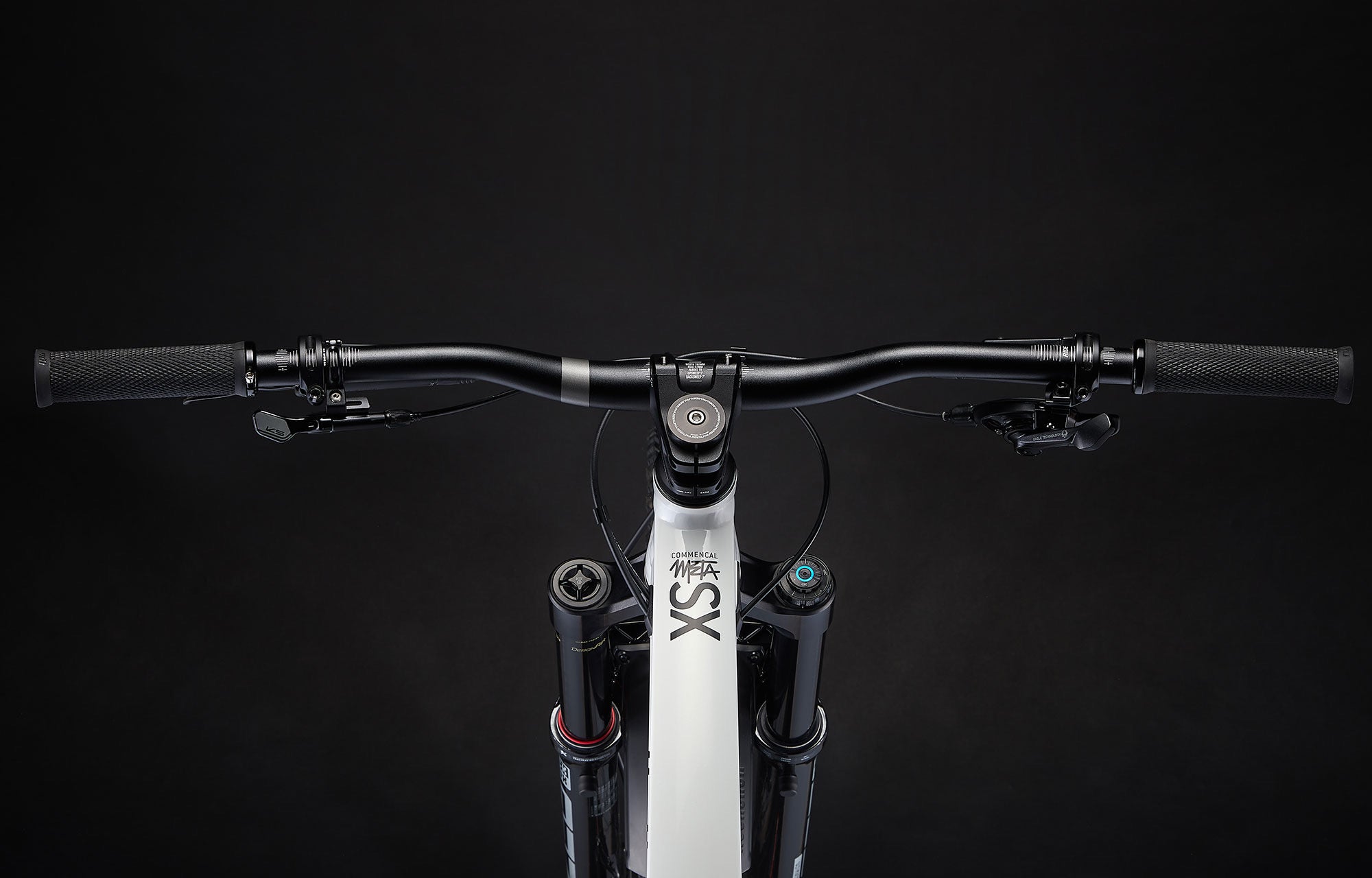

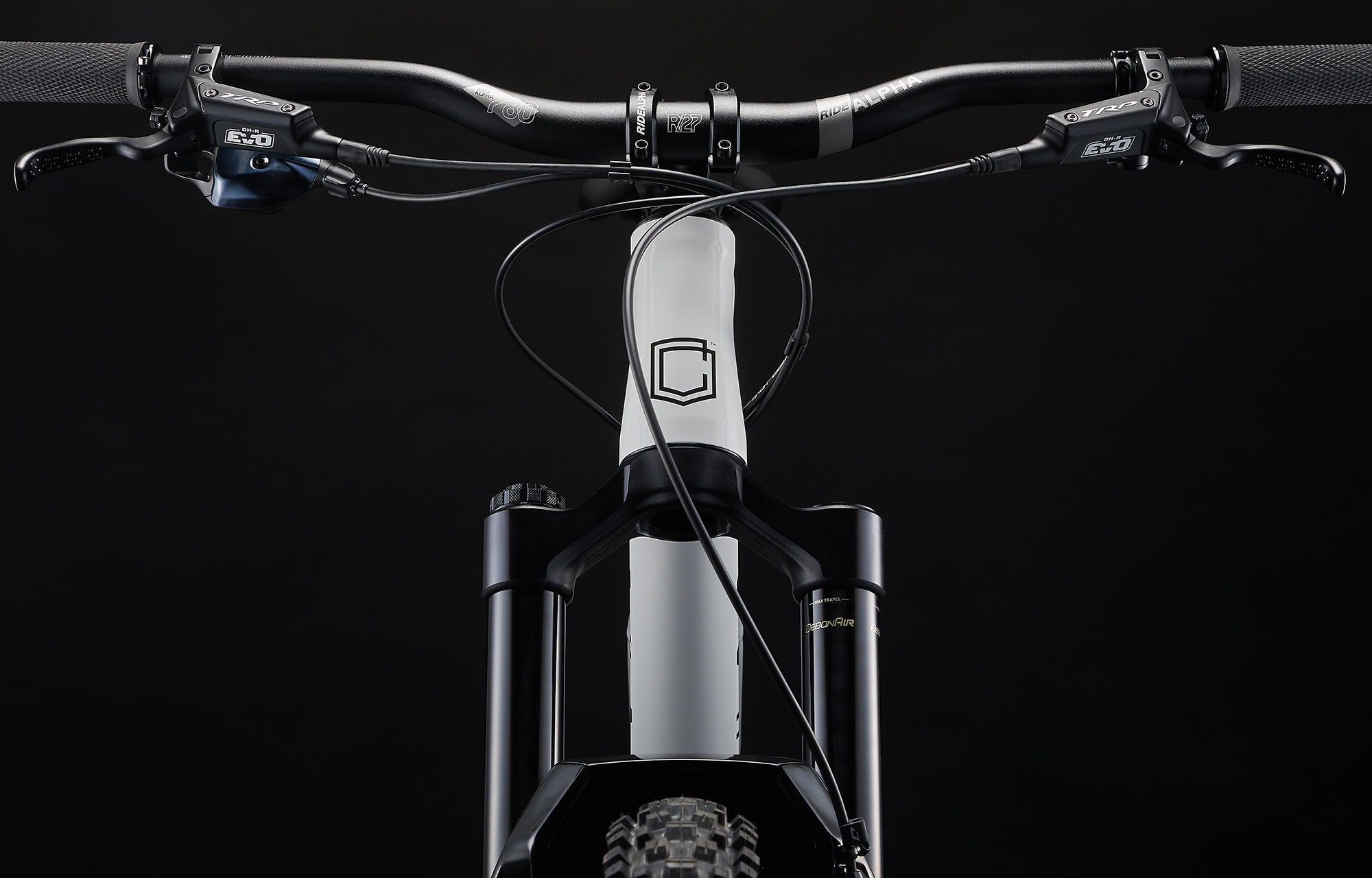

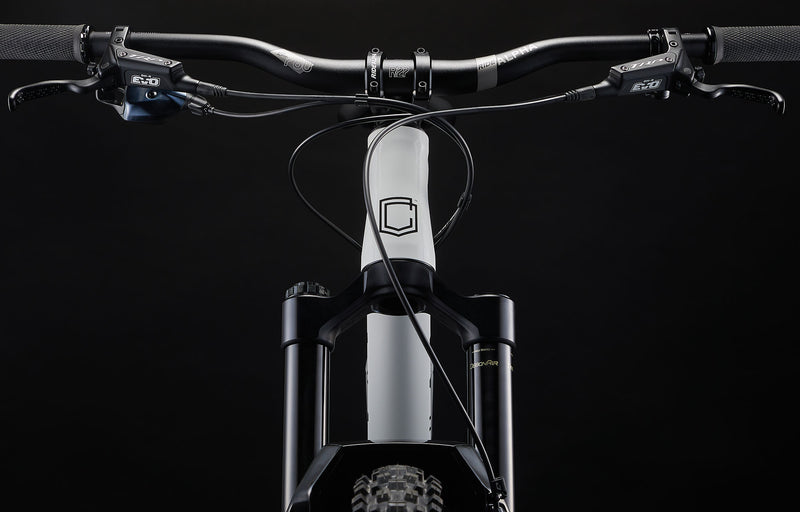

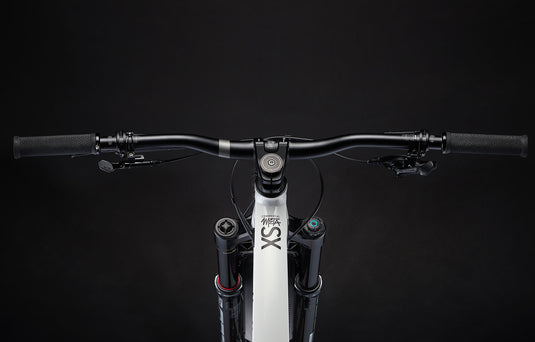

RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
TRP DH-R Evo, 4 pistons
Rotors: TRP R1 203 mm, 6-bolt, 2.3 mm widthShifters

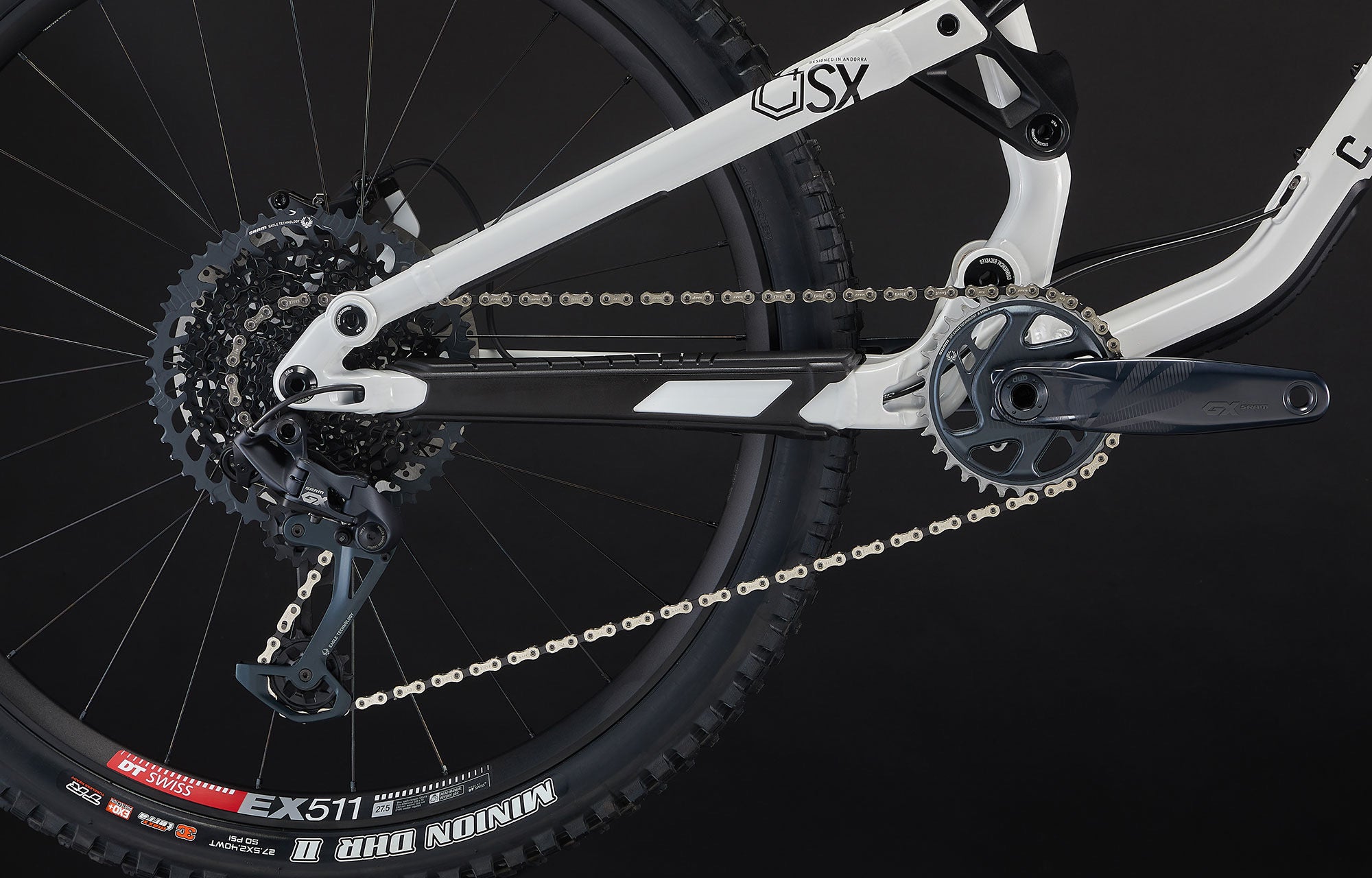

SRAM GX Eagle
12sREAR DERAILLEUR
SRAM GX Eagle
12sBottom bracket
SRAM DUB
PressfitCrankset
SRAM GX Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM GX Eagle, 32t, Narrow-WideChain
SRAM GX Eagle
12sCassette
SRAM XG-1275 EAGLE
12s, 10-52tRims
Rear: DT SWISS EX511 27.5'' - Front: DT SWISS EX511 29''
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm, XD driver, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
DT SWISS Competition
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5" x 2.4", WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29" x 2.5", WT, 3C MaxxTerra, EXO, Tubeless ReadySeat post
KS Lev Integra
34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remoteSaddle
SDG Bel Air V3 Atmos
140 mm width, Lux-Alloy RailsWeight
15,6 kg / 34.39 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pure White
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, ZEB short fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 27''/29''
Frame material
AL 6066 T4, T6
Frame weight
3,9 kg / 8.59 lb
Rear travel
160 mm
Shock length/stroke
230 x 62,5 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 X 10 mm on shaft
Recommended/max. fork height
586 mm / 596 mm
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27.5’' : 68-584 mm - 29'' : 65-622 mm
Disc brake standard
POSTMOUNT 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 X 148 mm standard maxle


Frame
META SX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
ROCKSHOX Super Deluxe Ultimate
230 x 62.5 mm, RCT2 Damper, DebonAir Linear, LSC, HSC, rebound, 2-position adjustment, 1 Token neg. 4 Token pos.Fork
ROCKSHOX ZEB ULTIMATE, 170 mm travel
29", Charger 3 RC2 with ButterCups DebonAir+, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset, 1 TokenHeadset
ACROS ZS44/ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
TRP DH-R Evo, 4 pistons
Rotors: TRP R1 203 mm, 6-bolt, 2.3 mm widthShifters
SRAM GX Eagle
12sREAR DERAILLEUR
SRAM GX Eagle
12sBottom bracket
SRAM DUB
PressfitCrankset
SRAM GX Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM GX Eagle, 32t, Narrow-WideChain
SRAM GX Eagle
12sCassette
SRAM XG-1275 EAGLE
12s, 10-52tRims
Rear: DT SWISS EX511 27.5'' - Front: DT SWISS EX511 29''
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm, XD driver, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
DT SWISS Competition
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5" x 2.4", WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29" x 2.5", WT, 3C MaxxTerra, EXO, Tubeless ReadySeat post
KS Lev Integra
34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remoteSaddle
SDG Bel Air V3 Atmos
140 mm width, Lux-Alloy RailsWeight
15,6 kg / 34.39 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pure White
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, ZEB short fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 27''/29''
Frame material
AL 6066 T4, T6
Frame weight
3,9 kg / 8.59 lb
Rear travel
160 mm
Shock length/stroke
230 x 62,5 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 X 10 mm on shaft
Recommended/max. fork height
586 mm / 596 mm
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27.5’' : 68-584 mm - 29'' : 65-622 mm
Disc brake standard
POSTMOUNT 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 X 148 mm standard maxle

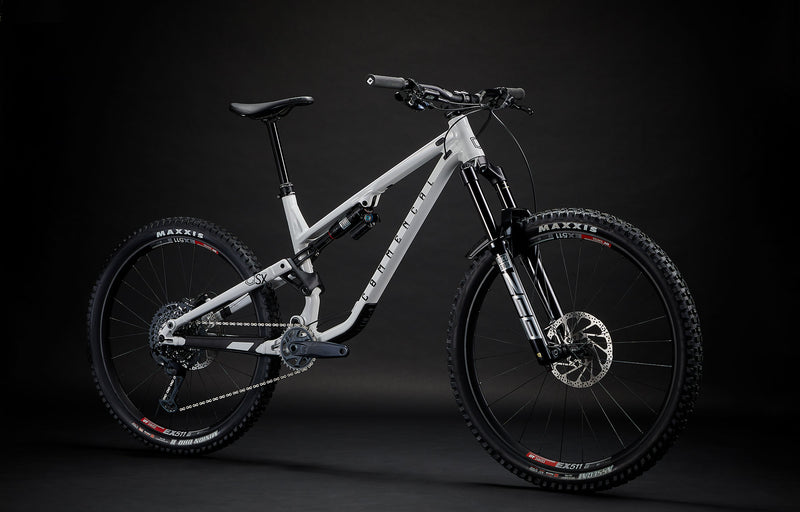

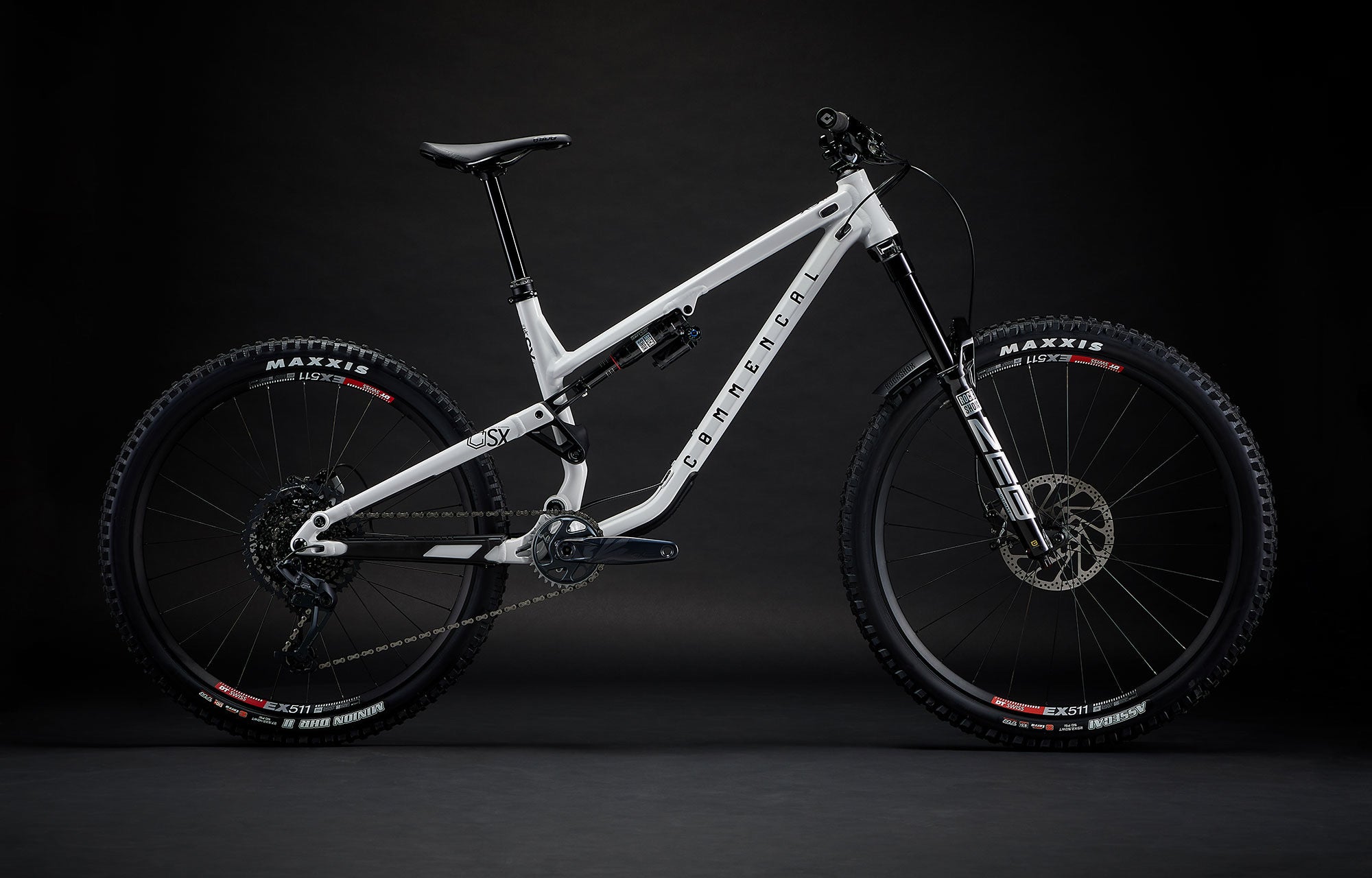

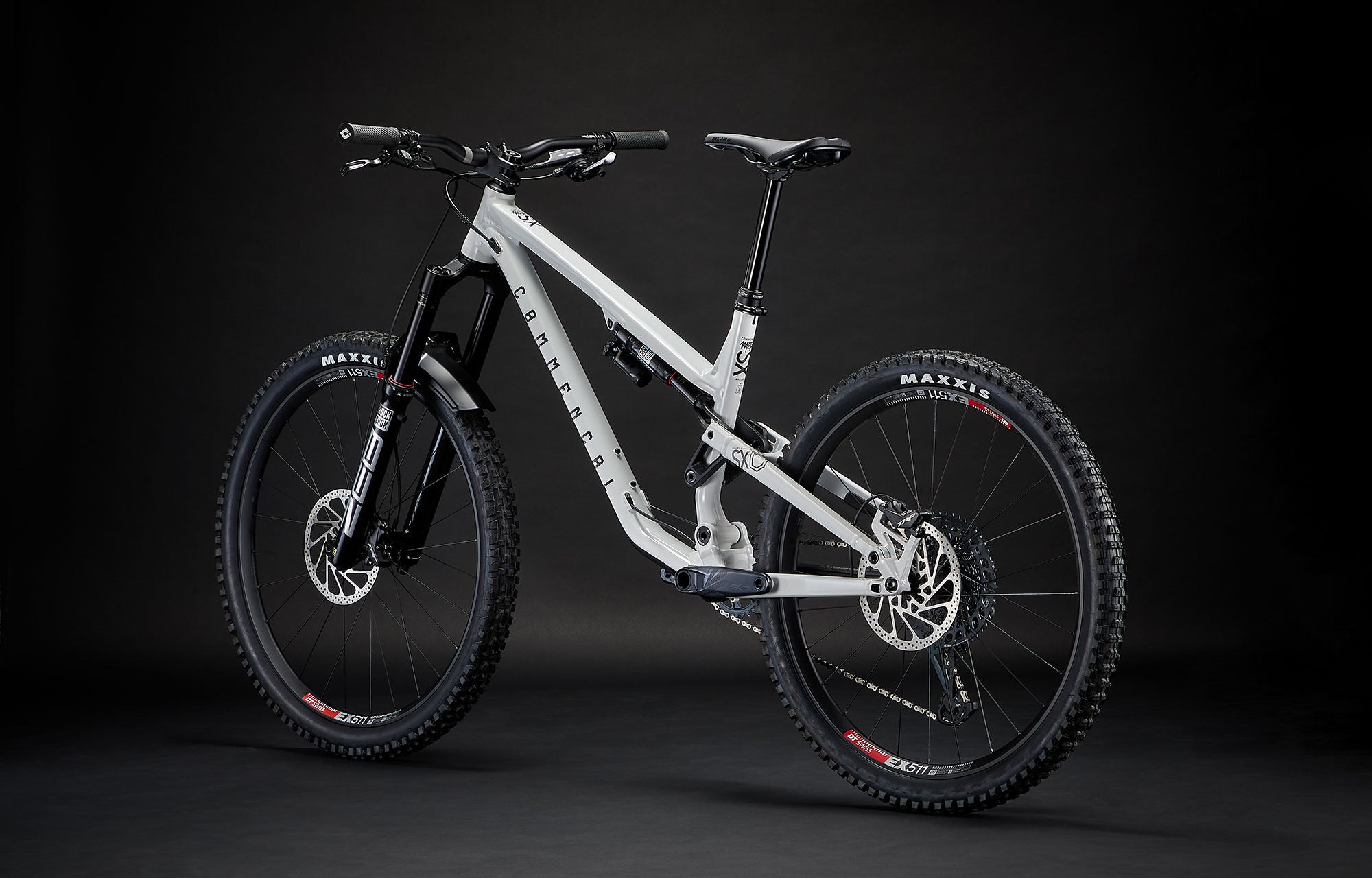

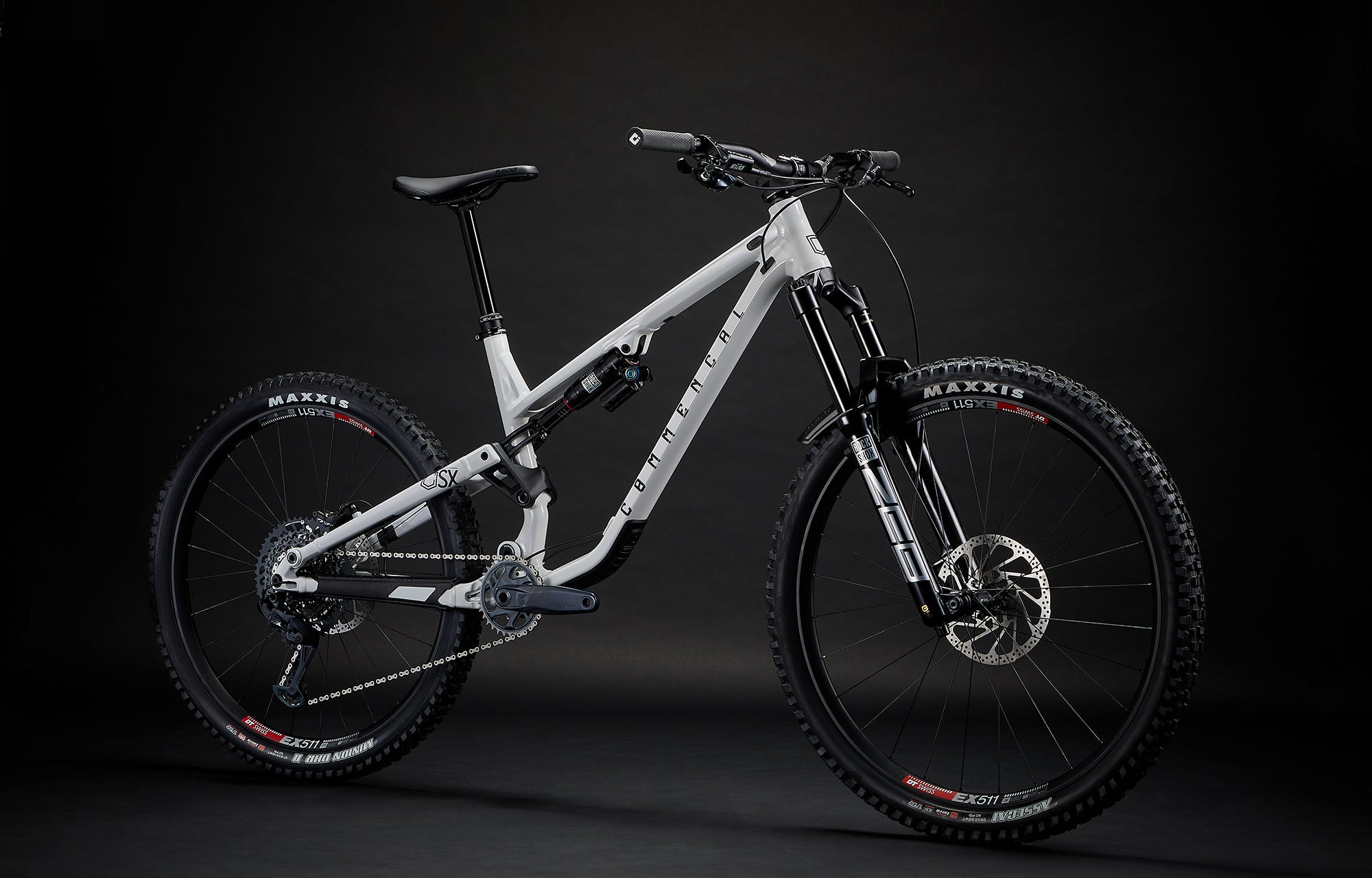

Built around a 160mm travel alloy frame with mixed wheel sizes, the META SX V4 RACE pairs a RockShox ZEB Ultimate fork with a Super Deluxe Ultimate shock for supreme control. SRAM GX Eagle 12-speed drivetrain, TRP DH-R Evo 4-piston brakes, and DT SWISS EX511 wheels deliver precise shifting, powerful stopping, and trail-tough reliability. MAXXIS tyres, KS dropper post, and SDG saddle round out a setup tuned for hard-hitting enduro lines and big mountain days.
Designed for serious enduro riding, the META SX V4 features an AL 6066 T4/T6 frame with 160 mm rear travel and a 230 x 62.5 mm shock. It’s piggyback compatible, built around a BB92 bottom bracket, and supports a 200 mm post mount brake with room for up to 220 mm rotors. The frame fits mixed wheels (27.5"/29"), uses ZS44/ZS56 headset dimensions, and has ISCG 05 tabs. Rear hub spacing is Boost 12x148 mm with a maxle.
