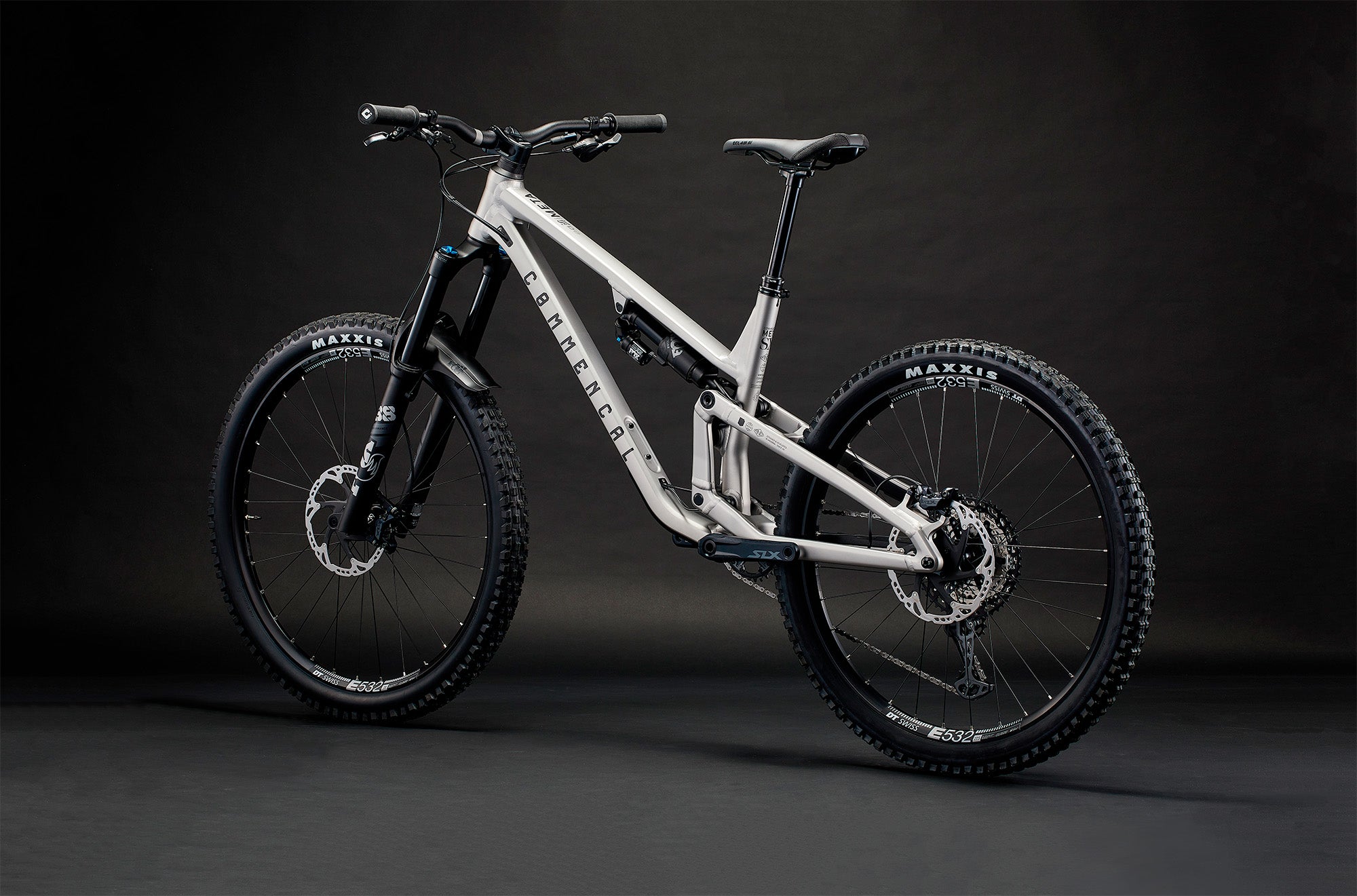

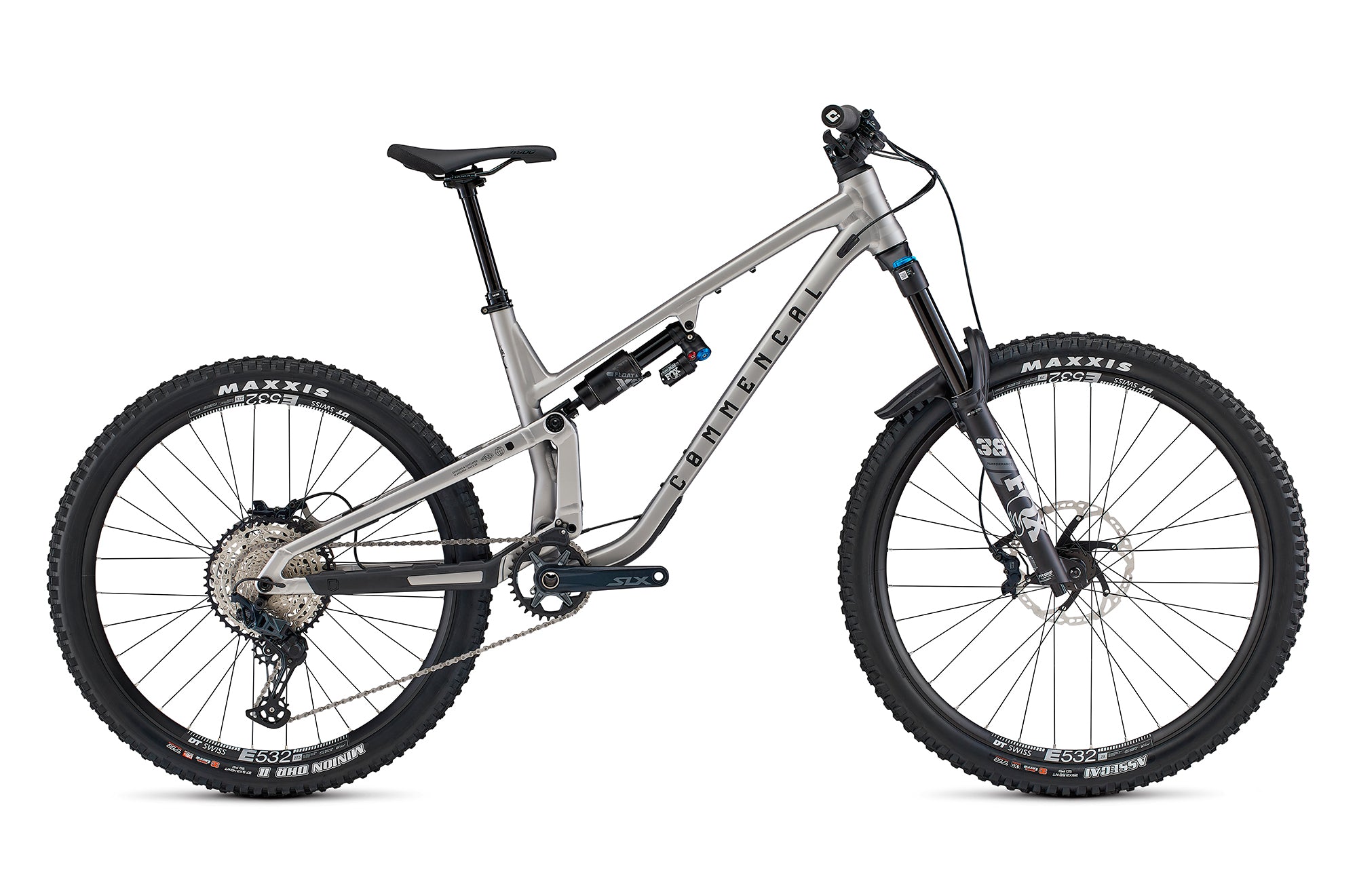

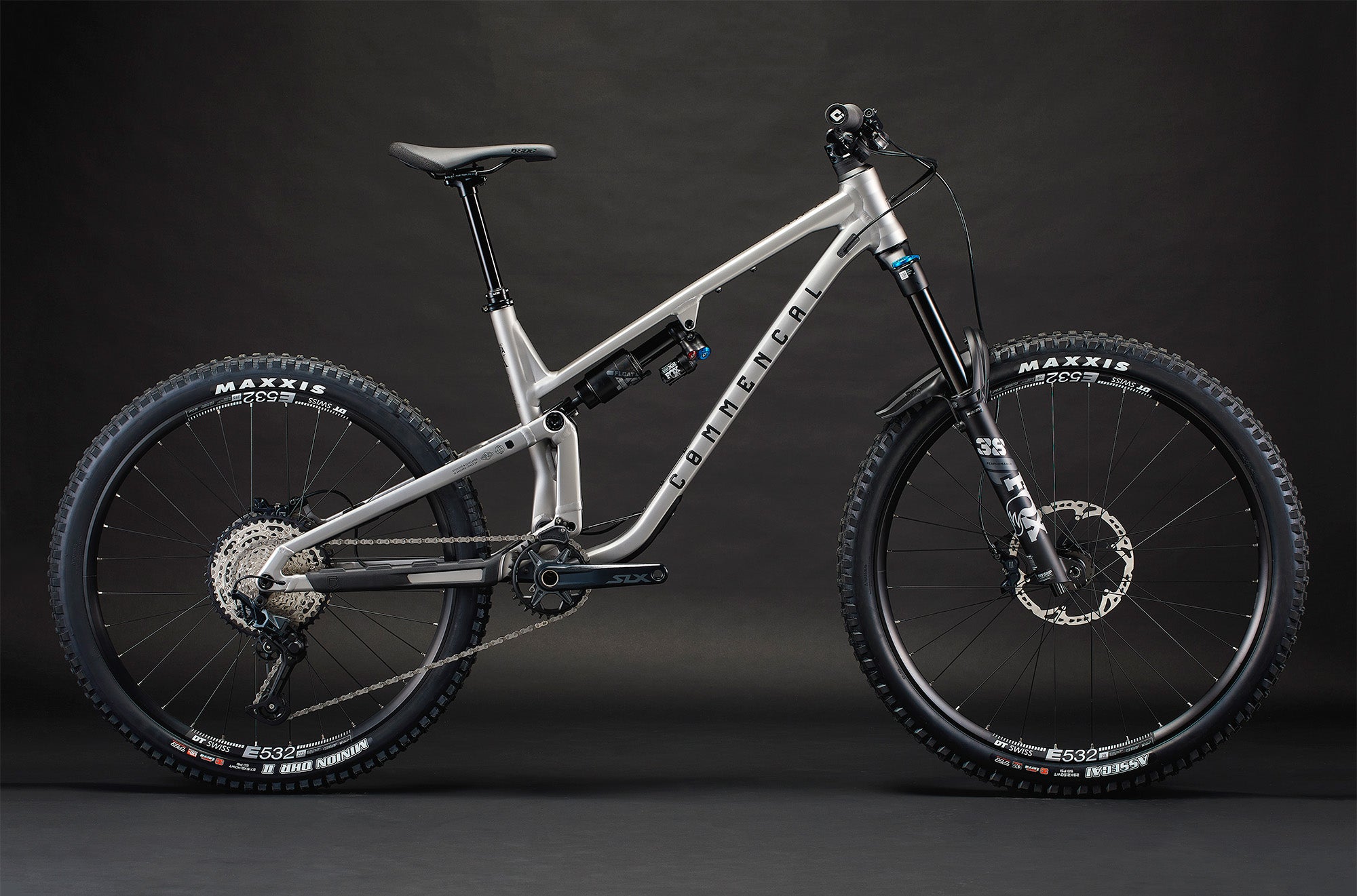

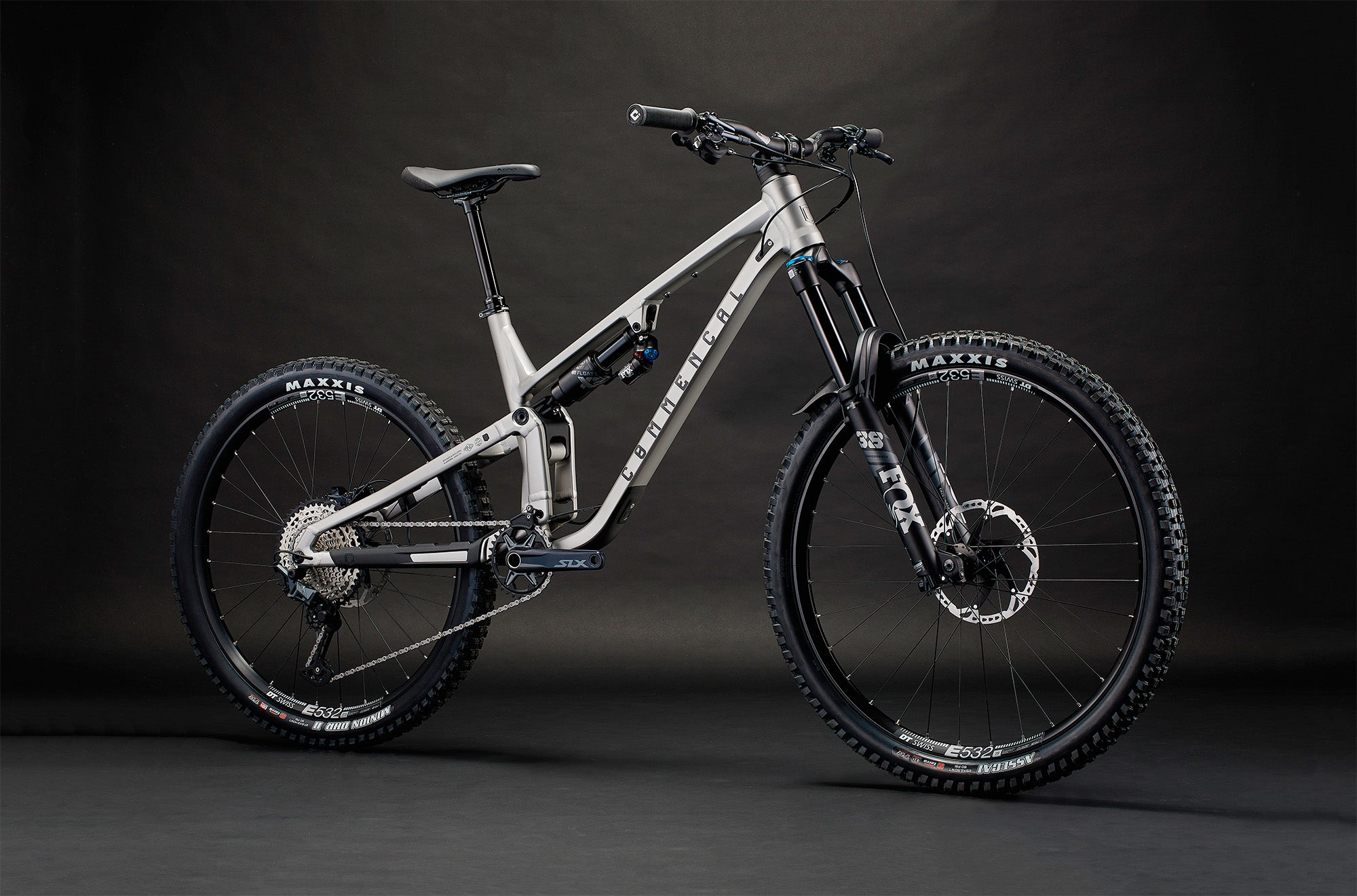

Commencal Meta SX V5 Essential Silver Enduro Bike
Frame
META SX V5, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6Shock

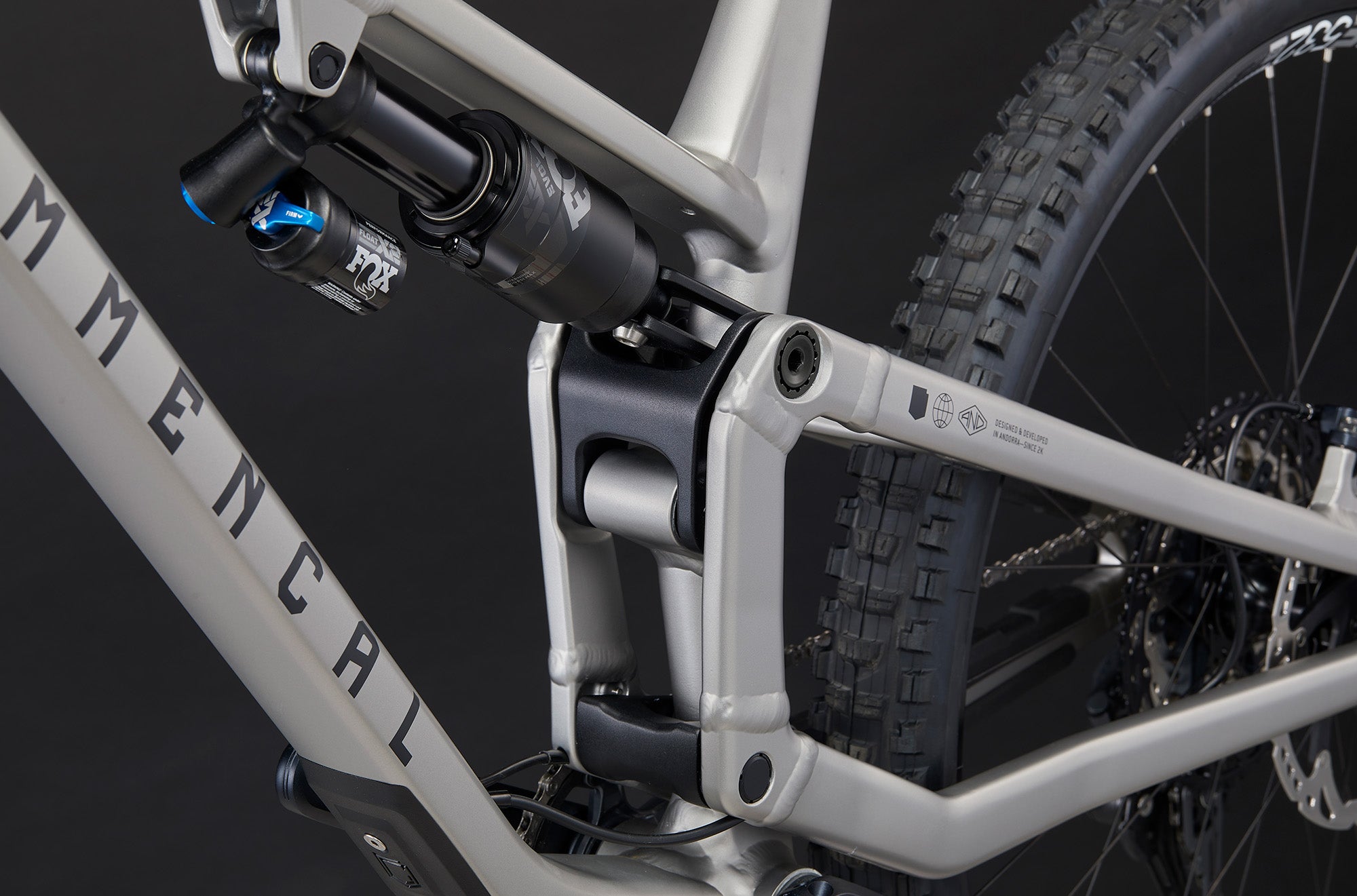

FOX Float X2 Performance
230 x 65 mm, 2-pos lever, LSC, LSR, 0.3 spacer x2Fork

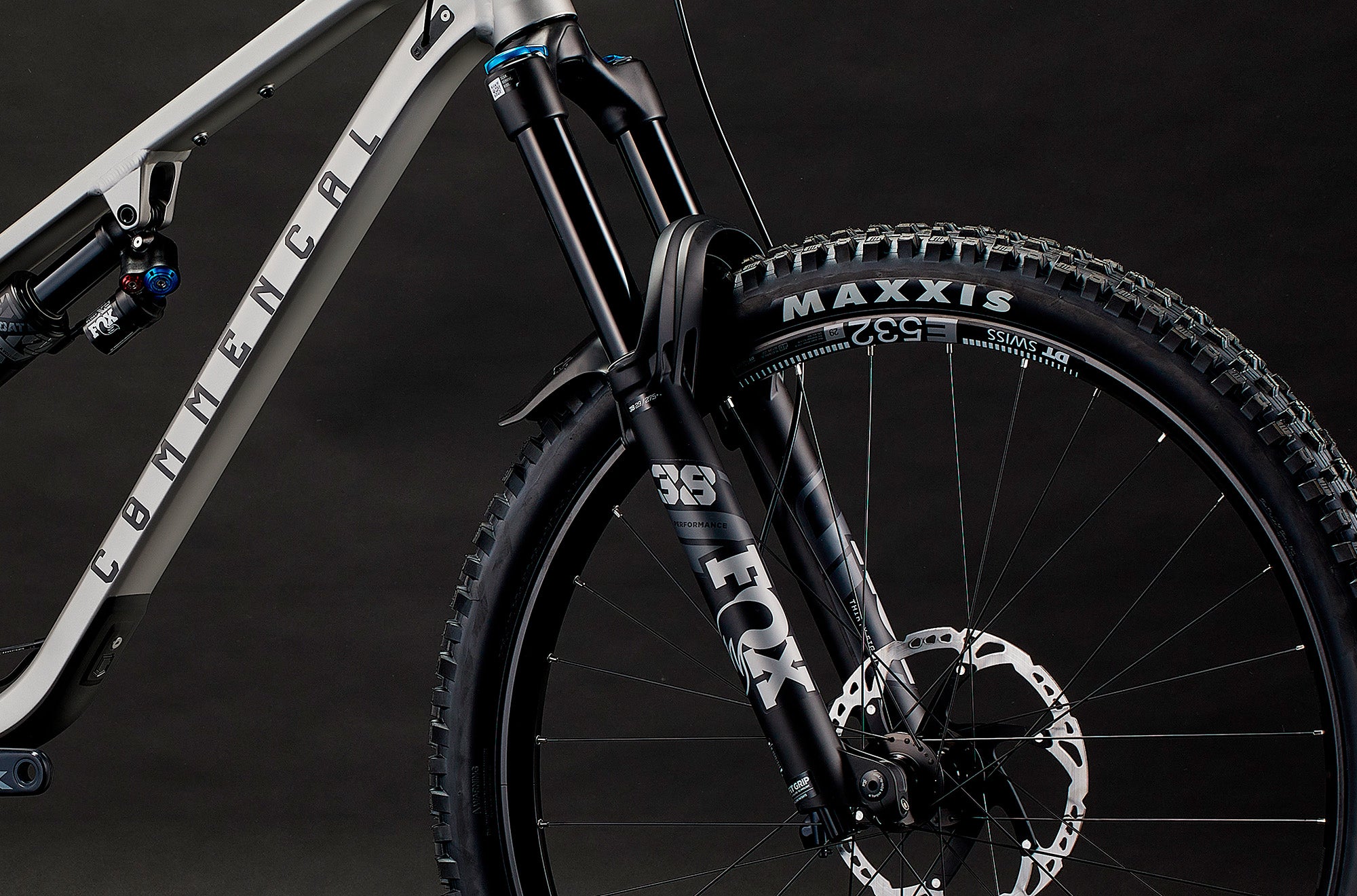

FOX 38 Performance, 170 mm travel
29", Fit Grip damper, 3 positions, compression, rebound, Boost (15 x 110 mm), 44 mm offset, 2 spacersHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem

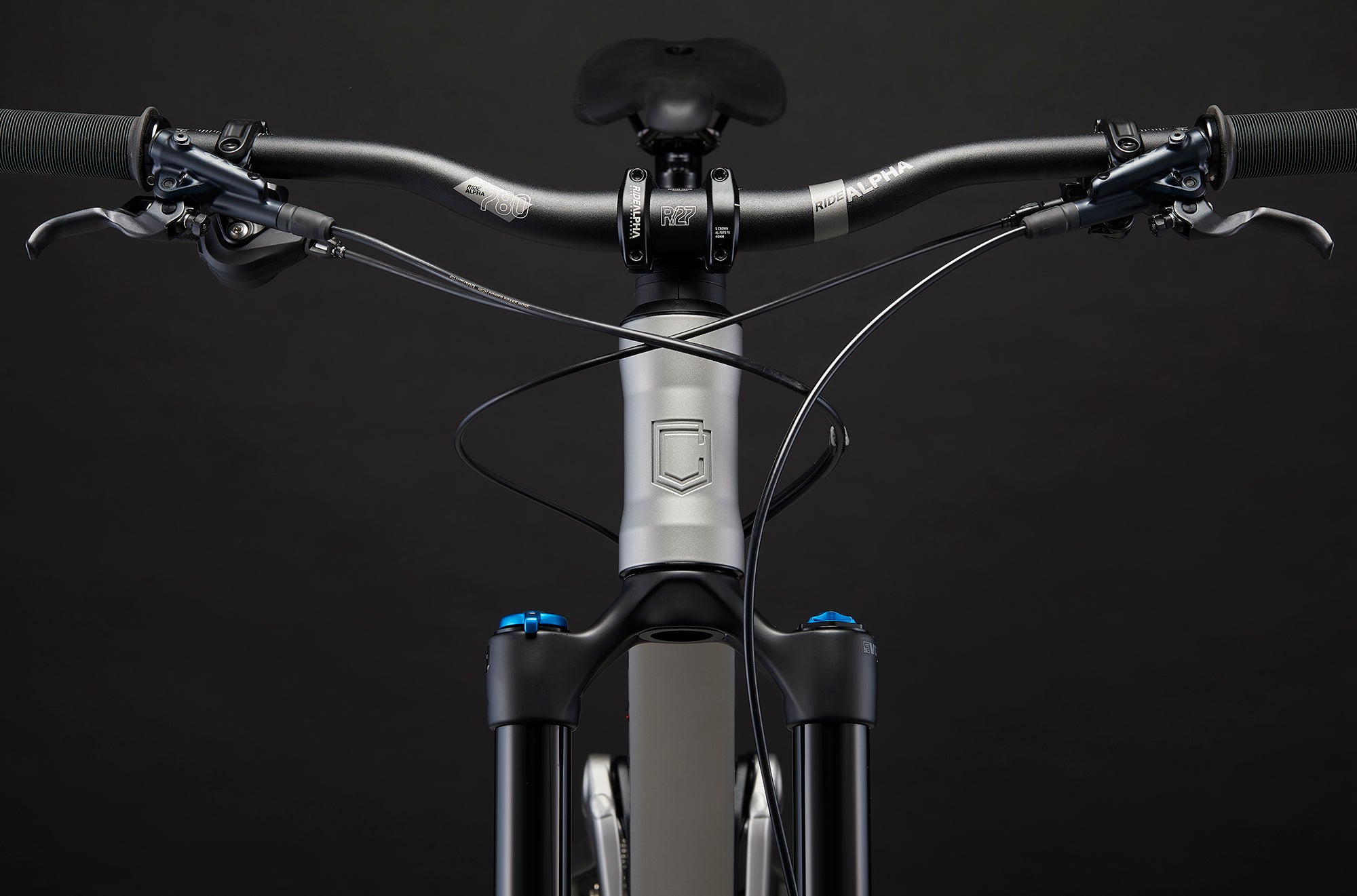

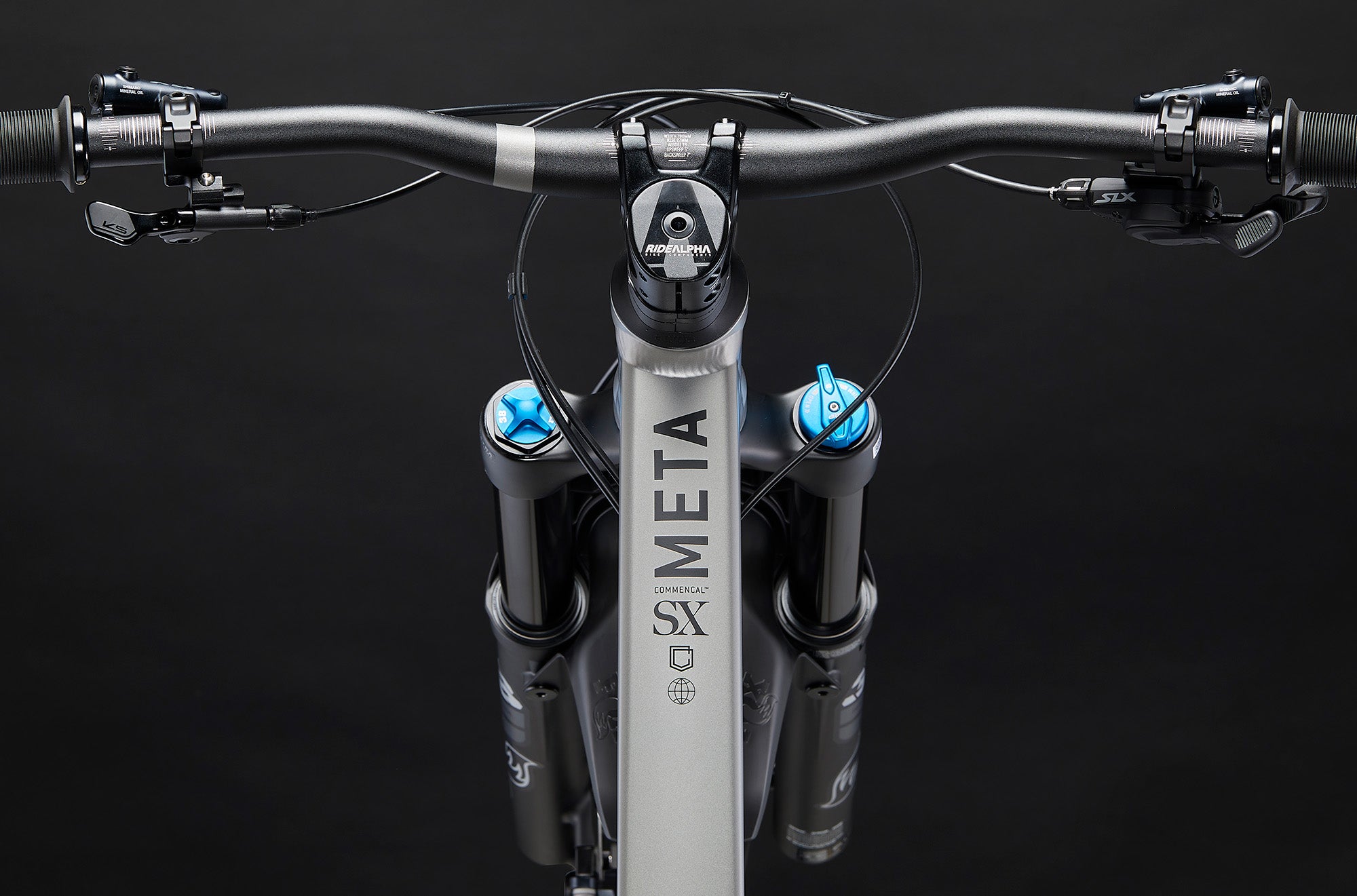

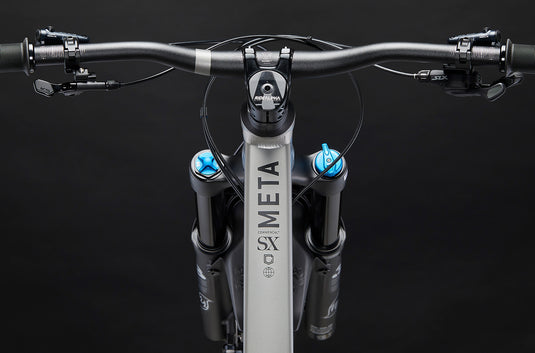

RIDE ALPHA 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
SHIMANO SLX, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO SM-RT76 203 mm, 6 holesShifters
SHIMANO SLX
12sREAR DERAILLEUR
SHIMANO SLX
12sBottom bracket
SHIMANO BB71
PressfitCrankset

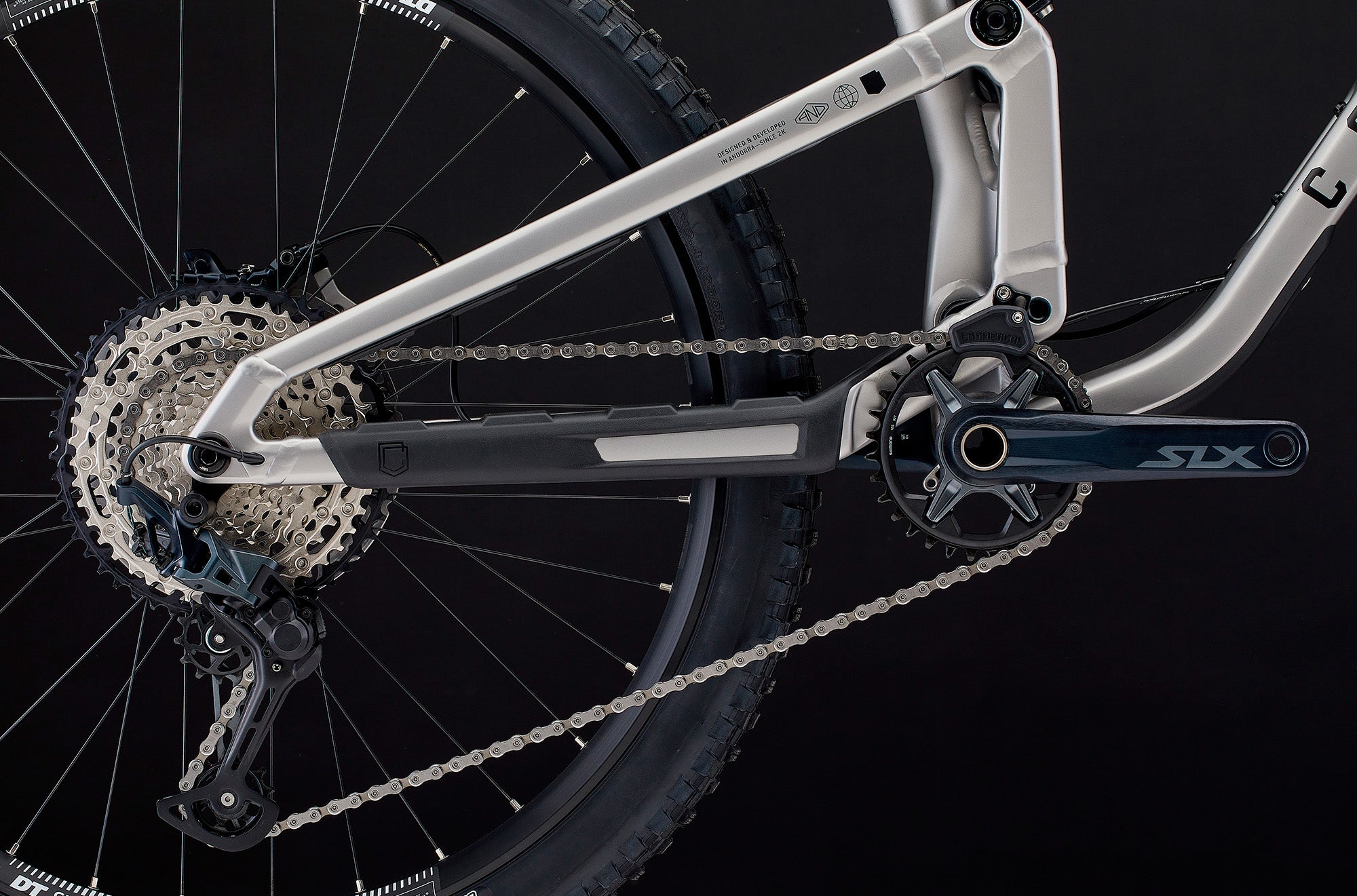

SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO SLX
12sCassette
SHIMANO SLX
12s, 10-51tRims
DT SWISS E 532
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Micro Spline - Front: 32h, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5"x2.4" WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29"x2.5" WT, 3C MaxxTerra, EXO, Tubeless ReadySeat post
KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remoteSaddle
SDG Bel Air V3
140 mm width, steel railsWeight
16.4 kg / 36.2 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Silver
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 27/29"
Frame material
AL 6066 T4, T6
Frame weight
3,3 kg / 7.27 lb, raw without accessories
Rear travel
165 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON BODY / 20 X 10 mm ON SHAFT
Recommended/max. fork height
586 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 721
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
52 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle


Frame
META SX V5, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6Shock
FOX Float X2 Performance
230 x 65 mm, 2-pos lever, LSC, LSR, 0.3 spacer x2Fork
FOX 38 Performance, 170 mm travel
29", Fit Grip damper, 3 positions, compression, rebound, Boost (15 x 110 mm), 44 mm offset, 2 spacersHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
SHIMANO SLX, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO SM-RT76 203 mm, 6 holesShifters
SHIMANO SLX
12sREAR DERAILLEUR
SHIMANO SLX
12sBottom bracket
SHIMANO BB71
PressfitCrankset
SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO SLX
12sCassette
SHIMANO SLX
12s, 10-51tRims
DT SWISS E 532
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Micro Spline - Front: 32h, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5"x2.4" WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29"x2.5" WT, 3C MaxxTerra, EXO, Tubeless ReadySeat post
KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remoteSaddle
SDG Bel Air V3
140 mm width, steel railsWeight
16.4 kg / 36.2 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Silver
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 27/29"
Frame material
AL 6066 T4, T6
Frame weight
3,3 kg / 7.27 lb, raw without accessories
Rear travel
165 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON BODY / 20 X 10 mm ON SHAFT
Recommended/max. fork height
586 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 721
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
52 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle



Armed with 165mm rear travel and a FOX 38 Performance fork, this alloy enduro machine is tuned for aggressive riding with Shimano SLX 12-speed shifting and 4-piston brakes. A Float X2 Performance shock delivers supple control, while DT Swiss E 532 rims and Maxxis rubber (Assegai up front, DHR II rear) give you the grip and durability to hold any line. Finished with a KS dropper and SDG saddle, it’s a bombproof setup that’s ready for big mountain days and wild park laps.

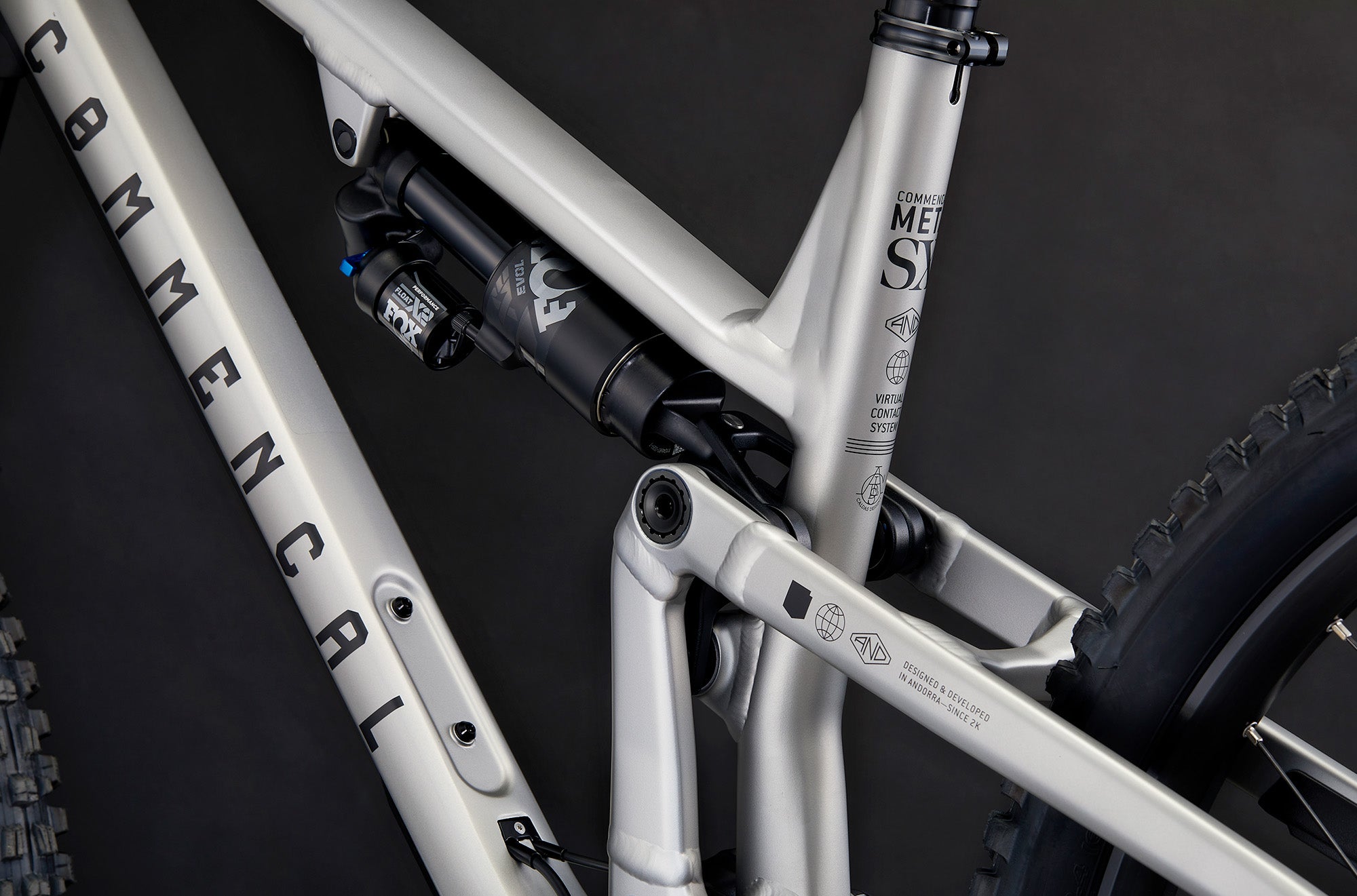

Built around a tough AL 6066 T4/T6 alloy frame with 165mm rear travel, this enduro chassis blends strength and precision. Compatible with piggyback shocks and integrated cable routing, it’s optimised for aggressive setups with a 230x65mm shock, 200–223mm rotor clearance, and ISCG 05 tabs. A Press Fit BB92, 34.9mm seatpost, and 12x148mm Boost rear hub round out the build, with geometry tuned for a mixed wheel setup and 64mm max tyre width.
