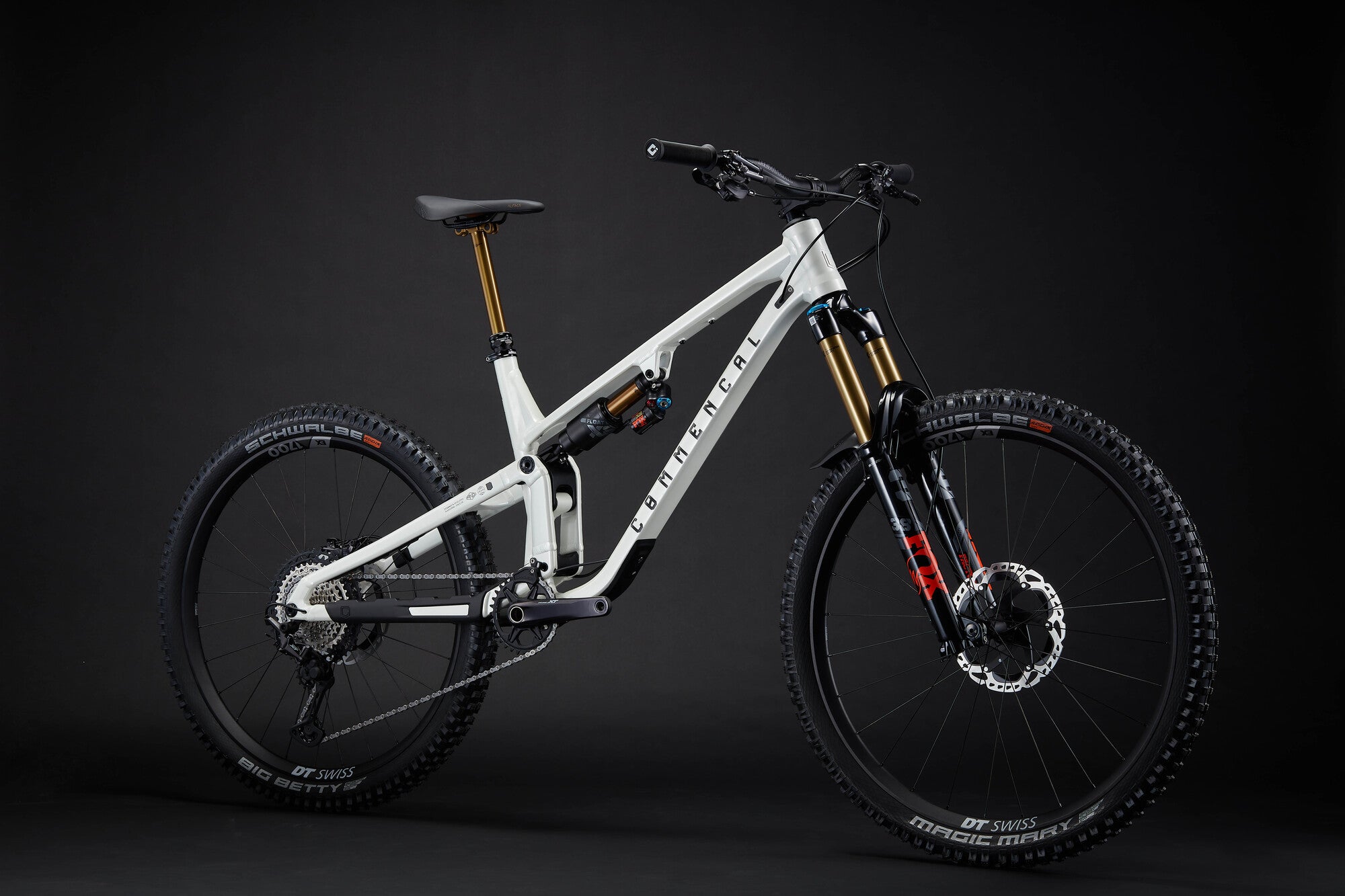

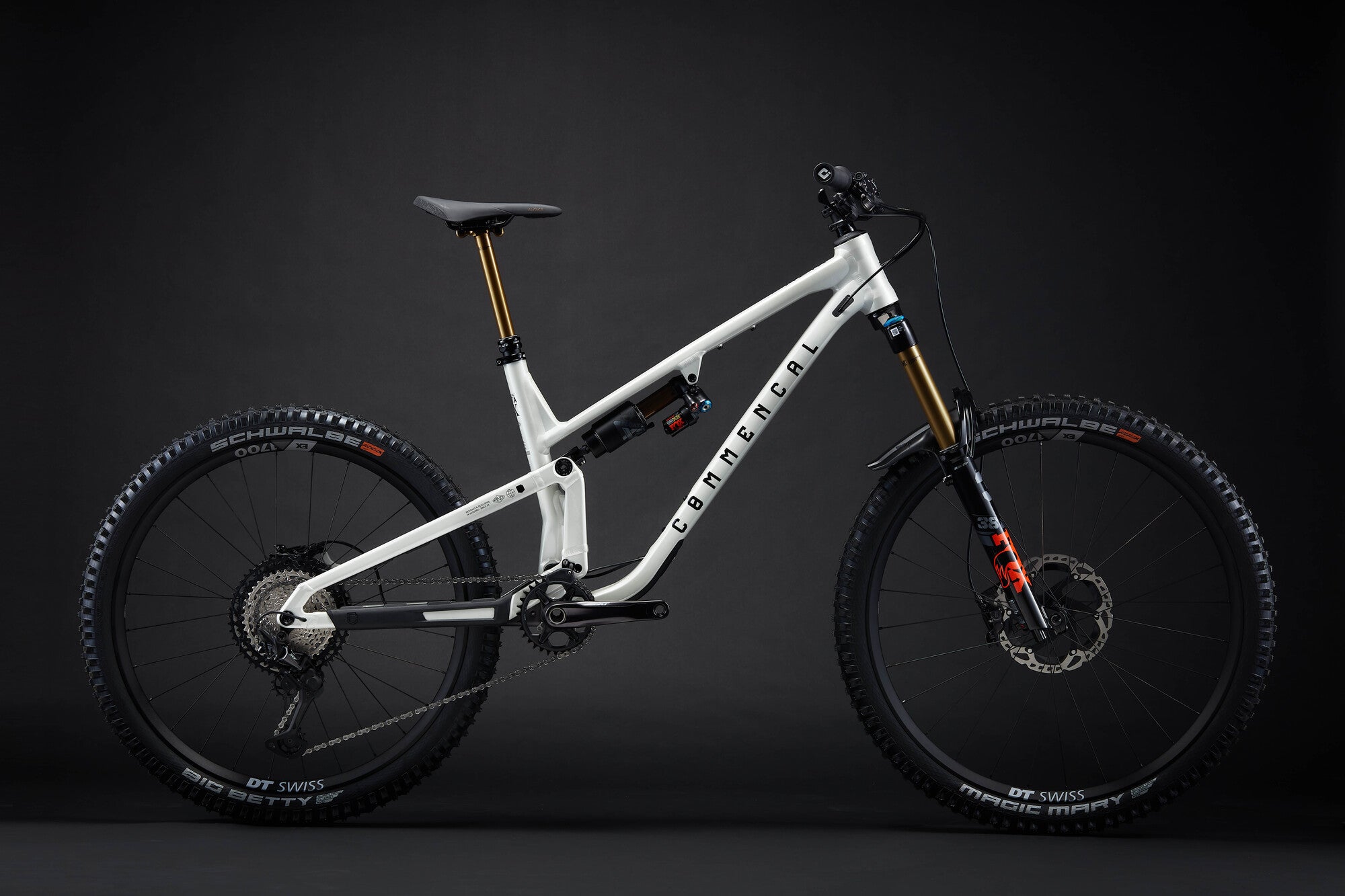

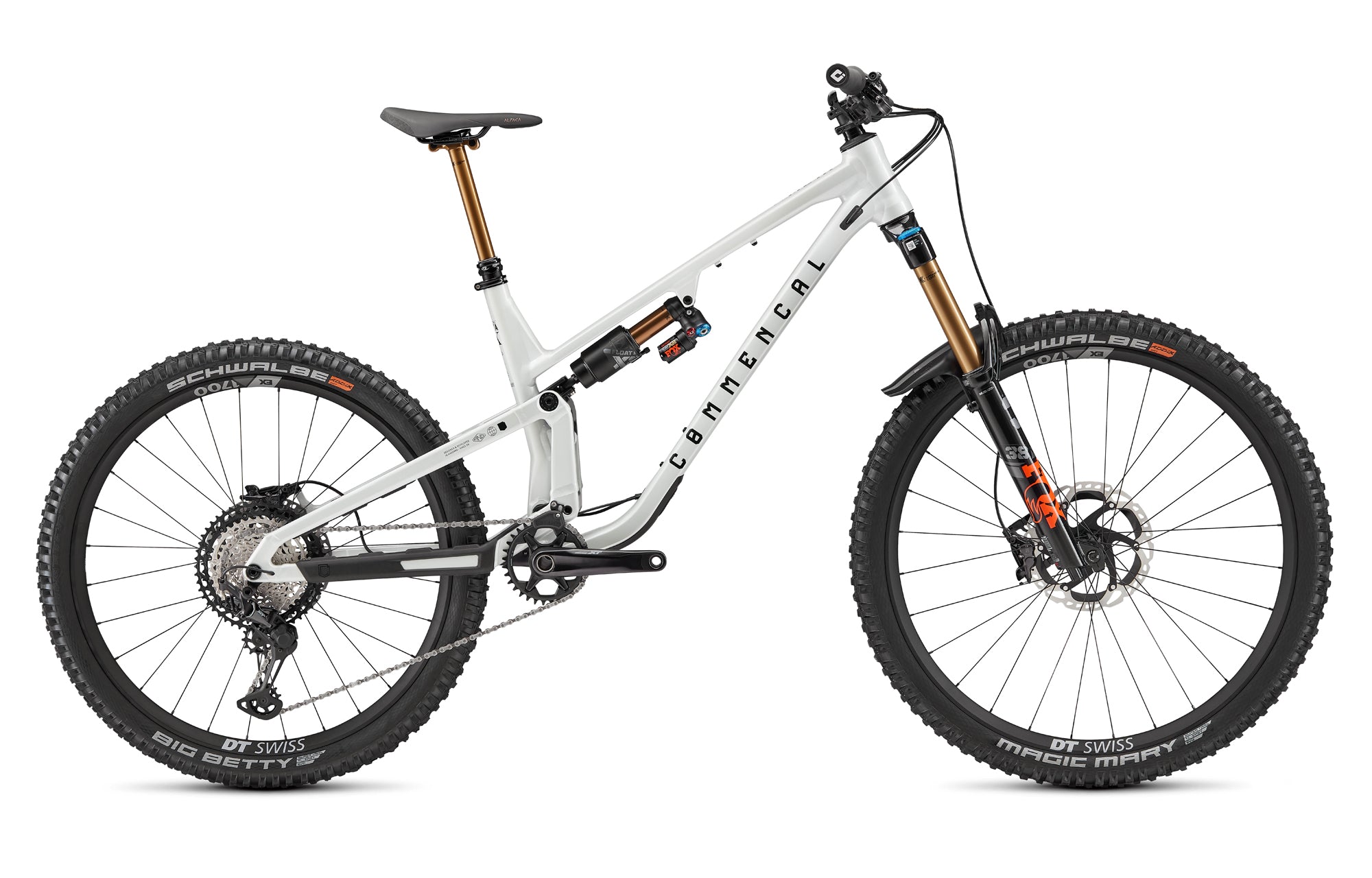

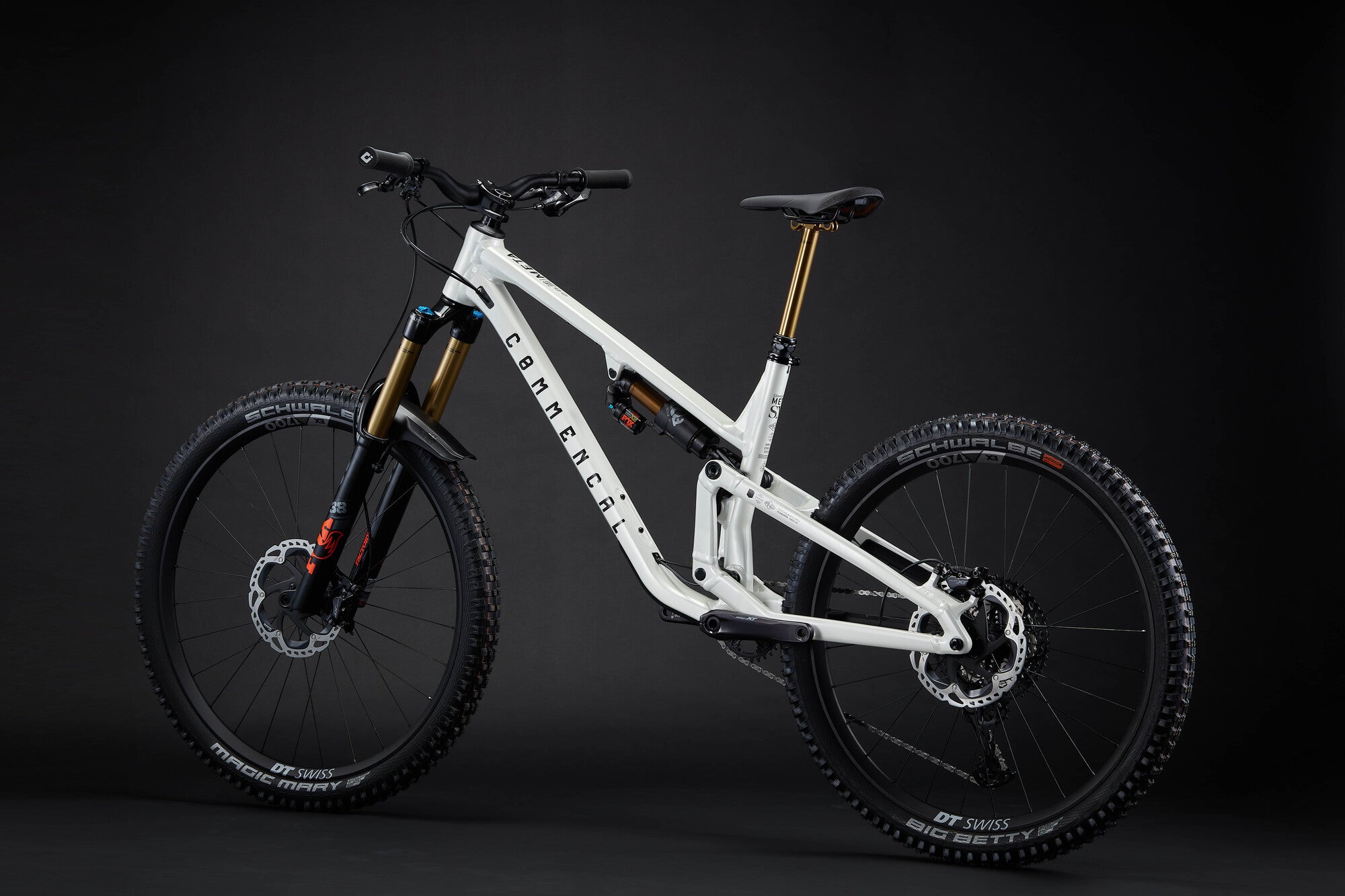

Commencal META SX V5 Signature Clear Silver Enduro Bike
Frame
META SX V5, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6Shock

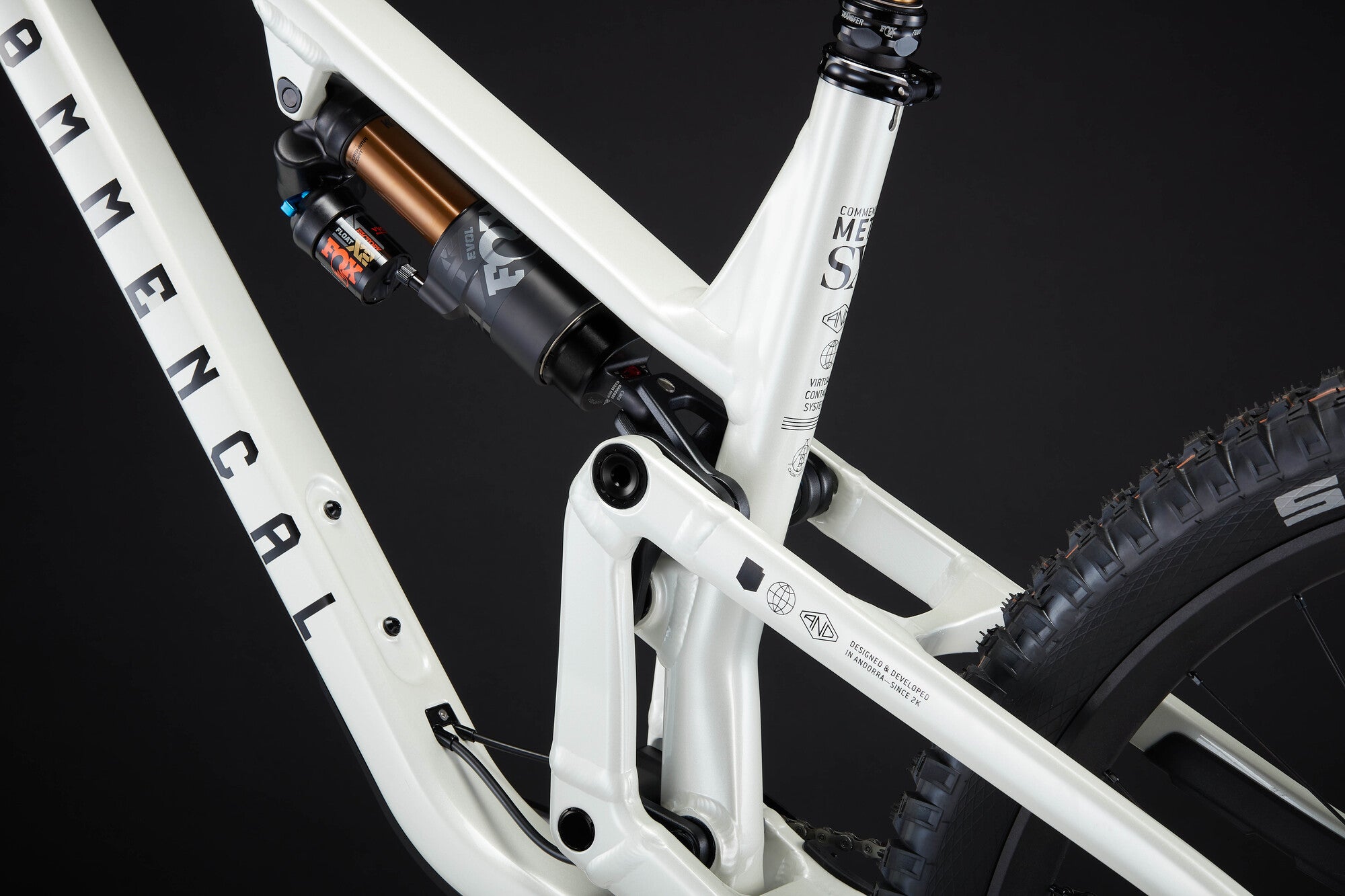

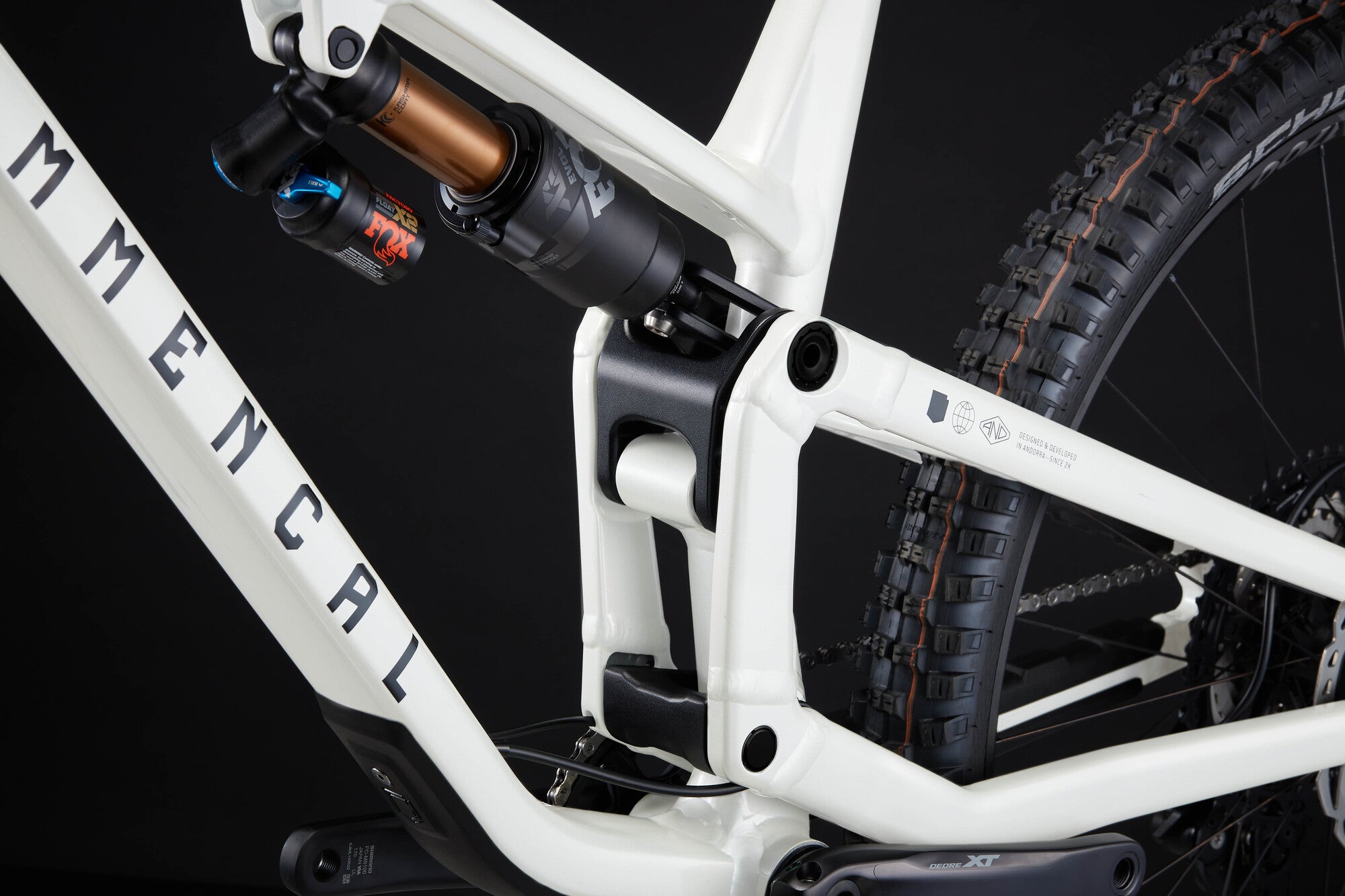

FOX Float X2 Factory
230 x 65 mm, HSC, LSC, HSR, LSR, 2-postion adjustment, 0.3 spacer x2Fork

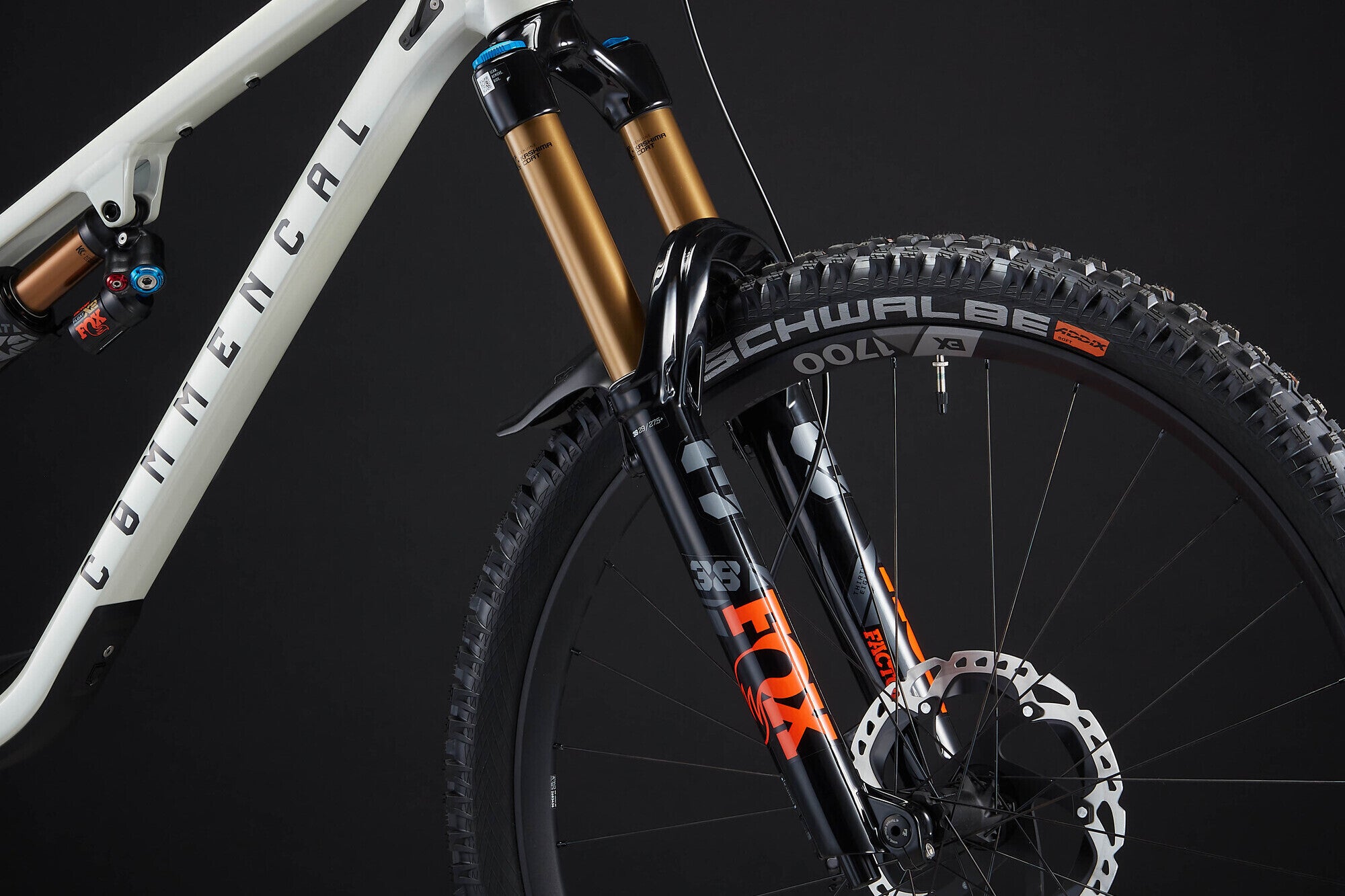

FOX 38 Factory, 170 mm travel
29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 2 spacersHeadset

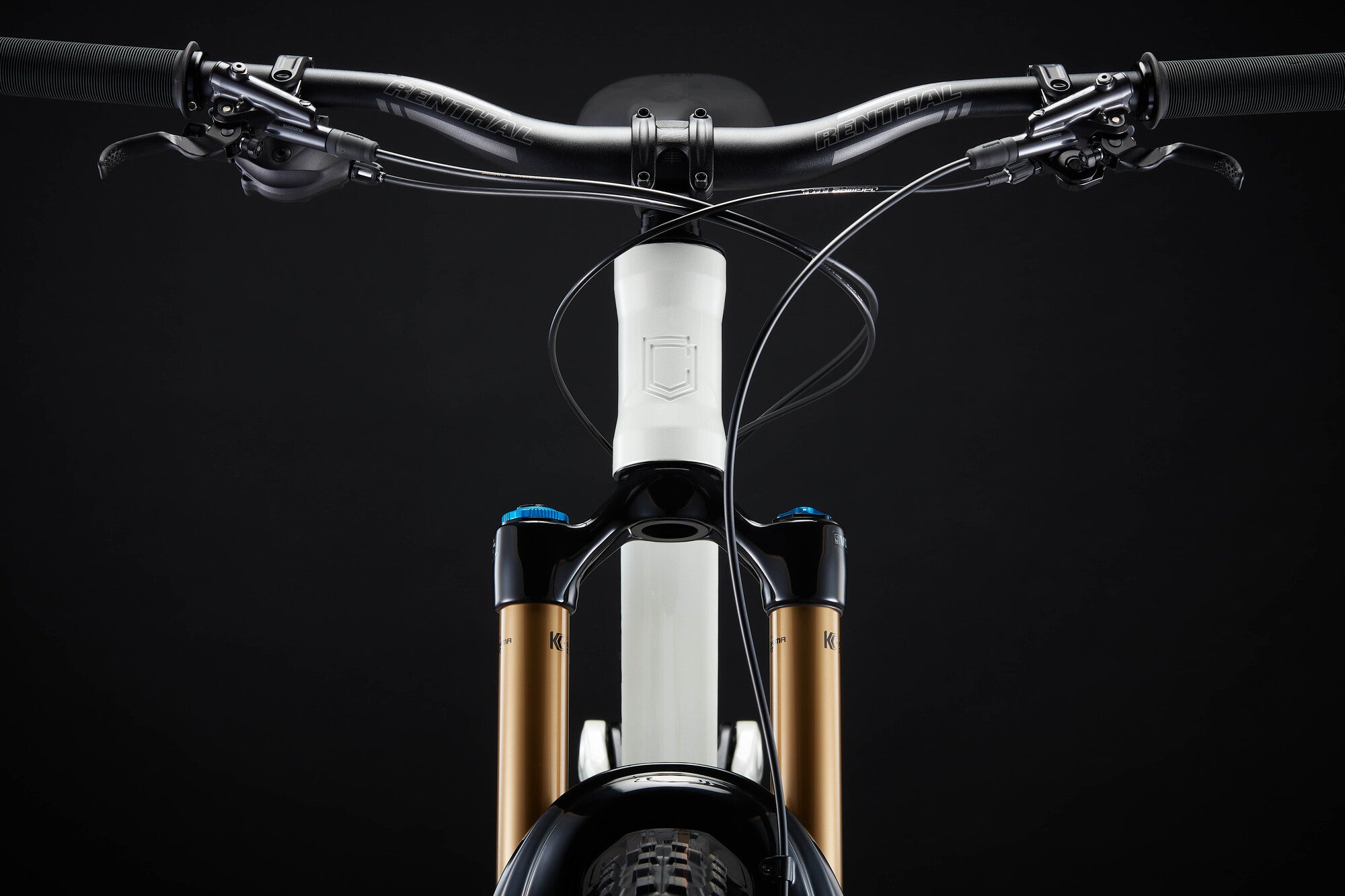

ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem

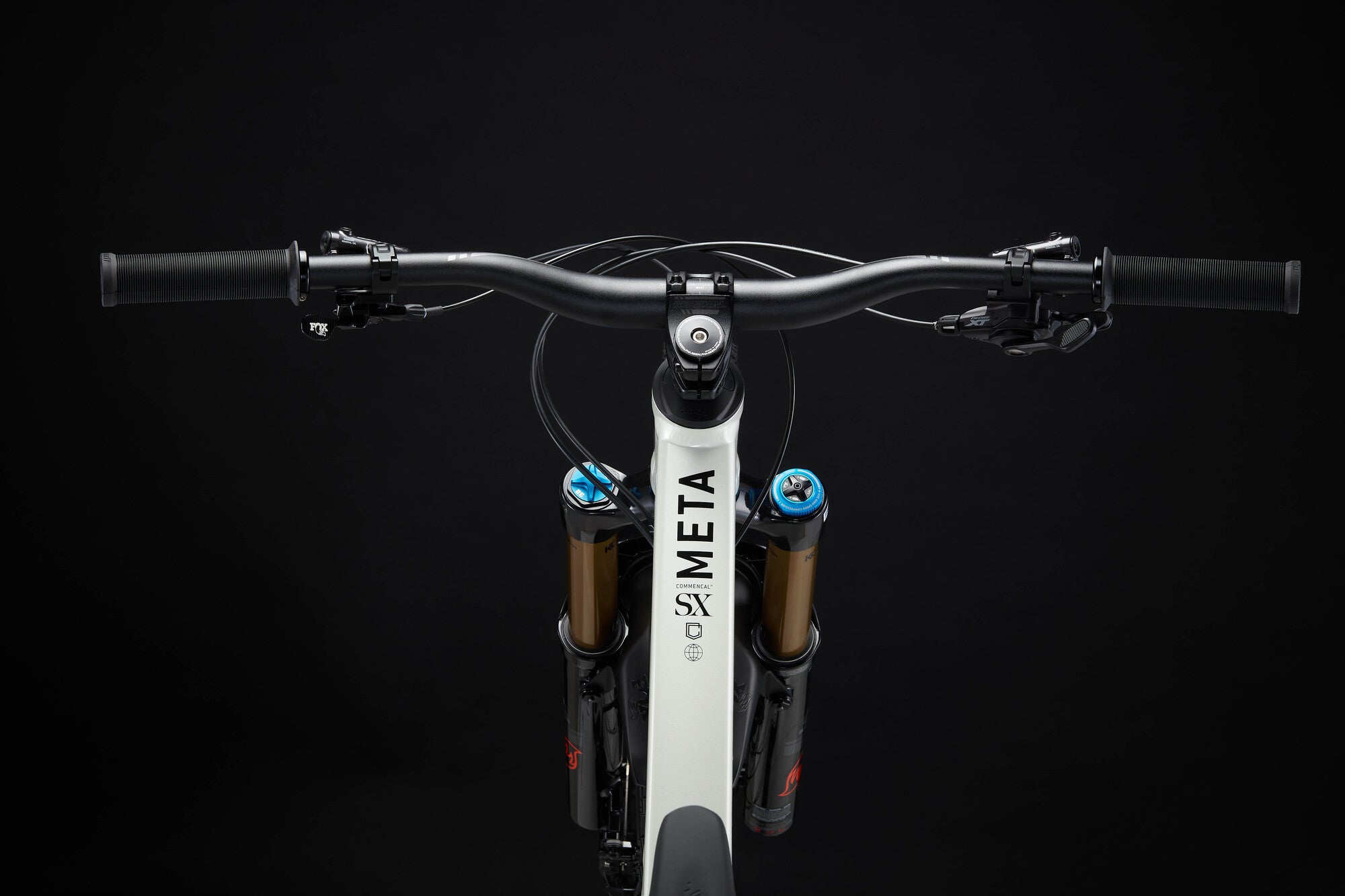

RENTHAL 40
40 mm extension, 35 mmHandlebar

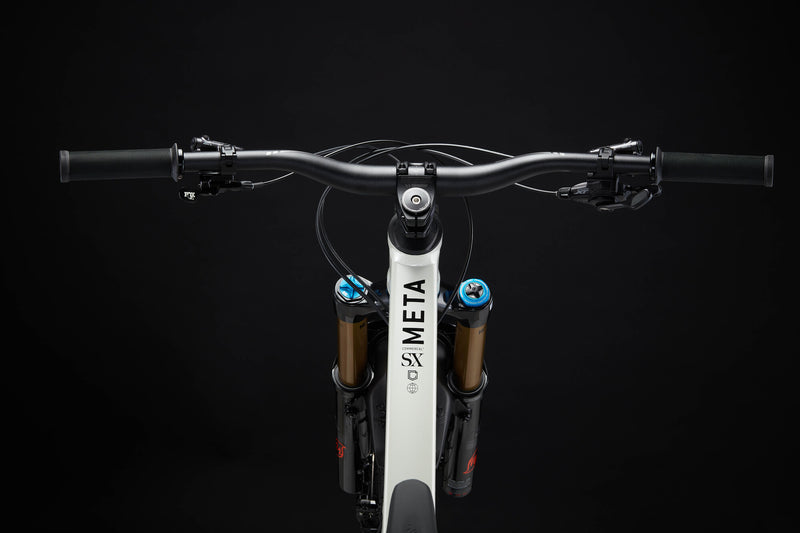

RENTHAL 760 on S - RENTHAL 780 on M / L - RENTHAL 800 on XL
35 mm, 760 mm width, 20 mm rise, Alloy 2014 on S - 35 mm, 780 mm width, 30 mm rise, Alloy 2014 on M / L - 35 mm, 800 mm width, 30 mm rise, Alloy 2014 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
SHIMANO XT, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO RT-MT905 203 mm, 6-bolt, Ice Technology FreezaShifters
SHIMANO Deore XT
12sREAR DERAILLEUR
SHIMANO XT
12sBottom bracket
SHIMANO BBMT800
PressfitCrankset

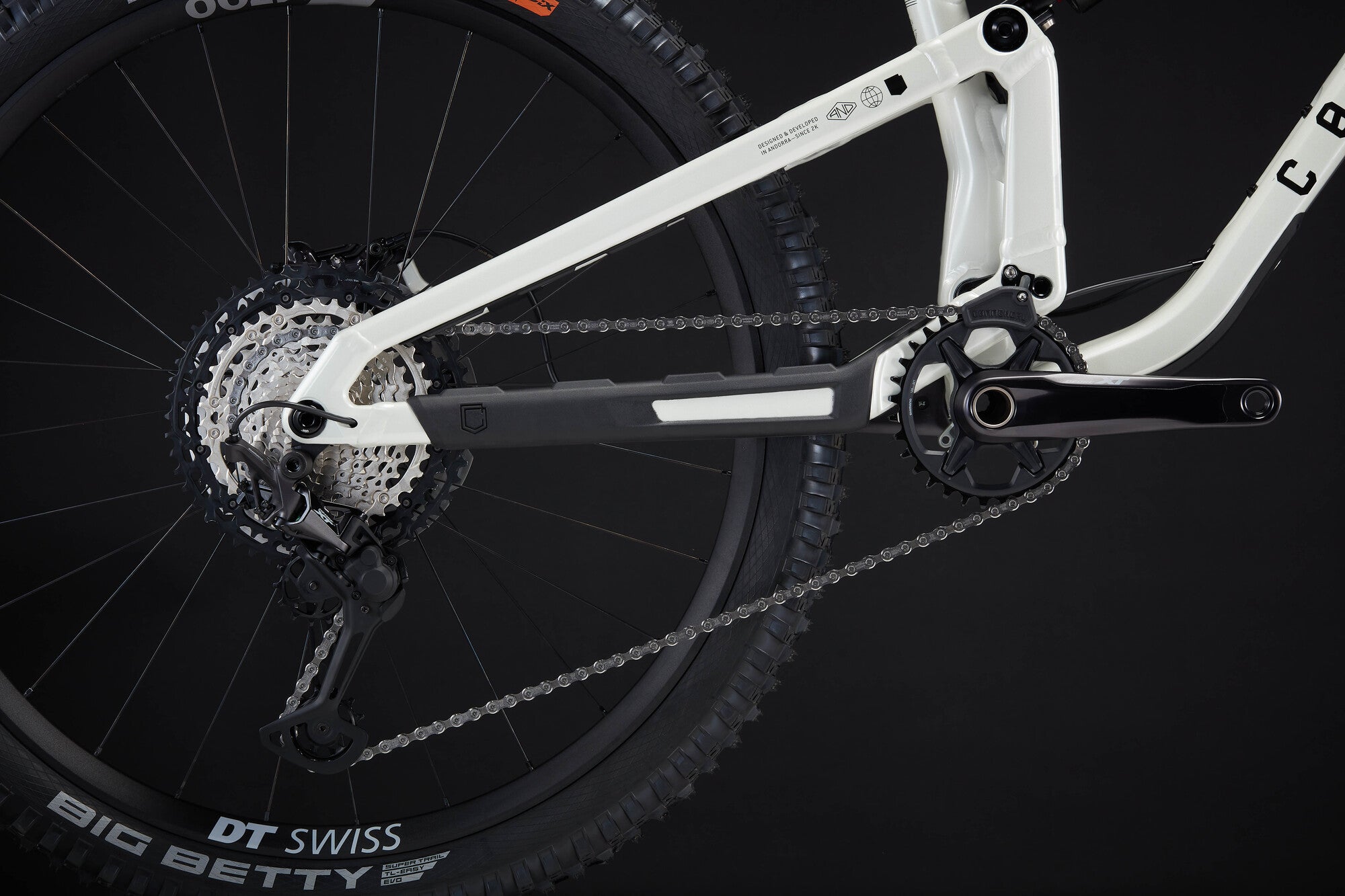

SHIMANO Deore XT, 170 mm crank arms, Boost
Chainring: SHIMANO Deore XT, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO Deore XT
12sCassette
SHIMANO Deore XT
12s, 10-51tRims
DT SWISS EX 1700
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm, MicroSpline, 54t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
DT SWISS Competition
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with ProLock, blackTyres
Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
Rear: 27.5"x2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29"x2.4", Super Trail, Addix Soft, Tubeless EasySeat post
FOX Transfer Factory
31.6 mm, travel: 125 mm on S, 175 mm on M/L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mmSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
15,8 kg / 34.83 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Clear Silver
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 27/29"
Frame material
AL 6066 T4, T6
Frame weight
3,3 kg / 7.27 lb, raw without accessories
Rear travel
165 mm

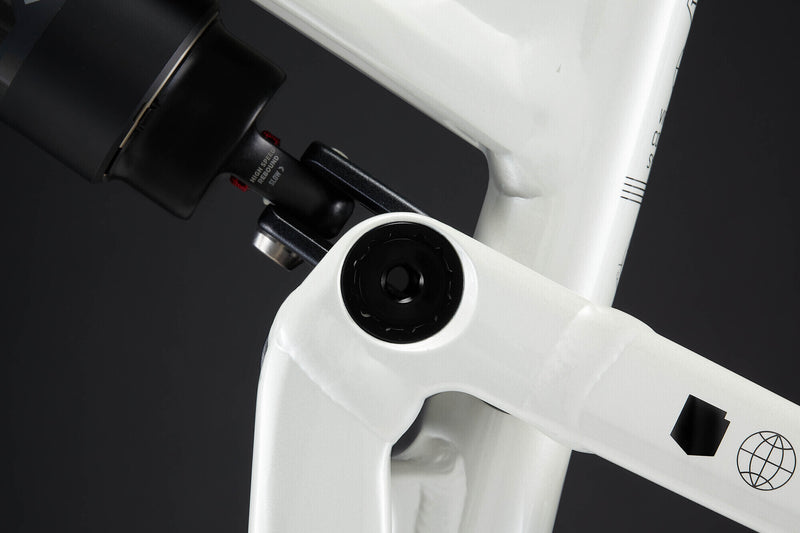

Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON BODY / 20 X 10 mm ON SHAFT
Recommended/max. fork height
586 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 721
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,6 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
52 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle


Frame
META SX V5, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6Shock
FOX Float X2 Factory
230 x 65 mm, HSC, LSC, HSR, LSR, 2-postion adjustment, 0.3 spacer x2Fork
FOX 38 Factory, 170 mm travel
29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 2 spacersHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RENTHAL 40
40 mm extension, 35 mmHandlebar
RENTHAL 760 on S - RENTHAL 780 on M / L - RENTHAL 800 on XL
35 mm, 760 mm width, 20 mm rise, Alloy 2014 on S - 35 mm, 780 mm width, 30 mm rise, Alloy 2014 on M / L - 35 mm, 800 mm width, 30 mm rise, Alloy 2014 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
SHIMANO XT, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO RT-MT905 203 mm, 6-bolt, Ice Technology FreezaShifters
SHIMANO Deore XT
12sREAR DERAILLEUR
SHIMANO XT
12sBottom bracket
SHIMANO BBMT800
PressfitCrankset
SHIMANO Deore XT, 170 mm crank arms, Boost
Chainring: SHIMANO Deore XT, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO Deore XT
12sCassette
SHIMANO Deore XT
12s, 10-51tRims
DT SWISS EX 1700
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm, MicroSpline, 54t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
DT SWISS Competition
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with ProLock, blackTyres
Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
Rear: 27.5"x2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29"x2.4", Super Trail, Addix Soft, Tubeless EasySeat post
FOX Transfer Factory
31.6 mm, travel: 125 mm on S, 175 mm on M/L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mmSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
15,8 kg / 34.83 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Clear Silver
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 27/29"
Frame material
AL 6066 T4, T6
Frame weight
3,3 kg / 7.27 lb, raw without accessories
Rear travel
165 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON BODY / 20 X 10 mm ON SHAFT
Recommended/max. fork height
586 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 721
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,6 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
52 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle



The META SX V5 Signature spec list reads like a rider’s dream sheet. FOX Factory suspension front and rear keeps your lines dialled, while a full SHIMANO XT groupset offers flawless shifting and four-piston stopping power. DT SWISS EX 1700 wheels (mullet setup) pair perfectly with SCHWALBE Magic Mary and Big Betty tyres for all-terrain domination. RENTHAL cockpit, ODI grips, and a FIZIK saddle round out the build. Finished in gleaming Clear Silver, this setup means business
The META SX V5 is built for full-send Enduro antics, with a mullet-friendly AL 6066 frame weighing in at just 3.3kg raw—light enough to float, tough enough to plough. You get 165mm of rear travel paired with 230x65mm shock sizing, fully piggy-back compatible and bushing-ready. ZS56 integrated headset with internal cable routing keeps it clean. BB92, ISCG 05, and 223mm rotor max scream “race-ready.” With 52mm chain line and 12x148 rear hub spacing, this frame means business.
