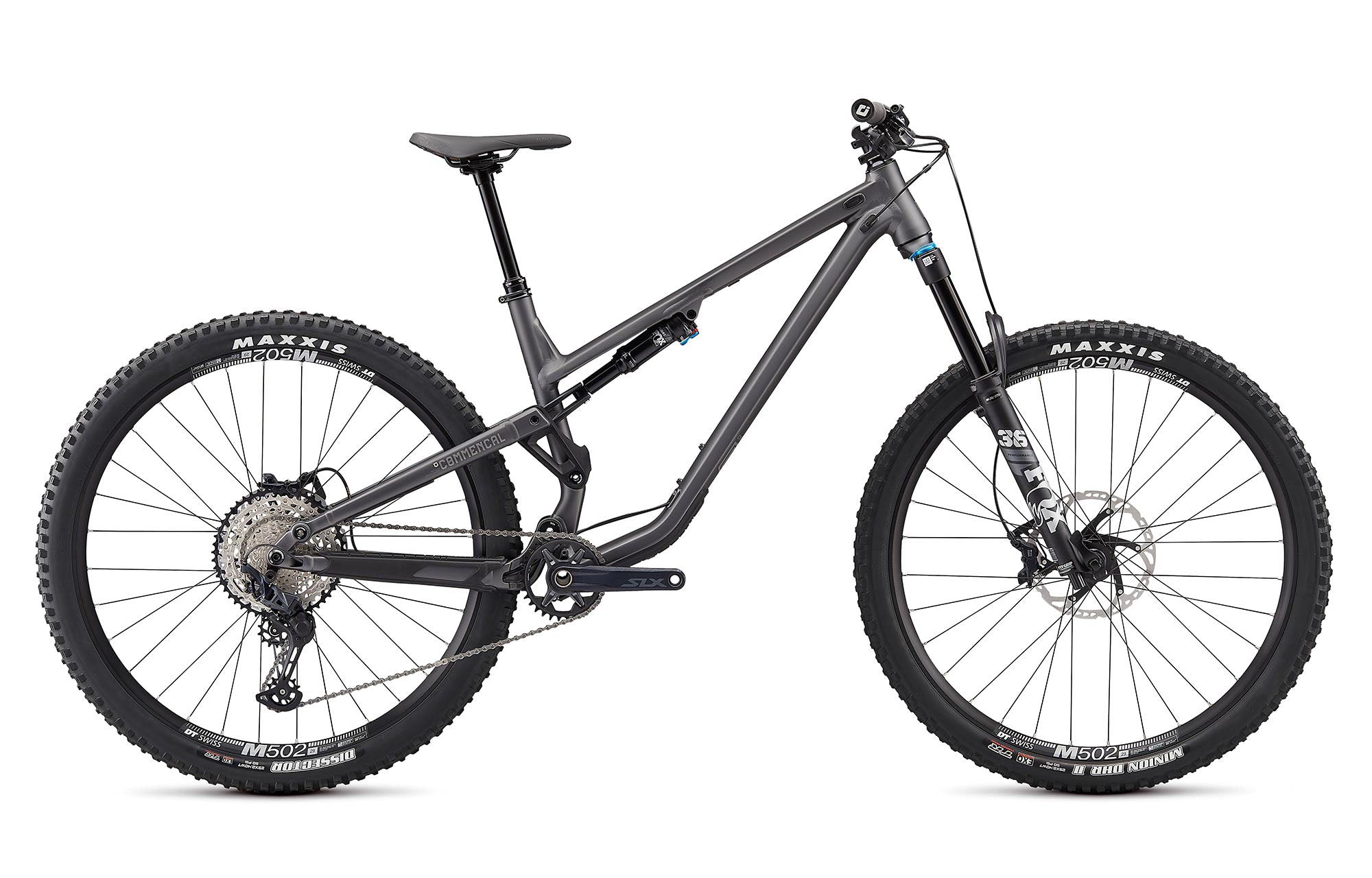

Commencal META TR V4 Essential Dark Slate Trail Bike
Frame
META TR, 140 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
FOX Float DPS Performance
210 x 55 mm, rebound, 3 position adjustmentFork
FOX 36 Performance, 150 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 TokensHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO SLX, 4 pistons, I-Spec EV compatible
Rotors: SHIMANO SM-RT76 203 mm, 6 holesShifters
SHIMANO SLX
12sChain guide
-
REAR DERAILLEUR
SHIMANO SLX
12sBottom bracket
SHIMANO BB71-41A
PressfitCrankset
SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO SLX
12sCassette
SHIMANO SLX
12s, 10-51tRims
DT SWISS M 502
29'', 32h, 30 mm inner widthHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Micro Spline - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS DHR II
Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless ReadySeat post
KS Rage-I
34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
15 kg / 33.06 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Dark Slate
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Trail 29"
Frame material
AL 6066 T4, T6
Frame weight
3,7 kg / 8.15 lb
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 x 10 mm on shaft
Recommended/max. fork height
551 mm / 571 mm
Headset dimension
Tapered
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
29" - 65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle


Frame
META TR, 140 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
FOX Float DPS Performance
210 x 55 mm, rebound, 3 position adjustmentFork
FOX 36 Performance, 150 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 TokensHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO SLX, 4 pistons, I-Spec EV compatible
Rotors: SHIMANO SM-RT76 203 mm, 6 holesShifters
SHIMANO SLX
12sChain guide
-
REAR DERAILLEUR
SHIMANO SLX
12sBottom bracket
SHIMANO BB71-41A
PressfitCrankset
SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO SLX
12sCassette
SHIMANO SLX
12s, 10-51tRims
DT SWISS M 502
29'', 32h, 30 mm inner widthHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Micro Spline - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS DHR II
Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless ReadySeat post
KS Rage-I
34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
15 kg / 33.06 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Dark Slate
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Trail 29"
Frame material
AL 6066 T4, T6
Frame weight
3,7 kg / 8.15 lb
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 x 10 mm on shaft
Recommended/max. fork height
551 mm / 571 mm
Headset dimension
Tapered
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
29" - 65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle



With 140mm rear and 150mm front travel, the META TR V4 Essential is built for serious trail performance. Its triple-butted 6066 alloy frame is matched with a FOX 36 fork and Float DPS shock for a dialled ride. Shimano SLX runs the show—from 12-speed drivetrain to 4-piston brakes—ensuring smooth shifts and rock-solid stopping. DT Swiss M 502 rims and Maxxis tyres keep things grippy and tough. Finished in matte Dark Slate, this machine delivers trail capability with everyday reliability.
Built for big trail energy, this 29" rig pairs a tough AL 6066 frame with 140 mm of rear travel and a 210 x 55 mm shock stroke—ready to soak up whatever the mountain throws down. It's piggyback shock compatible, runs a tapered ZS44/ZS56 headset, and clears up to 65 mm tyres. With a postmount 200 mm disc brake standard and support for up to a 220 mm rear rotor, braking stays sharp. BB92 bottom bracket, ISCG 05 tabs, and Boost rear spacing round it out.
