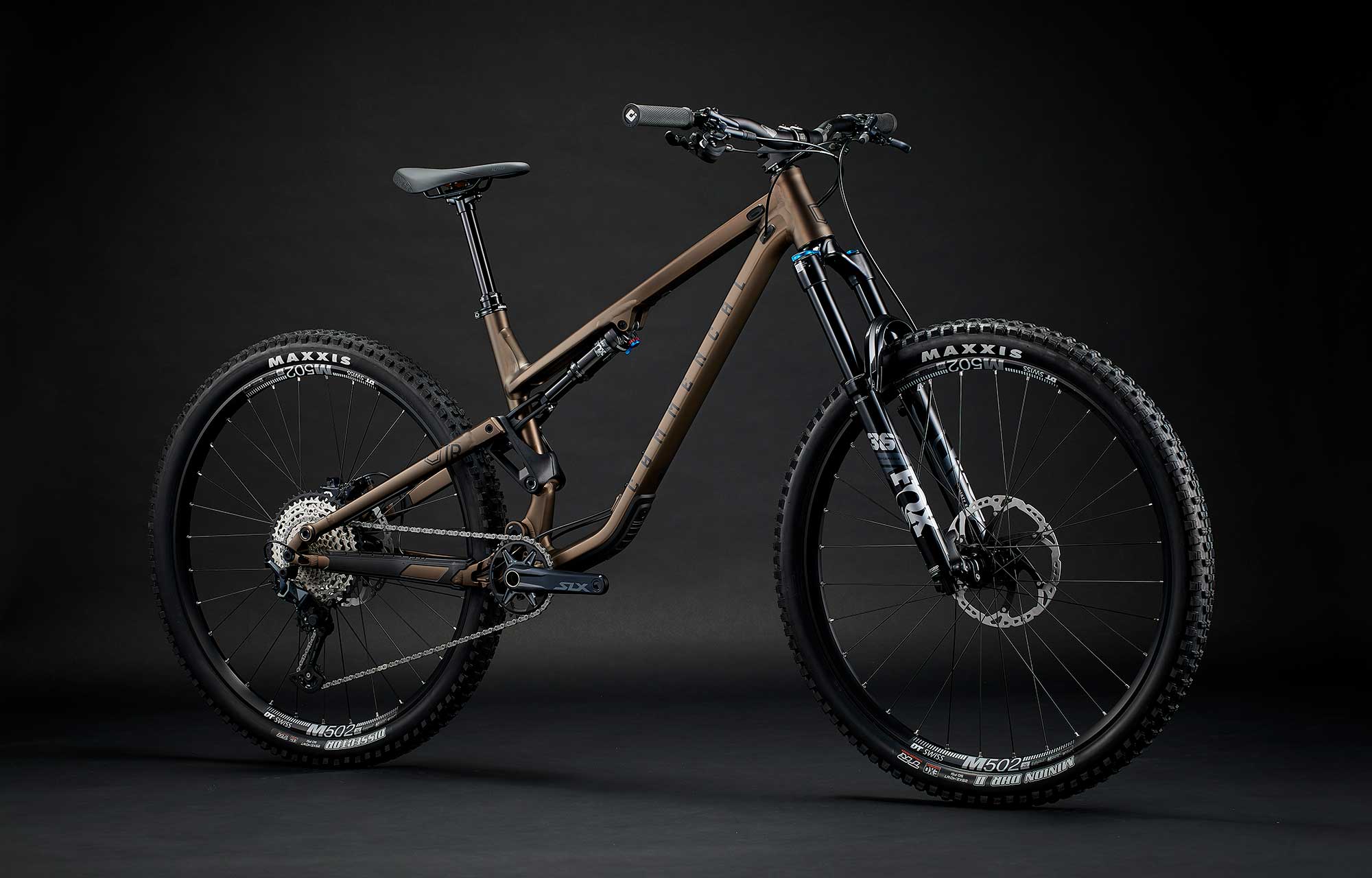

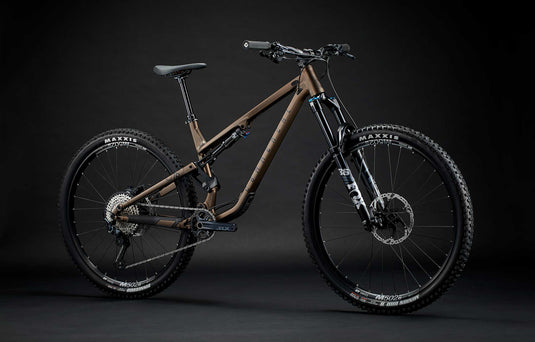

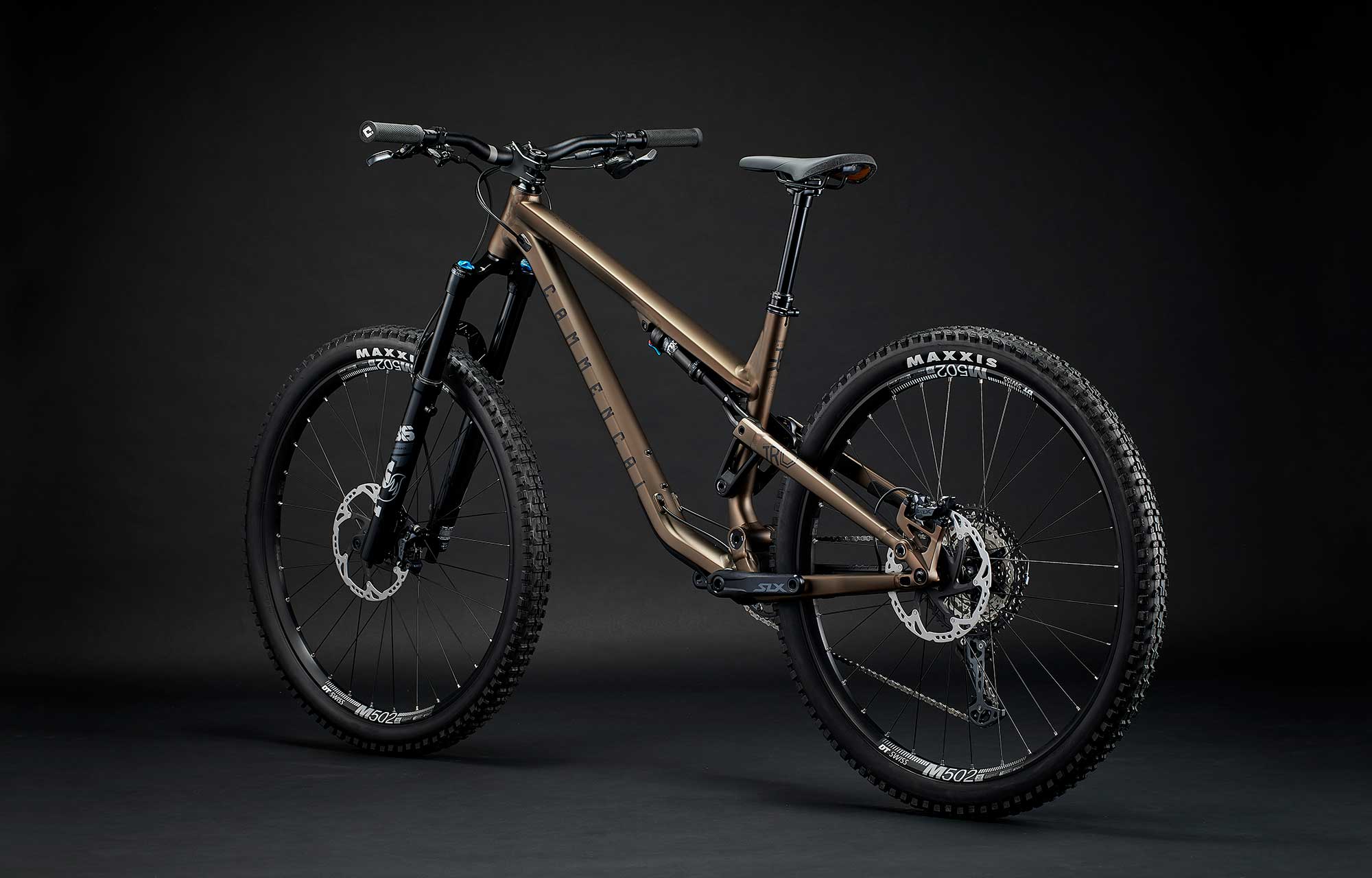

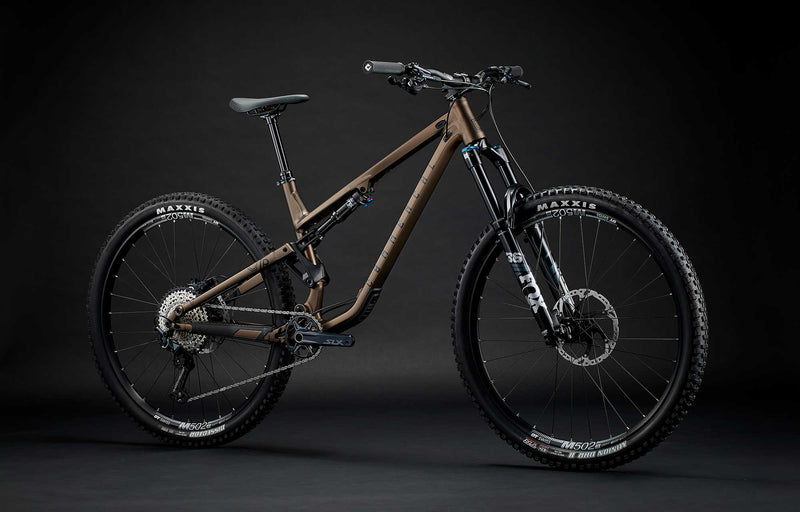

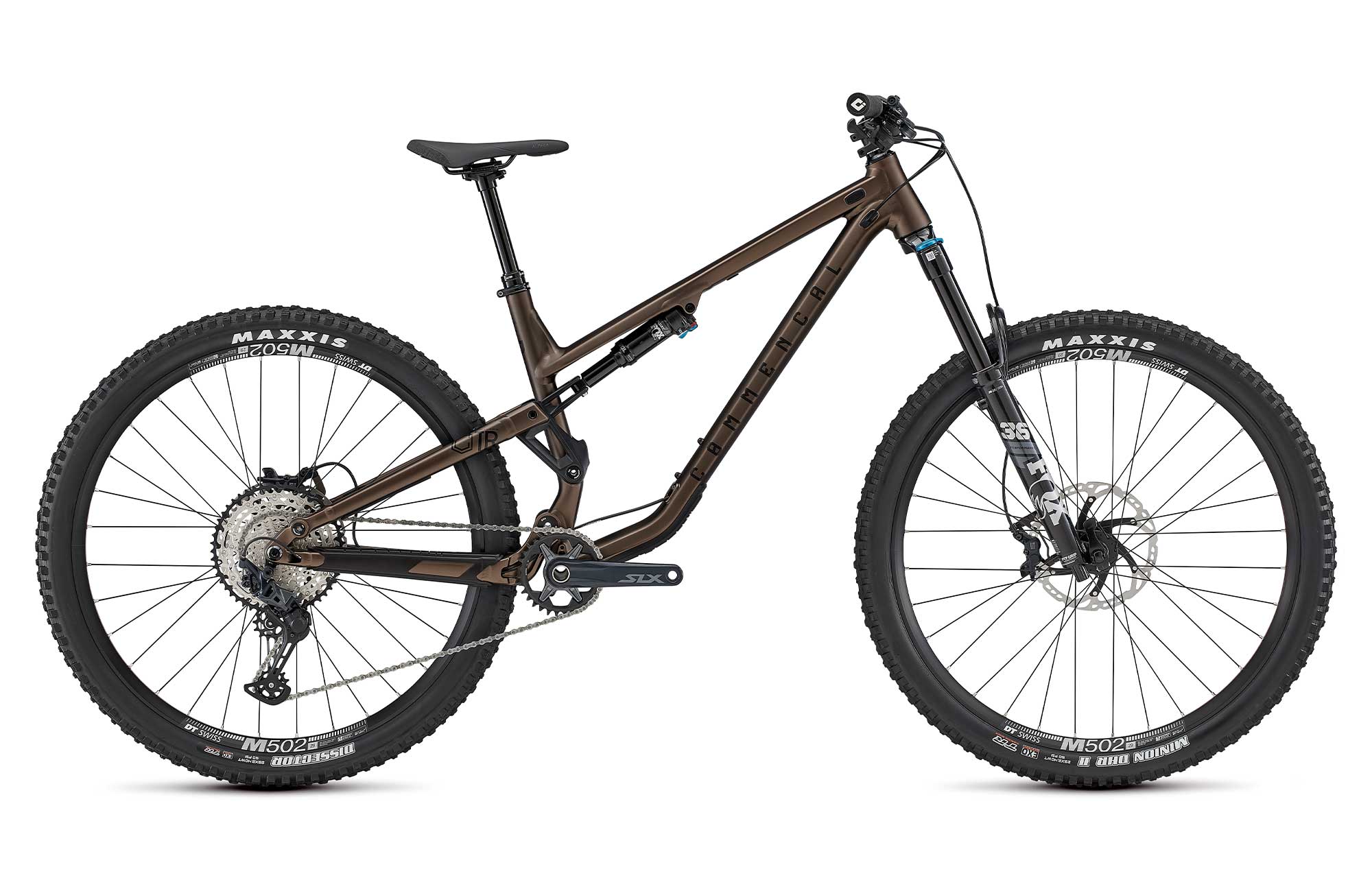

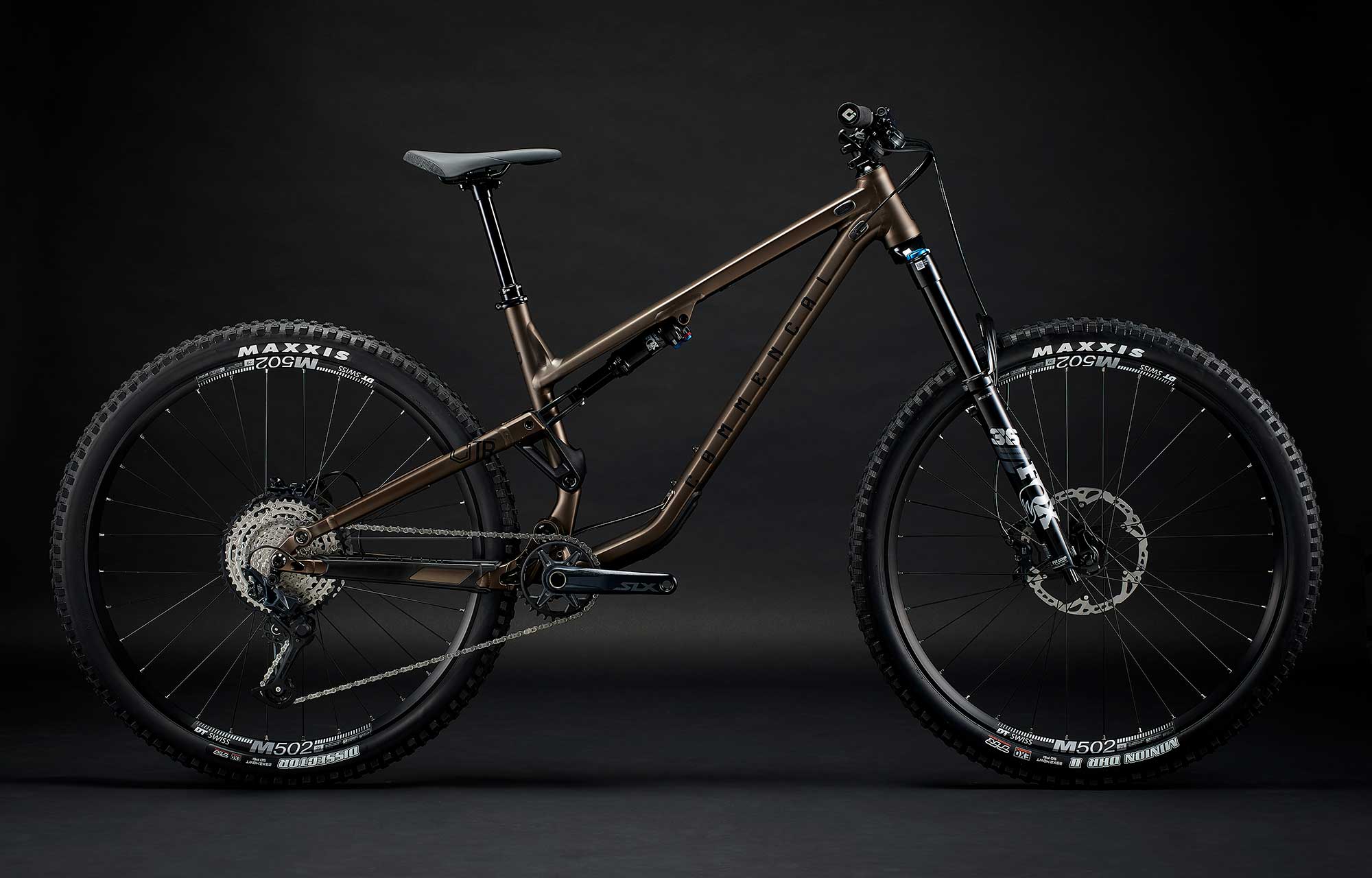

Commencal Meta TR V4 Essential Mountain Bike Frozen Brown Trail Bike
Frame
META TR, 140 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock

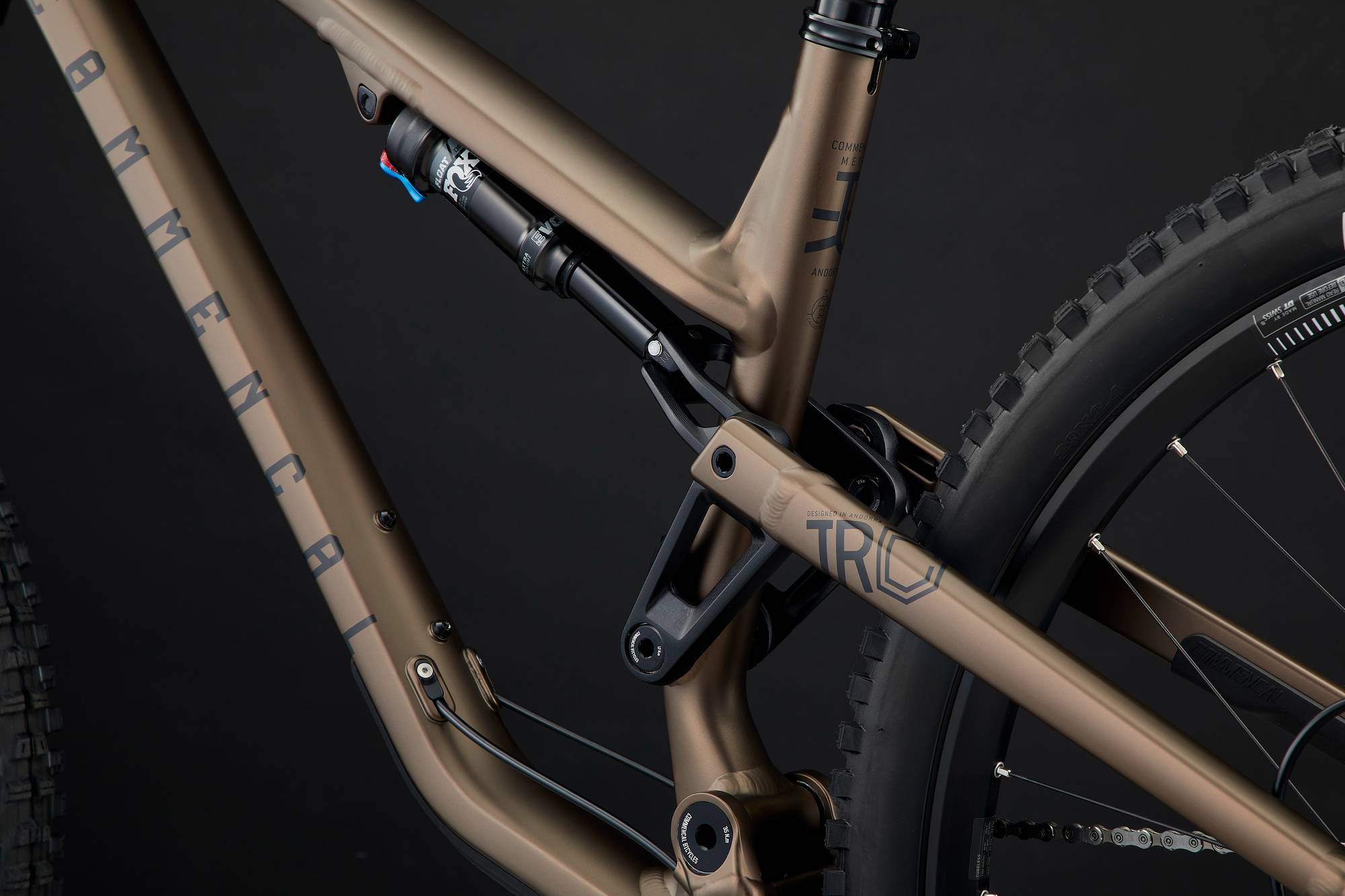

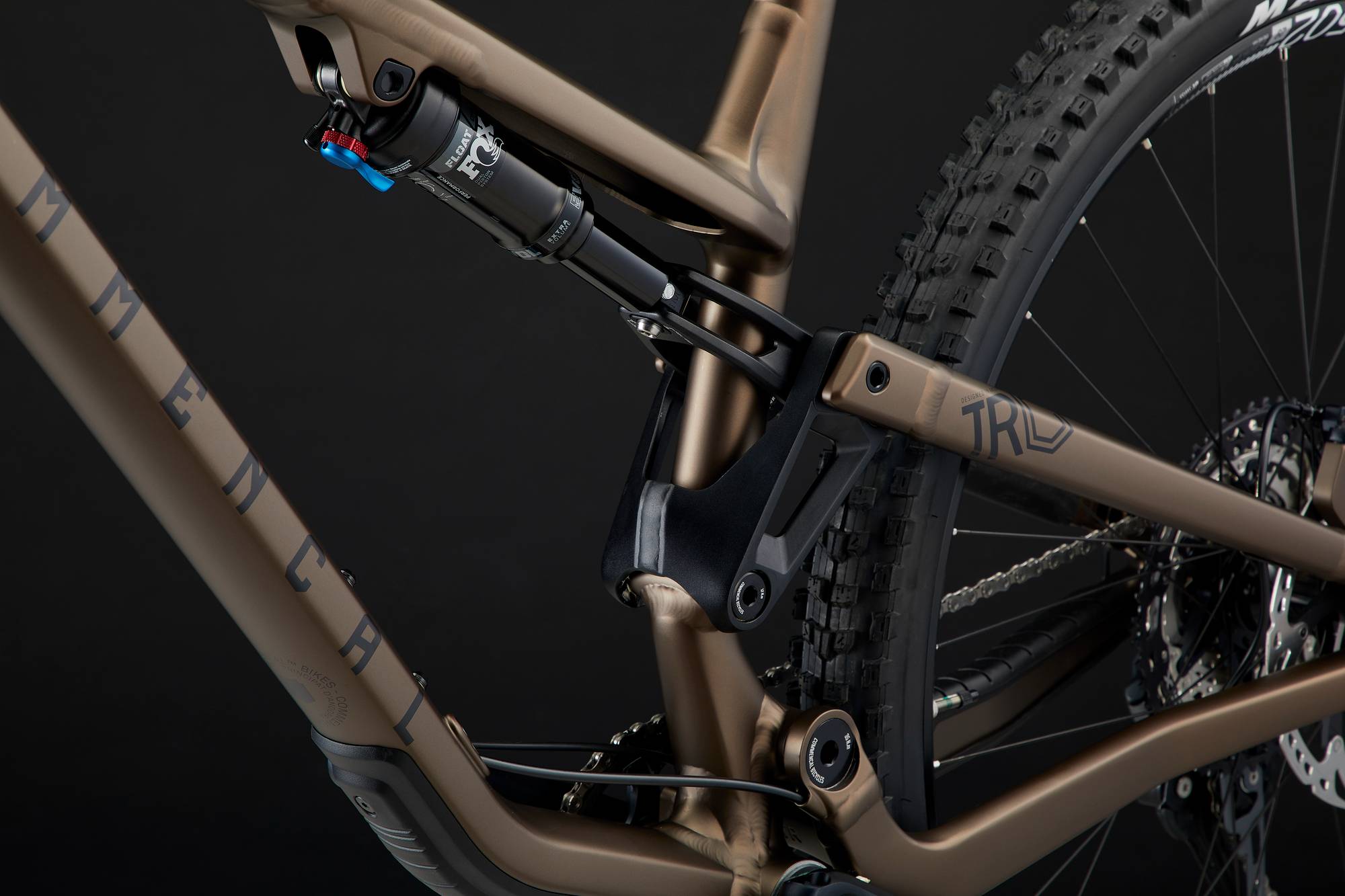

FOX Float DPS Performance
210 x 55 mm, rebound, 3 position adjustmentFork
FOX 36 Performance, 150 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 TokensHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem

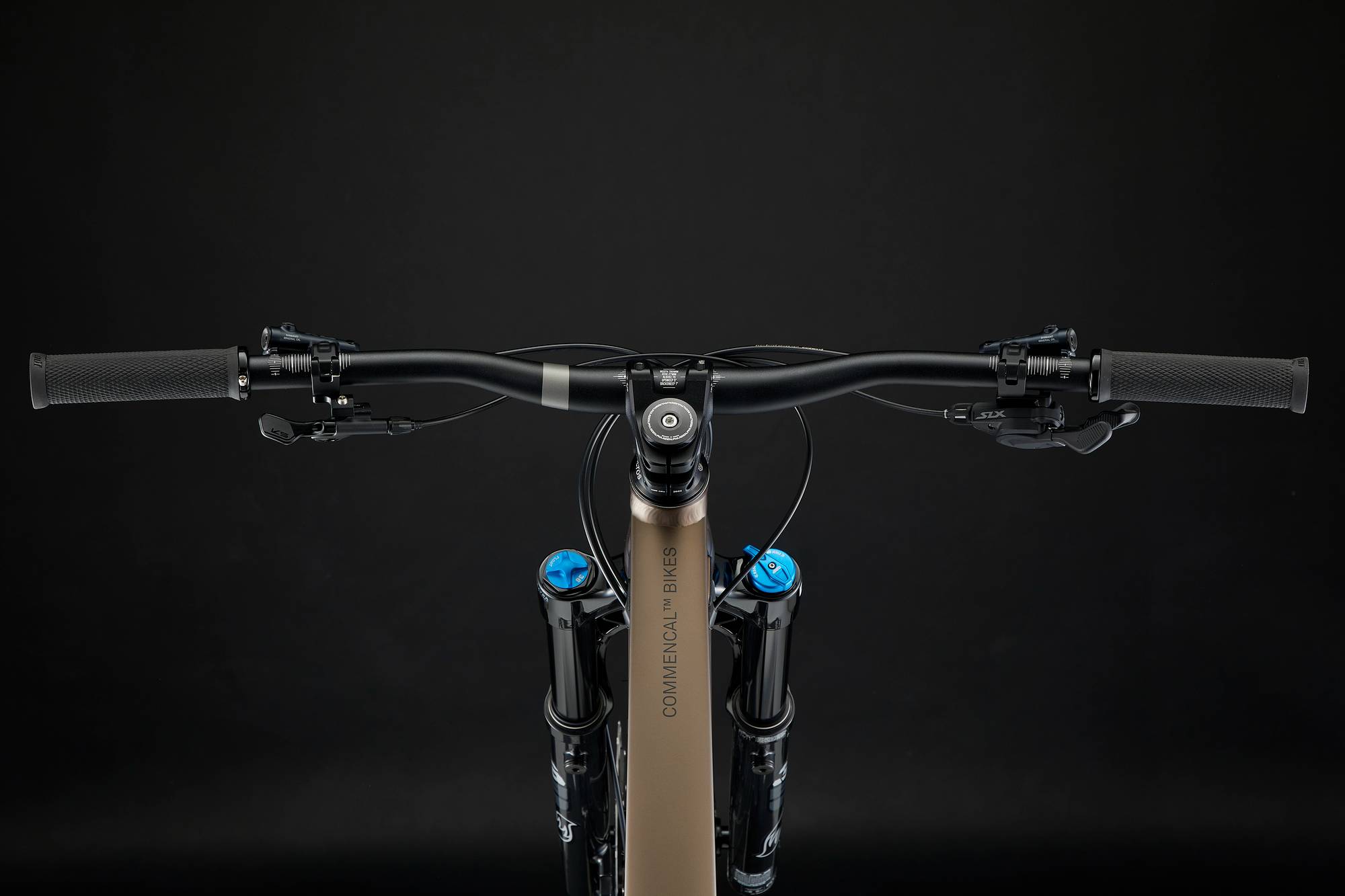

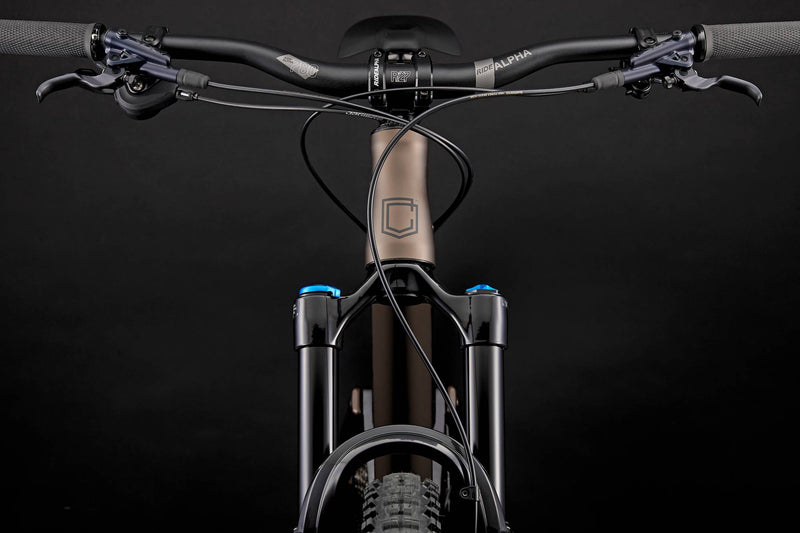

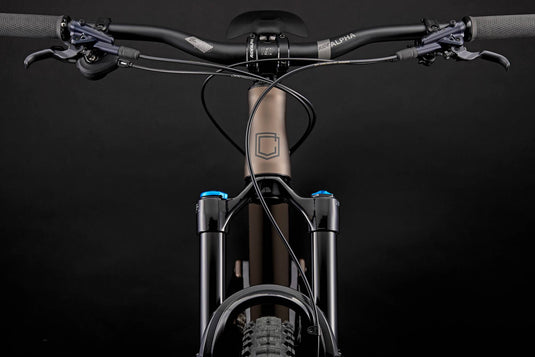

RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar

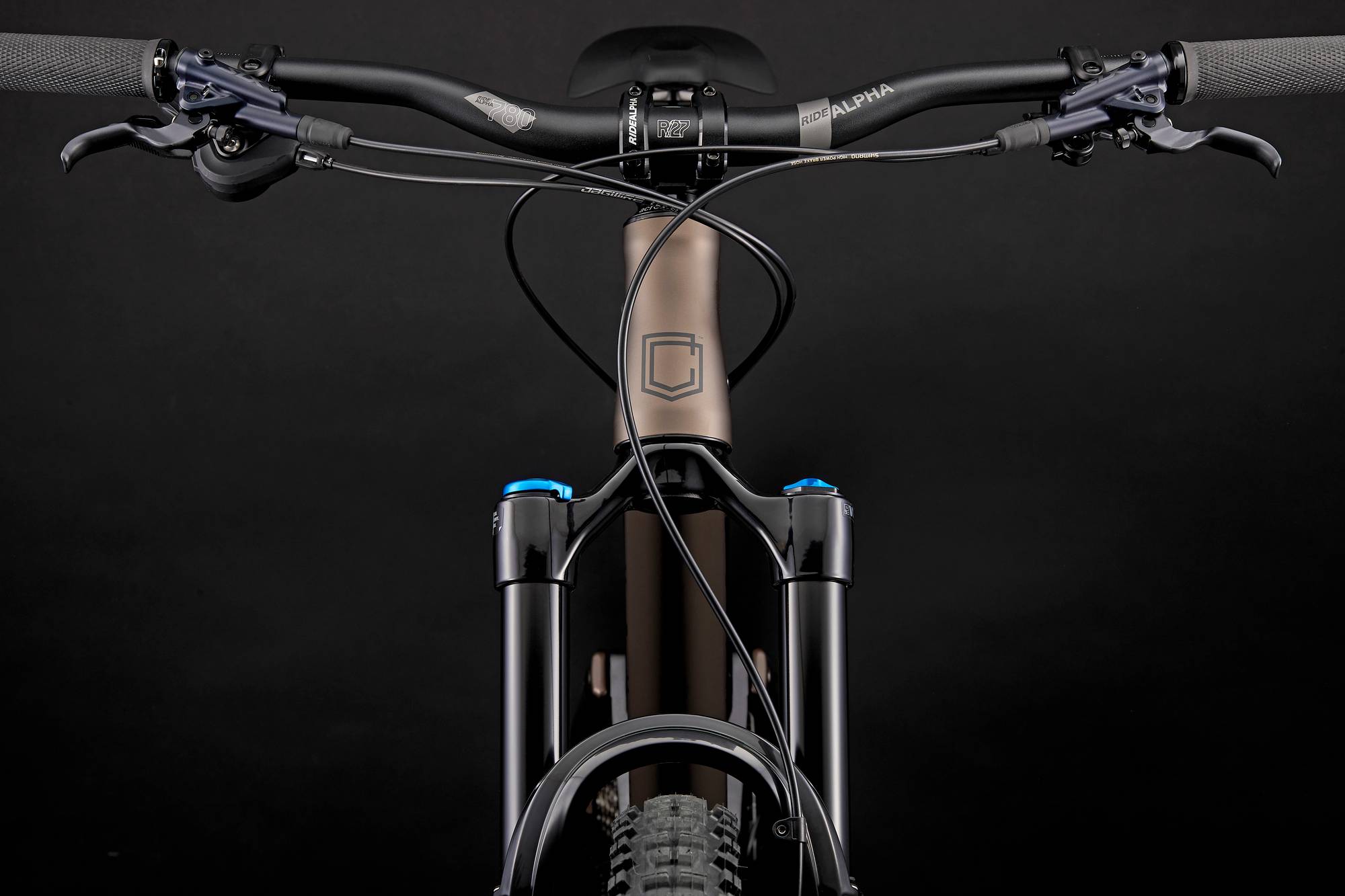

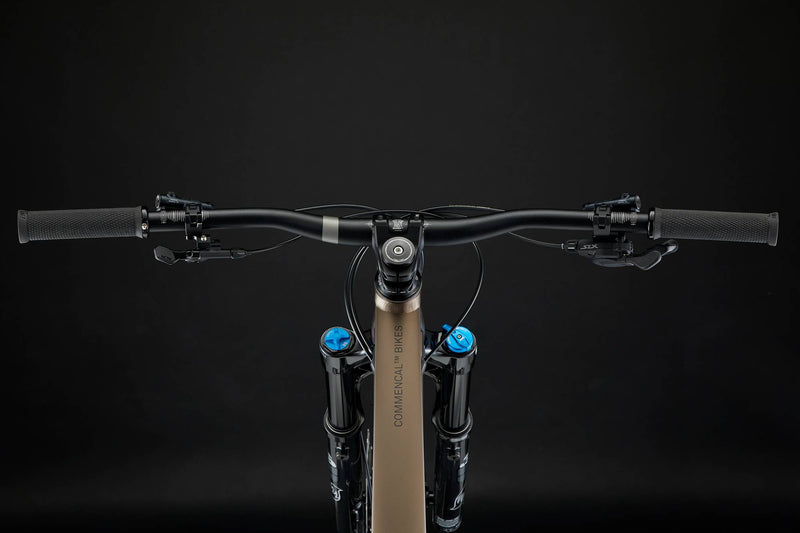

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO SLX, 4 pistons, I-Spec EV compatible
Rotors: SHIMANO SM-RT76 203 mm, 6 holesShifters
SHIMANO SLX
12sREAR DERAILLEUR
SHIMANO SLX
12sBottom bracket
SHIMANO BB71-41A
PressfitCrankset

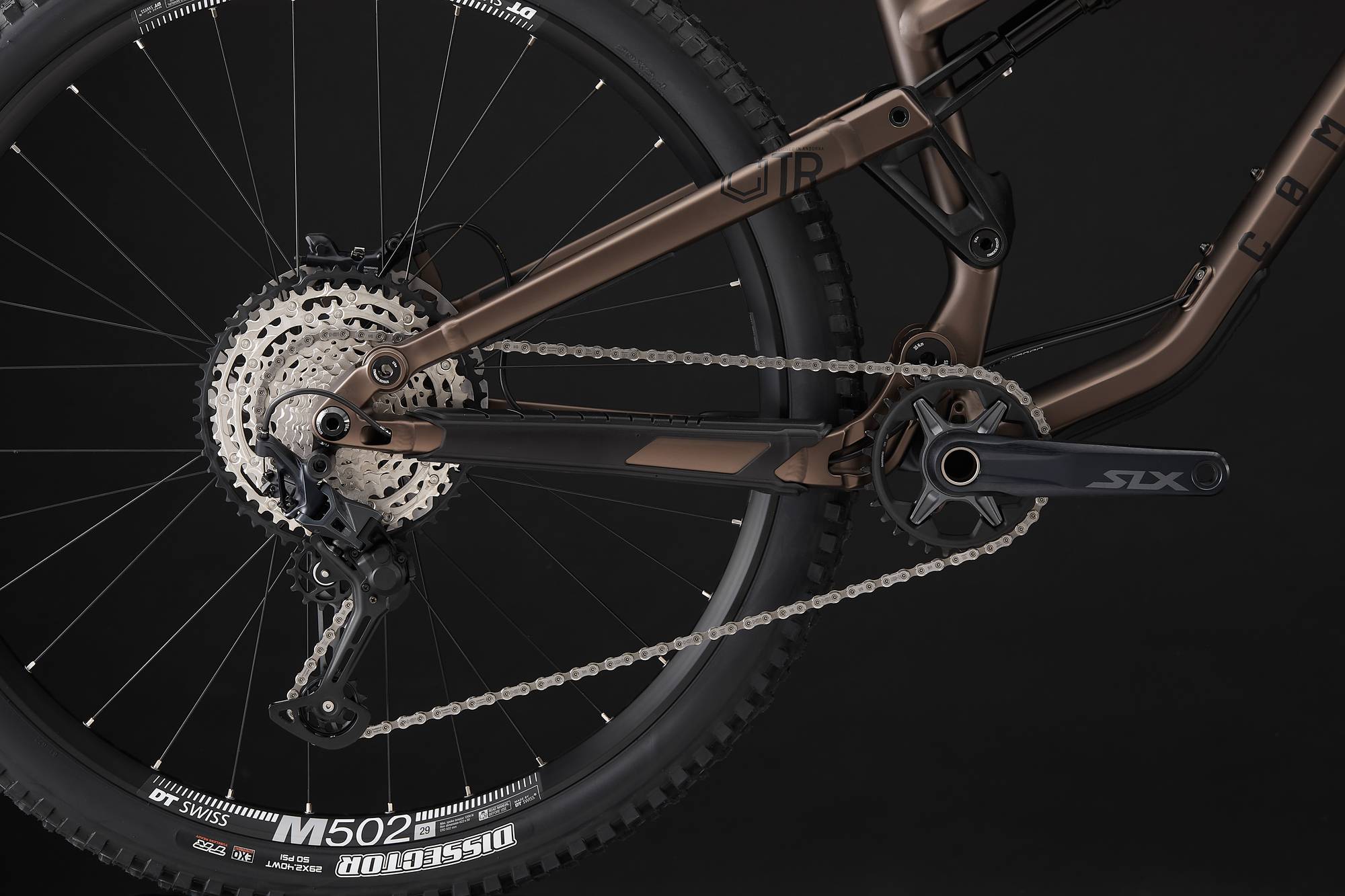

SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO SLX
12sCassette
SHIMANO SLX
12s, 10-51tRims
DT SWISS M 502
29'', 32h, 30 mm inner widthHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Micro Spline - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS DHR II
Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless ReadySeat post
KS Rage-I
34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
15 kg / 33.06 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Frozen Brown
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Trail 29"
Frame material
AL 6066 T4, T6
Frame weight
3,7 kg / 8.15 lb
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 x 10 mm on shaft
Recommended/max. fork height
551 mm / 571 mm
Headset dimension
Tapered
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
29" - 65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle


Frame
META TR, 140 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
FOX Float DPS Performance
210 x 55 mm, rebound, 3 position adjustmentFork
FOX 36 Performance, 150 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 TokensHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO SLX, 4 pistons, I-Spec EV compatible
Rotors: SHIMANO SM-RT76 203 mm, 6 holesShifters
SHIMANO SLX
12sREAR DERAILLEUR
SHIMANO SLX
12sBottom bracket
SHIMANO BB71-41A
PressfitCrankset
SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO SLX
12sCassette
SHIMANO SLX
12s, 10-51tRims
DT SWISS M 502
29'', 32h, 30 mm inner widthHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Micro Spline - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS DHR II
Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless ReadySeat post
KS Rage-I
34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
15 kg / 33.06 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Frozen Brown
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Trail 29"
Frame material
AL 6066 T4, T6
Frame weight
3,7 kg / 8.15 lb
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 x 10 mm on shaft
Recommended/max. fork height
551 mm / 571 mm
Headset dimension
Tapered
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
29" - 65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle



The META TR ESSENTIAL is armed with a 140mm alloy frame, FOX 36 Performance fork, and FOX Float DPS shock for a plush yet punchy ride. Shimano SLX handles the 12-speed drivetrain and 4-piston braking, giving you power where it counts. DT SWISS M 502 rims paired with MAXXIS DHR II and Dissector tyres bring grip and strength in equal measure. With a KS dropper post, ODI grips, and a FIZIK Terra saddle, this Frozen Brown rig is trail-tuned and ready to roll.
Built for full-send trail action, this 29” frame is crafted from AL 6066 T4/T6 alloy with 140 mm of rear travel and piggyback shock compatibility. Weighing in at just 3.7 kg, it’s light enough to climb and tough enough to drop into whatever’s next. With BB92 bottom bracket, ISCG 05 tabs, and clearance for beefy 29 x 2.6” tyres, it's tuned for modern trail geometry. Postmount brakes, 220 mm rotor compatibility, and Boost 148 rear spacing round out this aggressive, trail-hungry platform.
