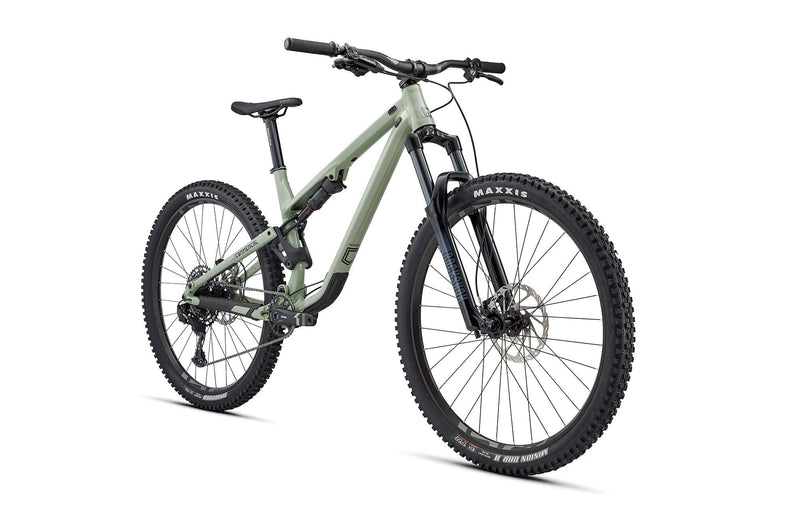

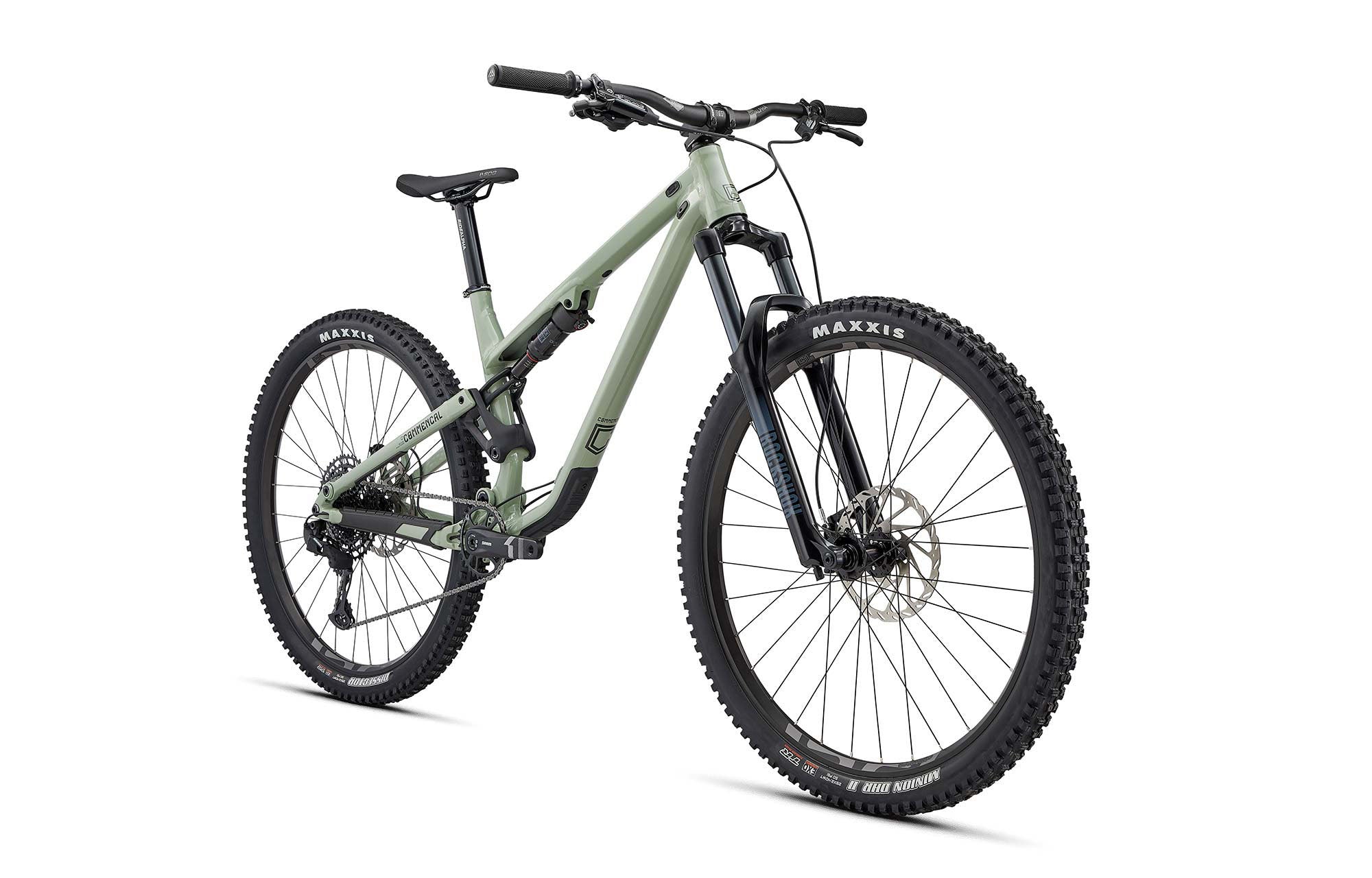

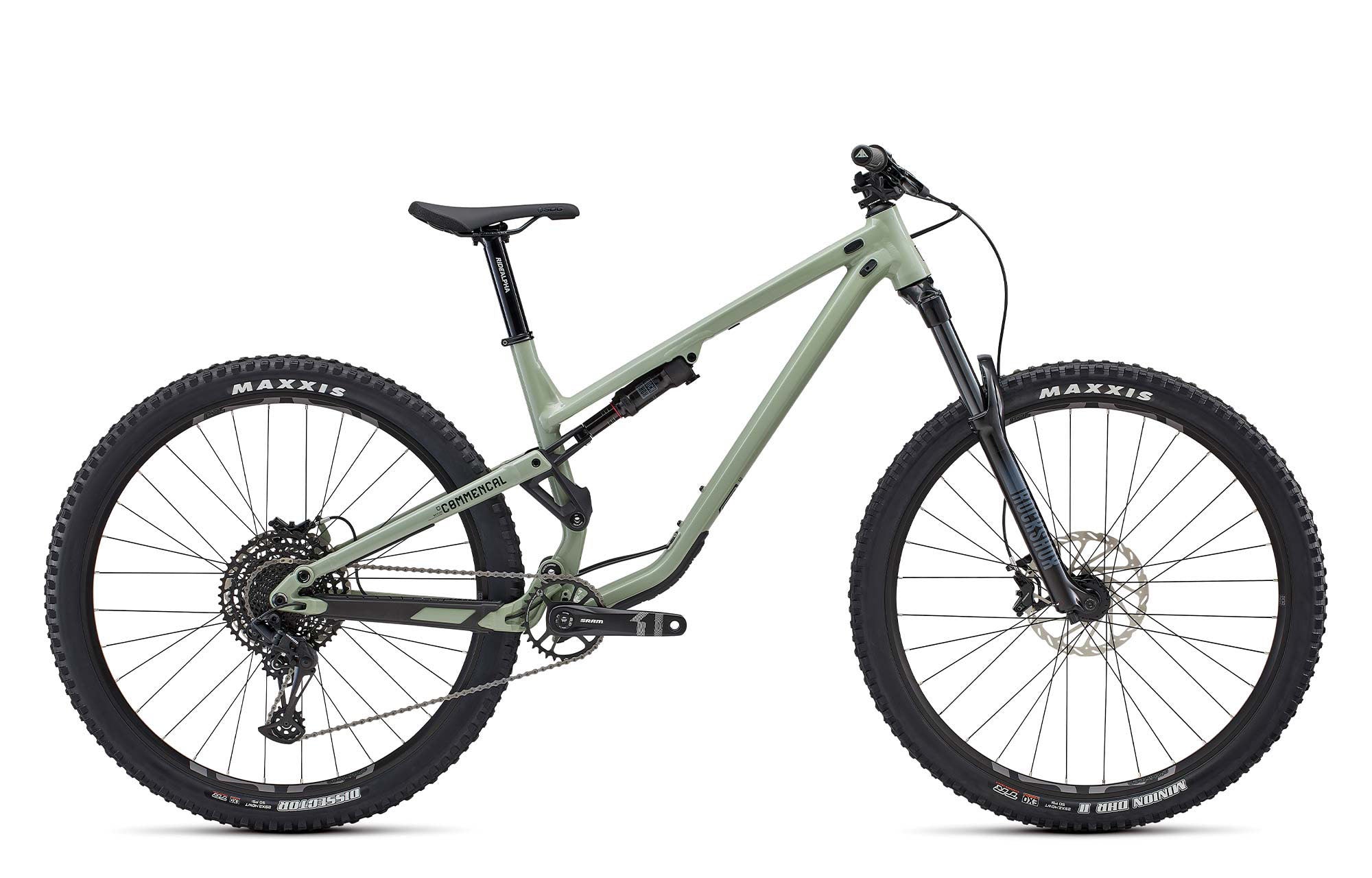

Commencal META TR V4 Origin Heritage Green Mountain Bike
Frame
META TR 29, 140 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
ROCKSHOX Deluxe Select
210 x 55 mm, R damper, DebonAir Linear, rebound, 1 Token neg. 4 Tokens posFork
ROCKSHOX 35 Silver R, 150 mm travel
29", Coil, rebound, Boost (15 x 110 mm), 44 mm offsetHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA DH
Ultra-soft compound, single clamp, blackBrakes
SRAM Guide T, 4 pistons, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6-boltShifters
SRAM SX Eagle
12sREAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
SRAM DUB
PressfitCrankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
E13 LG1 EN Base
29'', 32h, 30 mm inner widthHubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Shimano Hyperglide - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS DHR II
Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless ReadySeat post
RIDE ALPHA
34,9 mm, 400 mm on S/M, 450 mm on L/XSaddle
SDG Bel Air V3
140 mm width, Steel RailsWeight
15,8 kg / 34.83 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Heritage Green
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Trail 29"
Frame material
AL 6066 T4, T6
Frame weight
3,7 kg / 8.15 lb
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 x 10 mm on shaft
Recommended/max. fork height
551 mm / 571 mm
Headset dimension
Tapered
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
29" - 65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle
Frame
META TR 29, 140 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
ROCKSHOX Deluxe Select
210 x 55 mm, R damper, DebonAir Linear, rebound, 1 Token neg. 4 Tokens posFork
ROCKSHOX 35 Silver R, 150 mm travel
29", Coil, rebound, Boost (15 x 110 mm), 44 mm offsetHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA DH
Ultra-soft compound, single clamp, blackBrakes
SRAM Guide T, 4 pistons, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6-boltShifters
SRAM SX Eagle
12sREAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
SRAM DUB
PressfitCrankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
E13 LG1 EN Base
29'', 32h, 30 mm inner widthHubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Shimano Hyperglide - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS DHR II
Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless ReadySeat post
RIDE ALPHA
34,9 mm, 400 mm on S/M, 450 mm on L/XSaddle
SDG Bel Air V3
140 mm width, Steel RailsWeight
15,8 kg / 34.83 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Heritage Green
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Trail 29"
Frame material
AL 6066 T4, T6
Frame weight
3,7 kg / 8.15 lb
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 x 10 mm on shaft
Recommended/max. fork height
551 mm / 571 mm
Headset dimension
Tapered
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
29" - 65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle
Built to dominate any trail in its path, the META TR V4 comes stacked with 140mm rear and 150mm front travel, courtesy of a ROCKSHOX Deluxe Select shock and 35 Silver R fork. The alloy frame is light yet burly, paired with SRAM’s 12-speed SX Eagle drivetrain and Guide T 4-piston brakes for seamless shifting and reliable stopping. E13 rims, MAXXIS tyres, and a solid Ride Alpha cockpit round things out, delivering a ride that’s ready to tear up tech climbs and flow trails alike.
Lightweight yet built like a tank, the META TR V4’s frame tips the scales at just 3.7 kg, crafted from AL 6066 alloy and ready to tackle big trail days. With 140 mm rear travel, a piggy-back compatible shock setup, and clearance for chunky 29" x 2.6" tyres, it’s primed for control and comfort. The BB92 bottom bracket, Postmount 200 mm brakes, and ISCG 05 tabs round it out—this frame was made to be thrashed, climbed, and everything in between.
