Regular price $3,600.00
Sale price $3,600.00 Regular price $5,300.00
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

SKU: 22METATRRIL

Vendor Brand: Commencal

The COMMENCAL META TR V4 RIDE DIRT is your all-terrain thrill machine—built to climb like a goat and descend like it’s got unfinished business with gravity. With trail-hugging geometry, a plush Deluxe Select+ shock, and a ROCKSHOX Revelation RC fork up front, it smooths out the rough stuff so you can ride harder, longer. SRAM’s SX Eagle drivetrain and 4-piston brakes bring the power, while Maxxis tyres keep you glued to the line.

Meet your new companion for wild trail adventures—the COMMENCAL META TR V4 RIDE DIRT! This bike isn’t just built for riding; it’s designed to make you want to ride more, offering a seamless blend of playful agility and gritty capability. Whether you’re tearing down flow trails or climbing through the mountains, this beast won’t be left in the dust.

  • Trail-Taming Geometry: With its aggressive kinematic and geometry combo, the META TR V4 keeps you grounded on those steep descents while still offering ideal rider positioning for epic climbs.
  • ROCKSHOX Revelation RC Fork: Say hello to a fork that delivers an incredible weight-to-stiffness ratio. It’s got simple adjustments for low-speed compression and rebound, meaning you can dial it in just the way you like.
  • Deluxe Select+ Shock Absorber: This little wonder swallows impacts like a champ, thanks to independently adjustable air chambers that let you get your ride dialed in without fear of bottoming out.
  • SRAM SX Eagle 12-speed Drivetrain: With a versatile 11-50t gear ratio, tackle any hill or sprint.
  • Confidence-Inspiring Brakes: The 4-piston SRAM Guide T brakes paired with 200mm discs offer reliability on steep descents and slippery turns, meaning you can throw caution to the wind—figuratively, of course.
  • Rock-Solid Wheels: The E13 LG1 EN rims feature a wide reinforced profile and are built on sturdy hubs for that added peace of mind when you’re ripping down the trails.
  • Maxxis Minion Tyres: Designed with EXO casing, these tyres give you the grip to lean into corners like you’ve just hijacked the DeLorean from Back to the Future—minus the time travel, of course.

Every aspect of the COMMENCAL META TR V4 RIDE DIRT has been crafted for riders who thrive on pushing limits and seeking out new trails. So gear up and get ready for the ride of your life!

  • Frame

    Meta TR 29, 140 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    ROCKSHOX Deluxe Select +
    210 x 55 mm, RT damper, DebonAir Linear, rebound, 2 pos comp, 1 Token neg. 4 Tokens pos.

  • Fork

    ROCKSHOX Revelation RC, 150 mm travel
    29", Motion Control RC damper, DebonAir, rebound, LSC, Boost (15 x 110 mm), 42 mm offset, 1 Token

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

  • Brakes

    SRAM Guide T, 4 pistons, MatchMaker compatible
    Rotors: SRAM G2 CleanSweep 200 mm, 6-bolt

  • Shifters

    SRAM SX Eagle
    12s

  • Chain guide

    -

  • REAR DERAILLEUR

    SRAM SX Eagle
    12s

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
    Chainring: SRAM X1 1000 Eagle, 32t, Narrow-Wide

  • Chain

    SRAM NX Eagle
    12s

  • Cassette

    SRAM PG-1210
    12s, 11-50t

  • Rims

    E13 LG1 EN Base
    29'', 32h, 30 mm inner width

  • Hubs

    Rear: FORMULA DCL-348A - Front: FORMULA DC-711
    Rear: 32h, 12 x 148 mm, sealed bearings, Shimano Hyperglide - Front: 32h, 15 x 110 mm, sealed bearings

  • Spokes/nipples

    SAPIM Race
    J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS Dissector - Front: MAXXIS DHR II
    Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready

  • Seat post

    KS Rage-I
    34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote

  • Saddle

    SDG Bel Air V3
    140 mm width, Steel Rails

  • Weight

    15 KG / 33.06 LB
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Dirt
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector

  • Bicycle type

    Trail 29"

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Nothing on body - 20 x 10 mm on shaft

  • Recommended/max. fork height

    551 mm / 571 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    29" - 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

Bike Geometry
Bike Sizing Guide
In Action
Spec Breakdown
  • Frame

    Meta TR 29, 140 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    ROCKSHOX Deluxe Select +
    210 x 55 mm, RT damper, DebonAir Linear, rebound, 2 pos comp, 1 Token neg. 4 Tokens pos.

  • Fork

    ROCKSHOX Revelation RC, 150 mm travel
    29", Motion Control RC damper, DebonAir, rebound, LSC, Boost (15 x 110 mm), 42 mm offset, 1 Token

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

  • Brakes

    SRAM Guide T, 4 pistons, MatchMaker compatible
    Rotors: SRAM G2 CleanSweep 200 mm, 6-bolt

  • Shifters

    SRAM SX Eagle
    12s

  • Chain guide

    -

  • REAR DERAILLEUR

    SRAM SX Eagle
    12s

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
    Chainring: SRAM X1 1000 Eagle, 32t, Narrow-Wide

  • Chain

    SRAM NX Eagle
    12s

  • Cassette

    SRAM PG-1210
    12s, 11-50t

  • Rims

    E13 LG1 EN Base
    29'', 32h, 30 mm inner width

  • Hubs

    Rear: FORMULA DCL-348A - Front: FORMULA DC-711
    Rear: 32h, 12 x 148 mm, sealed bearings, Shimano Hyperglide - Front: 32h, 15 x 110 mm, sealed bearings

  • Spokes/nipples

    SAPIM Race
    J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS Dissector - Front: MAXXIS DHR II
    Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready

  • Seat post

    KS Rage-I
    34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote

  • Saddle

    SDG Bel Air V3
    140 mm width, Steel Rails

  • Weight

    15 KG / 33.06 LB
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Dirt
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector

Geek Sheet
  • Bicycle type

    Trail 29"

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Nothing on body - 20 x 10 mm on shaft

  • Recommended/max. fork height

    551 mm / 571 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    29" - 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

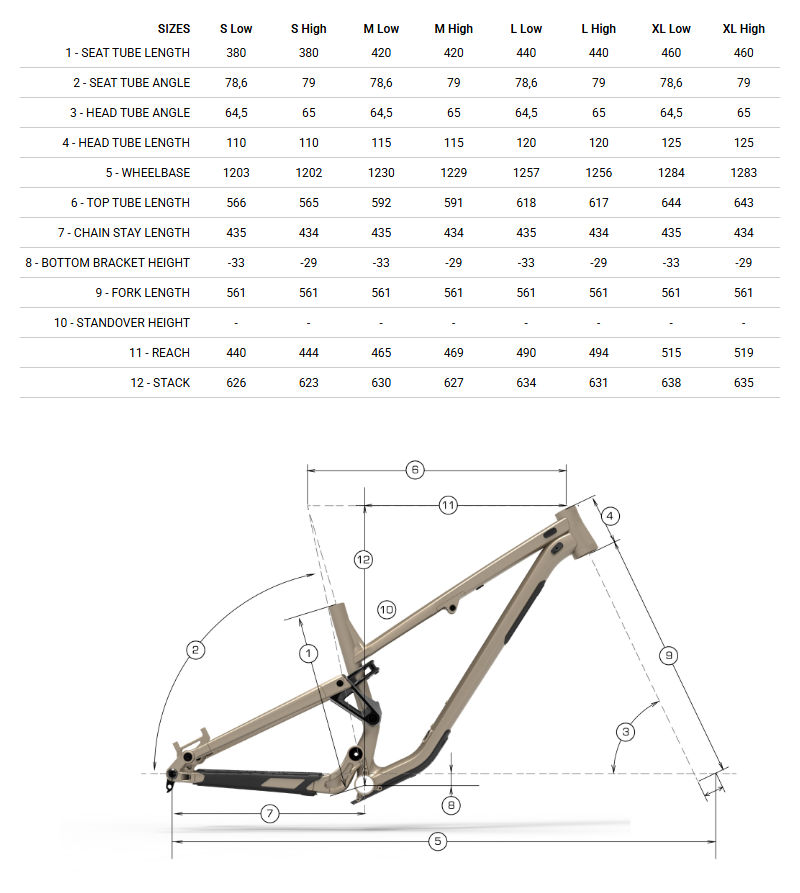

Ride Geometry
Bike Geometry
Size Matters
Bike Sizing Guide
Commencal META TR V4 Ride Dirt Mountain Bike Detail Image 1

The META TR V4 RIDE DIRT is a precision-built trail machine that balances capability and control. Its 140mm travel 6066 alloy frame pairs with a 150mm ROCKSHOX Revelation RC fork and Deluxe Select+ rear shock for a plush yet responsive ride. A full SRAM SX/NX Eagle 12-speed drivetrain and 4-piston Guide T brakes keep power and handling tight. E13 LG1 rims, Maxxis rubber, and a KS dropper post round out the package—ready for climbs, descents, and everything in between.

This Trail 29” frame is a powerhouse of precision and control, crafted from AL 6066 T4/T6 and weighing in at 3.7 kg. With 140mm rear travel, a 210 x 55 mm shock, and compatibility for piggyback shocks, it's built to smooth out the wild stuff. Designed around modern trail standards—BB92 bottom bracket, ISCG 05 tabs, and 12 x 148 mm Boost rear hub—it’s ready for big rotors, fat tyres, and steep lines.

Commencal META TR V4 Ride Dirt Mountain Bike Detail Image 2
