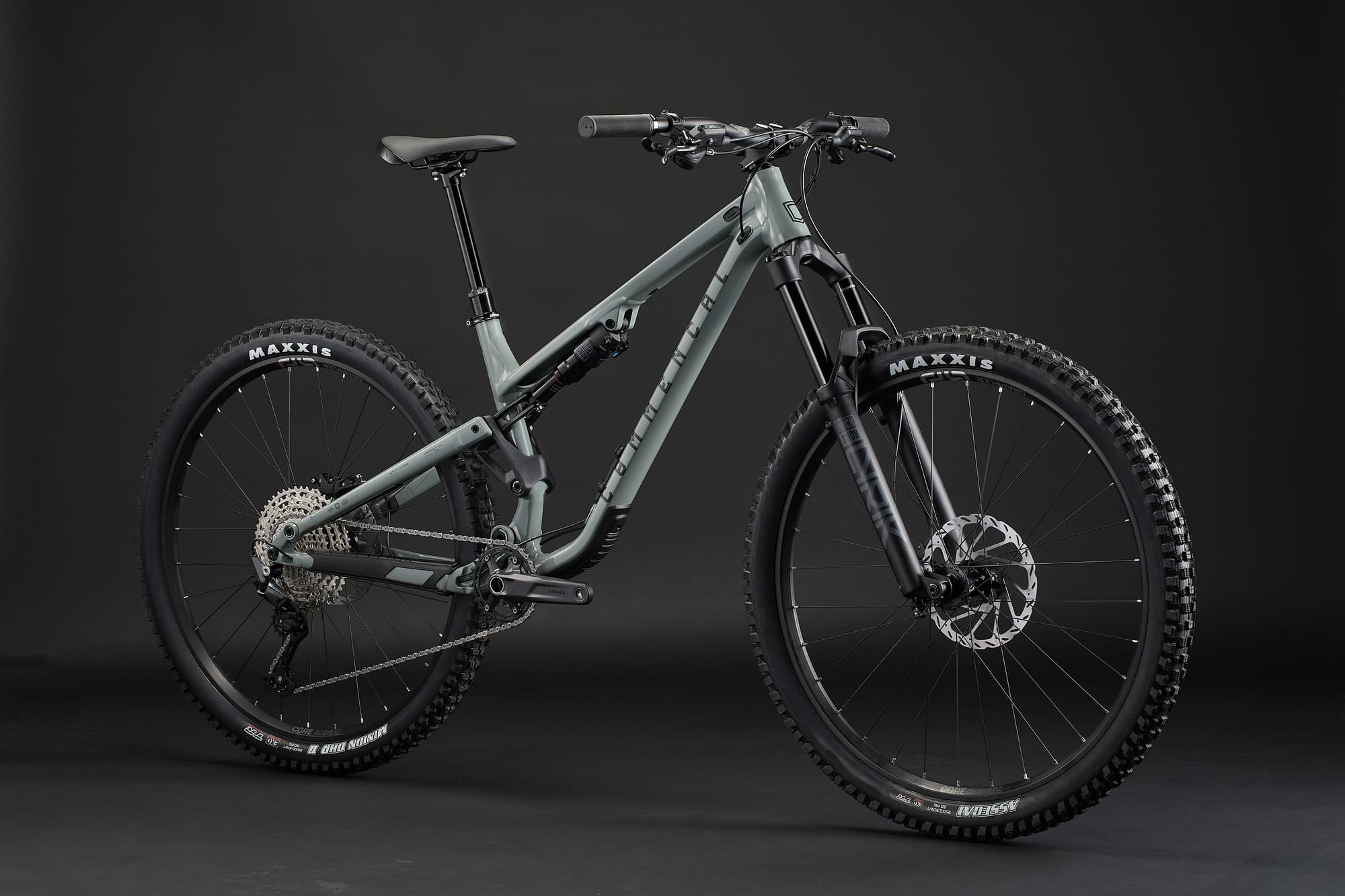

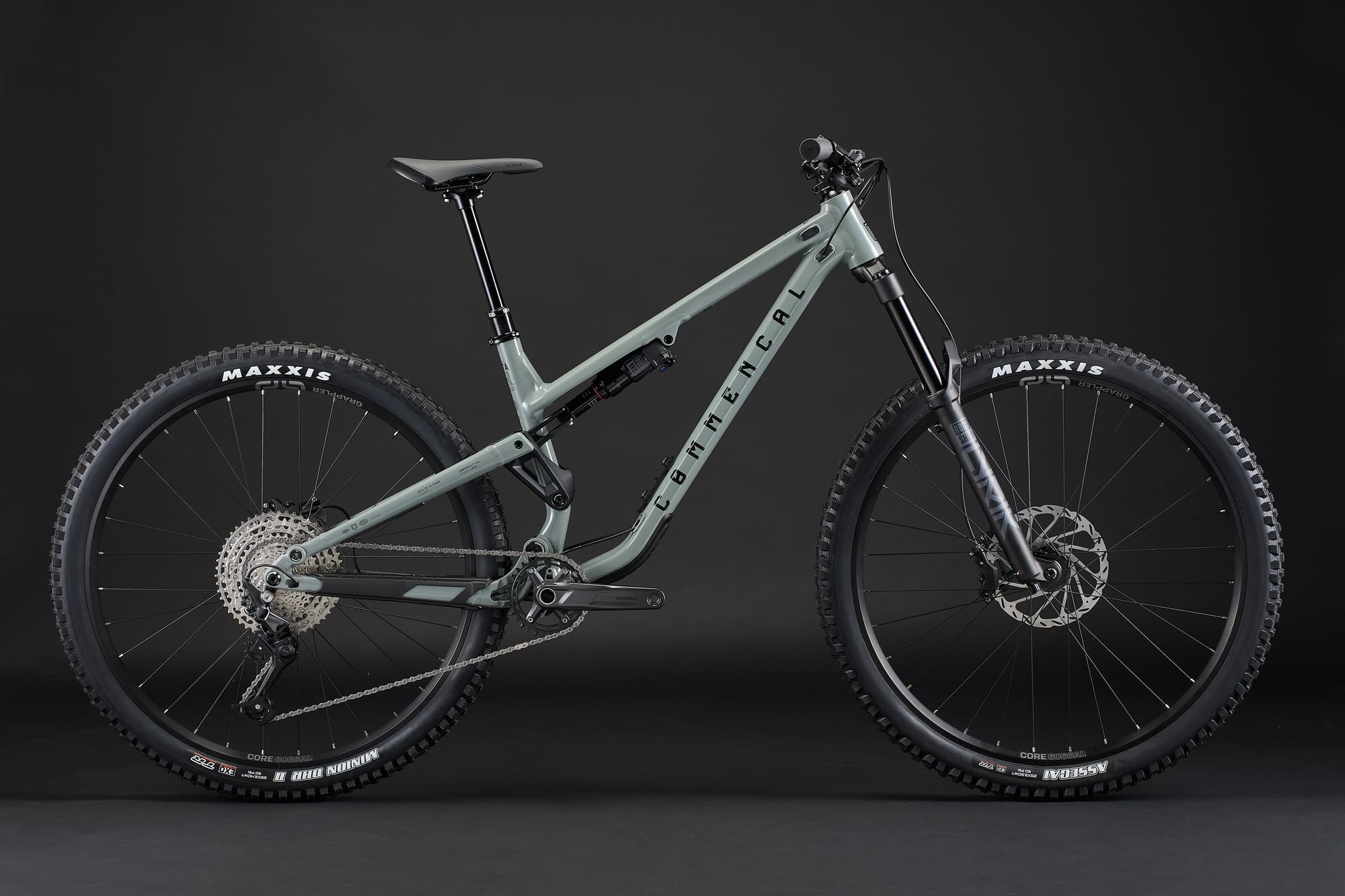

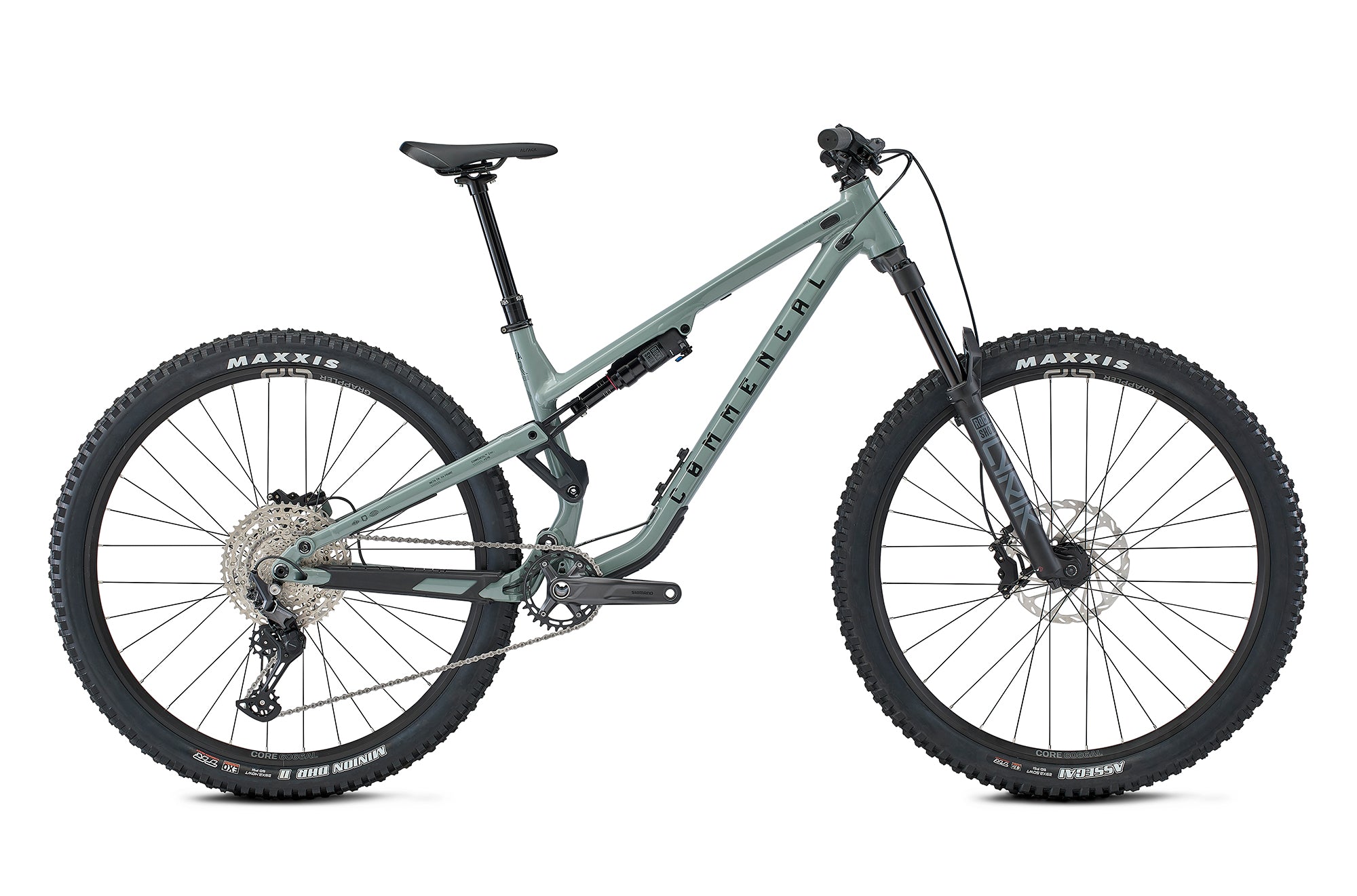

Commencal Meta TR V4 Ride Pyrite Grey 2025 Trail Bike
Frame
2025 META TR, 140 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock

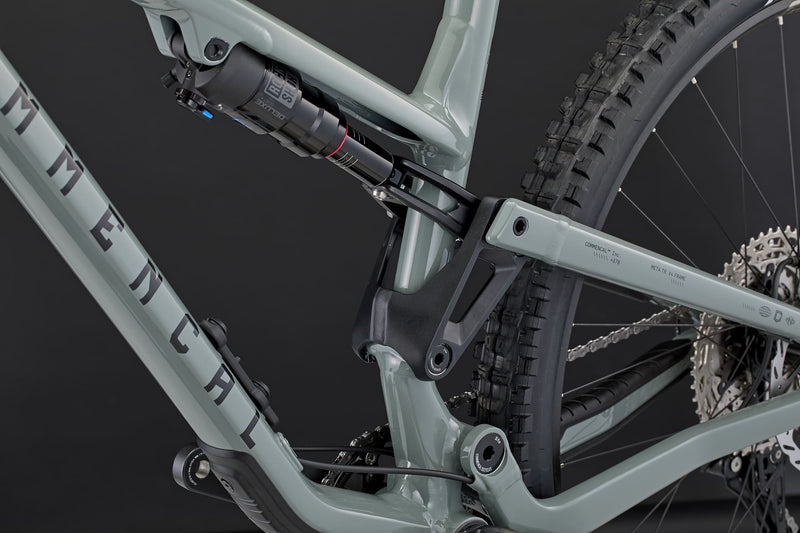

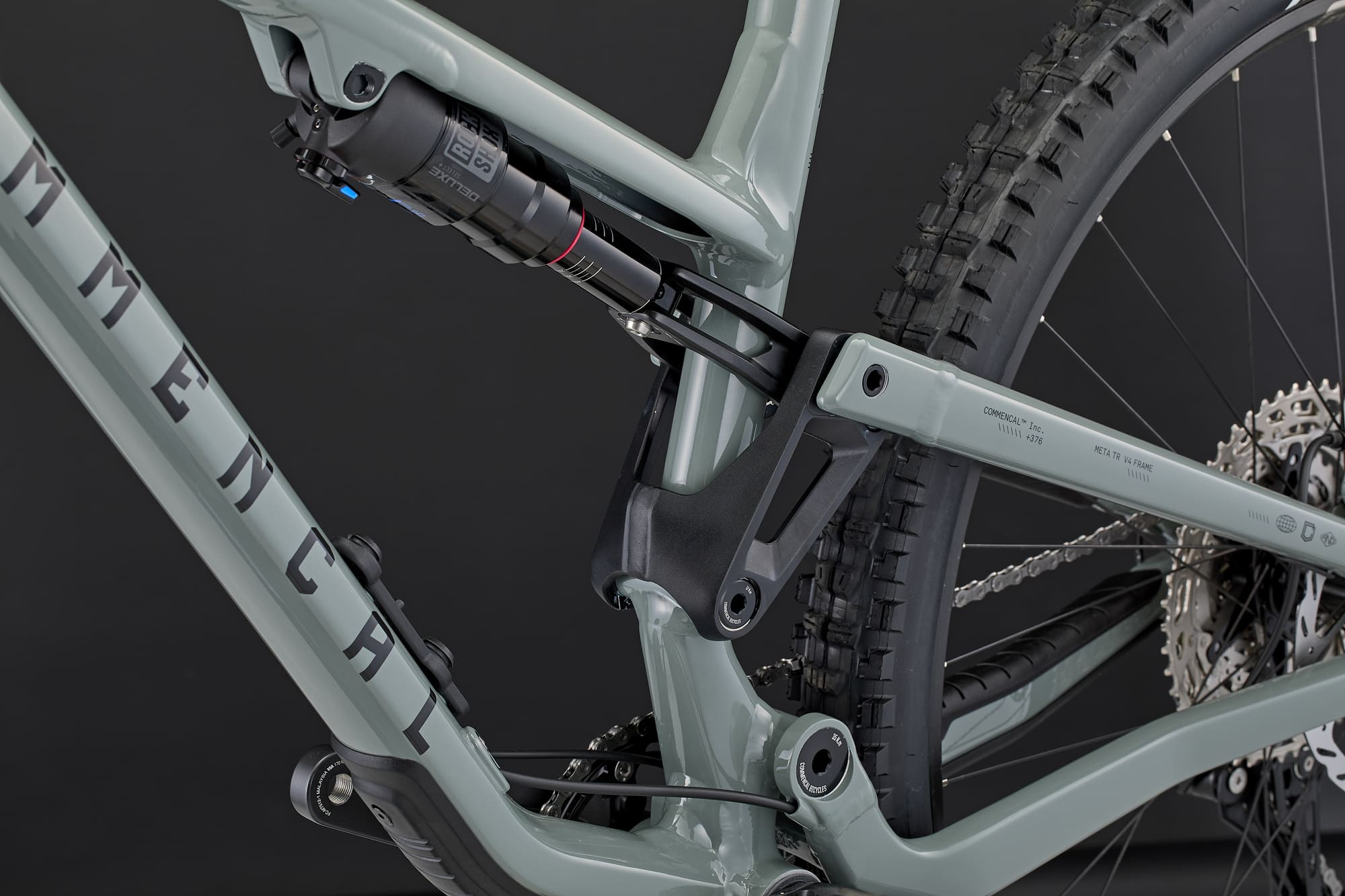

SRAM Deluxe Select +
210 x 55 mm, 3-postion adjustment, reboundFork

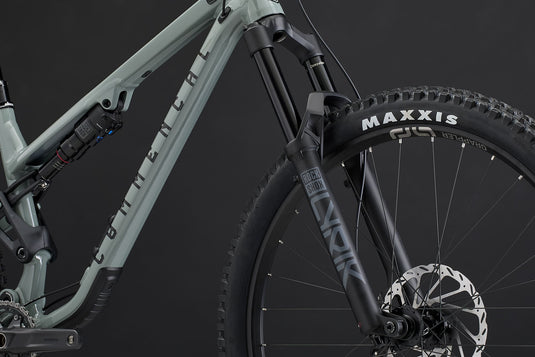

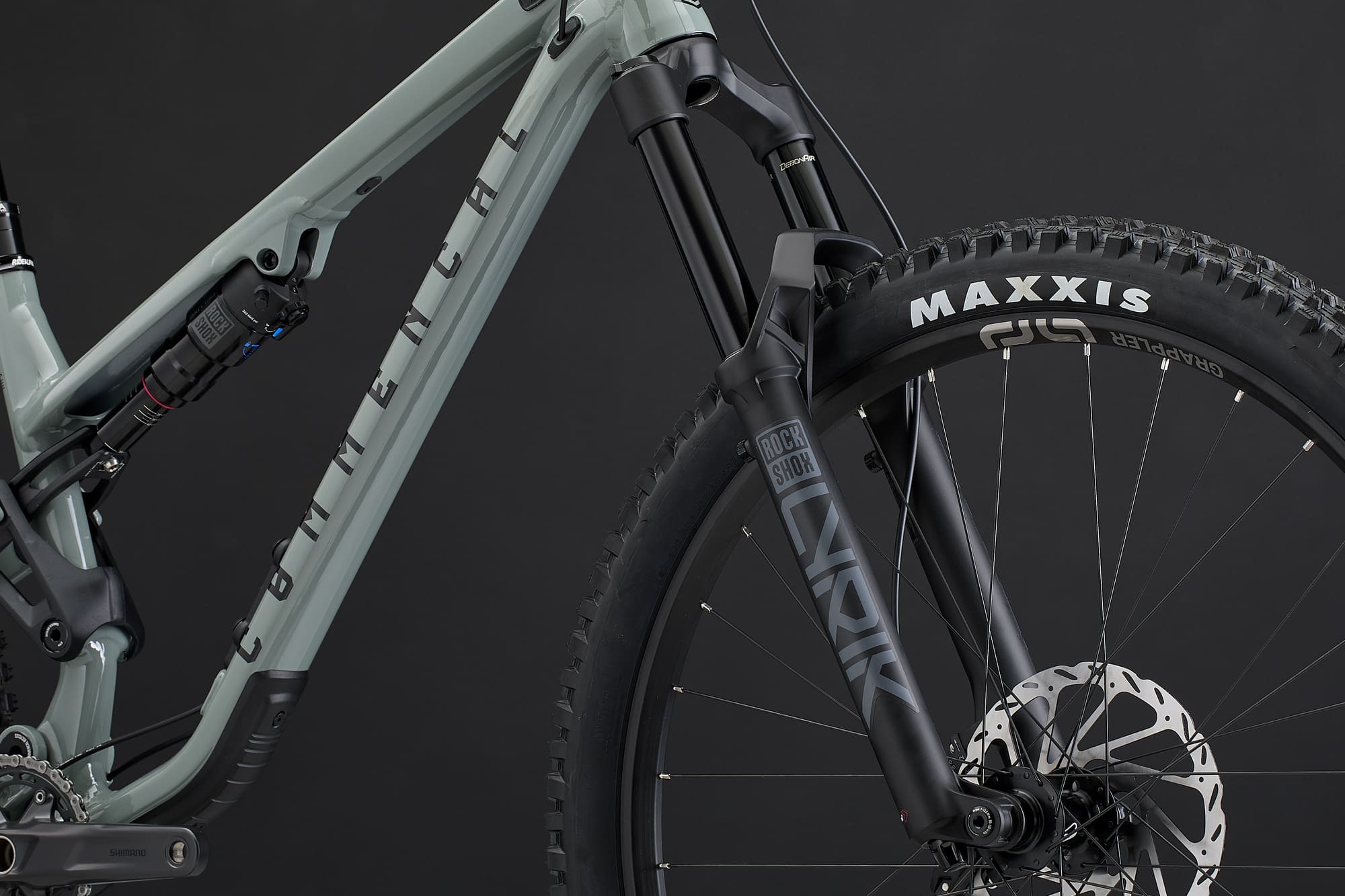

SRAM Lyrik Base, 160 mm travel
29", RC damper, LSR, 15 x 110 mm, 44 mm offsetHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem

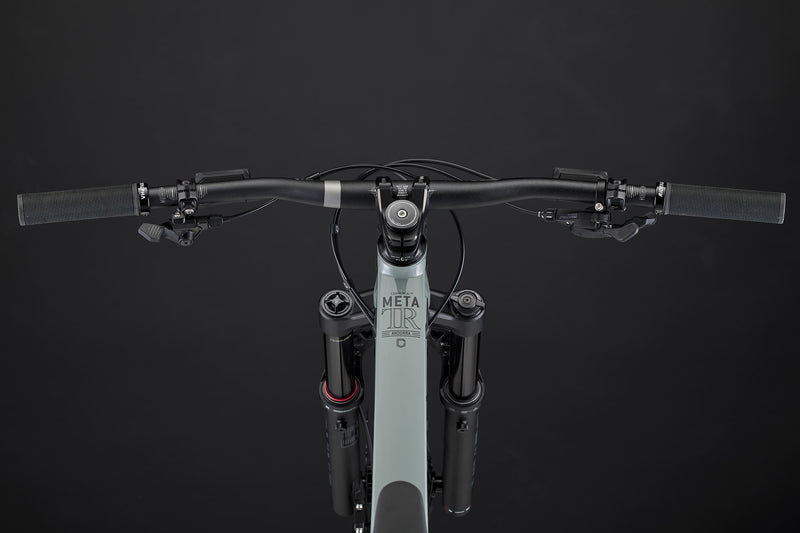

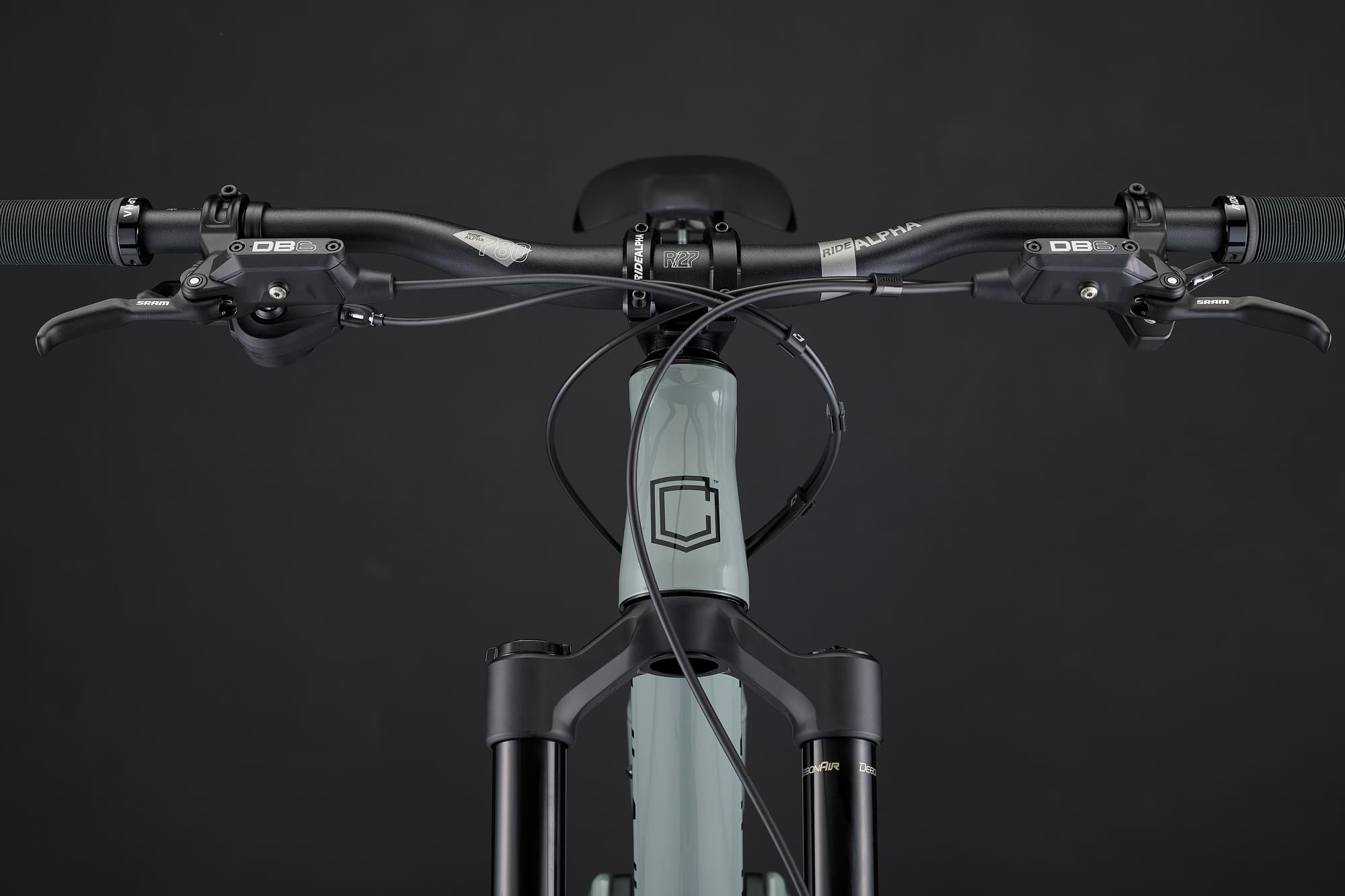

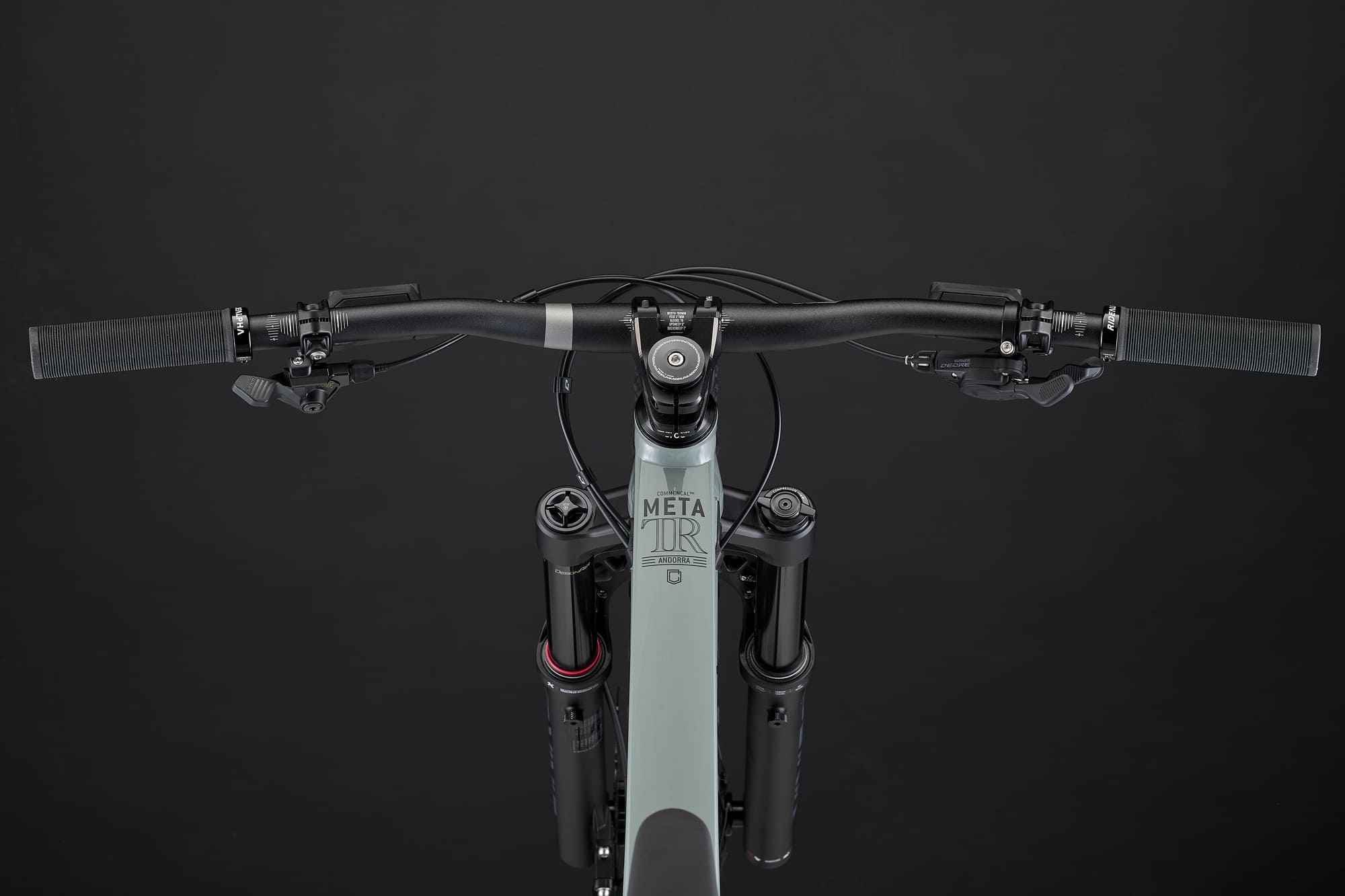

RIDE ALPHA Enduro 40
40 mm extension, 31.8 mmHandlebar
RIDE ALPHA R20 760 on S, RIDE ALPHA R27 780 on M / L, RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA Mushroom
132 mm, single clamp, blackBrakes
SRAM DB6, 4 pistons, resind pads
Rotors: SRAM G2 200 mm, 6-boltShifters

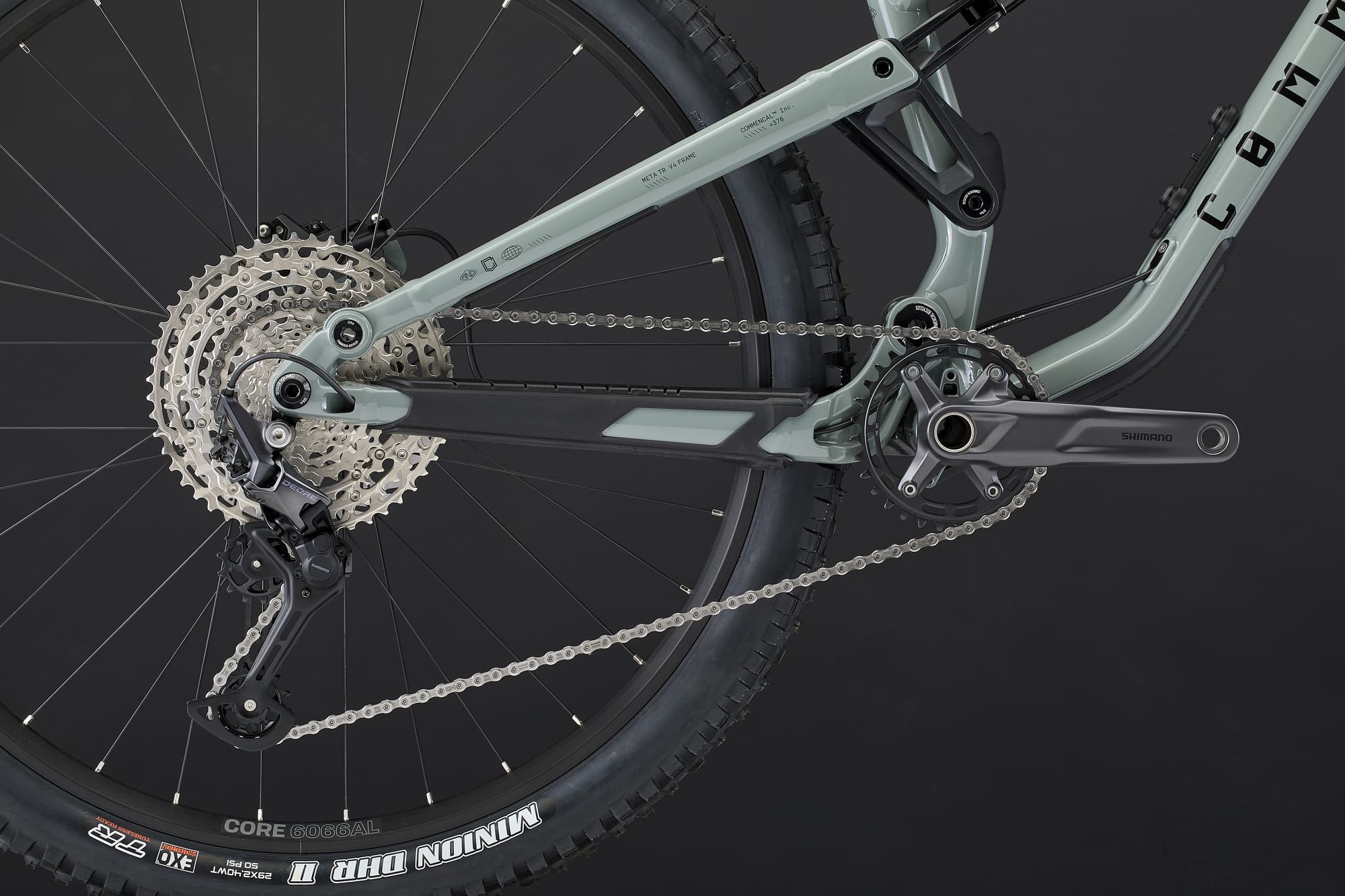

SHIMANO Deore
12sREAR DERAILLEUR
SHIMANO Deore
12sBottom bracket
SHIMANO SM-BB-71
PressfitCrankset
SHIMANO MT512, 170 mm crank arms
Chainring: SHIMANO MT512, 32tChain
SHIMANO Deore
12sCassette
SHIMANO Deore
12s, 10-51tRims
E13 Grappler Core
29'', 32h, 30 mm inner widthHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, SHIMANO Microspline - Front: 32h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
SAPIM Race
2.0-1.8-2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 29" x 2.40", EXO, Tubeless Ready - Front: 29" x 2.50", EXO, Tubeless ReadySeat post
KINDSHOCK 900i
34.9 mm, travel: 125 mm on S, 170 mm on M, 190 mm on L/XLSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
16 KG / 35.27 LB
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pyrite Grey
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, FIDLOCK base
Bicycle type
Trail 29"
Frame material
AL 6066 T4, T6
Frame weight
3,7 kg / 8.15 lb
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 x 10 mm on shaft
Recommended/max. fork height
551 mm / 571 mm
Headset dimension
Tapered
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
29" - 65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle
Frame
2025 META TR, 140 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
SRAM Deluxe Select +
210 x 55 mm, 3-postion adjustment, reboundFork
SRAM Lyrik Base, 160 mm travel
29", RC damper, LSR, 15 x 110 mm, 44 mm offsetHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Enduro 40
40 mm extension, 31.8 mmHandlebar
RIDE ALPHA R20 760 on S, RIDE ALPHA R27 780 on M / L, RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA Mushroom
132 mm, single clamp, blackBrakes
SRAM DB6, 4 pistons, resind pads
Rotors: SRAM G2 200 mm, 6-boltShifters
SHIMANO Deore
12sREAR DERAILLEUR
SHIMANO Deore
12sBottom bracket
SHIMANO SM-BB-71
PressfitCrankset
SHIMANO MT512, 170 mm crank arms
Chainring: SHIMANO MT512, 32tChain
SHIMANO Deore
12sCassette
SHIMANO Deore
12s, 10-51tRims
E13 Grappler Core
29'', 32h, 30 mm inner widthHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, SHIMANO Microspline - Front: 32h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
SAPIM Race
2.0-1.8-2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 29" x 2.40", EXO, Tubeless Ready - Front: 29" x 2.50", EXO, Tubeless ReadySeat post
KINDSHOCK 900i
34.9 mm, travel: 125 mm on S, 170 mm on M, 190 mm on L/XLSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
16 KG / 35.27 LB
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pyrite Grey
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, FIDLOCK base
Bicycle type
Trail 29"
Frame material
AL 6066 T4, T6
Frame weight
3,7 kg / 8.15 lb
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 x 10 mm on shaft
Recommended/max. fork height
551 mm / 571 mm
Headset dimension
Tapered
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
29" - 65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

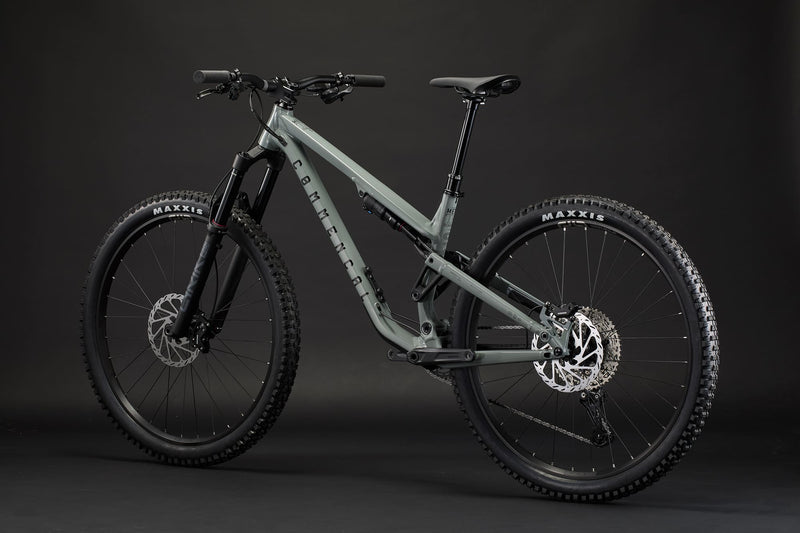

The 2025 META TR RIDE in Pyrite Grey is built to shred trails with confidence and control. Its 140mm alloy frame pairs with a 160mm SRAM Lyrik Base fork and Deluxe Select+ shock for plush, progressive performance. Shimano’s 12-speed Deore drivetrain and 4-piston SRAM DB6 brakes keep things crisp and powerful. E13 Grappler rims, MAXXIS rubber, and a KINDSHOCK dropper round out the build. At 16 kg, it’s a sturdy, trail-hungry machine that’s ready to climb, descend, and do it all again.
This Trail 29" frame is built for serious all-mountain performance, blending strength and versatility in a 3.7 kg AL 6066 T4/T6 package. With 140mm of rear travel and compatibility for piggyback shocks, it’s ready to soak up the hits. Designed around a 210x55mm shock and 551–571 mm fork, it features a BB92 bottom bracket, ISCG 05 tabs, and clearance for up to 65mm tyres. Boost hub spacing and post-mount 220 mm brake compatibility round out a chassis built to go full send.
