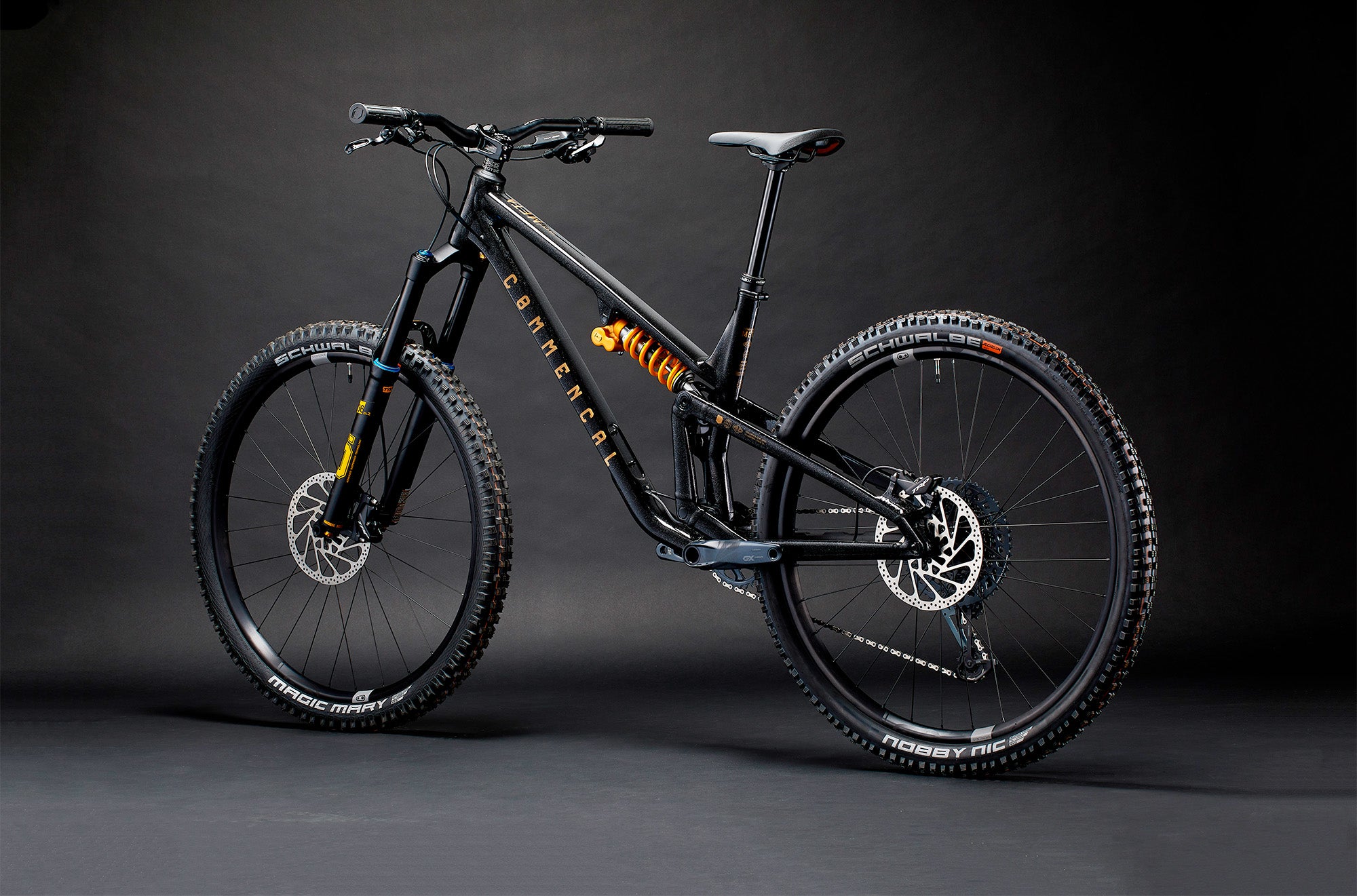

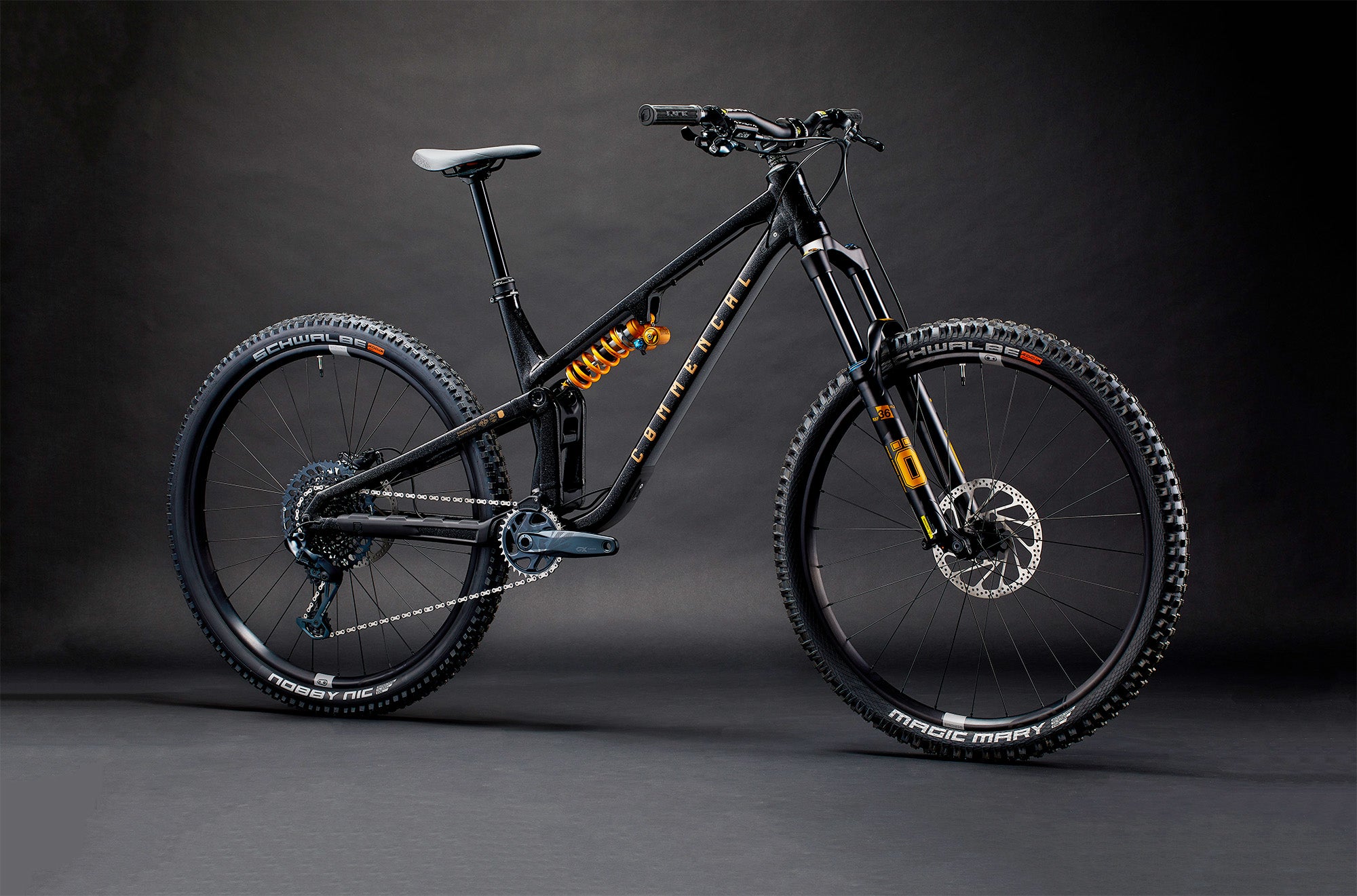

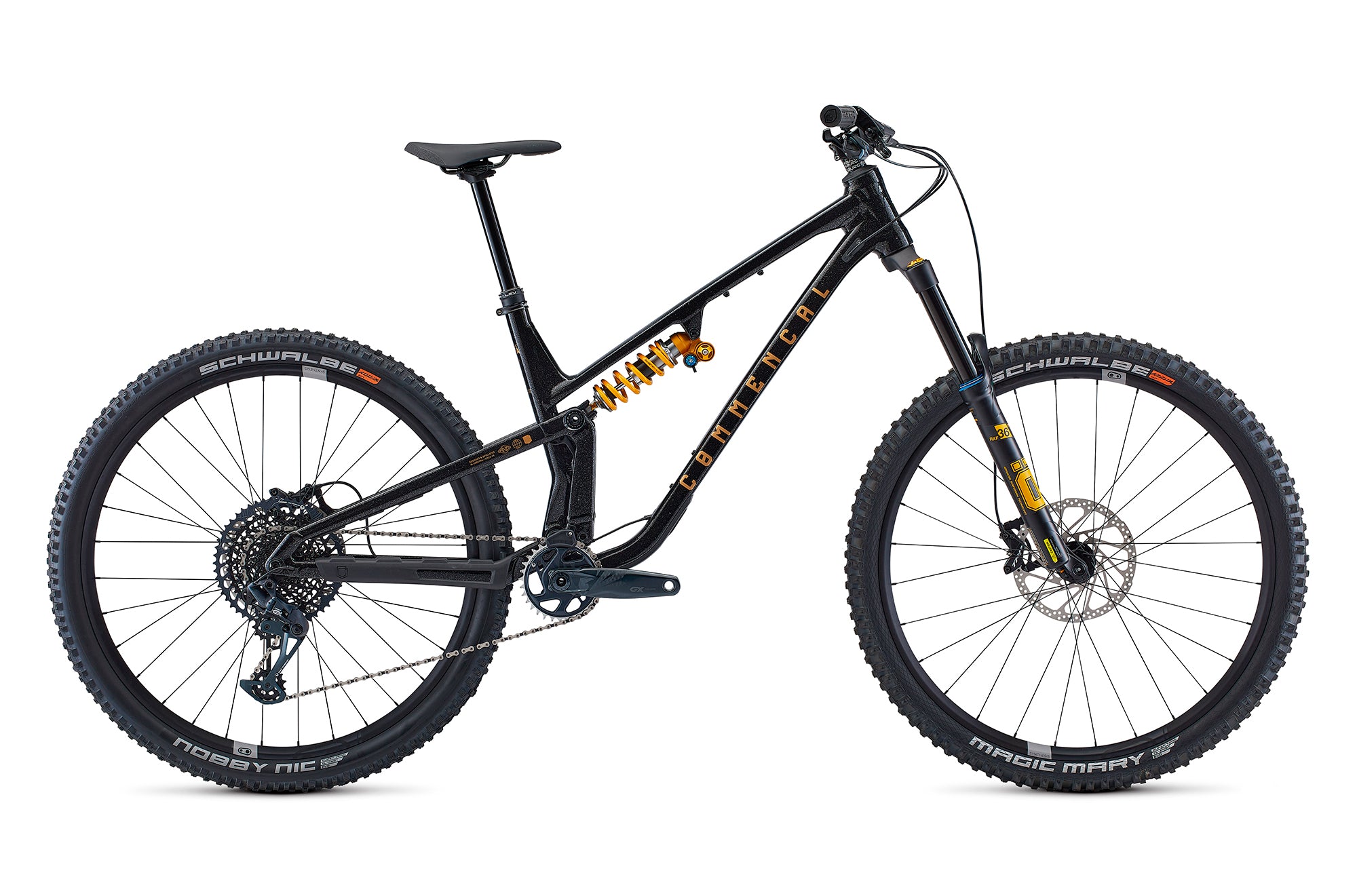

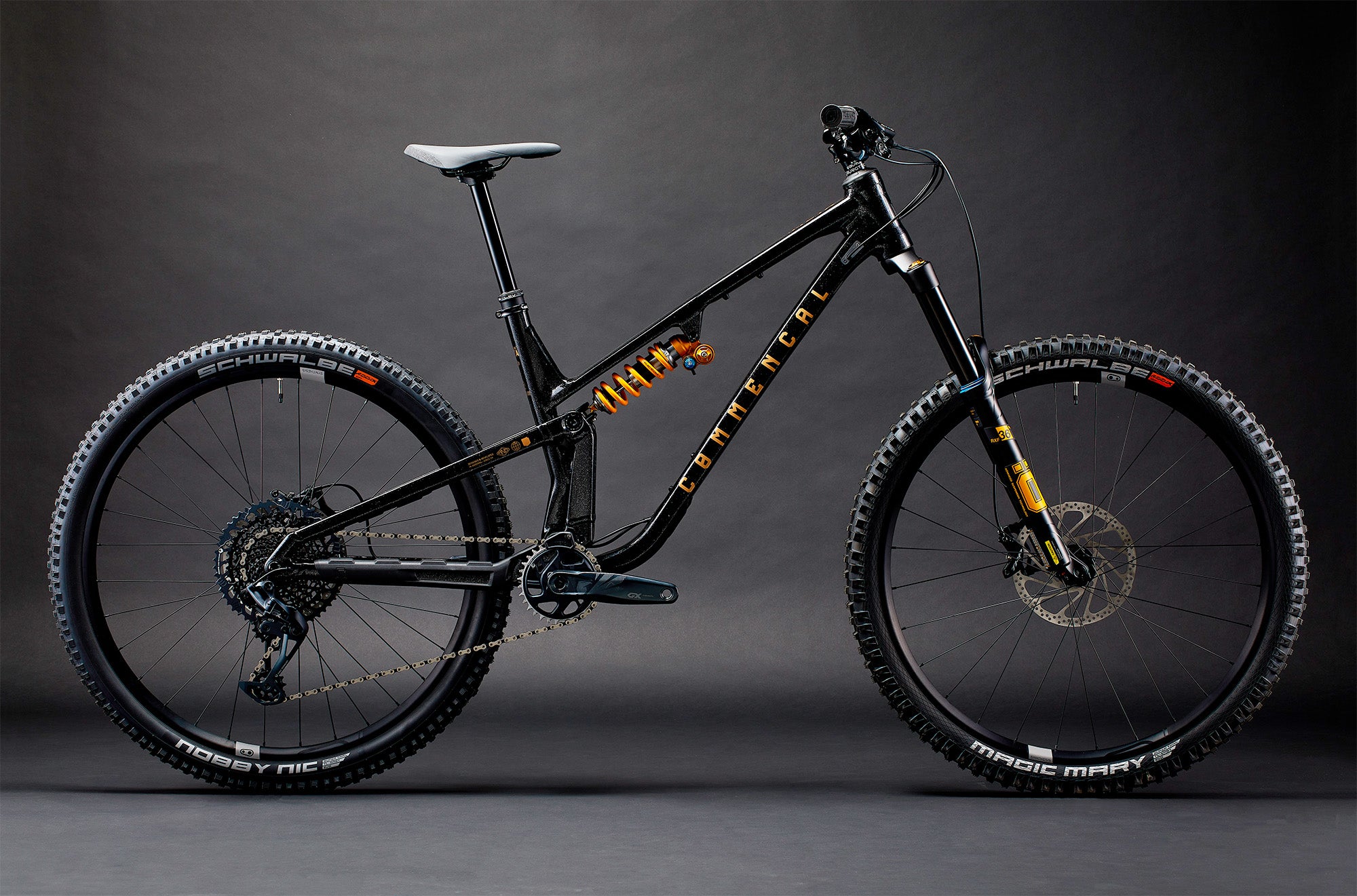

Commencal META V5 Öhlins Edition - Glittery Black - Enduro Mountain Bike
Frame
META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6Shock

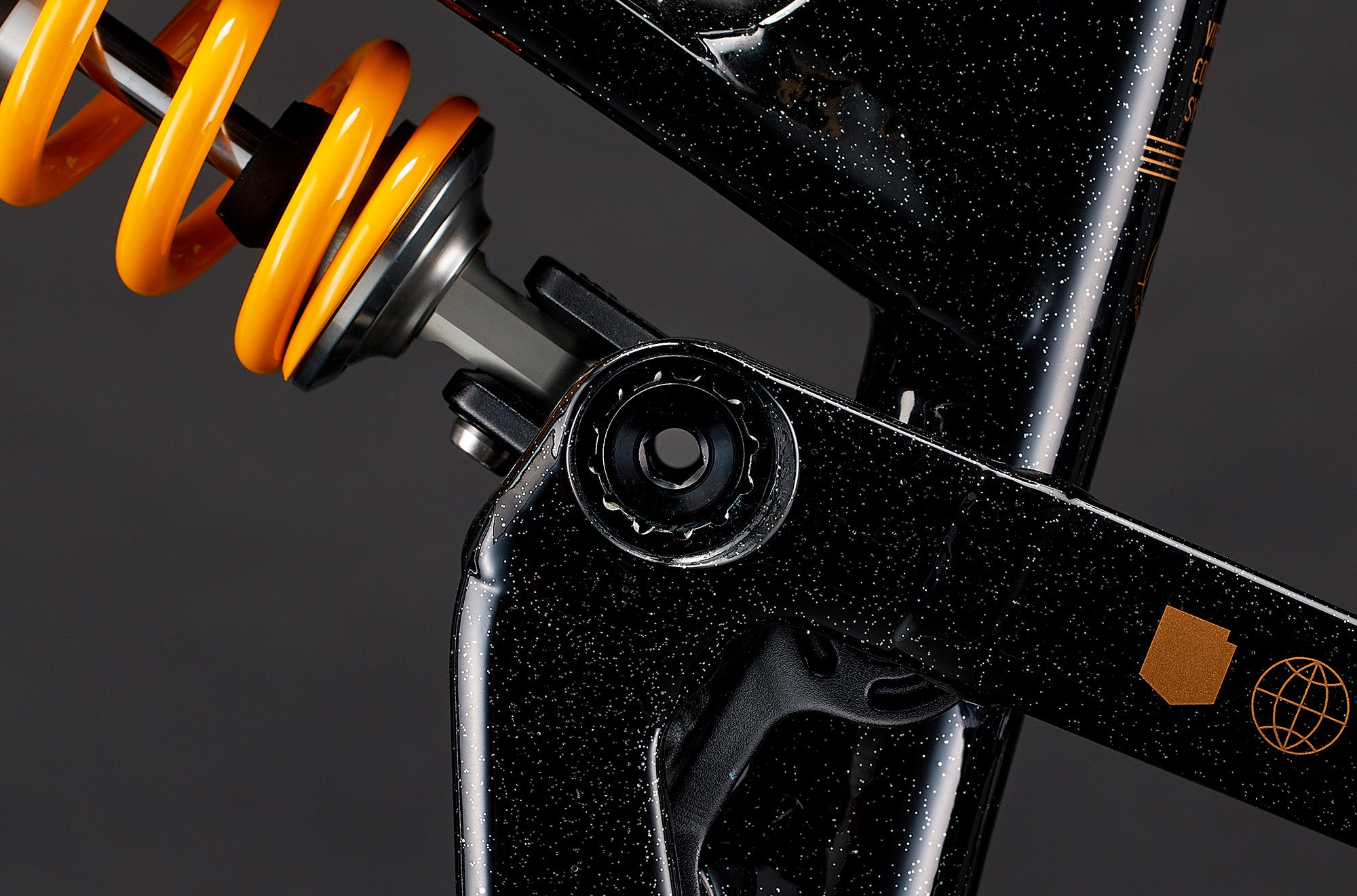

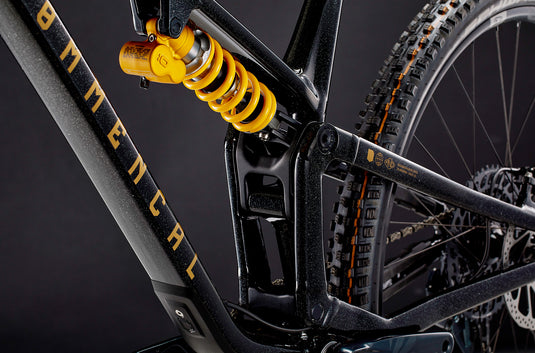

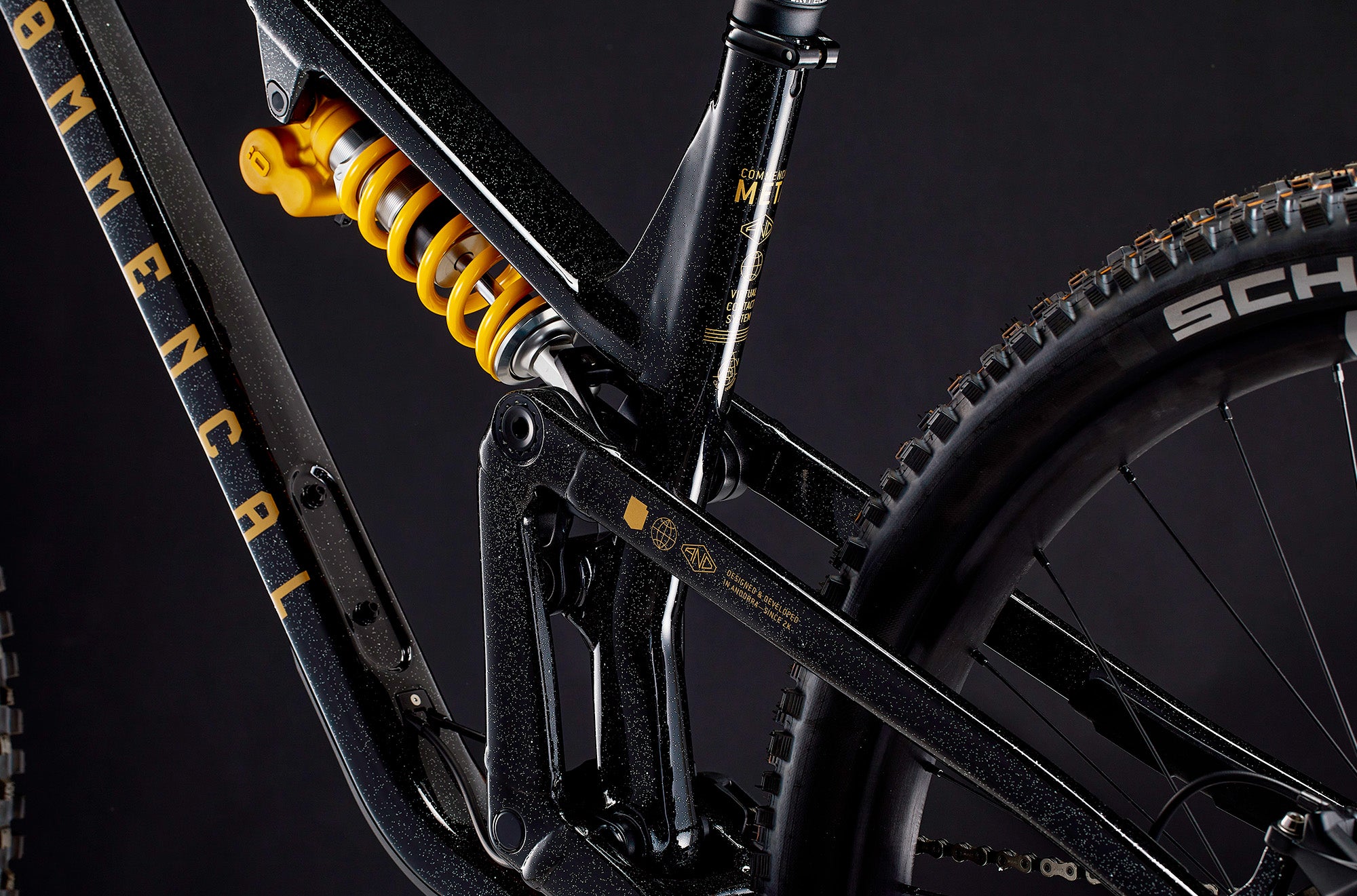

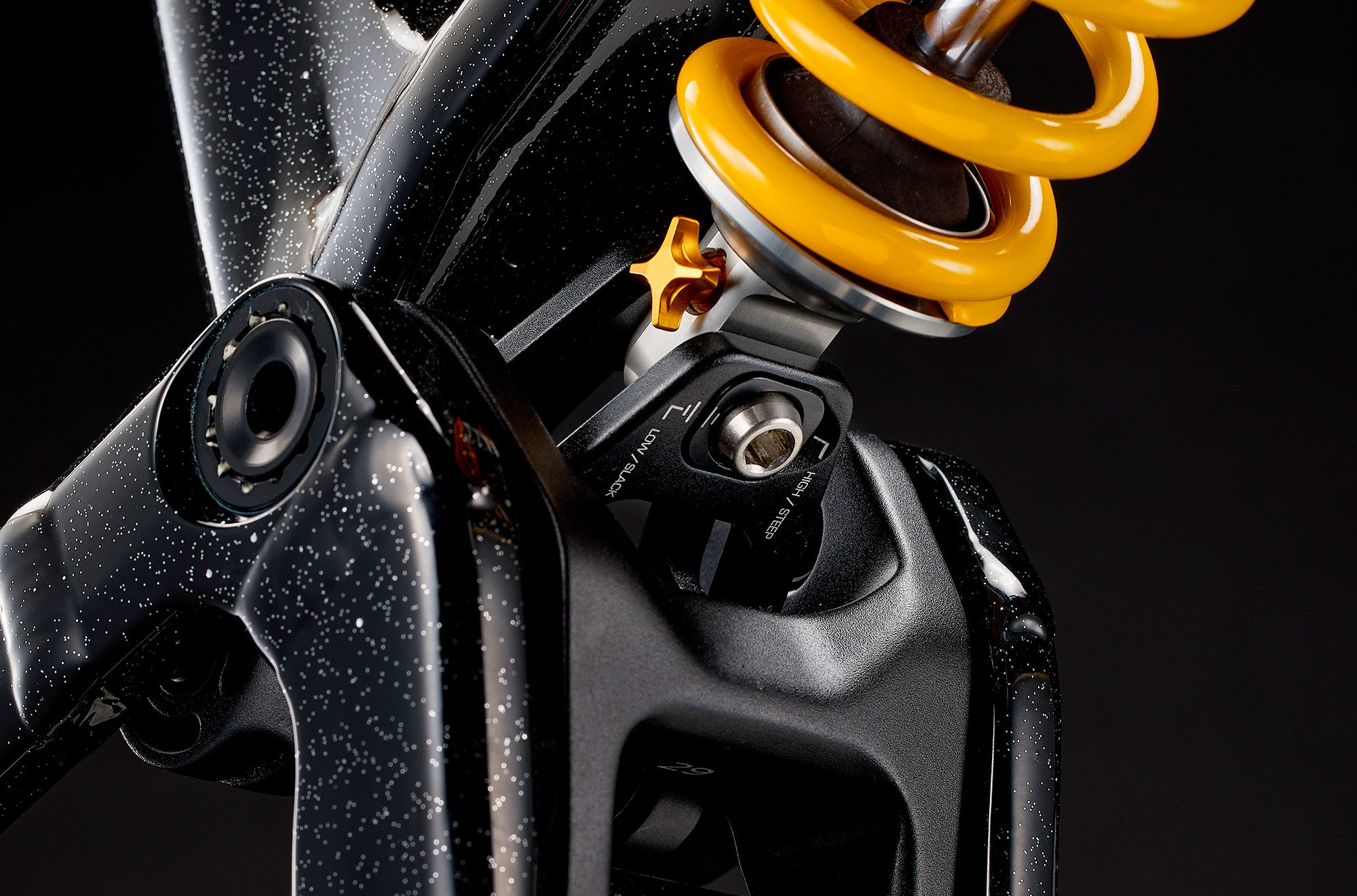

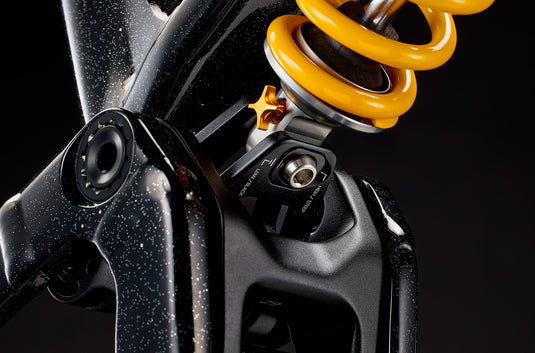

OHLINS TTX22 M.2 Coil
210 x 55 mm, HSC, LSC, rebound, climb mode. Spring rates: 388 on S, 434 on M, 480 on L, 525 on XLFork

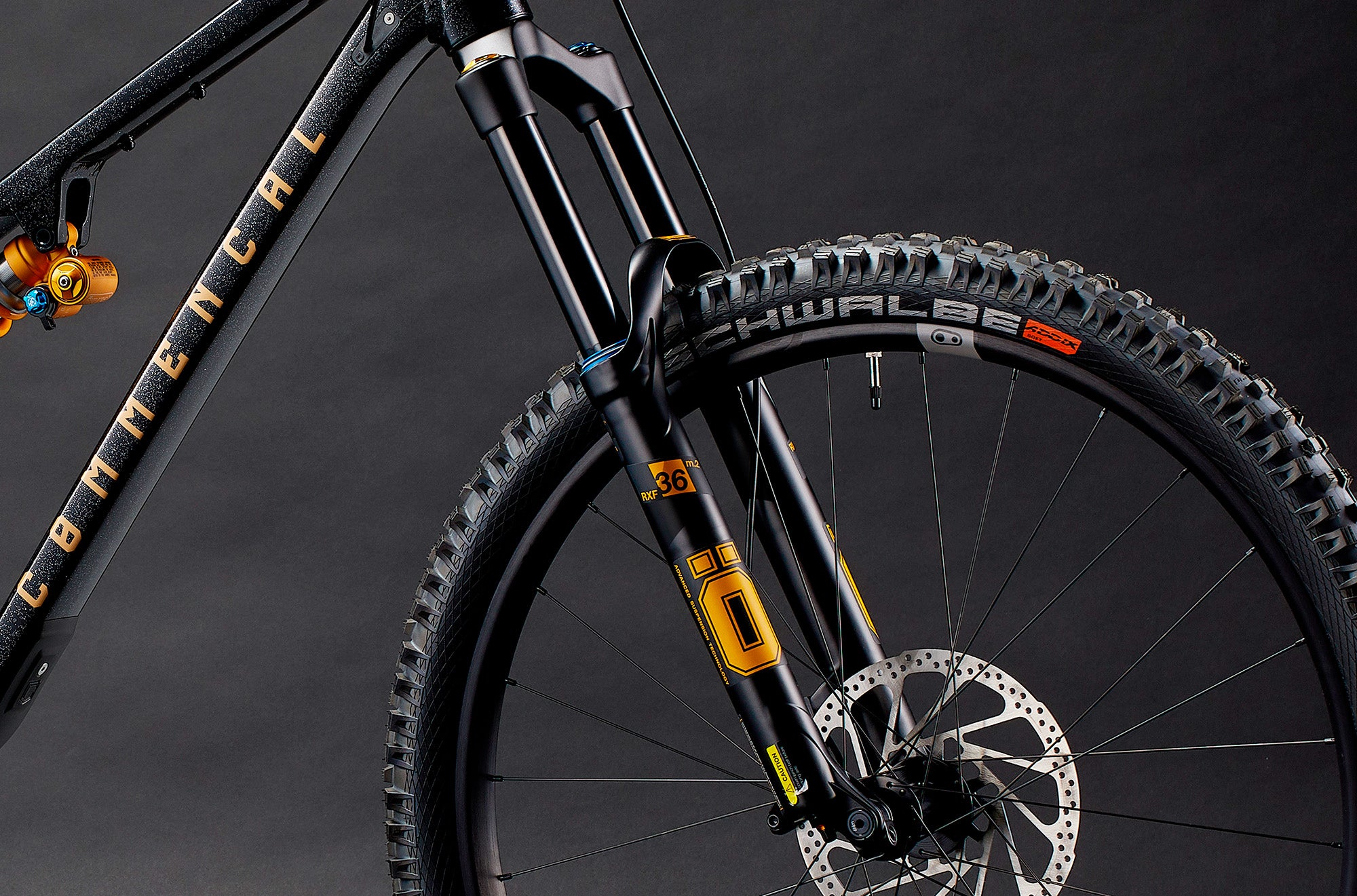

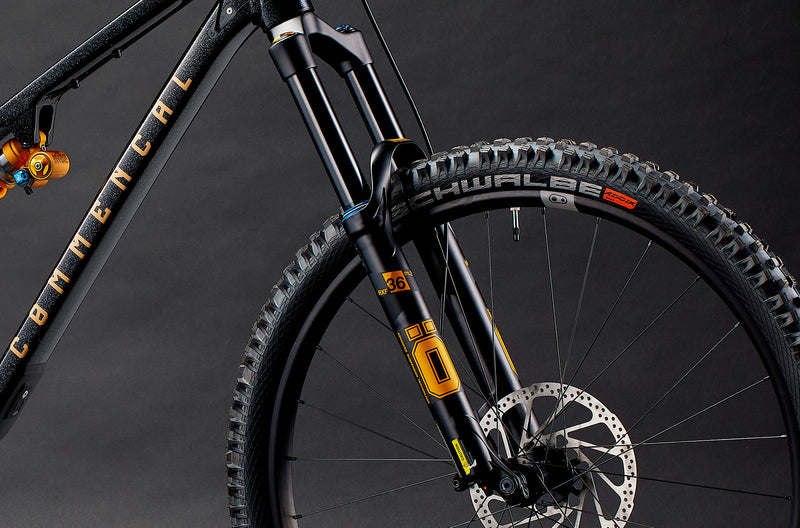

OHLINS RXF36 m.2 Air, 160 mm travel
29", TTX 18 damper, LSC, HSC, LSR, climb mode, Boost (15 x 110 mm), 44 mm offsetHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem

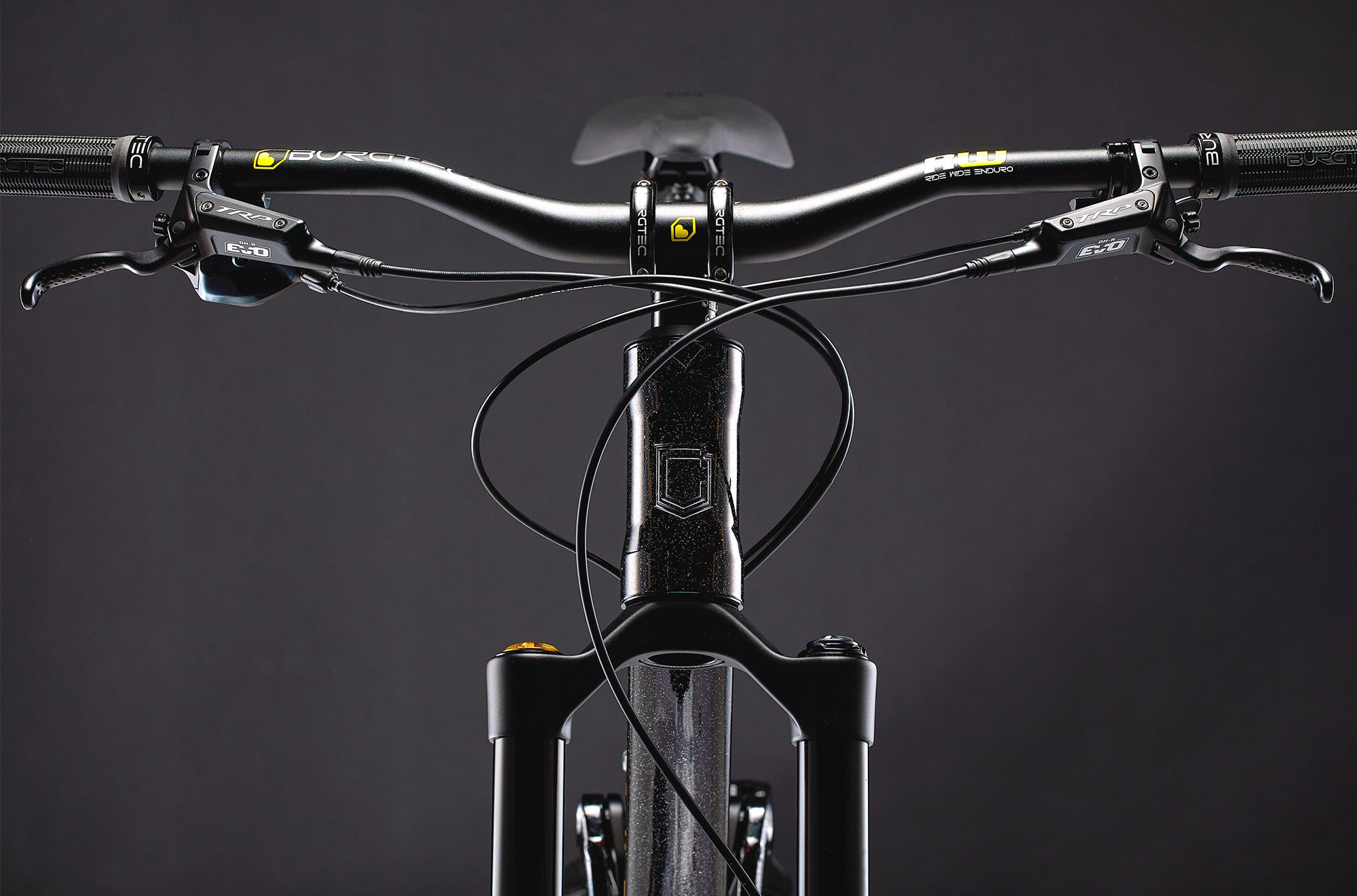

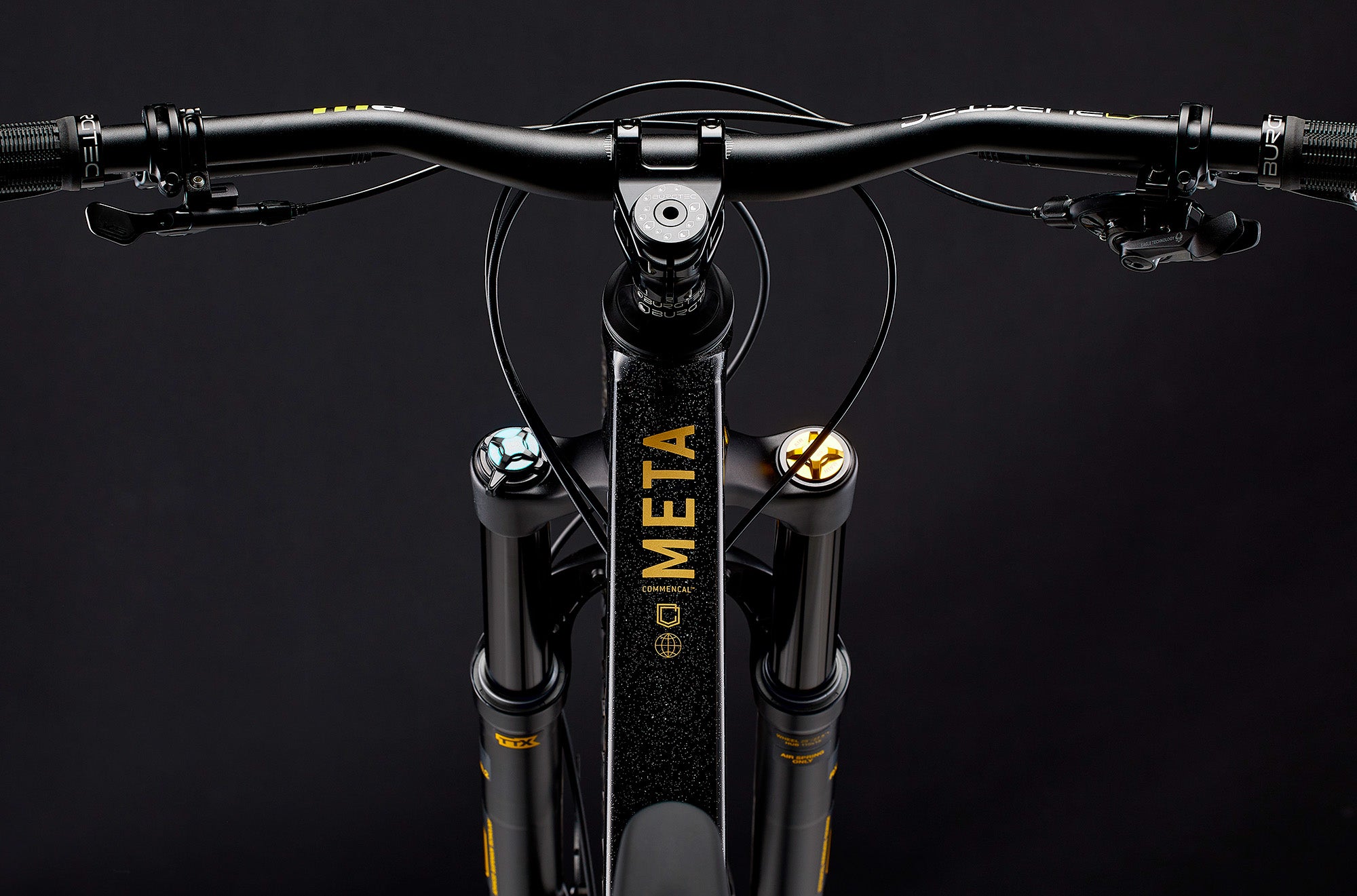

BURGTEC ENDURO MK3
42,5 mm extension, 31.8 mmHandlebar

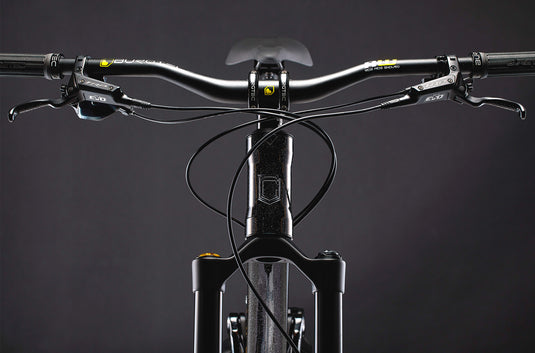

BURGTEC RIDE WIDEALLOY ENDURO 760 on S - BURGTEC RIDE WIDEALLOY ENDURO 780 on M / L - BURGTEC RIDE WIDEALLOY ENDURO 800 on XL
31.8 mm, 760 mm width, 30 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 30 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 30 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
TRP DH-R EVO, 4 pistons, resin pads, Postmount
Rotors: TRP R1 203 mm, 6 holes, 2.3mm thicknessShifters

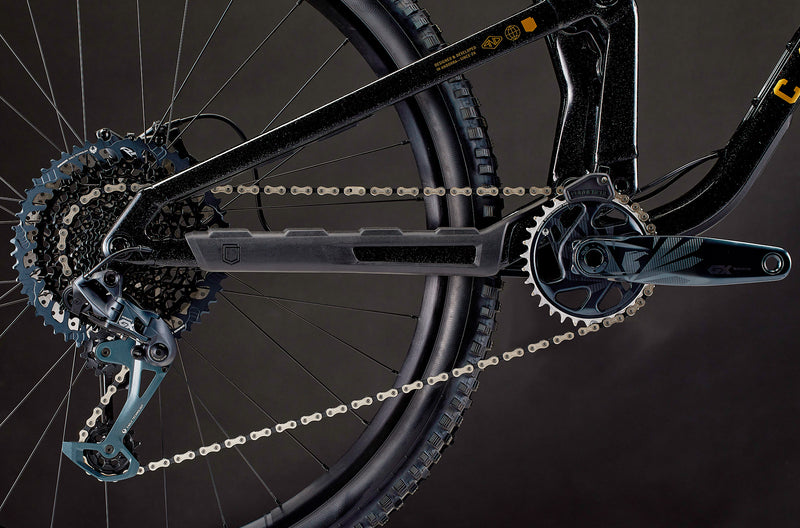

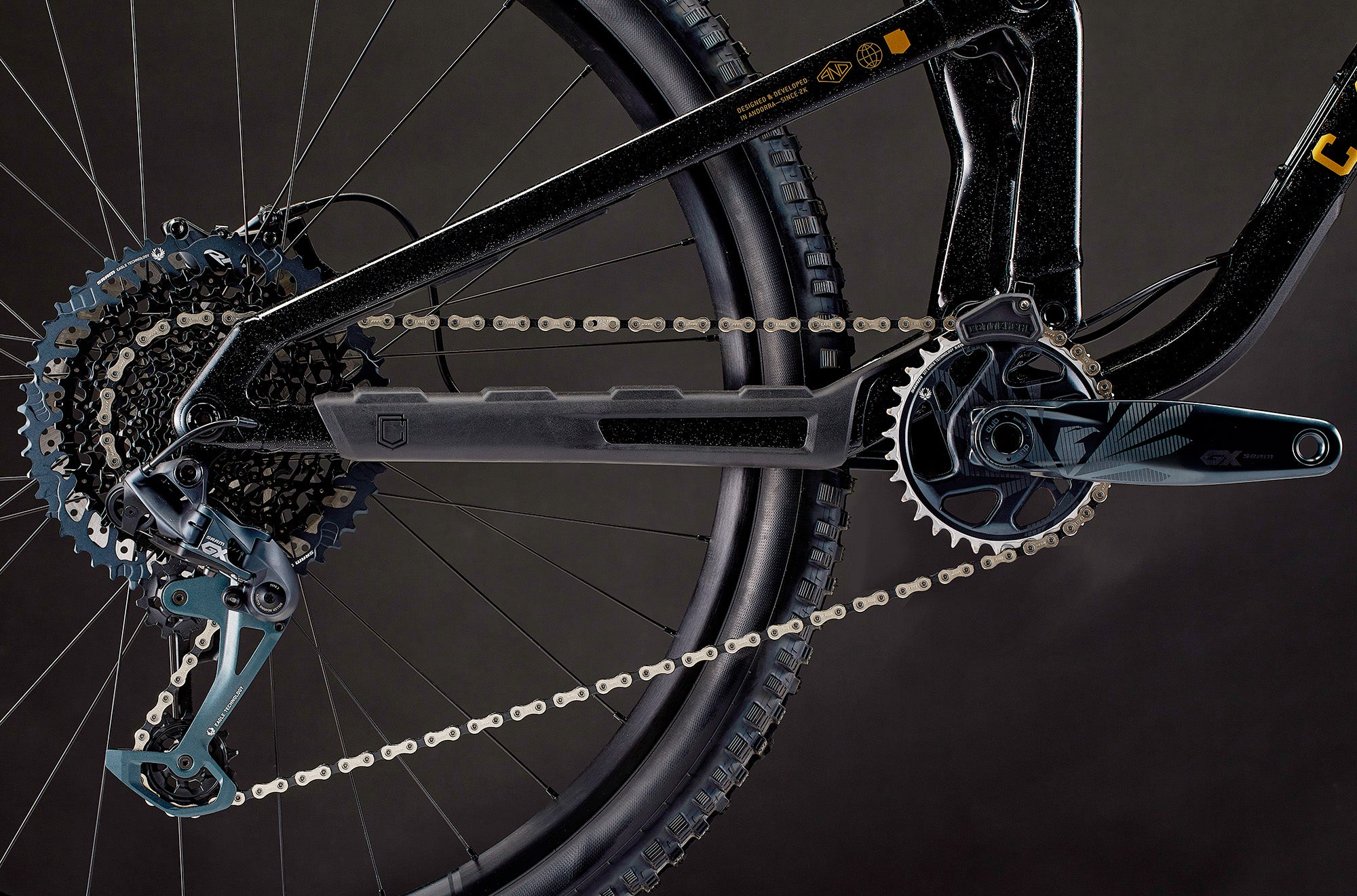

SRAM GX Eagle
12sChain guide
RIDE ALPHA
32t-34tREAR DERAILLEUR
SRAM GX Eagle
12sBottom bracket
SRAM DUB WIDE
PressfitCrankset
SRAM GX Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM GX Eagle, 32t, Narrow-WideChain
SRAM GX Eagle
12sCassette
SRAM XG-1275 Eagle
12s, 10-52tRims
CRANK BROTHERS Synthesis Alloy Enduro 3
Rear: 29'', 32h, 29.5 mm inner width - Front: 29'', 28h, 31.5 mm inner widthHubs
INDUSTRY NINE 1/1
Rear: 32h, sealed bearings, 12 x 148 mm, 4°, XD driver, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
Rear: SAPIM Race - Front: SAPIM D-Light
Rear: J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black - Front: J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic Mary
Rear: 29"x2.4", Evo, Super Trail, Addix Soft, Tubeless Easy - Front: 29"x2.4", Evo, Super Trail, Addix Soft, Tubeless EasySeat post
KS Lev Integra
34.9 mm, travel: 125 mm on S, 175 mm on M/L and 200 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
15,7 kg / 34.61 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Glittery Black
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 29"
Frame material
AL 6066 T4, T6
Frame weight
3,25 kg / 7.16 lb, raw without accessories
Rear travel
150 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON SHAFT / 20 X 10 mm ON BODY
Recommended/max. fork height
571 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 753
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
55 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle


Frame
META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6Shock
OHLINS TTX22 M.2 Coil
210 x 55 mm, HSC, LSC, rebound, climb mode. Spring rates: 388 on S, 434 on M, 480 on L, 525 on XLFork
OHLINS RXF36 m.2 Air, 160 mm travel
29", TTX 18 damper, LSC, HSC, LSR, climb mode, Boost (15 x 110 mm), 44 mm offsetHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
BURGTEC ENDURO MK3
42,5 mm extension, 31.8 mmHandlebar
BURGTEC RIDE WIDEALLOY ENDURO 760 on S - BURGTEC RIDE WIDEALLOY ENDURO 780 on M / L - BURGTEC RIDE WIDEALLOY ENDURO 800 on XL
31.8 mm, 760 mm width, 30 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 30 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 30 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
TRP DH-R EVO, 4 pistons, resin pads, Postmount
Rotors: TRP R1 203 mm, 6 holes, 2.3mm thicknessShifters
SRAM GX Eagle
12sChain guide
RIDE ALPHA
32t-34tREAR DERAILLEUR
SRAM GX Eagle
12sBottom bracket
SRAM DUB WIDE
PressfitCrankset
SRAM GX Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM GX Eagle, 32t, Narrow-WideChain
SRAM GX Eagle
12sCassette
SRAM XG-1275 Eagle
12s, 10-52tRims
CRANK BROTHERS Synthesis Alloy Enduro 3
Rear: 29'', 32h, 29.5 mm inner width - Front: 29'', 28h, 31.5 mm inner widthHubs
INDUSTRY NINE 1/1
Rear: 32h, sealed bearings, 12 x 148 mm, 4°, XD driver, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
Rear: SAPIM Race - Front: SAPIM D-Light
Rear: J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black - Front: J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic Mary
Rear: 29"x2.4", Evo, Super Trail, Addix Soft, Tubeless Easy - Front: 29"x2.4", Evo, Super Trail, Addix Soft, Tubeless EasySeat post
KS Lev Integra
34.9 mm, travel: 125 mm on S, 175 mm on M/L and 200 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
15,7 kg / 34.61 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Glittery Black
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 29"
Frame material
AL 6066 T4, T6
Frame weight
3,25 kg / 7.16 lb, raw without accessories
Rear travel
150 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON SHAFT / 20 X 10 mm ON BODY
Recommended/max. fork height
571 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 753
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
55 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle



The META V5 ÖHLINS EDITION isn’t just dripping in glitter—it’s packed with precision. A burly alloy frame and Öhlins suspension (RXF36 fork & TTX22 coil shock) anchor the ride, while TRP DH-R EVO brakes and a SRAM GX Eagle 12-speed drivetrain keep it sharp and responsive. CRANKBROTHERS Synthesis wheels with Industry Nine hubs add speed and control, while SCHWALBE tyres ensure grip in any terrain. Finished with Burgtec controls, a dropper post, and rugged accessories, it’s trail-ready, peak-hungry, and unapologetically premium.
This META V5 frame means business. Crafted from AL 6066 alloy, it’s light at just 3.25kg but built to muscle through enduro mayhem. With 150mm of rear travel, 210x55mm shock stroke, and full piggyback compatibility, it’s dialled for aggression. The integrated cable routing, ISCG 05 tabs, and max 223mm rotor clearance scream modern performance. Pair it with a 29” wheel setup, 200mm Postmount brakes, and 34.9mm dropper, and you’ve got a chassis that’s hungry for hard lines and steeper sends.
