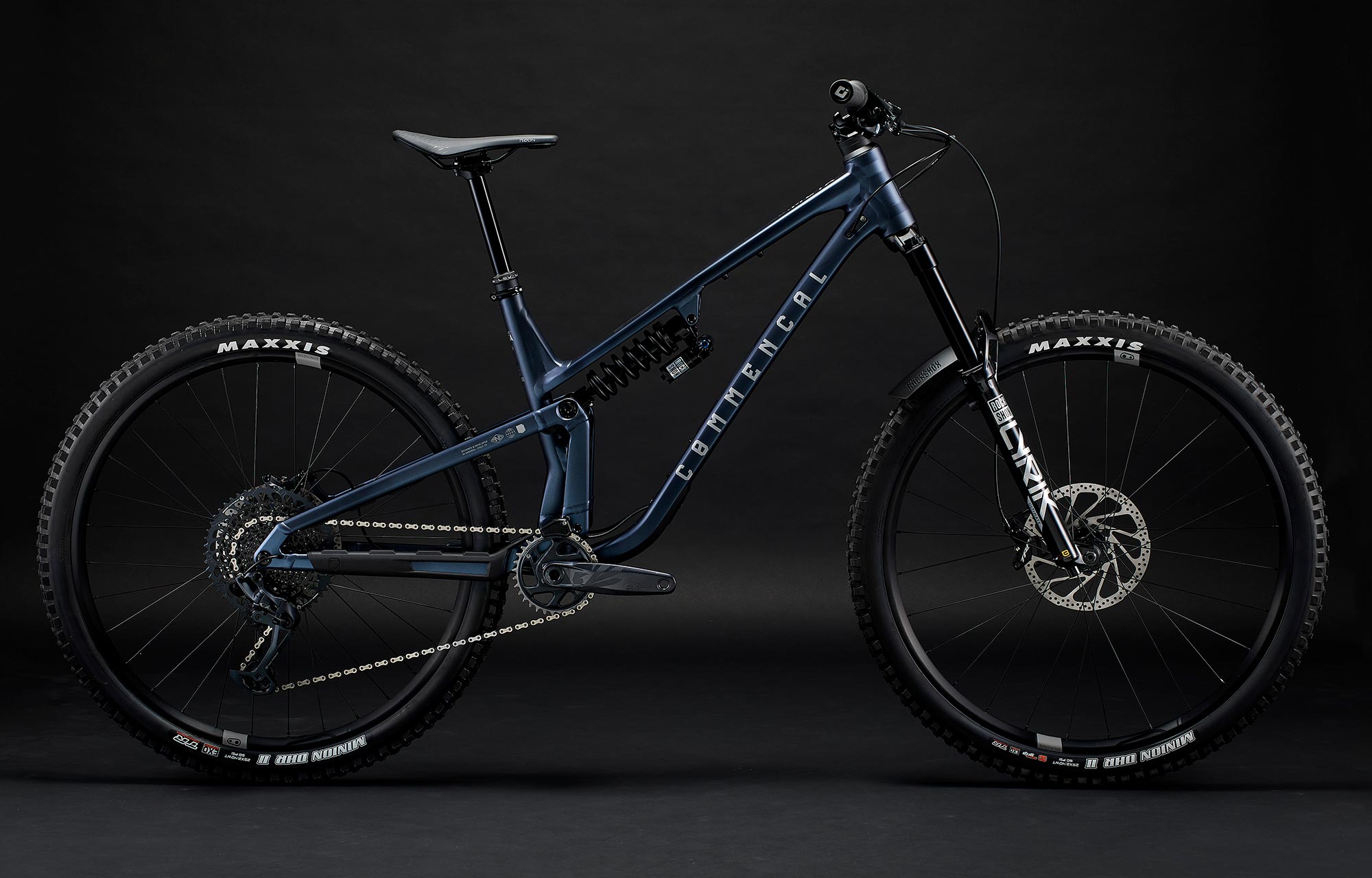

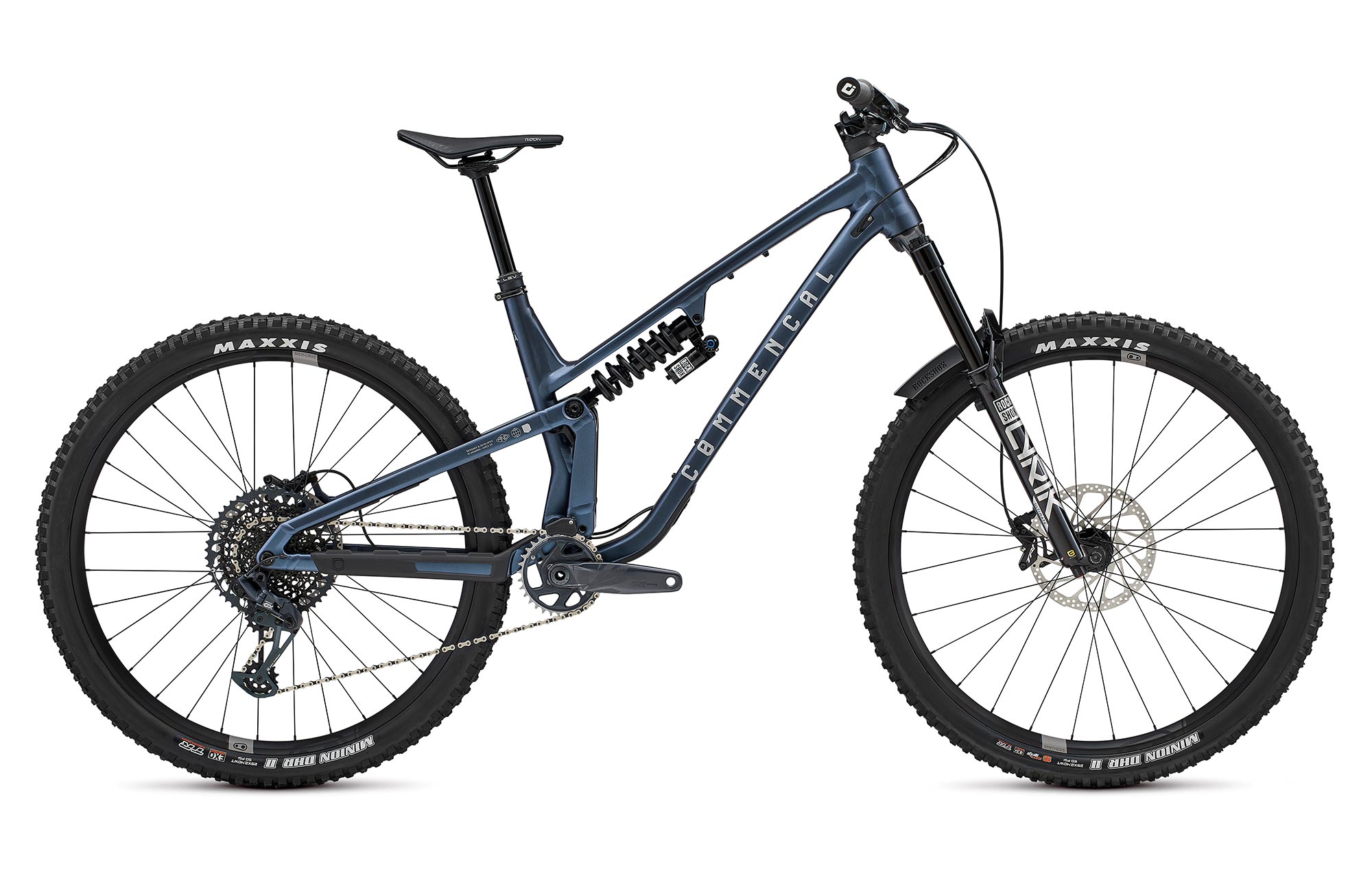

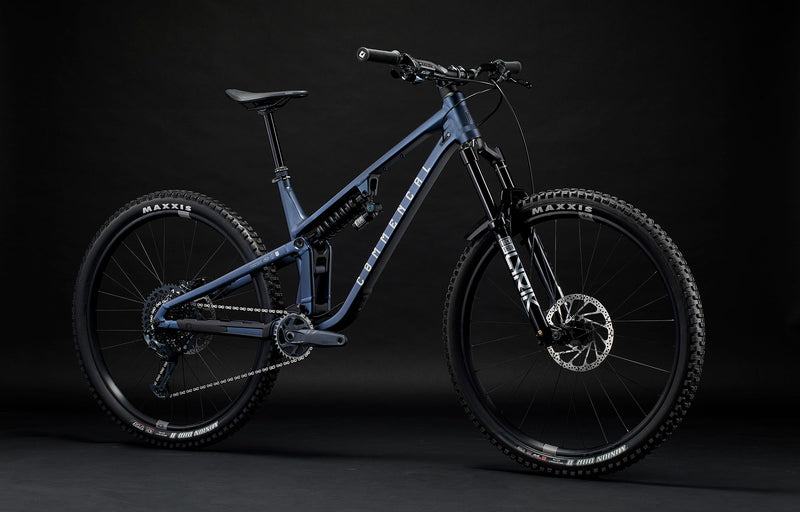

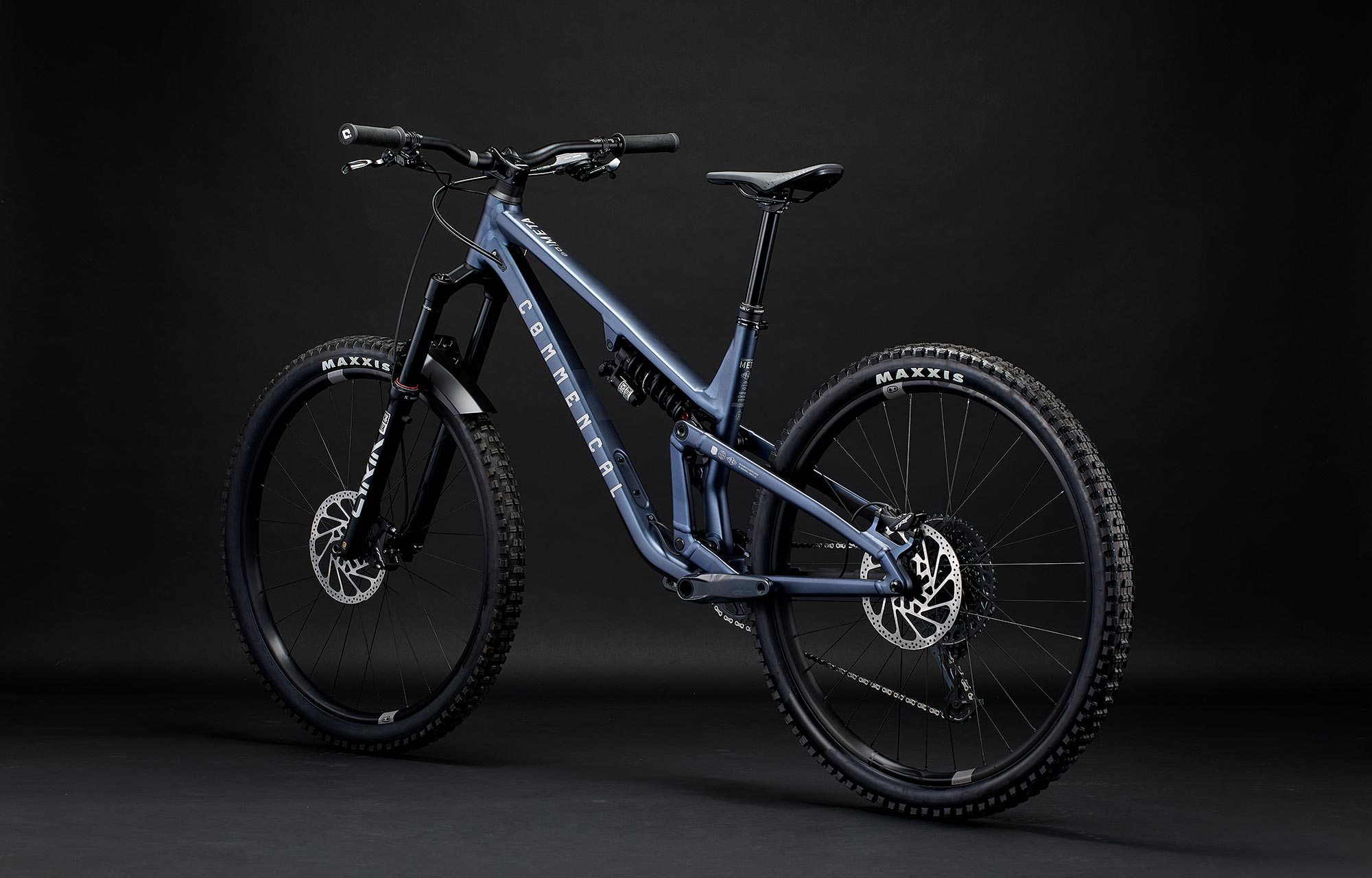

Commencal META V5 Race Sparkly Blue Enduro Bike
Frame
META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6Shock

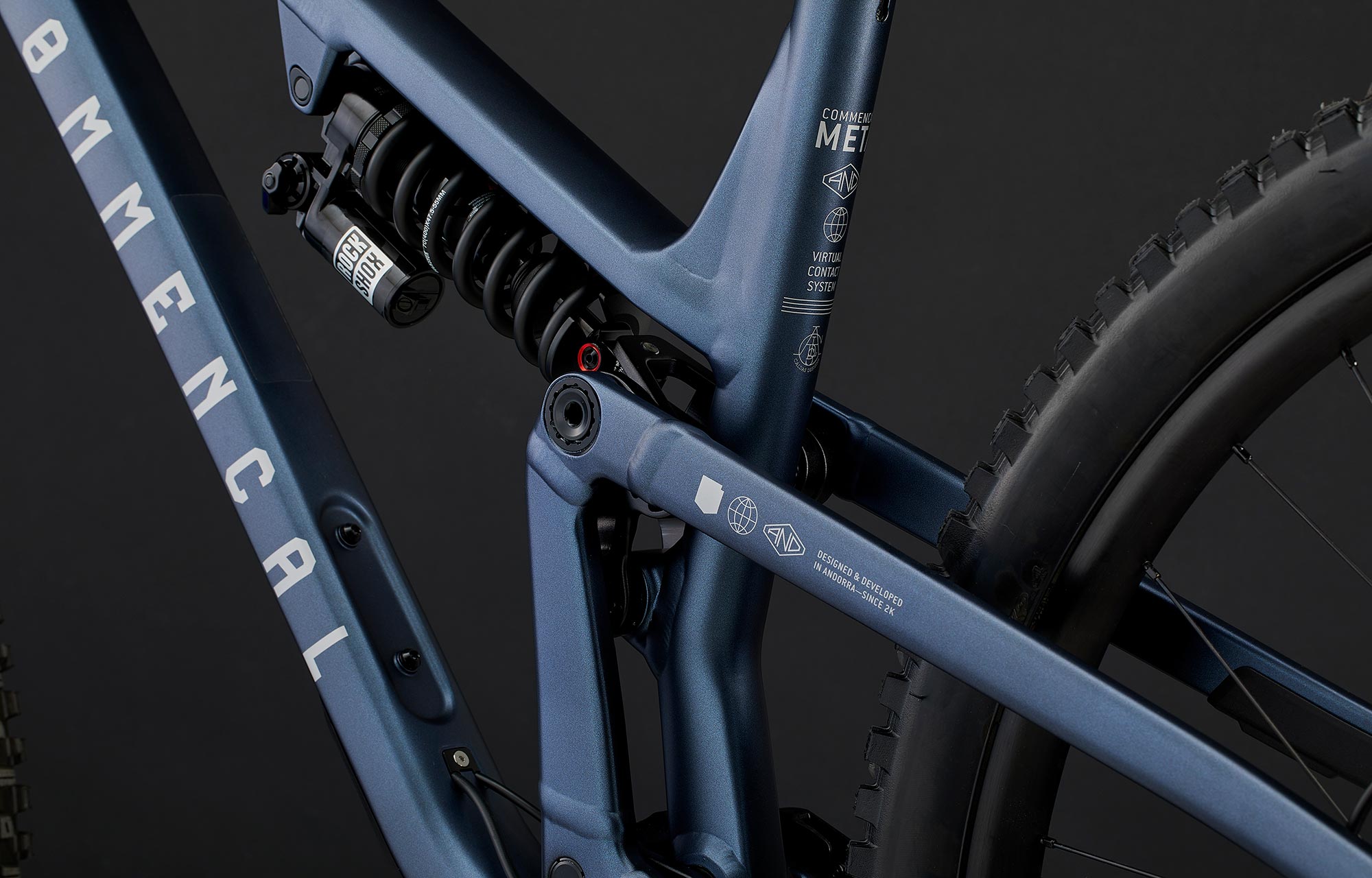

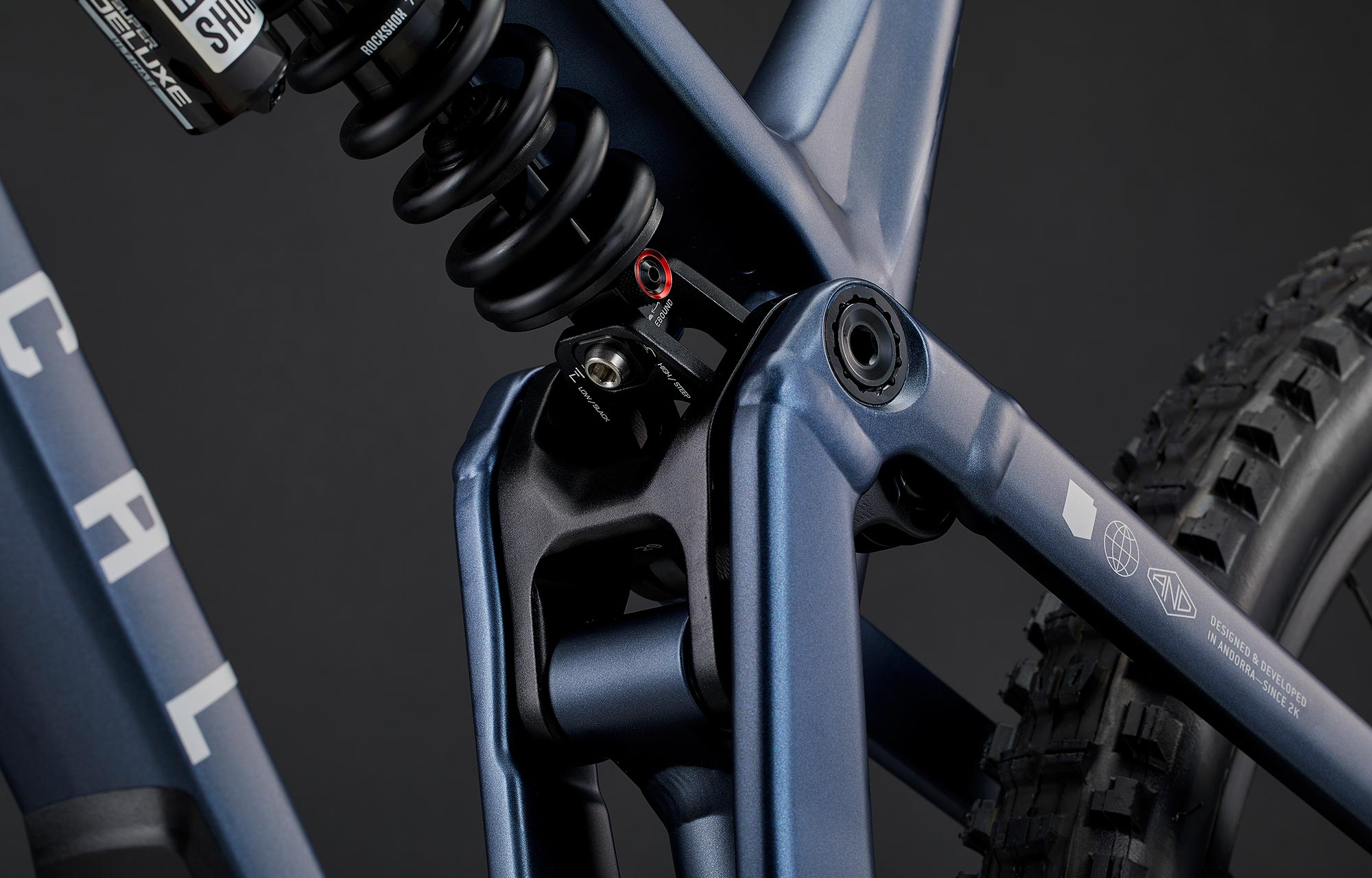

ROCKSHOX Super Deluxe Coil Ultimate
210 x 55 mm, RC2T Adj. Hydraulic Bottom Out, 2 position compression, HSC, LSC, rebound. Spring rates: 350lbs on S, 400lbs on M, 450lbs on L, 500lbs on XLFork

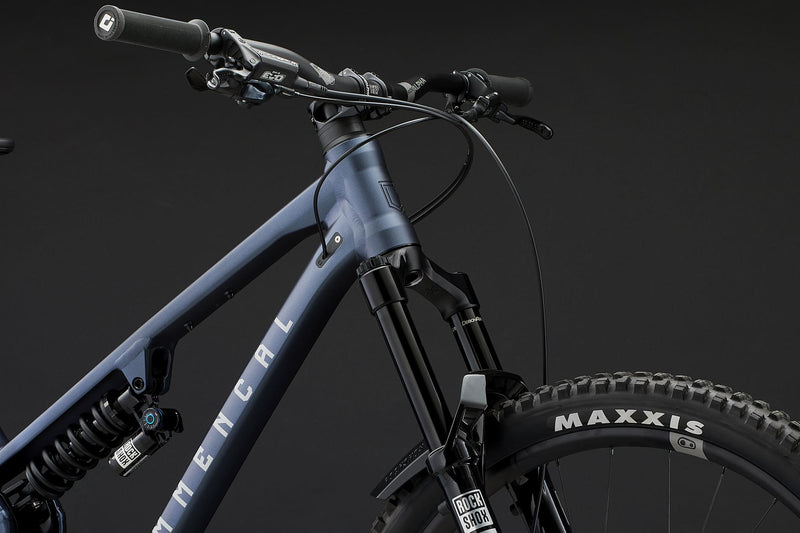

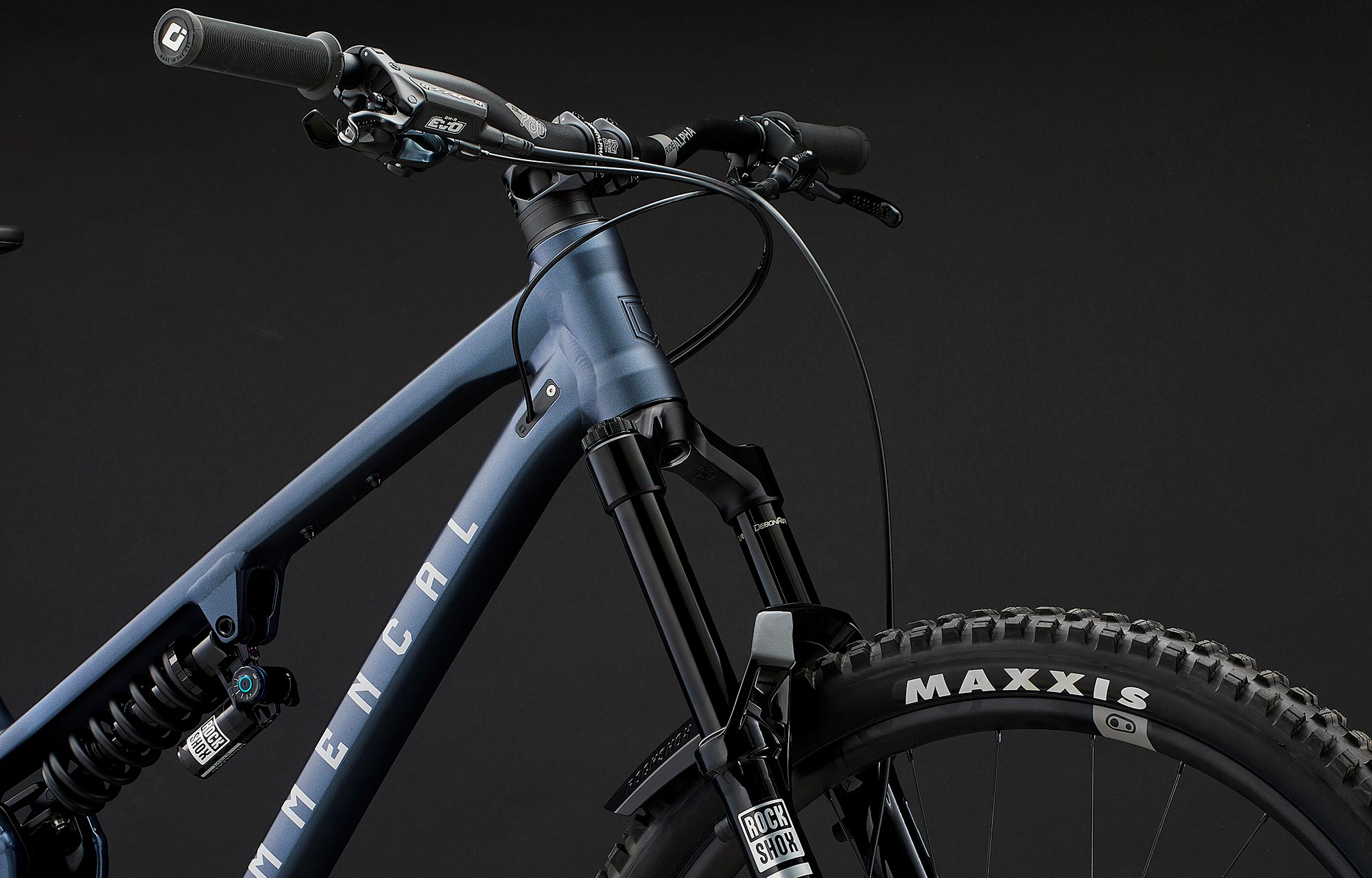

ROCKSHOX Lyrik Ultimate, 160 mm travel
29", Charger 3 RC2 W/ButterCups damper, DebonAir+ W/ButterCups, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset, 0 TokenHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem

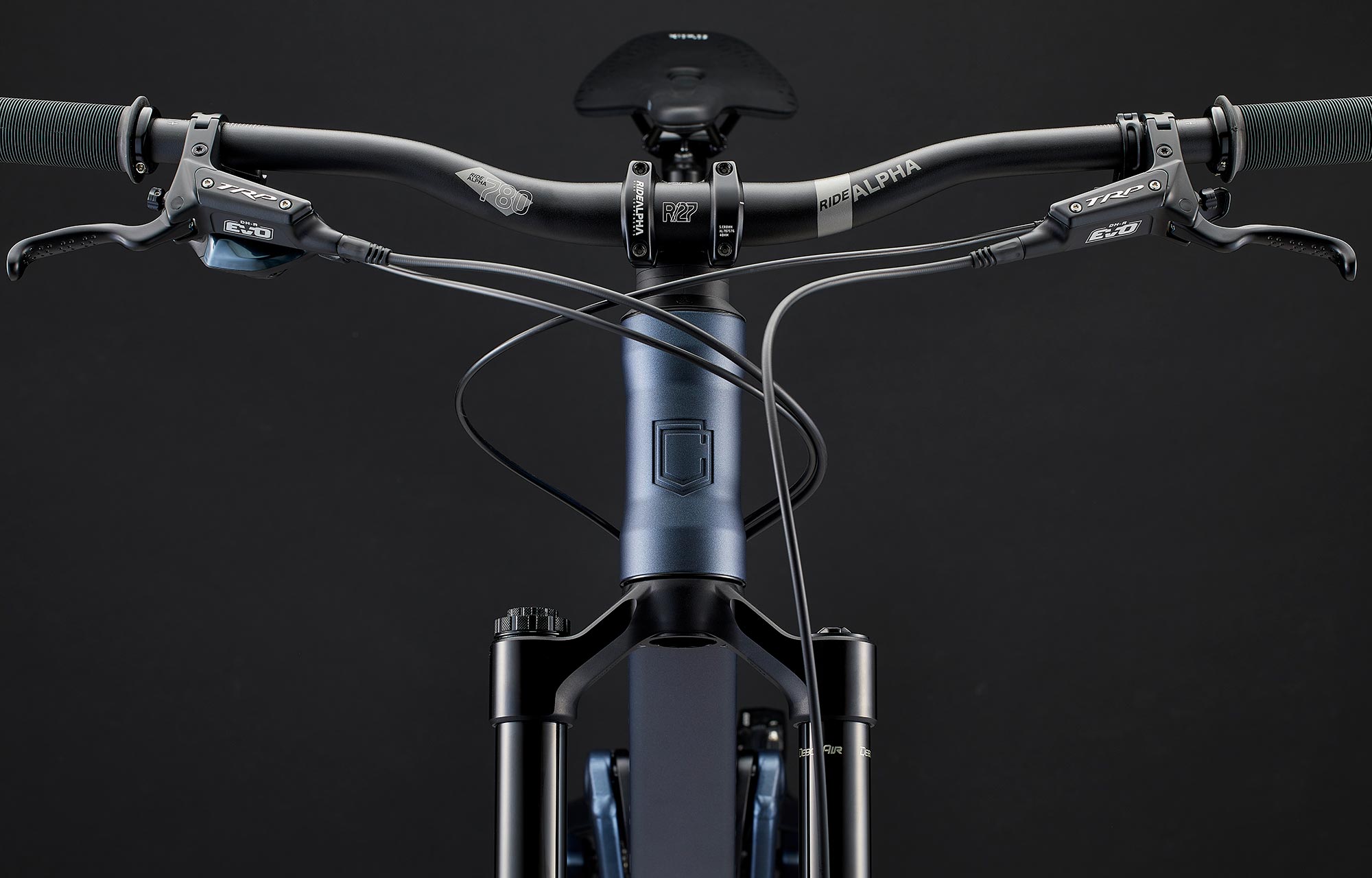

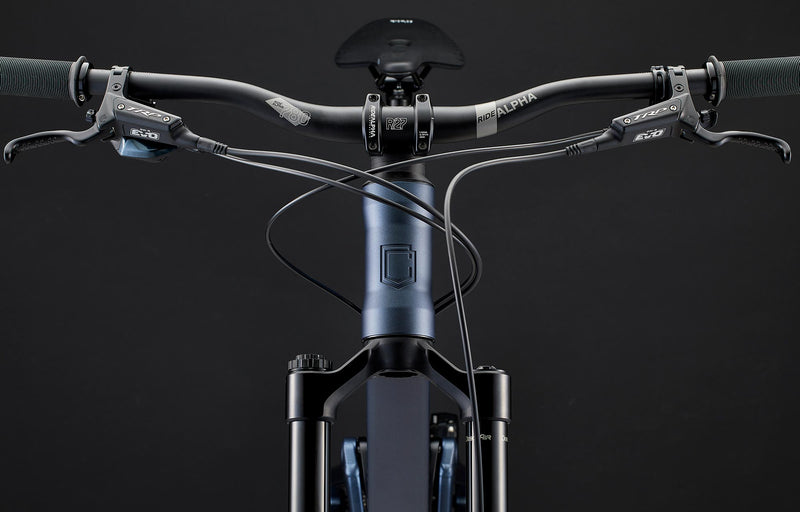

RIDE ALPHA 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
TRP DH-R EVO, 4 pistons, resin pads, Postmount
Rotors: SHIMANO SM-RT86 ICE TECH 203MMShifters

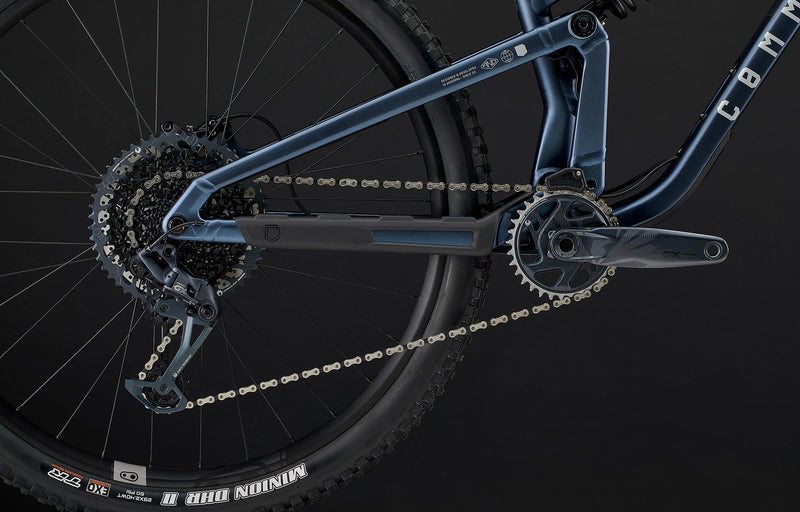

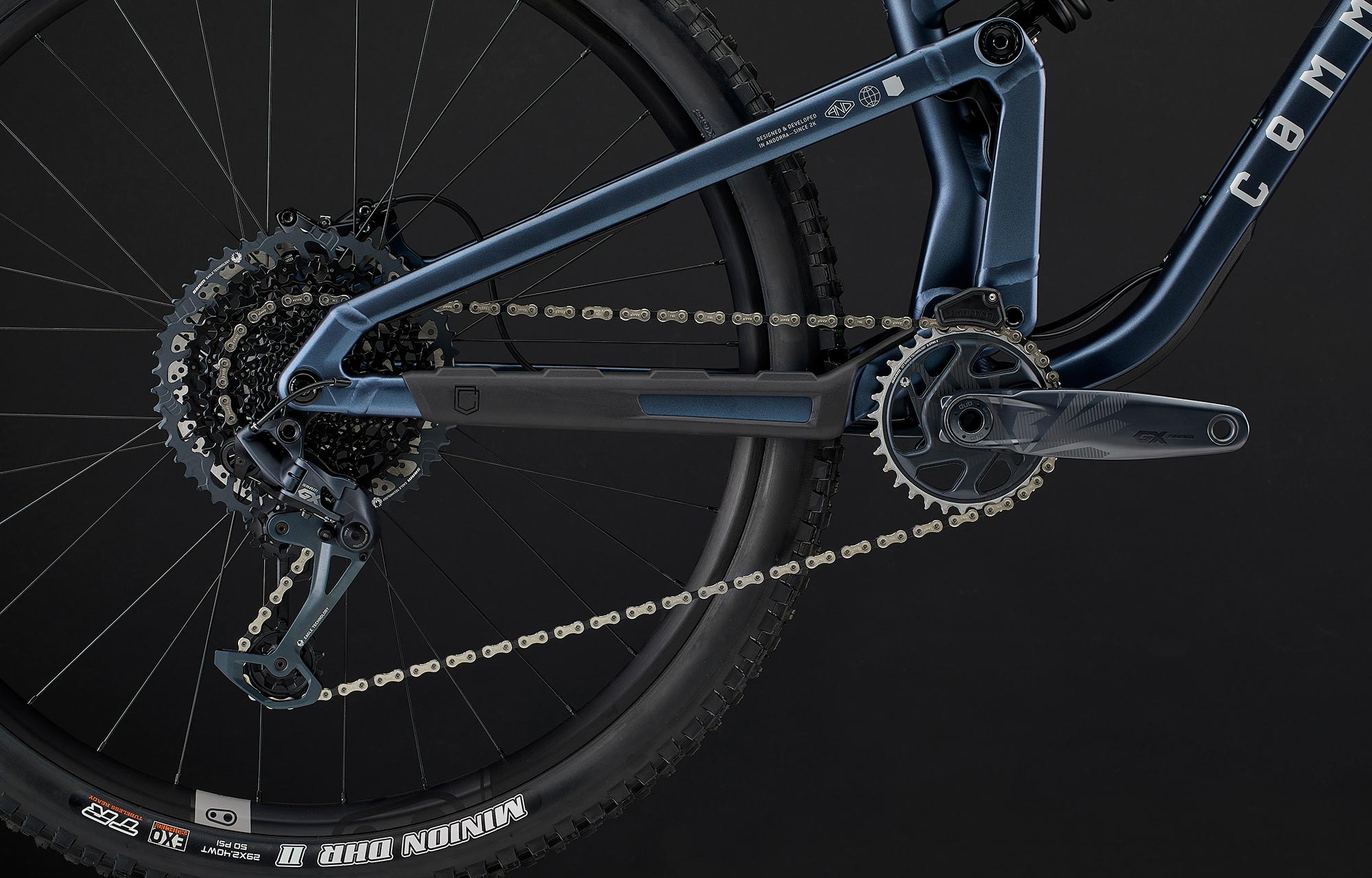

SRAM GX Eagle
12sChain guide
RIDE ALPHA
32t-34tREAR DERAILLEUR
SRAM GX Eagle
12sBottom bracket
SRAM DUB WIDE
PressfitCrankset
SRAM GX Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM Eagle, 32t, Narrow-WideChain
SRAM GX Eagle
12sCassette
SRAM XG-1275 Eagle
12s, 10-52tRims
CRANK BROTHERS Synthesis Alloy Enduro 3
Rear: 29'', 32h, 29.5 mm inner width - Front: 29'', 28h, 31.5 mm inner widthHubs
INDUSTRY NINE 1/1
Rear: 32h, sealed bearings, 12 x 148 mm, 4º, XD driver, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
Rear: SAPIM Race - Front: SAPIM D-Light
Rear: J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black - Front: J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 29"x2.40" WT, EXO, Dual, Tubeless Ready - Front: 29"x2.40" WT, EXO, 3C MaxxGrip, Tubeless ReadySeat post
KS Lev Integra
34.9 mm, travel: 125 mm on S, 175 mm on M/L and 200 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Ridon X5
145 mm width, S-Alloy railsWeight
15,7 kg / 34.61 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Sunset
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 29"
Frame material
AL 6066 T4, T6
Frame weight
3,25 kg / 7.16 lb, raw without accessories
Rear travel
150 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON SHAFT / 20 X 10 mm ON BODY
Recommended/max. fork height
571 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 753
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
55 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle
Frame
META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6Shock
ROCKSHOX Super Deluxe Coil Ultimate
210 x 55 mm, RC2T Adj. Hydraulic Bottom Out, 2 position compression, HSC, LSC, rebound. Spring rates: 350lbs on S, 400lbs on M, 450lbs on L, 500lbs on XLFork
ROCKSHOX Lyrik Ultimate, 160 mm travel
29", Charger 3 RC2 W/ButterCups damper, DebonAir+ W/ButterCups, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset, 0 TokenHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
TRP DH-R EVO, 4 pistons, resin pads, Postmount
Rotors: SHIMANO SM-RT86 ICE TECH 203MMShifters
SRAM GX Eagle
12sChain guide
RIDE ALPHA
32t-34tREAR DERAILLEUR
SRAM GX Eagle
12sBottom bracket
SRAM DUB WIDE
PressfitCrankset
SRAM GX Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM Eagle, 32t, Narrow-WideChain
SRAM GX Eagle
12sCassette
SRAM XG-1275 Eagle
12s, 10-52tRims
CRANK BROTHERS Synthesis Alloy Enduro 3
Rear: 29'', 32h, 29.5 mm inner width - Front: 29'', 28h, 31.5 mm inner widthHubs
INDUSTRY NINE 1/1
Rear: 32h, sealed bearings, 12 x 148 mm, 4º, XD driver, black - Front: 28h, sealed bearings, 15 x 110 mm, blackSpokes/nipples
Rear: SAPIM Race - Front: SAPIM D-Light
Rear: J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black - Front: J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 29"x2.40" WT, EXO, Dual, Tubeless Ready - Front: 29"x2.40" WT, EXO, 3C MaxxGrip, Tubeless ReadySeat post
KS Lev Integra
34.9 mm, travel: 125 mm on S, 175 mm on M/L and 200 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Ridon X5
145 mm width, S-Alloy railsWeight
15,7 kg / 34.61 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Sunset
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
ENDURO 29"
Frame material
AL 6066 T4, T6
Frame weight
3,25 kg / 7.16 lb, raw without accessories
Rear travel
150 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON SHAFT / 20 X 10 mm ON BODY
Recommended/max. fork height
571 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 753
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
55 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle
Built for serious mountain missions, the META V5 Race boasts a 150mm travel META frame paired with a plush RockShox Lyrik Ultimate fork and Super Deluxe Coil shock for supreme trail control. SRAM’s GX Eagle 12-speed drivetrain delivers flawless shifting, while TRP DH-R EVO brakes provide world-class stopping power. With CrankBrothers Enduro wheels, Maxxis DHR II tyres, and a KS dropper post, it’s a rock-solid setup from cockpit to cassette. Tough, tuned, and ready to ride—the META V5 doesn’t mess around.
Engineered for fast, fluid riding, the META V5’s tech spec is all about business. Its AL 6066 frame keeps things light at just 3.25kg raw, while 150mm of rear travel pairs with piggyback shock compatibility for serious trail capability. A 210 x 55mm shock setup, BB92 press-fit bottom bracket, and ISCG 05 tabs keep it dialled for aggressive riding. With 223mm rotor clearance and integrated cable routing through a ZS56 headset, this frame is clean, capable, and ready to rip 29” lines with confidence.
