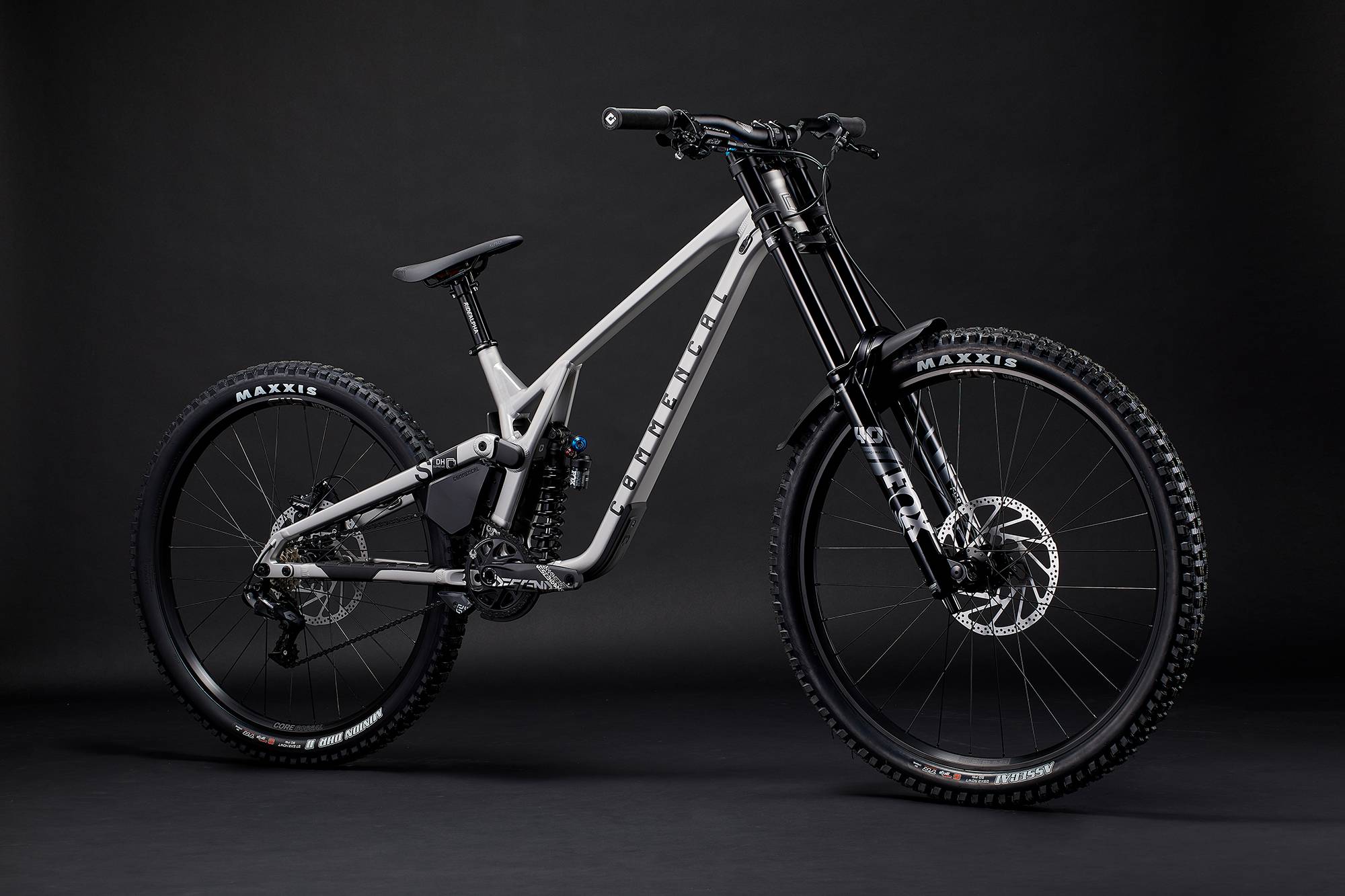

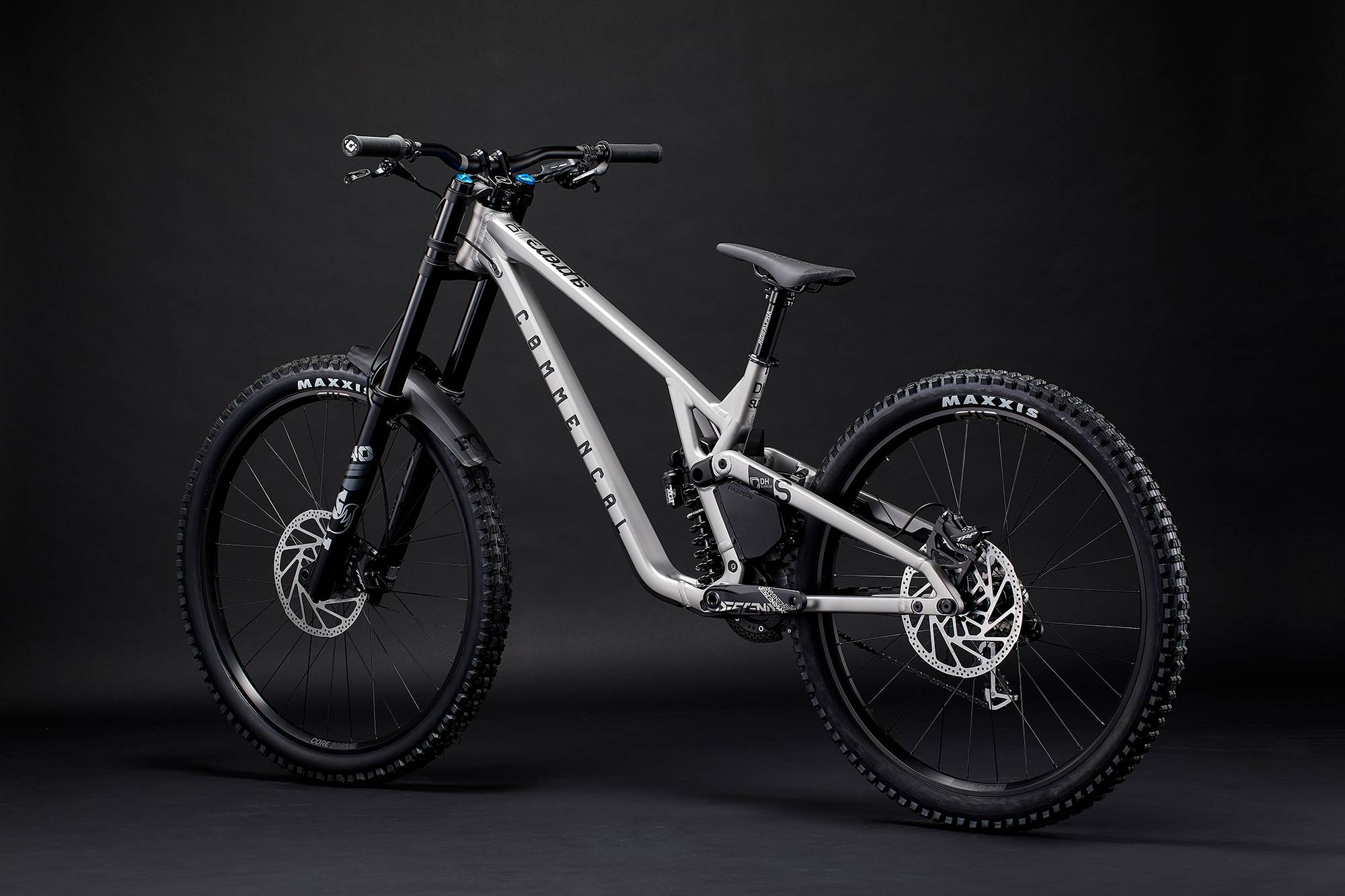

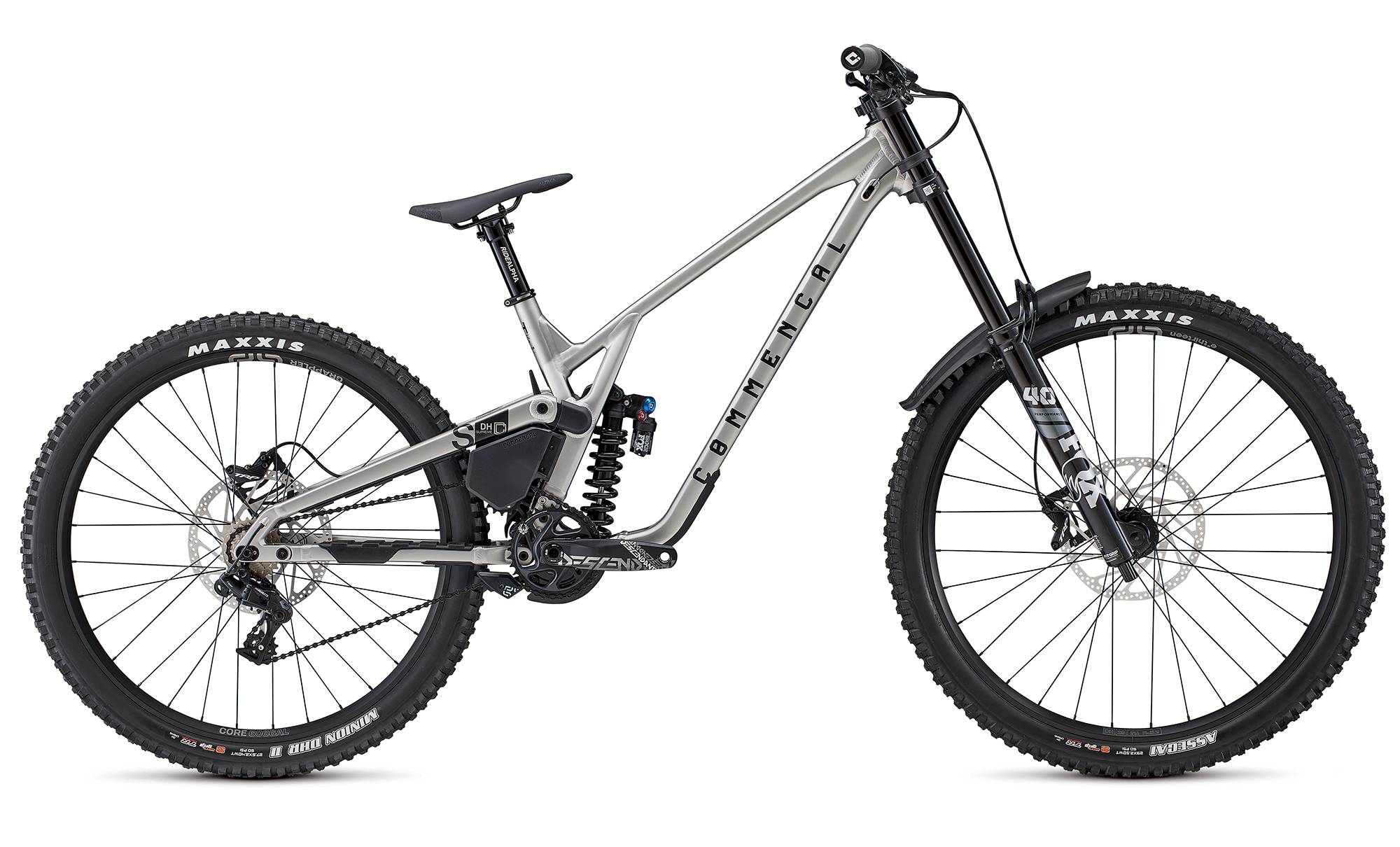

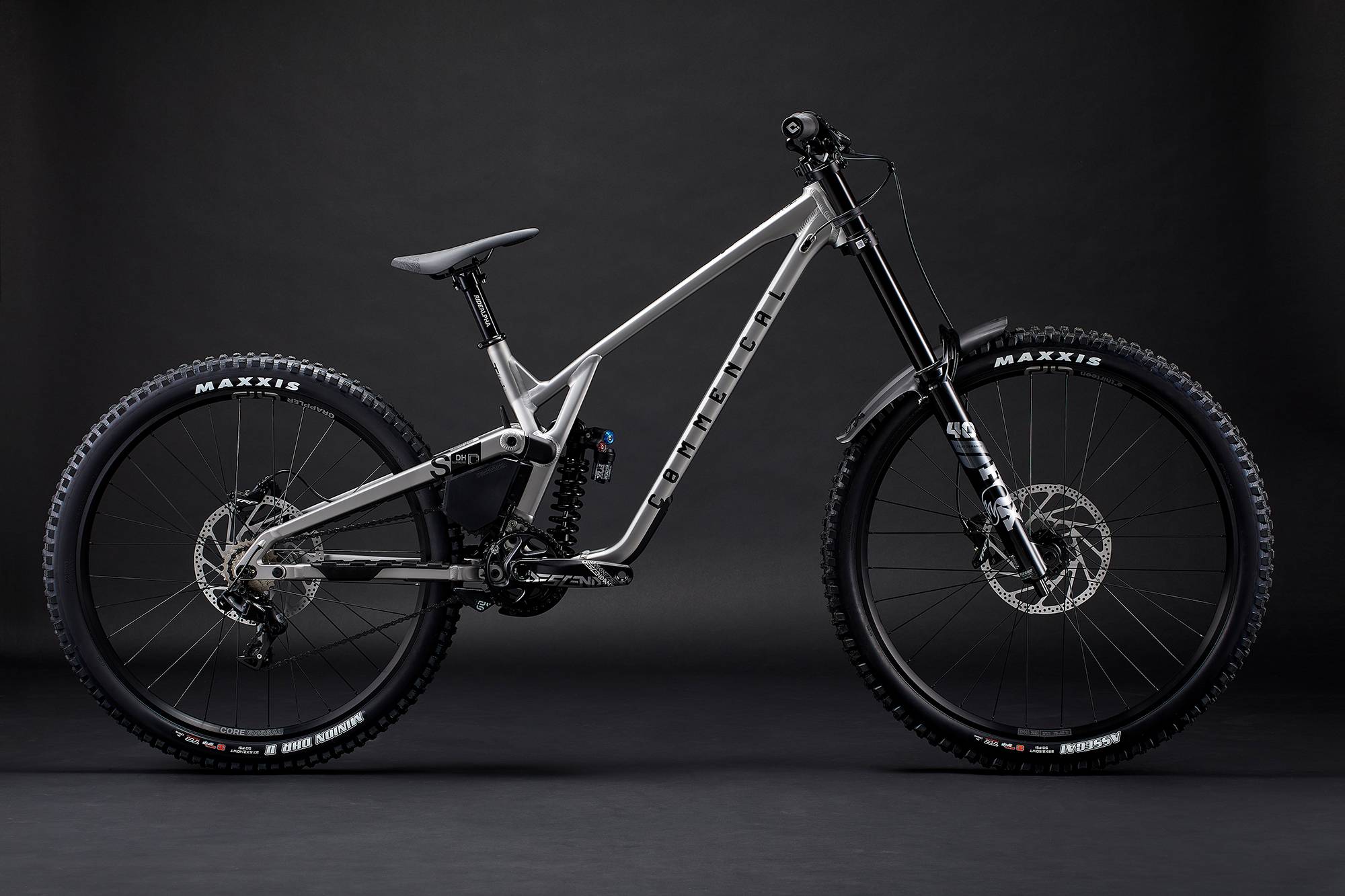

Commencal Supreme DH V5 Essential Silver Downhill Bike
Frame
SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL
27/29'', Alloy 6066, triple butted tubes, T4, T6Shock

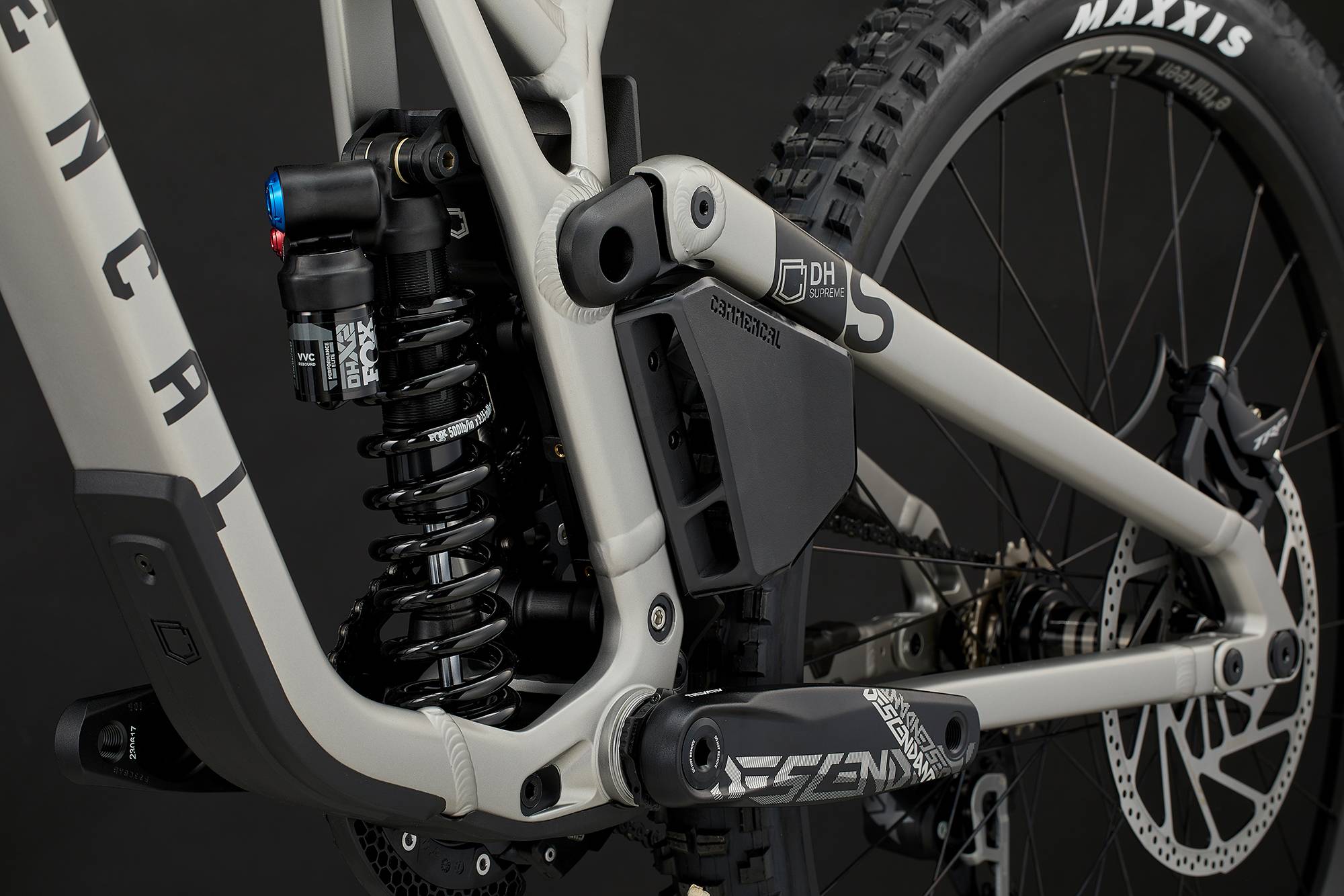

FOX DHX 2 Performance Elite
250 x 75 mm, LSC, LSR. Spring rates: 400 lbs on S, 450 lbs on M, 500 lbs on L, 500 lbs on XLFork

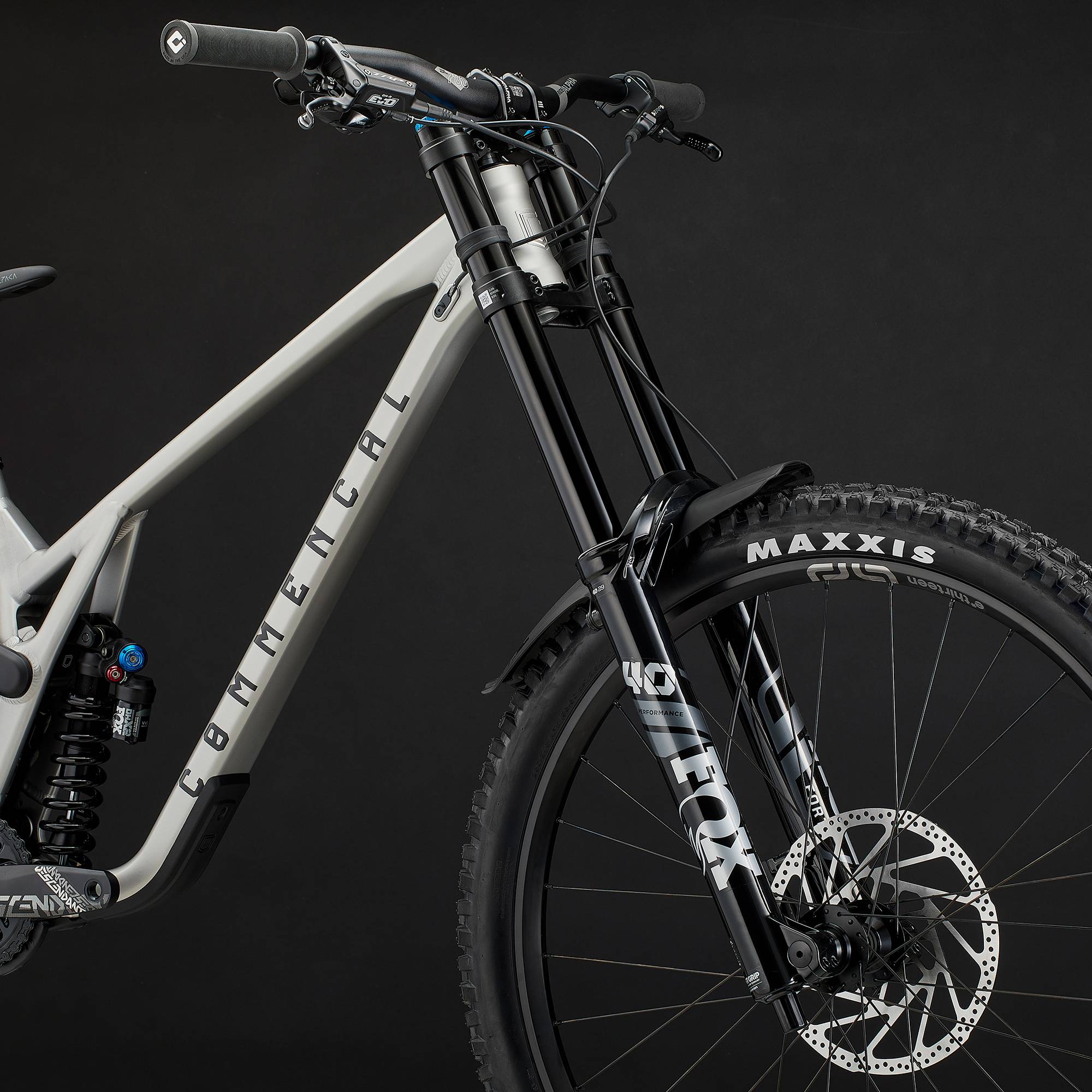

FOX 40 Performance, 203 mm travel
29", Grip damper, LSC, Float Evol. Boost (20 x 110 mm), 52 mm offset, 2 spacersHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem

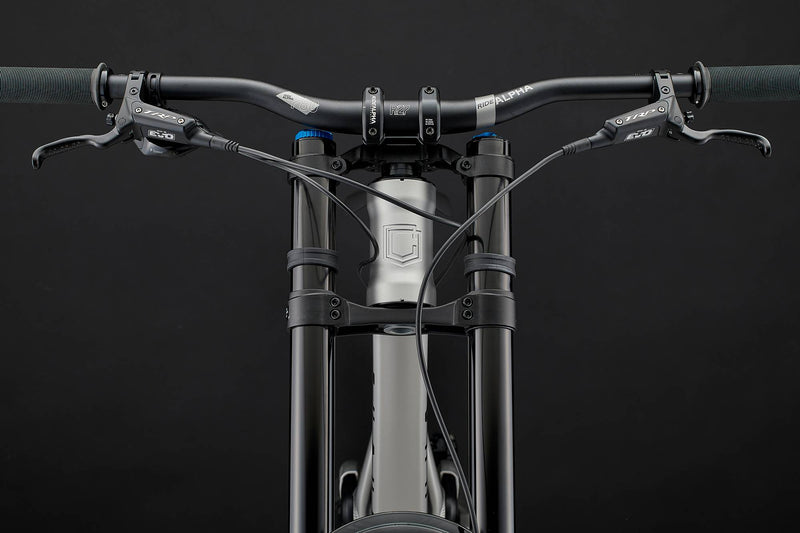

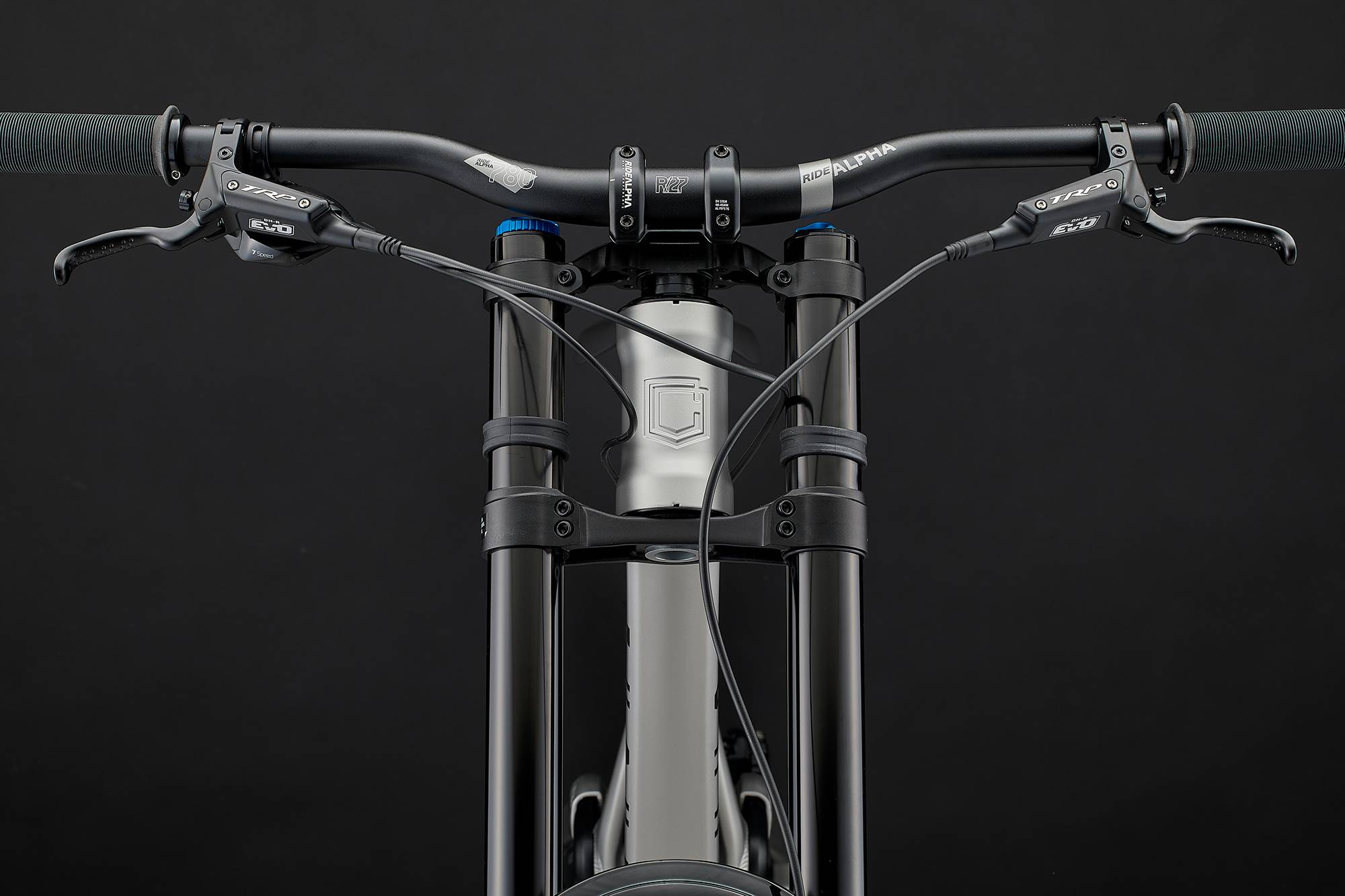

RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft pro compound, single clamp, blackBrakes

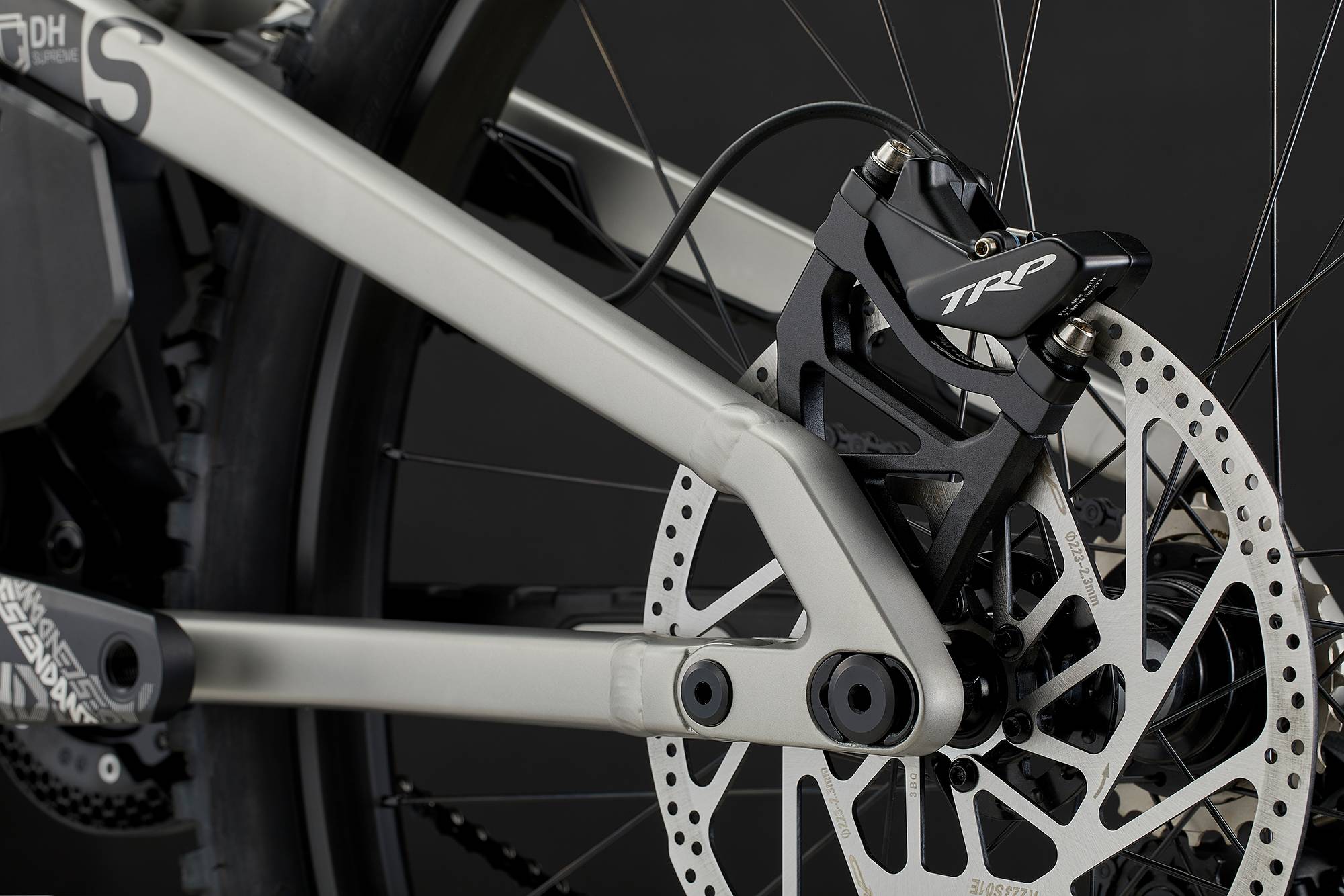

TRP DH-R Evo, 4 pistons, resin pads
Rotors: TRP R1 223 mm, 6-bolt, 2.3 mm widthShifters
SRAM GX DH
7 spChain guide
E13 LG1 + Bottom Guide
32-34tREAR DERAILLEUR

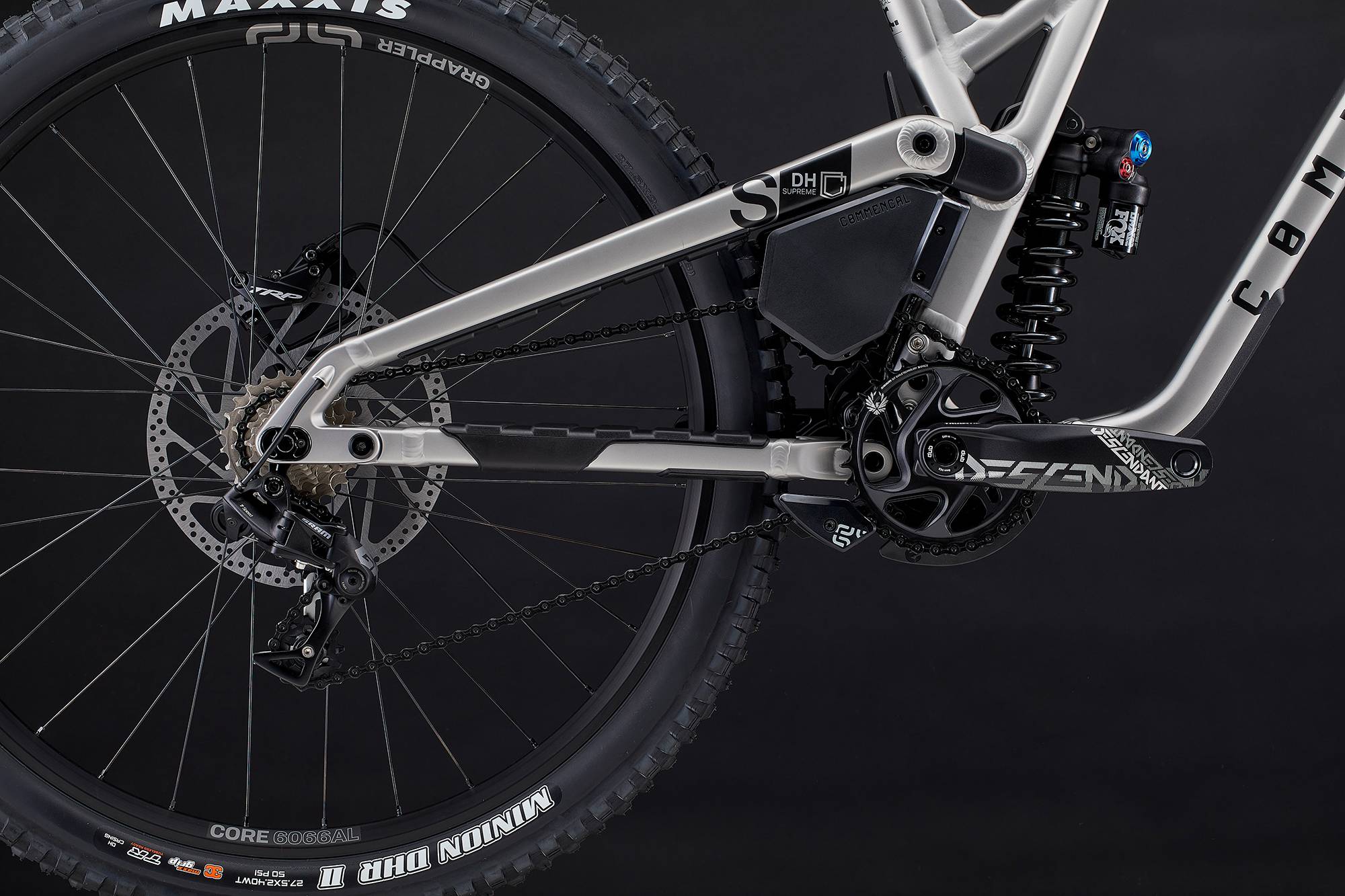

SRAM GX DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34tChain
KMC X11EL
BlackCassette
E13 DH 7 Speed Integrated Cassette
7 sp, 9-24tRims
E13 Grappler Core Alloy DH
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: E13 LG1 Plus DH - Front: E13 LG1 Plus DH
Rear : E13 Grappler Core Alloy DH - Front : E13 Grappler Core Alloy DHTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5'' x 2.4'', WT, 3C MaxxGrip, DH casing, Tubeless Ready - Front: 29" x 2.5" WT, 3C MaxxGrip, DH casing, Tubeless ReadySeat post
RIDE ALPHA Super Light
31.6 mm, 250 mm, Alloy 7075Saddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
17,5 kg / 38,58 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Silver
Matte FinishAccessories
Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard, Fox 40 specific fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Chain Line
157 x 12 mm
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)Wheel Base Length
Centered (Available as an option: Flip Flop +/-6mm)Bridge
XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)


Frame
SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL
27/29'', Alloy 6066, triple butted tubes, T4, T6Shock
FOX DHX 2 Performance Elite
250 x 75 mm, LSC, LSR. Spring rates: 400 lbs on S, 450 lbs on M, 500 lbs on L, 500 lbs on XLFork
FOX 40 Performance, 203 mm travel
29", Grip damper, LSC, Float Evol. Boost (20 x 110 mm), 52 mm offset, 2 spacersHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft pro compound, single clamp, blackBrakes
TRP DH-R Evo, 4 pistons, resin pads
Rotors: TRP R1 223 mm, 6-bolt, 2.3 mm widthShifters
SRAM GX DH
7 spChain guide
E13 LG1 + Bottom Guide
32-34tREAR DERAILLEUR
SRAM GX DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34tChain
KMC X11EL
BlackCassette
E13 DH 7 Speed Integrated Cassette
7 sp, 9-24tRims
E13 Grappler Core Alloy DH
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: E13 LG1 Plus DH - Front: E13 LG1 Plus DH
Rear : E13 Grappler Core Alloy DH - Front : E13 Grappler Core Alloy DHTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5'' x 2.4'', WT, 3C MaxxGrip, DH casing, Tubeless Ready - Front: 29" x 2.5" WT, 3C MaxxGrip, DH casing, Tubeless ReadySeat post
RIDE ALPHA Super Light
31.6 mm, 250 mm, Alloy 7075Saddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
17,5 kg / 38,58 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Silver
Matte FinishAccessories
Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard, Fox 40 specific fender
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Chain Line
157 x 12 mm
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)Wheel Base Length
Centered (Available as an option: Flip Flop +/-6mm)Bridge
XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)



Built for serious downhill domination, the SUPREME DH V5 ESSENTIAL pairs a triple-butted Alloy 6066 frame with 220mm of rear travel and a FOX 40 Performance fork up front. It’s fully kitted with SRAM GX DH drivetrain, TRP 4-piston brakes, and E13 Grappler Core alloy wheels wrapped in MAXXIS rubber. From the RIDE ALPHA cockpit to the DHX2 Performance Elite shock, every spec screams precision and durability. At 17.5kg, it’s a silver-clad missile ready to launch.
Crafted from AL 6066 T4/T6 alloy and tipping the scales at 5.4kg (with protections), this DH race frame is built to take a beating and come back for more. With 220mm of rear travel, 250x75mm shock compatibility, and a flip chip setup for geometry tweaks, it’s a precision-tuned monster. The frame fits 65mm tyres, 223mm rear rotors, and boasts options for wheelbase adjustment and bridge thickness—because one size never fits all in the Republic.
